Assembly Instructions

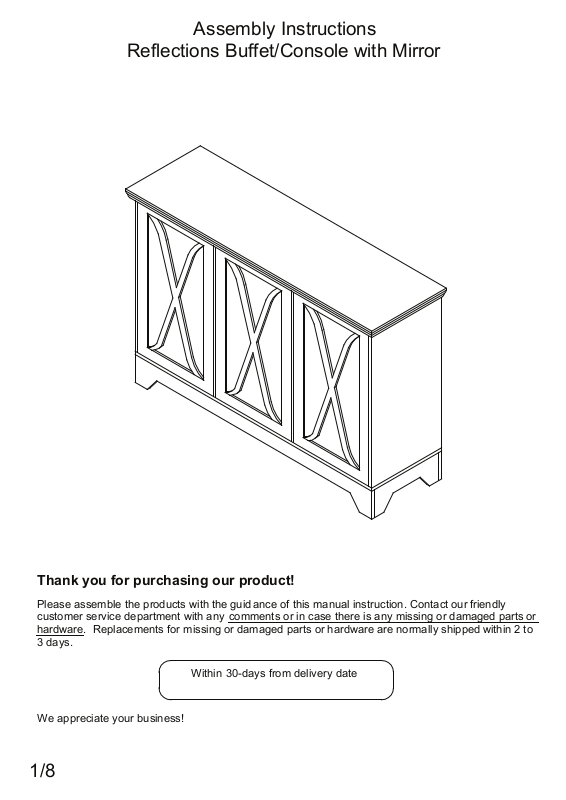

Reflections Buffet/Console with Mirror
Thank you for purchasing our product!
Please assemble the products with the guid ance of this manual instruction. Contact our friendly
customer service department with any comments or in case there is any missing or damaged parts or
hardware. Replacements for missing or damaged parts or hardware are no
3 days.
Within 30-days from delivery date
We appreciate your business!
rmally shipped within 2 to
1/8
Hardware List
ITEM PART
DESCRIPTION
Cam Bolt
A
B
Camlock
Wooden Dowel
C
Magnetic Catch
D
Screw
E
Magnetic Bar
F
6X35mm
15X12mm
6X30mm
2.5X10mm
QTY
30 pcs
30 pcs
24 pcs
3 pcs
40 pcs
6 pcs
Part List
ITEM
G
H
I
J
K
L
DESCRIPTION
Screw
3X10mm
Reflective Device
Screw
3.5X16mm
Door Hinge
Screw
4X14mm
Supporter
PART QTY
6 pcs
3 pcs
6 pcs
6 pcs
24 pcs
12 pcs
ITEM PART
DESCRIPTION
Bottom Front Rail
1
1272X130X15mm
Bottom Back Rail
2
1272X130X15mm
3
4
Bottom Side Rail
344X130X15mm
Bottom Panel
1274X375X15mm
QTY
1 pc
1 pc
2 pcs
1 pc
ITEM
10
DESCRIPTION
Right Middle Panel
7
724X370X15mm
Top Panel
8
1321X400X30mm
9
Side Back Panel
741X418X3mm
Middle Back Panel
741X418X3mm
PART QTY
1 pc
1 pc
2 pcs
1 pc
Side Panel
5
724X374X15mm
Left Middle Panel
6
724X370X15mm
2/8
2 pcs
1 pc
11
12
Door
720X400X18mm
Adjustable Shelf
401X350X12mm
3 pcs
3 pcs
Made in China
STEP 1
A
3
4 pcs
4 pcs
4 pcs
A
B
C
2
1
1
3
2
1. Attach cam bolt (A) to bottom front rail (1) and bottom back rail (2).
2. Insert wooden dowel (B) to bottom side rail (3).
3. Attach bottom front rail (1) and bottom back rail (2) to bottom side rail (3).
4. Insert camlock (C), then rotate clockwise to secure cam bolt in place.
STEP 2
A
A
4
1. Attach cam bolt (A) to bottom panel (4).
B
4
C
10 pcs
10 pcs
4 pcs
2. Insert wooden dowel to the part from step 1.
3. Attach the assembled unit from step 1 to bottom panel (4) as shown.
4. Insert camlock (C), then rotate clockwise to secure cam bolt in place.
3/8
STEP 3
E
D
3 pcs
6 pcs
E
D
6
1. Attach magnetic catch (D) to left middle panel (6) and right middle panel (7) using
screw (E) as shown.
STEP 4
5
7
D
E
8 pcs
8 pcs
groove line
A
B
C
7
6
5
8 pcs
1. Attach cam bolt (A) to bottom base from step 2.
2. Insert wooden dowel to side panel (5) and middle panel (6).
3. Attach side panel (5), left middle panel (6) and right middle panel (7) to bottom
base as shown.
4. Insert camlock (C), then rotate clockwise to secure cam bolt in pl
ace.
4/8
STEP 5
3 pcs
Push
H H
1. Remove reflective device (H
STEP 6
1
) from (H2) as shown.
I
1
H
2
3 pcs
3 pcs
6 pcs
8 pcs
A
8
I
H
2
H
H
1
2
2
H
8
1. Attach cam bolt (A) to top panel (8).
2. Attach reflective device (H
3. Insert reflective device (H
) to top panel (8) as shown.
2
1
) to (H2) and press the end of reflective device (H1) as
shown.
5/8
STEP 7
8 pcs
8 pcs
1. Insert wooden dowel to side
panel (5) and middle panel (6,7).
2. Attach top panel (8) to the
assembled unit from step 4.
B
8
C
3. Insert camlock (C), then rotate
clockwise to secure cam bolt
in place.
STEP 8
34 pcs
E
9
10
9
1. Rotate the assembled unit. Attach side
back panel (9) and middle back panel
(10) to the assembled unit from step 7
using screw (E).
6/8
STEP 9
6 pcs
12 pcs
J
K
G
F
11
1. Attach magnetic bar (F) to door (11) using screw (G).
2. Attach door hinge (K) to door (11) using screw (J).
STEP 10
X 3
6 pcs
6 pcs
12 pcs
If necessary,
hinges are adjustable
J
11
11
11
1. Attach door (11) to the assembled unit using screw (J).
2. If necessary, please adjust the gap for the door by adjusting the screws on the
hinge as shown.
7/8
STEP 11
12 pcs
12
L
12
12
1. Insert metal supporter (L) into your desired height level then place adjustable
shelf (12) on it.
STEP 12
Push to open
or close
1. Please push the corner of the door to open
or close it.
8/8
