WARRANTY
We strive to offer high-quality products, and we also try our
best to satisfy each and every customer that orders from us with
product or service as needed. We provide 30 days warranty
starting from the time you receive the item. Each customer must
provide a record of their order such as the order number, or
item receipt for any items that are out of the warranty period
you may also still receive replacement parts by purchasing them
with our company if they are available.
Are you having difficulty
with assembly? Missing par
ts?
PLEASE DON’T RETURN THE ITEM TO
RETAILER
For help call or email with your order No.
Customer service:
888-214-6610
Open Monday through Friday
9:00AM-5:00PM CST
Email:
customerservice@hulalahome.com
24h
ITEM NO. NSLS0372
NOTE:
This brochure contains IMPORTANT safty info. Please read
and keep for future reference.
MAINTAINANCE
PARTS
AND WARNING
Keep furniture away from heat.
Do not clean furniture with harsh cleansers or
polish. Do not use detergents, Solvents,
abrasives, spray packs or leather cleaner. Use
non-color mild soap with warm water clean
spills(Mix 1:10 soap to water)
Do not place furniture under direct sunlight,
material will possibly fade over time.
Do not use on site dry Cleaning machine.
Children should not climb or jump on the
furniture.
Do not write on furniture without a padded
barrier to protect the surface.
Not for commercial use, For residential use
only.
LIST
A: X1
E: X1
I: X3 J: X3
B: X1
F: X1
G: X1
K: X3
D: X1C: X1
H: X3
L: X3
Weight Limitation
110LBS
M: X4

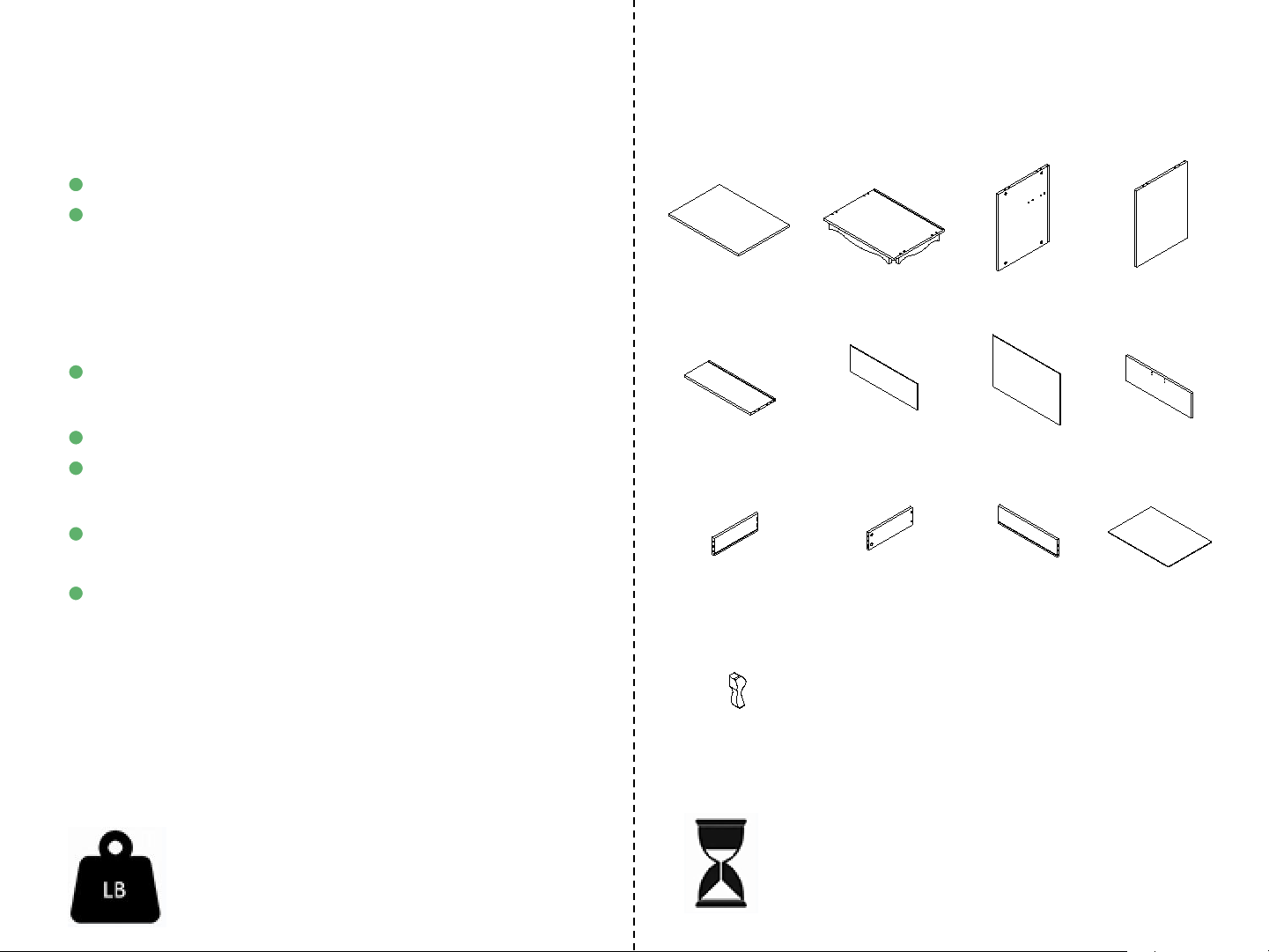

Estimated Duration Of Assembly
45-60 MINUTES
①
I
L
H
K
J
C
A
F
E
G
D
B
M
Explosive View
M
M
HARDWARE
LIST
ASSEMBLY
INSTRUCTIONS
C&D
②
-1
②- 2
①: X3
⑥: X24
⑪: X4
⑦: X24
⑫: X1
③: X36②: X3
⑧: X30 ⑨: X4 ⑩: X4
⑬: X1
④: X12 ⑤: X24
⑭: X1
SPARE
③: X1
⑧: X1 ⑨: X1 ⑩: X1
Be sure to check all packing material carefully for
small parts, which may have come loose inside the
carton during shipment.
④: X1 ⑤: X1
⑥: X1
⑪: X1
⑦: X1
C&D
-1
②
③

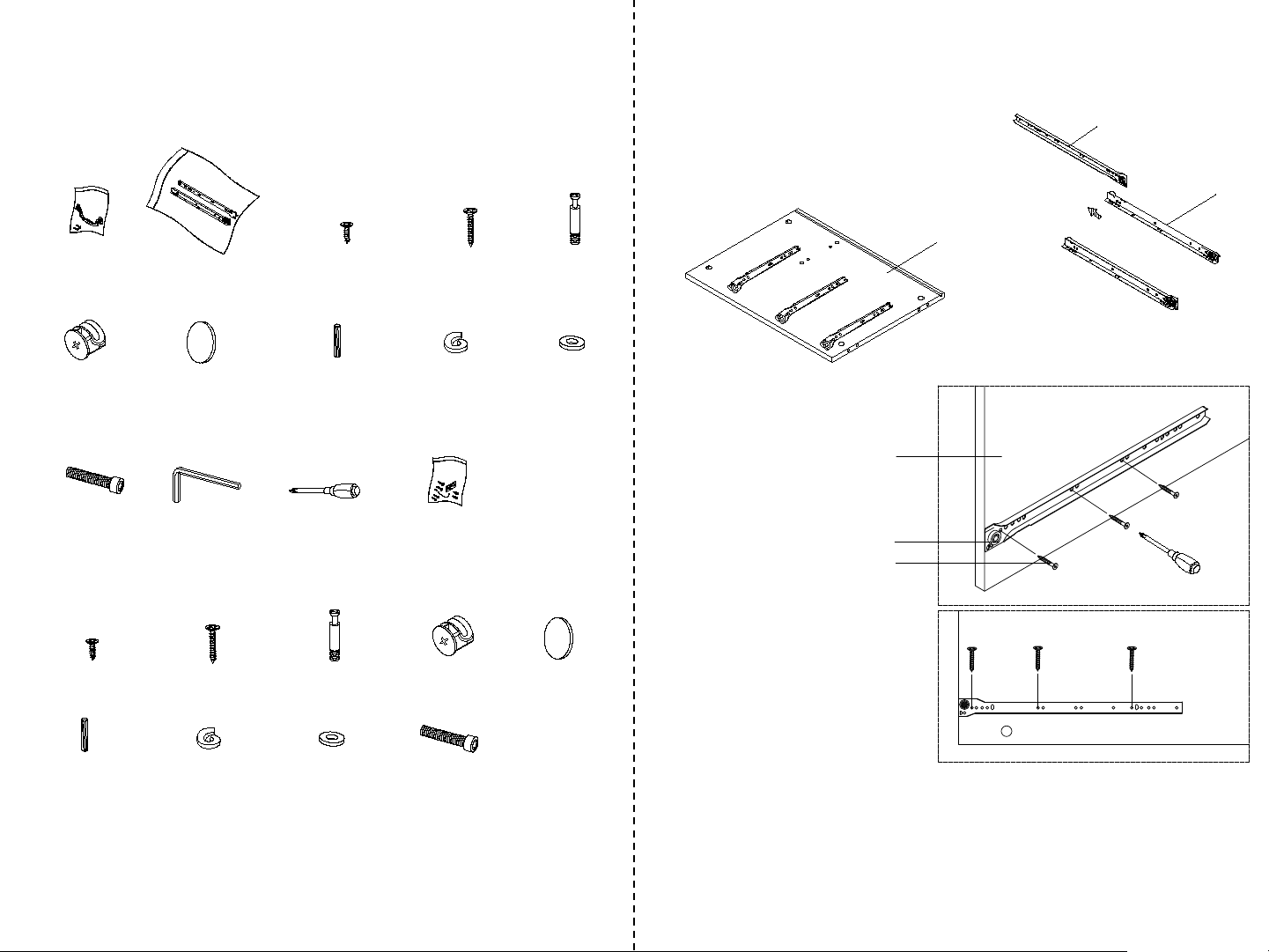

STEP 1: Place end panel C &D on clean padded
surface, use philips head screwdriver #13 and screw
#3 to attach female drawer slides #2 to inside of the
end panel C &D, make sure screws align with
predrilled holes on end panels then fasten to secure
the slides.
⑬
⑥
⑬
⑦
⑤
⑬
⑧
C&D
⑤
⑤
⑥
⑦
⑧
⑧
E
C
D
⑬
E

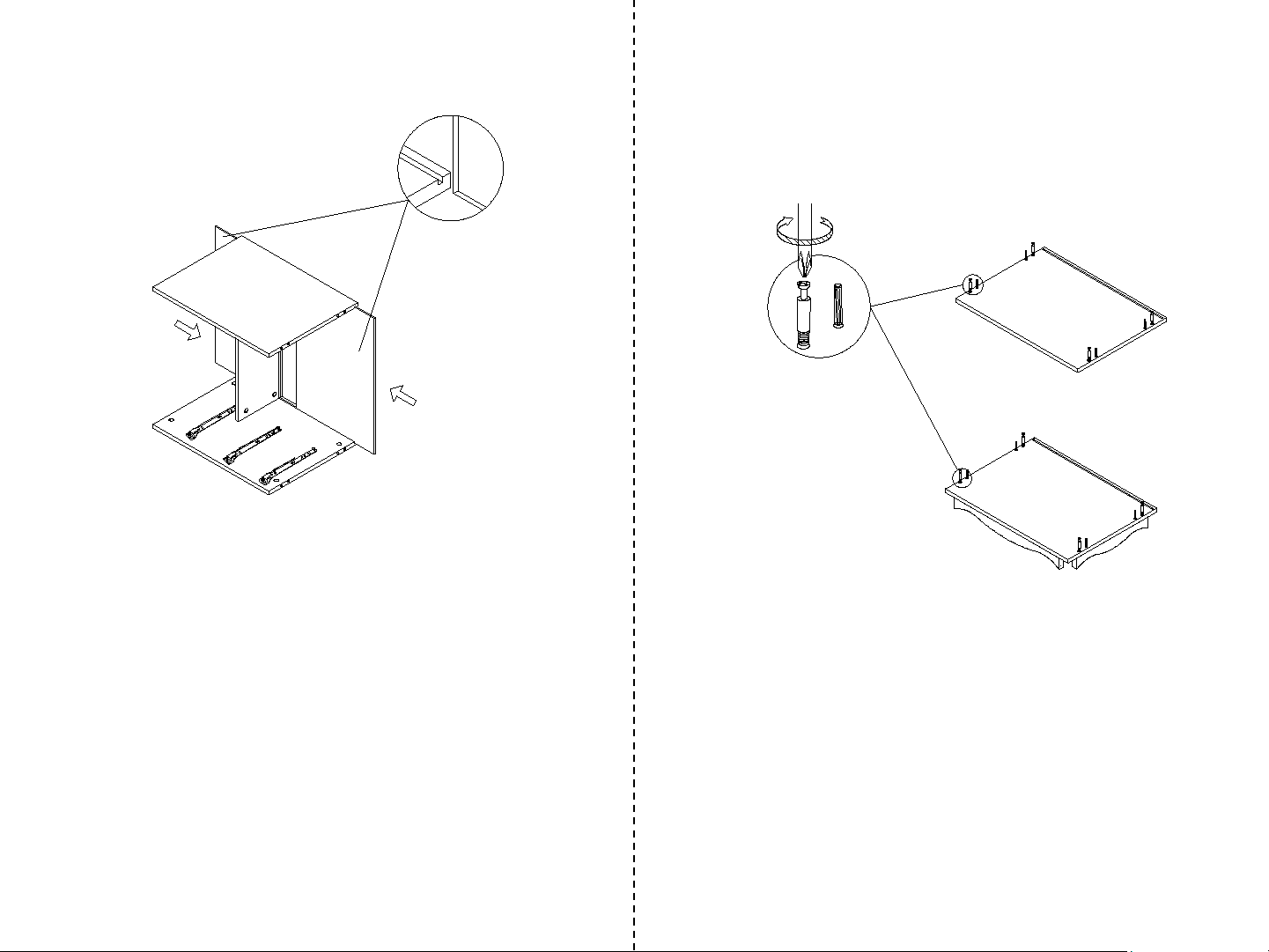

STEP 2: Use philips head screwdriver #13 to fasten
cam bolt #5 to preattached inserts and insert wood
dowel #8 to predrilled dowel holes on inside of end
panel C & D .
C
STEP 3: Insert cam bolt #5 and wood dowel #8
through end holes of fixed shelf E, use philips head
screwdriver #13 to fasten cam nut #6 to secure the
shelf E and use sticker #7 to cover the cam nut .
C
G
⑬
D
F
E
G
C

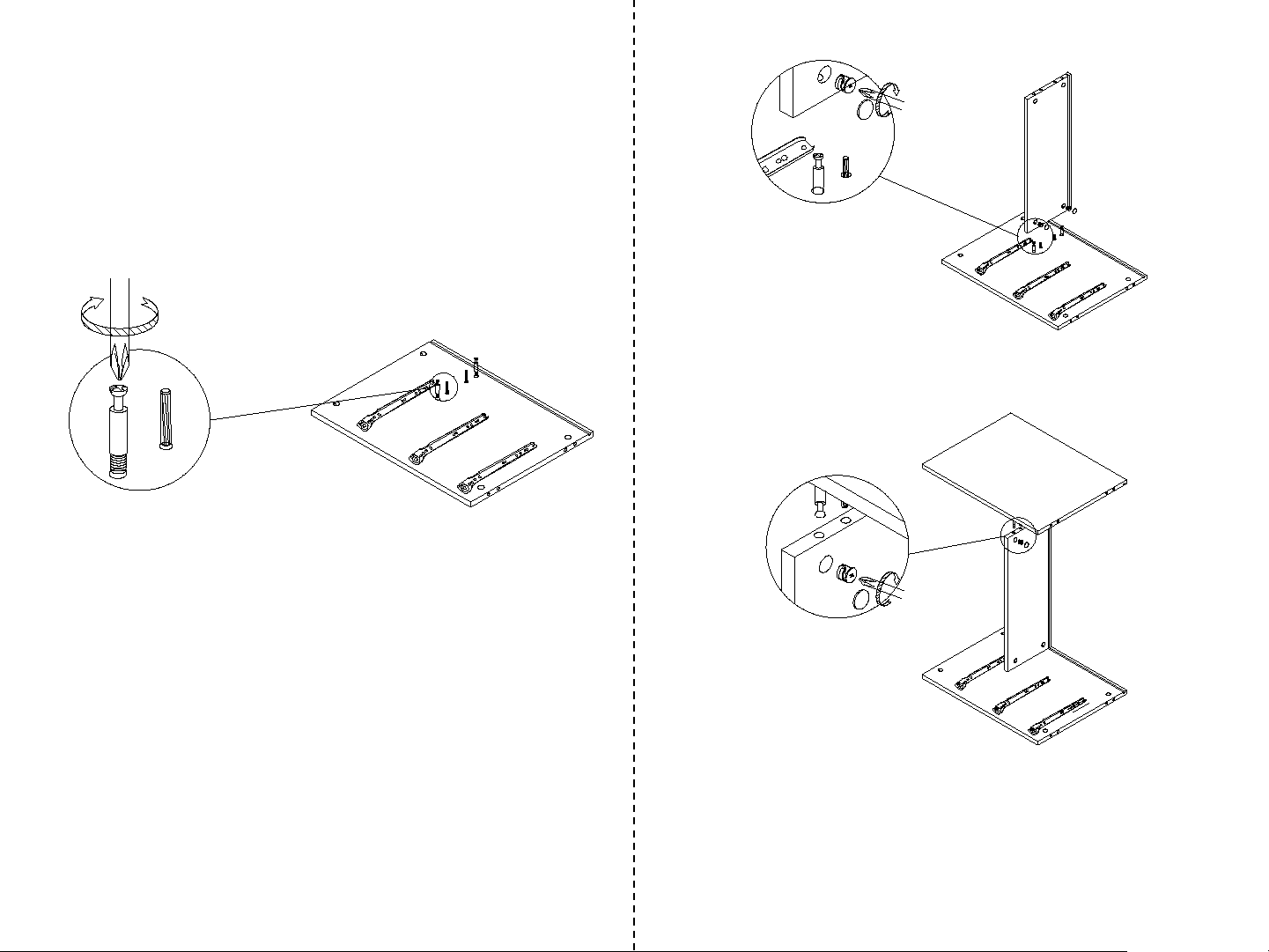

STEP 4: Insert upper/lower back panel F/G through rear
groove on end panel C & D, make sure the back panel set
all the way into rear groove of fixed shelf E.
⑧
⑤
A
&
B
STEP 5: Use philips head screwdriver #13 to fasten cam
bolt #5 to preattached inserts and insert wood dowel #8
to predrilled dowel holes on top panel A and bottom
panel B.
D
M
⑤
⑧
⑬
⑦
⑥
A
C
E
B
⑩
⑨
⑪
⑫

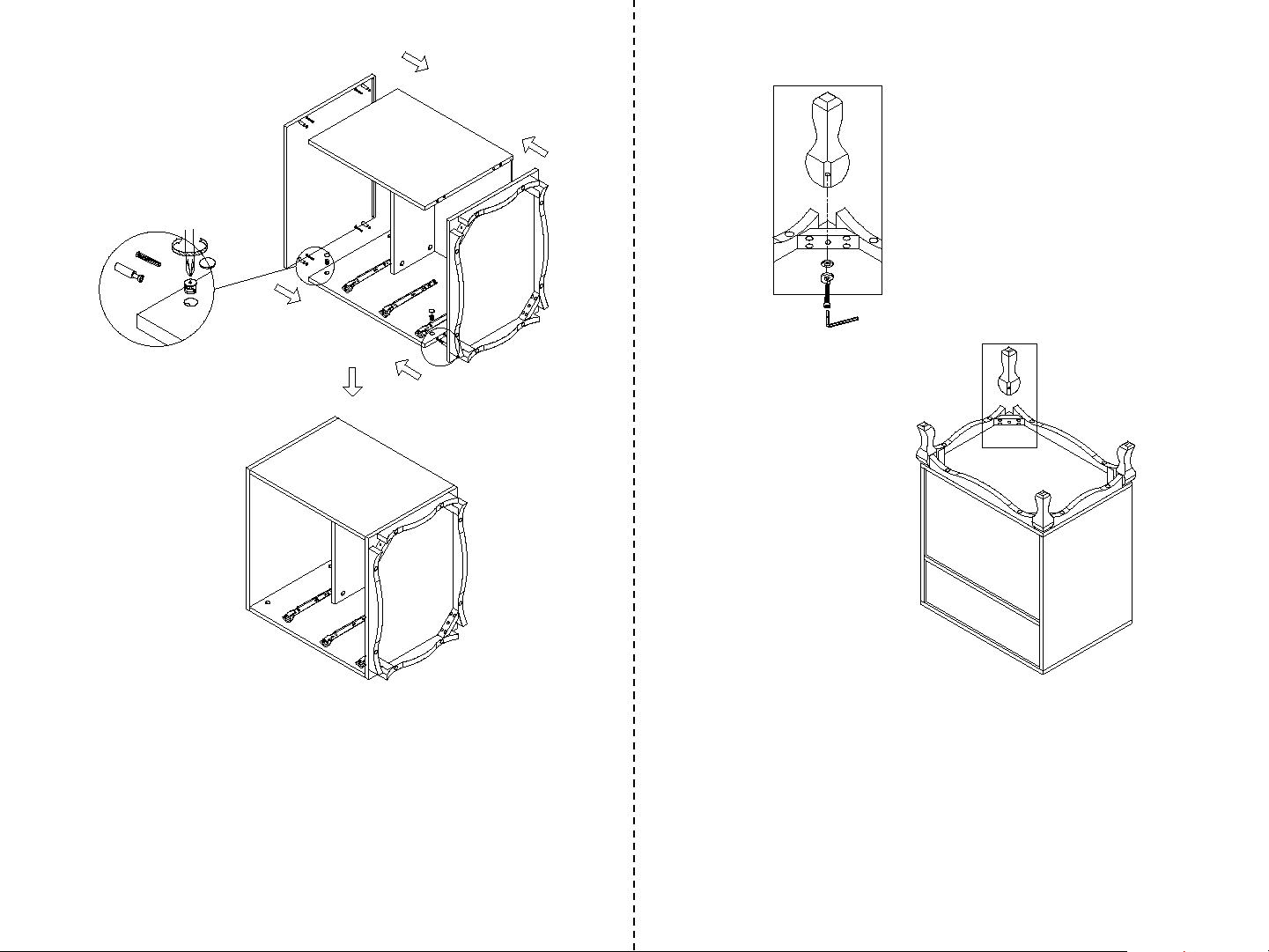

STEP 6:Insert cam bolt #5 and wood dowel #8 through
end holes of end panel C & D , use philips head
screwdriver #13 to fasten cam nut #6 to secure the top
and bottom panel then use sticker #7 to cover the cam
nut .
STEP 7:Place the whole unit upside down on clean
padded surface, Use flat washer #10, spring washer
#9, bolt #11, allen key #12 to attach legs M to each
corner of bottom frame, make sure legs align properly
with bottom frame then fasten all bolts to secure.
⑬
④
⑧
⑧
J
K
L
⑤
⑧
⑬
⑤
I
H

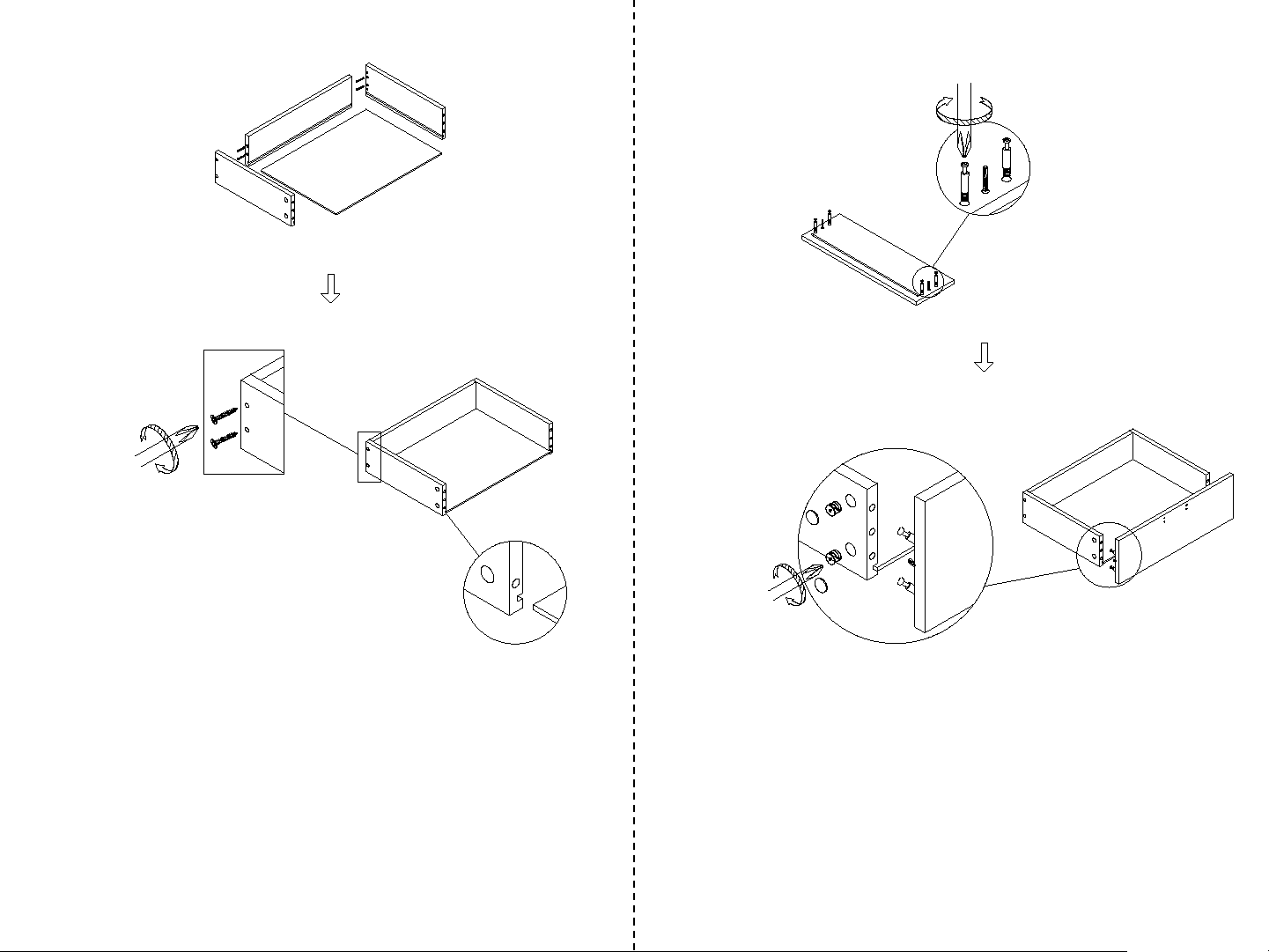

STEP 8: Insert wood dowel #8 to end of drawer back
K, use philips head screwdriver #13 and screws #4 to
secure drawer sides I & J with drawer back K, then
insert drawer bottom panel L through lower groove of
drawer sides I & J, push the drawer bottom all the
way through to lower groove on drawer back K.
⑦
K
⑥
⑤
J
L
I
⑥
⑬
STEP 9: Use philips head screwdriver #13 to fasten
cam bolt #5 to preattached inserts and insert wood
dowel #8 to predrilled dowel holes on drawer front H.
Insert cam bolt #5and wood dowel #8 through end
holes of drawer sides I & J , fasten cam nut #6 to
secure the whole drawer box then use sticker #7 to
cover the cam nut .
⑦
⑧
⑤
H
①
①
⑬
⑬
③
②--2
STEP 10: Use philips head screwdriver #13 and
screw #1 to attach handle on drawer fronts. Fasten
screws to secure.
STEP 11: Use philips head screwdriver #13 and
screw #3 to attach male drawer slides #2 to lower
edge of drawer sides I & J, make sure screw to the
predrilled holes and slides align with bottom edge
properly then fasten screws to secure.
②-1
②- 2
⑭
STEP 12: Carefully align male and female drawer
slides then insert the drawers gradually. If the
drawers not aligned properly, loose the screw on
male slides and make slightly adjustment to set the
drawer leveled and even gap around drawer fronts.
STEP 13: Assembly completed.
