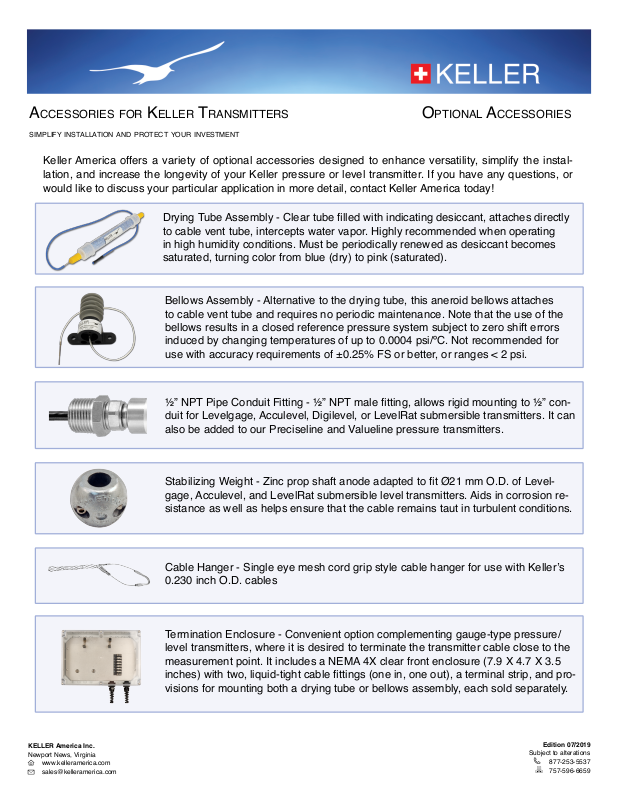

Keller Optional Accessories Data sheet
Accessories for Keller TrAnsmiTTers
simplify insTAllATion And proTecT your invesTmenT
opTionAl Accessories
Keller America offers a variety of optional accessories designed to enhance versatility, simplify the installation, and increase the longevity of your Keller pressure or level transmitter. If you have any questions, or
would like to discuss your particular application in more detail, contact Keller America today!
Drying Tube Assembly - Clear tube lled with indicating desiccant, attaches directly
to cable vent tube, intercepts water vapor. Highly recommended when operating
in high humidity conditions. Must be periodically renewed as desiccant becomes
saturated, turning color from blue (dry) to pink (saturated).
Bellows Assembly - Alternative to the drying tube, this aneroid bellows attaches
to cable vent tube and requires no periodic maintenance. Note that the use of the
bellows results in a closed reference pressure system subject to zero shift errors
induced by changing temperatures of up to 0.0004 psi/ºC. Not recommended for
use with accuracy requirements of ±0.25% FS or better, or ranges < 2 psi.
½” NPT Pipe Conduit Fitting - ½” NPT male tting, allows rigid mounting to ½” conduit for Levelgage, Acculevel, Digilevel, or LevelRat submersible transmitters. It can
also be added to our Preciseline and Valueline pressure transmitters.
KELLER America Inc.
Newport News, Virginia
www.kelleramerica.com
sales@kelleramerica.com
Stabilizing Weight - Zinc prop shaft anode adapted to t Ø21 mm O.D. of Levelgage, Acculevel, and LevelRat submersible level transmitters. Aids in corrosion resistance as well as helps ensure that the cable remains taut in turbulent conditions.
Cable Hanger - Single eye mesh cord grip style cable hanger for use with Keller’s
0.230 inch O.D. cables
Termination Enclosure - Convenient option complementing gauge-type pressure/
level transmitters, where it is desired to terminate the transmitter cable close to the
measurement point. It includes a NEMA 4X clear front enclosure (7.9 X 4.7 X 3.5
inches) with two, liquid-tight cable ttings (one in, one out), a terminal strip, and pro-
visions for mounting both a drying tube or bellows assembly, each sold separately.
Edition 07/2019
Subject to alterations
877-253-5537
757-596-6659
External Surge Protector - Recommended for lightning/surge protection of user’s
power supply/readout/PLC, etc. To be used in conjunction with Levelgage, Acculevel, LevelRat, Valueline, or Preciseline transmitters.
Titanium Construction - Optional for the Acculevel only and highly
recommended for brackish and sea water applications
Electrical Connectors - mPm393 is optional for the Econoline, Valueline, and
Preciseline. DIN43650 and MIL-C 26482 are optional for Valueline and Preciseline. The mPm393 and DIN43650 incorporate screw terminals, while the MIL-C
26482 mating connectors feature solder cups.
Pressure Test Adapters - These custom built assemblies are designed to facilitate calibration and maintenance testing. Versions are available to connect the
Acculevel, Levelgage, LevelRat, and Microlevel to a pressure calibrator.
KELLER America Inc.
Newport News, Virginia
www.kelleramerica.com
sales@kelleramerica.com
Digital Display / Process Controller -The Trident series of displays/controllers
are ideally suited for use with our line of level and pressure transmitters. Various
congurations ensure the right t for your application.
RS485 Converter/Cable - For the user who wishes to communicate with their
Acculevel, Preciseline, Nanolevel, or Microlevel transmitter via the RS485 digital
interface. Available in RS232 (serial port) and USB versions, along with cable
adapters, as needed, and CCS30 Software (also available for download, free of
charge from www.kelleramerica.com). Consult factory for details.
Optional Cable Jacket Materials - Hytrel and Tefzel (ETFE) jacketed submersible
cable for use on Acculevel, Levelgage, LevelRat, Microlevel, Nanolevel, Digilevel, Preciseline and Valueline transmitters. Hytrel provides the greatest resistance
to swelling in hydrocarbons. Tefzel provides the greatest protection from chemi-
cal attack.
