HigH-pressure calibrator
medium: Hydraulic oil / up to 700 bar
KELLER pressure calibrators are highly accurate calibration instruments which are available for
the following pressure ranges: -0,85…10 bar (LPX), -0,85…25 bar (MPX) or 0…700 bar (HPX)
(special measurement ranges are available on request).
The high-pressure calibrator (HPX) is used to generate pressure in order to check and calibrate mechanical and electronic pressure measurement devices with the help of comparative
measurements.
The pressure generator is accommodated together with the pressure display in a functional
housing. The pressure on a test object that is tted to the calibrator can be built up quickly, and
tracking is made easy thanks to the integrated display.
Test objects with a G 1/4” thread can be connected directly to the pressure port for the test
object
. The pressure is built up and adjusted precisely via a screw compressor that is integrated in
the device (medium: hydraulic
Measurement work is made easier by a wide range of functions, such as setting any desired
pressure zero point, display of peak and trough pressure values, or leak measurements.
Furthermore, the applied pressure can be displayed directly on a computer via the integrated
interface (USB converter), after which it can be saved and processed or managed in any desired
manner.
oil).
HpX calibrator
The calibrator, including accessories, is supplied in a durable carrying case, making it ideal for
assignments in the eld.
- Measurement accuracy: < 0,05% of the full pressure range
- Measurement interval: 0,5 seconds
- Pressure generation by means of hydraulic oil
- Battery-powered (normal commercially available button-cell battery)
- Battery lifetime: > 2000 h in continuous operation
- USB interface converter: included in the scope of delivery
- Ambient characteristics: 0…50 °C / 5…95% relative air humidity
- CE compliant / RoHS compliant
Ø 76 mm
148 mm
KELLER AG für Druckmesstechnik
CH-8404 Winterthur
+41 52 235 25 25
info@keller-druck.com
315–337 mm
KELLER Ges. für Druckmesstechnik mbH
DE-79798 Jestetten
+49 7745 9214 0
eurocenter@keller-druck.com
KELLER America
Newport News, Virginia
1 877 253 5537
sales@kelleramerica.com
154 mm
Edition 05/2006
Subject to alterations
Companies approved to ISO 9001
www.keller-druck.com
Specications
Pressure range (FS) 0…700 bar (others on request)
Resolution 50 mbar
Overpressure 840 bar
Accuracy, error band
Accuracy, error band
(1)
(10…40 °C) < 0,05 %FS
(1)
(0…50 °C) < 0,1 %FS
Measurement interval 0,5 seconds
(1)
including accuracy, temperature coefcients, zero point and range tolerance
Electrical characteristics
Power supply 3 V battery, type CR2430
Battery lifetime > 2000 h in continuous operation
Ambient characteristics
Operating temperature 0…50 °C
Compensated range 0…50 °C
Storage temperature -10…60 °C
Humidity 5…95% relative air humidity
Mechanical characteristics
Calibrator housing Polyamide 12
Weight approx. 4 kg
Pressure port Serto and various adapters
Degree of protection IP 65
Hydraulic oil Type HLP 22 BP

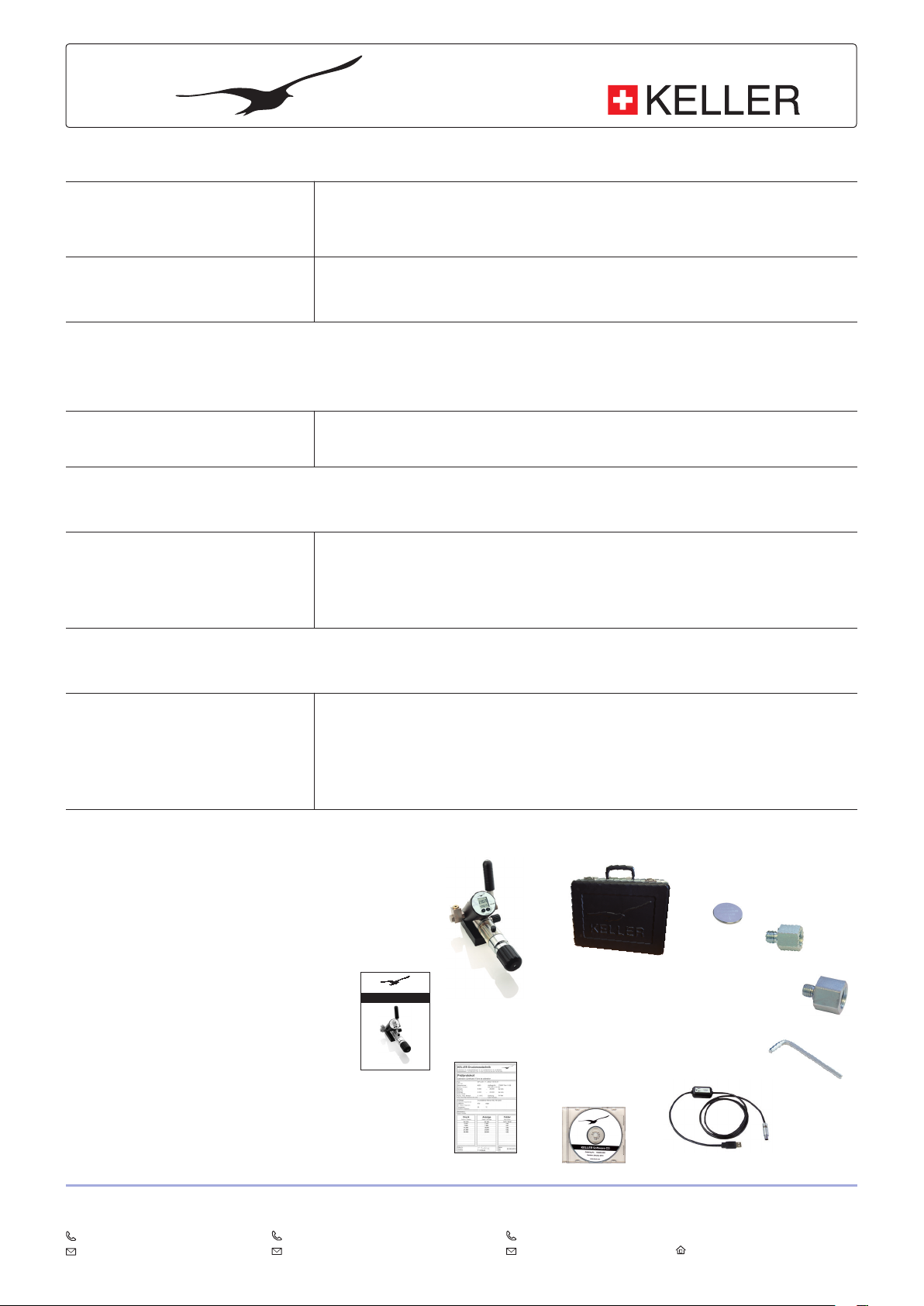

Scope of delivery for high-pressure calibrator (HPX)
- Calibrator (including oil lling)
- Carrying case
- Spare battery, type CR2430 (3,0 V)
- Test object adapter G 1/4”–G 3/8”
- Test object adapter G 1/4”–G 1/2”
Operating instructions for the
- Allen key(s)
high-pressure calibrator (HPX)
- USB interface converter, K-114A
- KELLER software CD
- Test record (5 points)
