Low Noise Autoranging Multimeter
71⁄2-Digit

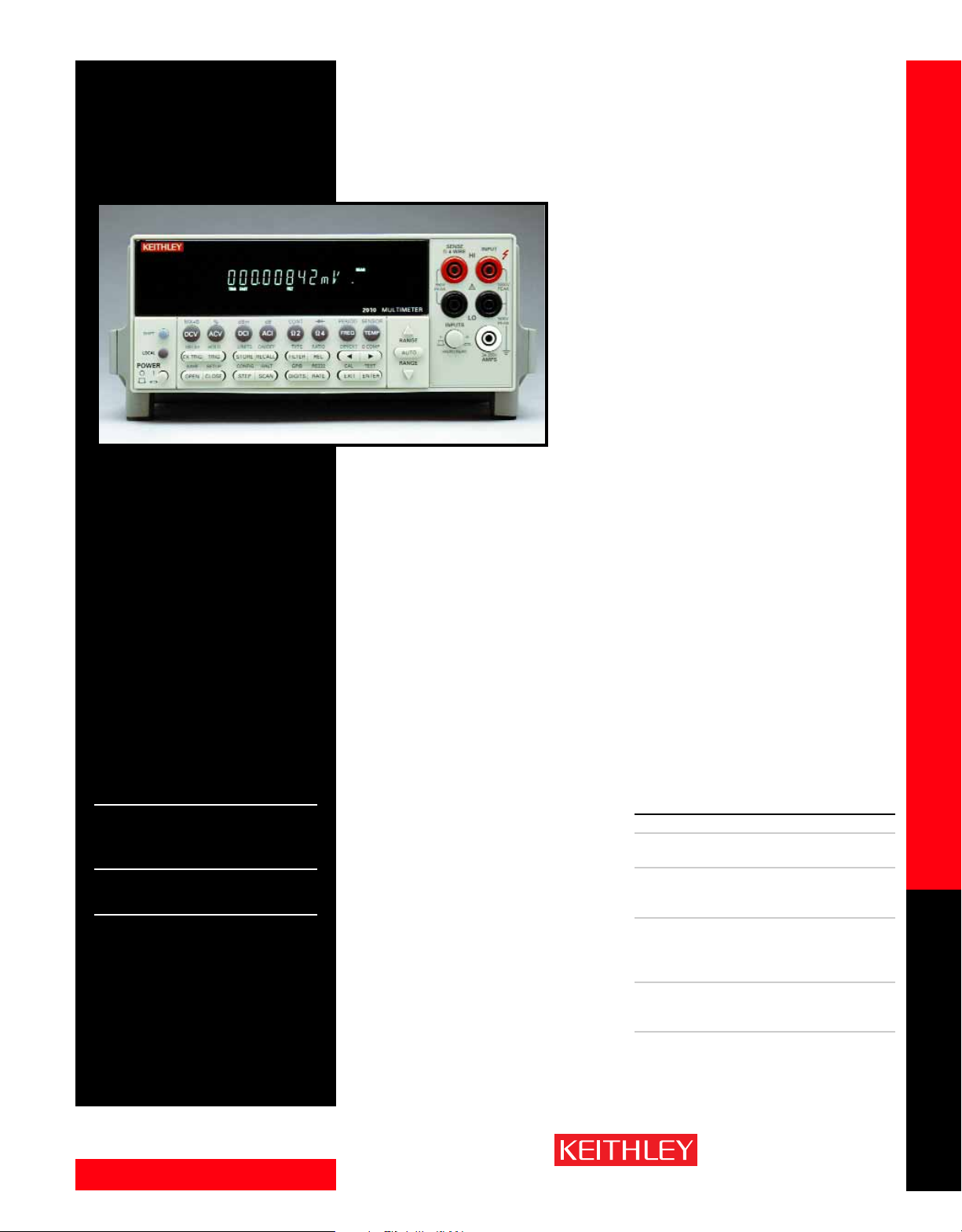

The 71⁄2-digit Model 2010 Low Noise Multimeter combines
high resolution with the high speed and accuracy needed for
production applications such as testing precision sensors,
transducers, A/D and D/A converters, regulators, references,
connectors, switches, and relays. Based on the same high
speed, low noise A/D converter technology as the Models
2000, 2001, and 2002, the 2010 is the latest addition to
Keithley’s Series 2000 line of high performance digital
multimeters.
High Measurement Flexibility
The 2010 has 15 built-in measurement functions, including
DCV, ACV, DCI, ACI, 2WΩ, 4WΩ, dry circuit resistance, temperature (with either thermocouples or RTDs), frequency,
period, ratio, continuity measurement, and diode testing. This
multi-functional design minimizes added equipment costs.
Creating a self-contained multipoint measurement solution is as simple as plugging a 2000-SCAN or
2001-TCSCAN scanner card into the option slot in the 2010’s back panel. This “plug-in” approach
eliminates the need for a separate scanner and significantly reduces programming and setup time in
applications involving a limited number of test points. For larger applications, the 2010 is compatible
with Keithley’s Series 7000 switch matrices and cards.
Unique Resistance Measurement Functions
Characterizing the resistance, linearity, or isolation of contacts, connectors, switches, or relays
completely and efficiently demands an uncommon combination of ohms measurement capabilities.
The 2010 offers:
• A low-power ohms measurement mode. Low-level resistance measurements can be made with
source current as low as 100µA, an order of magnitude lower than is possible with other DMMs,
so device self-heating is minimized. Among other benefits, this low-power measurement capability
makes the 2010 suitable for end-of-life contact testing per ASTM B539-90.
• A dry circuit test function. When measuring contact and connector resistances, it is important to
control the test voltage carefully in order to avoid puncturing any oxides or films that may have
formed. A built-in clamp limits the open circuit test voltage to 20mV to ensure dry circuit conditions.
• An offset compensated ohms function. This function eliminates thermal effects that can create
errors in low-level resistance measurements in system environments.
• An extended ohms measurement capabili-
ty. The 2010 provides a 10Ω range for more
precise measurements of low resistances.
Optional Multiplexer Cards
Creating a self-contained multipoint measurement solution is as simple as plugging a scanner
card into the option slot on the 2010’s back
panel. This approach eliminates the complexities
of triggering, timing, and processing issues and
helps reduce test time significantly. For applications involving more than 10 measurement
points, the 2010 is compatible with Keithley’s
Series 7000 switch matrices and cards.
Model 2000-SCAN Scanner Card
• Ten analog input channels (2-pole)
• Configurable as 4-pole, 5-channel
• 71⁄2-digit resolution
• 100nV rms noise floor
• 7ppm DCV repeatability
• Built-in 10-channel scanner
mainframe
• Dry circuit and low power
measurement mode
• 15 measurement functions
including support for RTD and
thermocouple temperature
measurements
• Built-in ratio measurement
function
Ordering Information
2010 Autoranging DMM
Extended warranty, service, and
calibration contracts are available
.
Accessories Supplied
Model 1751 Safety Test Leads,
User Manual, Service Manual
ACCESSORIES AVAILABLE
TEST LEADS
5804/5/6 4-Wire/Kelvin Test Lead Sets
SWITCH/SCANNER CARDS
2000-SCAN 10-Channel Scanner
2001-TCSCAN 9-Channel Thermocouple Scanner
CABLES/ADAPTERS
7007-1 Shielded IEEE-488 Cable, 1m (3.3 ft)
7007-2 Shielded IEEE-488 Cable, 2m (6.6 ft)
7009-5 RS-232 Cable
RACK MOUNT KITS
4288-1 Single Fixed Rack Mount Kit
4288-2 Dual Fixed Rack Mount Kit
OTHER
KPCI-488LP IEEE-488 Interface/Controller for the PCI Bus
KPXI-488 IEEE-488 Interface Board for the PXI Bus
KUSB-488A IEEE-488 USB-to-GPIBInterface Adapter
www.keithley.com
1.888.KEITHLEY (U.S. only)
A GREATER MEASURE OF CONFIDENCE
Model 2010 specifications
DIGITAL MULTIMETERS & SYSTEMS
DC VOLTAGE
ACCUR AC Y 23 °C ± 5°C
±(ppm of rdg. + ppm of range) INPUT
RANGE RESOLUTION 90 Day 1 Year RESISTANCE
100.00000 mV 10 nV 25 + 9 37 + 9 > 10 GΩ
1.0000000 V 100 nV 18 + 2 25 + 2 > 10 GΩ
10.000000 V 1 µV 18 + 4 24 + 4 > 10 GΩ
100.00000 V 10 µV 25 + 5 35 + 5 10 MΩ ±1%
1000.0000 V 10 µV 31 + 6 41 + 6 10 MΩ ±1%
RESISTANCE
ACCUR AC Y 23 °C ± 5°C
±(ppm of rdg. + ppm of range) TEST
RANGE RESOLUTION 90 Day 1 Year CU RRENT
10.000000 Ω 1µΩ 40 + 9 60 + 9 10mA
100.00000 Ω 10 µΩ 36 + 9 52 + 9 1mA
1.0000000 kΩ 100 µΩ 33 + 2 50 + 2 1mA
10.000000 kΩ 1mΩ 32 + 2 50 + 2 100 µA
100.00000 kΩ 10mΩ 40 + 2 70 + 2 10 µ A
1.0000000MΩ 100mΩ 50 + 4 70 + 4 10 µ A
10.000000MΩ 1 Ω 200 + 4 400 + 4 640 nA
100.00000MΩ 10 Ω 1500 + 4 1500 + 4 640 nA
DC CURRENT
ACCUR AC Y 23 °C ± 5°C
±(ppm of rdg. + ppm of range) BURDEN
RANGE RESOLUTION 90 Day 1 Year VOLTAGE
10.000000 mA 1 nA 300 + 40 500 + 40 < 0.15 V
100.00000 mA 10 nA 300 + 40 500 + 40 < 0.18 V
1.0000000 A 100 nA 500 + 40 800 + 40 < 0.35 V
3.000000 A 1 µA 1200 + 15 1200 + 15 < 1 V
CONTINUITY 2W
ACCUR AC Y 23 °C ± 5°C
±(ppm of rdg. + ppm of range) TEST
RANGE RESOLUTION 90 Day 1 Year CU RRENT
1 kΩ 100mΩ 100 + 100 120 + 100 1mA
DIODE TEST
ACCUR AC Y 23 °C ± 5°C
±(ppm of rdg. + ppm of range) TEST
RANGE RESOLUTION 90 Day 1 Year CU RRENT
10.000000 V 1 µV 30 + 7 40 + 7 1 mA
4.400000 V 1 µV 30 + 7 40 + 7 100 µA
10.000000 V 1 µV 30 + 7 40 + 7 10 µA
DC OPERATING CHARACTERISTICS
FUNCTION DIGITS READINGS/s PLCs
DCV (all ranges), 71⁄2 4 (3) 5
DCI (all ranges), and 6
1
⁄2 30 (27) 1
Ohms (<10M range) 61⁄2 50 (44) 1
5
1
⁄2 260 (220) 0.1
51⁄2 490 (440) 0.1
5
1
⁄2 1000(1000) 0.04
4
1
⁄2 2000(1800) 0.01
SPEED AND NOISE REJECTION
RMS NOISE RMS NOISE
RATE DIGITS 100mV RANGE 10V RANGE NMRR CM R R
5 PLC 71⁄2 110 nV 1.2 µV 60 dB 140 dB
1 PLC 6
1
⁄2 125 nV 1.4 µV 60 dB 140 dB
0.1 PLC 51⁄2 1.6 µV 11.5 µV — 80 dB
0.01 PLC 4
1
⁄2 2.9 µV 139 µV — 80 dB
TRUE RMS AC VOLTAGE AND CURRENT CHARACTERISTICS
ACCURACY (I Year)
FREQUENCY 23°C ±5 °C
RANGE RESOLUTION RANGE ±(% of reading + % of range)
100 mV to 750 V 0.1 µV to 1 mV 3 Hz–10 Hz 0.35 + 0.03
10 Hz–20 kHz 0.06 + 0.03
20 kHz–50 kHz 0.12 + 0.05
50 kHz–100 kHz 0.60 + 0.08
100 kHz–300 kHz 4 + 0.5
AC OPERATING CHARACTERISTICS
FUNCTION DIGITS READINGS/s RATE BANDWIDTH
ACV (all ranges), and 61⁄2 2s/reading SLOW 3 Hz–300 kHz
ACI (all ranges) 6
1
⁄2 1.4 MED 30 Hz–300 kHz
61⁄2 4.8 MED 30 Hz–300 kHz
6
1
⁄2 2.2 FAST 300 Hz–300 kHz
6
1
⁄2 35 FAST 300 Hz–300 kHz
FREQUENCY AND PERIOD CHARACTERISTICS
RESOLUTION ACCURACY
ACV FREQUENCY PERIOD GATE ±(ppm of 90 Day/1 Year
RANGE RANGE RANGE TIME reading) ±(% of reading)
100 mV 3 Hz 333 ms 1 s 0.3 0.01
to to to
750 V 500 kHz 2 µs
TEMPERATURE CHARACTERISTICS
THERMOCOUPLE ACCURACY
1
90 Day/1 Year (23°C ± 5°C)
Relative to USING
TYPE RANGE RESOLUTION Reference Junction 2001-TCSCAN
2
J –200 to + 760°C 0.001°C ±0.5°C ±0.65°C
K –200 to + 1372°C 0.001°C ±0.5°C ±0.70°C
N –200 to + 1300°C 0.001°C ±0.5°C ±0.70°C
T –200 to + 400°C 0.001°C ±0.5°C ±0.68°C
4-WIRE RTD ACCURACY
3
ACCURACY
3
90 Day/1 Year 2 Years
RANGE RESOLUTION (23°C ± 5°C) (23°C ± 5°C)
–100° to +100°C 0.001°C ±0.08°C ±0.12°C
–200° to +630°C 0.001°C ±0.14°C ±0.18°C
TEMPERATURE NOTES
1. For temperatures <–100°C, add ±0.1°C and >900°C add ±0.3°C.
2. Specifications apply to channels 2–6. Add 0.06°C/channel from channel 6.
3. Excluding probe errors.
GENERAL
POWER SUPPLY: 100V / 120V / 220V / 240V ±10%.
LINE FREQUENCY: 45Hz to 66Hz and 360Hz to 440Hz, automatically sensed at power-up.
POWER CONSUMPTION: 22VA.
OPERATING ENVIRONMENT: Specified for 0°C to 50°C. Specified to 80% R.H. at 35°C.
STORAGE ENVIRONMENT:–40°C to 70°C.
WARRANTY: 3 years.
SAFETY: Designed to IEC-1010-1.
EMC: Complies with European Union Directive 89/336/EEC (CE marking requirements), FCC
part 15 class B, CTSPR 11, IEC 801-2, IEC 801-3, IEC 801-4.
VIBRATION: MIL-T-28800E Type III, Class 5.
WARMUP:2 hours to rated accuracy.
DIMENSIONS:
Rack Mounting: 89mm high × 213mm wide × 370mm deep (3
1
⁄2 in × 83⁄8 in × 149⁄16 in).
Bench Configuration (with handle and feet): 104mm high × 238mm wide × 370mm deep
(4
1
⁄8 in × 93⁄8 in × 149⁄16 in).
SHIPPING WEIGHT:5kg (11 lbs).
VOLT HERTZ PRODUCT: ≤8 × 10
7
V·Hz.
2010
Low Noise Autoranging Multimeter
71⁄2-Digit
