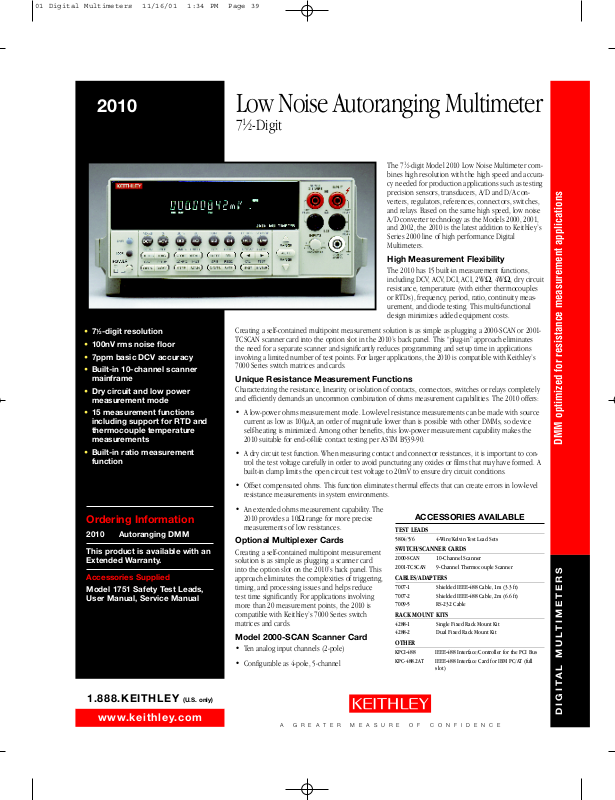

Page 1
2010
• 71⁄
2-digit resolution
• 100nV rms noise floor
• 7ppm basic DCV accuracy
• Built-in 10-channel scanner
mainframe
• Dry circuit and low power
measurement mode
• 15 measurement functions
including support for RTD and
thermocouple temperature
measurements
• Built-in ratio measurement
function
Ordering Information
2010 Autoranging DMM
This product is available with an
Extended Warranty.
Accessories Supplied
Model 1751 Safety Test Leads,
User Manual, Service Manual

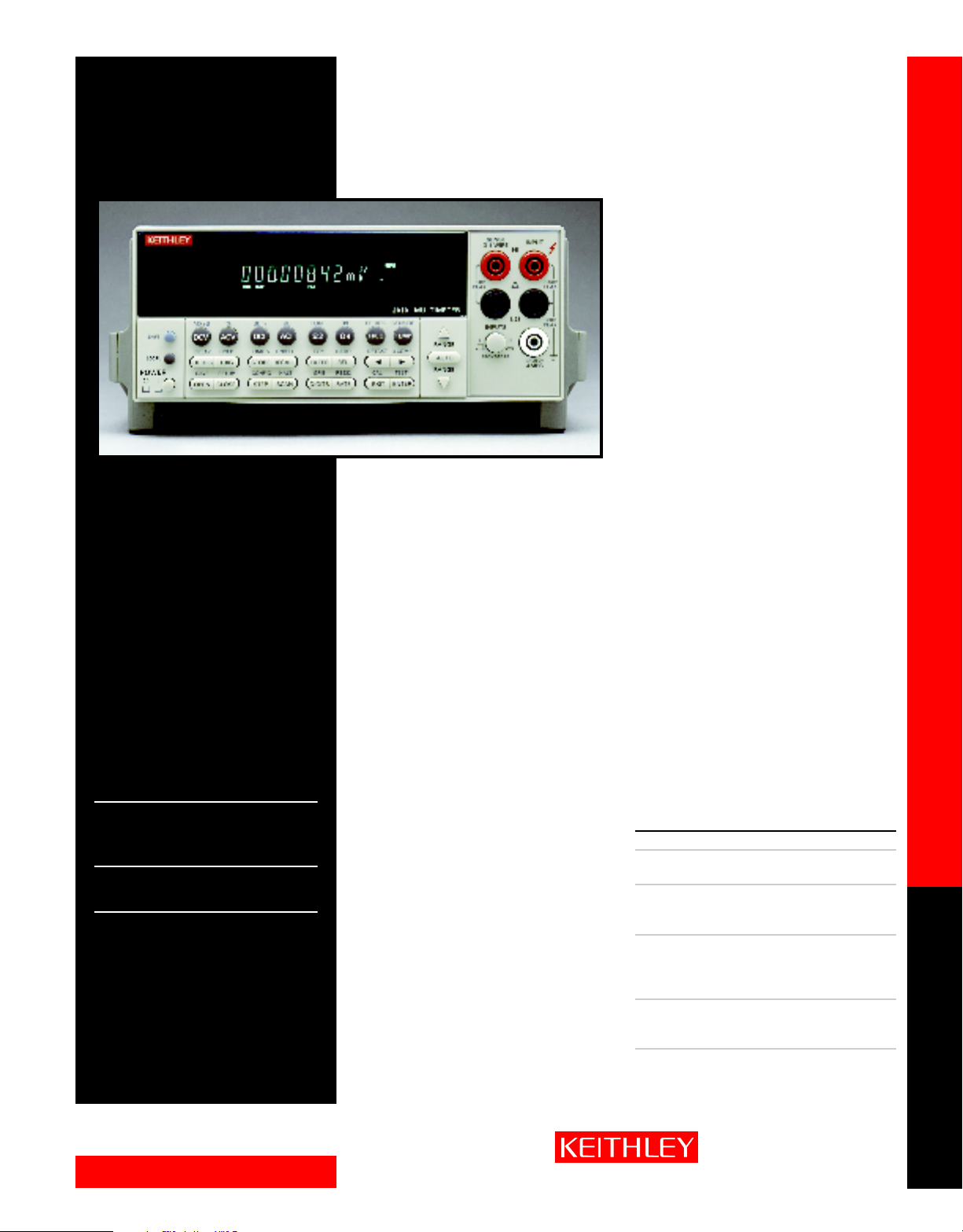

Low Noise Autoranging Multimeter
71⁄2-Digit
The 71⁄2
-digit Model 2010 Low Noise Multimeter combines high resolution with the high speed and accuracy needed for production applications such as testing
precision sensors, transducers, A/D and D/A converters, regulators, references, connectors, switches,
and relays. Based on the same high speed, low noise
A/D converter technology as the Models 2000, 2001,
and 2002, the 2010 is the latest addition to Keithley’s
Series 2000 line of high performance Digital
Multimeters.
High Measurement Flexibility
The 2010 has 15 built-in measurement functions,
including DCV, ACV, DCI, ACI, 2WΩ, 4WΩ, dry circuit
resistance, temperature (with either thermocouples
or RTDs), frequency, period, ratio, continuity measurement, and diode testing. This multi-functional
design minimizes added equipment costs.
Creating a self-contained multipoint measurement solution is as simple as plugging a 2000-SCAN or 2001TCSCAN scanner card into the option slot in the 2010’s back panel. This “plug-in” approach eliminates
the need for a separate scanner and significantly reduces programming and setup time in applications
involving a limited number of test points. For larger applications, the 2010 is compatible with Keithley’s
7000 Series switch matrices and cards.
Unique Resistance Measurement Functions
Characterizing the resistance, linearity, or isolation of contacts, connectors, switches or relays completely
and efficiently demands an uncommon combination of ohms measurement capabilities. The 2010 offers:
• A low-power ohms measurement mode. Low-level resistance measurements can be made with source
current as low as 100µA, an order of magnitude lower than is possible with other DMMs, so device
self-heating is minimized. Among other benefits, this low-power measurement capability makes the
2010 suitable for end-of-life contact testing per ASTM B539-90.
• A dry circuit test function. When measuring contact and connector resistances, it is important to control the test voltage carefully in order to avoid puncturing any oxides or films that may have formed. A
built-in clamp limits the open circuit test voltage to 20mV to ensure dry circuit conditions.
• Offset compensated ohms. This function eliminates thermal effects that can create errors in low-level
resistance measurements in system environments.
• An extended ohms measurement capability. The
2010 provides a 10Ω range for more precise
measurements of low resistances.
Optional Multiplexer Cards
Creating a self-contained multipoint measurement
solution is as simple as plugging a scanner card
into the option slot on the 2010’s back panel. This
approach eliminates the complexities of triggering,
timing, and processing issues and helps reduce
test time significantly. For applications involving
more than 20 measurement points, the 2010 is
compatible with Keithley’s 7000 Series switch
matrices and cards.
Model 2000-SCAN Scanner Card
• Ten analog input channels (2-pole)
• Configurable as 4-pole, 5-channel
ACCESSORIES AVAILABLE
TEST LEADS
5804/5/6 4-Wire/Kelvin Test Lead Sets
SWITCH/SCANNER CARDS
2000-SCAN 10-Channel Scanner
2001-TCSCAN 9-Channel Thermocouple Scanner
CABLES/ADAPTERS
7007-1 Shielded IEEE-488 Cable, 1m (3.3 ft)
7007-2 Shielded IEEE-488 Cable, 2m (6.6 ft)
7009-5 RS-232 Cable
RACK MOUNT KITS
4288-1 Single Fixed Rack Mount Kit
4288-2 Dual Fixed Rack Mount Kit
OTHER
KPCI-488 IEEE-488 Interface/Controller for the PCI Bus
KPC-488.2AT IEEE-488 Interface Card for IBM PC/AT (full
slot)
DMM optimized for resistance measurement applications
1.888.KEITHLEY (U.S. only)
www.keithley.com
DIGITAL MULTIMETERS
A GREATER MEASURE OF CONFIDENCE
Page 2
2010
Low Noise Autoranging Multimeter
71⁄2-Digit
DC VOLTAGE
ACCURACY 23°C ± 5°C
RANGE RESOLUTION 90 DAY 1 YEAR RESISTANCE
100.00000 mV 10 nV 25 + 9 37 + 9 > 10 GΩ
1.0000000 V 100 nV 18 + 2 25 + 2 > 10 GΩ
10.000000 V 1 µV 18 + 4 24 + 4 > 10 GΩ
100.00000 V 10 µV 25 + 5 35 + 5 10 MΩ ±1%
1000.0000 V 10 µV 31 + 6 41 + 6 10 MΩ ±1%
±(ppm of rdg. + ppm of range) INPUT
RESISTANCE
ACCURACY 23°C ± 5°C
RANGE RESOLUTION 90 DAY 1 YEAR CURRENT
10.000000 Ω 1µΩ 40 + 9 60 + 9 10 mA
100.00000 Ω 10 µΩ 36 + 9 52 + 9 1 mA
1.0000000 kΩ 100 µΩ 33 + 2 50 + 2 1 mA
10.000000 kΩ 1mΩ 32 + 2 50 + 2 100 µA
100.00000 kΩ 10 mΩ 40 + 2 70 + 2 10 µA
1.0000000 MΩ 100 mΩ 50 + 4 70 + 4 10 µA
10.000000 MΩ 1 Ω 200 + 4 400 + 4 640 nA
100.00000 MΩ 10 Ω 1500 + 4 1500 + 4 640 nA
±(ppm of rdg. + ppm of range) TEST
DC CURRENT
ACCURACY 23°C ± 5°C
RANGE RESOLUTION 90 DAY 1 YEAR VOLTAGE
Model 2010 Specifications
10.000000 mA 10 nA 300 + 40 500 + 40 < 0.15 V
100.00000 mA 100 nA 300 + 40 500 + 40 < 0.18 V
1.0000000 A 1 µA 500 + 40 800 + 40 < 0.35 V
3.000000 A 10 µA 1200 + 15 1200 + 15 < 1 V
±(ppm of rdg. + ppm of range) BURDEN
CONTINUITY 2W
ACCURACY 23°C ± 5°C
RANGE RESOLUTION 90 DAY 1 YEAR CURRENT
1 kΩ 100 mΩ 100 + 100 120 + 100 1 mA
±(ppm of rdg. + ppm of range) TEST
DIODE TEST
ACCURACY 23°C ± 5°C
RANGE RESOLUTION 90 DAY 1 YEAR CURRENT
10.000000 V 1 µV 30 + 7 40 + 7 1 mA
4.400000 V 1 µV 30 + 7 40 + 7 100 µA
10.000000 V 1 µV 30 + 7 40 + 7 10 µA
±(ppm of rdg. + ppm of range) TEST
DC OPERATING CHARACTERISTICS
FUNCTION DIGITS READINGS/s PLCs
DCV (all ranges), 71⁄2 4 (3) 5
DCI (all ranges), and 6
Ohms (<10M range) 61⁄2 50 (44) 1
1
⁄2 30 (27) 1
1
5
⁄2 260 (220) 0.1
51⁄2 490 (440) 0.1
1
5
⁄2 1000 (1000) 0.04
1
4
⁄2 2000 (1800) 0.01
SPEED AND NOISE REJECTION
RATE DIGITS 100mV RANGE 10V RANGE NMRR CMRR
5 PLC 71⁄2 110 nV 1.2 µV 60 dB 140 dB
1 PLC 6
0.1 PLC 51⁄2 1.6 µV 11.5 µV — 80 dB
0.01 PLC 4
RMS NOISE RMS NOISE
1
⁄2 125 nV 1.4 µV 60 dB 140 dB
1
⁄2 2.9 µV 139 µV — 80 dB
TRUE RMS AC VOLTAGE AND CURRENT CHARACTERISTICS
RANGE RESOLUTION RANGE ±(% of reading + % of range)
100 mV to 750 V 0.1 µV to 1 mV 3 Hz–10 Hz 0.35 + 0.03
FREQUENCY ACCURACY (I Year), 23°C ±5 °C
10 Hz–20 kHz 0.06 + 0.03
20 kHz–50 kHz 0.12 + 0.05
50 kHz–100 kHz 0.60 + 0.08
100 kHz–300 kHz 4 + 0.5
AC OPERATING CHARACTERISTICS
FUNCTION DIGITS READINGS/s RATE BANDWIDTH
ACV (all ranges), and 61⁄2 2s/reading SLOW 3 Hz–300 kHz
ACI (all ranges) 6
1
⁄2 1.4 MED 30 Hz–300 kHz
61⁄2 4.8 MED 30 Hz–300 kHz
1
6
⁄2 2.2 FAST 300 Hz–300 kHz
1
6
⁄2 35 FAST 300 Hz–300 kHz
FREQUENCY AND PERIOD CHARACTERISTICS
ACV FREQUENCY PERIOD GATE ±(ppm of 90 DAY/1 YEAR
RANGE RANGE RANGE TIME reading) ±(% of reading)
100 mV 3 Hz 333 ms 1 s 0.3 0.01
to to to
750 V 500 kHz 2 µs
RESOLUTION ACCURACY
TEMPERATURE CHARACTERISTICS
THERMOCOUPLE 90 DAY/1 YEAR (23°C ± 5°C)
TYPE RANGE RESOLUTION Reference Junction 2001-TCSCAN
J –200 to + 760°C 0.001°C ±0.5°C ±0.65°C
K –200 to + 1372°C 0.001°C ±0.5°C ±0.70°C
N –200 to + 1300°C 0.001°C ±0.5°C ±0.70°C
T –200 to + 400°C 0.001°C ±0.5°C ±0.68°C
ACCURACY
Relative to USING
5
GENERAL SPECIFICATIONS
POWER SUPPLY: 100V / 120V / 220V / 240V ±10%.
LINE FREQUENCY: 45Hz to 66Hz and 360Hz to 440Hz, automatically sensed at power-up.
POWER CONSUMPTION: 22VA.
OPERATING ENVIRONMENT: Specified for 0°C to 50°C. Specified to 80% R.H. at 35°C.
STORAGE ENVIRONMENT: –40°C to 70°C.
WARRANTY: 3 years.
SAFETY: Designed to IEC-1010-1.
EMC: Complies with European Union Directive 89/336/EEC (CE marking requirements), FCC
part 15 class B, CTSPR 11, IEC 801-2, IEC 801-3, IEC 801-4.
VIBRATION: MIL-T-28800E Type III, Class 5.
WARMUP: 2 hours to rated accuracy.
DIMENSIONS:
Rack Mounting: 89mm high × 213mm wide × 370mm deep (3
Bench Configuration (with handle and feet): 104mm high × 238mm wide × 370mm deep
1
⁄8 in × 93⁄8 in × 149⁄16 in).
(4
SHIPPING WEIGHT: 5kg (11 lbs).
VOLT HERTZ PRODUCT: ≤ 8 × 10
7
V·Hz.
1
⁄2 in × 83⁄8 in × 149⁄16 in).
