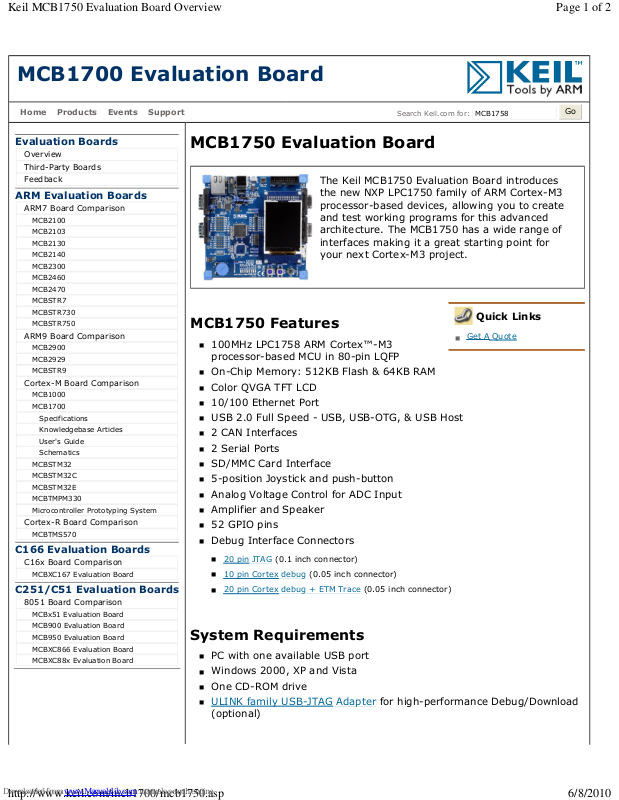

Keil MCB1750, MCB1700 Overview
MCB1700 Evaluation Board
Page
1
of 2Keil MCB1750 Evaluation Board Overview
6/8/2010
http://www.keil.com/mcb1700/mcb1750.asp
Home Products Events Support
Evaluation Boards
Overview
Third-Party Boards
Feedback
ARM Evaluation Boards
ARM7 Board Comparison
MCB2100
MCB2103
MCB2130
MCB2140
MCB2300
MCB2460
MCB2470
MCBSTR7
MCBSTR730
MCBSTR750
ARM9 Board Comparison
MCB2900
MCB2929
MCBSTR9
Cortex-M Board Comparison
MCB1000
MCB1700
Specifications
Knowledgebase Articles
User's Guide
Schematics
MCBSTM32
MCBSTM32C
MCBSTM32E
MCBTMPM330
Microcontroller Prototyping System
Cortex-R Board Comparison
MCBTMS570
C166 Evaluation Boards
C16x Board Comparison
MCBXC167 Evaluation Board
C251/C51 Evaluation Boards
8051 Board Comparison
MCBx51 Evaluation Board
MCB900 Evaluation Board
MCB950 Evaluation Board
MCBXC866 Evaluation Board
MCBXC88x Evaluation Board
Search Keil.com for:
MCB1750 Evaluation Board
The Keil MCB1750 Evaluation Board introduces
the new NXP LPC1750 family of ARM Cortex-M3
processor-based devices, allowing you to create
and test working programs for this advanced
architecture. The MCB1750 has a wide range of
interfaces making it a great starting point for
your next Cortex-M3 project.
MCB1750 Features
100MHz LPC1758 ARM Cortex™-M3
processor-based MCU in 80-pin LQFP
On-Chip Memory: 512KB Flash & 64KB RAM
Color QVGA TFT LCD
10/100 Ethernet Port
USB 2.0 Full Speed - USB, USB-OTG, & USB Host
2 CAN Interfaces
2 Serial Ports
SD/MMC Card Interface
5-position Joystick and push-button
Analog Voltage Control for ADC Input
Amplifier and Speaker
52 GPIO pins
Debug Interface Connectors
20 pin JTAG
10 pin Cortex debug
20 pin Cortex debug + ETM Trace
System Requirements
PC with one available USB port
Windows 2000, XP and Vista
One CD-ROM drive
ULINK family USB-JTAG Adapter
(optional)
(0.1 inch connector)
(0.05 inch connector)
(0.05 inch connector)
for high-performance Debug/Download
MCB1758
Quick Links
Get A Quote
Go
Starter Kit
Page
2
of 2Keil MCB1750 Evaluation Board Overview
6/8/2010
http://www.keil.com/mcb1700/mcb1750.asp
The MCB1750 is also available as a starter kit which includes the
USB-JTAG adapter.
Part numbers are:
MCB1750: MCB1750 Only
MCB1750UME: MCB1750 and
ULINK-ME
ULINK-ME
Evaluation Software
The MCB1750 Evaluation Board and Starter Kit include the
Evaluation Tools
testing the microcontroller and its capabilities. Sample applications that run
on the MCB1750 are included.
. These tools help you get started writing programs and
MDK-ARM
