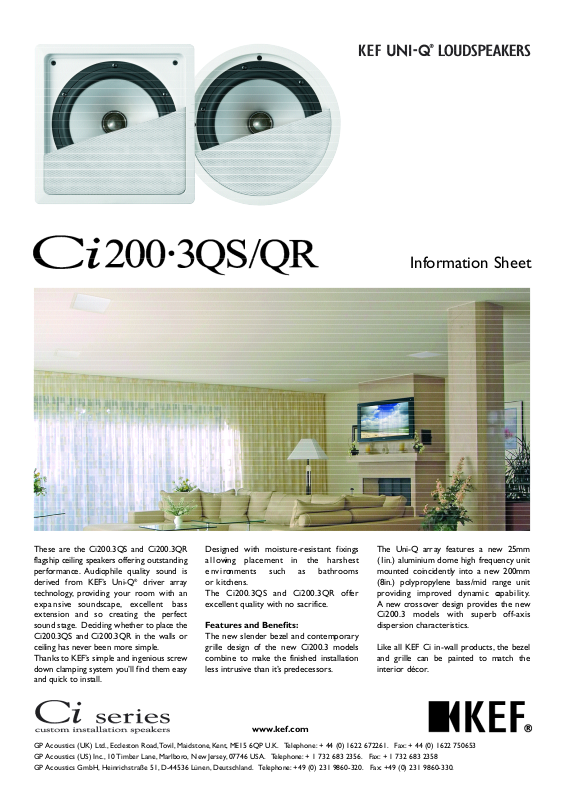

These are the Ci200.3QS and Ci200.3QR
flagship ceiling speakers offering outstanding
p e r f o r m a n c e . Audiophile quality sound is
d e r i v ed from KEF’s Uni-Q®d r i v er arr ay
t e c h n o l o g y, p roviding your room with an
e x p a n s i ve soundscap e , excellent bass
extension and so creating the perfect
sound stage. Deciding whether to place the
Ci200.3QS and Ci200.3QR in the walls or
ceiling has never been more simple.
Thanks to KEF’s simple and ingenious screw
d o wn clamping system you’ll find them easy
and quick to install.

Designed with moisture - r esistant fixings
a l l owi ng placement in the harshest
e nv i ron ments such as bathrooms
or kitchens.
The Ci200.3QS and Ci200.3QR offe r
excellent quality with no sacrifice.

Fe a t u res and Benefits:

The new slender bezel and contemporary
grille design of the new Ci200.3 models
combine to make the finished installation
less intrusive than it’s pre d e c e s s o r s .

The Uni-Q arr ay fe a t u r es a new 25mm
(1in.) aluminium dome high frequency unit
mounted coincidently into a new 200mm
(8in.) poly p ro p ylene bass/mid range unit
p r oviding improved dynamic cap a b i l i t y .
A new cro s s over design provides the new
Ci200.3 models with superb off-axis
dispersion characteristics.

L i k e all KEF Ci in-wall pro d u c t s , the bezel
and grille can be painted to match the
interior décor.

I n f ormation Sheet

www.kef.com

GP Acoustics (UK) Ltd., Eccleston Road,Tov i l , M a i d s t o n e, Ke n t , ME15 6QP U. K . Te l e p h o n e : + 44 (0) 1622 672261. F a x : + 44 (0) 1622 750653
GP Acoustics (US) Inc. , 10 Timber Lane, M a r l b o r o, N ew Je r s ey, 07746 USA. Te l e p h o n e : + 1 732 683 2356. F a x : + 1 732 683 2358
GP Acoustics GmbH, Heinrichstraße 51, D-44536 Lünen, Deutschland. Te l e p h o n e : [phone]. F a x : [phone].

Polar graphs

Directivity Index / Beamwidth

F r equency / Power re s p o n s e,Input impedance

Specifications

Installation

A r chitectural specifications:

The Ci Series Ci200.3QS and Ci200.3QR
is best suited where high quality music and
speech re i n f o r cement applications re q u i r e
hi-fi performance such as:

· Multi Room systems.

· Home T h e a t r e systems.

· Lounges, B a r s , B o u t i q u e s .

· Board rooms & Offices.

· A i r p o r t s , C o n vention Centre s , H o t e l s .

· Live T h e a t r e / C o n c e r t Hall fill-in.

· Houses of Wo r s h i p .

· Sports A re n a s .

F requency range 43Hz - 20kHz

Sensitivity (2.83v @ 1m) 8 9 d B

R e c . amplifier powe r 10 -100W

Nominal Impedance 6Ω ( m i n . 3 . 9Ω)

C r o s s over Fre q u e n c y 1 . 8 k H z

E n c l o s u r e material N / A

Te r m i n a l s spring terminals up to Ø2.5mm (0.1”)

c o n d u c t o r

Dimensions (H x W x D)

275 x 275 x 110 mm, 10.82 x 10.82 x 4.33 in. Q S
Ø 275 x 110 mm, 10.82 x 4.33 in.QR

Net we i g h t 2.1kg (4.6lbs)

5 0 0 H z 1 k H z

2 k H z 4 k H z

8 k H z 1 6 k H z

P L 1 6 3 8 E N
