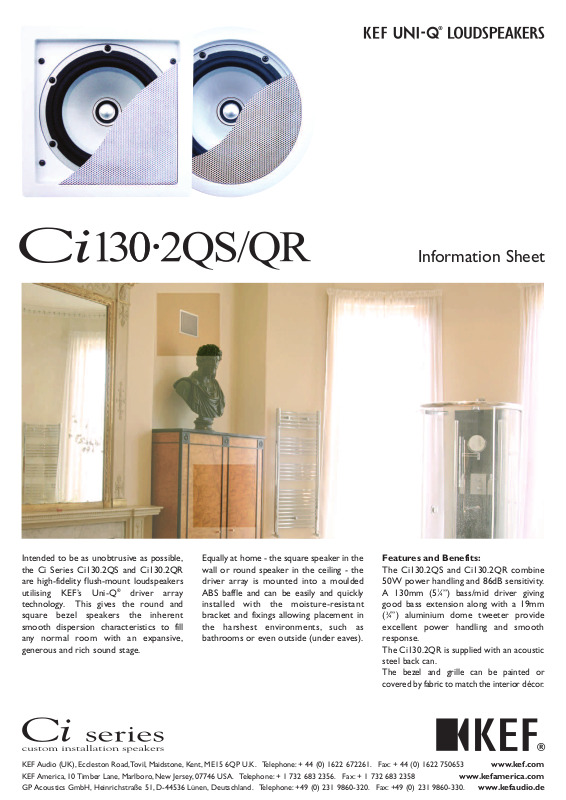

KEF CI-130.2-QR Brochure

Information Sheet

Intended to be as unobtrusive as possible,
the Ci Series Ci130.2QS and Ci130.2QR
are high-fidelity flush-mount loudspeakers
utilising KEF’

s Uni-Q

®

er array

driv
technology. This gives the round and
square bezel speakers the inherent
smooth dispersion characteristics to fill
any normal room with an expansive,
generous and rich sound stage.

Equally at home - the square speaker in the
wall or round speaker in the ceiling - the
driver array is mounted into a moulded
ABS baffle and can be easil

y and quickly
installed with the moisture-resistant
bracket and fixings allowing placement in
the harshest en

vironments, such as

bathrooms or even outside (under eaves).

Features and Benefits:

The Ci130.2QS and Ci130.2QR combine
50W power handling and 86dB sensitivity.
A 130mm (51⁄4”) bass/mid driv
good bass extension along with a 19mm
(3⁄4”) aluminium dome tweeter provide
excellent po
response.
The Ci130.2QR is supplied with an acoustic
steel back can.
The bezel and grille can be painted or
covered by fabric to match the interior décor.

vil, Maidstone, Kent, ME15 6QP U.K. Telephone: + 44 (0) 1622 672261. Fax: + 44 (0) 1622 750653

o

Audio (UK),

KEF

America,

KEF

Acoustics GmbH, Heinrichstraße 51, D-44536 Lünen, Deutschland. Telephone: [phone]. Fax: [phone].

GP

Eccleston Road,

Timber Lane

10

T

Marlbor

,

New Jersey, 07746 USA. Telephone: + 1 732 683 2356. Fax: + 1 732 683 2358

,

o

er giving

wer handling and smooth

ef.com

.k

www

efamerica.com

.k

www

.kefaudio.de

www

Installation

1

Polar graphs

2

500Hz 1kHz

3

56

Architectural specifications:

The Ci Series Ci130.2QS and Ci130.2QR
comprise a Uni-Q®coincident mounted
19mm aluminium dome tweeter with a

ylene bass/mid unit.

130mm white pol

yprop
Performance should meet or exceed the
following criteria: frequency response 1
metre on-axis with swept sinewave shall

4

2kHz 4kHz

8kHz 16kHz

be 50Hz to 40kHz QS, 100Hz to 40kHz
QR, sensitivity shall be at least 86dB for

2.83V@1m. The impedance and maximum
power shall be 50W at 8 ohms. The Ci
Series Ci130.2QS and Ci130.2QR is best
suited where high quality music and speech
reinforcement applications require hi-fi
performance such as:

· Multi Room systems.

· Home Theatre systems.

· Lounges, Bars, Boutiques.

· Boardrooms & Offices.
Airports,

·

Convention Centres, Hotels.

Frequency / Power response, Input impedance

Specifications

Frequency range ±

Sensitivity (2.83v @ 1m) 86dB

Rec. amplifier power 10 - 50W

Nominal Impedance 8Ω (min. 3.2Ω)

Crossover Frequency 2.8kHz

* Block terminals up to

3dB QS: 50Hz - 40kHz, QR: 100Hz - 40kHz

Ø2.5mm with Ci130.2QR back can.

Directivity Index / Beamwidth

Enclosure material Steel with QR

Terminals spring terminals up to Ø2.5mm (0.1”)*

Dimensions (H x W x D)

eight

Net w

180 x 180 x 113 mm, 7.08 x 7.08 x 4.44 in. QS

180 x 109 mm,

Ø
160mm (6.29in) with Ci130.2QR back can.

1.28kg (2.81lbs) QS,

1.64kg (3.6lbs) with Ci130.2QR back can.

7.08 x 4.29 in. QR

1.22kg (2.68lbs) Q

R

PL1617EN
