19" LCD Open frame SAW TM（the Dust T-proof type）User Guide (Rev2.0)
- 1 -
19" LCD Open frame SAW Touch Monitor
（
（（
（the Dust-proof Type）
））
）
User Guide
Rev2.0
Model: KOT-0190US-SA6BP
Shenzhen K&JAD Technology Co., Ltd
www.keetouch.com
Dec. 2010
19" LCD Open frame SAW TM（the Dust T-proof type）User Guide (Rev2.0)
- 2 -
Table of Contents
Chapter 1
Introduction
1.1 Product Description ...................................................................................................................................3
1.2 About the Product ......................................................................................................................................3
Chapter 2
Installation and Setup
2.1 Unpacking Your Touchmonitor ..................................................................................................................4
2.2 Product Overview ......................................................................................................................................5
2.3 Attaching the L-bracket …………………………………………………………………………...……..5
2.4 VESA Mounting Interface………………………………………………………………………………..6
2.5 Interface Connection .................................................................................................................................7
2.6 Installing the Driver Software and Calibration ....................................................................................8
2.6.1 Installing the Driver Software ....................................................................................................8
2.6.2 Calibration........................................................................................................................................9
Appendix A
Specification .................................................................................................................................................11
Mechanical Dimensions ...............................................................................................................................12
Appendix B
Typical Application...............................................................................................................................… 13
How to contact us
……………………………………………………………………………..…….14
19" LCD Open frame SAW TM（the Dust T-proof type）User Guide (Rev2.0)
- 3 -
Chapter
1
1
INTRODUCTION
1.1 Product Description
Keetouch’s 19" LCD touch monitors have a long-lasting product cycle because the
enclosure is controlled by Keetouch’s specifications. Future panel improvements are therefore
possible without external changes. The KOT-0190US-SA6BP integrate with the Keetouch’s
SAW technology touchscreen.
1.2 About the Product
Your LCD openframe touchmonitor is 19” SXGA TFT color display with the following
features:
•
Long lasting product cycle-enclosure controlled by Keetouch specifications
•
Future generation panels phased-in without external changes
•
High quality panel with high brightness,high contrast ratio and broad viewing angle
•
Multiple mounting options including rear-mount ,VESA mount, horizontal or vertical
bracket-mount
•
Keetouch’s SAW technology on pure glass for the ultimate in image quality
•
Dual USB and RS232 touch interface
•
Worldwide agency approvals
For full Product Specifications refer to Appendix A.
19" LCD Open frame SAW TM（the Dust T-proof type）User Guide (Rev2.0)
- 4 -
Chapter
2
2
INSTALLATION AND SETUP
This chapter discusses how to install your LCD touchmonitor and how to install the driver software.
2.1 Unpacking Your Touchmonitor

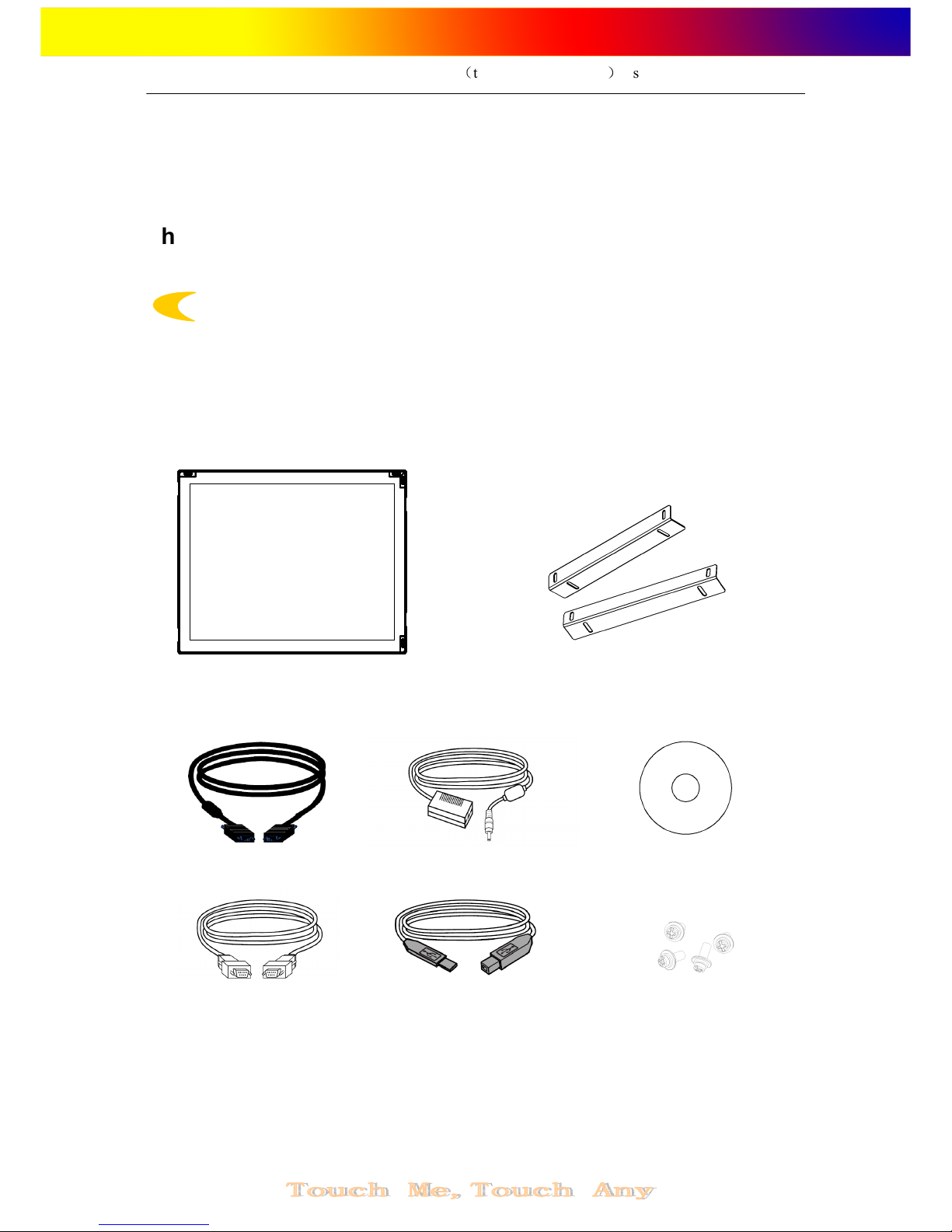

Check that the following 9 items are present and in good condition:
One Touchmonitor Two L-brackets
One Video cable One Brick power supply One Driver software CD
One Serial cable One USB cable Eight M4 Screws and Washers
19" LCD Open frame SAW TM（the Dust T-proof type）User Guide (Rev2.0)
- 5 -
OR

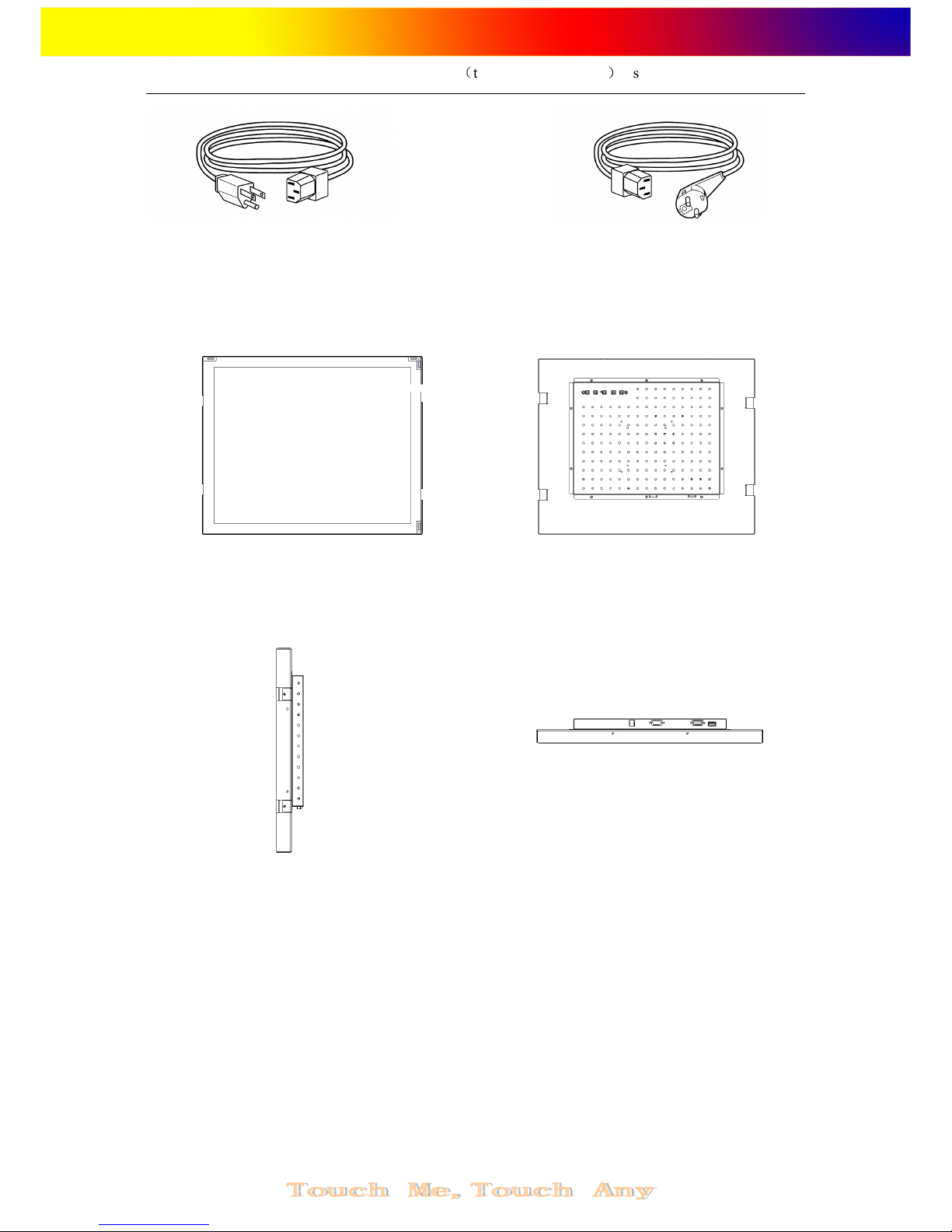

One Power cable US/Canada One European power cable
2.2 Product Overview
Main Unit Rear View
Side View Bottom View
2.3 Attaching the L-Brackets
NOTE: You will need a screwdriver to attach the L-brackets.
To attach the L-brackets:
1 Lay the monitor face down.
2 Place the long end of the L-bracket against the side of touchmonitor. Line up the two
holes of the L-bracket with the two holes of the touchmonitor.
3 Place two M4 screws in the holes and with the screwdriver, screw them in to secure the
bracket.
4 Repeat steps 2 and 3 to attach the other L-bracket to the other side of the touchmonitor.
NOTE: The way to attach the L-brackets has two options,See the illustration below:
19" LCD Open frame SAW TM（the Dust T-proof type）User Guide (Rev2.0)
- 6 -

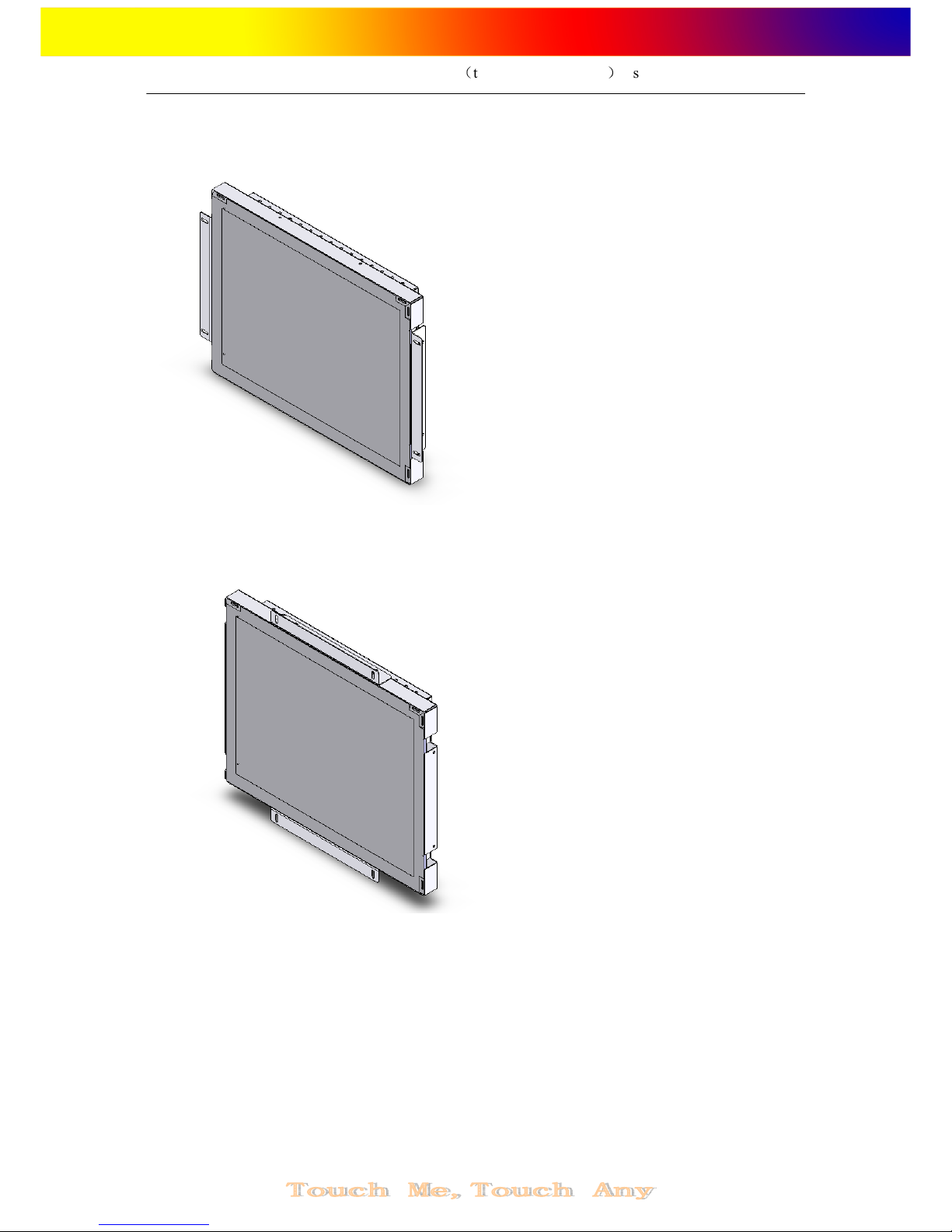

Option 1
(L-brackets to the left and right sides)
Option 2
(L-brackets to the up and down sides)
2.4 VESA Mounting Interface
Your touchmonitor conforms to the VESA Flat Panel Monitor Physical Mounting
Interface (FPMPMITM) Standard which defines a physical mounting interface for flat panel
monitors, and corresponding standards for flat panel monitor mounting devices, such as wall
and table arms.

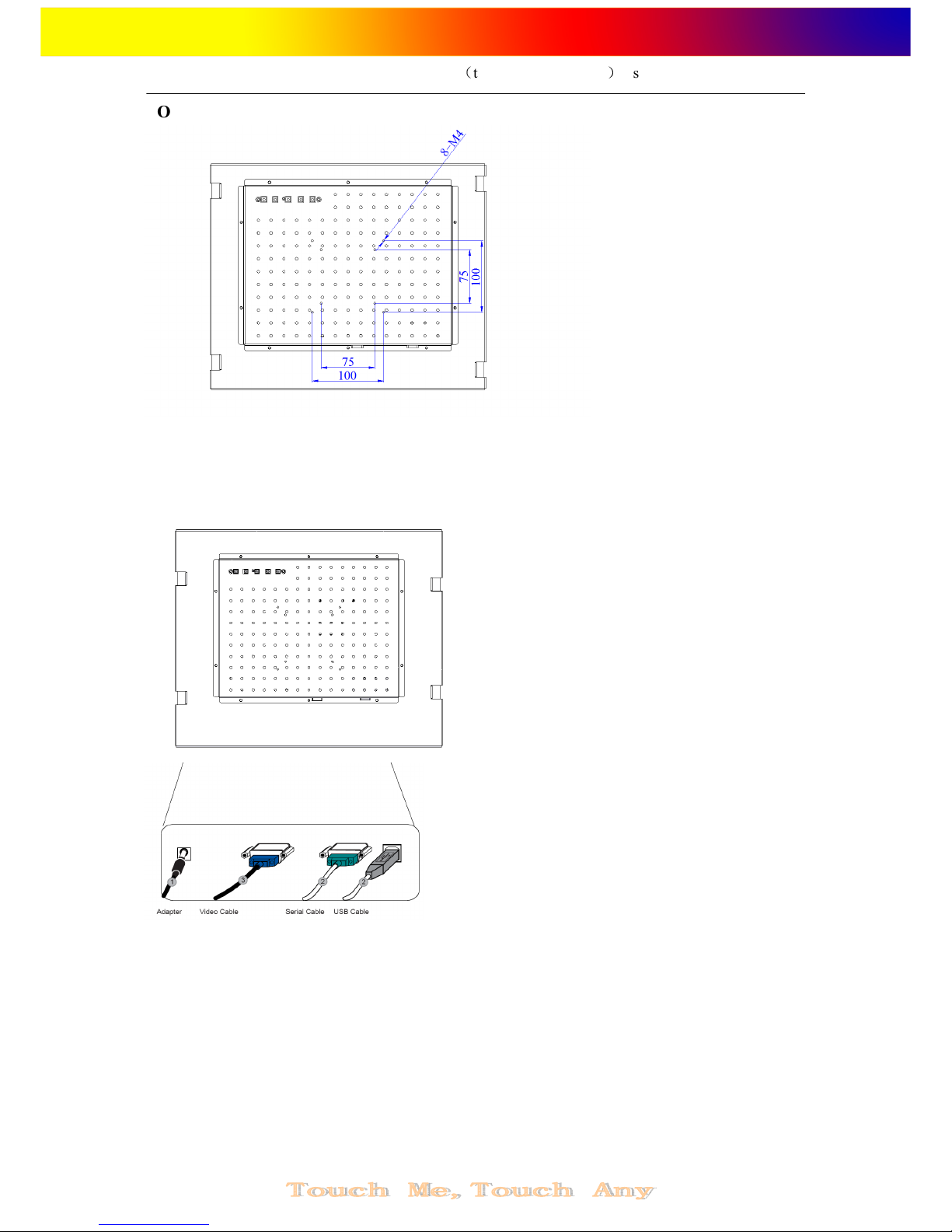

Your monitor has standard VESA mounting holes on the rear of the unit. The holes are
spaced at 75mm and 100mm standard.
19" LCD Open frame SAW TM（the Dust T-proof type）User Guide (Rev2.0)
- 7 -
NOTE:Do not penitrate the M4 screw into the monitor more than 5mm.
2.5 Interface Connection
Note: Before connecting the cables to your touchmonitor and PC, be sure that the
computer and touchmonitor are turned off.
1. Connect one end of either the serial (RS232) cable or the USB cable(but not both) to the
rear side of the computer and the other end to the LCD monitor. Tighten by turning the two
thumb screws clockwise to ensure proper grounding ( USB cable does not have thumb
screws).
2. Connect one end of the video cable to the rear side of computer and the other to the LCD
monitor. Tighten by turning the two thumb screws clockwise to ensure proper grounding.
3. Connect one end of the power adapter to the monitor and the other end to the connector of
the power cord.
4. Press the power button on the rear panel to turn the monitor power on.
19" LCD Open frame SAW TM（the Dust T-proof type）User Guide (Rev2.0)
- 8 -
NOTE：：：：The touchmonitor should be integrated according to the above process, if not
may result in the touchmonitor working abnormally。
2.6 Installing the Driver Software and Calibration
Keetouch TouchSystems provides driver software that allows your touchmonitor to work
with your computer. Drivers are located on the enclosed CD-ROM for the following operating
systems:
• Windows XP
• Windows 2000
• Linux
The latest versions of drivers and driver information for other operating systems are
available on the Keetouch TouchSystems web site at www.Keetouchtouch.com.
Your Keetouch touchmonitor is Plug-and-Play compliant. Information on the video
capabilities of your touchmonitor is sent to your video display adapter when Windows starts.
If Windows detects your touchmonitor, follow the instructions on the screen to install a
generic Plug-and-Play monitor.
2.6.1 Installing the Driver Software
double click the file of “Setup.exe” in the folder , the Windows will flip Dialog Box as
follow:
NOTE:Your touchmonitor have dual USB and Serial(RS232) touch interface port,
Depending upon whether you connected the USB communication cable or the
Serial(RS232) communication cable, you should install only the USB driver or the
Serial(RS232) driver. Install the USB driver, please chose the “KeeTouch, KCA USB
Series, USB”;Install the Serial(RS232) driver, please chose “theKeeTouch,KCA RS232
Series,Serial”.
19" LCD Open frame SAW TM（the Dust T-proof type）User Guide (Rev2.0)
- 9 -
After selecting the proper interface, click the Install button to start installing the driver as
following.
Installation successfully as following:
2.6.2 Calibration
Click at the right side in the down corner of the Desk-Top,then choose “calibrate”in
the pop-out of the menu ,and choose the “RS232” or “USB” at the submenu, as follow：
19" LCD Open frame SAW TM（the Dust T-proof type）User Guide (Rev2.0)
- 10 -
Windows will pop-out the calibration interface, then click “+” with finger one by one,
as follow:
After clicking the “+” on by one, the calibration is completed.
19" LCD Open frame SAW TM（the Dust T-proof type）User Guide (Rev2.0)
- 11 -
Appendix
A
A
TECHNICAL SPECIFICATIONS
Specification
Model No.
KOT-0190US-SA6BP
Series
OT
Structure
Metal-cased Openframe and Black medal Dust-proof Front Bezel
LCD Type
Active matrix TFT-LCD
Display Size 19＂（diagonal）
Active Area 14.8＂(377mm)×11.9＂(301mm)
Suggested Resolution
1280×1024
Support Colors
16.7M
Pure LCD Panel 300cd/m2
Brightness(Typ.)
With SAW Glass Sensor 275cd/m2
Response Time(Typ.)
5ms
Horizontal(left/right) 80°/80°
Viewing Angle
(Typ.at CR
＞＞＞＞
10)
））））
Vertical(up/down) 80°/80°
Contrast Ratio(Typ.)
800:1
Video Input
Analog RGB
Signal Input
H/V Separate Sync. (TTL)
Video Signal Input
Connector
Mini D-Sub 15-pin VGA
Frequency
（（（（
H/V
））））
30～80KHz / 60～75Hz
Power Supply
Type: External brick
Input (line) voltage: 100-240 VAC, 50-60 Hz
Output voltage/current: 12 volts at 4 amps max
Operating Temp.
0～50°C
Storage Temp.
-20～60°C
Operating RH:
20%～80%
Environment
Storage RH:
10%～90%
MTBF
50,000 Hours
LCD Back light Life(Typ.)
50,000 Hours
Weight
（（（（
N.W/G.W
））））
5.8Kg / 8 Kg (Approx.)
19" LCD Open frame SAW TM（the Dust T-proof type）User Guide (Rev2.0)
- 12 -
Power Consumption
50W Max.
Mount Interface
1)VESA 75mm and 100mm
2)Mount bracket, horizontal or vertical
(Standard mount brackets are supplied)
Buttons AUTO,+,POWER,-,MENU
OSD Control
Function
Brightness, Contrast Ratio, Auto-adjust, Phase,
Clock, H/V Location, Languages, Function, Reset
Touch screen Type
19” SAW 6MM thickness of touch screen sensor;
Touch System Interface
USB and RS232
Certificates
ETL ,FCC,CE,RoHS
Mechanical Drawing
Accessories
Power Cable
Power CablePower Cable
Power Cable: A North American power cable or an European power cable is included
according to the end user’s area.
Power Supply Brick
Power Supply BrickPower Supply Brick
Power Supply Brick:A power supply brick is included.
19" LCD Open frame SAW TM（the Dust T-proof type）User Guide (Rev2.0)
- 13 -
Touch/Video Cables
Touch/Video CablesTouch/Video Cables
Touch/Video Cables: Detachable serial or USB touch cable，and video cables are
included
LLLL----brackets
bracketsbrackets
brackets：Two standard L-brackets are included.
Appendix
B
B
Typical Application
Gaming/Casino Systems
Outdoor and indoor Kiosks
Entertainment
Transport and Ticketing
Hospitality
Banking
Customizsed Solutions
How to contact us
www.Keetouch.com
Add：1-4th Floor，Building 9
Luck-King Science & Industry Park
Gongyedong Road，Longhua
Baoan, Shenzhen 518109，P.R.China
Tel：+86-755-82599299
Fax：+86-755-82599968
Sales & Marketing：sales@keetouch.com
Technical Support：：：：support@keetouch.com
