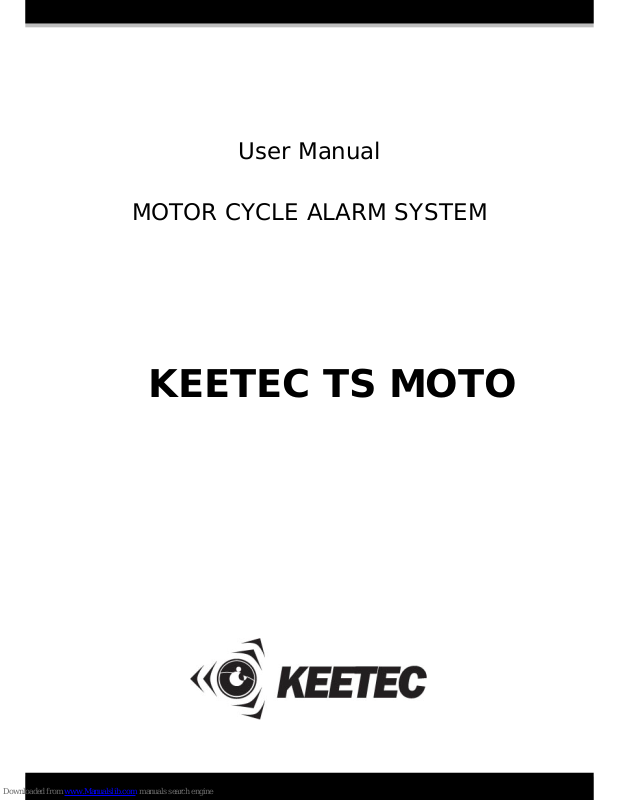

User Manual
MOTOR CYCLE ALARM SYSTEM
KEETEC TS MOTO
Version1.2 TS MOTO
1
STANDARD CONFIGURATION FOR TRANSMITT ER
Buttons
0B
Function
Condition
Press button 1 once
Arm
Stop alarm sounding
Ignition OFF
Alarm so unding
Press button 2 once
Disarm
Exit car finder mode
Armed and Alarm so unding
Press button 1 and 2
together
Panic Anytime
Press and hold button3
for 2 sec
Ente r A nt i mot o r cyc le -jacking While driving
Press button 1 once then
press button 3 within 5
sec
Arm & Bypass Tilt sensor Ignition OFF
Press and ho ld button 1 &
4 for 2 sec
Enter funct ion s ele ct ion
Ignition ON within 5
seconds
press button 2 & 3
together
1BEnter/exit VALET mode
Ignition ON within 5
seconds
Press butt on 4
2B
Enter car finde r mode
Arming
4-BUTTON TRANSMITTER
Version1.2 TS MOTO
2
FEATURES:
C
ODE LEARNING
In case the transmitter is lost, or you want to add more transmitters (up to 3 most). Please
refer to foll owing proc e dures:
a. In disarming mode, turn ignition ON/OFF 5 times within 15 sec, and s tay in ON
position, 3 seconds later Siren will chirp 3 times to indicate system entered code
learning mode.
b. Press any button on the transmitter; siren will chirp the times of transmitter’s
sequence. E.g. once for the first transmitter, twice for the second, three times for the
third.
c. After 8 sec or turn ignition OFF, the Siren will long chirp once, system will
automatically exit code learning and store the code.
d. When the first code has been learned, all old codes will be cleared
ARMING
a. In disarmed mode, turn ignition OFF, press button I once, siren will chirp once,
parking light will flash once. After 8 sec., system w ill armed a utomatically, LED
flash quickly and disable engine.
b. In armin g mod e, to tur n o n the ke y w ill tr igge r the sir e n,
parking light will fla sh 30
seconds. The siren will keep 30 sec-cycle sounding till ke y turned to O FF. After t he
key is turned to OFF, siren will keep sounding till c ycle end.
c. Tilt SENSOR defence area
In ar mi ng mod e, if mo to rc yc le is moving or inc line, s iren w ill chirp 30 sec., parking
light will flash 30 seco nds.
d. Trigger defence area
In arming mode，if the defence area was triggered, siren will chirp 30 sec., parking
light will flash 30 seco nds.
Note: up to 8 times to alarm per arming cycle.
Version1.2 TS MOTO
3
ARMING AND BYPASS TILT SENSOR
When s yste m enter ed ar ming mo de, press button 1and the n pres s butt on 3 o nce w ithin 5
sec, system will long c hirp once to indicate that the T ilt sensor is bypassed.
In the mode, LED will flash twice interval 2 seconds.
D
ISARMING
1. In arming mode, press button 2 once, siren will chirp twice, parking lights will
flash 2 times then system will be disarmed and enable the engine starter.
2. If the alarm is triggered during arming mode, siren will chirp 4 times when
disarming. Parking light will flash 4 times which indicates the alarm has been
activated.
AUTO RE-ARMING
After disarming, 60 sec later if driver hasn’t start engine, system will be rearmed
automatically. LED will flash quickly.
(During rearm c ount down, LED w ill flash quick ly, sire w ill chirp once, a nd parking light
will flash once.)
PANIC
a. If you are threatened near your motorcycle, you can attra ct a ttenti on by tr iggeri ng the
syste m wit h your transmitte r . Just press b utton 1+2 together to enter panic mode. The
siren will sound for 10 sec, Press button1or2 to stop s ounding
, and parking lig hts will
flash for 10 seconds.
CAR FINDER
a. The syste m is armed.
b. Press button 4: siren will chirp once, parking lights w ill flash 10 times.
c. Press button 2 to stop car finder and disarm.
Version1.2 TS MOTO
4
ANTI MOTORCYCLE-JACKING
1. When k ey ha s bee n tur ned ON , pre ss and hol d butt on 3 for 2 seconds, LED wil l
flash quickly，then motorcycle-jacking mode is activated. S iren will chirp once
every 3sec, after chirping 5 times, siren will chirp once every 1.5sec. After
chirping 8 times, siren will continue sounding;
parking lights will continuously
flash and disable the engine. (Press and hold button 2 for 2 sec before siren long
chirp to exit motorcycle-jacking mode.) During anti motorcycle-jacking mode,
siren will long chirp, when the key turns to OFF, siren will stop, and parking
lights will stop flashing as long a s the ignitio n tu rns O FF. If k ey has b ee n tur ned
to ON again, siren w ill so und and engine will not be a ble to sta rt.
2． To exit anti motorcyc le ja ck ing: E M ERGENCY OVERRID E
EMERGENCY OVERRIDE
In arming mode or motorcycle-jack ing mode, if transmitter is failed or lost, please refer to
following step for Emerge ncy Override: Turn key to ON/OFF 5 ti mes within 10 sec and
sta y in ON p ositi on, LED shine for 2 seconds, the n turn a cc off, after LED sta rt flashing,
after 1st digit of PIN code turn ACC ON, after ACC OFF, LED start flashing for 2nd
number of PIN code. Together with 4 digits which need be correct. Siren will chirp 4
times, park ing light will flash 4 ti mes to indicate the system is disarmed.
PIN
NUMBER SETTING (FACTORY PRESET PIN NUMBER: 4321)
In disarming mode, tu rn i gnition ON /OFF 8 times within 15 sec, and sta y in ON position.
LED shine for 2 seconds, turn ignit io n OFF within 10sec, LED will start b lin k s low ly, a nd
input old 4 PIN NUMBER, if old 4 P IN N UM BER is correc t, siren will chirp o nce, turn
ignition OFF, LED will start b link s low ly, a nd inp ut NEW 4 PIN NUMBER
When LED blink the 1s t digit of PIN NUMBER, turn ignition ON, 1s t PIN
NUMBER will be inp ut, a nd tur n ignition OFF, LED start to blink again
Whe n LED bli nk the 2nd digit of P I N NUMBE R, tur n ignition ON , 2 nd PI N
NUMBER will be inp ut, a nd tur n ignition OFF, LED start to blink aga in;
Whe n LED bli nk the sa me number as the 3rd d igit of PIN NUM BER, turn
ignition ON, 3rd PIN NUMBER will be input, and turn igni tion OF F, LED
start to blink aga in,
Version1.2 TS MOTO
5
Whe n LE D blinks the fourth digit of PIN N U M B ER, turn ignition ON, 4th
PIN NUMBER will be inpu t, and t ur n i g ni t io n OFF.
5 sec. After 4 New PIN NUM B ER has be en input, LED will a utomatically
show the new PIN NUM B ER to c onfirm: Blink 1st digit –pa use 2 sec ond-blink
2nd digit - pause 2 second…
Turn ignition ON, or 10 s ec a fter new P IN NU M BER con firm, system will ex it PIN
NUMBER setting mode.
Attention: when th e inputed code is super code(8555),the old key wil l be
reset automatically.
VALET MODE
You c an preve nt your sec urit y sys tem fr om automatically arming by usin g valet mode, this
is very useful when washing the motorcycle for example, in valet mode, the security
system will not a rm, even with the t ransmitter, but any acc essory functions w ill continue
to work normally.
ENTER VALET MODE:
Ignition ON, pres s and hold button 2+3 within 5 seconds, (t he siren will chirp once e ven
the button was pressed once)，then unit will enter valet mode. I n valet mode, press b utto n
1, siren will ch irp 3 times . LED quickly flashes 3 times and then cycle .
The same way to exit valet mode.
MEMORY FUNCTION
This security system will store its current state to non-vo latile memory. If power is lost
and then reconnected the system will recall the stored state from memory. This means if
the unit is in valet mode a nd the battery is disconnecte d for any reason, suc h as servicing
the motorc ycle, when the batte ry is reconnected the unit w ill still be in valet mode. T his
applies to all states of the system including arm, disar m, and va let mode.
HIGH FREQUENCY
Your syste m trans mits and receives at 433 MHz; this provides a cleaner spectrum with less
interference and a more stable signal.
Version1.2 TS MOTO
6
FUNCTION SELECTION
1. In disarming mode, t urn ignition to ON, pr ess and hold button 1+4 for 2 seco nds
within 5 seconds，siren will chirp once, LED will flash once per second to
indicate system entered function selection.
2. Press button 3 once, siren will chirp once to indicate unit entered function
selection menu 1. Press button 3 twice, siren will chirp twice to indicate unit
entered function selection me nu 2, press button 3 thrice, siren will c hirp thrice to
indicate unit entered function selection menu 3.
3. After unit entered function menu, press button 1 once, siren will chirp twice to
indicate current setting is default value, press button 2 once, siren w ill chirp once
to indicate current setting is variable value. If siren chirps thrice to indicate the
sensitivity o f tilt sensor is 30°. (Note : when the sens itivity is 30°, if user wa nts to
adjust higher sensitivity, to press button 1 once, a nd then pres s button 2 to adjust.
4. Ignition OFF to ex it function sele ct ion men u. S ir en will long chirp once
5. During the menu setting, if without any operation within 10 seconds, siren will
long chirp once to exit function selection menu.
NO FUNCTION SELECTION
PRESET
(CHIRP TW ICE)
VARABLE
(CHIRP ONCE)
1
AUTO REARMI NG
YES
NO
2
ANTI MOTORCYCLE-
JACKING
NO YES
3
Tilt SENSOR sensitivity
adjustment
3(°)
1，2，3，4，5，7，9，
11，15，30(°)
4 Silent/chirp mode Silent Chirp mode
6
Positive/Ne gative siren
output
Positive(constant)
Negative siren
output(pulse)
7
Fla sh lamp arm/disarm
Enable
Disable
8
Reset back to Factory
setting
DEFAULT
Version1.2 TS MOTO
7
POWER SAVING MODE
a. After 6 hours in the armed state, the LED will flash once interval 4 seconds, after
12 hours, it will flash o nce inte rval 8 seconds
b. After 24 hours of no activity (arm, disarm, or alarm trigger) The alarms receiver,
and L E D turn off
c. After 48 ho u rs the alarm enters sleep mode to save as much battery power as
possible, the system is drawing next to no current in this mode.
d. If any other input is ac tivated when i n sle ep mode, the system w i ll wake up, the
siren will chirp 10 times.
APPENDIX
1.
ELECTRICAL CONFIGURATIONS
DC S upply voltage
12V
DC Tolerance voltage 9V－16V
Current (St a tic)
≤6mA
Current (Sleep)
≤4mA
Siren vo l u me 105dB
Version1.2 TS MOTO
8
2. INSTALLATION GUIDE
LAMP
FUSE 15A
Version1.2 TS MOTO
9
3. SMART UNITE SIZE
Version1.2 TS MOTO
10
4. SIREN SIZE:
Version1.2 TS MOTO
11
5. FINISHED GOOD
