User Manual
1. Download the latest ios APP
https://www.pgyer.com/wifi_tester?sig=j07urmxIUo%2FMvKxIhtDwQZaeogbX
jB9fRL%2FN1sVyT4wses8oyf8rjOf61hC%2BYapC
password:keeson
Open the link with Safari browser, enter your password, and install the APP.
1) Open the APP.If this error occurs when you open the APP, do the
following.
1. setting→general→device management。
→
2. Ergomotion Inc.→ trust“Ergomotion Inc.”→trust。
2. connecting device
1) Open system Settings，Connect your phone or ipad to WiFi connection.

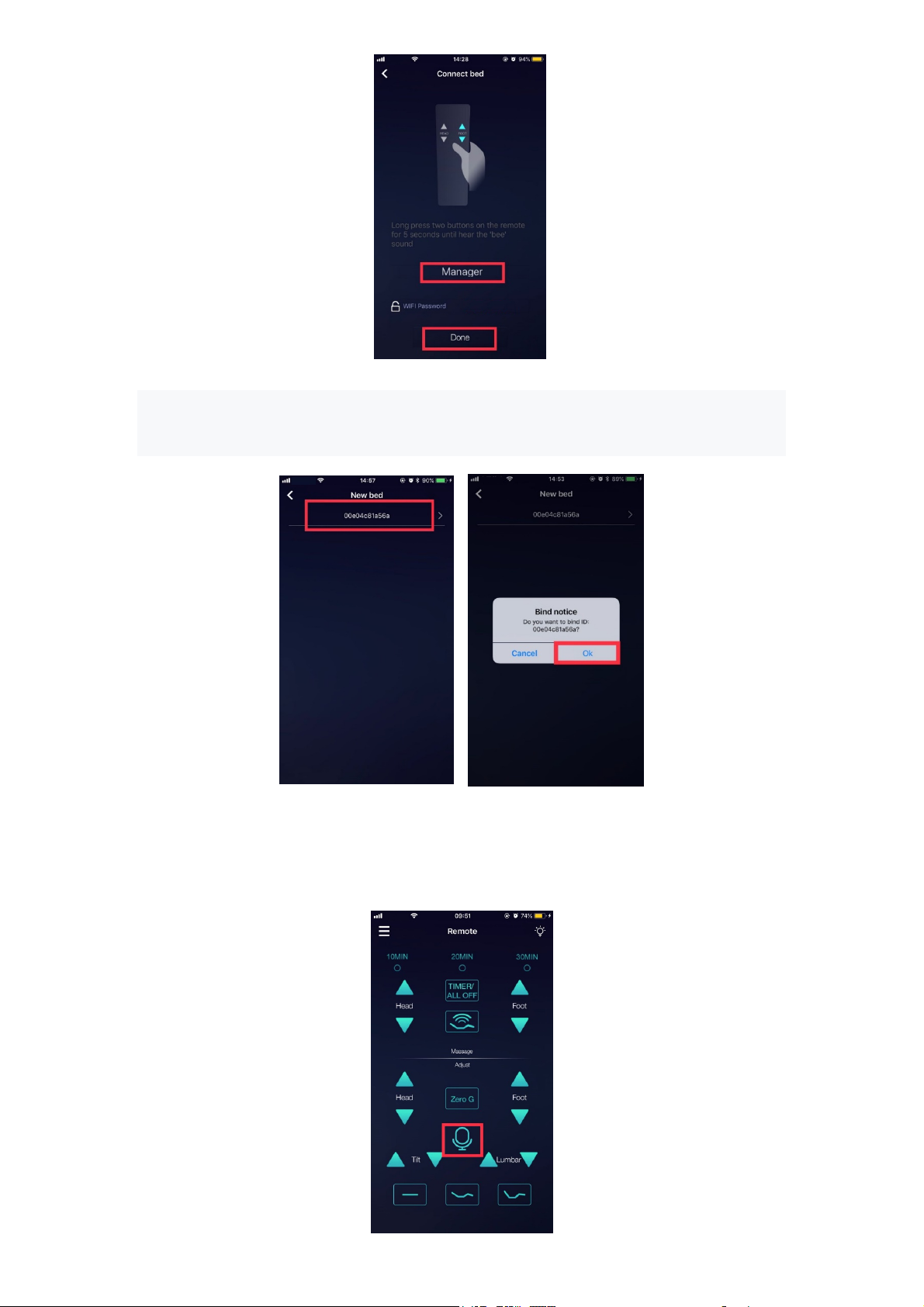

2) Open the APP and click the top left button of the APP→ Bed setup
→ Connect bed
China Mobile
China Mobile
China Mobile
Enter WIFI password
→→
3) Press the foot lift and foot drop buttons for five seconds，until
WiFiboxmake ‘bee’
4) Open system Settings，Select a WiFi named KS-xxxxxxxxxx on your phone
or ipad
5) Select the wifi signal just connected to,enter password,press done.
Enter WIFI password
6) Jump to the New bed interface, Bed id appears after waiting for a while.
Click bed id to bind.
China Mobile
China Mobile
→
3. Device control
1) Click the voice control button in the red box, The head will go up for 3 seconds

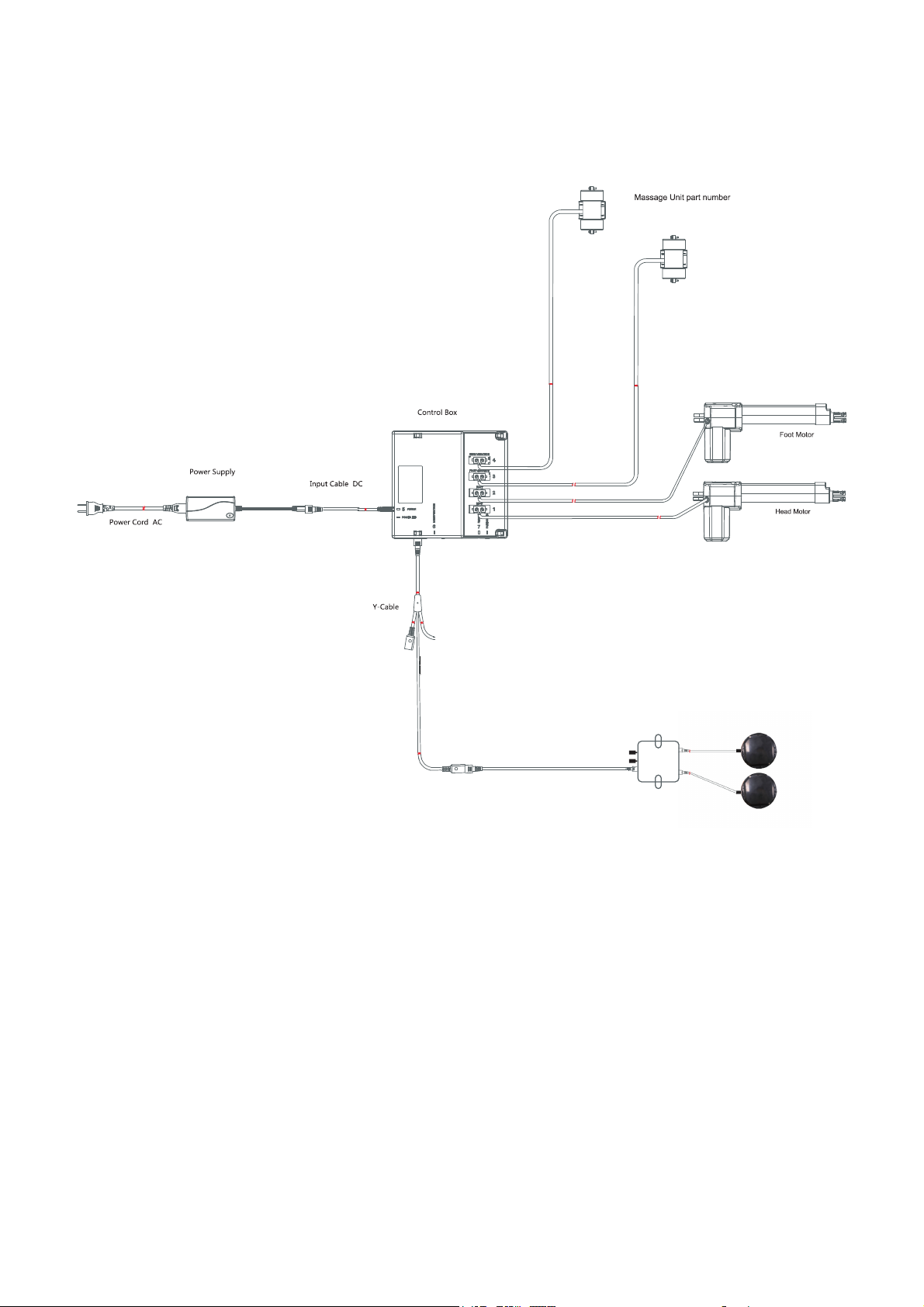

Electricalconfigurationdiagram：
wifi box
Communication line
Secondary communication port
Main communication port
Synchronous
interface
WIFI control box
Heartbeat sensor
communication line
Heartbeat sensor
communication line
sensor
sensor
FCC Statement
Any Changes
complianc ecould void the user’s authority to operate the equipment. This device
complies with part15 of the FCC Rules.Operation is subject to the following two
conditions:
(1)This device may not cause harmful interference, and
(2)This device must accept any interference received, including interference that
may cause undesired operation.
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment .This equipment should be installed and operated with
minimum distance 20cm between the radiator&yourbody.
ISED RSS Warnin
This device complies with Innovation, Science and Economic Development Canada
or modifications not expressly approved by the party responsible for
g:
licence-exempt RSS standard(s).
Operation is subject to the following two conditions:
(1) this device may not cause interference, and (2) this device must accept any
interference, including interference that may cause undesired operation of the
device.
Le présent appareil est conforme aux CNR d'ISED applicables aux appareils radio
exempts de licence. L'exploitation est autorisée aux deux conditions suivantes:
(1) l'appareil ne doit pas produire de brouillage, et
(2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même
si le brouillage est susceptible d'en compromettre le fonctionnement.
ISED
RF exposure statement:
This eq
uncontrolled environment. This equipment should be installed and operated with
minimum distance 20cm between the radiator& your body.
uipment complies with ISED radiation exposure limits set forth for an
This transmitter must not be co-located or operating in conjunction with any other
antenna or transmitter. Le rayonnement de la classe b repecte ISED fixaient un
environnement non contrôlés.Installation et mise en œuvre de ce matériel devrait
avec échangeur distance minimale entre 20 cm ton corps.Lanceurs ou ne peuvent
pas coexister cette antenne ou capteurs avec d’autres.
