RF378D Function instruction
Massage foot
Massage time
Massage head
Head lift
Memory4
FLAT
Foot lift
Memory3
UBB
Memory 2
Tilt lift
Lumbar lift
Zero-G

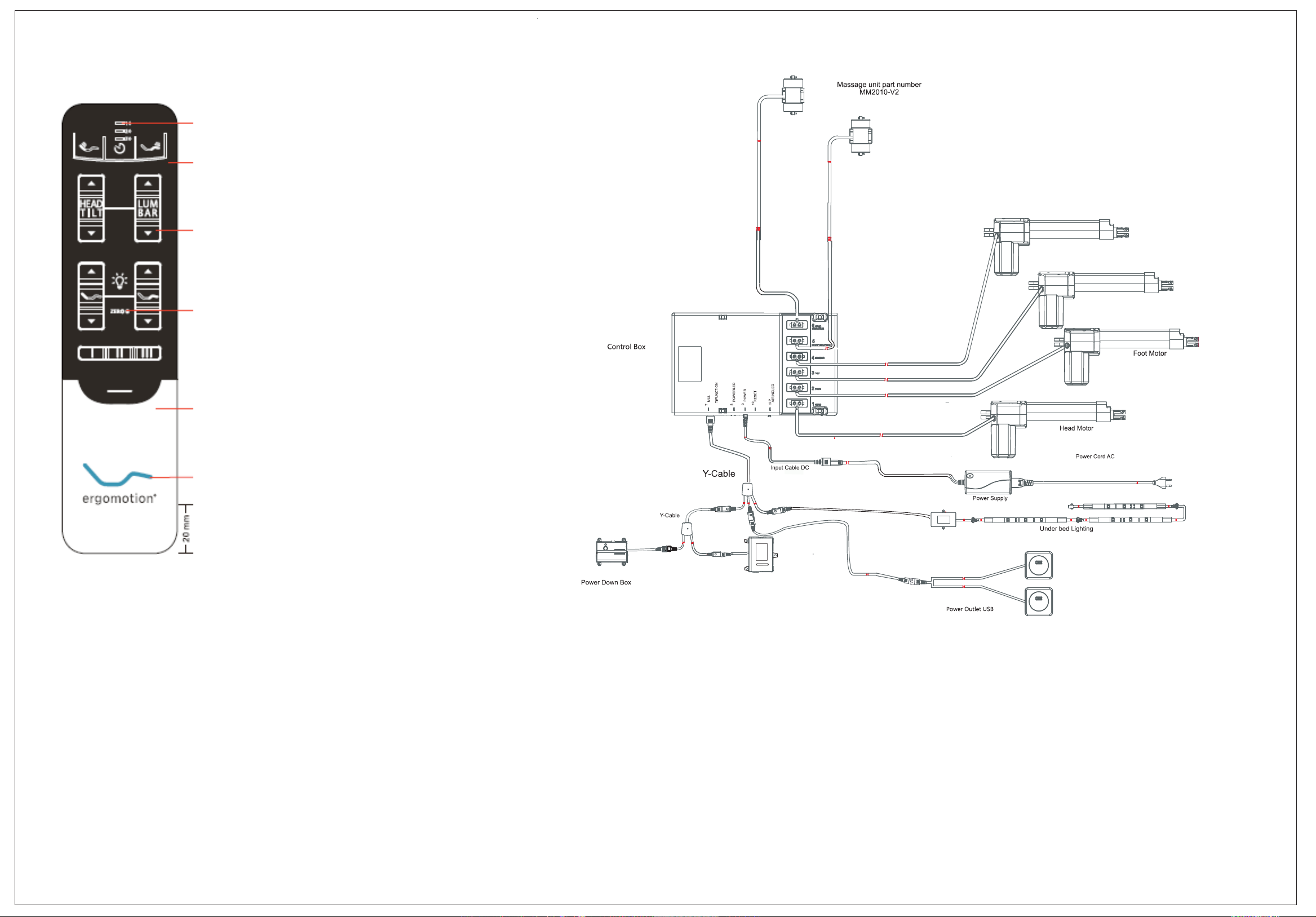

1. Electrical configuration diagram：
1
Issue department：Bedding Division
Date：
2019-10-9
Product Function
instruction
Author：
Beck
No：RF378D
RF378D
Version：
1.0
Page 2 of 4
2. Process of test
2.1 Head Lift +
Press and maintain, head lift stretches out
2.2 Head Lift -
Press and maintain, head lift retracts
2.3 Foot Lift +
Press and maintain, foot lift stretches out
2.4 Foot Lift -
Press and maintain, foot lift retracts
2.5 Tilt Lift +
Press and maintain, tilt lift stretches out
2.6 Tilt Lift -
Press and maintain, tilt lift retracts
2.7 Lumbar Lift +
Press and maintain, lumbar lift stretches out
2.8 Lumbar Lift -
Press and maintain,lumbar lift retracts
2
Issue department：Bedding Division
Date：
2019-10-9
Product Function
instruction
Author：
Beck
No：RF378D
RF378D
Version：
1.0
Page 3 of 4
2.9 FLAT
Press and release the FLAT button on remote，the head and foot actuators moves to lower position(when the
actuator is free, can turn off the vibration motor and turn off the indicator light when press once )，stop when
press any buton；
2.10 Zero-G
Release after press, 2 lifts move to Zero-G position
2.11 Memory2
Release after press, 2 lifts move to Memory4 position
2.12 UBB
Press the key turn on the bedlight
2.13 Memory3
Release after press, 2 lifts move to Memory3 position
2.14 Memory4
Release after press, 2 lifts move to Memory4 position
2.15 Massage head
Turn on massage head
2.16 Massage foot
Turn on massage foot
3
Issue department：Bedding Division
Date：
2019-10-9
Product Function
instruction
Author：
Beck
No：RF378D
RF378D
Version：
1.0
Page 4 of 4
2.17 Massage time
Press the Massage time key will turn on the massage and choose timing for 10min-20min-30min-off
2.18 Pairing
Press Head Lift + and Foot Lift + key for more than 1 second, the remote will enter pairing mode and a B_ LED
will flash. Release this key to stop pairing .After the pairing is successful, B_LED will stop flashing.
