KeyGrabber TimeKeeper

User’s Guide

KeyGrabber TimeKeeper

USB 2 GB

PS/2 2 GB

inc. Mac Compatibility Pack (MCP)

Check http://www.keelog.com/ for the latest version of this document.

KeyGrabber TimeKeeper

Table of contents

Table of contents ...................................................................................................................... 2

Getting started .......................................................................................................................... 2

Introduction .............................................................................................................................. 3

About the product ................................................................................................................. 3

Features ............................................................................................................................... 3

Requirements ....................................................................................................................... 3

Applications .......................................................................................................................... 4

Quick Start ............................................................................................................................... 5

Recording keystrokes ............................................................................................................... 7

Viewing recorded data .............................................................................................................. 8

Flash Drive mode .................................................................................................................. 8

Text Menu mode (PS/2 version only) .................................................................................. 10

Clock configuration ................................................................................................................. 11

Configuration files ................................................................................................................... 13

CONFIG.TXT ................................ ................................ ...................................................... 14

TIME.TXT ........................................................................................................................... 15

Mac Compatibility Pack (USB version only) ........................................................................... 16

National keyboard layouts ...................................................................................................... 17

Using KL Tools ....................................................................................................................... 18

Specifications ......................................................................................................................... 19

Troubleshooting ...................................................................................................................... 20

List of special keys ................................................................................................................. 22

Legal disclaimer ..................................................................................................................... 23

Getting started

Already familiar with KeyGrabber keyloggers?

 Start key-logging in 3 simple steps: section Quick Start

New to KeyGrabber hardware keyloggers?

 Learn about keystroke recording first: section Recording keystrokes  Then learn to retrieve the recorded data: section Viewing recorded data  Finally, configure the internal clock: section Clock configuration

Questions or problems?

 Go through the Troubleshooting section.

KeyGrabber TimeKeeper

Introduction

About the product

The KeyGrabber TimeKeeper is a special version of the KeyGrabber USB and KeyGrabber PS/2, with an additional time-tracking module powered by an internal battery. The KeyGrabber TimeKeeper inherits all the powerful features of the USB and PS/2 series, adding

the capability to create date and time-stamps in the log file. All TimeKeeper series devices have a huge 2 Gigabyte flash disk, ensuring years’ worth of keystroke logging without any maintenance. Both the USB and PS/2 versions are accessible via the Mass Storage Device technology, guaranteeing super-fast and easy data access. This hardware keylogger is 100% transparent for computer operation and no software or drivers are required.

Features

 Internal clock and battery with over 7 years lifetime guaranteed  Built-in time-stamping module  Huge 2 GB memory capacity, organized as a flash file system  Compatible with all USB and PS/2 keyboards (including Linux & Mac)  Mac Mode ensuring full compatibility with Apple keyboards (MCP version only)  Ultra fast memory contents retrieve through USB  Transparent to computer operation, undetectable for security scanners

 Memory protected with strong 128-bit encryption

 Quick and easy national layout support  Flash Drive mode available both in USB and PS/2 versions  Ultra compact and discrete, less than 2 inches (5 cm) long  Complete functionality of the KeyGrabber USB or KeyGrabber PS/2

Requirements

 Compatible keyboard:

USB version: USB HID-compliant keyboard (Low-Speed, Full-Speed, or High-Speed) PS/2 version: PS/2 compliant keyboard

 Computer with USB Mass-Storage device support

Applications

Employers:

 Monitor acceptable internet usage  Monitor employee productivity  Detect unauthorized access attempts  Backup typed text  Collect computer usage statistics

Parents:

 Monitor your family's computer activity

KeyGrabber TimeKeeper

 Protect your child from on-line hazards and predators  Observe WWW, E-mail, and chat usage  Save a copy of written documents

Investigators:

 Monitor remote computers  Retrieve unknown passwords, operating system independent  Collect computer-related evidence  Detect unauthorized use of computer equipment

KeyGrabber TimeKeeper

USB version

PS/2 version

Plug the USB keylogger in-between the

keyboard and USB port.

Plug the PS/2 keylogger in-between the

keyboard and PS/2 port.

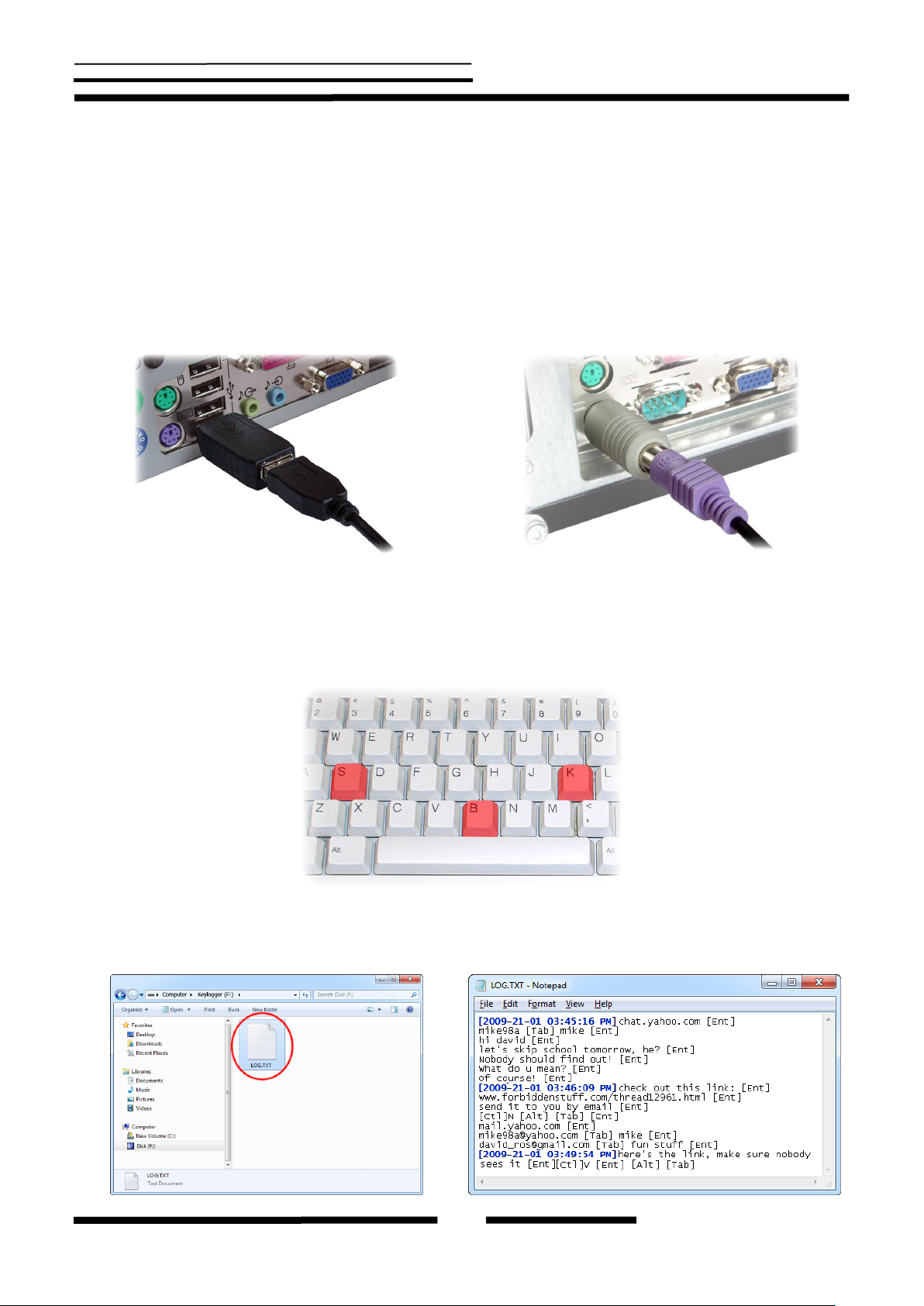

Quick Start

This section assumes you are already familiar with basic hardware keylogger handling, such as recording and retrieving data. If you need detailed instructions, please refer to sections

Recording keystrokes and Viewing recorded data.

To record keystrokes, plug the device in-between the keyboard and USB or PS/2 port.

To view recorded data using the USB version, plug the device in-between the keyboard

and USB port, and then press the 3-key combination simultaneously (by default K, B, S)

The keylogger will pop-up as a removable drive, containing the file LOG.TXT. This file will contain all recorded keystroke data.

KeyGrabber TimeKeeper

To view recorded data using the PS/2 version, plug the device in-between the keyboard and PS/2 port, and open a text editor (such as Notepad). Then press the 3-key combination simultaneously (by default K, B, D)

A text menu will pop up, showing available options. Use the text menu to browse recorded keystroke data.

Alternatively, to gain instant access to the entire log, connect the keylogger to a USB port using the USB Download Accelerator.

The keylogger will pop-up as a removable drive, containing the file LOG.TXT. This file will contain all recorded keystroke data.

KeyGrabber TimeKeeper

USB version

PS/2 version

Plug the USB keylogger in-between the

keyboard and USB port.

Plug the PS/2 keylogger in-between the

keyboard and PS/2 port.

Recording keystrokes

Recording mode is the default mode of operation for the KeyGrabber TimeKeeper keylogger. In record mode, the device will silently monitor all keystrokes coming from the keyboard and store them on the internal Flash Drive in file LOG.TXT.

Installation of the keylogger in record mode is quick and easy, no software or drivers are required. Simply plug it in between the keyboard plug and keyboard port. Recording will start automatically on power-up.

Note: If an external hub is being used, connect the keylogger between the hub and the USB keyboard.

KeyGrabber TimeKeeper

USB version

PS/2 version

Plug the USB keylogger in-between the

keyboard and USB port...

...and press the 3-key combination

simultaneously (by default K, B, S).

Use the supplied USB Download

Accelerator...

...and connect the device to a USB port.

Viewing recorded data

Once keystroke data has been recorded, it may be accessed directly by switching to Flash Drive mode. The PS/2 version has an additional option of displaying a text menu, described in section Text Menu mode.

Flash Drive mode

The primary method for viewing recorded data is Flash Drive mode. The keylogger will act as a mass-storage device and pop-up as a removable drive. Follow the instructions below.

After a few seconds, the hardware keylogger will automatically get detected as a mass storage device. The operating system will use the standard built-in mass storage driver (MS Windows 7 in the following examples).

Note: During the first switch to Flash Drive mode, the operating system can ask for drivers. In such case choose automatic driver installation (usually default option).

KeyGrabber TimeKeeper

The Flash Drive will contain the file LOG.TXT with a text log of all captured data. Keystroke data is formatted in the same as it would appear on the screen, with special keys in brackets ([Ent], [Esc], [Del] etc.). This file can be viewed and searched with any text editor, such as Notepad or MS Word.

Switching back to record mode can be achieved by a safe software removal of the flash disk. Use the systems standard disk removal procedure. For MS Windows, left-click on the Safe Removal icon in the system tray and select the appropriate drive.

For additional information, refer to the KeyGrabber USB User’s Guide and the KeyGrabber PS/2 User’s Guide.

KeyGrabber TimeKeeper

Run the text editor and make it the active

application.

Press the 3-key combination simultaneously

(by default K, B, D)

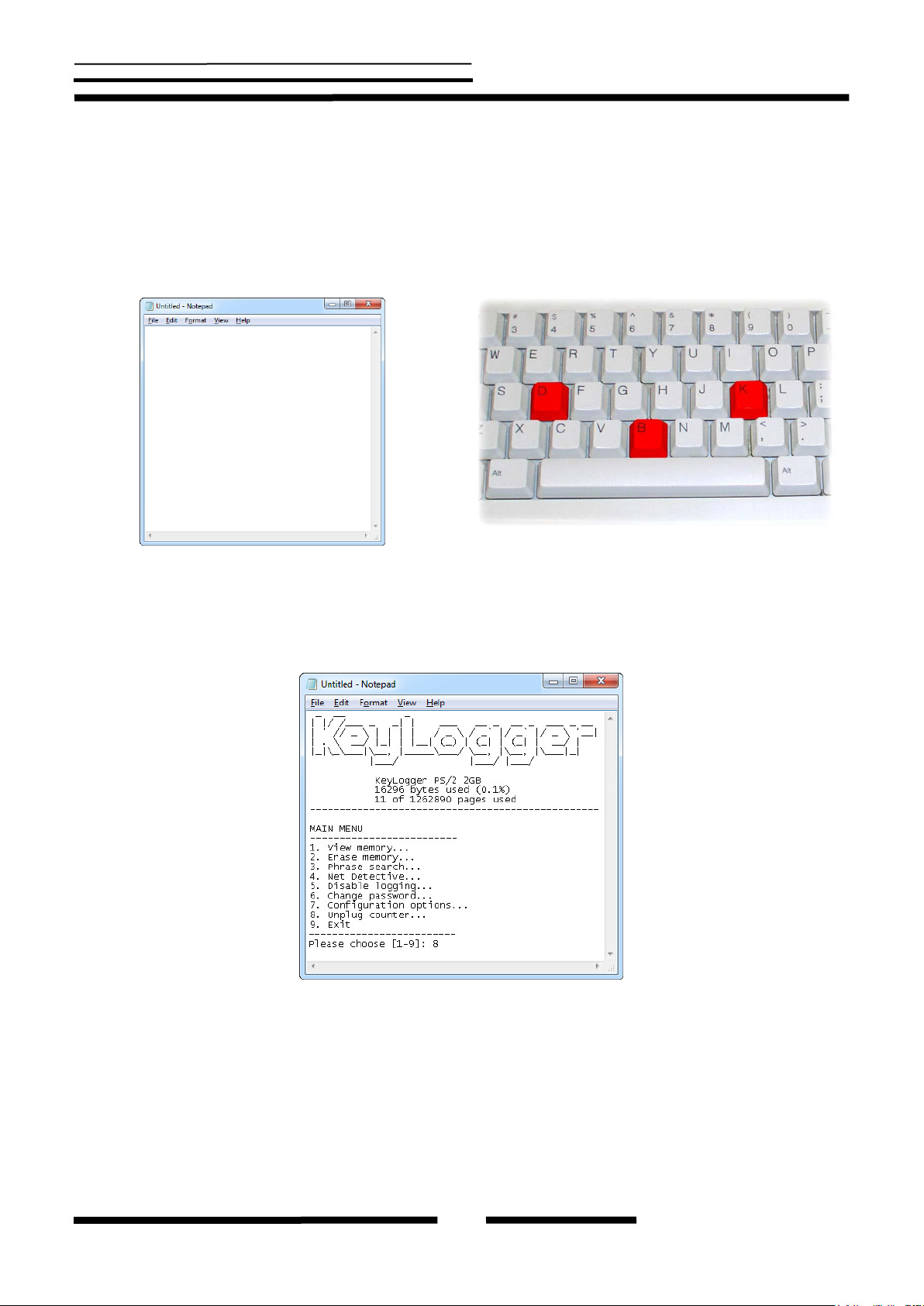

Text Menu mode (PS/2 version only)

The PS/2 version features an alternative approach for memory viewing called Text Menu mode. This mode does not require unplugging the device from the PS/2 keyboard, however is a lot slower than Flash Drive mode. To enable Text Menu mode, the keylogger and PS/2 keyboard should be connected in the same way, as in record mode. A text editor is required, such as Notepad.

The keylogger responds by simulating the PS/2 keyboard and will display a text-menu in the editor window.

The displayed main menu shows a summary of memory usage in bytes and pages. The text menu offers a variety of view, search, and configuration options. Use the digit keys to browse around the menu.

Note: do not change the active application while in text-menu mode.

For additional information, refer to the KeyGrabber PS/2 User’s Guide.

KeyGrabber TimeKeeper

Year=2010 Month=4 Day=1 Hour=12 Minute=34 Second=56 Format=PM

Clock configuration

It is necessary to configure the built-in clock module for getting correct date and time-stamps. To do this, a text file named TIME.TXT should be prepared with the following format:

The fields should contain the current time and date. The field Format allows distinguishing between A.M., P.M., and 24-hour time (use the value AM, PM, or 24). After the file has been prepared, switch to Flash Drive mode and copy the file TIME.TXT to the root folder of the flash disk. For the PS/2 version, the USB Download Accelerator has to be used to switch to Flash Drive mode.

After copying the file, safely remove the Flash Drive. The new clock configuration will be loaded during the next power-up.

KeyGrabber TimeKeeper

Sample TIME.TXT for 12-hour time:

Year=2010 Month=10 Day=25 Hour=5 Minute=51 Second=43 Format=PM

Sample TIME.TXT for 24-hour time:

Year=2010 Month=10 Day=25 Hour=17 Minute=51 Second=43 Format=24

The clock configuration file must be named TIME.TXT and must be placed in the root folder. Variable and value strings are case insensitive, however they must match the options listed below.

 Year sets the clock year value. Valid range is from 2000 to 2099.  Month sets the clock month value. Valid range is from 1 (January) to 12 (December).  Day sets the clock day value. Valid range is from 1 to 31. If the specified day exceeds

the maximum number of days in the specified month, the next valid day value will be chosen.

 Hour sets the clock hour value. Valid range is from 1 to 12 for 12-hour time

(A.M./P.M.), and 0 to 23 for 24-hour time.

 Minute sets the clock minute value. Valid range is from 0 to 59.  Second sets the clock second value. Valid range is from 0 to 59.  Format sets the time format. Valid values are AM, PM, and 24. If AM is chosen, the 12-

hour format is selected and the specified hour is treated as before noon. If PM is chosen, the 12-hour format is selected and the specified hour is treated as after noon. If 24 is chosen, the 24-hour format is selected and the specified hour is treated as 24- hour format.

KeyGrabber TimeKeeper

Parameter1=Value Parameter2=Value Parameter3=Value

…

Example of CONFIG.TXT

Password=SVL LogSpecialKeys=Full Language=English

Configuration files

The KeyGrabber TimeKeeper is configured via two text files placed on the internal Flash Drive:

 CONFIG.TXT (configures key-logging parameters)  TIME.TXT (configures the internal clock for time-stamping)

These files should contain configuration parameters, placed in successive lines in the following format:

These configuration files must be placed in the device internal memory using Flash Drive mode.

KeyGrabber TimeKeeper

Parameter

Values

Example

Description

Password

3-character password (default KBS or KBD)

Password=SVL

Three-character key combination for activating Flash Drive / Text Menu modes.

LogSpecialKeys

None Medium (default) Full

LogSpecialKeys=Full

Special key logging level.

DisableLogging

Yes No (default)

DisableLogging=Yes

Keystroke logging disable flag.

DisableLayout

Yes No (default) Menu

DisableLayout=Yes

National layout disable flag (see section National keyboard layouts).

Timestamping

Yes (default) No

Timestamping=No

Time-stamping disable flag.

DisableUsb

Yes No (default)

DisableUsb=Yes

USB Flash Drive mode disable flag (PS/2 version only).

Language

English (default) Deutsch Espanol Francais

Language=Espanol

Text menu language (PS/2 version only).

MacMode

Yes (default) No

MacMode=No

Mac Mode enable flag. Available only on devices with MCP (USB version only).

Parameter

Values

Example

Description

Encryption

Yes No (default)

Encryption=No

Flash drive encryption setting (caution: changing this value will reformat the flash drive).

SupportReportProtocol

Yes No (default)

SupportReportProtocol =No

Report protocol support flag (USB version only).

CheckShortFrame

No Low (default) Medium High

CheckShortFrame=No

Short frame fast filter option (USB version only).

CheckModifierByte

Yes (default) No

CheckModifierByte=No

Modifier byte check flag (USB version only).

FrameFilter

Filter value

(range 0…255,

default 98)

FrameFilter=226

Frame filter value (USB version only).

KeyboardSpeed

Auto (default) Full Low Mixed

KeyboardSpeed=Auto

USB keyboard speed setting (USB version only).

CONFIG.TXT

The file CONFIG.TXT is responsible for configuring keystroke-logging parameters.

Basic parameter list

Advanced parameter list (use only when you know what you’re doing!)

KeyGrabber TimeKeeper

CheckOverflow

Yes No (default)

CheckOverflow=Yes

Overflow check flag (USB version only).

KeystrokeSpeed

Slow Medium (default) Fast

KeystrokeSpeed=Slow

Keystroke generation speed (PS/2 version only).

DisableMenu

Yes No (default)

DisableMenu=Yes

Text menu disable flag (PS/2 version only).

Parameter

Values

Example

Description

Year

Year value (range 2000…2099, default 2010)

Year=2010

Year setting (range 2000 to 2099).

Month

Month value (range 1…12, default 1)

Month=10

Month setting (1 is January, 12 is December).

Day

Day value (range 1…31, default 1)

Day=15

Day setting (range 1 to 31).

Hour

Hour value (range 1…12 or 0…23, default 1)

Hour=6

Hour setting (range 1 to 12 for A.M./P.M. format and 0 to 23 for 24-hour time).

Minute

Minute value (range 0…59, default 0)

Minute=37

Minute setting (range 0 to 59).

Second

Second value (range 0…59, default 0)

Second=49

Second setting (range 0 to 59).

Format

AM PM (default) 24

Format=24

Time format setting. If AM is chosen, the 12-hour format is selected and the specified hour is treated as before noon. If PM is chosen, the 12-hour format is selected and the specified hour is treated as after noon. If 24 is chosen, the 24hour format is selected and the specified hour is treated as 24-hour format.

TIME.TXT

The file TIME.TXT is responsible for configuring the built-in real-time clock.

Parameter list

KeyGrabber TimeKeeper

Mac Compatibility Pack (USB version only)

The Mac Compatibility Pack (MCP) is a hardware enhancement ensuring full compatibility with Apple Mac computers and keyboards. Several Apple keyboards are USB High-Speed and Low-Speed combos, creating a challenge for all types of USB keyloggers. The aluminum Apple A1243 and A1242 are typical examples:

The KeyGrabber TimeKeeper with the Mac Compatibility Pack features a special Mac Mode (enabled by default), which will convert the keystroke data stream to USB Full-Speed, ensuring proper operation of the keyboard and logging of all keystrokes. Mac Mode is compatible with standard keyboards too, so the KeyGrabber does not have to be reconfigured.

When enabled, Mac Mode will add an additional pass-through USB hub to the system. If this is undesired, Mac Mode can always be disabled, restoring normal operation. To disable Mac Mode, open the configuration file CONFIG.TXT (see section Configuration files) and add the following entry:

MacMode=No

This option can also be configured with KL Tools (see section Using KL Tools)

KeyGrabber TimeKeeper

Text logged without layout

Text logged with layout

Kezlogger )PS-2 / USB=

KeyLogger (PS/2 & USB)

USB version

PS/2 version

National keyboard layouts

It is possible to enable a national layout for language-adapted keyboards, such as

French, German etc. This will allow national characters to get logged properly (including those

with Alt Gr), such as ö, æ, ß, ó etc. The following example demonstrates the advantages of

applying the German national layout.

To enable a national layout, the appropriate layout file named LAYOUT.USB (for USB version) or LAYOUT.PS2 (for PS/2 version) must be placed on the flash disks root folder. The file must be copied in Flash Drive mode. Layout files may be obtained from the CD-ROM attached with the device.

To enable the layout safely remove the flash disk. During the next power-up, the layout file will be loaded automatically.

KeyGrabber TimeKeeper

Using KL Tools

KL Tools is a free application delivered with all KeyGrabber series devices. KL Tools assists in configuring a KeyGrabber keylogger and retrieving the recorded data it contains. It is not necessary to operate the device, but may speed up usage by its intuitive user interface.

KL Tools is available on the CD-ROM attached with the device. Installing KL Tools is straightforward. Simply follow the installation wizard and answer standard questions. When initialized, KL Tools will ask for the device type, and assist in configuring the device and retrieving the log file. There is no special knowledge required to use KL Tools – simply follow the instructions displayed by the application.

KeyGrabber TimeKeeper USB

KeyGrabber TimeKeeper PS/2

Power supply

4.5 V – 5.5 V DC

Max. power consumption

65 mA (0.33 W)

Maximum burst log speed (approx.)

500 byte/s

Maximum continuous log speed (approx.)

100 byte/s

100 byte/s Memory capacity

2 GB

Data retention

100 years

Keyboard support

USB HID-compatible keyboard (Low-speed, Fullspeed, High-speed)

PS/2-compatible keyboard

Dimensions including connectors (L x W x H)

53 mm x 20 mm x 12 mm (2.1" x 0.8" x 0.5")

48 mm x 15 mm x 15 mm (1.9" x 0.6" x 0.6")

Specifications

KeyGrabber TimeKeeper

All KeyGrabber products come with 1 year warranty against manufacturer defects. Defect products must be shipped by the customer. All warranty repairs and delivery to the customer will be paid by the manufacturer.

KeyGrabber TimeKeeper

Troubleshooting

The KeyGrabber TimeKeeper will not work with the following hardware configurations:

1. Internal laptop keyboards

2. Bluetooth keyboards

3. USB-PS/2 and PS/2-USB adapters

4. Non-conformant USB or PS/2 keyboards

The keyboard is not responding

The keyboard connector or the keylogger connector is not inserted firmly. Please check the connection with the PS/2 or USB keyboard and port.

Problems with time-stamps

Set the correct time by creating a clock configuration file TIME.TXT. Make sure you have not disabled time-stamping. Refer to the Clock configuration section for detailed instructions.

Problems with logging national characters

Please check if you have downloaded the correct layout file and copied it to the flash disk root directory? If not, please check the National keyboard layouts section.

The keylogger does not switch to Flash Drive mode (USB version)

Please check the following:

1. Is the keylogger inserted between the keyboard and the keyboard port on the PC or hub?

2. Is your 3-key combination correct?

3. Are you pressing the 3 keys simultaneously? The 3-key combination will not be accepted if pressed sequentially.

The keyboard doesn’t work in Flash Drive mode (USB version)

This is normal behavior for non-MCP devices. In Flash Drive mode, the keylogger will install the removable disk instead of the keyboard. Use the mouse to copy the log file to the hard drive, then restore normal operation. Alternatively, you may connect the keyboard to a different USB port after switching to Flash Drive mode.

KeyGrabber TimeKeeper

The mouse and keyboard don’t work in Flash Drive mode (USB version)

This can happen on wireless keyboards and keyboard/mouse combos for non-MCP devices. In Flash Drive mode, the keylogger will install the removable disk instead of the keyboard/mouse combo. To get around this, connect the keyboard/mouse to a different USB port after switching to Flash Drive mode.

The USB Download Accelerator does not work (PS/2 version)

Please check the following:

1. Is the USB Download Accelerator inserted firmly between the keylogger and the USB port?

2. Have you left the keyboard connected to the keylogger? Disconnect the keyboard.

3. Are you giving the device enough time to install? Flash disk installation can take up to 30 seconds, especially during first-time installation.

4. Are you sure you haven’t disabled USB mode while configuring the device? Check this using the Text Menu.

Problems with detecting the PS/2 keyboard during system startup (PS/2 version)

Some systems try to enumerate the keylogger as a USB device before initializing the keyboard. In certain cases on such systems, the keylogger may attempt to switch to Flash Drive mode, disabling the PS/2 keyboard. A simple solution to this problem is to disable USB mode through the configurations options in the Text Menu.

I’ve checked everything, nothing helps!

If you are still experiencing problems, please do the following:

1. Check if the problem appears on a different keyboard.

2. Check if the problem appears on a different computer.

3. Contact the dealer you have purchased the device from. Please supply all necessary information (keyboard model and manufacturer, OS type and version, and a short description of the problem).

[Esc] - Escape [F1] - F1 [F2] - F2 [F3] - F3 [F4] - F4 [F5] - F5 [F6] - F6 [F7] - F7 [F8] - F8 [F9] - F9 [F10] - F10 [F11] - F11 [F12] - F12 [Ctl] - Control [Alt] - Alt [Ins] - Insert [Hom] - Home [PUp] - Page Up [PDn] - Page Down [Del] - Delete [Win] - Win [Aps] - Apps [Cap] - Caps Lock [Ent] - Enter [Bck] - Backspace [Tab] - Tab

[Prn] - Print Screen [End] - End [Scr] - Scroll Lock [Up] - Up [Dwn] - Down [Lft] - Left [Rgh] - Right [Num] - Num Lock [-N] - - (num) [+N] - + (num) [.N] - . / Delete (num) [/N] - / (num) [*N] - * (num) [0N] - 0 / Insert (num) [1N] - 1 / End (num) [2N] - 2 / Down (num) [3N] - 3 / Page Down (num) [4N] - 4 / Left(num) [5N] - 5 (num) [6N] - 6 / Right (num) [7N] - 7 / Home (num) [8N] - 8 / Up (num) [9N] - 9 / Page Up (num) [Pwr] - Power [Slp] - Sleep [Wke] - Wake

List of special keys

KeyGrabber TimeKeeper

You should not use this device to intercept

data you are not authorized to possess,

especially passwords, banking data,

confidential correspondence etc. Most

countries recognize this as a crime. Please

consult a legal representative for logging

requirements in your country.

Legal disclaimer

KeyGrabber does not take responsibility for any damage, harm or legal actions caused by misuse of its products. The user should follow the guidelines contained in this document, otherwise no liability will be assumed. It is the user's responsibility to obey all effective laws in his/her country, which may prohibit usage of KeyGrabber products. Please also consider, that not knowing the law does not allow to not obeying it. A good example is the U.S. Department of Justice Letter on Keystroke Monitoring and Login Banners, according to which a clear notice should be displayed, warning that user keystrokes may be logged. Please check with your legal representative for logging requirements in your country.

For more information on KeyGrabber products,

visit our website:

http://www.keelog.com/

European Office KeeLog

Lekcyjna 42 PL 51-169 Wroclaw Poland

http://www.keelog.com/ keelog@keelog.com

U.S. Office Aqua Electronics

1550 Louis Ave. Elk Grove Village, IL. 60007 U.S.A

RoHS

Notes:

KeyGrabber TimeKeeper

KeeLog KeyGrabber TimeKeeper User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
