KEBA 0001 Users Manual

RFID-Module Introduction
Kemro K2
XE 020 RFID-Module
Internal Technical Documentation V 1.0
Introduction XE 020
Version
changed
from / to
1.0 07-2007 Created
1.1 April, 11th
Date Description Modified
by
Additional correction hsm
2008
RFID-Module Introduction
Contents
1 Introduction...................................................................................................................6
1.1 Purpose of the document.....................................................................................6
1.2 Audience and prerequisites.................................................................................6
1.3 Intended use........................................................................................................6
1.4 Notes on this document.......................................................................................7
1.4.1 Contents of document..............................................................................7
1.4.2 Not contained in this document................................................................7
1.5 Documentation for further reading.......................................................................8
2 Safety notes..................................................................................................................9
2.1 Representation....................................................................................................9
3 Product overview........................................................................................................10
3.1 Summary...........................................................................................................10
3.1.1 Range and detection..............................................................................11
3.2 RFID module before installation.........................................................................11
3.3 RFID module after installation...........................................................................12
4 Assembly and installation notes...............................................................................13
4.1 Minimum XE 020/ANT antenna module clearance.............................................13
5 Connections and wiring.............................................................................................15
5.1 EMC and wiring guidelines................................................................................15
5.1.1 Personal safety......................................................................................15
5.1.2 Why EMC-aware wiring?.......................................................................15
5.1.3 Which EMC measures must be taken?..................................................15
5.2 Power supply.....................................................................................................15
5.3 XE 020/A and XE 020/ANT module interfaces...................................................16
5.3.1 Connector for coaxial antenna cable (1 and 3).......................................16
5.3.2 Connector for status LED (2 and 5)........................................................16
5.3.3 XE 020/A module RJ45 socket (4).........................................................16
5.4 Cables...............................................................................................................18
5.4.1 Coaxial antenna cable...........................................................................18
5.4.2 Connector cable for RFID status LED....................................................18
5.4.3 Connector cable for RFID module / OP 3xx...........................................18
6 Configuration..............................................................................................................19
6.1 RFID module DIP switch....................................................................................19
7 Status display.............................................................................................................20
7.1 RFID status LED...............................................................................................20
7.1.1 Boot-time behaviour...............................................................................20
8 Maintenance and repair notes...................................................................................21
8.1 Maintenance......................................................................................................21
Introduction XE 020
8.2 Repair................................................................................................................21
8.2.1 Packaging and shipping.........................................................................21
8.3 Waste disposal..................................................................................................21
9 Accessories and spares.............................................................................................22
10 Technical specification...............................................................................................23
11 Relevant EC directives and applicable standards....................................................24
11.1 EC directives.....................................................................................................24
11.2 Standards..........................................................................................................24
11.2.1 Validating conformance to the R&TTE directive...................................24
11.2.2 Other standards...................................................................................24
11.2.3 USA standards.....................................................................................24
RFID-Module Introduction
Introduction XE 020
1 Introduction
1.1 Purpose of the document
This planning manual describes the RFID XE 020/A module and the XE 020/ANT antenna module, which are already permanently installed in different KEBA operating panels. The application and functionality of the RFID module is the same for each operating panel.
1.2 Audience and prerequisites
The planning manual is geared towards those who are using or intend to deploy an operating panel with RFID module.
Only electrical technicians who are qualified to the VDE 1000-10 standard are permitted to install and maintain the operating panel.
This means personnel who:
l can evaluate the work to be carried out and recognise the possible
hazards based on their technical training, knowledge and experience plus their expertise in the applicable standards.
l have a level of knowledge equivalent to that obtained through
professional training as a result of several years experience working in a similar field.
1.3 Intended use
The intended use of the XE 020 RFID module includes deployment in KEBA operating panels. The module can also be installed in third party devices provided chapter "Minimum XE 020/ANT antenna module clearance" is taken into consideration.
The XE 020/A RFID (Radio Frequency Identification) module is used in conjunction with an RFID card for contactless logon and logoff (as per ISO
15693) and is employed for user identification. This replaces the login of a user with username and password.
The RFID module may not be used to fulfil protection requirements in the area of personal safety to prevent a malfunction compromising personal safety.
RFID-Module Introduction
1.4 Notes on this document
1.4.1 Contents of document
l RFID module description l Assembly and installation notes l Description of the connections and wiring including EMC measures l Description of the configuration l Description of the status display l Maintenance notes l Accessories l Technical specification
1.4.2 Not contained in this document
l Operating panel description
Introduction XE 020
1.5 Documentation for further reading
The following is a listing of the planning manuals for an operating panel, equipped with an RFID module:
Doc. No.:
1000520 OP 350/A-0013
- in preparation - OP 350-LD/C-0114
- in preparation - OP 360-LD/A-0013
- in preparation - OP 362-LD/C-0114
Planning
manual
Description
Describes the installation, assembly, connection and operation of the operating panel. Each planning manual also contains programming and maintenance notes.
RFID-Module Safety notes
2 Safety notes
2.1 Representation
At various points in this manual you will see notes and precautionary warn­ings regarding possible hazards. The symbols used have the following meaning:
DANGER!
!
!
indicates an imminently hazardous situation which, if noch avoided, will
result in death or serious injury.
WARNING!
indicates a potentially hazardous situation which, if not avoided, could
result in death or serious injury..
CAUTION!
!
means that if the corresponding safety measures are not taken a poten-
tially hazardous situation can occur which, if not avoided, may result in property damage or slight bodily injury.
NOTICE
NOTICE used without the safety alert symbol indicates a potentially
hazardous situation which, if noch avoided, may result in property damage.
This symbol reminds you of the possible consequences of touching
electrostatically sensitive components.
Information Informations on use of equipment and useful practical tips are identified by the symbol "Information". "Information" do not contain any information that draws attention to potentially dangerous or harmful functions.
Product overview XE 020
3 Product overview
3.1 Summary

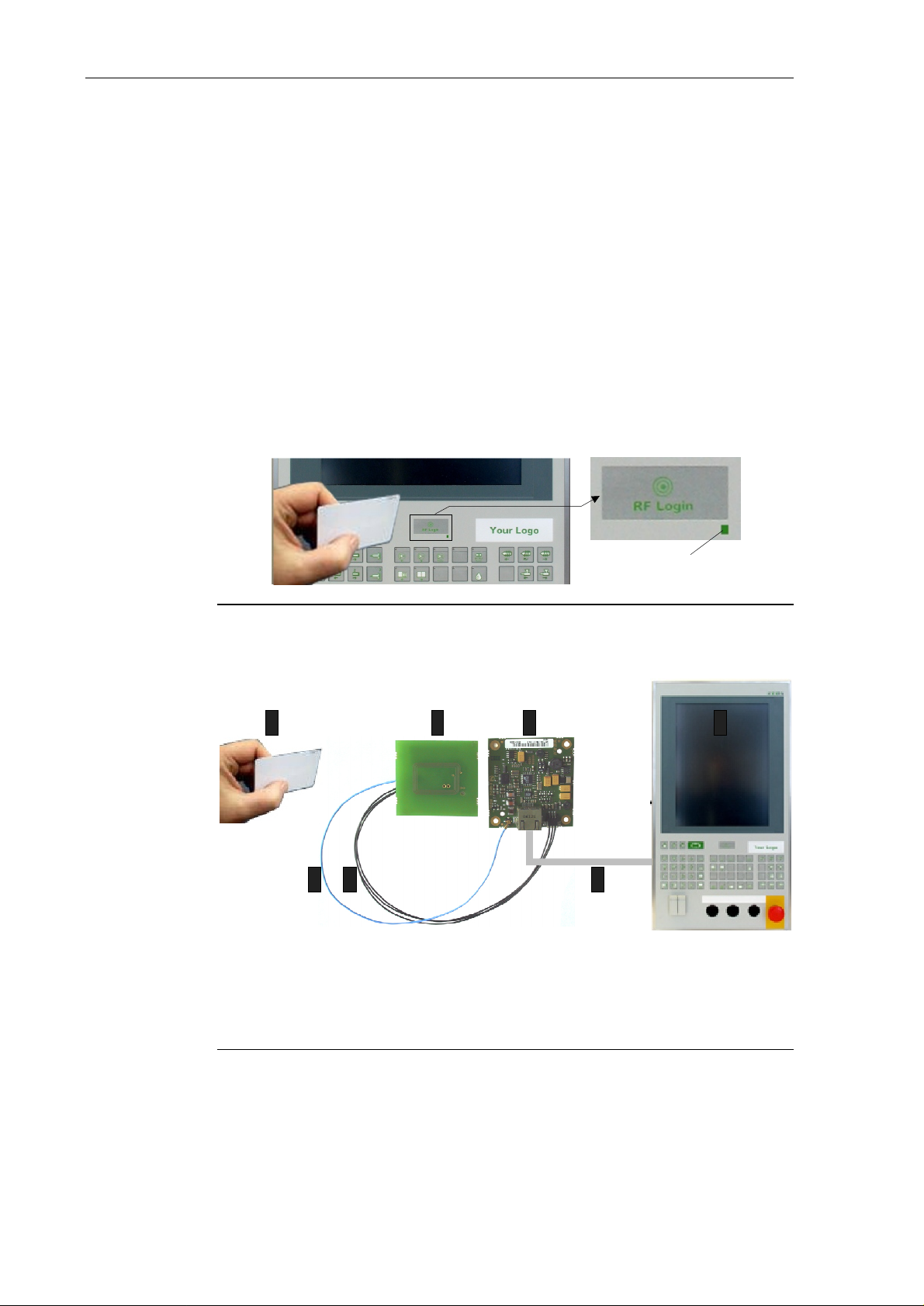

The RFID card user must hold the RFID card close to the RFID antenna on the front of the operating panel for identification. If the user's RFID card was recognised, the LED on the front panel turns green.
The RFID module can also supply the data captured from the RFID card, e.g. so that it can be further processed by the kemro.view.standard program on the KEBA control.
Contactless user identification with an RFID card (e.g. operating panel)
An RFID system comprises:
1234
567
567
1.......RFID card
2.......XE 020/ANT antenna module
3.......XE 020/A RFID module (evaluation unit)
4.......Operating panel
5.......Coaxial antenna cable (max. 300 mm)
6.......Connector cable for RFID status LED
7.......Connector cable for RFID module / OP 3xx (max. 1 m)
RFID-Status-LED
RFID system components
RFID-Module Product overview
3.1.1 Range and detection
The typical range for RFID card to XE 020/ANT antenna module is 40 mm for the recommended RI-I02112A-03 RFID card (assuming an aluminium front panel).
The card is recognised when the RFID LED on the front of the operating panel turns green (for 3 secs) (refer to chapter “RFID status LED“).
There is no provision to detect multiple cards at the same time. If several RFID cards are within range, either only one will be detected or this will cause a detection error, in which case the RFID status LED will turn red.

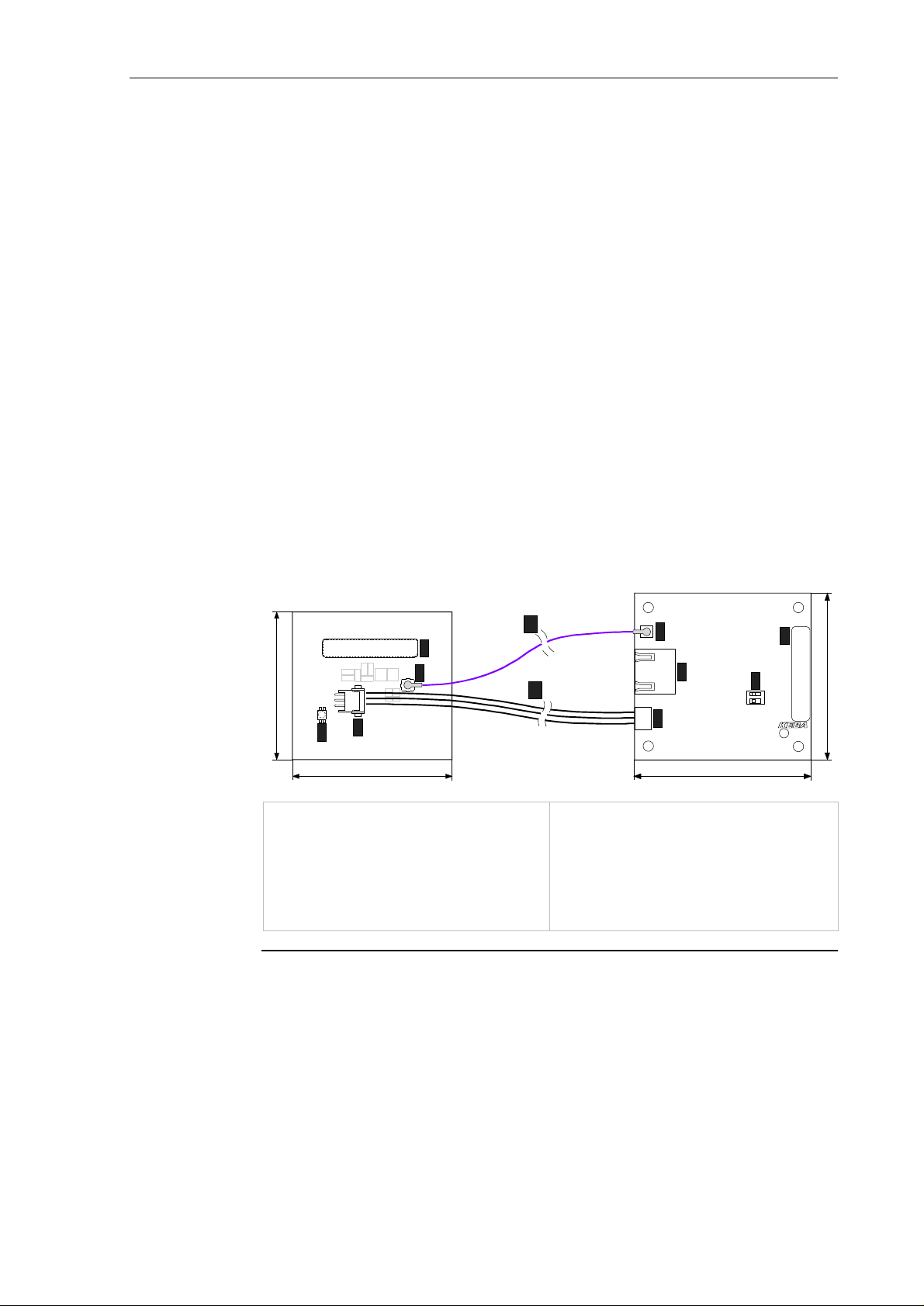

3.2 RFID module before installation
The RFID module consists of the following components:
XE 020 ANT
10
1
2
53
LED-RT/GN
N1
3
4
57 64
11
5
7
6
020XE 020/ANT antenna module
1.......Model identification label
2.......Connector for coaxial antenna cable
3.......Connector for LED cable
4.......RFID status LED
Cables
10.....Coaxial antenna cable (max. 300 mm)
11.....Connector cable for RFID status LED
RFID module before installation
XE 020/A RFID module
5........Connector for coaxial antenna cable
6........Connector for LED cable
7........RJ45 socket for shielded connection cable
(max. 1 m) between RFID module and OP 3xx
8........DIP switch for address settings
9........Model identification label
XE 020/A
9
8
ON
1 2
60
Product overview XE 020

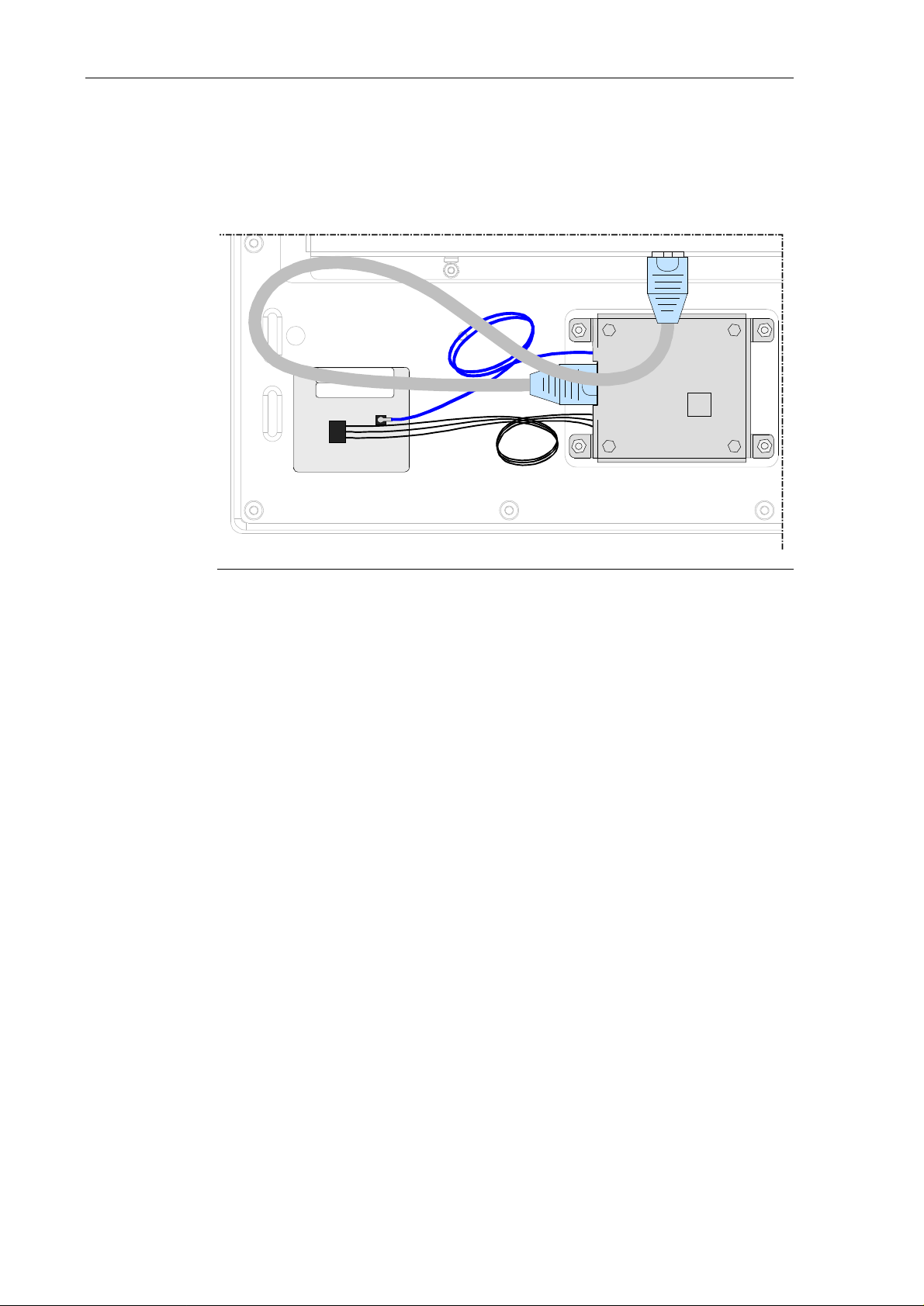

3.3 RFID module after installation
AN T LED
RFID
RFID module after installation
RFID-Module Assembly and installation notes
4 Assembly and installation notes

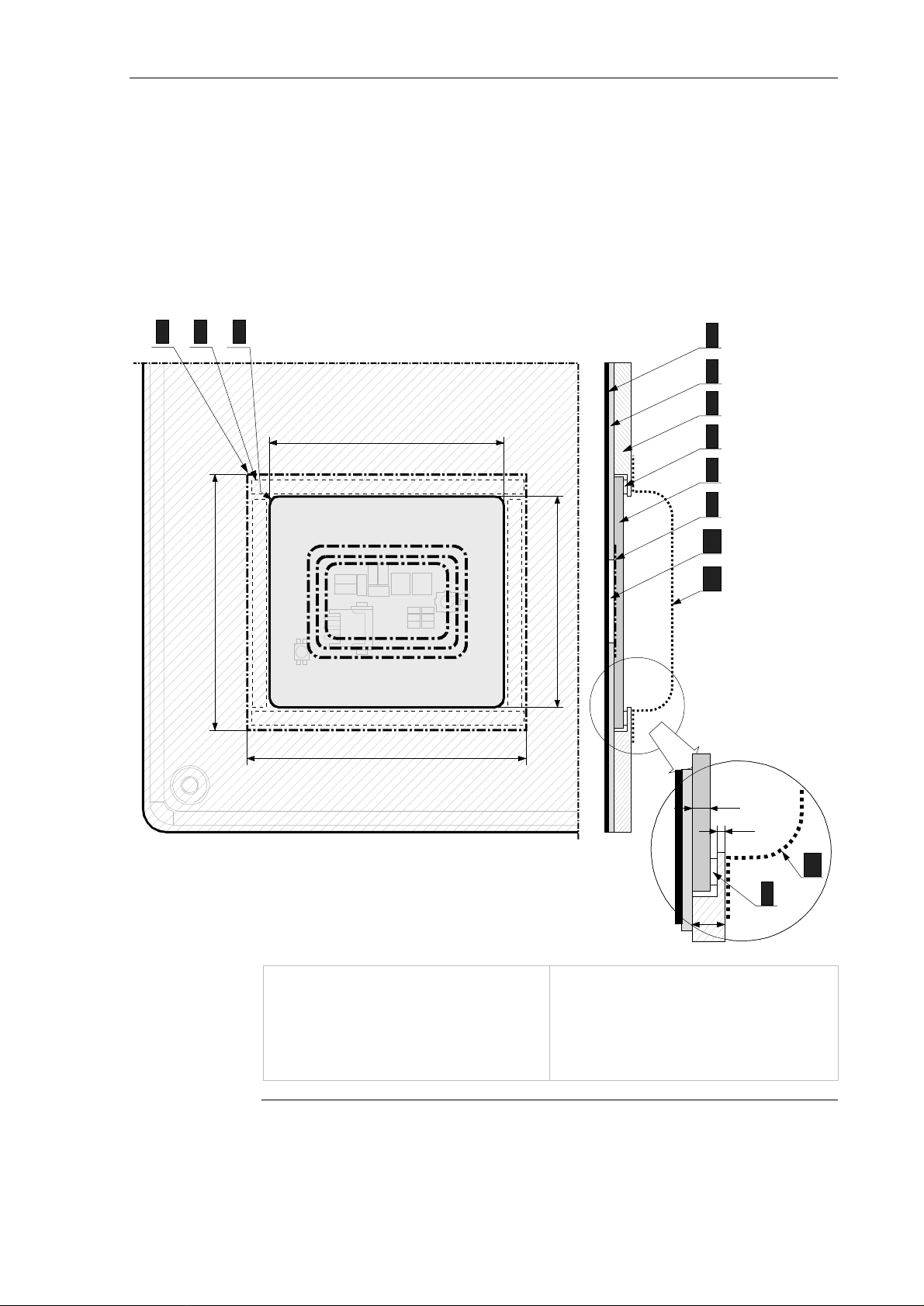

4.1 Minimum XE 020/ANT antenna module clearance
To guarantee the specified antenna range the following minimum clearance between antenna and base material (aluminium) must be respected.
21 3
4
4
5
5
6
6
50
55
59
45
10
10
11
11
7
7
8
8
9
9
3,3
1,7
11
11
1, 8..XE 020/ANT antenna module 2, 7..Adhesive strip between antenna module
and front plate
3.......Front plate cutout
Minimum clearance for the integrated RFID module
6
4........Front foil
5........Spacer foil
6........Front plate (aluminium)
7........refer to 2)
8........refer to 1)
9........Antenna
10......Insertable strip
11......Cover
7
7
Assembly and installation notes XE 020
Suitable precautions must be taken to prevent any cables located behind the antenna from causing antenna detuning, e.g. providing a cover.
RFID-Module Connections and wiring
5 Connections and wiring
5.1 EMC and wiring guidelines
5.1.1 Personal safety
Safety extra-low voltage
All operating panels are powered by safety extra-low voltage.
5.1.2 Why EMC-aware wiring?
The immunity of an electrical system depends essentially on wiring and shielding that is designed to overcome any EMC problems. Servicing experience has shown that inadequate wiring and shielding is a common cause of system interference and failure.
Electromagnetic interference is far more troublesome than "conventional" faults:
l It is not normally recognised as such from the symptoms displayed and
can often be mistaken for a fault in an assembly, which is basically sound.
l They mainly occur sporadically and are difficult to duplicate.
As a consequence fault-finding is time-consuming and expensive.
Therefore ensure from the start that the wiring and shielding conforms to the guidelines documented below.
5.1.3 Which EMC measures must be taken?
The EMC measures for the RFID module concentrate on shielding the coaxial and connecting cable of the RFID module <-> OP 3xx.
5.2 Power supply
The power to the RFID module is supplied via the operating panel (refer to chapter “XE 020/A module RJ45 socket“).
Connections and wiring XE 020
3
5.3 XE 020/A and XE 020/ANT module interfaces
XE 020/A
XE 020 ANT
3
1
N1
2
XE 020/ANT antenna module
1.......Connector for coaxial antenna cable
2.......Connector for LED cable
RFID module interface locations
XE 020/A RFID module
3........Connector for coaxial antenna cable
4........RJ45 socket for shielded connection cable
5........Connector for LED cable
5.3.1 Connector for coaxial antenna cable (1 and 3)
The XE 020 ANT antenna module and the XE 020/A RFID module both have connectors for the coaxial antenna cable.
5.3.2 Connector for status LED (2 and 5)
The pin assignment is defined for the status LED connector as follows:
4
ON
1 2
5
(max. 1 m) between RFID module and OP 3xx
1...LED red
2...GND
3...LED green
Status LED connector on the XE 020/A and XE 020/ANT module: pin assignment

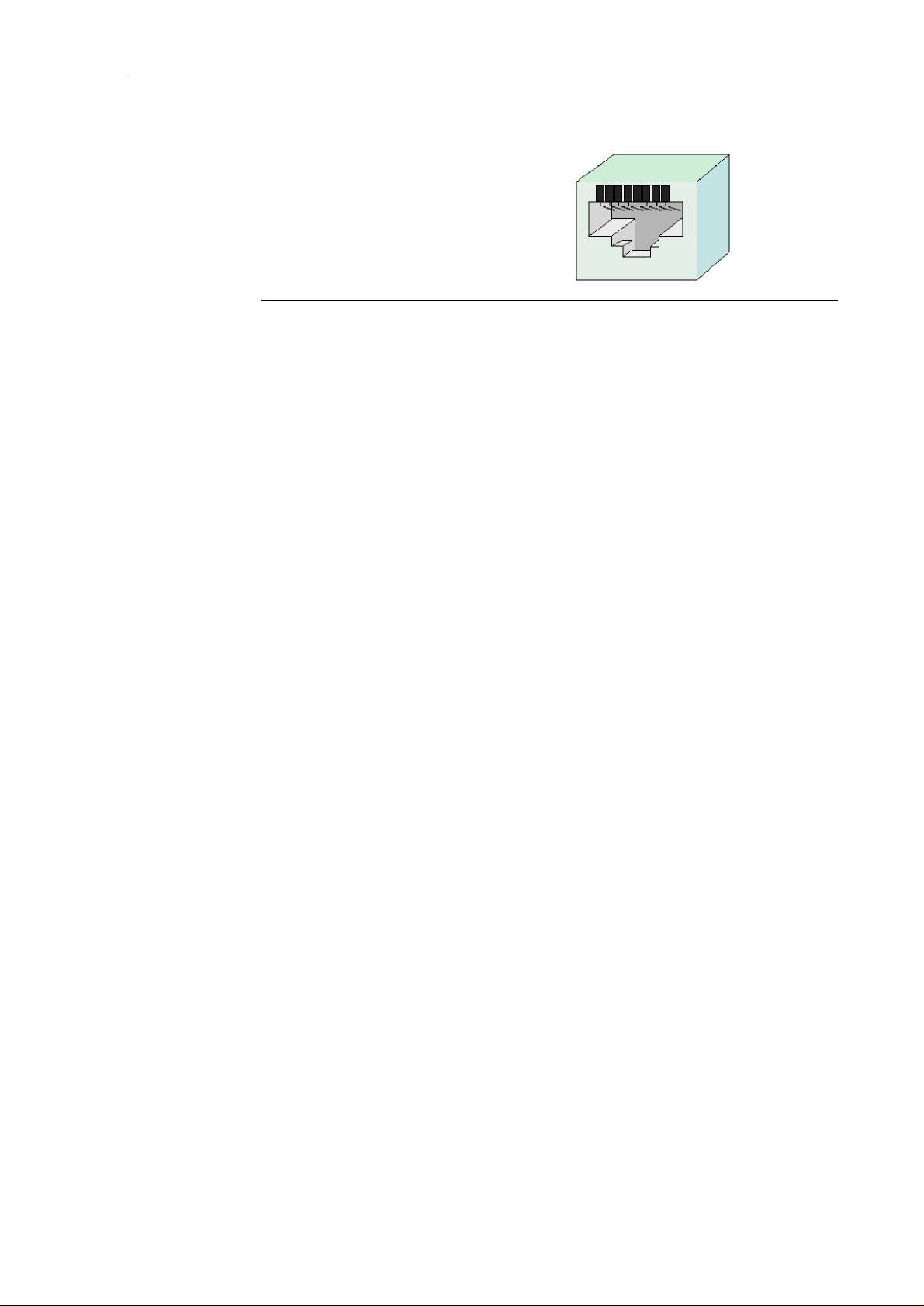

5.3.3 XE 020/A module RJ45 socket (4)
The RJ45 socket on the XE 020/A module is the counterpart to the "EXT0 external interface" on the operating panel. The interface comprises the serial signals and the power for the XE 020/A module supplied by the operating panel.
1
1
3
2
2
RFID-Module Connections and wiring
1…n.c. 2…n.c. 3…n.c. 4…Data­5…Data+ 6…n.c. 7…+12V 8… GND
RJ45 socket on the XE 020/A module: pin assignment
Plug specification
Refer to the KEBA manual, "RJ45 cable connections, General Guidelines".
21 3 4 5 6 7 8
Connections and wiring XE 020
5.4 Cables
5.4.1 Coaxial antenna cable
The maximum permitted length of the coaxial antenna cable is 300 mm.
5.4.2 Connector cable for RFID status LED
Three unshielded cores are sufficient for the RFID status LED connection cable.
5.4.3 Connector cable for RFID module / OP 3xx
The connection cable for the RFID module / OP 3xx must be shielded and no longer than 1 m.
RFID-Module Configuration
6 Configuration
6.1 RFID module DIP switch
If the overall system contains multiple RFID modules, the HW addressing must be configured using the DIP switch. The required DIP switch is located directly on the RFID module. A maximum of 4 addresses can be configured (factory setting: 14H):
1 2
Adr1 Adr0
ANT LED
RFID
ON
1 2
ON
DIP switch location and factory setting
DIP switch
Adr0 Adr1
0 0 17H 0 1 16H 1 0 15H 1 1 14H
Address
Status display XE 020
7 Status display
7.1 RFID status LED
The RFID status LED is located on the front of the operating panel and indicates the status of RFID card recognition:
RFID status LED Meaning Cause of fault / solution
red green for ca. 3
sec. permanent red permanent
orange LED off Connection is OK -
7.1.1 Boot-time behaviour
If a connection is established, the status LED is red for a short interval and then becomes permanent orange. The firmware has failed to boot if the LED does not change to the permanent orange state and indicates there is a firmware fault. After connecting successfully the LED goes out.
RFID card not recognised or no authorisation
RFID card has been recognised ­No firmware, hardware does not
boot Not connected to the control l Check the wiring
l RFID card is defective l Wrong information recorded
on RFID card
l Contact the manufacturer
RFID-Module Maintenance and repair notes
8 Maintenance and repair notes
8.1 Maintenance
This device does not require regular maintenance.
8.2 Repair
Only KEBA technicians may repair faulty devices, otherwise the warranty becomes void.
8.2.1 Packaging and shipping
The module is placed in protective packing for shipping. Please return the packaging since KEBA tries to reuse it to minimise the environmental impact. This protective packaging is not transport packaging and as such it is unsuitable for transport by carrier or air. Suitable, extra transport packaging must be used for this purpose.
8.3 Waste disposal
Comply with your national regulations for the disposal of electronic components!
Accessories and spares XE 020
9 Accessories and spares
Component Order number
XE 020/A RFID module (evaluation unit) 70894 XE 020/ANT antenna module 71110 Coaxial antenna cable 300 mm 71352 Connector cable for RFID module / OP 3xx 58033 Connector cable for RFID status LED 73149 RFID card type RI-I02112A-03 -tba-
RFID-Module Technical specification
10 Technical specification
General
Reading distance: 4 cm from the front panel Antenna installation: permanently installed in the front panel Positioning of XE 020/A RFID module:
Communication protocol: Evaluation unit protection class: IP 20
XE 020/A RFID module contact protection: metal case XE 020/ANT antenna module contact protection: Plastic case Signalling: 3-colour LED on the printed antenna
Interfaces
Data interface: serial Supply voltage: 12 V DC (+/- 5%) Connector plug: RJ45
evaluation unit can be located up to 30 cm from antenna according to ISO 15693 or ISO 18000-3, and suitable for Euromap 65
RF signal
Frequency response: 13.56 MHz Transmission power: 200 mW (max. 250 mW) Sampling rate:
Dimensions
Printed antenna width: 57 mm length: 53 mm Evaluation unit width: 88 mm (with casing) length: 64 mm (with casing) height: 21 mm (with casing)
Environmental conditions
Operating temperature: +5 °C to +55 °C Storage temperature: -30 °C to +70 °C Relative humidity: 5 to 95% (non-condensing) Vibration resistance: as per IEC 61131 Shock resistance: as per IEC 61131
configurable (default: 10 samples / sec)
Relevant EC directives and applicable standards XE 020
11 Relevant EC directives and applicable standards
11.1 EC directives
99/5/EG R&TTE directive
11.2 Standards
The following non-legally binding European standards are used to validate the RFID module's conformance to the directives.
11.2.1 Validating conformance to the R&TTE directive
Personal safety: EN 50364:2001 Radio sector: EN 300330-2 V1.3.1, Class 3 receiver
EMC sector: EN 301489-3 V1.4.1 Electrical safety: EN 60950-1:2001+A11:2004
Class 1 as per 2000/299/EG
11.2.2 Other standards
In addition the following non-legally binding standards provide advice in some areas:
Environmental conditions
EN 61131-2:2003
11.2.3 USA standards
FCC Part 15 Radio Frequency Devices
The device complies with Part 15 of the FCC Rules. Operation in subject to the following two conditions:
1. this device may not cause harmful interference, and
2. this device must accept any interference received, including in-
This device is labelled with an FCC ID number. If this label is not visible when installed in an end device, the outside of the device MUST also display a label referring to the enclosed module.
e.g. "Contains FCC ID: U870001" (KEBA Product XE020/A; XE020/B)
Information
- No other antennas except the one provided by KEBA shall be used.
- Changes or modifications not expressly approved by KEBA could void the user's authority to operate the equipment.
Programmable logic controller - part 2 Equipment requirements and tests
terference that may cause undesired operation.
Loading...
