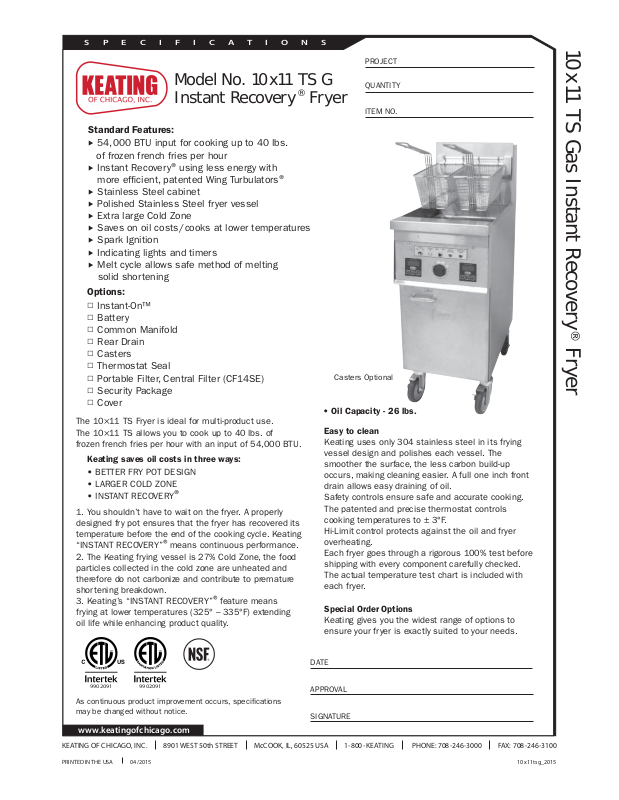

SPECIFICATIONS

10x11 TS Gas Instant Recovery

PROJECT

Model No. 10x11 TS G
Instant Recovery

Standard Features:

 54,000 BTU input for cooking up to 40 lbs.

of frozen french fries per hour

 Instant Recovery

more effi cient, patented Wing Turbulators

 Stainless Steel cabinet
 Polished Stainless Steel fryer vessel
 Extra large Cold Zone
 Saves on oil costs/cooks at lower temperatures
 Spark Ignition
 Indicating lights and timers
 Melt cycle allows safe method of melting

solid shortening

Options:

□

Instant-On™

□

Battery

□

Common Manifold

□

Rear Drain

□

Casters

□

Thermostat Seal

□

Portable Filter, Central Filter (CF14SE)

□

Security Package

□

Cover

The 10×11 TS Fryer is ideal for multi-product use.
The 10×11 TS allows you to cook up to 40 lbs. of
frozen french fries per hour with an input of 54,000 BTU.

Keating saves oil costs in three ways:

• BETTER FRY POT DESIGN

• LARGER COLD ZONE

• INSTANT RECOVERY

1. You shouldn’t have to wait on the fryer. A properly
designed fry pot ensures that the fryer has recovered its
temperature before the end of the cooking cycle. Keating
“INSTANT RECOVERY”®means continuous performance.

2. The Keating frying vessel is 27% Cold Zone, the food
particles collected in the cold zone are unheated and
therefore do not carbonize and contribute to premature
shortening breakdown.

3. Keating’s “INSTANT RECOVERY”®feature means
frying at lower temperatures (325° – 335°F) extending
oil life while enhancing product quality.

®

using less energy with

®

®

®

Fryer

Casters Optional

• Oil Capacity - 26 lbs.

Easy to clean

Keating uses only 304 stainless steel in its frying
vessel design and polishes each vessel. The
smoother the surface, the less carbon build-up
occurs, making cleaning easier. A full one inch front
drain allows easy draining of oil.
Safety controls ensure safe and accurate cooking.
The patented and precise thermostat controls
cooking temperatures to ± 3°F.
Hi-Limit control protects against the oil and fryer
overheating.
Each fryer goes through a rigorous 100% test before
shipping with every component carefully checked.
The actual temperature test chart is included with
each fryer.

Special Order Options

Keating gives you the widest range of options to
ensure your fryer is exactly suited to your needs.

QUANTITY

ITEM NO.

®

Fryer

DATE

9902091 9902091

As continuous product improvement occurs, specifi cations
may be changed without notice.

www.keatingofchicago.com

PRINTED IN THE USA 04/2015 10 x11tsg_2015

APPROVAL

SIGNATURE

FAX: [phone]PHONE: [phone] -KEATINGMcCOOK, IL, 60525 USA8901 WEST 50th STREETKEATING OF CHICAGO, INC.

Model No. 10x11 TS G Instant Recovery®Fryer

A minimum of 24" at the
front of the unit should be
allowed for servicing and
operation; a minimum of

6" on each side and at

the rear of each unit for
combustible materials.

SPECIFICATIONS

Fryer Vessel -

ing capacity of 26 pounds. Equipped with two 18 gauge
stainless steel, 3" wide x 5" high horizontal heat transfer
tubes, spaced above the bottom of the vessel so that the
bottom is unheated and the food particles collecting in the
bottom zone are unheated and therefore do not carbon­ize. The vessel is polished to inhibit carbon buildup and
facilitate easy clean-up.

toward the front, and is equipped with a 1" Tefl on core 1/4
turn drain valve, so the shortening can be drained into a
receiving vessel placed in front of the fryer.

Fryer

Splashdeck -

®

toward the shortening containing vessel.

Splashback -

covers the side of the fl ue.

Cabinet - 18 gauge stainless steel. Rigid in construction,

with four 8" adjustable legs. The cabinet door is made of
22 gauge 304 stainless steel.

of the cabinet from the bottom of the fryer to the fryer
panel, and the full width of the cabinet. Above the panel is
a canopy. No additional space is required for the door to
open a full 90 degrees. A stainless steel fl ue defl ector is
provided for installing onto the fl ue back.

Thermostat - Close range, hydraulic type, is accurate to
±3°F from 300° to 350°F with stainless steel bulb. Appli­cation of this thermostat is patented by Keating.

Heat Transfer Tubes -

stainless steel polished to a #7 mirror fi nish.

18 gauge stainless steel, with a shorten-

The bottom of the vessel slopes

16 gauge, 304 stainless steel. It slopes

18 gauge, 304 stainless steel. It completely

The door covers the front

Two heat transfer tubes, made of

Hi-Limit Control - Manually resettable type with stain­less steel bulb.

100% Safety Shut-Off - Electronic type with combina­tion control gas valve.

Melt Cycle - Standard on “TS” fryers, allowing the
safe melting of solid shortening. Fryer is to be left in
the Melt Cycle mode until oil completely covers heat
transfer tubes.

Indicating Lights & Switches - Power on switch, power
on light, fry off melt switch, ready to fry light, over max.
temp light.

Standard Accessories - Includes two timers (program­mable for three products each), one pair 4 mesh
baskets, grid screen over heat transfer tubes, drain
clean out rod and sample of Keating Klenzer.

Electrical Requirements - Supply Voltage 120V
60Hz, Control Voltage 24V 60 Hz, 120 VAC 9' (1.5m)
grounded cord set provided.

Gas Requirements - Install a 3/4" male NPT connec­tion and 4" water column pressure (natural gas) and
10" (LP) at the fryer burner manifold. Supply pressure
to fryers must be 7" (natural gas) and 11" (LP) water
column.

Special Order Options may include Instant-On™,
battery, common manifold, rear drain, casters, cover,
thermostat seal, portable fi lter, central fi lter (CF14SE)
and security package.

INSTALLER - Check plumbing and gas codes for proper gas supply line sizing to sustain burner pressure when all gas
appliances are full on. Supply pressure must NOT be above 13.84" WC or gas valve damage may occur.

GAS REQUIREMENTS / DIMENSIONS

MODEL BTU Input Height Depth Width Weight
10x11 TS Natural Gas 54,000 46 1/2" 26 1/2" 12 3/8" 125 lbs.

10x11 TS Gas Instant Recovery

10x11 TS LP Gas 50,000 46 1/2" 26 1/2" 12 3/8" 125 lbs.

As continuous product improvement occurs, specifi cations may be changed without notice.

PRINTED IN THE USA 04/2015 10 x11tsg_2015
