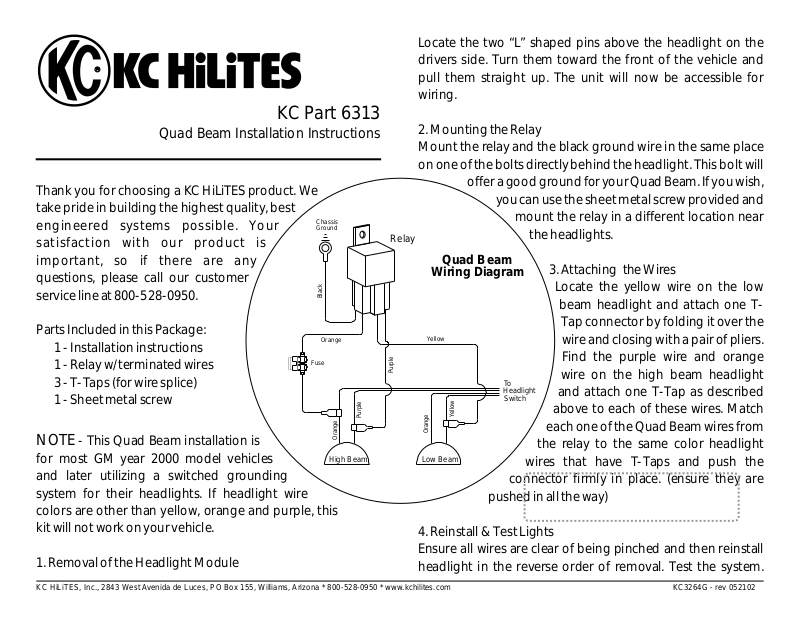

KC HiLiTES KC 6313 Instructions

KC Part 6313

Quad Beam Installation Instructions

Locate the two “L” shaped pins above the headlight on the
drivers side. Turn them toward the front of the vehicle and
pull them straight up. The unit will now be accessible for
wiring.

2. Mounting the Relay
Mount the relay and the black ground wire in the same place
on one of the bolts directly behind the headlight. This bolt will

Thank you for choosing a KC HiLiTES product. We
take pride in building the highest quality, best
engineered systems possible. Your

Chassis
Ground

satisfaction with our product is
important, so if there are any
questions, please call our customer
service line at 800-528-0950.

Parts Included in this Package:

Black

Orange

1 - Installation instructions
1 - Relay w/terminated wires

Fuse

3 - T-Taps (for wire splice)
1 - Sheet metal screw

NOTE - This Quad Beam installation is

for most GM year 2000 model vehicles
and later utilizing a switched grounding
system for their headlights. If headlight wire
colors are other than yellow, orange and purple, this

High Beam Low Beam

offer a good ground for your Quad Beam. If you wish,

you can use the sheet metal screw provided and

mount the relay in a different location near

Relay

Quad Beam

Wiring Diagram

the headlights.

3. Attaching the Wires
Locate the yellow wire on the low

beam headlight and attach one T-

Tap connector by folding it over the

Yellow

wire and closing with a pair of pliers.
Find the purple wire and orange

Purple

To
Headlight
Switch

Purple

Orange

Yellow

Orange

wire on the high beam headlight

and attach one T-Tap as described

above to each of these wires. Match

each one of the Quad Beam wires from

the relay to the same color headlight

wires that have T-Taps and push the

connector firmly in place. (ensure they are

pushed in all the way)

kit will not work on your vehicle.

4. Reinstall & Test Lights
Ensure all wires are clear of being pinched and then reinstall

1. Removal of the Headlight Module

KC HiLiTES, Inc., 2843 West Avenida de Luces, PO Box 155, Williams, Arizona * 800-528-0950 * www.kchilites.com KC3264G - rev 052102

headlight in the reverse order of removal. Test the system.
