KBC WESII Series User Manual

Download

WESII

Wireless Ethernet System

WESII Series

User Manual

WESII User Manual

About This Users’ Guide

Intended Audience

This manual is intended for people who want to configure any of the WESII Series. You will need a basic knowledge of TCP/IP and wireless topology.

Related Documentation

Quick Start Guide

The Quick Start Guide is designed to help you get up and running. It contains basic information on setting up your individual WESII unit.

Technical Specification

The Technical specification is designed to provide you with all the technical specifications related to the WESII units.

KBC Networks’ Website

Please refer to www.kbcnetworks.com for additional support documentation and product certifications.

Feedback

We welcome all comments, questions and suggestions relating to our User Guides. Please contact us on:

Technical Department KBC Networks Ltd 25691 Atlantic Ocean Drive Suite B3 Lake Forest CA 92630

Email: techsupport@kbcnetworks.com

Thank you

WESII User Manual

Document Conventions

Warnings and Notes

These are how warnings and notes are shown is this Guide.

!Warning!

arnings tell you about things that could harm you or your device.

Note:

Notes tell you other important information or recommendations.

Example:

Examples are provided to help make the WESII set up straight forward.

Syntax Conventions

The WESII units may be referred to as the ‘device’, the ‘product’ or the ‘system’ in this guide.

<ENTER> denotes enter or return on your keyboard.

<*****> denotes that you need to select that option.

WESII User Manual

Safety Warnings

!Warning! For your safety please read the following warning notices and instructions.

Safety, Approvals and Regulatory Domain Information

Safety Instruction

For your protection, please read and observe all safety instructions before operating this system and keep this sheet and any additional instructions for future reference. Installation and Use

OBSERVE WARNINGS: All warnings in the operating instructions should be carefully followed. Do not make any modifications to the WESII unit, Power Injection Module (PIM), or any other KBC Networks electronic device, as the unit(s) will no longer comply with legal regulations and therefore void its warranty.

WATER AND MOISTURE: The WESII unit is weatherproof provided it is installed in accordance to the mounting details listed in section 2.4.3. However, further protection or housing is suggested for harsh environments, as moisture damage voids its warranty. The PIMs used in this system are NOT weatherproof. None of the modules in this system are waterproof and should never be submerged. Severe electrical shock, personal injury or damage to the equipment may result.

POWER SOURCE: Connect the equipment to a power source only of the type described on the operating instructions or as marked on the equipment. Excessive or insufficient current or voltage can cause extended trouble-shooting or even damage that could negate its warranty. The power supply cable should not be modified/extended due to the ability to use up to 100m of power over Ethernet cable. In addition, Ethernet cable running from the PIM to the WEM should be kept separated from high-voltage cables and/or transformers.

ATTACHMENTS: Use only KBC Networks’ supplied or recommended Power Injection Modules, Power Supplies, Cat5 Cables and weather seals and plugs.

WHEN NOT IN USE: Unplug the power if the equipment is left unattended or unused for long periods of time or during lightning storms.

REPLACEMENT PARTS: When replacement parts are required, use only replacement parts specified by KBC Networks. Unauthorized substitutions may result in damage to the system and could void the warranty.

WESII User Manual

FCC Required Information

Radio Frequency Interference Statement for Class B Digital Devices

This equipment has been tested and found to comply with the limits for an intentional radiator, pursuant to Part 15, subpart C of the FCC Rules. This equipment generates, uses and can radiate radio frequency energy. This equipment generates, uses, and can radiate radio frequency energy. If not installed and used in accordance with the instructions, it may cause harmful interference to radio communications. The limits are designed to provide reasonable protection against such interference in residential situations. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause interference to radio or television reception, which can be determined by turning the equipment on and off, the user is encouraged to try to correct the interference but on or more of the following measures:

• Re-orientate or relocate the receiving antenna of th

e affected radio or television.

• Increase the separation between the equipment and the affected receiver.

• Connect the equipment and the affected receiver to power outlets on separate

circuits.

• Consult the dealer or an experienced radio/TV technician for assistance.

Shielded cables must be used with this unit to ensure compliance with Class B FCC limits. Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Changes or modifications not expressly approved by KBC could void the user’s authority to operate the equipment.

FCC Power Output Restrictions

The FCC does not require licensing to implement this device. License-free operation in the industrial, scientific and medical band is documented in FCC Rules Part 15.247. It is the responsibility of the individuals designing and implementing the radio system to ensure compliance with any pertinent FCC Rules and Regulations. This device must be professionally installed.

Exposure to Radio Frequency Fields

The WESII is designed to operate on the 5 GHz frequency band with up to 50 Watts EIRP maximum transmit power. This level of RF energy is above the Maximum Permissible Exposure (MPE) levels specified in FCC OET65:97-01. The following precautions must be taken during installation of this equipment:

• The installed antenna must not be located in a manner that allows exposure of

the general population to the direct beam path of the antenna at a distance less than 20cm. Installation on towers, masts, or rooftops not accessible to the general population is recommended or alternatively mount the antenna in a manner that prevents any personnel from entering the area within 20cm from the front of the antenna.

• It is recommended that the installer place radio frequency hazard warnings signs

on the barrier that prevents access to the antenna.

• During installation and alignment of the antenna, do not stand in front of the

antenna assembly.

• During installation and alignment of the antenna, do

not handle or touch the front

of the antenna.

WESII User Manual

These simple precautions must be taken to prevent general population and installation personnel from exposure to RF energy in excess of specified MPE levels.

Industry Canada Restrictions

IC ID# 7849A-N523ESD

This Class A digital apparatus complies with Canadian ICES-003. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (E.I.R.P.) is not more than that permitted for successful communication. This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions:

This device may not cause interference, and This device must accept any interference, including interference that may cause undesired operation of the device.

Cet appareil numérique de la classe A est confrome à la norme NMB-003 Canada. Pour réduire le risque d’interférence aux autres utilisateurs, le type d’antenne et son gain doivent être choisies de façon que la puissance isotrope rayonnée équivalente (PIRE) ne dépasse pas ce qui est nécessaire pour une communication réussie. Cet appareil est conforme à la norme RSS Industrie Canada exempts de licence norme(s). Son fonctionnement est soumis aux deux conditions suivantes: 17 Compliance

Cet appareil ne peut pas provoquer d’interférences et Cet appareil doit accepter toute interférence, y compris les interférences qui peuvent causer un mauvais fonctionnement du dispositif.

RF Exposure Warning

The antennas used for this transmitter must be installed to provide a separation distance of at least 37.2 cm from all persons and must not be located or operating in conjunction with any other antenna or transmitter.

Les antennes utilisées pour ce transmetteur doivent être installé en considérant une distance de séparation de toute personnes d'au moins 37.2 cm et ne doivent pas être localisé ou utilisé en conflit avec tout autre antenne ou transmetteur.

WESII User Manual

CE Regulatory Statement

Class B ITE:

This is a Class B product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures. Declaration of Conformity: KBC declares the following: Product Name: WESII Model No.: 802.11n Station conforms to the following Product Standards: This device complies with the Electromagnetic Compatibility Directive (89/336/EEC) issued by the Commission of the European Community. Compliance with this directive implies conformity to the following European Norms (in brackets are the equivalent international standards.) Electromagnetic Interference (Conduction and Radiation): EN 55022 (CISPR 22) Electromagnetic Immunity: EN 55024 (IEC61000-4-2, 3, 4, 5, 6, 8, 11) Low Voltage Directive: EN 60 950: 1992+A1: 1993+A2: 1993+A3: 1995+A4: 1996+A11: 1997. CE Mark: following the provisions of the EC directive. KBC also declares that: The wireless card in this product complies with the R&TTE Directive (1999/5/EC) issued by the Commission of the European Community. Compliance with this directive implies conformity to the following: EMC Standards: CE: EN 300 328-2, EN 300 826 (EN 301 489-17) EN 301 893.

CE marking on this product represents the product is in compliance with all directives that are applicable to it.

This equipment may be operated in the following countries:

Great Britain and Northern Ireland, Austria, Belgium, Denmark, Finland, France, Germany, Ireland, Italy, Netherlands, Norway, Portugal, Romania, Switzerland, Sweden

Installer Compliance Responsibility

Devices must be professionally installed and it is the professional installer's responsibility to make sure the device is operated within local country regulatory requirements.

Dynamic Frequency Selection (DFS) & Transmit Power Control (TPC):

DFS and TPC are requirements of the ETSI standard EN301 893 V1.5.1, the European Union’s harmonized radio standard for unlicensed devices operating in the 5150 – 5350 MHz and 5470 – 5725 MHz frequency bands. Radar detection is required when operating on channels whose nominal bandwidth falls partly or completely within the frequency ranges 5250 MHz to 5350 MHz or 5470 MHz to 5725 MHz. In addition devices using the 5600 – 5650 MHz band are subject to a 10 minute Channel Availability Check (CAC). The following table shows how this can affect connection times for certain frequencies:

WESII User Manual

Frequency (MHz)

Channel Bandwidth

5MHz 10MHz 20MHz 20/40MHz

5500

2 mins 2 mins 2 mins 2 mins

5505

2 mins

5510

2 mins 2 mins

5515

2 mins

5520

2 mins 2 mins 2 mins

5525

2 mins

5530

2 mins 2 mins

5535

2 mins

5540

2 mins 2 mins 2 mins 2 mins

5545

2 mins

5550

2 mins 2 mins

5555

2 mins

5560

2 mins 2 mins 2 mins

5565

2 mins

5570

2 mins 2 mins

5575

2 mins

5580

2 mins 2 mins 2 mins 10 mins

5585

2 mins

5590

2 mins 2 mins

5595

2 mins

5600

10 mins 10 mins 10 mins

5605

10 mins

5610

10 mins 10 mins

5615

10 mins

5620

10 mins 10 mins 10 mins 10 mins

5625

10 mins

5630

10 mins 10 mins

5635

10 mins

5640

10 mins 10 mins 10 mins

5645

10 mins

5650

10 mins 10 mins

5655

2 mins

5660

2 mins 2 mins 2 mins 2 mins

5665

2 mins

5670

2 mins 2 mins

5675

2 mins

5680

2 mins 2 mins 2 mins

5685

2 mins

5690

2 mins 2 mins

5695

2 mins

5700

2 mins 2 mins

2 mins

WESII User Manual

Environmental Restrictions of Wireless Devices

KBC products are engineered to the highest standards and designed to work in a variety of wireless applications and environments. A wireless environment includes the site in which the product is installed, the installation including power and cabling as well as any extra materials that might be necessary to complete the wireless project. Due to the fact that environments and installations differ from site to site, KBC cannot control the variables required to ensure an ideal environment. Therefore, it is not possible to guarantee a successful application based on a drawing, application note, distance calculation, quote or other type of material that KBC may provide. Should a quote, drawing, etc. be made available, it is based on the performance of the WESII product in an ideal environment with clear line-of-sight, absence of 5 GHz interference and/or frequency multi-path reflection. Therefore, KBC cannot be held responsible should the products not operate as desired or should additional products be required to complete a project. In addition, should a particular environment restrict the usage of the WESII in any way, KBC offers a thirty (30) day return policy from date of shipment to the original purchaser if goods are returned in an ‘as new’ condition.

WESII User Manual

RoHS/WEEE Compliance Statement

European Directive 2002/96/EC requires that the equipment bearing this symbol on the product and/or its packaging must not be disposed of with unsorted municipal waste. The symbol indicates that this product should be disposed of separately from regular household waste streams. It is your responsibility to dispose of this and other electric and electronic equipment via designated collection facilities appointed by the government or local authorities. Correct disposal and recycling will help prevent potential negative consequences to the environment and human health. For more detailed information about the disposal of your old equipment, please contact your local authorities, waste disposal service, or the shop where you purchased the product.

Instruction of Disassembly

Note: disassembling or opening of the WESII unit voids warranty.

Instruction of Disassembly of KBC Product (For EU Directive 2002/95/EECWEEE)

Tools required:

No. 1 Phillips screwdriver No. 2 Phillips screwdriver

Steps for disassembly:

Remove Serial Label adhesive Remove cover screws attaching top cover to radio module cavity. Remove tightening screws for printed circuit board (PCB). Take out all PCBs.

Note: W

hen a product reaches the end of its life – return to KBC.

WESII User Manual

General Public License Statement

You may have received from KBC Networks products that contained – in part – free software (software licensed in a way that ensures your freedom to run, copy, distribute, study, change and improve the software). Such products include the WESII Series of products.

As part of these products, KBC Networks may have distributed to you hardware and/or software that contained a version of free software programs developed by the Free Software Foundation, a separate not-for-profit organization without any affiliation to KBC Networks. See http://www.gnu.org/philosophy/free-sw.html for more details. If KBC Networks distributed any portions of these free software programs to you, you were granted a license to that software under the terms of either the GNU General Public License or GNU Lesser General Public License (“License”, copies of which are available from http://www.gnu.org/licenses/licenses.html). The Licenses allow you to freely copy, modify and redistribute that software without any other statement or documentation from us.

For at least one (1) year from the date of distribution of the applicable product or software, KBC Networks will provide to anyone who contacts us at the contact information provided below, for a charge of no more than our cost of physically performing source code distribution, a complete machine-readable copy of the complete corresponding source code for the free software programs used in the version of the programs that we distribute to you. The cost will be free if the delivery medium of the machine-readable copy is through the Internet.

Contact information:

Email: techsupport@kbcnetworks.com Tel: 949.297.4930 Address: 25691 Atlantic Ocean Drive Lake Forest, CA 92630

We do ask for your understanding regarding expected delivery timelines:

We will reply within 7 working days once the request has been made through email/telephone.

The default version sent will be the latest that we used in the firmware/programs.

Note: i

t may take longer if an older version is requested. The waiting time will not

exceed 2 weeks.

WESII User Manual

TABLE OF CONTENTS

ABOUT THIS USERS GUIDE…………………………………………………………………………………………1

Intended Audience…………………………………………………………………………………………………………………………..….…….…1 Related Documentation…………………………………………………………………………………………………………………..……………1

DOCUMENT CONVENTIONS……………………………………………………………………………………….2

Warnings and Notes………………………………………………………………………………………………………………………...………….2 Syntax Conventions ……………………………………………………………………………………………………………………………………..2

SAFETY WARNINGS……………………………………………………………………………………………………3

SAFETY, APPPROVALS AND REGULATORY DOMAIN INFORMATION………………………….3

Safety Instruction………………………………………………………………………………………………………………………….…………….3 FCC Required Information……………………………………………………………………………………………….…………………………..4 Industry Canada Restrictions……………………………………………………………………………………………………….……………...5 CE Regulatory Statement…………………………………………………………………………………………………….………………………6 Environmental Restrictions of Wireless Devices…………………………………………………………………….…………………….8

ROHS/WEEE COMPLIANCE STATEMENT…………………………………………………………………….9

Instructions of Disassembly……………………………………………………………………………………………………..…………………..9

GENERAL PUBLIC LICENSE STATEMENT………………………………………………………………….10

1 OVERVIEW…..………………………………………………………………….……………………………13

1.1 Introduction………………………………………………………………………………………………………………………………………13

1.2 General Technical Specification…………………………………………………………………………..…………………………….14

2 TYPICAL CONFIGURATIONS…………………………………………………….……………..…..16

2.1 Point-to-point…………………………………………………………………………………………………………………………………….16

2.2 Point-to-multipoint…………………………………………………………………………………………………………………………….17

2.3 Relay………………………………………………………………………………………………………………………………………………….18

2.4 Wi-Fi Access Point………………………………………………………………………………………………………………………………18

2.5 Mixed systems – WESII & MeshII………………………………………………………………………………………………….…...19

3 ANTENNA OPTIONS……………………………………………………………………………………….20

3.1 Omni-directional antennas………………………………………………………………………………………………………………..20

3.2 Integrated directional antenna options……………………………………………………………………………………………..20

3.3 External directional patch antenna options………………………………………………………………………………………..21

4 POINT-TO-POINT KITS…………………………………….……………………….………………….22

5 MOUNTING INSTRUCTIONS…………………………………………………………………………..23

5.1 Pole and wall-mount for integrated directional WESII units………………………………………………………………23

WESII User Manual

6 CONNECTIONS……………………………………………………………………………….……………..25

6.1 Physical Connections…………………..…………………………………………………….……………………………………………..25

6.2 Power Connections…………………………………………………………………………………………………………………………..26

7 LED STATUS……………………………………………….………………………………………………….28

7.1 Non-PoE WESII……………………………………………………………………………………………………………….…………………28

7.2 PoE WESII……………………………………………………………….………………………………………………………………………..28

8 CABLE ASSEMBLY………………………………………………………………………………………….29

8.1 Strain Relief Assembly…………………………………………………………………..……………………..……….………………….29

8.2 Configuring the Cable……………………………………………………………………………………………………………………….29

9 SETTING UP A BASIC LINK…………………………………………………………………………..31

9.1 Setting up a basic point-to-point link – United States & Canada…………………………………………….………..32

9.2 Setting up a basic point-to-point link – EMEA………………………….…………………………………………….………..40

9.3 Setting up a basic point-to-point link – Australia…………………….……………………………….…………….………..53

9.4 Setting up a basic point-to-multipoint link – United States & Canada………………………………...….………..61

9.5 Setting up a basic point-to-multipoint link – EMEA………………………….…………………………………….………..70

9.6 Setting up a basic point-to-point link – Australia…………………….……………………………………….…….………..83

10 INSTALLING ON A SITE………………………………………………………………………………….91

10.1 Line-of-sight………………………………………………………………………………………………………………………………..…...91

10.2 Spacing required when mounting WESII units…………………………………………………………………………………..93

10.3 Cable lengths when installing WESII units…………………………………………………………………………….……………94

10.4 Aligning the WESII units……………………………………………………………………………………….……………………………95

10.5 Configuring IP addresses on a site…………………………………………………………………………………………………….95

10.6 Replacing/adding a WESII Module from/to the existing application………………………………………………….96

11 GRAPHICAL USER INTERFACE………………………………………………………………………97

11.1 Connecting to the WESII GUI using a PC……………………………………………………..…………………..………………..97

11.2 WESII Menu Options………………………………………………………………………………………………………..……………….99

12 TROUBLESHOOTING……………………………………………………………………………………136

12.1 Visual Inspection……………………………………………………………………………………………..……………………………..136

12.2 Test Cable Connections…………………………………………………………………………………………………………………...136

12.3 GUI Tools…………………………………………………………………………………………………………………………………………136

12.4 Hard reset to defaults……………………………………………………………………………………………………………………..137

12.5 Contact KBC Technical Assistance…………………………………………………………………………………………………….138

13 WARRANTY………………………………………………………………………………………………….139

WESII User Manual

1. Overview

1.1 Introduction

This manual covers all the functions of the products that form KBC Networks’ WESII Series. The WESII Wireless Ethernet System is a wireless transmission system that provides a cable less transmission path for an Ethernet channel. They are designed for use in a wide range of operating temperatures in non-environmentally conditioned, outdoor applications. The primary function of the system is to replace Ethernet cables where it is not practical or cost-effective or where it is beyond distance limitations. WESII has been specifically designed to transmit constant streaming video but can also be used to send and receive standard Ethernet data packets or to operate as a WiFi Access Point. The units can be configured as a long range point-to-point wireless bridge or as a point-to-multipoint receiving antenna communicating to numerous transmitting Client/Station devices. This manual covers all operations and functions of the point-topoint and point-to-multipoint systems.

WESII

1.1.1.

The KBC WESII Series is a wireless transmission system that operates in the license free

2.4GHz & 5GHz bands and also in the 4.9GHz Public Safety band (only available in the US). The units are available as PoE or non-PoE with a range of antennas to suit applications. The units will support throughput of up to 99Mbps due to MIMO technology.

WESII User Manual

General Technical Specification

WESII Specification

Standards

IEEE Standards

IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX IEEE 802.3x Full Duplex IEEE 802.11a 5GHz IEEE 802.11b 2.4GHz IEEE 802.11g 2.4GHz IEEE 802.11y 4.9GHz US Public Safety IEEE 802.11n MIMO IEEE 802.11h ETSI DFS & TPC IEEE 802.3af

Radio

Frequency (MHz)

USA & Canada: 2412 - 2472 4940 - 4990 5745 – 5825 Europe: 2412 - 2472 5500 - 5700

Frequency Operation

Auto-select User static selectable Dynamic Frequency Selection (ETSI DFS)

Power Output

23dBm max1 Transmit Power Control (ETSI TPC)

Channel Capacity Selectable 5, 20 or 40MHz Modulation OFDM

Antennas

2dBi/5dBi (2.4GHz/4.9GHz & 5GHz) Omni-directional

9dBi (4.9GHz & 5GHz)

Directional integrated patch Dual polarization Beamwidth: Azimuth: Horizontal 65°, Vertical 65° Elevation: Horizontal 33°, Vertical 33°

11dBi (2.4GHz)

Directional integrated patch Dual polarization Beamwidth Azimuth: Horizontal 56°, Vertical 62° Elevation: Horizontal 38°, Vertical 26°

17dBi (4.9GHz & 5GHz)

Directional integrated patch Dual polarization Beamwidth: Azimuth: Horizontal 30°, Vertical 33° Elevation: Horizontal 17°, Vertical 17°

Territory specific.

WESII User Manual

System

Data throughput2 (max values – limited by 10/100 port)

HT5 HT20 HT40 17Mbps 99Mbps 99Mbps

Latency < 10 mS

Power

Power input (supplied by PIM)

24Vdc, 500mA

Reverse voltage protected Power method (non-PoE WESII) Passive PoE Power method (PoE WESII) IEEE 802.3af (PD) PoE cable spec 100m on 24AWG Cat5/5e/6/6e

Mechanical

Casing IP66

Dimensions (Patch L x W x D)

245mm x 245mm x 76mm

9.625” x 9.625” x 3”

Weight

420g

15oz Installation Wall-mount or pole-mount

Environmental

Operating Temperature -40° ~ +74°C / -40° ~ +165°F Storage Temperature -40° ~ +90°C / -40° ~ +194°F Operating Humidity 5% to 95% non-condensing

Connectors

10/100 Electrical 1 x RJ45

Approvals

FCC Part 15 subpart C Class B IC ID# 7849A-N523ESD CE Class B EN 55024 (IEC61000-4-2,3,4,5,6,8,11) Electromagnetic Immunity

EN 55022 (CISPR 22)

Electromagnetic Interference (Conduction

and Radiation) EN 60 950: 1992+A1; 1993+A2; 1995+A4; 1996+A1; 1997

Low Voltage Directive

EN 300 328-2 EN 300 826 EN 301 489-17 EN 301 893 R&TT Directive (1999/5/EC)

Assumes an ideal environment with maximum signal rates & within receive

sensitivity specification.

WESII User Manual

2. Typical Configurations

The WESII units are available to work in the following configurations:

• Point-to-point

• Point-to-multipoint

• Relay

• Wi-Fi Access Point

• Mixed systems

2.1 P

oint-to-Point

2.1.1 Non-PoE WESII

2.1.2 PoE WESII

WESII User Manual

2.2 Point-to-multipoint

Non-PoE WESII

2.2.1.

PoE WESII

2.2.2.

WESII User Manual

2.3 Relay

.4 Wi-Fi Access Point

WESII User Manual

2.5 Mixed systems – WESII & MeshII

WESII User Manual

3. Antenna Options

The WESII units are available with the following antennas:

• 2dBi/5dBi dual rated omni-directional antenna for 2.4GHz/4.9GHz & 5GHz

operation

• 9dBi integral patch antenna for 4.9GHz & 5GHz operation

• 11dBi integral patch antenna for 2.4GHz operation

• 17dBi integral patch antenna 4.9GHz 5GHz operation

• 9dBi external patch antenna for 4.9GHz & 5GHz operation

• 11dBi external patch antenna for 2.4GHz operation

• 17dBi external patch antenna for 4.9GHz & 5GHz opera

tion

3.1 Omni-directional options

3.1.1 2dBi/5dBi

This is a dual frequency rated omni-directional antenna for 2.4GHz,

4.9GHz & 5GHz operation. At 2.4GHz the antenna has a gain of 2dBi and at 4.9GHz & 5GHz the antenna has a gain of 5dBi. The beamwidth of the antenna is 360°.

3.2 Integrated directional patch antenna options

3.2.1 9dBi

This is an integral directional patch antenna option for 4.9GHz & 5GHz operation. The antenna is dual polarized. The beamwidth is:

Azimuth: Horizontal 65°, Vertical 65° Elevation: Horizontal 33°, Vertical 33°

3.2.2 11dBi

This is an integral directional patch antenna option for 2.4GHz operation. The antenna is dual polarized. The beamwidth is:

Azimuth: Horizontal 56°, Vertical 62° Elevation: Horizontal 38°, Vertical 26°

WESII User Manual

3.2.3 17dBi

This is an integral directional patch antenna option for 4.9GHz & 5GHz operation. The antenna is dual polarized. The beamwidth is:

Azimuth: Horizontal 30°, Vertical 33° Elevation: Horizontal 17°, Vertical 17°

3.3 External directional patch antenna options

External antennas can be attached to the antenna ports on the external antenna chassis and are provided with 2 x 1m cables. See section 6.1.2.

3.3.1 9dBi

This is an external directional patch antenna option for 4.9GHz & 5GHz operation, part number PAT5M-9. The antenna is supplied as a separate unit that contains 1 x 9dBi patch antenna and 2 x 1m cables. The antenna is dual polarized. The beamwidth is:

Azimuth: Horizontal 65°, Vertical 65° Elevation: Horizontal 33°, Vertical 33°

3.3.2 11dBi

This is an external directional patch antenna option for 2.4GHz operation, part number PAT2M. The antenna is supplied as a separate unit that contains 1 x 11dBi patch antenna and 2 x 1m cables. The antenna is dual polarized. The beamwidth is:

Azimuth: Horizontal 56°, Vertical 62° Elevation: Horizontal 38°, Vertical 26°

3.3.3 17dBi

This is an external directional patch antenna option for 4.9GHz & 5GHz operation, part number PAT5M. The antenna is supplied as a separate unit that contains 1 x 17dBi patch antenna and 2 x 1m cables. The antenna is dual polarized. The beamwidth is:

Azimuth: Horizontal 30°, Vertical 33° Elevation: Horizontal 17°, Vertical 17°

WESII User Manual

4. Point-to-point Kits

There are a number of WESII point-to-point kits that are available, details are below:

Part number Description Contents

WESII-KT 5GHz, point-to-point 17dBi kit 2 x 5GHz WESII 17dBi point-to-

point units

WESII-KT-9 5GHz, point-to-point 9dBi kit 2 x 5GHz WESII 9dBi point-to-

point units

WESII-KT-POE 5GHz, point-to-point kit with WESII PoE

units

2 x 5GHz WESII 17dBi PoE point-to-point units

WESII-KT-49 4.9GHz, point-to-point kit 2 x 4.9GHz WESII point-to-point

units

WESII-KT-49P 4.9GHz, point-to-point kit with WESII

PoE units

2 x 4.9GHz WESII PoE point-topoint units

WESII-KT-ED 5GHz, point-to-point kit with encoder &

decoder

2 x 5GHz WESII point-to-point units + KBC encoder & decoder

WESII-KT-P5 5GHz, point-to-point kit with 5 port PoE

switch & narrow temperature range PSU

2 x 5GHz WESII point-to-point units + ESUL5P-D + DRP-12048

WESII-KT-P5T 5GHz, point-to-point kit with 5 port PoE

switch & extended temperature range PSU

2 x 5GHz WESII point-to-point units + ESUL5P-D + SDR-12048

WESII-KT-P8 5GHz, point-to-point kit with 5 port PoE

switch & narrow temperature range PSU

2 x 5GHz WESII point-to-point units + ESUG8P-D + DRP-48048

WESII-KT-P8T 5GHz, point-to-point kit with 5 port PoE

switch & extended temperature range PSU

2 x 5GHz WESII point-to-point units + ESUG8P-D + SDR-48048

WESII User Manual

5. Mounting Instructions

WESII units are sold with all necessary mounting brackets and screws for installation on 76mm/3” diameter pole or wall mount.

Note: T

his equipment must be installed in accordance with the instructions found in this manual. The orientation must be as depicted below. Failure to comply with these instructions will invalidate warranty.

5.1 Pole and wall-mount for WESII units

WESII User Manual

Qty Description

1 Bracket body

1 Pole clamp bracket

1 Connecting piece 1

1 Connecting piece 2

1 50mm, 1.98” long ¼” hex bolt

3 ¼” hex nuts

1 27mm, 1.06” long ¼” hex bolt

3 Flat washers 15mm, 0.59”

3 Locking washers 10mm, 0.39” long

1 U bolt

4 ¼-20 lock washers

• Remove all packaging material

• Remove 50mm bolt, flat washer, locking washer and hex nut.

• Mount back plate to front WESII assembly plate.

• Replace flat washer, locking washer and hex nut.

• Remove ‘U’ shaped bolt.

• Bolt the unit to the pole.

• Up/Down Alignment offers one position when using the pre-fabricated channel

lock grooves on the swivel brackets. Directional antennas may require additional up/down alignment angles than those allowed on the pre-fabricated grooves. To achieve different angles, remove the 50mm Hex bolt. Insert the longer bolt and add the star washer. Re-connect and tighten.

• Position the WESII unit to face the WESII unit at the other end of the link.

• Carry out the alignment process – see Section 10.4 for instructions and Section 7

for LED status information.

• When in the best position, tighten.

WESII User Manual

6. Connections

6.1 Physical Connections

6.1.1 Integrated Patch Antenna Chassis

6.1.2 External Antenna Chassis

Rear view

Note: See Section 11.2.2.3 for details of how to carry out a hard reset to default

settings.

Front view

Rear view

1. Patch antenna cover

2. Serial number label

3. Internal RF module enclosure

4. Status LEDs

5. LAN port (RJ45)

6. Mounting block

7. Reset to default button

1. Antenna ports, attach screw down omni-directional antennas (for directional antennas, connect jumper LMR-200 cable)

2. Serial number label

3. Internal RF module enclosure

4. Status LEDs

5. LAN port (RJ-45)

6. Mounting block

7. Reset to default button

WESII User Manual

6.2 Power Connections

WESII units are available as either PoE or non-PoE units.

6.2.1 Power Injector Module for the non-PoE WESII

Non-PoE WESII units are supplied with a mid-span Power Injector Module (PIM) and a standard 24Vdc, 500mA Power Supply Unit.

Note: The Power Injector Modules are not weatherproof units and must be protected

from moisture.

Power – Power supply input OUT – Connect to the WESII unit IN – Connect to the Ethernet device

For extreme temperature conditions there is also a KBC Networks Industrial DIN Rail power supply available, part number MDR-20-24. These units provide 24W at 24Vdc. These units need to be purchased separately, for further details please contact KBC Networks.

Note: K

BC Networks’ WESII non-PoE units are mid-span compliant and must be

powered using the supplied KBC Networks’ Power Injection Module.

WESII User Manual

6.2.2 Power for the PoE WESII

The PoE WESII units are IEEE 802.3af Powered Devices (PD) ie. they are powered from a Power Sourcing Equipment (PSE) such as an Ethernet switch which provides power on the Ethernet cable. There are a number of different Ethernet switches options with PoE available from KBC Networks, these can be purchased separately. Please contact KBC Networks for further information.

WESII User Manual

1 2 3 4 5 6

7. LED Status

7.1 Non-PoE WESII

1 Status/Signal Strength Indicator – 40 RSSI 2 Signal Strength Indicator – 30 RSSI 3 Signal Strength Indicator – 20 RSSI 4 Signal Strength Indicator – 10 RSSI 5 Ethernet Link Activity 6 Power

7.1.1 LED Boot Up Process

• Upon connection of an Ethernet cable from the PIM to the unit, the Power LED 6

will light.

• After 1 second RSSI LEDs 1, 2 & 3 illuminate.

• RSSI LEDs 1, 2 & 3 then go off.

• After 5 seconds the Ethernet Link Activity LED 5, illuminates.

• At the same time the Signal Strength Indicator, LED 1 flashes for approximately 2

seconds.

• LEDs 1 & 5 then switch off.

• LED 5 comes on again and flashes intermittently showing that a connection is

established.

• After approximately 1 – 2 minutes RSSI LEDs 1, 2, 3 & 4 will light depending on

the level of signal strength.

7.2 PoE WESII

1 Signal Strength Indicator – 40 RSSI 2 Signal Strength Indicator – 30 RSSI 3 Signal Strength Indicator – 20 RSSI 4 Signal Strength Indicator – 10 RSSI 5 Not used 6 Ethernet Link Activity 7 Power

7.2.1 LED Boot Up Process

• Upon connection of an Ethernet cable from the PSE to the unit, the Power LED 7

will light.

• After 1 second RSSI LEDs 1, 2 & 3 illuminate.

• RSSI LEDs 1, 2 & 3 then go off.

• After 5 seconds the Ethernet Link Activity LED 6, illuminates.

• At the same time the Signal Strength Indicator, LED 1 flashes for approximately 2

seconds.

• LEDs 1 & 6 then switch off.

• LED 6 comes on again and flashes intermittently showing that a connection is

established.

• After approximately 1 – 2 minutes RSSI LEDs 1, 2, 3 & 4 will light depending on

the level of signal strength.

WESII User Manual

8. Cable Assembly

8.1 Strain Relief Assembly

1. Thread the Cat 5 cable through the hole in the gland.

2. Pull the cable through and crimp on the RJ45 connector – see section 8.2

3. Connect the RJ45 connector into the WESII’s LAN port.

4. Tighten the clamping nut until the Ethernet cable is secured in the connector until it

is hand tight.

Note: the RJ45 connector does move slightly within the LAN port on the WESII unit this

allows the RJ45 connector to be connected to the Ethernet port more easily.

8.2 Configuring the Cable.

Note: The total length of cable from the WESII to the Ethernet device cannot exceed

100m (325 feet); however, for a non-PoE WESII unit the PIM can be located anywhere along the overall 100m of cable. KBC Networks recommends shielded Ethernet cables for the cable connecting the PIM to the WESII unit. Any cable exposed to the elements should also be outdoor rated.

1. Determine the length of cable that will be required and where the PIM will be

located.

2. Slide the weatherproof connector over the cable jacket before crimping the

connector. See Section 8.1 for the assembly instructions. If needed, see below for color-code standards to configure the correct type of Ethernet cable.

Note: E

thernet standard straight-through cable configurations used must be configured to one of the Ethernet standards (568-A or 568-B) in order for the WESII system to operate efficiently. Any deviation from one of the two standard configurations can lead to undesired activity.

WESII User Manual

Pin out for color codes 568-A and 568-B:

568-A 568-B 1- Green/White 1- Orange/White 2- Solid Green 2- Solid Orange 3- Orange/White 3- Green/White 4- Solid Blue 4- Solid Blue 5- Blue/White 5- Blue/White 6- Solid Orange 6- Solid Green 7- Brown/White 7- Brown/White 8- Solid Brown 8- Solid Brown

A cable configured with the 568-A color code on one end and the 568-B color code on the other end is an Ethernet standard crossover cable.

WESII User Manual

9. Setting up a basic link

It is highly recommended that all equipment be bench tested before being installed on site.

You will need:

4 x straight through Ethernet cables.

Note: I

t is recommended that for bench testing Host and Client units be placed face

downwards with a distance of 5 – 10m between them to avoid saturation.

The following sections deal with setting up basic links for the three different firmware versions:

• US & Canada

• EMEA

• Australian

WESII User Manual

9.1 Setting up a basic point-to-point link – United States & Canada

9.1.1 Host configuration for point-to-point - United States & Canada

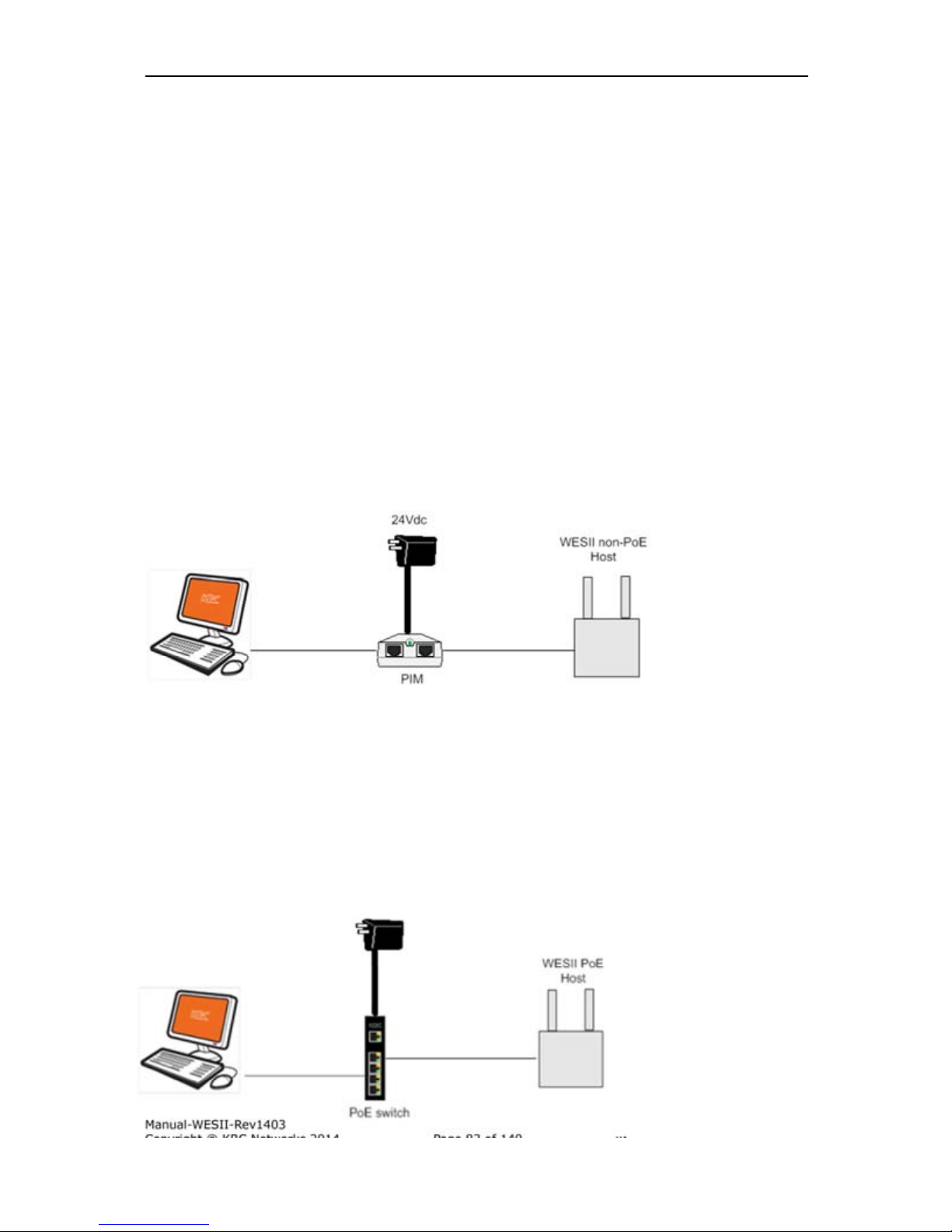

Step 1: Remove the WESII PoE point-to-point Host or the WESII non-PoE point-to-

point Host, Power Supply Unit (PSU) and Power Injector Modules (PIM) (for non-PoE units only) from the box.

Step 2a: For a WESII non-PoE unit:

Connect the first Ethernet straight through cable from the ‘IN’ on the PIM to either a laptop or a PC LAN port.

Connect the second Ethernet straight through cable from ‘OUT’ on the same PIM to the WESII Host LAN port.

Apply power to the PIM with the provided 24Vdc PSU and allow 60 seconds for the unit to boot up.

Step 2b: For a WESII PoE unit:

Connect an Ethernet cable from the PSE device (eg. Ethernet switch) to the LAN port of the WESII unit.

Connect a second Ethernet cable from another port on the PSE to the laptop or PC LAN port.

Apply power to the PSE device and allow 60 seconds for the unit to boot up.

Step 3: Set the static IP address on the laptop to the 192

.168.1.x subnet.

WESII User Manual

Step 4: Open a web browser to access the Host on its 192.168.1.200 IP address;

this is the default IP address for the Host unit.

Step 5: Enter the following to access the GUI:

Note: e

nsure that all other network interface connections including your laptop Wi-Fi are disabled.

Step 6: Basic Wireless

Step 7: Ensure that the Auto box is checked, the unit will

chose the most suitable channel. For systems with more than one point-to-point link on a site you will need to manually set the channel frequency so that each point-to-point link operates on a different frequency. See Section 11.2.6.1 Manual setting for details for manually setting the channel frequency.

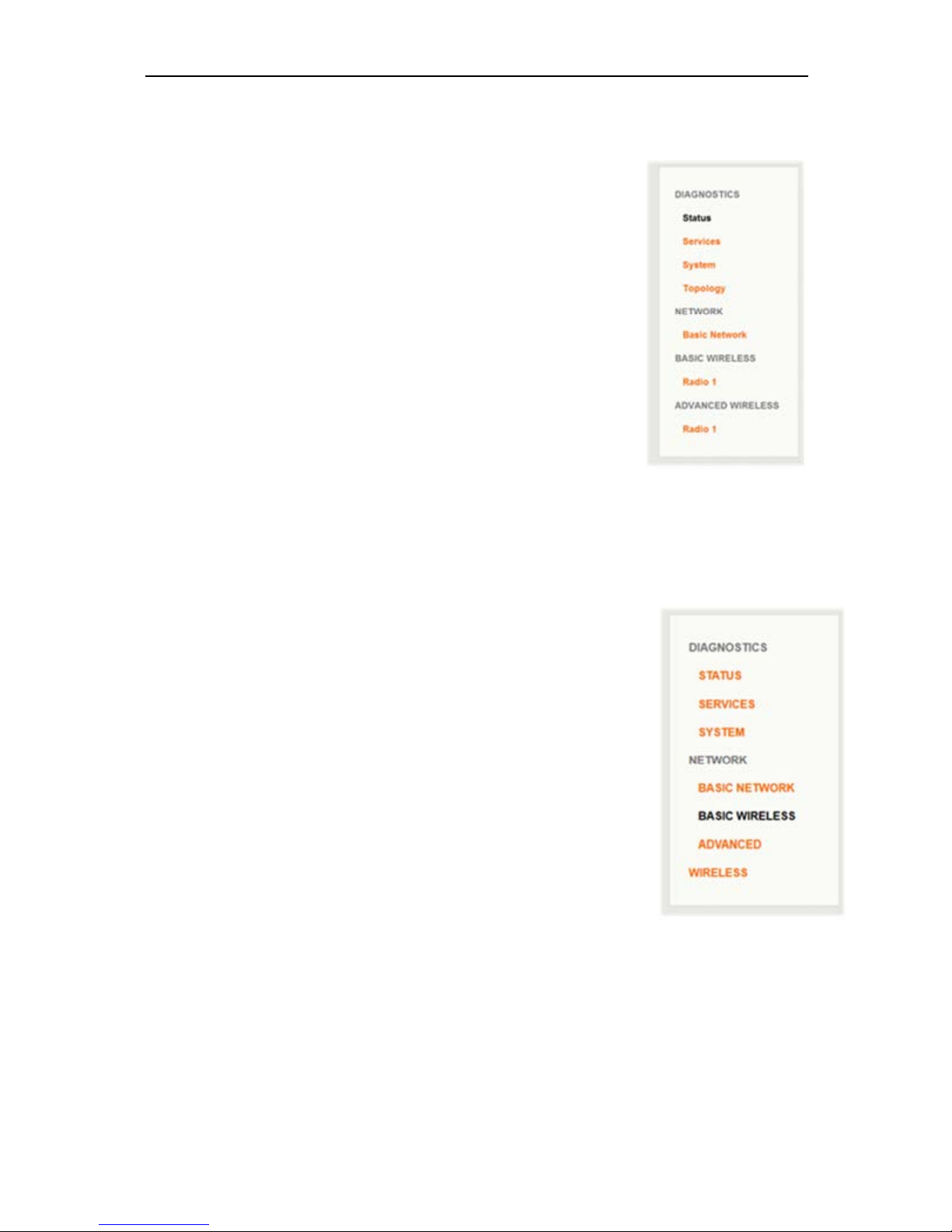

Select: <Radio 1> under the ‘BASIC

WIRELESS’ option from the left hand

User Name: admin Password: admin

Ensure this box is checked

WESII User Manual

Step 8: Enter the MAC address of the Client unit that the Host will connect to in

the ‘Remote Client-Lock to MAC’. This can be found on the ‘Status’ page of the Client unit or the rear label on the outside of the unit. The MAC address must be entered in the following format: xx:xx:xx:xx:xx:xx.

Step 9: Apply Settings

Step 10: Save the changes.

Enter the Client MAC address here

Select: <Apply Settings>

Select:

<Save

WESII User Manual

9.1.2 Client configuration for point-to-point - United States & Canada

Step 1: Remove the WESII PoE Client or the WESII non-PoE Client, Power Supply

Unit (PSU) and Power Injector Modules (PIM) (for non-PoE units only) from the box.

Step 2a: For a WESII non-PoE unit:

Connect the first Ethernet straight through cable from the ‘IN’ on the PIM to either a laptop or a PC LAN port.

Connect the second Ethernet straight through cable from ‘OUT’ on the same PIM to the WESII Host LAN port.

Apply power to the PIM with the provided 24Vdc PSU and allow 60 seconds for the unit to boot up.

Step 2b: For a WESII PoE unit:

onnect an Ethernet cable from the PSE device (eg. Ethernet switch) to

the LAN port of the WESII unit.

Connect a second Ethernet cable from another port on the PSE to the laptop or PC LAN port.

Apply power to the PSE device and allow 60 seconds for the unit to boot up.

Step 3: Set the static IP address on the laptop to the 192

.168.1.x subnet.

Step 4: Open a web browser to access the Client on its 192

.168.1.201 IP address;

this is the default IP address for the Client unit.

WESII User Manual

Step 5: Enter the following to access the GUI:

Note: e

nsure that all other network interface connections including your laptop Wi-Fi are

disabled.

Step 6: Basic Wireless

User Name: admin Password: admin

Select: <Radio 1> under the ‘BASIC

WIRELESS’ option from the left hand menu

WESII User Manual

Step 7: Check the Remote AP-Lock to MAC box

Step 8: Ensure that the Channel Spectrum Width is on 20/40

M & ensure that the

Remote AP-ESSID is set to the same as the Host unit.

Check this box

Ensure these are the same as the Host unit you want to connect to

WESII User Manual

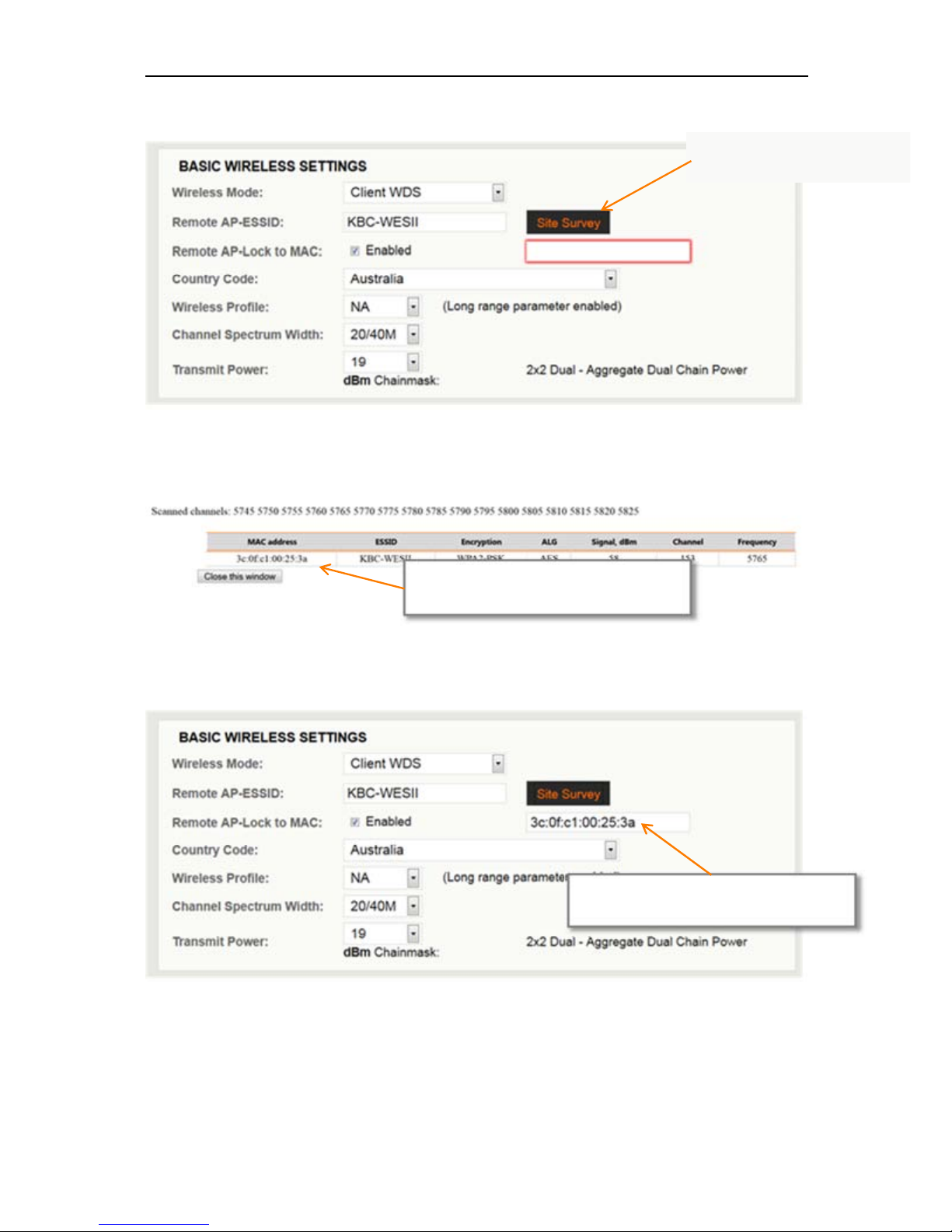

Step 9: Select Site Survey to find the WESII Host you want to connect to.

Step 10: The Site Survey will search for the KBC WESII Host

that you want to connect to. Click on the actual MAC address of the Host unit you want to connect to.

Step 11: The Host address should now appear in the Remote A

P-Lock to MAC

address window.

Note: it is recommended that you write down all the MAC addresses and SSIDs used in

the application for future reference.

Select:

<Site Survey

Select: the MAC address eg. 3c:0f:c1:00:25:3a

Host MAC address selected that the Client is now locked to

WESII User Manual

Step 12: The WESII units will take approximately 2 minutes to connect to each

other. Once a connection has been made the RSSI LEDs on the back of the unit will light to show the strength of the connection. See Section 7.

Step 13: You will now be able to connect to the Host unit via the Client across the

link that has been set up. To do this open another tab on your web browser and access the Host on its 192.168.1.200 default address.

Unless a more advanced set up is desired, the antennas are configured for installation at this point. For advanced configuration see Section 11.

WESII User Manual

9.2 Setting up a basic point-to-point link – EMEA

9.2.1 Host configuration for point-to-point - EMEA

Step 1: Remove the WESII PoE point-to-point Host or the WESII non-PoE point-to-

point Host, Power Supply Unit (PSU) and Power Injector Modules (PIM) (for non-PoE units only) from the box.

Step 2a: For a WESII non-PoE unit:

Connect the first Ethernet straight through cable from the ‘IN’ on the PIM to either a laptop or a PC LAN port.

Connect the second Ethernet straight through cable from ‘OUT’ on the same PIM to the WESII Host LAN port.

Apply power to the PIM with the provided 24Vdc PSU and allow 60 seconds for the unit to boot up.

Step 2b: For a WESII PoE unit:

onnect an Ethernet cable from the PSE device (eg. Ethernet switch) to

the LAN port of the WESII unit.

Connect a second Ethernet cable from another port on the PSE to the laptop or PC LAN port.

Apply power to the PSE device and allow 60 seconds for the unit to boot up.

Step 3: Set the static IP address on the laptop to the 192

.168.1.x subnet.

WESII User Manual

Step 4: Open a web browser to access the Host on its 192.168.1.200 IP address;

this is the default IP address for the Host unit.

Step 5: Enter the following to access the GUI:

Note: e

nsure that all other network interface connections including your laptop Wi-Fi are

disabled.

Step 6: Basic Wireless

Select: <Radio 1> under the ‘BASIC

WIRELESS’ option from the left hand menu

User Name: admin Password: admin

WESII User Manual

Step 7: Selecting the correct country

Note: It is the user’s responsibility to ensure that the correct country is selected. KBC

Networks accepts no liability for incorrectly configured equipment.

Step 8: Apply the country setting.

Select: <Apply Settings>

Select: the country where the unit will

be operating

WESII User Manual

Step 9: Save

Step 10: Ensure that the Auto box is checked, the unit will

Ensure this box is checked

Select: <Save>

WESII User Manual

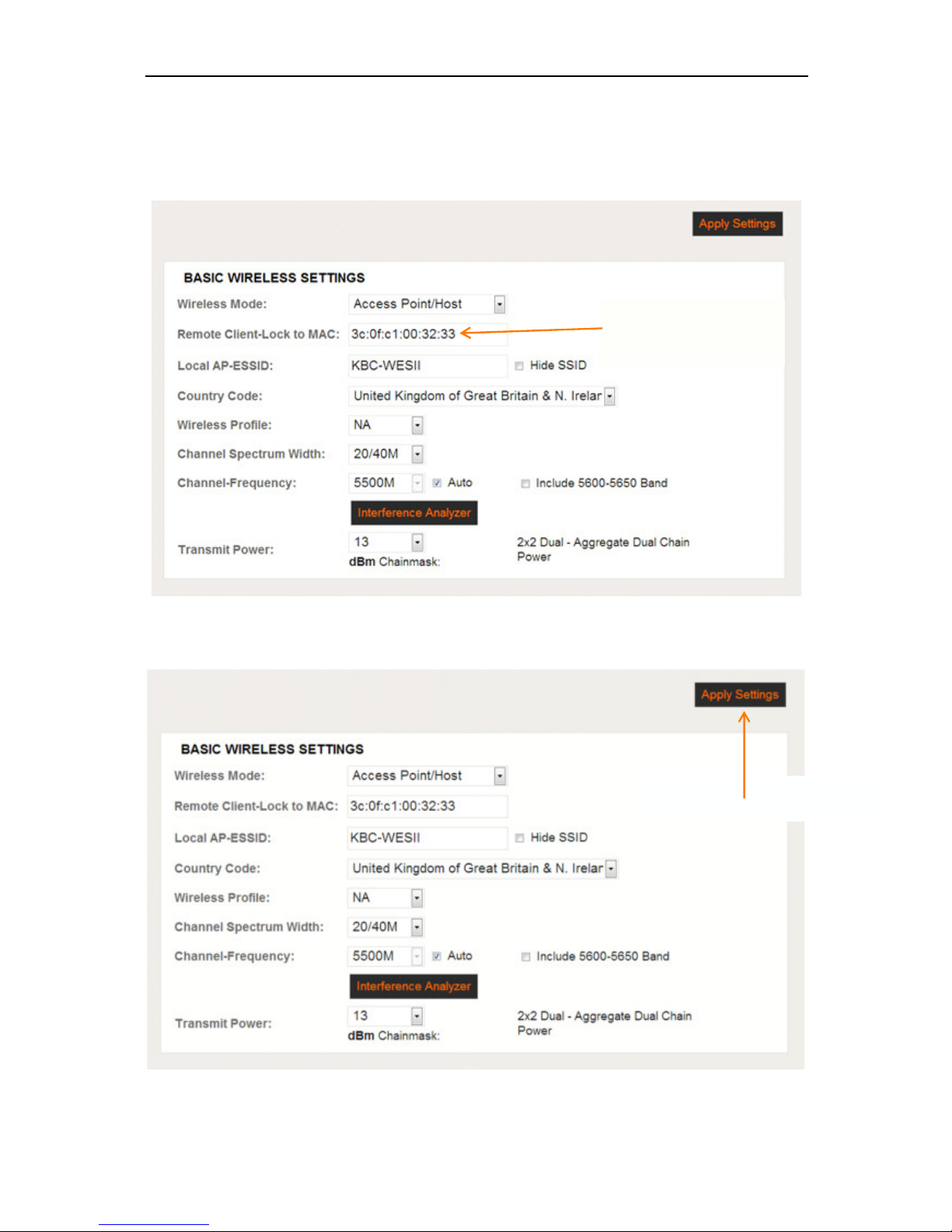

Step 11: Enter the MAC address of the Client unit that the Host will connect to in

the ‘Remote Client-Lock to MAC’. This can be found on the ‘Status’ page of the Client unit or on the rear label on the outside of the unit. The MAC address must be entered in the following format: xx:xx:xx:xx:xx:xx.

Step 12: Apply Settings

Enter the Client MAC address here

Select: <Apply Settings>

WESII User Manual

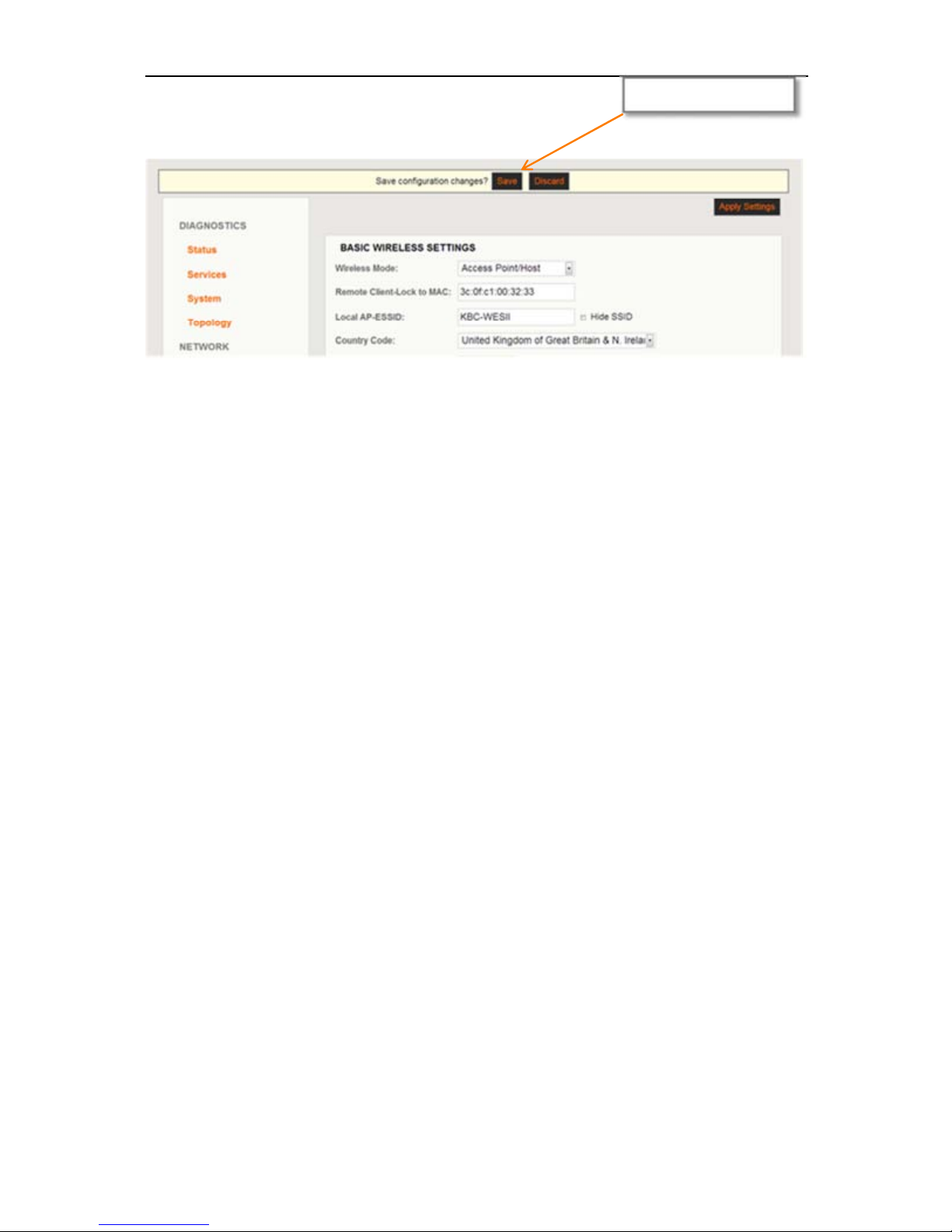

Step 13: Save the changes.

Select:

<Save

WESII User Manual

9.2.2 Client configuration for point-to-point - EMEA

Step 1: Remove the WESII PoE Client or the WESII non-PoE Client, Power Supply

Unit (PSU) and Power Injector Modules (PIM) (for non-PoE units only) from the box.

Step 2a: For a WESII non-PoE unit:

Connect the first Ethernet straight through cable from the ‘IN’ on the PIM to either a laptop or a PC LAN port.

Connect the second Ethernet straight through cable from ‘OUT’ on the same PIM to the WESII Host LAN port.

Apply power to the PIM with the provided 24Vdc PSU and allow 60 seconds for the unit to boot up.

Step 2b: For a WESII PoE unit:

onnect an Ethernet cable from the PSE device (eg. Ethernet switch) to

the LAN port of the WESII unit.

Connect a second Ethernet cable from another port on the PSE to the laptop or PC LAN port.

Apply power to the PSE device and allow 60 seconds for the unit to boot up.

Step 3: Set the static IP address on the laptop to the 192

.168.1.x subnet.

WESII User Manual

Step 4: Open a web browser to access the Client on its 192.168.1.201 IP address;

this is the default IP address for the Client unit.

Step 5: Enter the following to access the GUI:

Note: e

nsure that all other network interface connections including your laptop Wi-Fi are

disabled.

Step 6: Basic Wireless

User Name: admin Password: admin

Select: <Radio 1> under the ‘BASIC

WIRELESS’ option from the left hand menu

WESII User Manual

Step 7: Select the correct country.

ote: It is the user’s responsibility to ensure that the correct Country is selected. KBC

Networks accepts no liability for incorrectly configured equipment.

Select: the country where the unit will be operating

WESII User Manual

Step 8: Apply the country setting.

ep 9: Save

Select:

Select: <Save>

WESII User Manual

Step 10: Check the Remote AP-Lock to MAC box

Check this box

WESII User Manual

Step 11: Ensure that the Channel Spectrum Width is on 20/40M & ensure that the

remote AP-ESSID and Country Code are set to the same as the Host unit.

Step 12: Select Site Survey to find the WESII Host you want

to connect to.

Step 13: The Site Survey will search for the KBC WESII Host

that you want to connect to. Click on the actual MAC address of the Host unit you want to connect to.

Select: <Site Survey>

Select: the MAC address eg.

3c:0f:c1:00:25:3a

Ensure this is on 20/40M

Ensure this is the same as the Host unit you want to connect to.

WESII User Manual

Step 14: The Host address should now appear in the Remote AP-Lock to MAC

address window.

Note: i

t is recommended that you write down all the MAC addresses and SSIDs used in

the application for future reference.

Step 15: The WESII units will take approximately 2 minutes to connect to each

other. Once a connection has been made the RSSI LEDs on the back of the unit will light to show the strength of the connection. See Section 7.

Step 16: You will now be able to connect to the Host unit v

ia the Client across the link that has been set up. To do this open another tab on your web browser and access the Host on its 192.168.1.200 default address.

Unless a more advanced set up is desired, the antennas are configured for installation at this point. For advanced configuration see Section 11.

Host MAC address selected that the Client is now locked to

WESII User Manual

9.3 Setting up a basic point-to-point link – Australia

9.3.1 Host configuration for point-to-point - Australia

Step 1: Remove the WESII PoE point-to-point Host or the WESII non-PoE point-to-

point Host, Power Supply Unit (PSU) and Power Injector Modules (PIM) (for non-PoE units only) from the box.

Step 2a: For a WESII non-PoE unit:

Connect the first Ethernet straight through cable from the ‘IN’ on the PIM to either a laptop or a PC LAN port.

Connect the second Ethernet straight through cable from ‘OUT’ on the same PIM to the WESII Host LAN port.

Apply power to the PIM with the provided 24Vdc PSU and allow 60 seconds for the unit to boot up.

Step 2b: For a WESII PoE unit:

onnect an Ethernet cable from the PSE device (eg. Ethernet switch) to

the LAN port of the WESII unit.

Connect a second Ethernet cable from another port on the PSE to the laptop or PC LAN port.

Apply power to the PSE device and allow 60 seconds for the unit to boot up.

Step 3: Set the static IP address on the laptop to the 192

.168.1.x subnet.

Step 4: Open a web browser to access the Host on its 192.1

68.1.200 IP address;

this is the default IP address for the Host unit.

WESII User Manual

Step 5: Enter the following to access the GUI:

Note: e

nsure that all other network interface connections including your laptop Wi-Fi are

disabled.

Step 6: Basic Wireless

Step 7: Ensure that the Auto box is checked, the unit will chose the most suitable

channel. For systems with more than one point-to-point link on a site you will need to manually set the channel frequency so that each point-to-point link operates on a different frequency. See Section 11.2.6.1 Manual setting for details for manually setting the channel frequency.

Select: <BASIC WIRELESS> under the ‘NETWORK’ option from the left hand menu

User Name: admin Password: admin

Ensure this box is checked

WESII User Manual

Step 8: Enter the MAC address of the Client unit that the Host will connect to in

the ‘Remote Client-Lock to MAC’. This can be found on the Status page of the Client unit or the rear label on the outside of the unit. The MAC address must be in the format: xx:xx:xx:xx:xx:xx.

Step 9: Apply Settings

Step 10: Save the changes.

Enter the Client MAC address here.

Select:

Select: <Save>

WESII User Manual

9.3.2 Client configuration for point-to-point - Australia

Step 1: Remove the WESII PoE Client or the WESII non-PoE Client, Power Supply

Unit (PSU) and Power Injector Modules (PIM) (for non-PoE units only) from the box.

Step 2a: For a WESII non-PoE unit:

Connect the first Ethernet straight through cable from the ‘IN’ on the PIM to either a laptop or a PC LAN port.

Connect the second Ethernet straight through cable from ‘OUT’ on the same PIM to the WESII Host LAN port.

Apply power to the PIM with the provided 24Vdc PSU and allow 60 seconds for the unit to boot up.

Step 2b: For a WESII PoE unit:

onnect an Ethernet cable from the PSE device (eg. Ethernet switch) to

the LAN port of the WESII unit.

Connect a second Ethernet cable from another port on the PSE to the laptop or PC LAN port.

Apply power to the PSE device and allow 60 seconds for the unit to boot up.

Step 3: Set the static IP address on the laptop to the 192

.168.1.x subnet.

Step 4: Open a web browser to access the Client on its 192

.168.1.201 IP address;

this is the default IP address for the Client unit.

WESII User Manual

Step 5: Enter the following to access the GUI:

Note: e

nsure that all other network interface connections including your laptop Wi-Fi are

disabled.

Step 6: Basic Wireless

User Name: admin

Password:

admin

Select: <BASIC WIRELESS> under the ‘NETWORK’ option from the left hand menu

WESII User Manual

Step 7: Check the Remote AP-Lock to MAC box

Step 8: Ensure that the Channel Spectrum Width is on 20/40

M & ensure that the

Remote AP-ESSID are set to the same as the Host unit.

Check this box

Ensure these are the same as the Host unit you want to connect to

WESII User Manual

Step 9: Select Site Survey to find the WESII Host you want to connect to.

ep 10: The Site Survey will search for the KBC WESII Host that you want to

connect to. Click on the actual MAC address of the Host unit you want to connect to.

Step 11: The Host address should now appear in the Remote AP-Lock to MAC

address window.

Note: i

t is recommended that you write down all the MAC addresses and SSIDs used in

the application for future reference.

Select: <Site Survey>

Select: the MAC address eg.

3c:0f:c1:00:25:3a

Host MAC address selected that the Client is now locked to

WESII User Manual

Step 12: The WESII units will take approximately 2 minutes to connect to each

other. Once a connection has been made the RSSI LEDs on the back of the unit will light to show the strength of the connection. See Section 7.

Step 13: You will now be able to connect to the Host unit via the Client across the

link that has been set up. To do this open another tab on your web browser and access the Host on its 192.168.1.200 default address.

Unless a more advanced set up is desired, the antennas are configured for installation at this point. For advanced configuration see Section 11.

WESII User Manual

9.4 Setting up a basic point-to-multipoint link United States & Canada

9.4.1 Host configuration for point-to-multipoint - United States & Canada

Step 1: Remove the WESII PoE point-to-multipoint Host or the WESII non-PoE

point-to-multipoint Host, Power Supply Unit (PSU) and Power Injector Modules (PIM) (for non-PoE units only) from the box.

Step 2a: For a WESII non-PoE unit:

onnect the first Ethernet straight through cable from the ‘IN’ on the PIM

to either a laptop or a PC LAN port.

Connect the second Ethernet straight through cable from ‘OUT’ on the same PIM to the WESII Host LAN port.

Apply power to the PIM with the provided 24Vdc PSU and allow 60 seconds for the unit to boot up.

Step 2b: For a WESII PoE unit:

onnect an Ethernet cable from the PSE device (eg. Ethernet switch) to

the LAN port of the WESII unit.

Connect a second Ethernet cable from another port on the PSE to the laptop or PC LAN port.

Apply power to the PSE device and allow 60 seconds for the unit to boot up.

WESII User Manual

Step 3: Set the static IP address on the laptop to the 192.168.1.x subnet.

Step 4: Open a web browser to access the Host on its 192.168.1.200 IP address;

this is the default IP address for the Host unit.

Step 5: Enter the following to access the GUI:

Note: e

nsure that all other network interface connections including your laptop Wi-Fi are

disabled.

Step 6: Basic Wireless

Select: <Radio 1> under the ‘BASIC

WIRELESS’ option from the left hand menu

User Name: admin Password: admin

WESII User Manual

www.kbcnetworks.com

WESII User Manual

Step 7: Ensure that the Auto box is checked, the unit will chose the most suitable

channel. For systems with more than one point-to-multipoint link on a site you will need to manually set the channel frequency for each group of Host and Clients so that each group operates on a different frequency. See Section 11.2.6.1 Manual setting for details of how to manually set the channel frequency.

Ensure this box is

checked

WESII User Manual

9.4.2 Client configuration for point-to-multipoint - United States & Canada

Setting up each Client

Step 1: Remove the WESII PoE Clients or the WESII non-PoE Clients, Power Supply

Units (PSUs) and Power Injector Modules (PIMs) (for non-PoE units only) from the box.

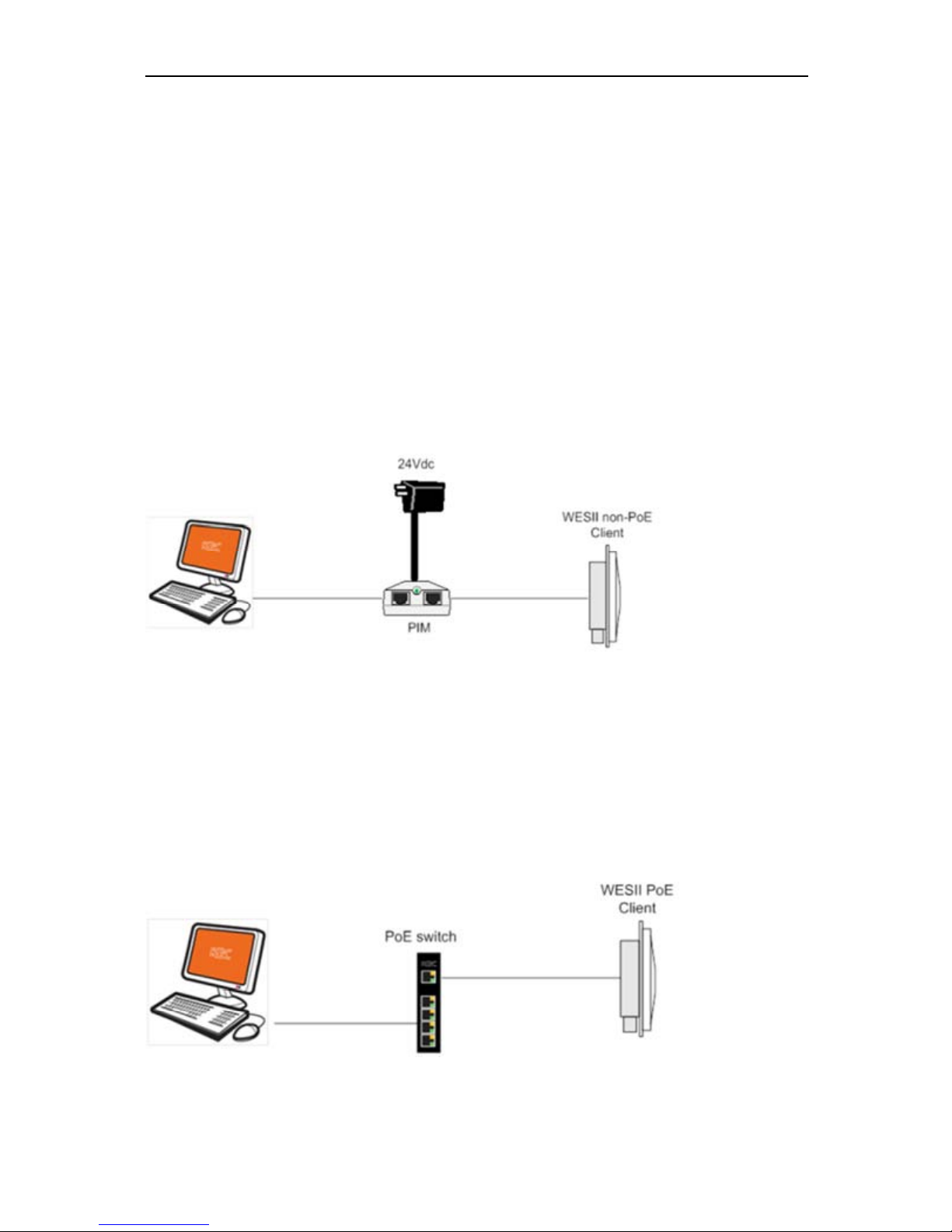

Step 2a: For the WESII non-PoE units:

Connect the first Ethernet straight through cable from the ‘IN’ on the PIM to either a laptop or a PC LAN port.

Connect the second Ethernet straight through cable from ‘OUT’ on the same PIM to the WESII Host LAN port.

Apply power to the PIM with the provided 24Vdc PSU and allow 60 seconds for the unit to boot up.

Step 2b: For the WESII PoE units:

onnect an Ethernet cable from the PSE device (eg. Ethernet switch) to

the LAN port of the WESII unit.

Connect a second Ethernet cable from another port on the PSE to the laptop or PC LAN port.

Apply power to the PSE device and allow 60 seconds for the unit to boot up.

ep 3: Set the static IP address on the laptop to the 192.168.1.x subnet.

WESII User Manual

For each Client to be linked to the point-to-multipoint Host:

Step 4: Open a web browser to access each of the Clients on its 192.168.1.201 IP

address; this is the default IP address for the Client unit.

Step 5: Enter the following to access the GUI:

Note: ensure that all other network interface connections

including your laptop Wi-Fi are

disabled.

Step 6: Basic Wireless

User Name: admin Password: admin

Select: <Radio 1> under the ‘BASIC

WIRELESS’ option from the left hand menu

WESII User Manual

Step 7: For each Client in the point-to-multipoint group you will have to assign an

individual IP address. In the NETWORK : Basic Network menu the default IP address will be 192.168.1.201. Type in a new IP address on the

192.168.1.xx subnet eg. 192.168.1.8. For a site example see Section 10.

Client default IP address

Type in a new IP address on the 192.168.1.xx subnet

NETWORK

: Basic Network

WESII User Manual

Step 8: Apply Settings and Save

Apply Settings

Save

WESII User Manual

Step 9: Ensure that the Channel Spectrum Width is on 20/40M & ensure that the

Remote AP-ESSID is set to the same as the Host unit for each of the Client units in the group. For a system with multiple, point-to-multipoint systems you will need to assign separate SSID for every group of Host plus Client units.

Step 10: Select Site Survey to find the WESII Host you want

to connect to.

ep 11: The Site Survey will search for the KBC WESII Host that you want to

connect to. Click on the actual MAC address of the Host unit you want to connect to.

Select: <Site Survey>

Select: the MAC address eg.

3c:0f:c1:00:25:3a

Ensure this is on 20/40M

Ensure this is the same as the Host unit you want to connect to.

WESII User Manual

Step 12: The Host IP address should now appear in the Remote AP-Lock to MAC

address window. The Client unit will pick up the Host unit’s frequency automatically. You now have a connected link.

Note: i

t is recommended that you write down all the MAC addresses and SSIDs used in

the application for future reference.

Step 13: The WESII units will take approximately 2 minutes to connect to each

other. Once a connection has been made the RSSI LEDs on the back of the units will light to show the strength of the connection. See Section 7.

Step 14: Repeat the process for every Client that needs to be connected to the

Host.

Step 15: You will now be able to connect to the Host unit v

ia the Client across the link that has been set up. To do this open another tab on your web browser and access the Host on its 192.168.1.200 default address.

Unless a more advanced set up is desired, the antennas are configured for installation at this point. For advanced configuration see Section 11.

Host MAC address selected that the Client is now paired with

WESII User Manual

9.5 Setting up a basic point-to-multipoint link – EMEA

9.5.1 Host configuration for point-to-multipoint - EMEA

Step 1: Remove the WESII PoE point-to-multipoint Host or the WESII non-PoE

point-to-multipoint Host, Power Supply Unit (PSU) and Power Injector Modules (PIM) (for non-PoE units only) from the box.

Step 2a: For a WESII non-PoE unit:

Connect the first Ethernet straight through cable from the ‘IN’ on the PIM to either a laptop or a PC LAN port.

Connect the second Ethernet straight through cable from ‘OUT’ on the same PIM to the WESII Host LAN port.

Apply power to the PIM with the provided 24Vdc PSU and allow 60 seconds for the unit to boot up.

Step 2b: For a WESII PoE unit:

onnect an Ethernet cable from the PSE device (eg. Ethernet switch) to

the LAN port of the WESII unit.

Connect a second Ethernet cable from another port on the PSE to the laptop or PC LAN port.

Apply power to the PSE device and allow 60 seconds for the unit to boot up.

WESII User Manual

Step 3: Set the static IP address on the laptop to the 192.168.1.x subnet.

Step 4: Open a web browser to access the Host on its 192.168.1.200 IP address;

this is the default IP address for the Host unit.

Step 5: Enter the following to access the GUI:

Note: e

nsure that all other network interface connections including your laptop Wi-Fi are

disabled.

Step 6: Basic Wireless

Select: <Radio 1> under the ‘BASIC

WIRELESS’ option from the left hand menu

User Name: admin Password: admin

WESII User Manual

Step 7: Select the correct country.

Note: I

t is the user’s responsibility to ensure that the correct country is selected. KBC

Networks accepts no liability for incorrectly configured equipment.

Step 8: Apply the country setting.

Select: the country where the

unit will be operating

Select: <Apply Settings>

WESII User Manual

Step 9: Save.

Step 10: Ensure that the Auto box is checked, the unit will

chose the most suitable channel. For systems with more than one point-to-multipoint link on a site you will need to manually set the channel frequency for each group of Host and Clients so that each group operates on a different frequency. See Section 11.2.6.1 Manual setting for details of how to manually set the channel frequency.

Select: <Save>

Ensure this box is checked

WESII User Manual

9.5.2 Client configuration for point-to-multipoint - EMEA

Step 1: Remove the WESII PoE Clients or the WESII non-PoE Clients, Power Supply

Units (PSUs) and Power Injector Modules (PIMs) (for non-PoE units only) from the box.

Step 2a: For the WESII non-PoE units:

Connect the first Ethernet straight through cable from the ‘IN’ on the PIM to either a laptop or a PC LAN port.

Connect the second Ethernet straight through cable from ‘OUT’ on the same PIM to the WESII Host LAN port.

Apply power to the PIM with the provided 24Vdc PSU and allow 60 seconds for the unit to boot up.

Step 2b: For the WESII PoE units:

onnect an Ethernet cable from the PSE device (eg. Ethernet switch) to

the LAN port of the WESII unit.

Connect a second Ethernet cable from another port on the PSE to the laptop or PC LAN port.

Apply power to the PSE device and allow 60 seconds for the unit to boot up.

Step 3: Set the static IP address on the laptop to the 192

.168.1.x subnet.

WESII User Manual

For each Client to be linked to the point-to-multipoint Host:

Step 4: Open a web browser to access each of the Clients on its 192.168.1.201 IP

address; this is the default IP address for the Client unit.

Step 5: Enter the following to access the GUI:

Note: e

nsure that all other network interface connections including your laptop Wi-Fi are

disabled.

Step 6: Basic Wireless

User Name: admin Password: admin

Select: <Radio 1> under the ‘BASIC

WIRELESS’ option from the left hand menu

WESII User Manual

Step 7: Select the correct Country Code.

ote: It is the user’s responsibility to ensure that the correct Country is selected. KBC

Networks accepts no liability for incorrectly configured equipment. A Country Code setting is not required for units purchased in the US.

Select: the country where the unit will be operating

WESII User Manual

Step 8: Apply the Country Code setting.

Step 9: Save the settings.

Select:

Select:

<Save

WESII User Manual

Step 10: For each Client in the point-to-multipoint group you will have to assign an

individual IP address. In the NETWORK : Basic Network menu the default IP address will be 192.168.1.201. Type in a new IP address on the

192.168.1.xx subnet eg. 192.168.1.8. For a site example see Section 10.

Client default IP address

Type in a new IP address on the 192.168.1.xx subnet

NETWORK

: Basic Network

WESII User Manual

Step 11: Apply Settings and Save

Apply Settings

Select: <Save>

WESII User Manual

Step 12: Ensure that the Channel Spectrum Width is on 20/40M & ensure that the

Remote AP-ESSID and Country Code are set to the same as the Host unit for each of the Client units in the group. For a system with multiple, pointto-multipoint systems you will need to assign separate SSID for every group of Host plus Client units.

Ensure this is on 20/40M

Ensure this is the same as the Host unit you want to connect to

Ensure this is the same as the Host unit you want to connect to.

WESII User Manual

Step 13: Select Site Survey to find the WESII Host you want to connect to.

Step 14: The Site Survey will search for the KBC WESII Host

that you want to connect to. Click on the actual MAC address of the Host unit you want to connect to.

Select:

<Site Survey

Select: the MAC address eg. 3c:0f:c1:00:12:83

WESII User Manual

Step 15: The Host IP address should now appear in the Remote AP-Lock to MAC

address window. The Client unit will pick up the Host unit’s frequency automatically. You now have a connected link.

Note: i

t is recommended that you write down all the MAC addresses and SSIDs used in

the application for future reference.

Step 16: The WESII units will take approximately 2 minutes to connect to each

other. Once a connection has been made the RSSI LEDs on the back of the units will light to show the strength of the connection. See Section 7.

Step 17: Repeat the process for every Client that needs to

be connected to the

Host.

Step 18: You will now be able to connect to the Host unit via the Client across the

link that has been set up. To do this open another tab on your web browser and access the Host on its 192.168.1.200 default address.

Unless a more advanced set up is desired, the antennas are configured for installation at this point. For advanced configuration see Section 11.

Host MAC address selected that the Client is now paired with

WESII User Manual

9.6 Setting up a basic point-to-multipoint link – Australia

9.6.1 Host configuration for point-to-multipoint - Australia

Step 1: Remove the WESII PoE point-to-multipoint Host or the WESII non-PoE

point-to-multipoint Host, Power Supply Unit (PSU) and Power Injector Modules (PIM) (for non-PoE units only) from the box.

Step 2a: For a WESII non-PoE unit:

onnect the first Ethernet straight through cable from the ‘IN’ on the PIM

to either a laptop or a PC LAN port.

Connect the second Ethernet straight through cable from ‘OUT’ on the same PIM to the WESII Host LAN port.

Apply power to the PIM with the provided 24Vdc PSU and allow 60 seconds for the unit to boot up.

Step 2b: For a WESII PoE unit:

onnect an Ethernet cable from the PSE device (eg. Ethernet switch) to

the LAN port of the WESII unit.

Connect a second Ethernet cable from another port on the PSE to the laptop or PC LAN port.

Apply power to the PSE device and allow 60 seconds for the unit to boot up.

WESII User Manual

Step 3: Set the static IP address on the laptop to the 192.168.1.x subnet.

Step 4: Open a web browser to access the Host on its 192.168.1.200 IP address;

this is the default IP address for the Host unit.

Step 5: Enter the following to access the GUI:

Note: e

nsure that all other network interface connections including your laptop Wi-Fi are

disabled.

Step 6: Basic Wireless

Select: <BASIC WIRELESS> under the

‘NETWORK’ option from the left hand menu

User Name: admin Password: admin

WESII User Manual

Step 7: Ensure that the Auto box is checked, the unit will chose the most suitable

Ensure this box is checked

WESII User Manual

9.6.2 Client configuration for point-to-multipoint - Australia

Setting up each Client

Step 1: Remove the WESII PoE Clients or the WESII non-PoE Clients, Power Supply

Units (PSUs) and Power Injector Modules (PIMs) (for non-PoE units only) from the box.

Step 2a: For the WESII non-PoE units:

Connect the first Ethernet straight through cable from the ‘IN’ on the PIM to either a laptop or a PC LAN port.

Connect the second Ethernet straight through cable from ‘OUT’ on the same PIM to the WESII Host LAN port.

Apply power to the PIM with the provided 24Vdc PSU and allow 60 seconds for the unit to boot up.

Step 2b: For the WESII PoE units:

onnect an Ethernet cable from the PSE device (eg. Ethernet switch) to

the LAN port of the WESII unit.

Connect a second Ethernet cable from another port on the PSE to the laptop or PC LAN port.

Apply power to the PSE device and allow 60 seconds for the unit to boot up.

WESII User Manual

Step 3: Set the static IP address on the laptop to the 192.168.1.x subnet.

For each Client to be linked to the point-to-multipoint Host:

Step 4: Open a web browser to access each of the Clients on its 192.168.1.201 IP

address; this is the default IP address for the Client unit.

Step 5: Enter the following to access the GUI:

Note: e

nsure that all other network interface connections including your laptop Wi-Fi are

disabled.

Step 6: Basic Wireless

User Name: admin Password: admin

Select: <BASIC WIRELESS> under the

‘NETWORK’ option from the left hand menu

WESII User Manual

Step 7: For each Client in the point-to-multipoint group you will have to assign an

individual IP address. In the NETWORK : Basic Network menu the default IP address will be 192.168.1.201. Type in a new IP address on the

192.168.1.xx subnet eg. 192.168.1.8. For a site example see Section 10.

ep 8: Apply Settings and Save

Client default IP address

Type in a new IP address on the 192.168.1.xx subnet

Save

NETWORK: Basic Network

Apply Settings

WESII User Manual

Step 9: Ensure that the Channel Spectrum Width is on 20/40M & ensure that the

Remote AP-ESSID is set to the same as the Host unit for each of the Client units in the group. For a site with multiple, point-to-multipoint systems you will need to assign separate SSID for every group of Host plus Client units.

Step 10: Select Site Survey to find the WESII Host you want

to connect to.

Step 11: The Site Survey will search for the KBC WESII Host

that you want to connect to. Click on the actual MAC address of the Host unit you want to connect to.

Select:

<Site Survey

Select:

the MAC address eg.

3c:0f:c1:00:12:83

Ensure this is on 20/40M

Ensure this is the same as the Host unit you want to connect

to.

WESII User Manual

Step 12: The Host IP address should now appear in the Remote AP-Lock to MAC

address window. The Client unit will pick up the Host unit’s frequency automatically. You now have a connected link.

Note: it is recommended that you write down all the MAC a

ddresses and SSIDs used in

the application for future reference.

Step 13: The WESII units will take approximately 2 minutes to connect to each

other. Once a connection has been made the RSSI LEDs on the back of the units will light to show the strength of the connection. See Section 7.

Step 14: Repeat the process for every Client that needs to be connected to the

Host.

Step 15: You will now be able to connect to the Host unit via the Client across the

link that has been set up. To do this open another tab on your web browser and access the Host on its 192.168.1.200 default address.

Unless a more advanced set up is desired, the antennas are configured for installation at this point. For advanced configuration see Section 11.

Host MAC address selected that the Client is now connected to.

WESII User Manual

10 Installing on site

Once you are happy with the basic Host and Client(s) set up as described above the units can be installed on site. It is recommended that all units are set up prior to installation on site although frequencies may need to be adjusted if they have been manually set if there is interference on certain channels. See Section 11.2.6.1 Interference Analyzer for instructions of how to carry out a frequency site survey using the ‘Interference Analyzer’ tool on a Host unit to determine frequencies already in use on a site.

10.1 Line-of-sight

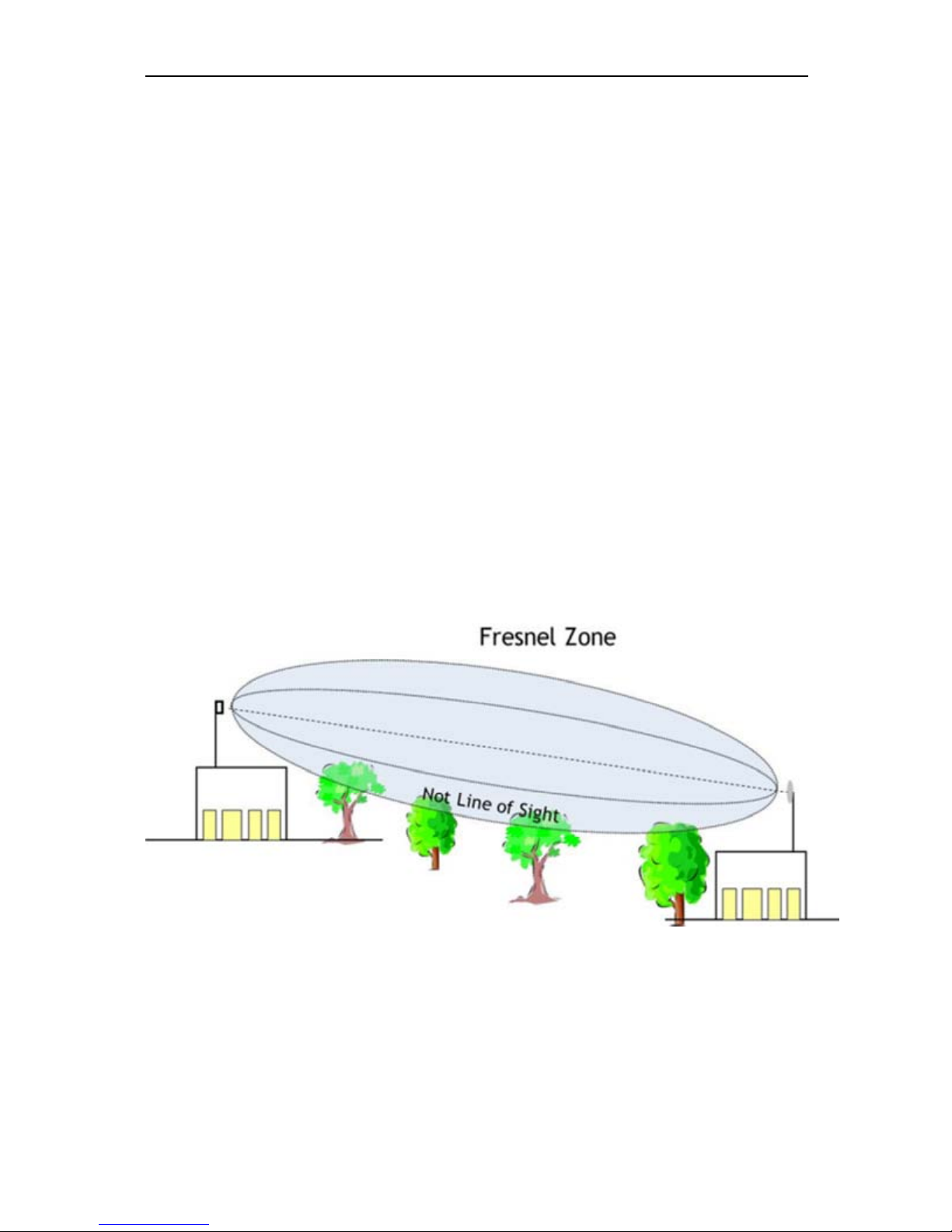

It is important that there is proper line-of-sight between each Host and associated Client(s). Line-of-sight is NOT just a single clear view running between the two points like a laser beam. Line-of-sight includes the Fresnel Zone; think of being able to drive a double decker bus between the two points without anything being in its path. If trees or any other obstacle are blocking part of the Fresnel zone, the wireless system may not transmit the signal the required distance.

In a situation like this, the transmit and receive antennas need to be mounted on higher poles to get above the trees.

WESII User Manual

Note: a

ll measurements are estimated.

Range Distance

Required Fresnel Zone Diameter (2.4GHz)

Required Fresnel Zone Diameter (4.9/5GHz)

1000 feet 305m

20 feet

6.1m

14 feet

4.3m

2500 feet 762m

33 feet

10.1m

20 feet

6.1m

1 mile

1.6km

47 feet

14.3m

30 feet

9.1m

4 miles

6.4km

92 feet 28m

60 feet

18.3m

10 miles

16.1km

148 feet

45.1m

100 feet

30.5m

30 miles

48.3km

N/A 200 feet

60.1m

WESII User Manual

10.2 Spacing required when mounting WESII units

See section 5 for mounting instructions. When mounting units in a relay configuration the following distances between units are required.

Note: T

he operation of the units must be as depicted, failure to comply with these

instructions will invalidate warranty.

WESII User Manual

10.3 Cable lengths when installing WESII units

When installing the WESII units the total combined length of cables for any configuration must not exceed 100m.

Note: T

he type of Cat5 configuration may be determined by the LAN port of the Ethernet device. If the port is a 10/100 port, you may require a crossover cable. A crossover cable is not necessary if the two PIMs connect into an Ethernet switch. Most cables used to connect the WESII system are configured using a straight-through color code.

WESII User Manual

10.4 Aligning the WESII units

For each WESII radio in the system, carry out the following steps:

• Ensure the WESII unit is powered either by the PIM for non-PoE units or a PSE

(eg.Ethernet switch) for PoE units. The WESII unit’s power LED should be green, ensure that the cable into the LAN port is seated properly.

• Align the Client unit(s) to the Host unit so that they are pointing directly towards

each other.

• The RSSI level of the link needs to be between 40 – 50dB if possible; to check

this either:

o Look on the back side of the WESII unit to determine the RSSI LED status

and re-position if necessary to obtain the best RSSI signal strength, or

o On the Client unit in the ‘Status’ page of the GUI click on the <Align>

button to determine the RSSI level and re-position as necessary. For further information see Section 11.2.1.5 Align.

10.5 Configuring IP addresses on a site

When installing multiple point-to-point or point-to-multipoint groups on one site, it is important to ensure that each piece of equipment has a unique IP address. To change the WESII unit’s IP addresses from their default (192.168.1.200 – Host, 192.168.1 201 – Client) see Section 11.2.6.1 Manual setting.

WESII User Manual

10.6 Replacing / Adding a WESII Module from/to the Existing Application

10.6.1 Replacing a WESII Host unit

The WESII Host/AP connects to its Client(s) based on its MAC Address. A point-to-point Host/AP can connect to one Client MAC address only. A point-to-multipoint Host/AP can connect to multiple Clients.

If a Host/AP is being replaced, the Client(s) with which it is required to communicate must also be re-configured within WESII Client’s System page to ensure that the correct MAC address is selected for the new Host/AP.

In addition, if adding a new Host/AP to an existing application the Host/AP must be configured to an available frequency not being used by the existing system.

10.6.2 Replacing a WESII Client unit

If a Client is being replaced, or added to a point-to-multipoint network, it’s SSID, Country Code and channel spectrum width settings must be configured to match the Host/ AP configuration with which it wants to connect.

If a Client is being replaced in a point-to-point network see Section 9 to reconfigure the link.

WESII User Manual

11 Graphical User Interface

The WESII Graphical User Interface can be accessed in the following ways:

• connecting directly to the WESII unit through the PIM for non-PoE units

• connecting via the PSE (eg. Ethernet switch) for PoE units

• via a WESII point-to-multipoint Host/AP connection to a Client PC/laptop

• over a WESII wireless connection

11.1 Connecting to the WESII GUI using a PC

11.1.1 For a WESII non-PoE unit:

Connect the first Ethernet straight through cable from the ‘IN’ on the PIM to either a laptop or a PC LAN port.

Connect the second Ethernet straight through cable from ‘OUT’ on the same PIM to the WESII Host LAN port.

Apply power to the PIM with the provided 24Vdc PSU, ensure that the green LED on the PIM is illuminated. Allow 60 seconds for the unit to boot up.

See Section 7 for WESII LED boot up process.

Note: Due to various port types, a crossover Ethernet cable may be required between

the Ethernet device and ‘IN’ port on the PIM. KBC Networks recommends a crossover cable be available during set up, trouble-shooting and maintenance of the system.

WESII User Manual

11.1.2 For a WESII PoE unit:

Connect an Ethernet cable from the PSE device (eg. Ethernet switch) to the LAN port of the WESII unit.

Connect the second Ethernet straight through cable to either a laptop or a PC LAN port.

Apply power to the PSE device and allow 60 seconds for the unit to boot up.

See Section 7 for the WESII LED boot up process.

11.1.3 Accessing the GUI via a Web Browser

The computer used to access the WESII GUI must be set to a static IP address on the same subnet as the WESII unit. The WESII default configuration is on the 192.168.1.x subnet (refer to any provided documentation for the exact IP address for the individual unit) therefore the computer must also be set to a 192.168.1.x IP address if the unit is still on its factory set configurations.

Once the computer’s IP address is confirmed, open a web browser such as MS Internet Explorer® or Mozilla Firefox®. Type in the Host/AP (192.168.1.200 default) or Client (192.168.1.201 default) IP address in the address bar at the top of the web browser. If the IP is correct and the link activity is established, the browser will prompt you to enter the User Name and Password. The User Name and Password are ‘admin’ / ‘admin’ (case sensitive).

User Name: admin Password: admin

WESII User Manual

11.2 WESII Menu Options

The WESII has the following menu options for United States & Canada and EMEA firmware:

• DIAGOSTICS

o Status o Services o Topology

• NETWORK

o B

asic Network

• BASIC WIRELESS

o Radio 1

• ADVANCED WIRELESS

o Radio 1

The WESII has the following menu options for Australian firmware:

• DIAGOSTICS

o Status o Services o System

• NETWORK

o B

asic Network

o Basic Wireless o Advanced Wireless

KBC WESII Series User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
