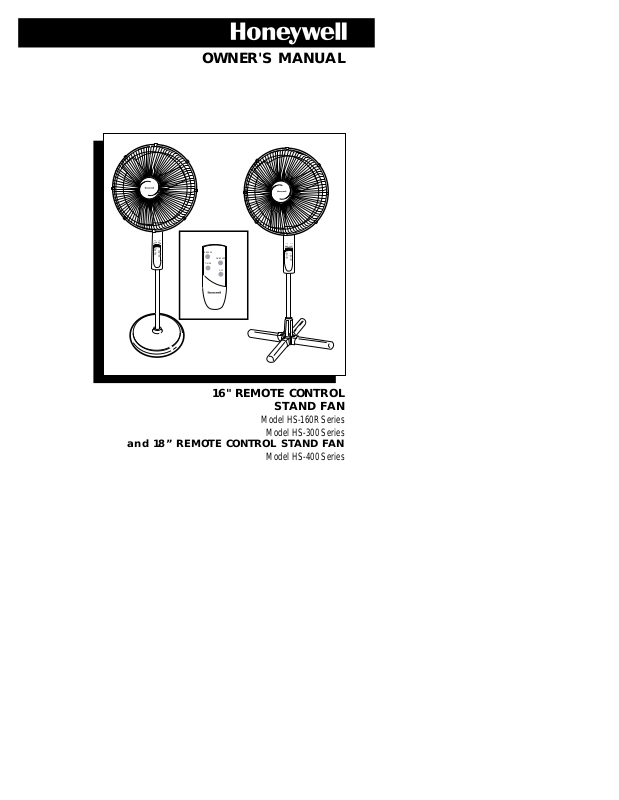

OWNER'S MANUAL

16" REMOTE CONTROL

STAND FAN

Model HS-160R Series

Model HS-300 Series

and 18” REMOTE CONTROL STAND FAN

Model HS-400 Series

SPEED

TIMER

BREEZE

SPEED

TIMER

OFF

BREEZE

ON/SPEED

TIMER

OFF

SPEED

TIMER

BREEZE

SPEED

TIMER

OFF

IMPORTANT SAFETY INSTRUCTIONS

READ AND SAVE THESE SAFETY INSTRUCTIONS BEFORE USING THIS FAN

When using electrical appliances, basic precautions should always be followed to reduce the risk of fire, electric shock, and injury to persons, including the following:

1. Use this fan only as described in this manual. Other use not recommended

may cause fire, electric shock or injury to persons.

2. This product is intended for household use ONLY and not for commercial, industrial or outdoor use.

3. To protect against electric shock, do not place fan in window, immerse unit, plug or cord in water or spray with liquids.

4. This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of shock, this plug is intended to fit only one way in a polarized outlet. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician.

DO NOT attempt to defeat

this safety feature.

5. Close supervision is necessary when any appliance is used by or near children.

6. Turn the fan to the OFF position and unplug the fan from the outlet when not

in use, when moving the fan from one location to another and before cleaning.

7. To disconnect the fan, first turn control to the OFF position, grip the plug and pull it from the wall outlet. Never pull by the cord.

8. Do not operate the fan in the presence of explosive and/or flammable fumes.

9. Do not place the fan or any parts near an open flame, cooking or other

heating appliance.

10. Do not operate the fan with a damaged cord or plug or if the product malfunctions, is dropped or damaged in any manner (see warranty).

11. Avoid contact with moving fan parts.

12. The use of attachments not recommended by the manufacturer may be

hazardous.

13. Place the fan on a dry level sur face.

14. Do not hang or mount fan on a wall or ceiling.

15. Do not operate if the fan housing is removed or damaged.

16. A loose fit between the AC outlet (receptacle) and plug may cause

overheating and a distortion of the plug. Contact a qualified electrician to replace loose or worn outlet.

WARNING: To Reduce The Risk of Fire or Electric Shock, Do Not Use This Fan With Any Solid-State Speed Control Device.

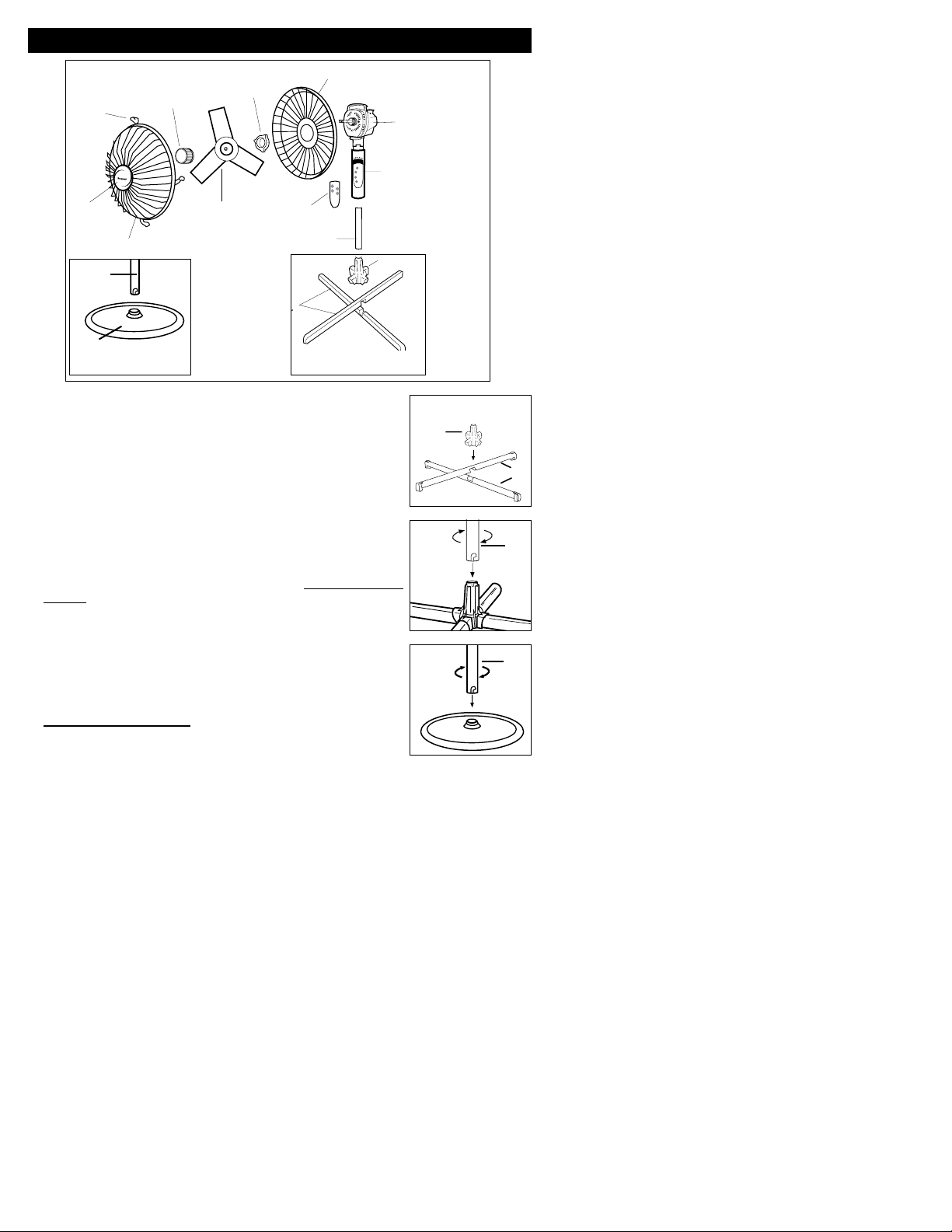

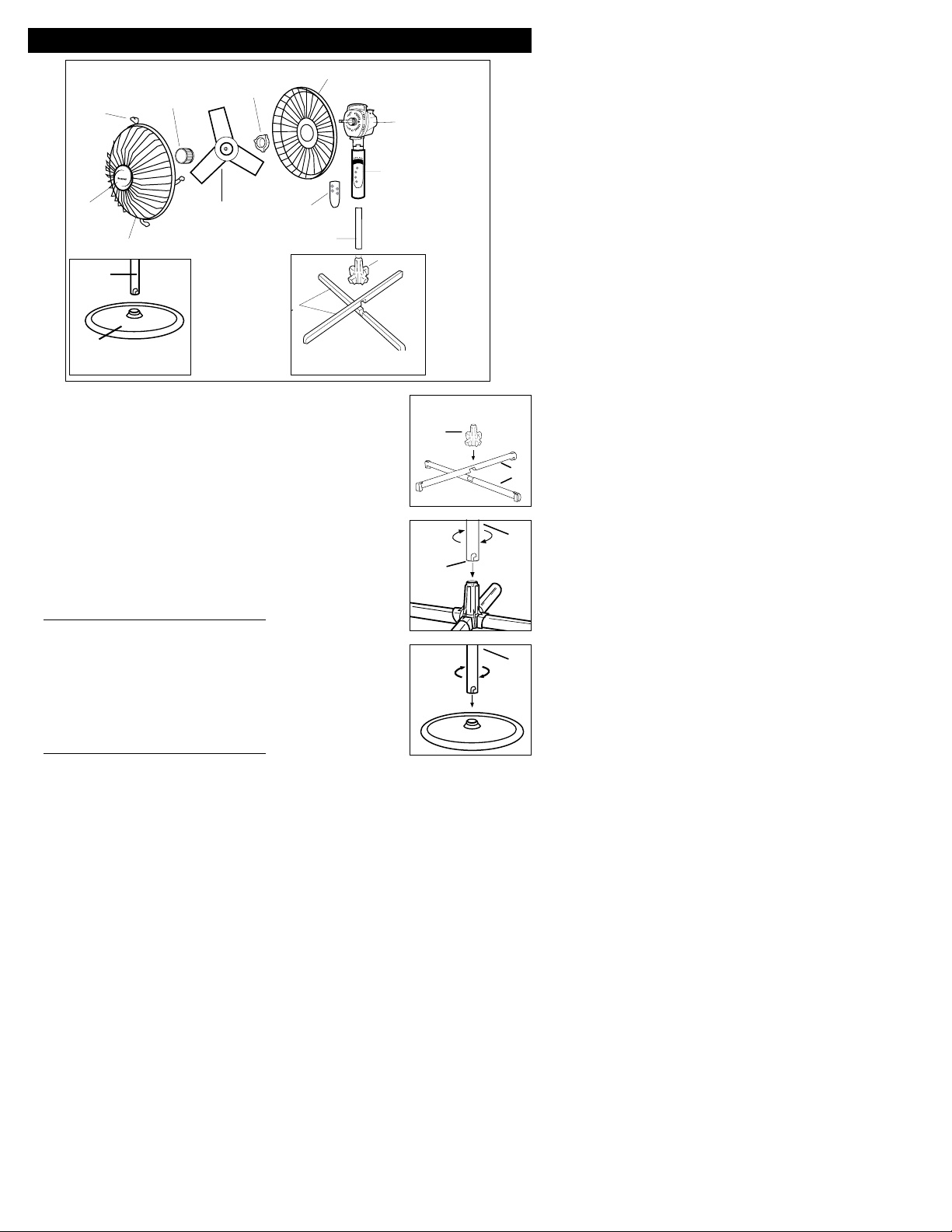

First look to see if your fan has a cross base or a round base, and then follow the base assembly instructions for the fan you have.

FOR CROSS BASE

• Place Base Extensions (A) as illustrated and push down

hard to snap Base Connector (B) firmly onto Base Extensions (A) (Fig. 1).

• Insert the Metal Pole (C) into the Base by lining up the

recessed slot in the Pole to the raised dot on the Base Connector and push in. Be sure that the Pole is fully seated. Hold the Base firmly and twist the Pole CLOCKWISE 90° until it stops. DO NOT OVER-TIGHTEN (Fig. 2).

FOR ROUND BASE

• Insert the Metal Pole (C) into the Base by lining up the

recessed slot in the Pole to the raised dot on the inside of Base and push in (Fig. 3). Be sure that the Pole is fully seated. Hold the Base firmly and twist the Pole CLOCKWISE 90˚ until it stops. DO NOT OVER-TIGHTEN

CLIPS (G)

BLADE KNOB (F)

REAR GRILLE (E)

BASE EXTENSIONS (A)

GRILLE HUB

FRONT GRILLE

FAN BLADE

REAR GRILLE MOUNTING NUT (D)

METAL POLE (C)

BASE CONNECTOR (B)

MOTOR HOUSING

MANUAL CONTROL PANEL

REMOTE CONTROL

ASSEMBLY INSTRUCTIONS

Fig. 1

Fig. 2

RECESSED SLOT

Fig. 3

RECESSED SLOT

METAL POLE

BASE

ROUND BASE

CROSS BASE

TIMER

SPEED

BREEZE

SPEED

TIMER

OFF

SPEED

BREEZE

OFF

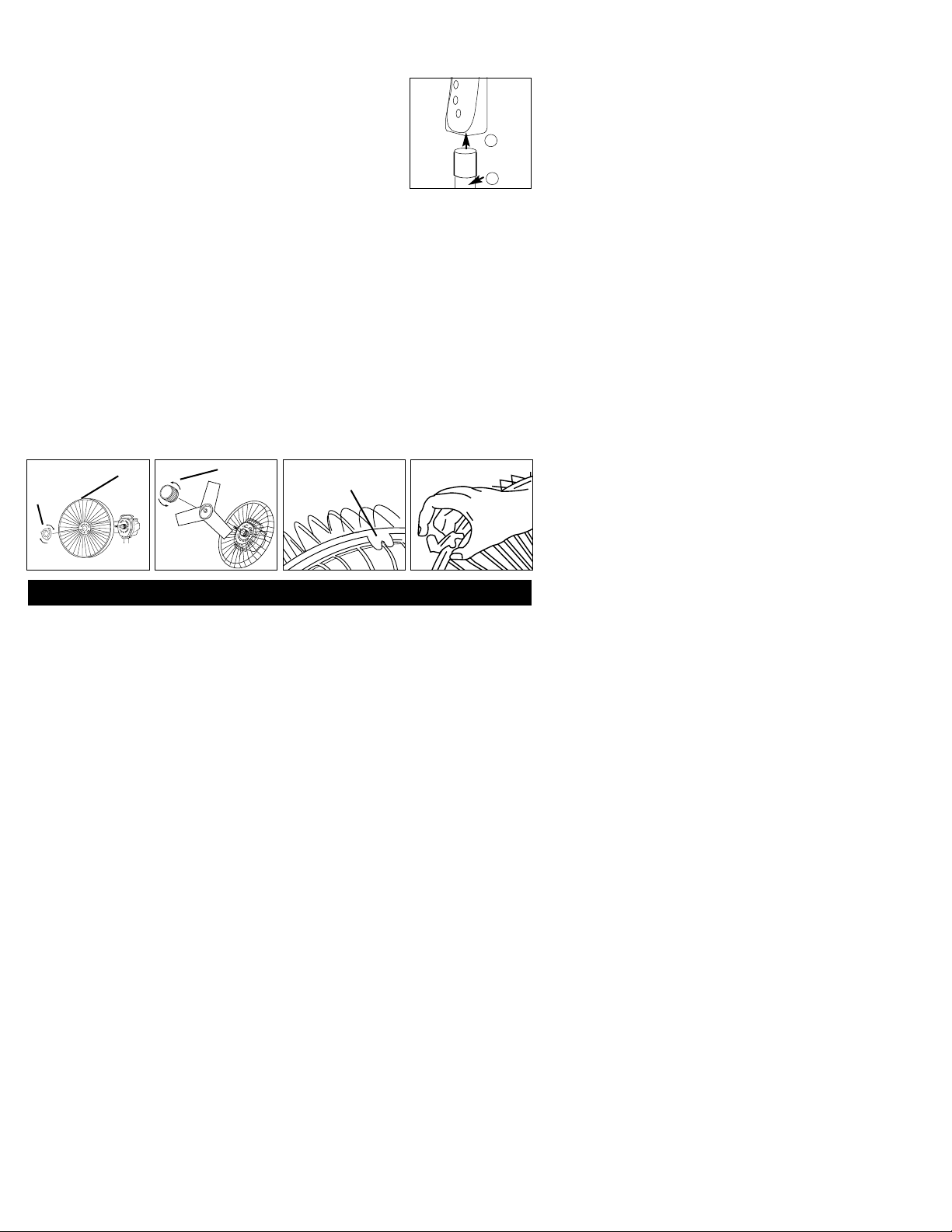

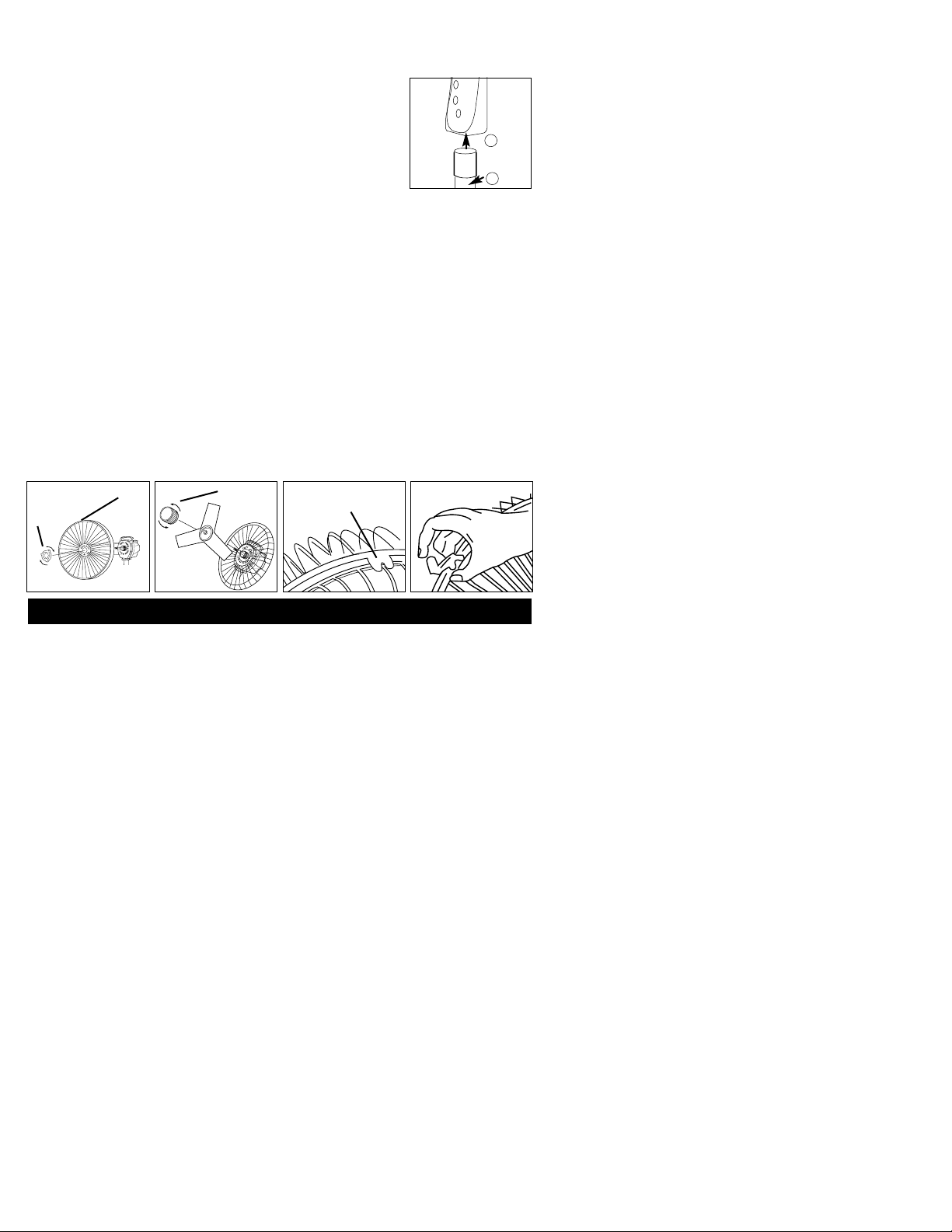

ATTACHING THE MANUAL CONTROL PANEL FOR ALL FANS

• Line up the three (3) tabs of the metal pole with the three (3) slots of the

Manual Control Panel and slide together, rotating it until it locks (Fig. 4). The pole will no longer turn. Be sure to tighten the knob on the back of the Manual Control Panel.

• At this point please insert the two (2) AAA batteries into

your remote control and slide it into the neck of the Manual Control Panel.

COMPLETING THE ASSEMBLY

• Remove the Rear Grille Mounting Nut (D). Place the Rear Grille (E) onto the

Motor Housing by making sure the three (3) holes of the Rear Grille fit over the three (3) bumps on the Motor Housing. Tighten the Rear Grille Mounting Nut CLOCKWISE (Fig. 5).

• Push the Fan Blade onto the Motor Shaft, lining up the blade with the D-shape

on the Motor Shaft’s end. Tighten the Blade Knob (F) by turning it COUNTER-CLOCKWISE (Fig. 6).

• Properly align the Front Grille and hook the top Grille clip (G) onto the Rear

Grille (Fig. 7).

• Fasten the built in clips around the Front Grille onto the Rear Grille (Fig. 8).

NOTE: The tilt angle of the Motor Assembly can be changed by simply tilting the Motor up or down once the fan is completely assembled.

Fig. 4

Fig. 6Fig. 5

Fig. 7

Fig. 8

OPERATION

• Place your fan on a level and dry surface.

• Plug the power cord into a 120 Volt AC wall outlet.

• To turn fan on press the “ON/SPEED” button one time.

• When fan is on it will start in low speed. Press button again while on low speed

and fan will switch to medium speed. While on medium press “ON/SPEED” button and fan will switch to high speed.

• When your fan is on high speed, pressing the “ON/SPEED” button will return

your fan to low speed.

Breeze: To activate the breeze feature, press the “BREEZE” button once on your remote control or on the control panel on the fan. Your fan will now speed up and slow down to simulate outdoor air-flow. This feature can be used when your fan is on any speed setting. While using the fan in “BREEZE” mode, if you want to return to standard fan speed operation, press the “BREEZE” button once. Your fan will no longer cycle through its outdoor wind function.

Timer: You can set your fan to conveniently turn itself off within two, four or eight hours.

• This feature operates similar to the speed setting function. To use this feature

press the “TIMER” button.

• The time you have set will be displayed by the illuminated green light on the

fan control panel.

From Any Speed Setting:

1 press = 2 hours - light glows under 2 2 press = 4 hours - light glows under 4 3 press = 8 hours - light glows under 8

NOTE: If you shut off your fan in “Breeze” mode, the next time you turn your fan on it will be in “Breeze” Mode. If your fan shuts itself off as a result of “Timer” mode running out, the next time you turn your fan on it will default to the last used speed setting.

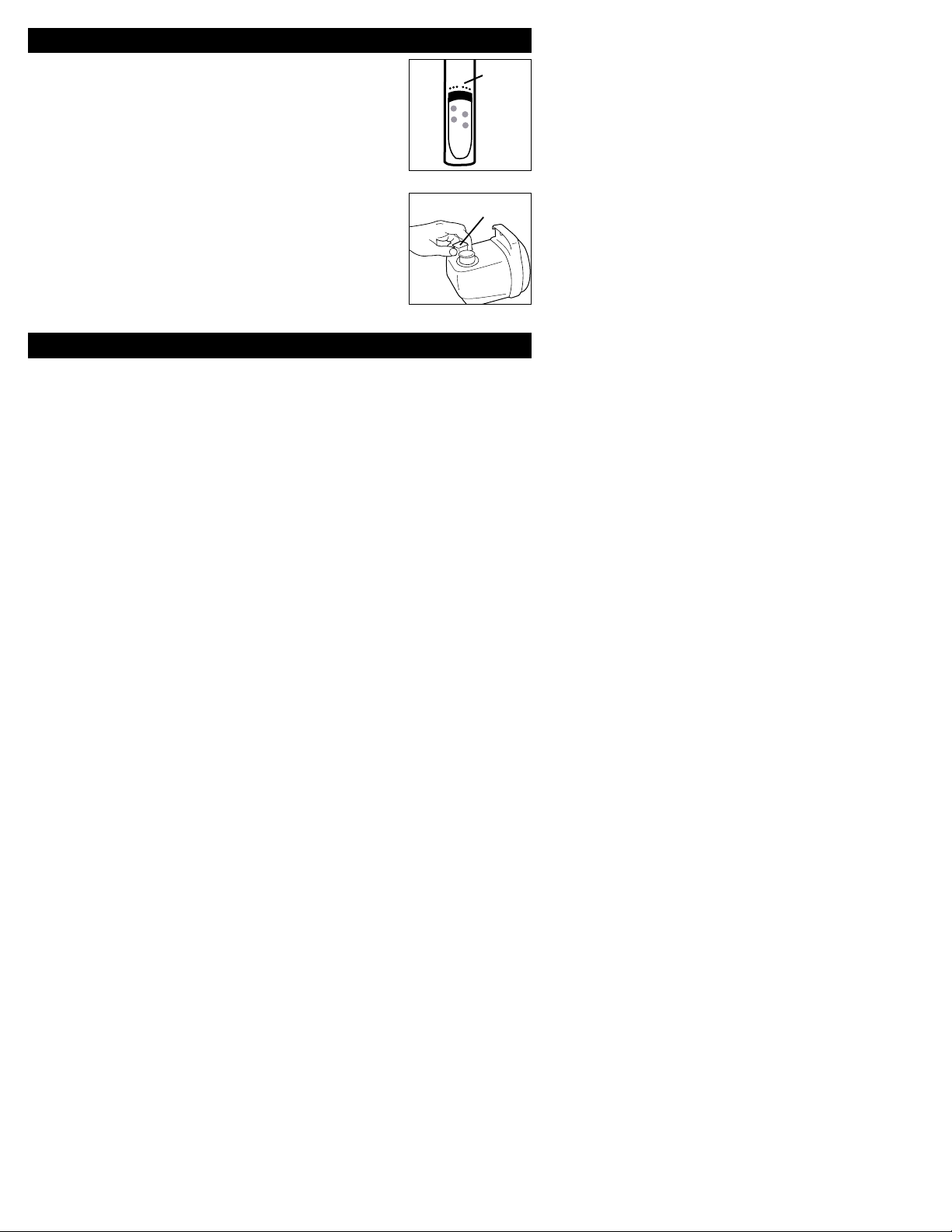

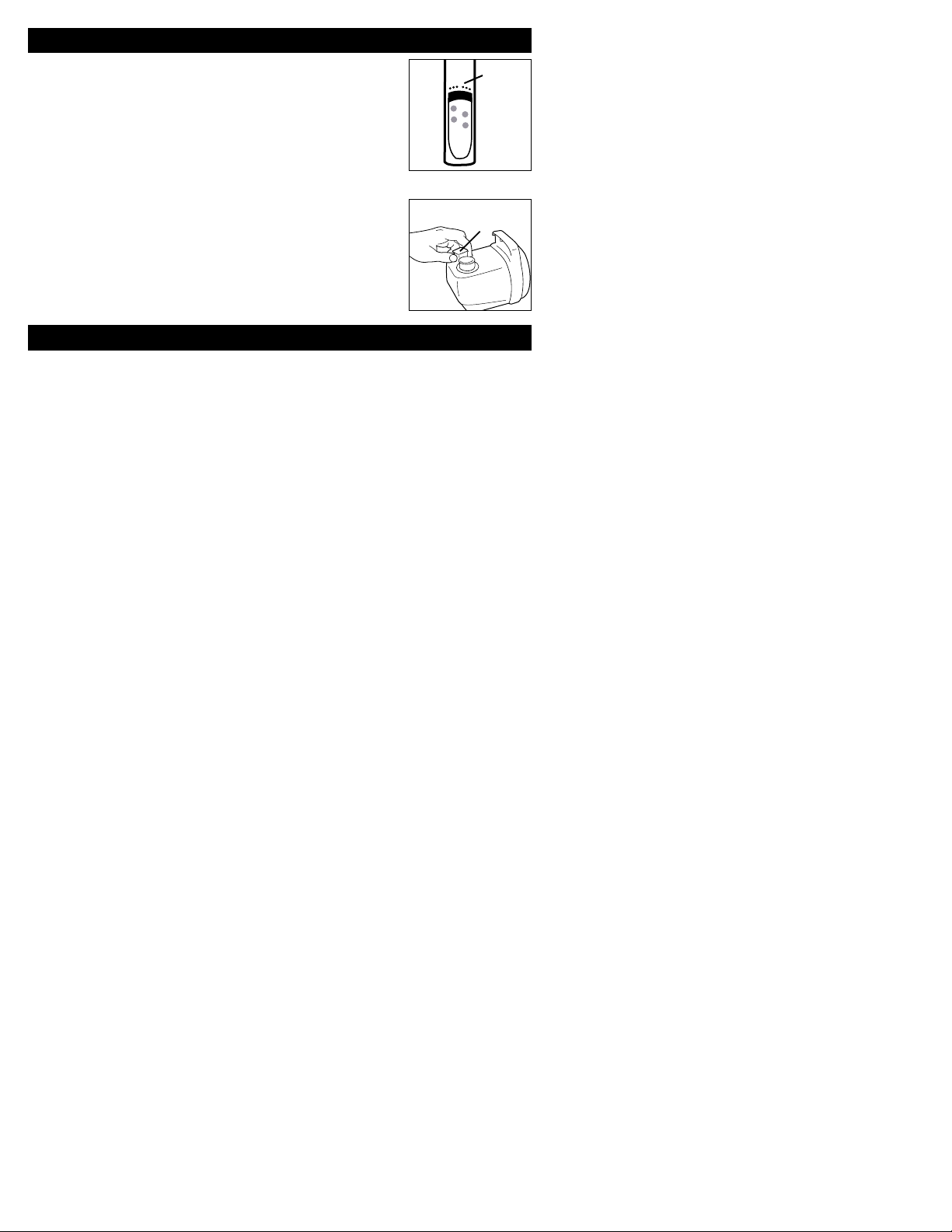

FEATURES

• You will see a red light illuminated on the control panel of

the fan showing you what speed your fan is on (Fig. 9).

• To stop the oscillation feature, pull up hard on the

Oscillation Control Knob until you feel two clicks. To restart oscillation feature press button down (Fig. 10).

• Tilt the fan head to desired angle.

• To turn the fan off press the “OFF” button.

NOTE: Once your fan is off, the next time you turn it on it will automatically default to the last used speed setting. You can then adjust the speed as desired.

OPERATION (cont.)

Fig. 9

Fig. 10

illuminated for “LOW “ speed

OSCILLATION CONTROL KNOB

TIMER

BREEZE

TIMER

ON/SPEED

OFF

ON/SPEED

• Turn the fan to the off position and unplug the fan before cleaning.

• Use only a soft, damp cloth to gently wipe the fan clean.

• DO NOT immerse the fan in water and never allow water to drip into the

motor housing.

• DO NOT use gasoline, paint thinner or other chemicals to clean the fan.

REMOVAL OF THE FRONT GRILLE FOR CLEANING

• Release the Front Grille clips from around the Rear Grille and remove the Front Grille.

• Unscrew the Blade Knob by turning it CLOCKWISE.

• Pull the Fan Blade away from the Motor Housing.

• Gently wipe the Fan Blade and Grilles.

• Re-assemble the fan by following the ASSEMBLY INSTRUCTIONS.

TO STORE YOUR FAN

Store your fan covered in a cool, dry place.

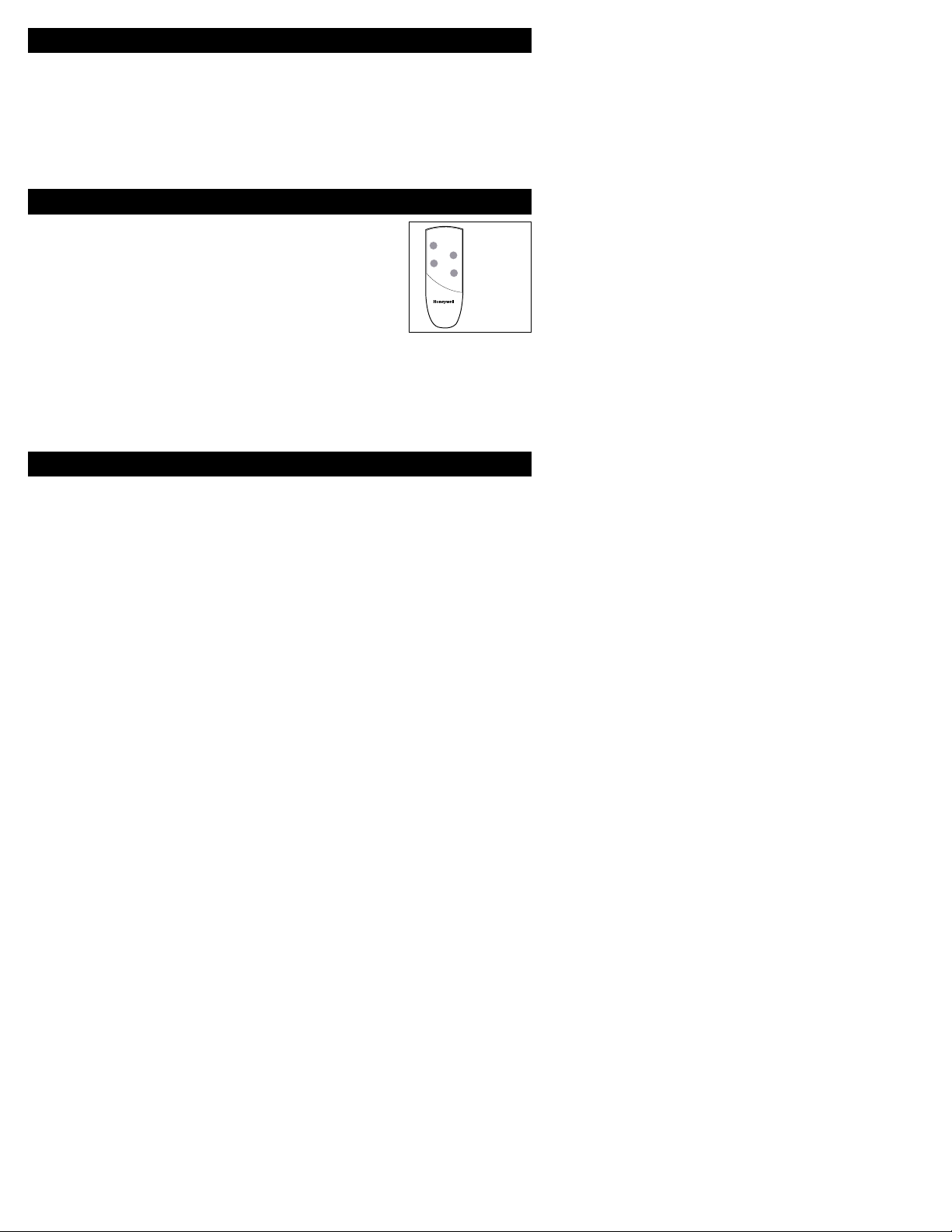

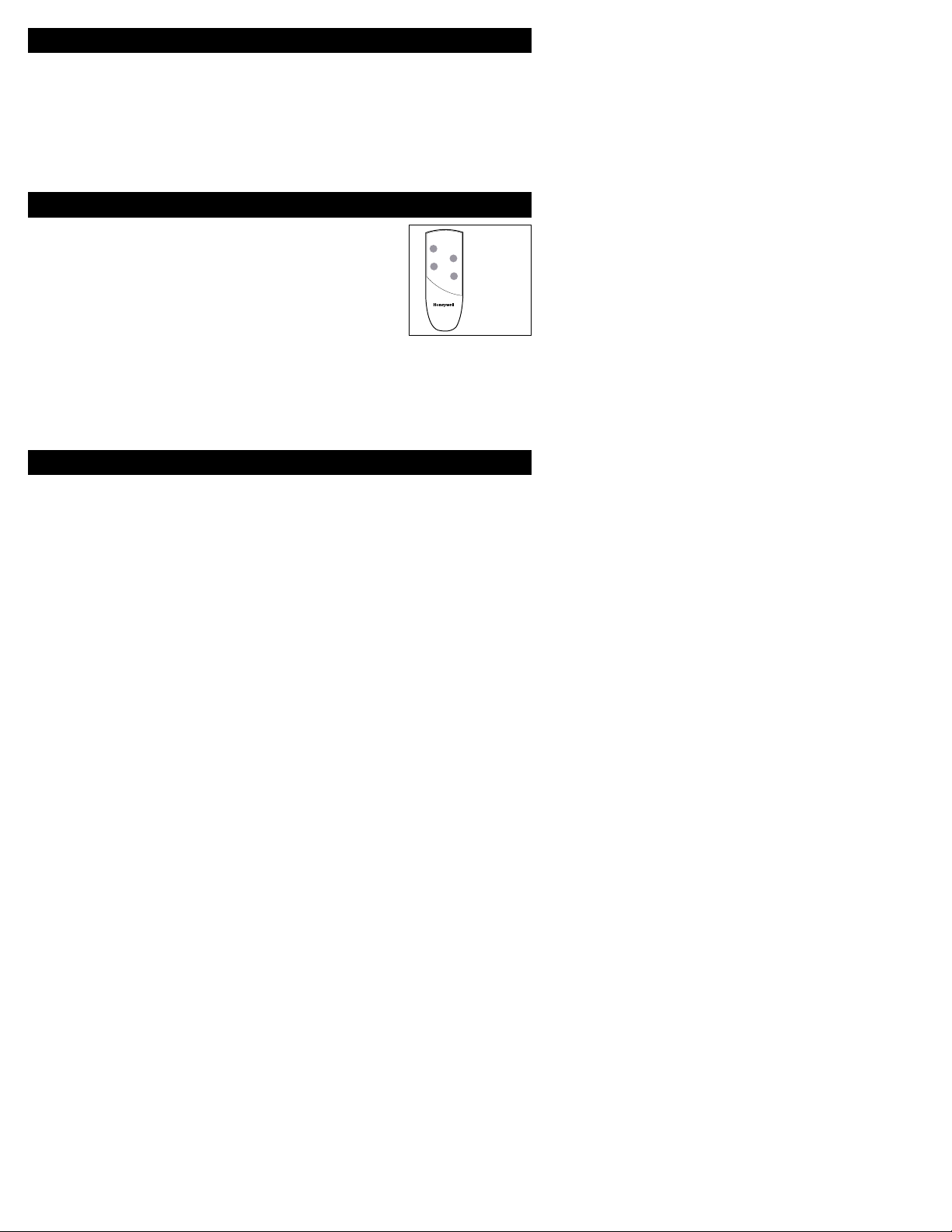

The remote control can be used up to 26 feet (8M) away from the fan. Be sure to point remote directly at the front of the fan to ensure a proper response.

• To remove remote from the fan, slide it up and lift it off the

front panel. To place remote back on the fan, slide it down the track around the fan’s control panel and press gently to snap in place.

• The button on the remote will respond in the same manner as the buttons on

the fan. To review these features see “operation” and “features” por tion of the owners manual.

• You will hear a “beep” from the fan and see illuminated lights on the fan

control panel while using the remote. This shows you that the remote is working.

REMOTE

CLEANING AND STORAGE

uses 2 AAA batteries (included)

FEATURES (cont.)

Feature Combination

• You can use “BREEZE” mode and “TIMER” mode at the same time!

• If you enjoy the soothing effects of “BREEZE” mode, but don’t want to leave

your fan running all night, from any speed setting simply select “BREEZE” then choose either 2, 4 or 8 hour time setting by pressing the “TIMER” button.

• At the end of your time setting, the fan automatically turns itself off!

BREEZE

ON/SPEED

TIMER

OFF

To speak with a customer ser vice representative, or place an order, please call our Consumer Relations Center, toll-free, at: 1-800-332-1110. Orders may be placed 24 hours a day, seven days a week with Master Card, Visa or Discover.

Item HS-160R Part No. US Price CAN Price

Rear Grille Mounting Nut HS-160R-2 $ 3.00 4,50 $ Blade Knob HS-160R-4 $ 3.00 4,50 $ Remote HS-160R-14 $ 20.00 29,40 $

To order by mail, please include $4.50 US/$6.10 CAN for shipping and handling and make check or money order payable to Honeywell Consumer Products Business. Massachusetts residents add 5% sales tax. Canadian residents please add 7% GST plus applicable provincial sales tax. Mail to:

Consumer Relations Honeywell Consumer Products Business 250 Turnpike Road

Southborough, MA 01772 Note: Honeywell Consumer Products Business can not ship to P.O. Box numbers Thank you for purchasing a Honeywell fan. For more information about

Honeywell visit us at www

.honeywell.com/yourhome

Q: How do I turn the fan on? A: To turn the fan on press the “ON/SPEED” button. From OFF press once for

low operation, twice for medium, three times for high.

Q: My fan is slowing down and speeding up, is there something wrong? A: No, you have the fan set to “Breeze”. To turn this feature off press the

“BREEZE” button once. The fan should now operate normally.

Q: What happens if I have two of the same model Honeywell Remote Control fans and two remotes? A: If both fans are the same model Honeywell Remote Control Stand Fans, then both remotes should work on either fan.

TROUBLE SHOOTING GUIDE

CONSUMER RELATIONS / REPLACEMENT PARTS

5 YEAR LIMITED WARRANTY

You should first read all instructions before attempting to use this product.

The enclosed Customer Response card should be filled out and returned within 7 days of purchase.

This 5 year limited warranty applies to repair or replacement of product found to be defective in material or workmanship. This warranty does not apply to damage resulting from commercial, abusive, unreasonable use or supplemental damage. Defects that are the result of normal wear and tear will not be considered manufacturing defects under this warranty.

HONEYWELL IS NOT LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES OF ANY NATURE. ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE ON THIS PRODUCT IS LIMITED IN DURATION TO THE DURATION OF THIS WARRANTY.

Some jurisdictions do not allow the exclusion or limitation of incidental or consequential damages or limitations on how long an implied warranty lasts, so the above limitations or exclusions may not apply to you. This warranty gives you specific legal rights, and you also may have other rights which vary from jurisdiction to jurisdiction. This warranty applies only to the original purchaser of this product from the original date of purchase.

B. At its option, Honeywell will repair or replace this product if it is found to be defective in material or workmanship. Defective product should be returned to the place of purchase in accordance with store policy. Thereafter, while within the warranty period defective product may be returned to Honeywell.

C. This warranty does not cover damage resulting from any unauthorized attempts to repair or from any use not in accordance with the instruction manual.

D. Return defective product to Honeywell Consumer Products with a brief description of the problem. Include proof of purchase and a $10 US/ $14.70 CAN check or money order for handling, return packing and shipping charges. Please include your name, address and a daytime phone number. You must prepay shipping charges. Send to:

Honeywell Attn: Returns Department 4755 Southpoint Drive Memphis, TN 38118 USA
