Kaz HS-2007 User Manual

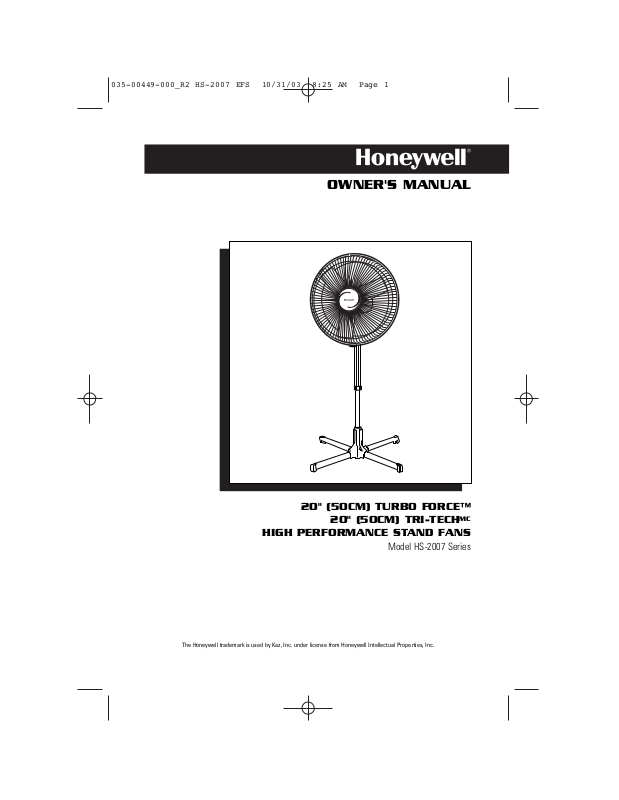

OWNER'S MANUAL

20" (50CM) TURBO FORCE™

20" (50CM) TRI-TECH

HIGH PERFORMANCE STAND FANS

Model HS-2007 Series

The Honeywell trademark is used by Kaz, Inc. under license from Honeywell Intellectual Properties, Inc.

INSTRUCTIONS F0R USE AND CARE

READ AND SAVE THESE IMPORTANT SAFETY INSTRUCTIONS BEFORE USING THIS FAN.

When using electrical appliances, basic safety precautions should always be followed, including the following:

1. Use this fan only as

described in this manual. Other use not recommended may cause fire, electric shock or injury to persons.

2. This product is intended for household use ONLY and not for commercial, industrial or outdoor use.

3. To protect against electric shock, do not place fan in window, immerse unit, plug or cord in water or spray with liquids.

4. This fan requires a grounded 120 volt power source (3 prong receptacles). Never connect this fan to any power source other than a properly grounded 120 volt AC receptacle. Do not attempt to defeat this safety feature.

5. Close supervision is necessary when any appliance is used by or near children.

6. Turn the fan to the OFF position and unplug the fan from the outlet when not in use, when moving the fan from one location to another and before cleaning.

7. To disconnect the fan, first turn control to the OFF position, grip the plug and pull it from the wall outlet. Never pull by the cord.

8. Do not operate the fan in the presence of explosive and/or flammable fumes.

9. Do not place the fan or any parts near an open flame, cooking or other heating appliance.

10. Do not operate the fan with a damaged cord or plug or if the product malfunctions, is dropped or damaged in any manner (see warranty).

11. Avoid contact with moving fan parts.

12. The use of attachments not recommended by the manufacturer may be hazardous.

13. Place the fan on a dry level surface.

14. Do not hang or mount fan on a wall or ceiling.

15. Do not operate if the fan housing is removed or damaged.

16. A loose fit between the AC outlet (receptacle) and plug may cause overheating and a distortion of the plug. Contact a qualified electrician to replace loose or worn outlet.

WARNING: To Reduce The Risk of Fire or Electric Shock, Do Not Use This Fan With Any Solid-State Speed Control Device.

ASSEMBLY INSTRUCTIONS

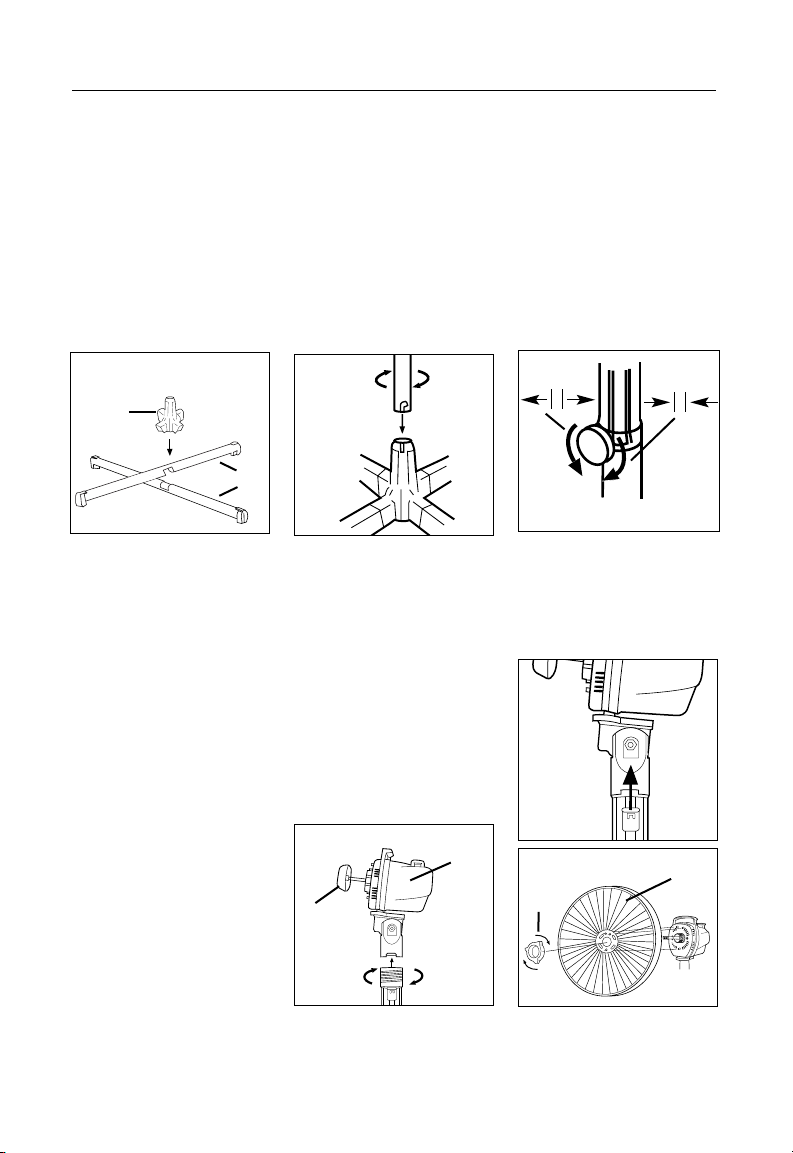

• Place Base Extensions (A) as illustrated and snap Base Connector (B) firmly onto Base Extensions (Fig. 1).

• Insert the Adjustable Pole (C) into the Base by lining up the recessed slot in the Pole to the

Fig. 1

• Place the Motor Assembly (E) onto the Adjustable Pole and screw into place by turning Clockwise (Fig.

4). Align the slot to slide the latch into place (Fig.

5). NOTE: The tilt angle of the Motor Assembly can be changed by simply tilting the Motor up or down.

• Remove the Blade Knob (F) and the Rear Grille Mounting Nut (G). Place the Rear Grille (H)

raised dot on the Base Connector and push in. Be sure that the Pole is fully seated. Hold the Base firmly and twist the Pole CLOCKWISE 90° until it stops. DO NOT OVER-TIGHTEN (Fig. 2).

Fig. 2

• Adjust to the desired height and tighten the Height Adjustment Knob (D) (Fig. 3).

Fig. 3

HEIGHT ADJUSTMENT KNOB

ATTACHING THE MOTOR ASSEMBLY

TO THE FAN POLE

onto theMotor Housing by making sure the 3 holes of the Rear Grille fit over the 3 bumps on the Motor Housing. Tighten the Rear Grille Mounting Nut CLOCKWISE. (Fig. 6)

Fig. 4

Fig. 5

Fig. 6

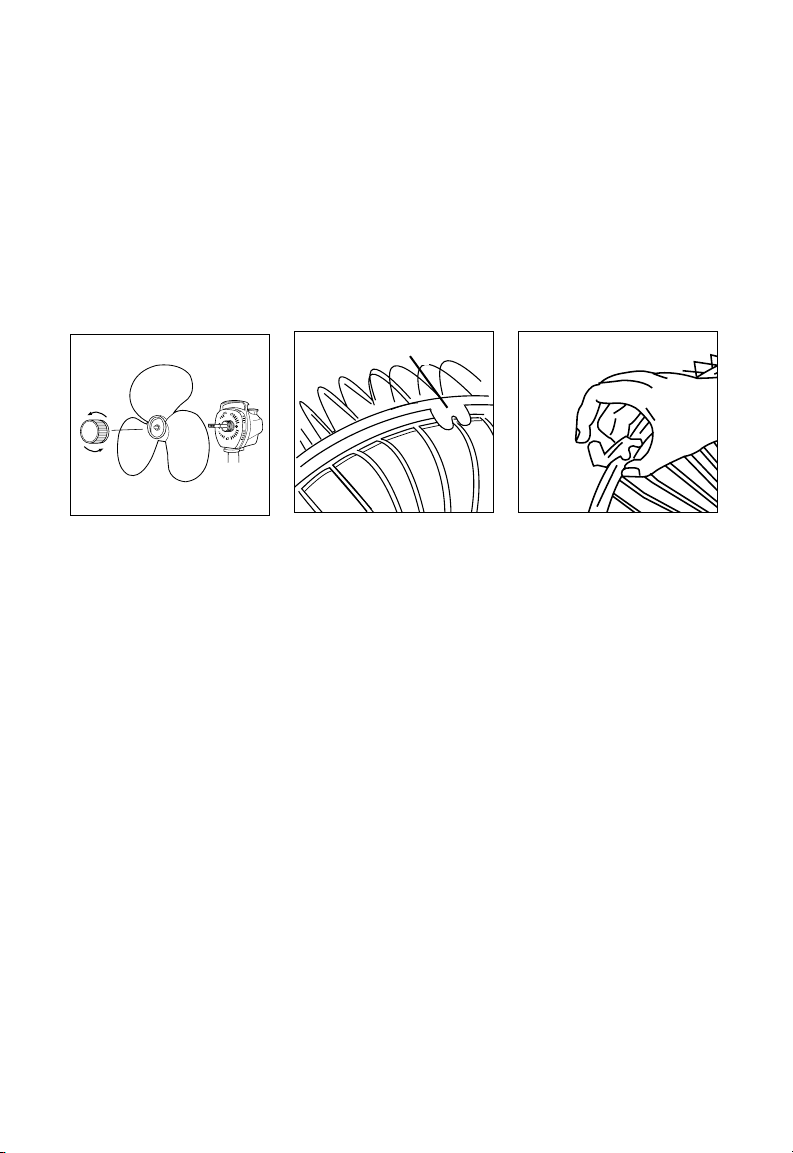

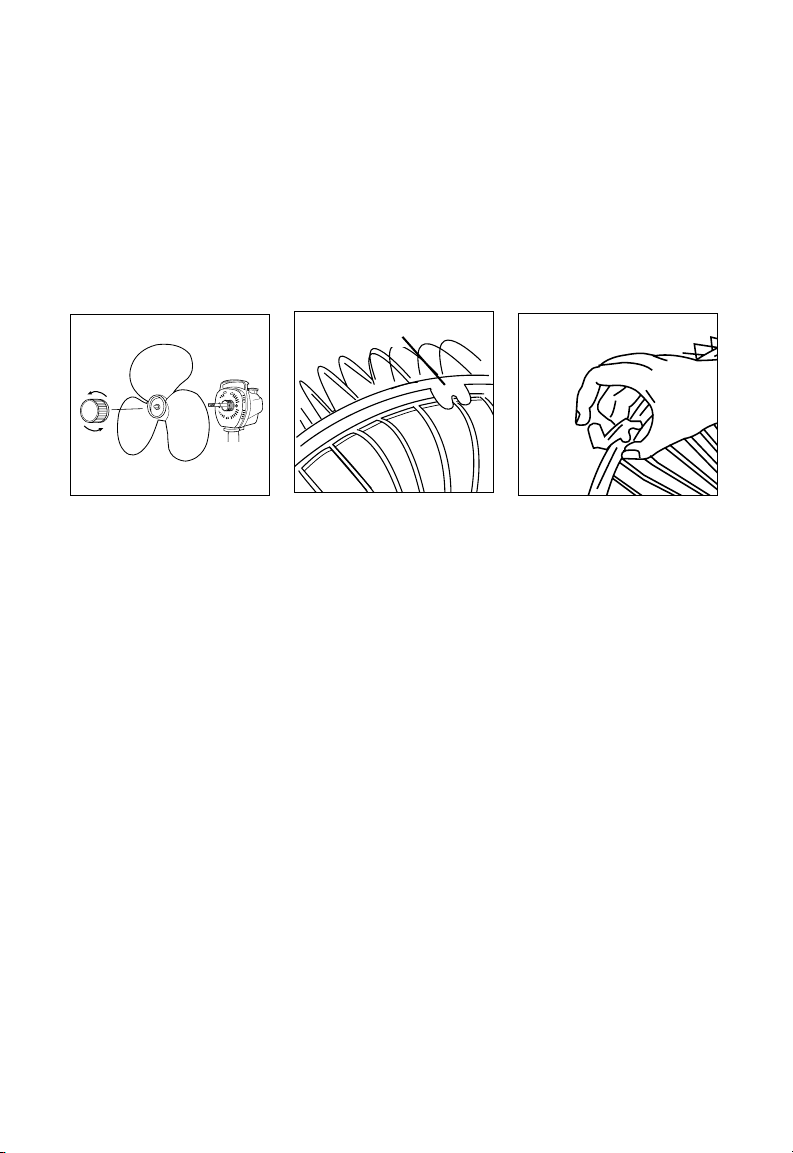

• Push the Fan Blade onto the Motor Shaft, lining up the blade with the D-shape on the Motor Shaft’s end. Tighten the Blade Knob by turning it COUNTERCLOCKWISE (Fig. 7).

• Properly align the Front Grille and hook the top

Grille clip (I) onto the Rear Grille (Fig. 8).

• Raise the built in clips around the Front Grille. Fasten the clips onto the Rear Grille (Fig. 9)

Fig. 7

Fig. 8

Fig. 9

OPERATION

• Place your fan on a level and dry surface.

• Plug the power cord into a polarized 120 Volt AC wall outlet.

• Adjust the height by loosening the Height Adjustment Knob and adjusting the fan up or down. Then tighten the Height Adjustment Knob.

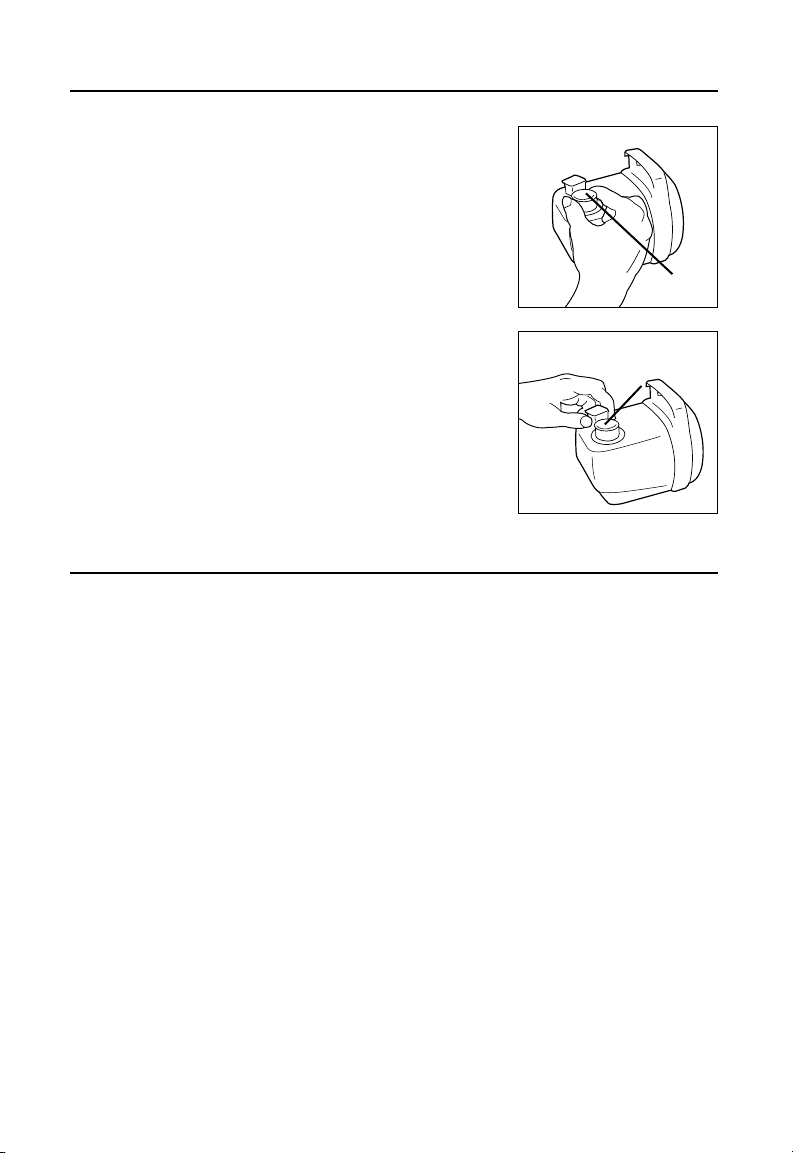

• To operate the Child Resistant switch, depress the Speed Control Knob and turn to the desired position (Fig. 10).

• Unplug the fan before cleaning.

• Use only a soft, damp cloth to gently wipe the fan clean.

• DO NOT immerse the fan in water and never allow water to drip into the motor housing.

• DO NOT use gasoline, paint thinner or other chemicals to clean the fan.

• To activate or disengage the oscillation feature, push down or pull up on the Oscillation Control Knob (Fig. 11).

• Tilt the fan head to desired angle.

CLEANING AND STORAGE

REMOVAL OF THE FRONT GRILL FOR CLEANING

• Release the Front Grille clips from around the Rear Grille and remove the Front Grille.

• Unscrew the Blade Knob by turning it CLOCKWISE (reverse thread).

• Pull the Fan Blade away from the Motor Housing.

• Gently wipe the Fan Blade and Grilles.

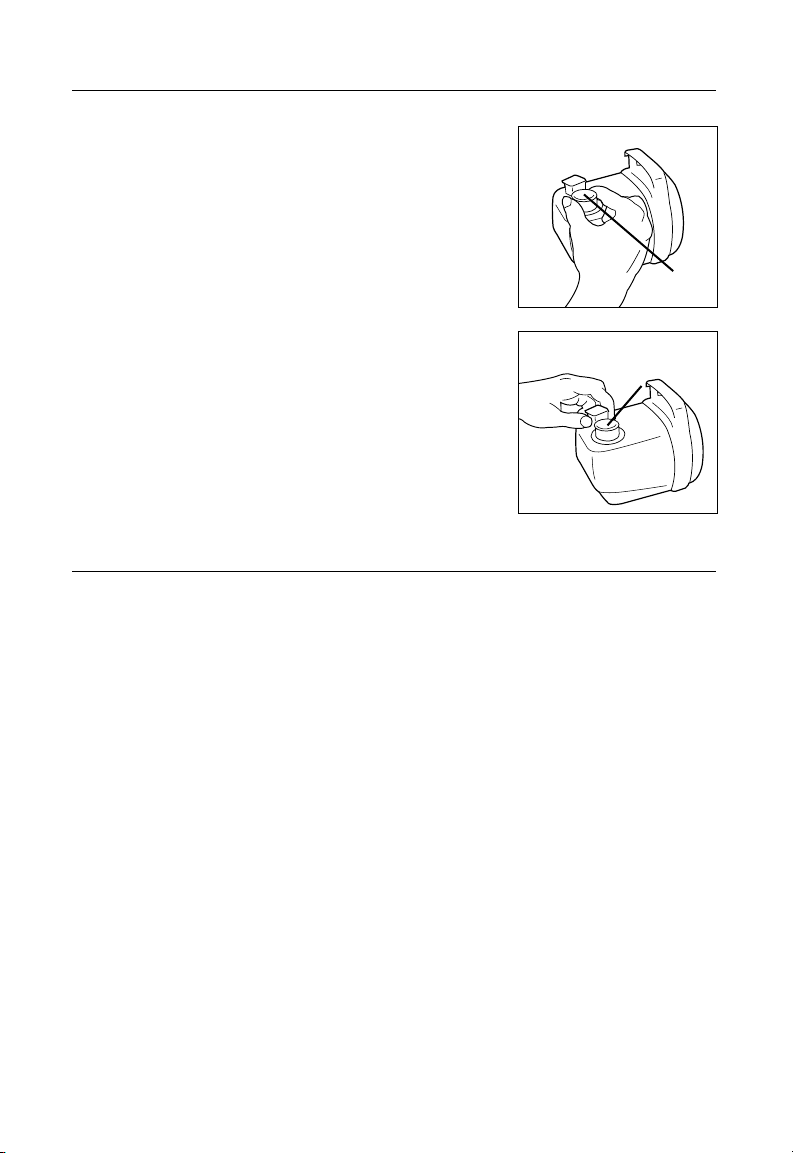

Fig. 10

PUSH IN AND TURN

Fig. 11

OSCILLATION CONTROL KNOB

• Re-assemble the fan by following the ASSEMBLY INSTRUCTIONS.

CLEANING AND STORAGE CONT.

TO DISASSEMBLE THE MOTOR FROM THE STAND

• Unplug the fan. Hold the Fan Pole and slowly turn the Motor Assembly COUNTER-CLOCKWISE until it comes apart from the Fan Pole.

• For storage, disassemble and clean the fan carefully as instructed.

• Store the fan in its original box. You may also leave the fan fully assembled and covered

with plastic to protect it from dust. Store your fan in a cool, dry place.

CONSUMER RELATIONS / REPLACEMENT PARTS

NOTE: IF YOU EXPERIENCE A PROBLEM, PLEASE RETURN THE FAN TO THE ORIGINAL PLACE OF PURCHASE OR SEE YOUR WARRANTY. DO NOT ATTEMPT TO OPEN THE MOTOR HOUSING YOURSELF. DOING SO MAY VOID YOUR WARRANTY AND CAUSE DAMAGE TO THE FAN OR PERSONAL INJURY.

IF YOU HAVE ANY QUESTIONS REGARDING THIS FAN, PLEASE CALL OR WRITE:

Kaz Home Environment Consumer Relations Dept. 250 Turnpike Road Southborough, MA 01772 USA

Toll free: 1-800-332-1110 E-mail: consumerrelations@kaz.com

Please visit us at www

.kaz.com

5 YEAR LIMITED WARRANTY

You should first read all instructions before attempting to use this product.

A. This 5 year limited warranty applies to

repair or replacement of product found to be defective in material or workmanship. This warranty does not apply to damage resulting from commercial, abusive, unreasonable use or supplemental damage. Defects that are the result of normal wear and tear will not be considered manufacturing defects under this warranty. KAZ IS NOT LIABLE FOR

INCIDENTAL OR CONSEQUENTIAL DAMAGES OF ANY NATURE. ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE ON THIS PRODUCT IS LIMITED IN DURATION TO THE DURATION OF THIS WARRANTY.

Some jurisdictions do not allow the exclusion or limitation of incidental or consequential damages or limitations on how long an implied warranty lasts, so the above limitations or exclusions may not apply to you. This warranty gives you specific legal rights, and you also may have other rights which vary from jurisdiction to jurisdiction. This warranty applies only to the original purchaser of this product from the original date of purchase.

B. At its option, Kaz will repair or replace

this product if it is found to be defective in material or workmanship. Defective product should be returned to the place of purchase in accordance with store policy. Thereafter, while within the warranty period defective product may be returned to Kaz.

C. This warranty does not cover damage

resulting from any unauthorized attempts to repair or from any use not in accordance with the instruction manual.

D. Return defective product to Kaz Home

Environment with a brief description of the problem. Include proof of purchase and a $10 US/$15.50 CAN check or money order for handling, return packing and shipping charges. Please include your name, address and a daytime phone number. You must prepay shipping charges. Send to:

In US:

Kaz Home Environment Attn: Returns Department 4755 Southpoint Drive Memphis, TN 38118 USA

In Canada:

Kaz Home Environment Attn: Returns Department 510 Bronte Street South Milton, ON L9T 2X6 Canada
