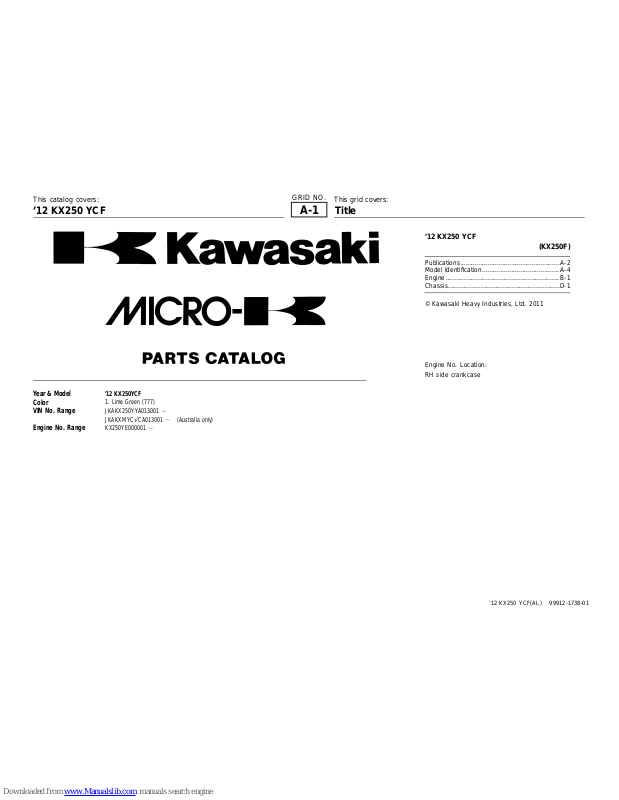

Kawasaki Micro-K, 2012 KX250YCF Parts Catalog

This catalog covers:

GRID NO.

This grid covers:

’12 KX250 YCF A-1 Title

’12 KX250 YCF

(KX250F)

Publications......................................................A-2

Model Identification..........................................A-4

Engine..............................................................B-1

Chassis.............................................................D-1

© Kawasaki Heavy Industries, Ltd. 2011

Engine No. Location:
RH side crankcase

Year & Model

’12 KX250YCF

Color

1. Lime Green (777)

VIN No. Range

JKAKX250YYA013001
JKAKXMYC√CA013001 (Australia only)

Engine No. Range

KX250YE000001

’12 KX250 YCF(AL) 99912-1738-01

This catalog covers:

GRID NO.

This grid covers:

’12 KX250 YCF A-2 Publications

A&P Manual Service Manual

Year & Model Owner’s Manual

General Supplement Basic Supplement

Microfiche

2012 KX250YCF

99976-1667(EN/FR/DE) 99939-1332-01 99924-1437-02 99912-1738-01
99976-1668(IT/ES/NL)
99986-1647(Australia only)

This catalog covers:

GRID NO.

This grid covers:

’12 KX250 YCF A-3 Parts List Infomation

PARTS LIST INFORMATION

This parts catalog lists parts and sub-assemblies provided as spare parts.
When it becomes necessary to replace parts always use KAWASAKI GENUINE PARTS. Strict inspection assures
quality and performance of KAWASAKI GENUINE PARTS.

1. HOW TO PLACE AN ORDER FOR PART

When ordering parts be sure to use the catalogfor the correct model and year of the vehicle. Include the following
items exactly as listed in this catalog on your parts order.

Part Number
Part Name
Color Code
Specify the color using both color code (which is part of the part number) and name when ordering painted
parts.
Example: 51001-5074-H

8

TANK-COMP-FUEL,E

BONY
Parts not shown disassembled in the illustrations of this parts catalog are not sold separately; only the complete
units or next higher assemblies illustrated, are supplied, as spare parts.

2. EXPLANATION OF PARTS CATALOG FORMAT

A. Year & Model Title

This title describes the year(s) and model(s) contained in this catalog.

B. Part Group Title

A representative name for the group of parts illustrated on this page.

C. Referernce Number

The reference number is listed on the illustration and parts list. It is the link between the illustration and the
parts list.

D. Part Number

The number assigned to a part for the purpose of parts ordering.

E. Description

Describes the main function of the part and includes data such as size, number of teeth, color,etc.

List of Abbreviations

(+)..................................................Plus HEX.....................................Hexagonal REF......................................Reference

(-)................................................ Minus ID =............................. Inside Diameter RH......................................Right Hand

&.....................................................And KPH.....................Killometers Per Hour RPM ................Revolutions Per Minute

2ND..........................................Second L.....................................................Link RR................................................ Rear

3RD..............................................Third L =.............................................Length STD........................................Standard

4TH............................................Fourth L/...................................................Less T..................................................Teeth

AR.................................... As Required LH.........................................Left Hand T =........................................Thickness

ASSY.................................... Assembly LWR............................................Lower U/S......................................Under Size

CA.........................................Cut Away MM........................................Millimeter UPP............................................Upper

CNT...........................................Center MPH.............................Miles Per Hour V.....................................................Volt

COMP...................................Complete NA...................................Not Available W...................................................Watt

D...............................................Degree O/S .......................................Over Size W/..................................................With

FR................................................ Front OD =.........................Outside Diameter WD......................................With Decal

G..................................................Gram PR........................................Ply Rating WOD..............................Without Decal

F. Quantity

Specifies how many of a part are required at the indicated position on the illustration.

G. Year & Model

Indicates which parts are used for a specific vehicle year and model.

H. Additional Information

Additional Information is shown as follows:

1) (OPTION) Part is not installed as original equipment, but is available separately.

2) (RACING USE ONLY) Part is to be used for closed course racing only on this vehicle.

3) (OFF-ROAD USE ONLY) Part is for off-road use only this vehicle.

4) (LOCAL PROCUREMENT ITEM) Part is obtainable from a local source. No part number is listed.

5) Technical relationships between old part numbers and new part numbers are shown as follows:
INTERCHANGE - Old part or new part can be used.
SUBSTITUTE - New part replaces old part. Old part cannot be used in place of new part.

6) Mid-Year part number changes on a vehicle are noted by engine or frame number references.
( - KZ400DE001181) Affected units are from beginning of model year production up to

and including this engine number.

(KZ400D-008111 - ) Affected units are from this frame number to the end of model

year production.

(KZ400DE008181 - KZ400DE018888) Affected units are in this engine number range.

I. Specification Code

Identifies the specification of the vehicle for which the part applies. If no spec code is listed, that means the
part is used for all specifications.

’12

Spec Code Specification

YCF
AS Australia O
EU Europe(General) O

This catalog covers:

GRID NO.

This grid covers:

’12 KX250 YCF A-4 Model I.D. ’12 KX250YCF

KX250YCF

Left Side View

Right Side View

This catalog covers:

GRID NO.

This grid covers:

’12 KX250YCF A-5 Color Combination Parts List

’12 KX250YCF

O : Applicable : Not applicable

Color: Lime Green (777 ) (1)

Spec.Code

Part No. Description

AS EU

14037-0100-6C SCREEN,LH,EBONY OO
14037-0101-6C SCREEN,RH,EBONY OO
14091-1523-6C COVER,REAR DISC,EBONY OO
35004-0139-290 FENDER-FRONT,L.GREEN OO
35023-0180-290 FENDER-REAR,L.GREEN OO

36001-0151-25P COVER-SIDE,LH,UP GRN+LO EBONY OO
36001-0153-25P COVER-SIDE,RH,UP GRN+LO EBONY OO
41025-0146-WC RIM,FR,1.60X21,BLACK OO
41025-0147-WC RIM,RR,1.85X19,BLACK OO
41090-0114-WC WHEEL,FR,1.60X21,AL NIPPLE,BLK OO

41090-0115-WC WHEEL,RR,1.85X19,AL NIPPLE,BLK OO
44037-0113-21 HOLDER-FORK UNDER,F.BLACK OO
44039-0103-21 HOLDER-FORK UPPER,F.BLACK OO
45014-0354-23P SHOCKABSORBER,SPG BLK+AJ BLU O
45014-0356-23P SHOCKABSORBER,SPG BLK+AJ BLU

O

46012-0013-21 HOLDER-HANDLE,LWR,F.BLACK OO
46012-0020-21 HOLDER-HANDLE,UPP,FAT BAR,BLK OO
46012-0021-21 HOLDER-HANDLE,LWR,FAT BAR,BLK OO
46012-0023-21 HOLDER-HANDLE,UPP,F.BLACK OO
46012-0048-21 HOLDER-HANDLE,LWR,F.BLACK OO

49089-0068-25M SHROUD-ENGINE,LH,UP GRN+LO EBO OO
49089-0069-25M SHROUD-ENGINE,RH,UP GRN+LO EBO OO
53066-0330-336 SEAT-ASSY,GREEN/BLACK OO
55020-0435-6C GUARD,ENGINE,SIDE,LH,EBONY OO
55020-0436-6C GUARD,ENGINE,SIDE,RH,EBONY OO

55020-0441-6C GUARD,FORK,LH,EBONY OO
55020-0442-6C GUARD,FORK,RH,EBONY OO
55020-0443-6C GUARD,ENGINE,LWR,EBONY OO
55020-0458-6C GUARD,REAR CALIPER,EBONY OO

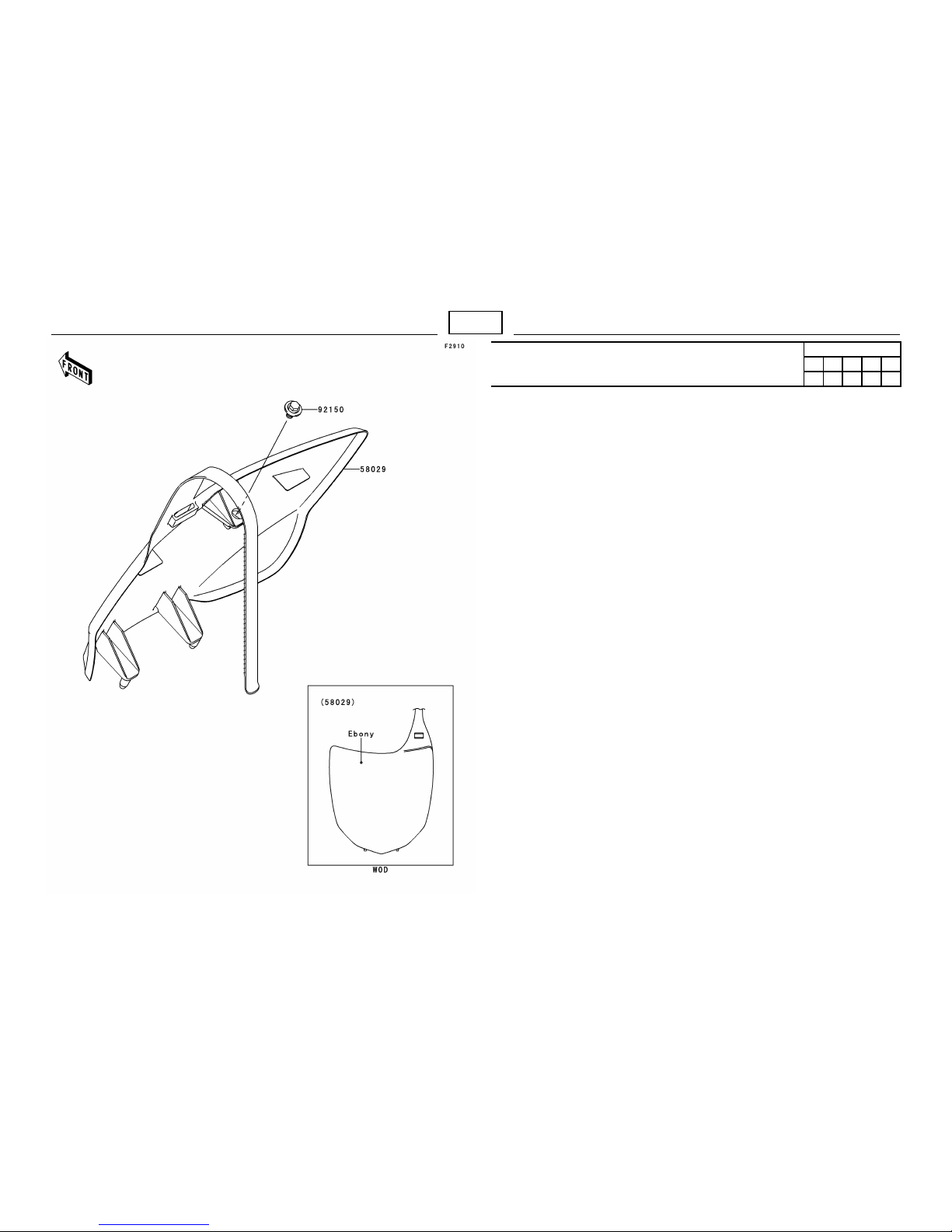

58029-0006-6C PLATE-NUMBER,EBONY OO

This catalog covers:

GRID NO.

This grid covers:

’12 KX250YCF A-6 Color Combination Parts List

’12 KX250YCF

O : Applicable : Not applicable

Color: Lime Green (777 ) (2)

Spec.Code

Part No. Description

AS EU

92145-0465-10 SPRING,REAR SHOCK,K=49N/MM,BLK OO
92145-0887-10 SPRING,REAR SHOCK,K=53N/MM,BLK OO
92145-0888-10 SPRING,REAR SHOCK,K=51N/MM,BLK OO
92145-0889-10 SPRING,REAR SHOCK,K=55N/MM,BLK OO
92154-0877-KW BOLT,FORK,BLUE OO

92154-0878-KW BOLT,ADJ.,COMP,BLUE OO

This catalog covers:

GRID NO.

This grid covers:

’12 KX250YCF Engine B-1 Pictorial Index

B-3

Cylinder Head

B-4 Cylinder Head Cover B-5 Cylinder/Piston(s)

B-6 Air Cleaner B-7 Muffler(s) B-8 Valve(s)(1/2)

This catalog covers:

GRID NO.

This grid covers:

’12 KX250YCF Engine B-2 Pictorial Index

B-9

Valve(s)(2/2)

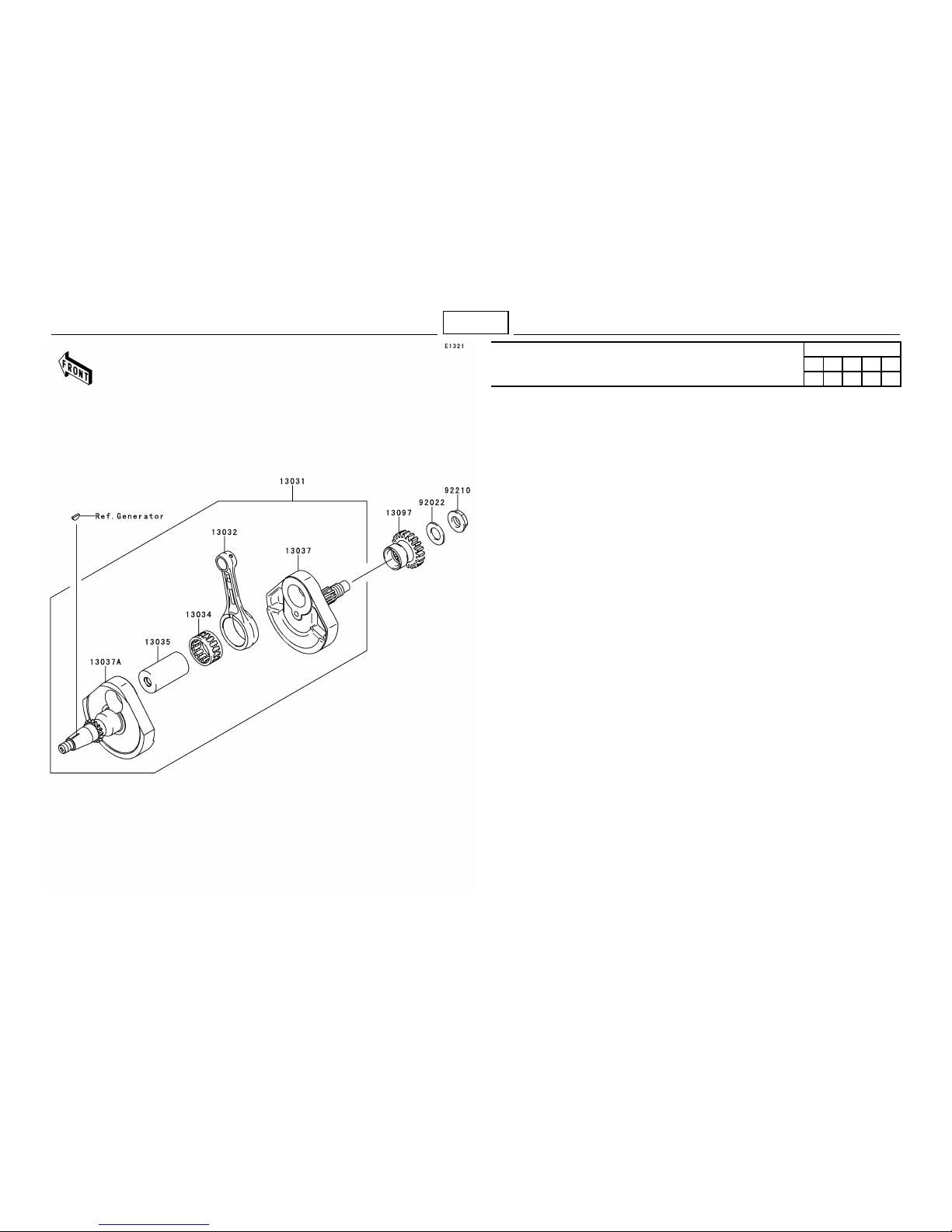

B-10 Camshaft(s)/Tensioner B-11 Crankshaft

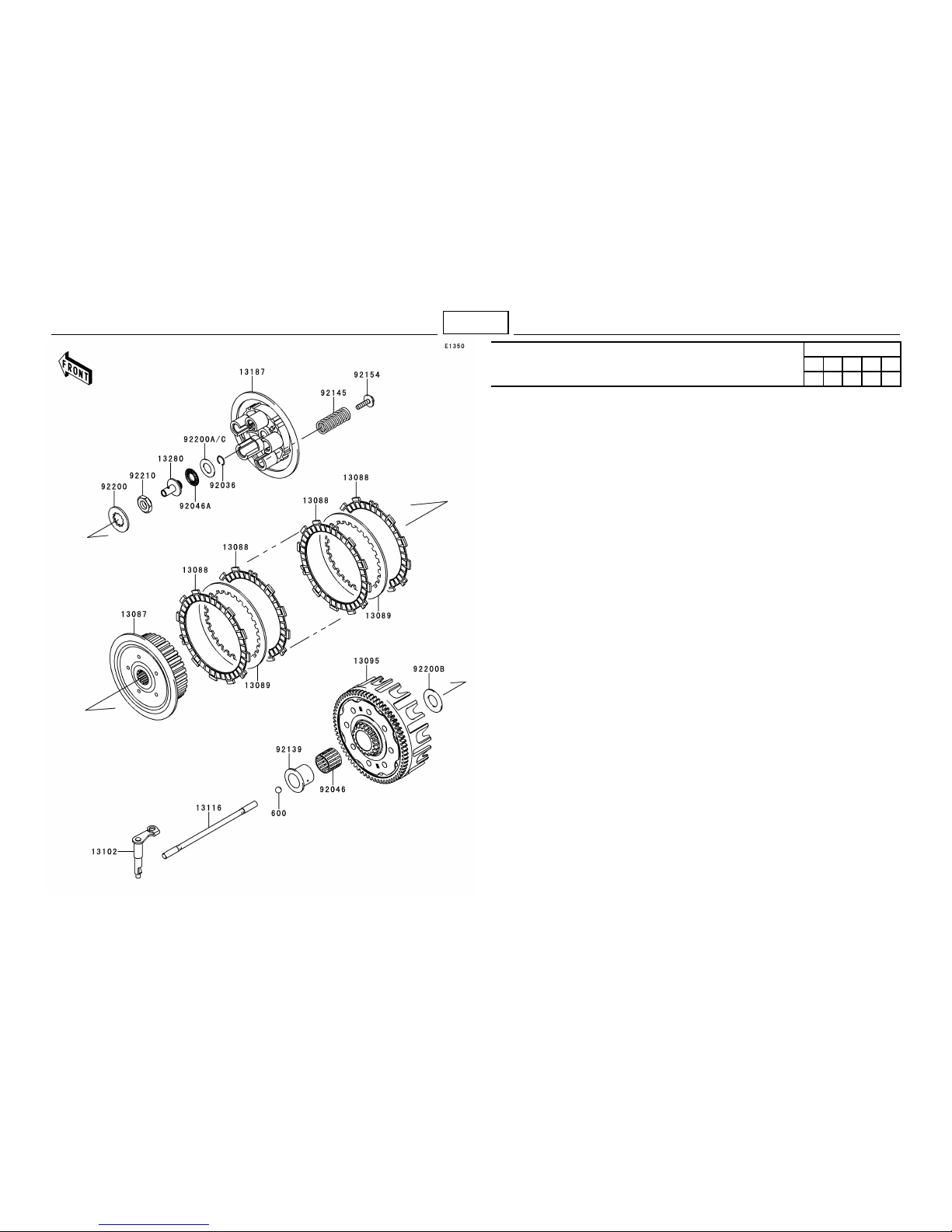

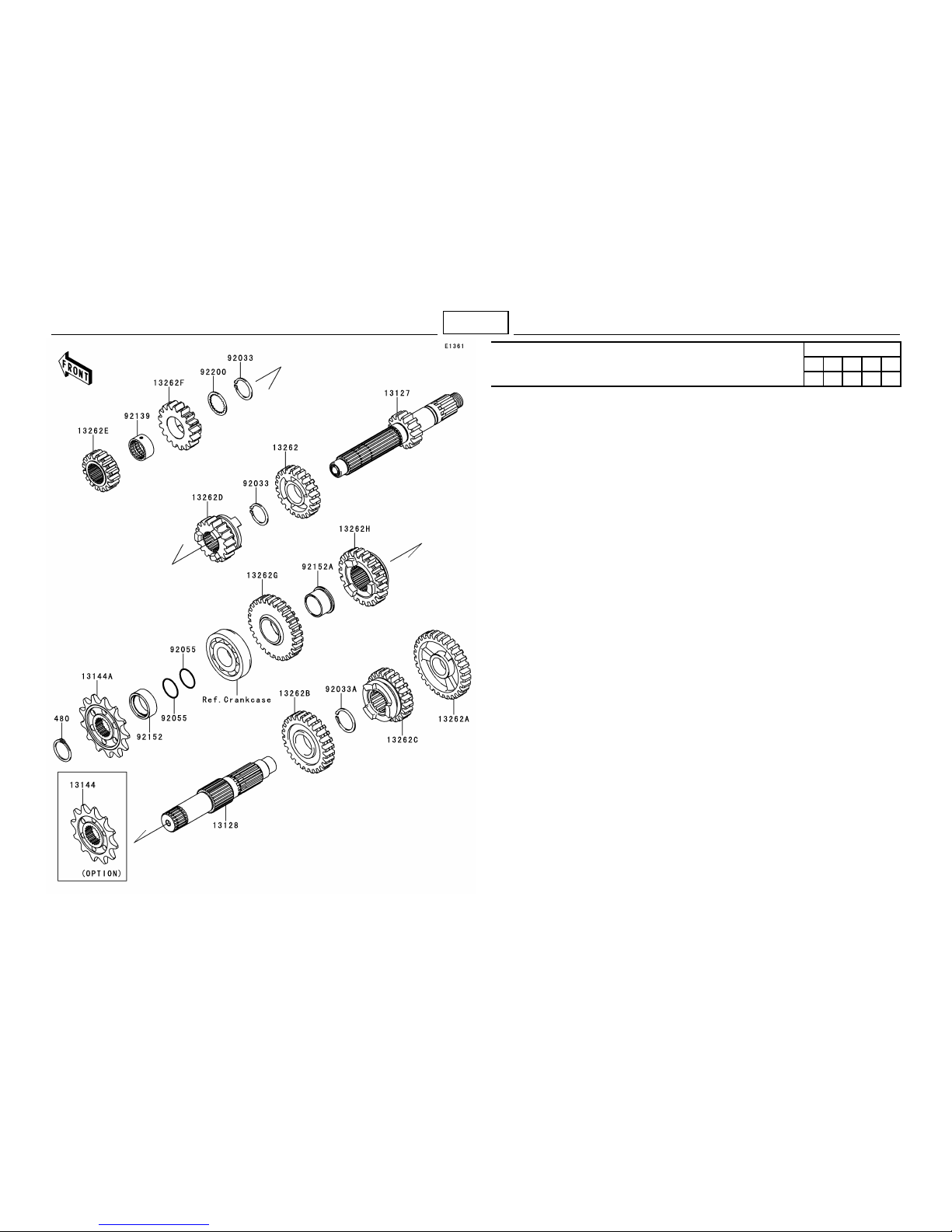

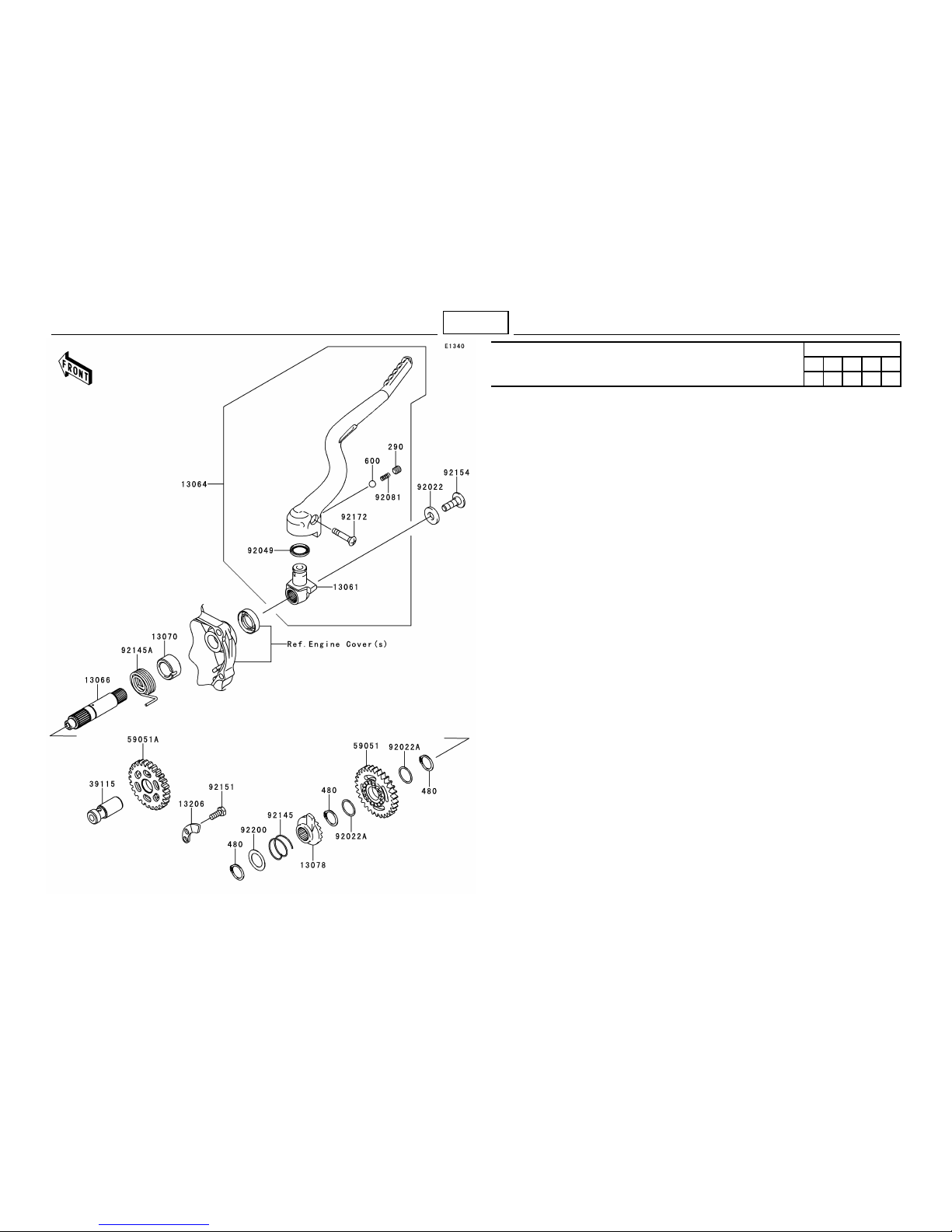

B-12 Kickstarter Mechanism B-13 Clutch B-14 Transmission

This catalog covers:

GRID NO.

This grid covers:

’12 KX250YCF Engine C-1 Pictorial Index

C-3

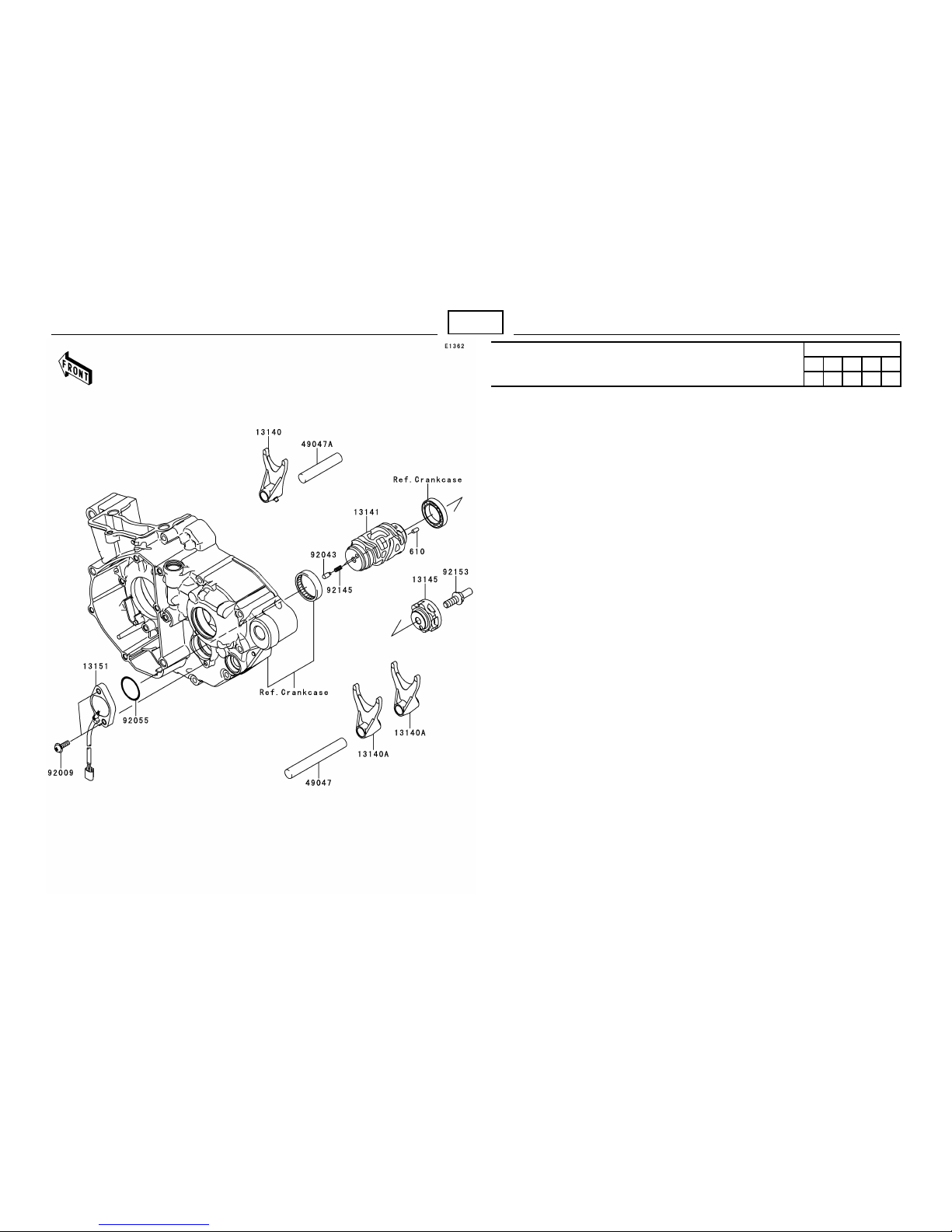

Gear Change Drum/Shift Fork(s)

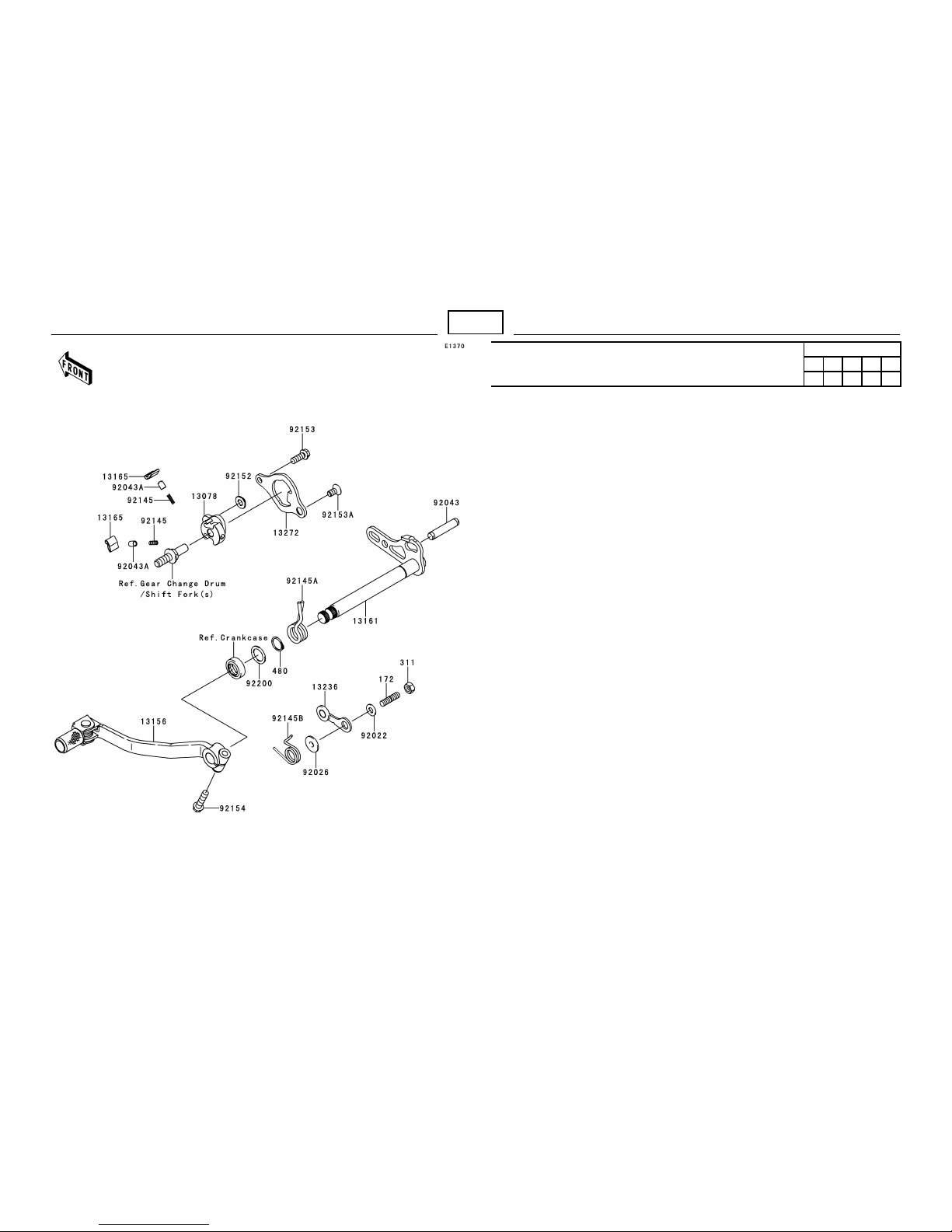

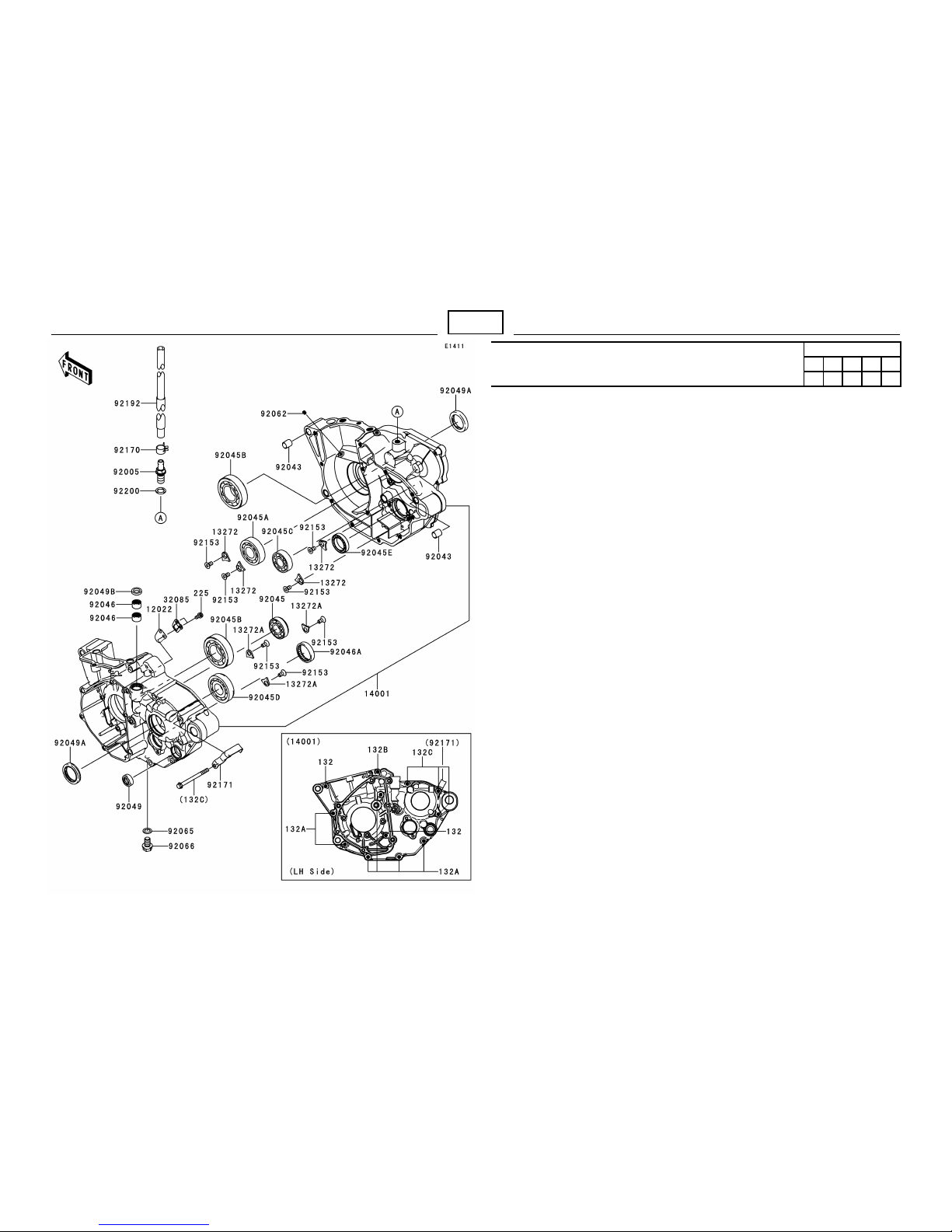

C-4 Gear Change Mechanism C-5 Crankcase

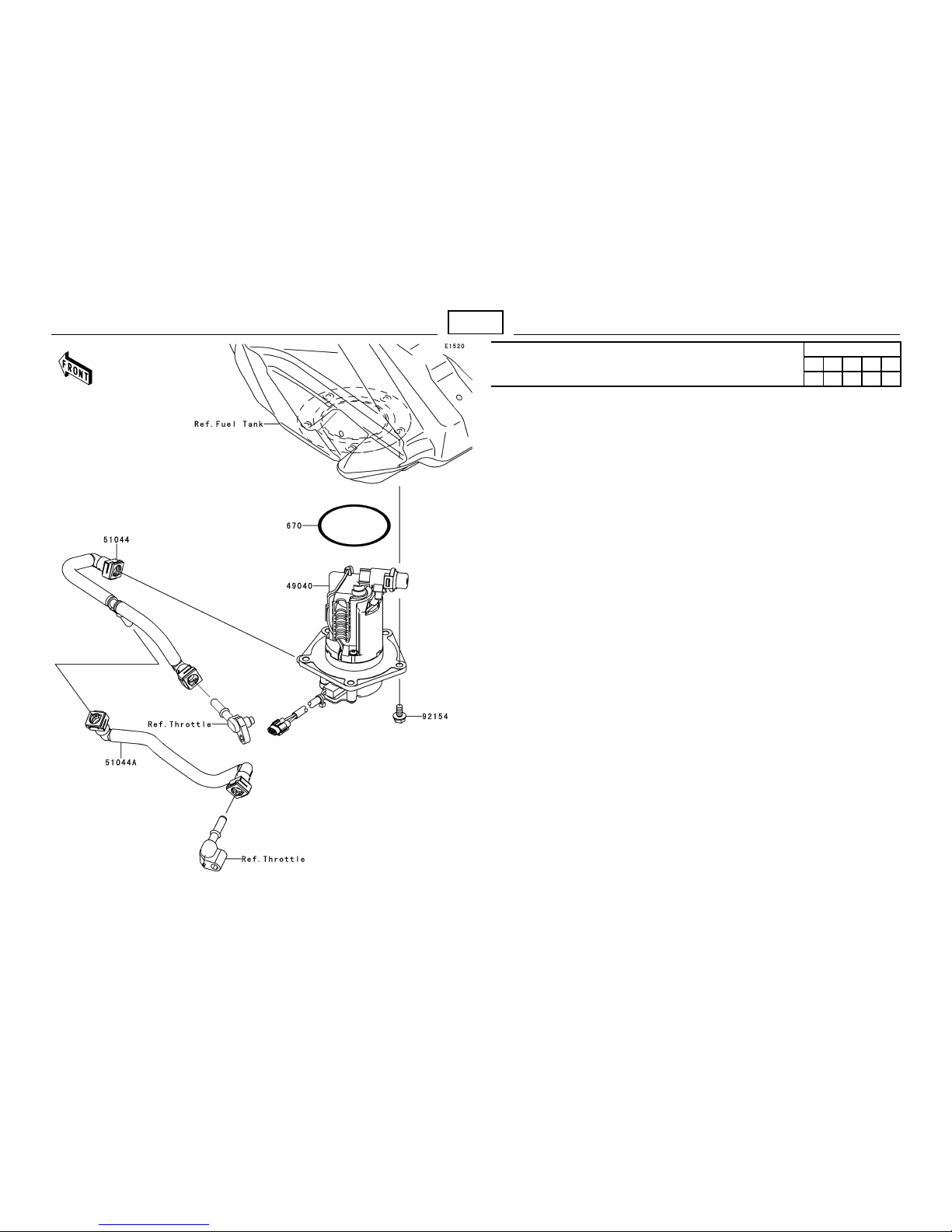

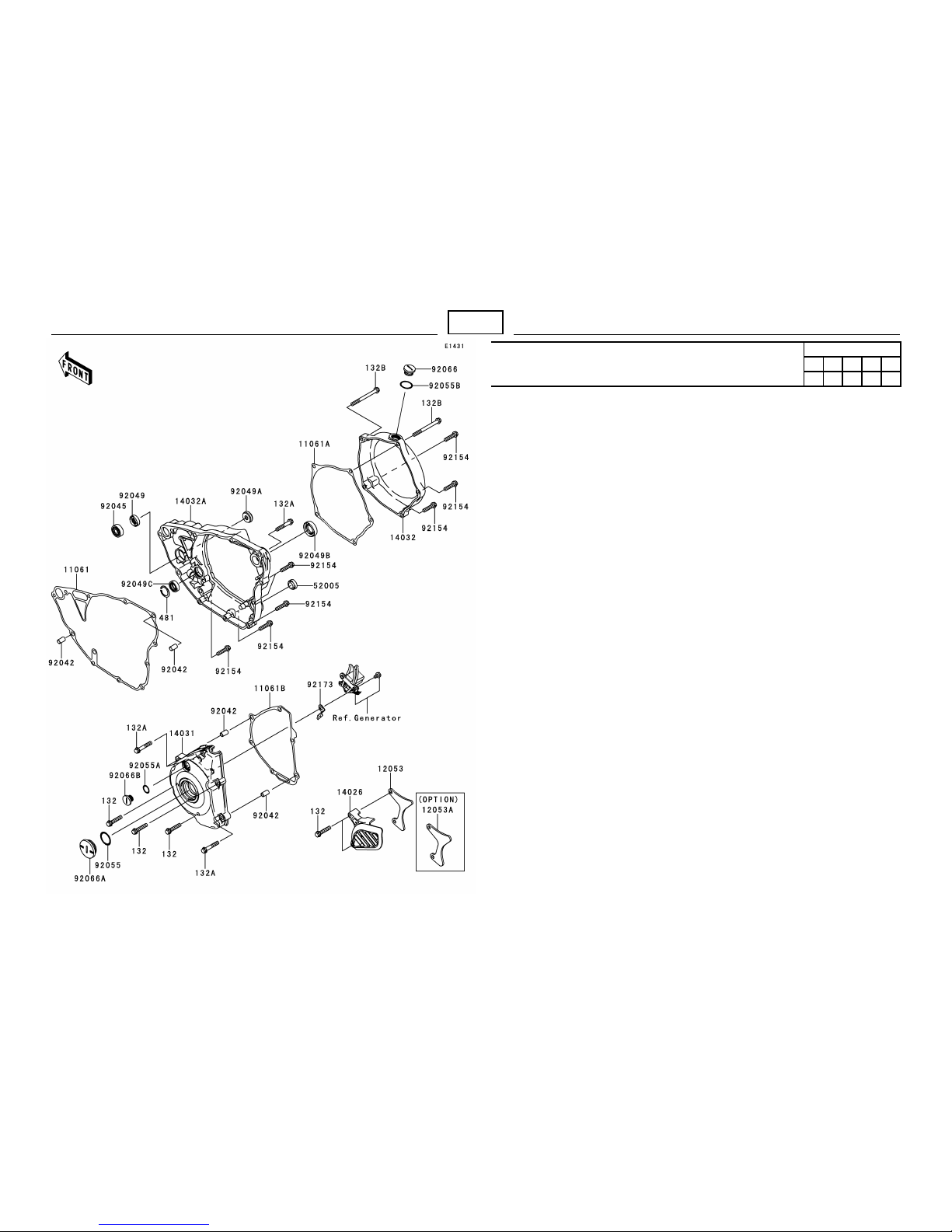

C-6 Engine Cover(s) C-7 Throttle C-8 Fuel Pump

This catalog covers:

GRID NO.

This grid covers:

’12 KX250YCF Engine C-2 Pictorial Index

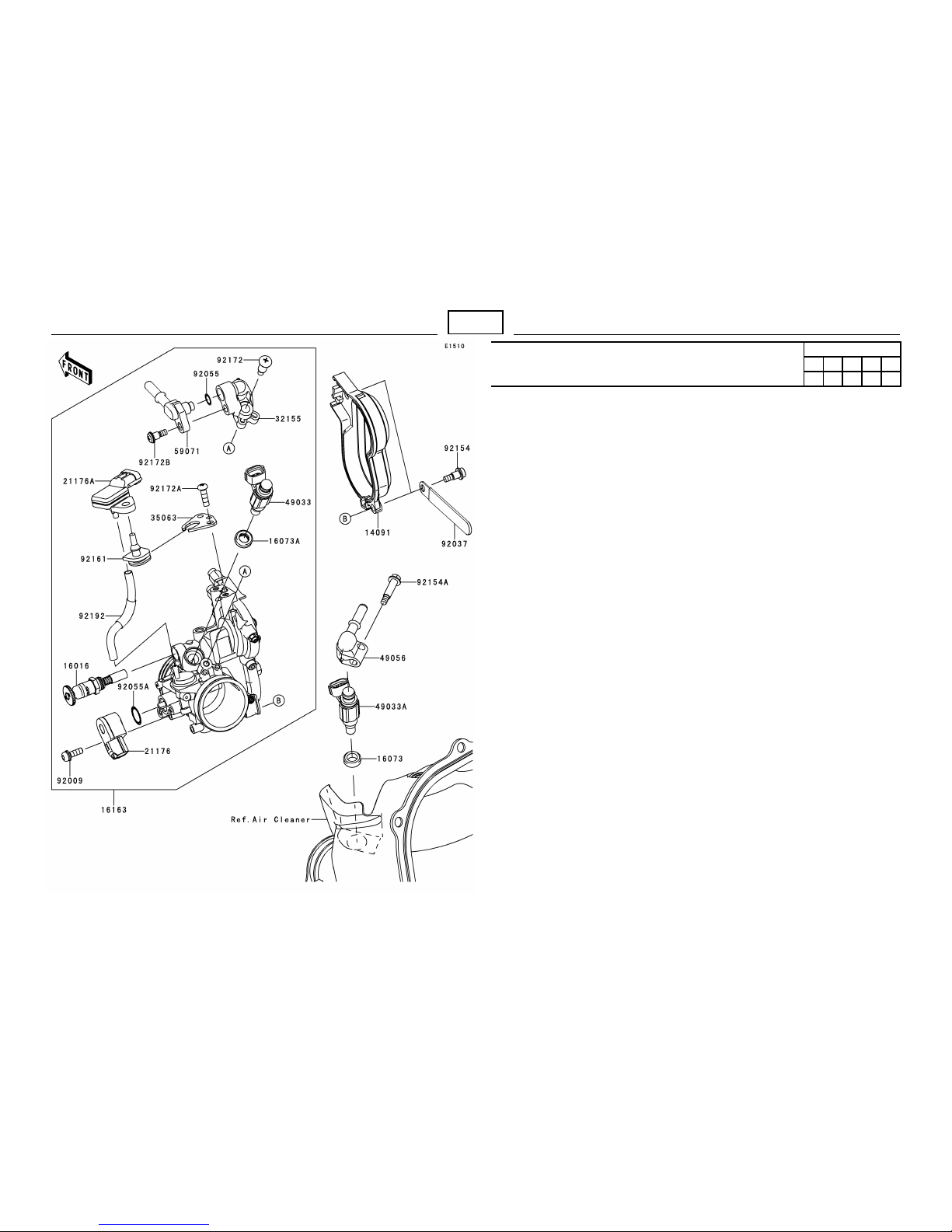

C-9

Fuel Injection

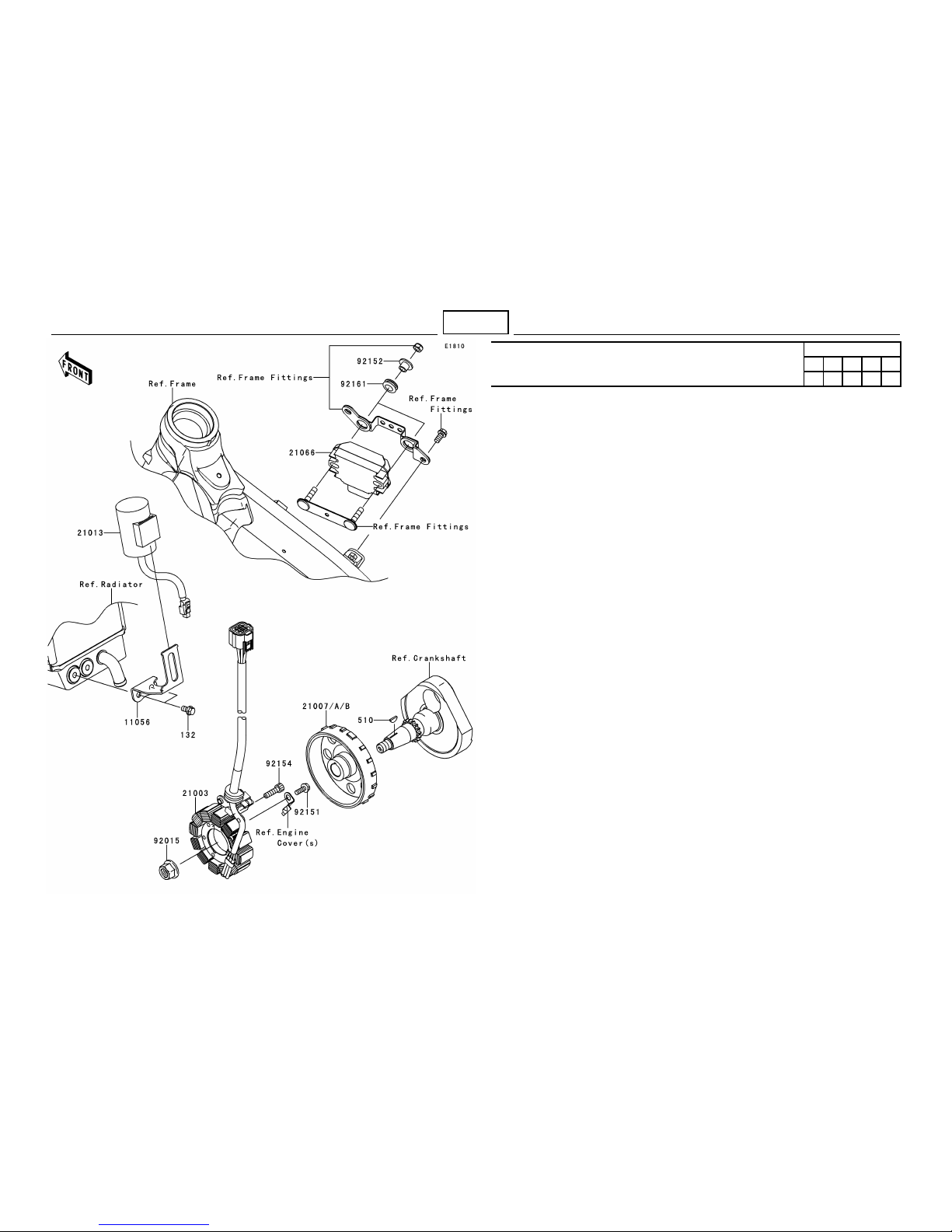

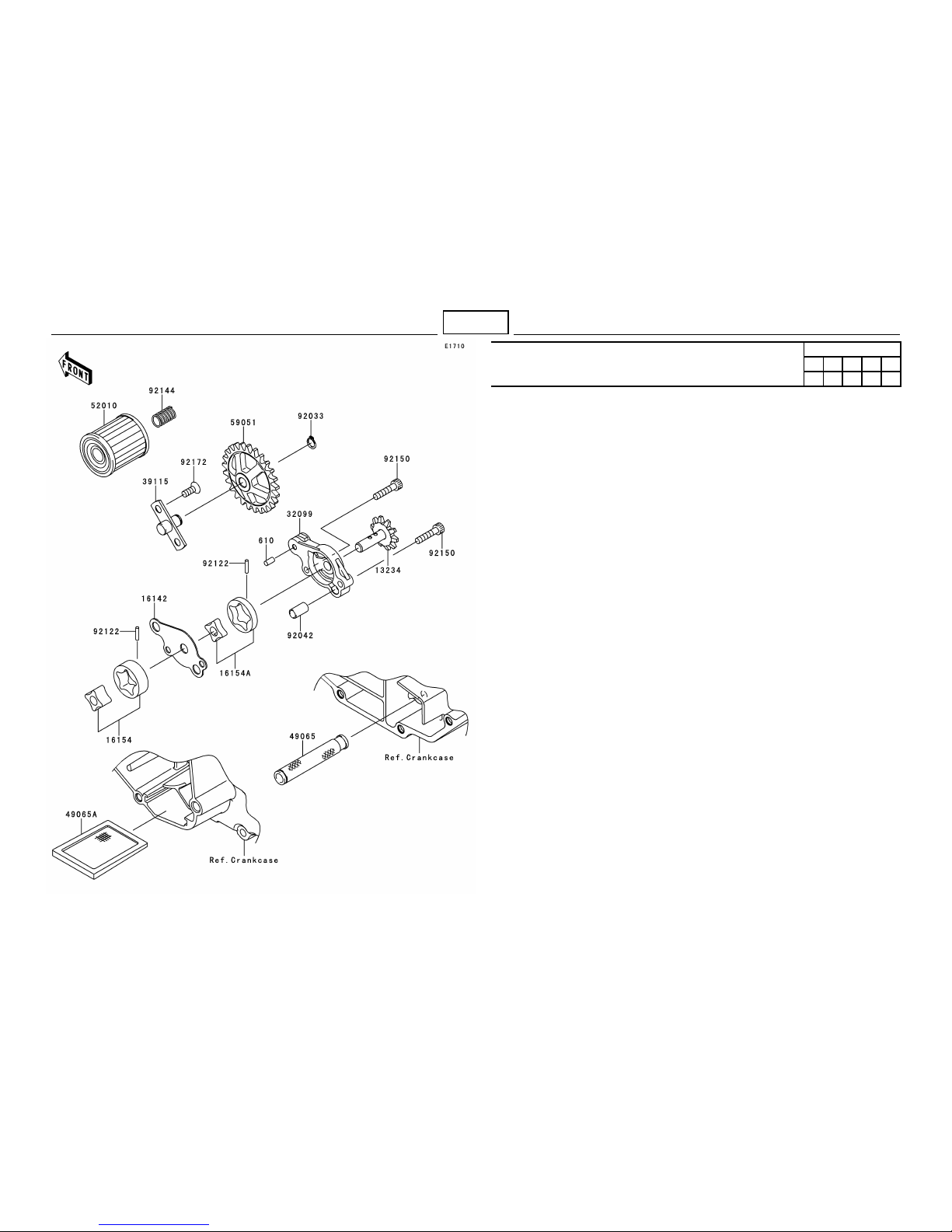

C-10 Oil Pump C-11 Generator

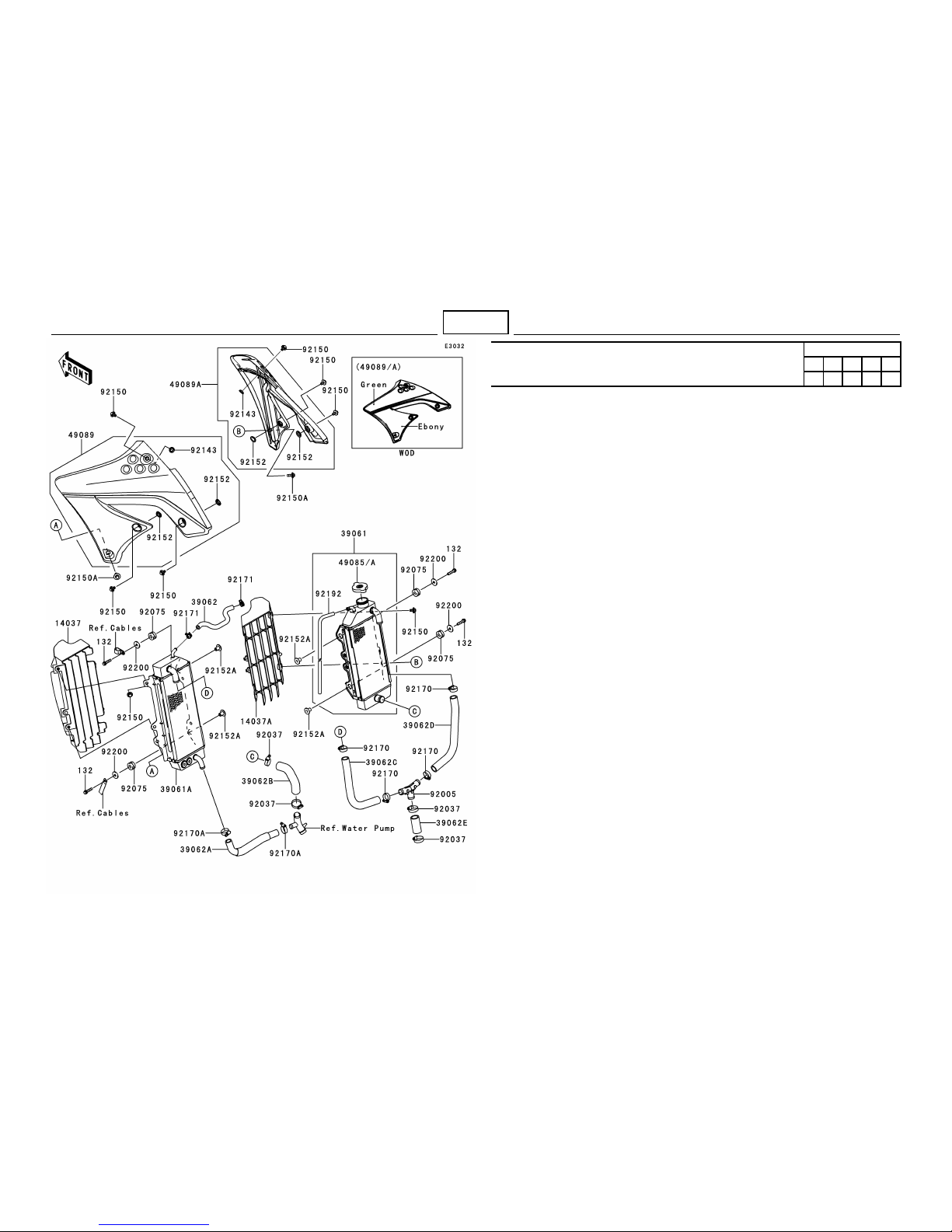

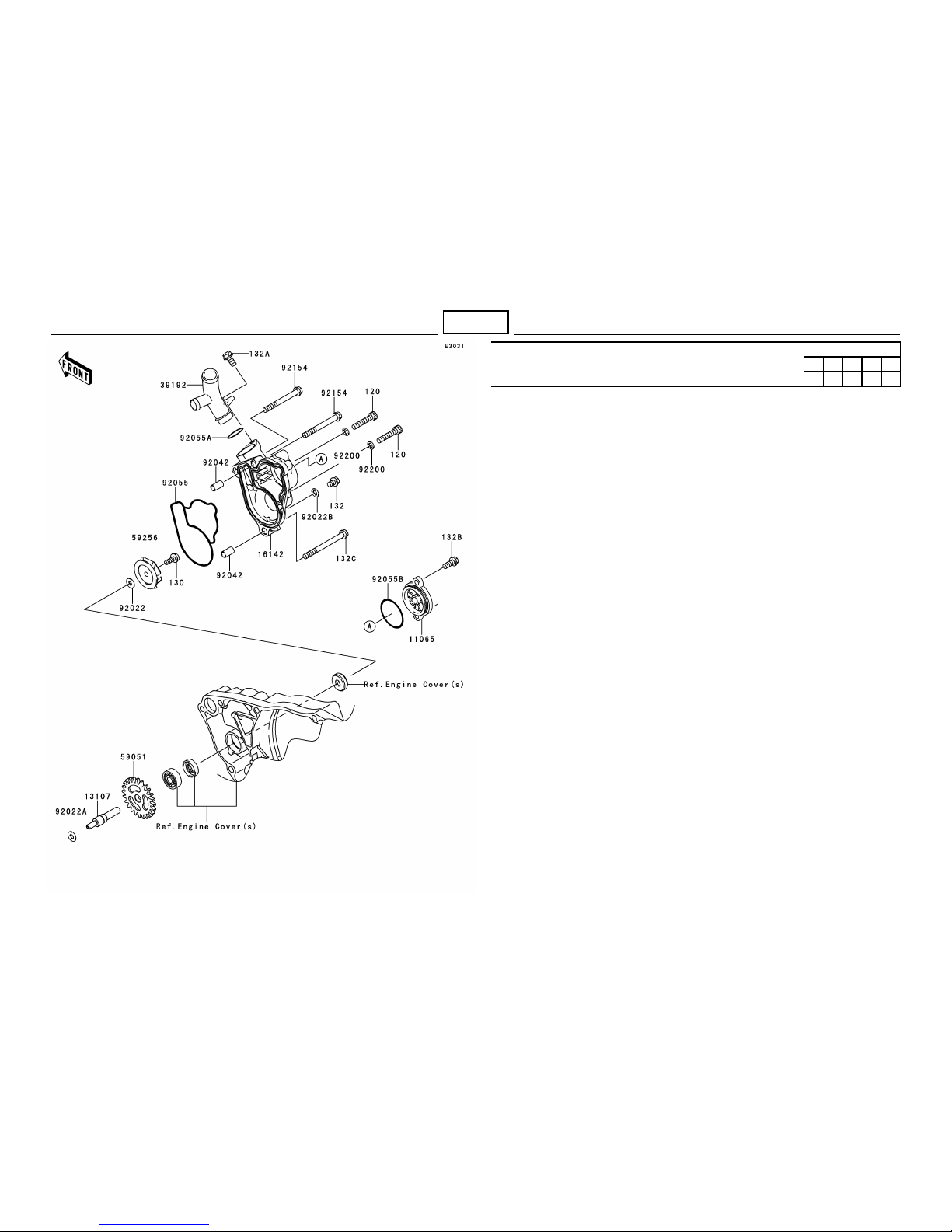

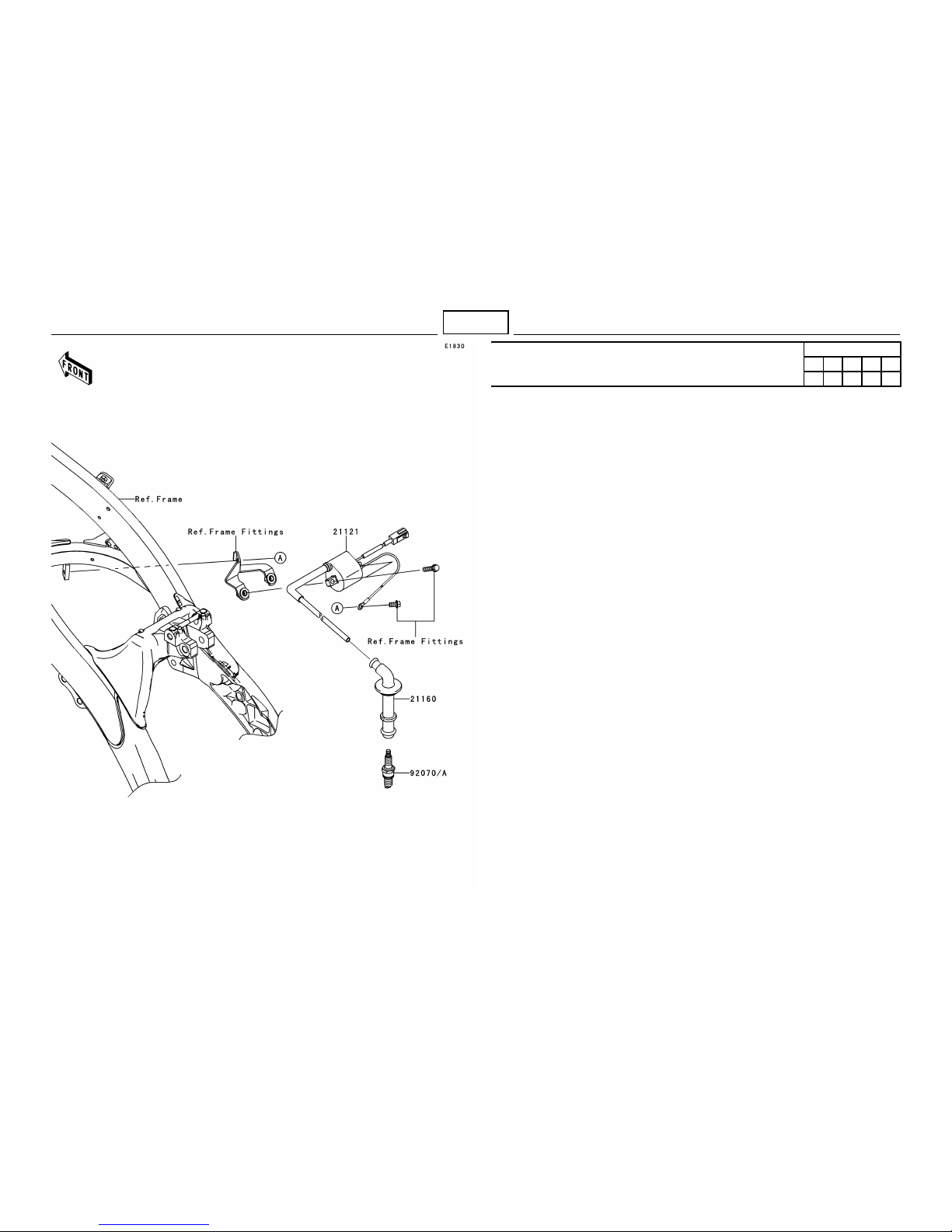

C-12 Ignition System C-13 Water Pump C-14 Radiator

This catalog covers:

GRID NO.

This grid covers:

’12 KX250YCF Chassis D-1 Pictorial Index

D-3

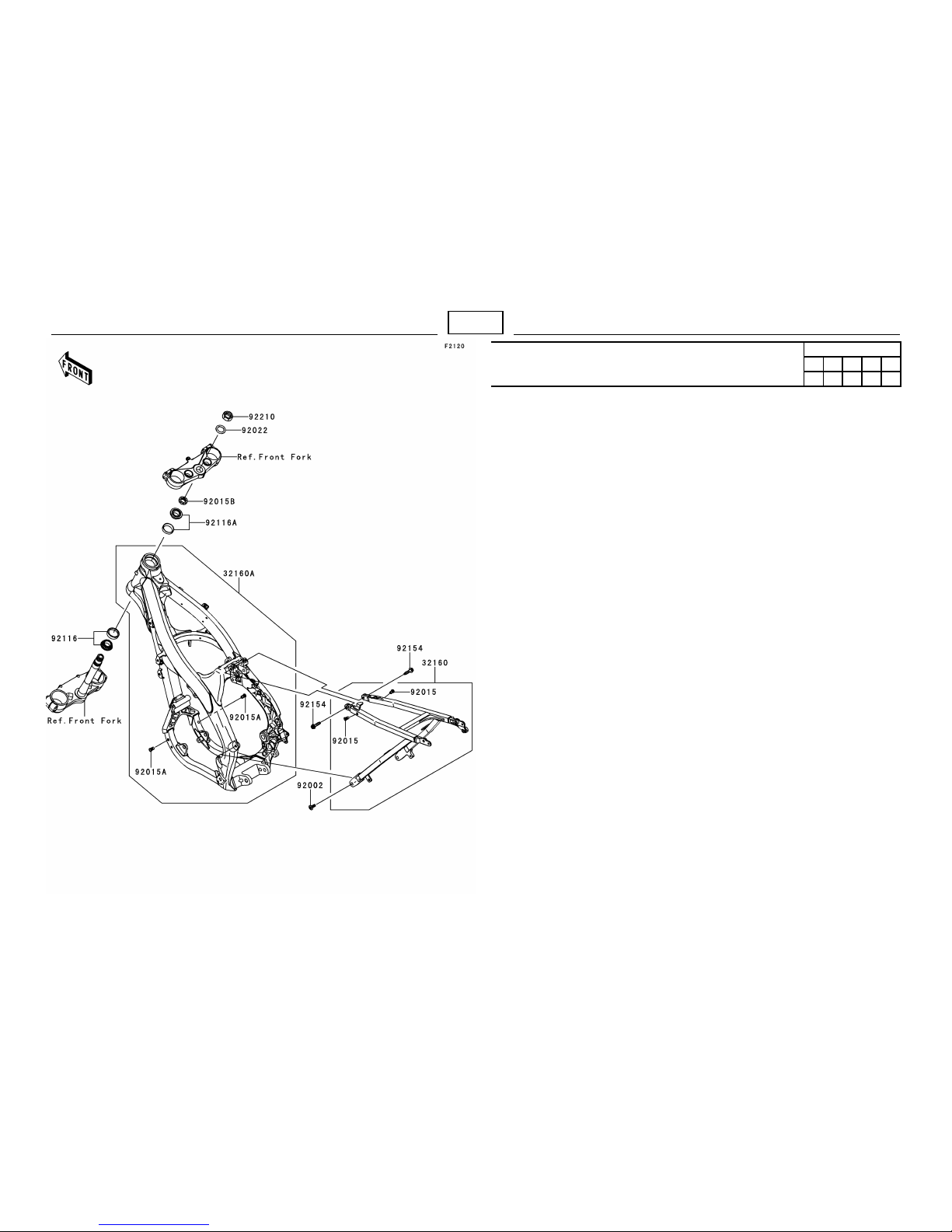

Frame

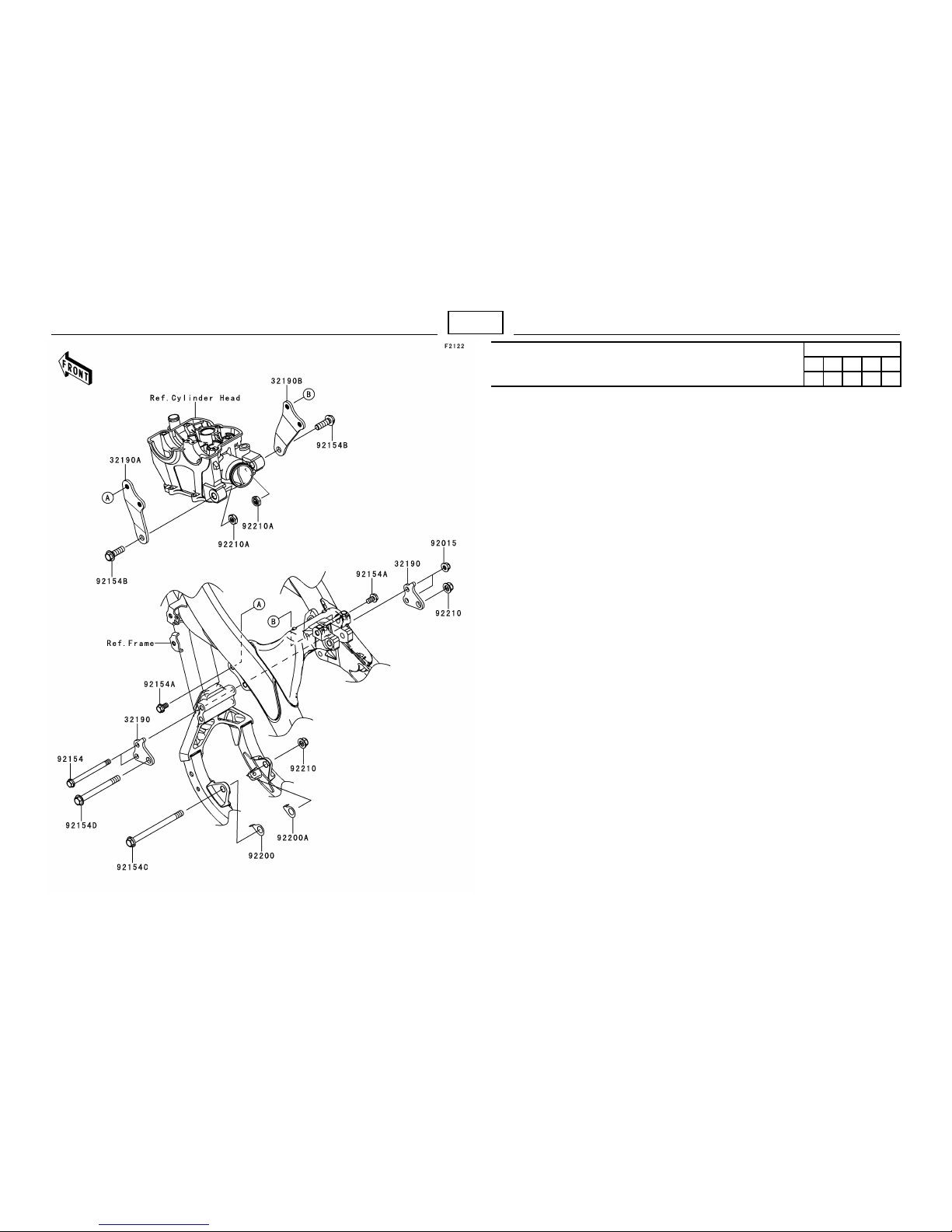

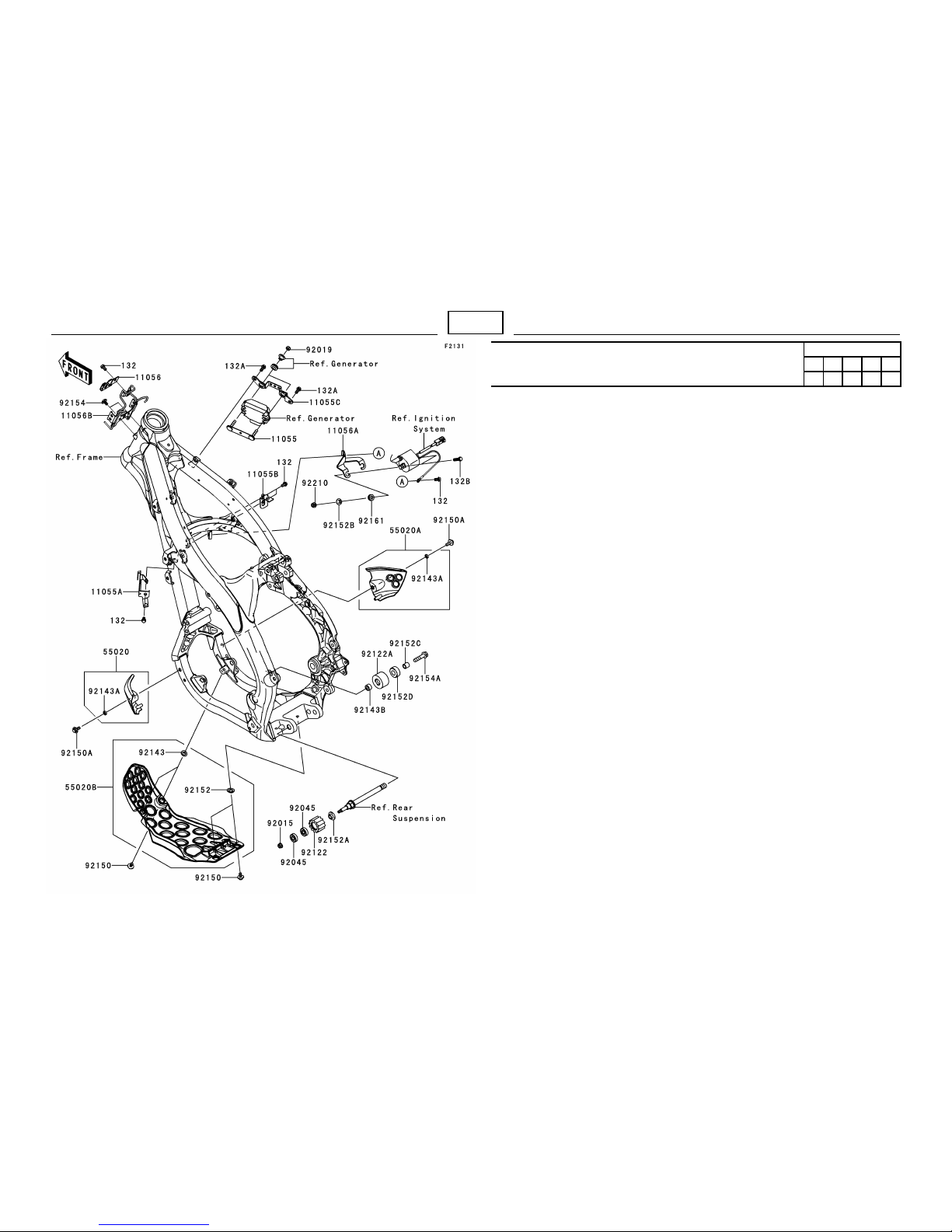

D-4 Engine Mount D-5 Frame Fittings

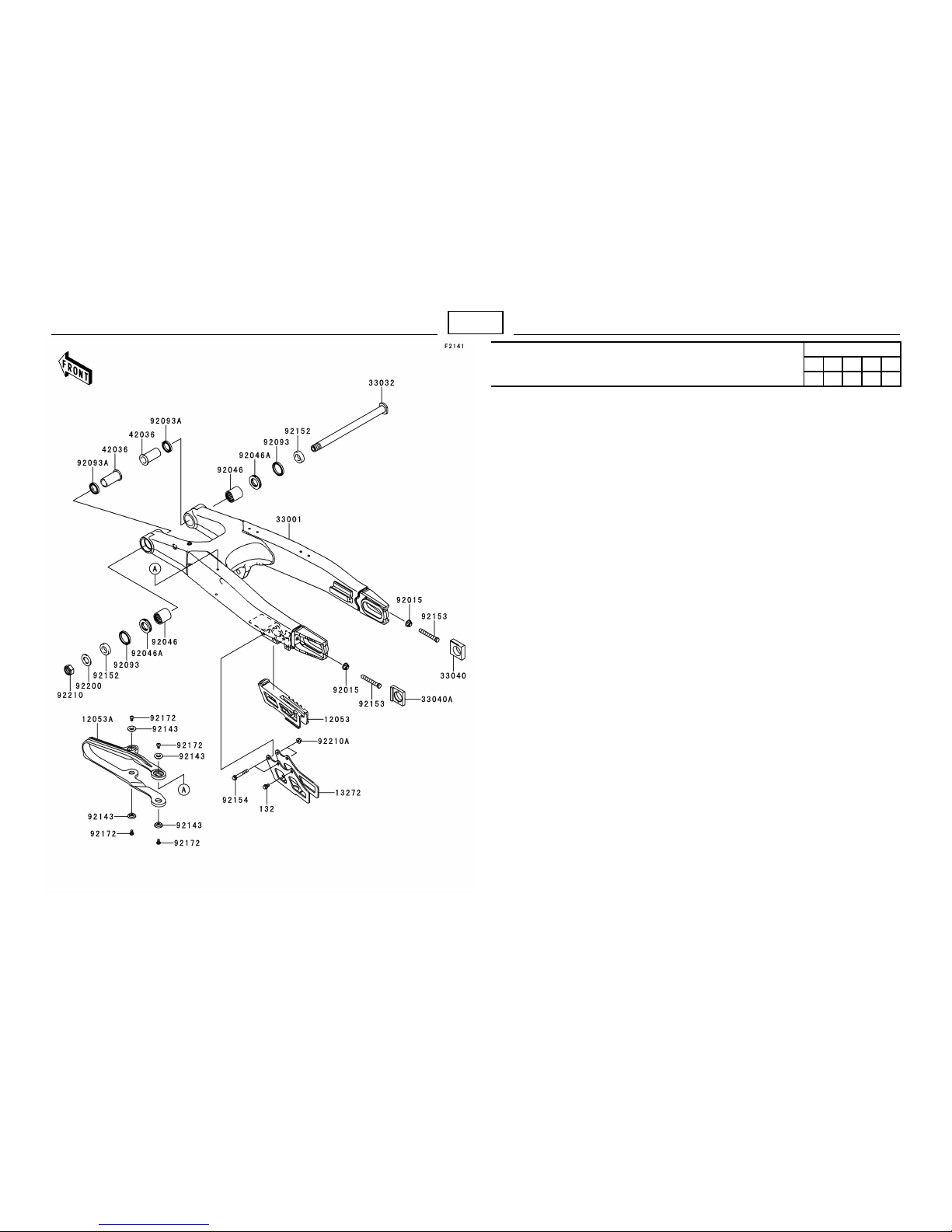

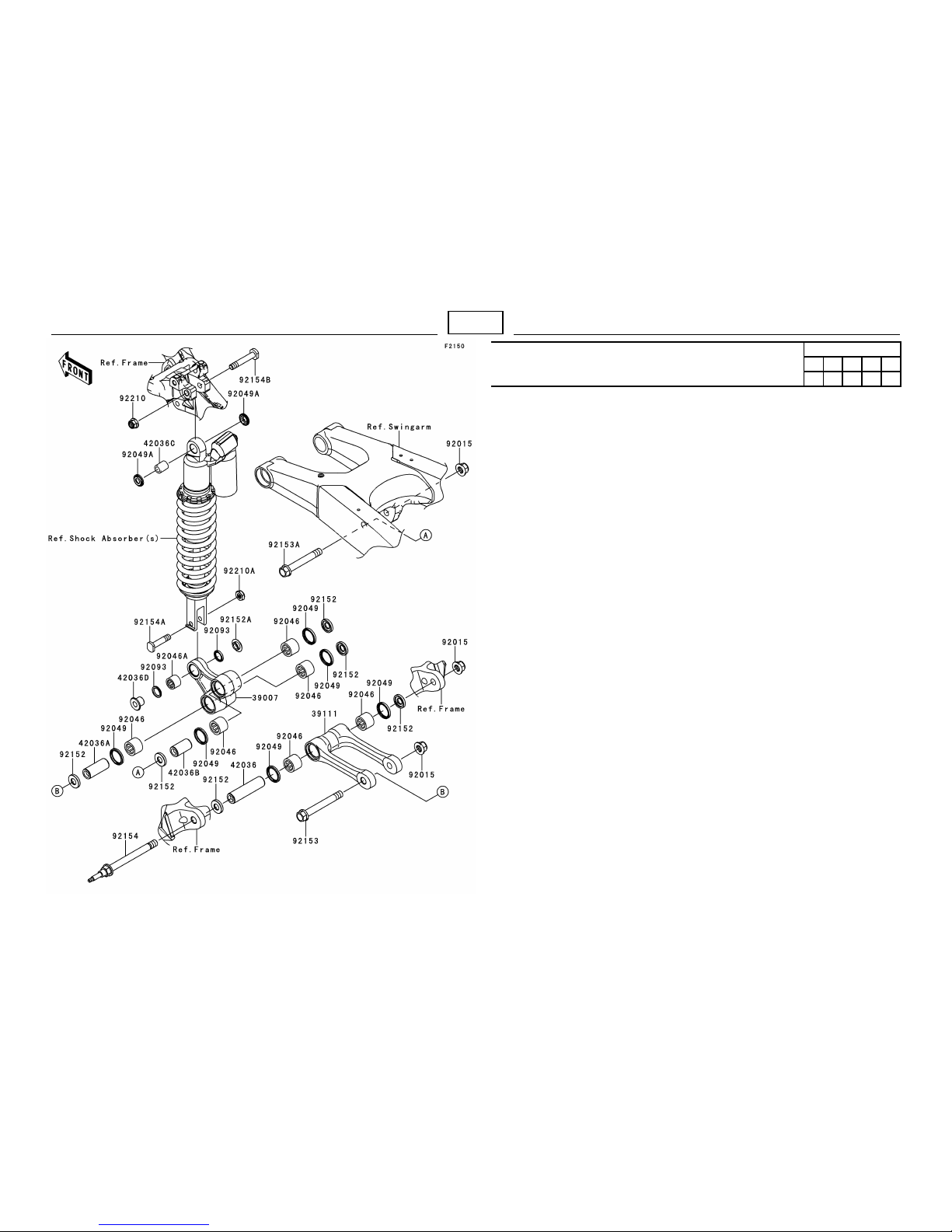

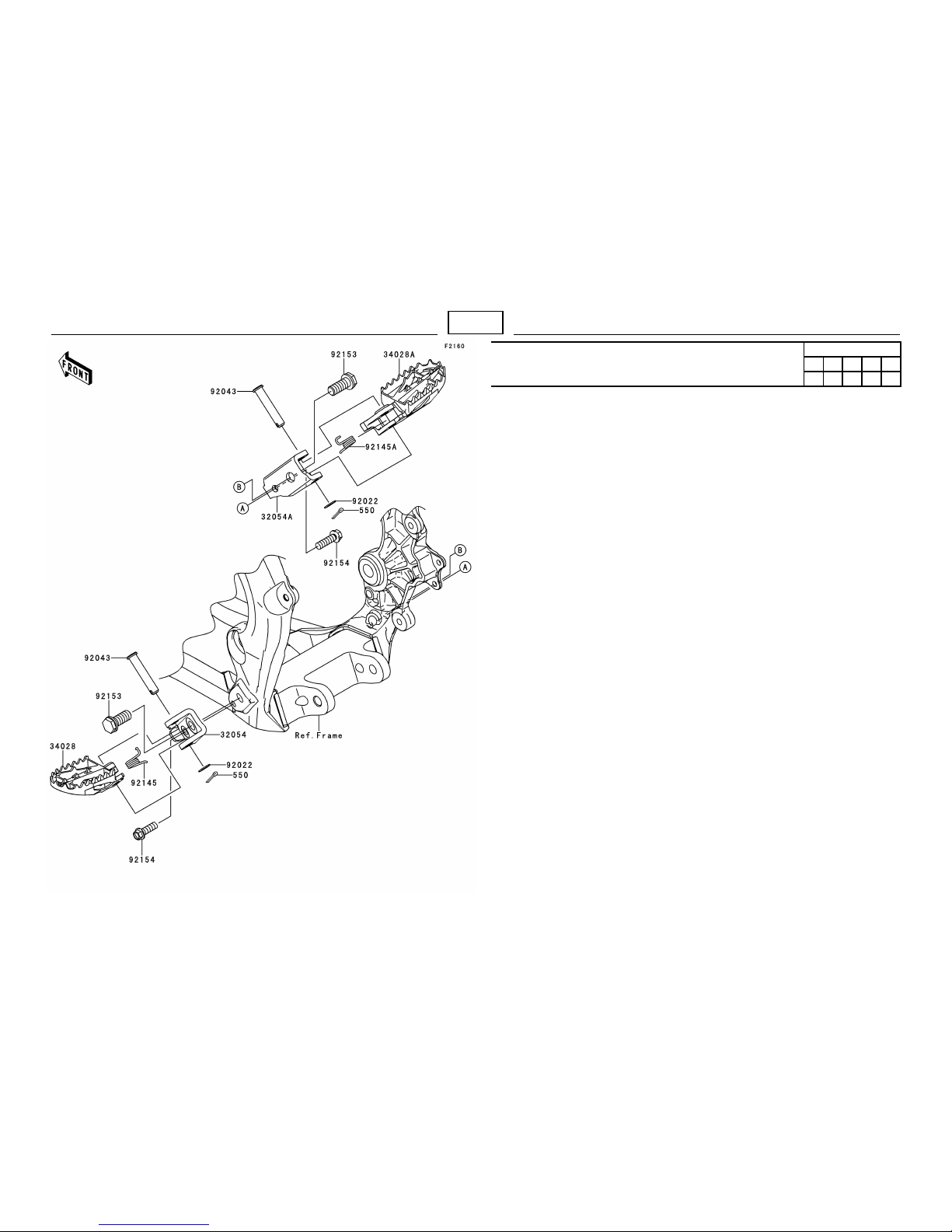

D-6 Swingarm D-7 Suspension D-8 Footrests

This catalog covers:

GRID NO.

This grid covers:

’12 KX250YCF Chassis D-2 Pictorial Index

D-9

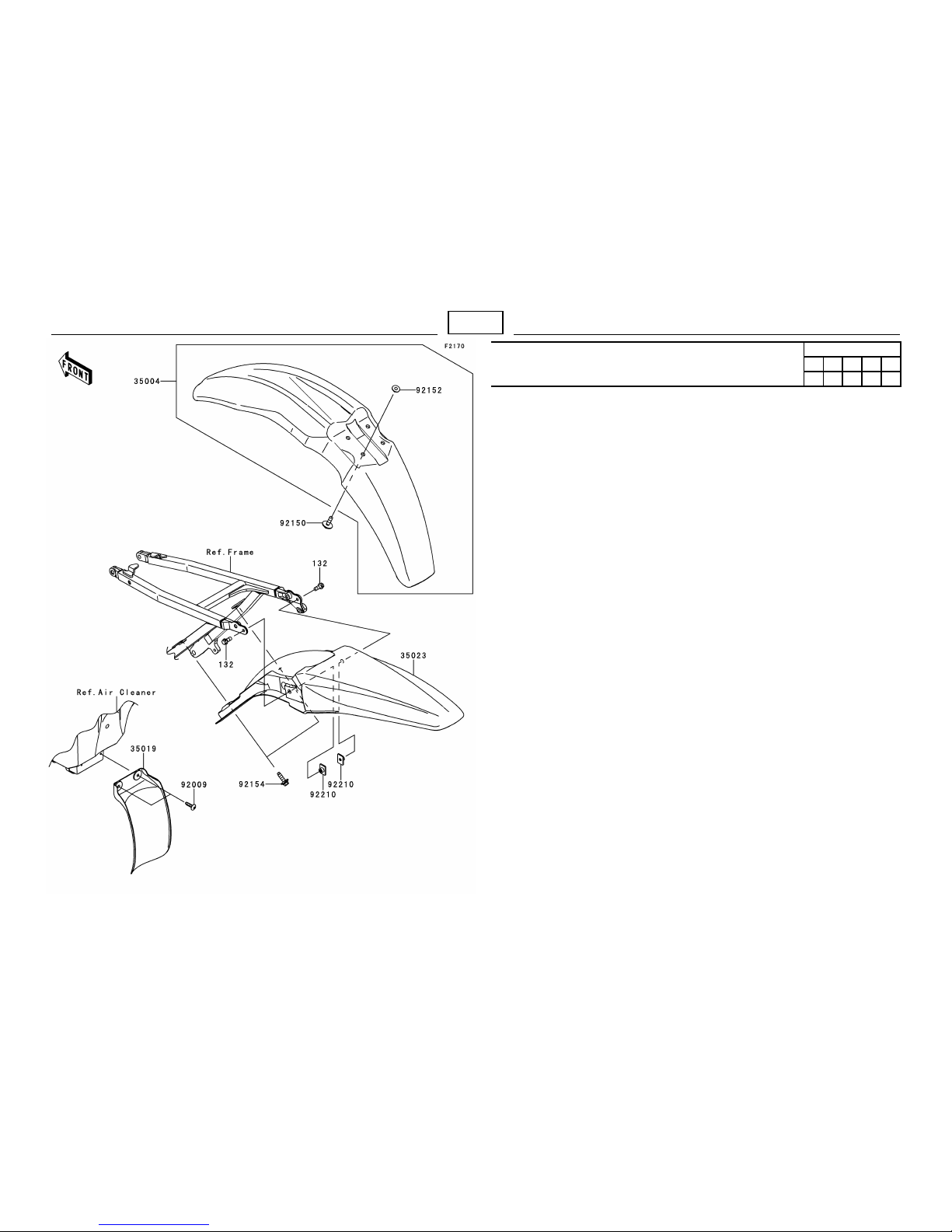

Fenders

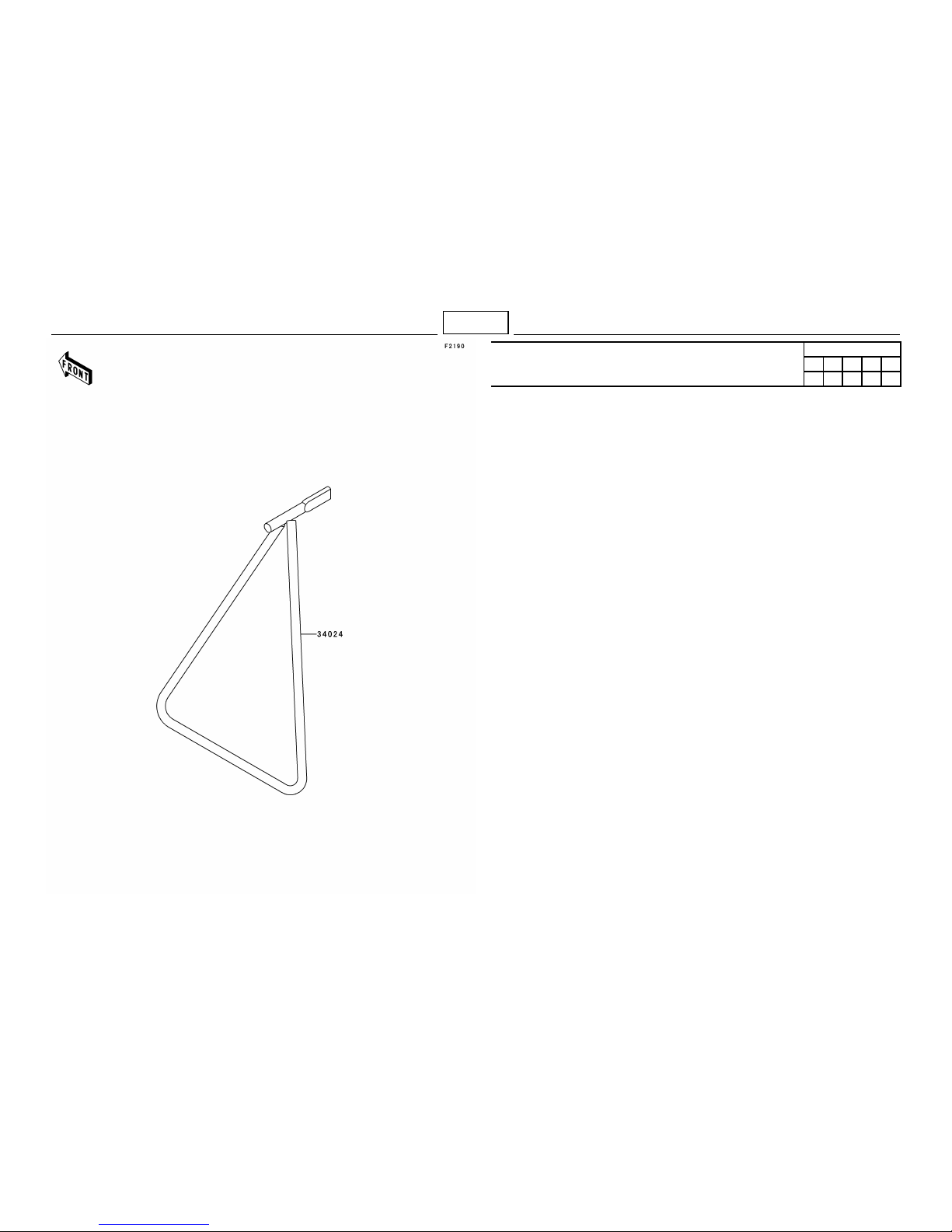

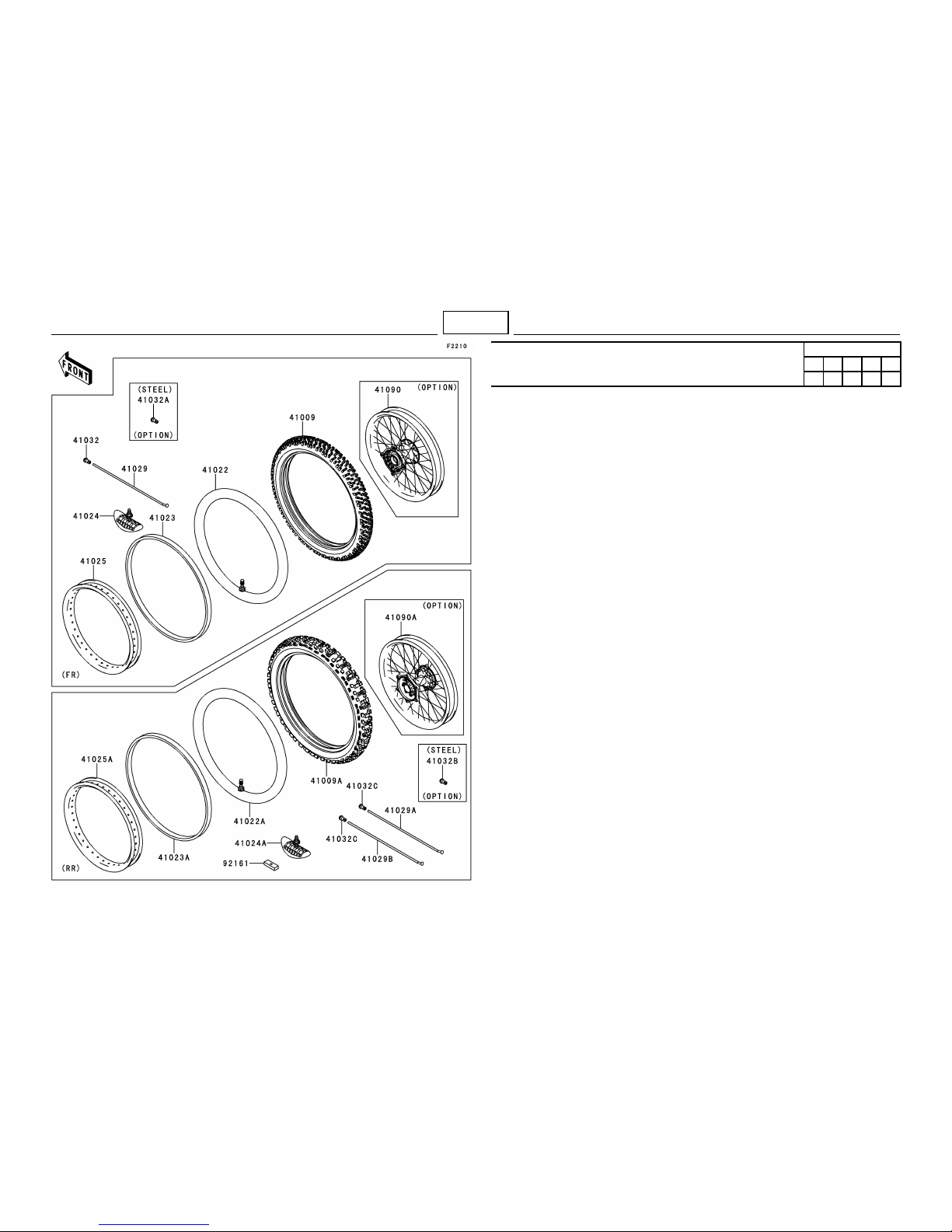

D-10 Stand(s) D-11 Tires

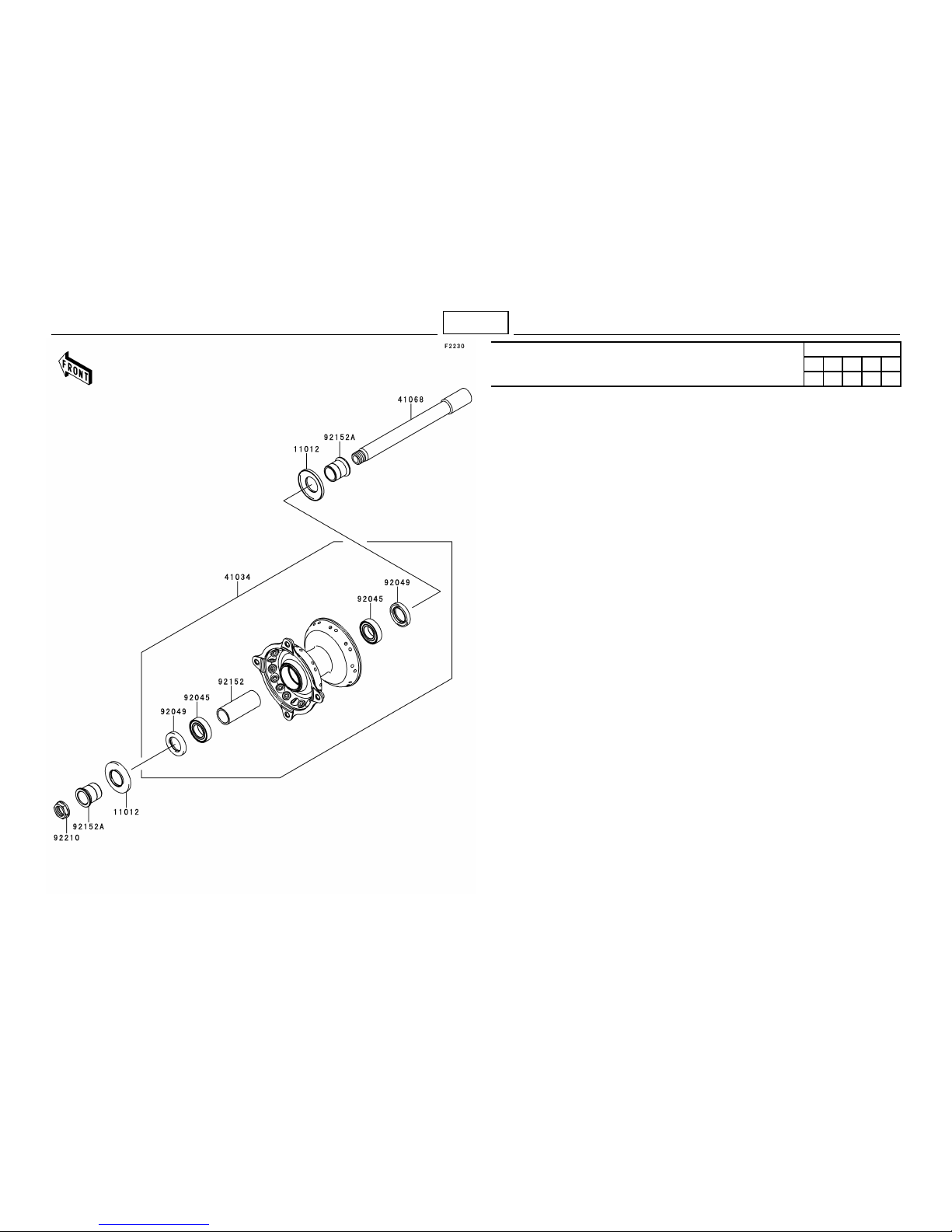

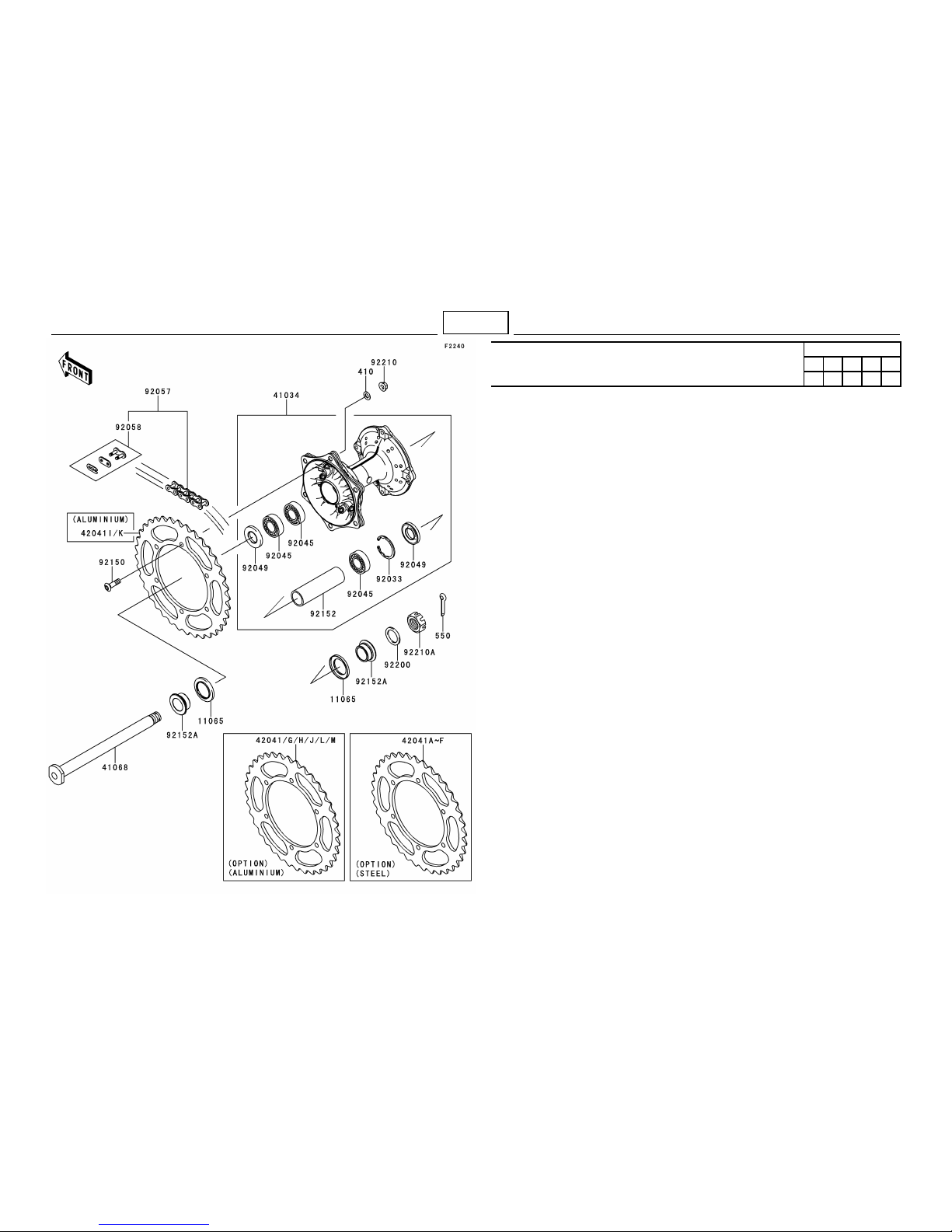

D-12 Front Hub D-13 Rear Hub(1/2) D-14 Rear Hub(2/2)

This catalog covers:

GRID NO.

This grid covers:

’12 KX250YCF Chassis E-1 Pictorial Index

E-3

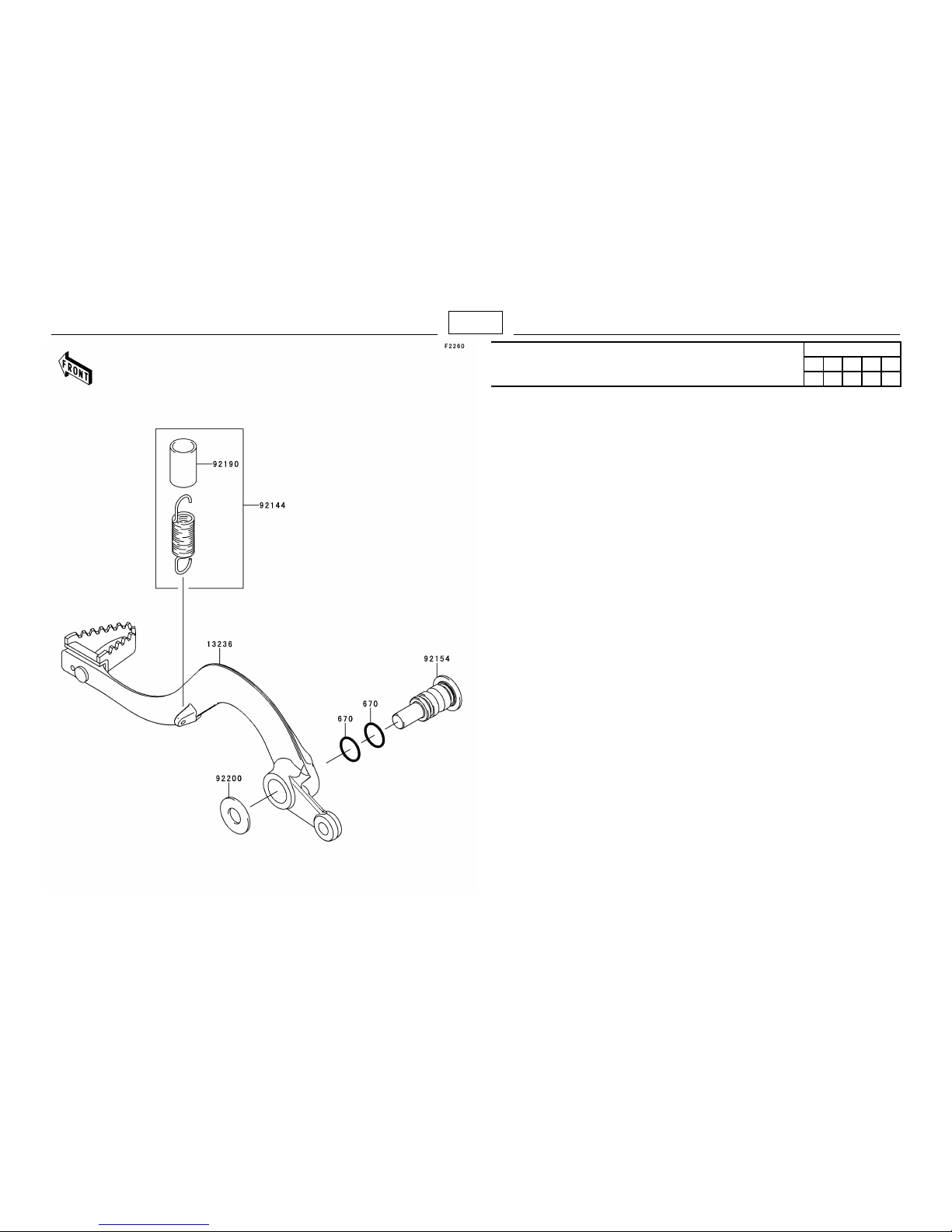

Brake Pedal

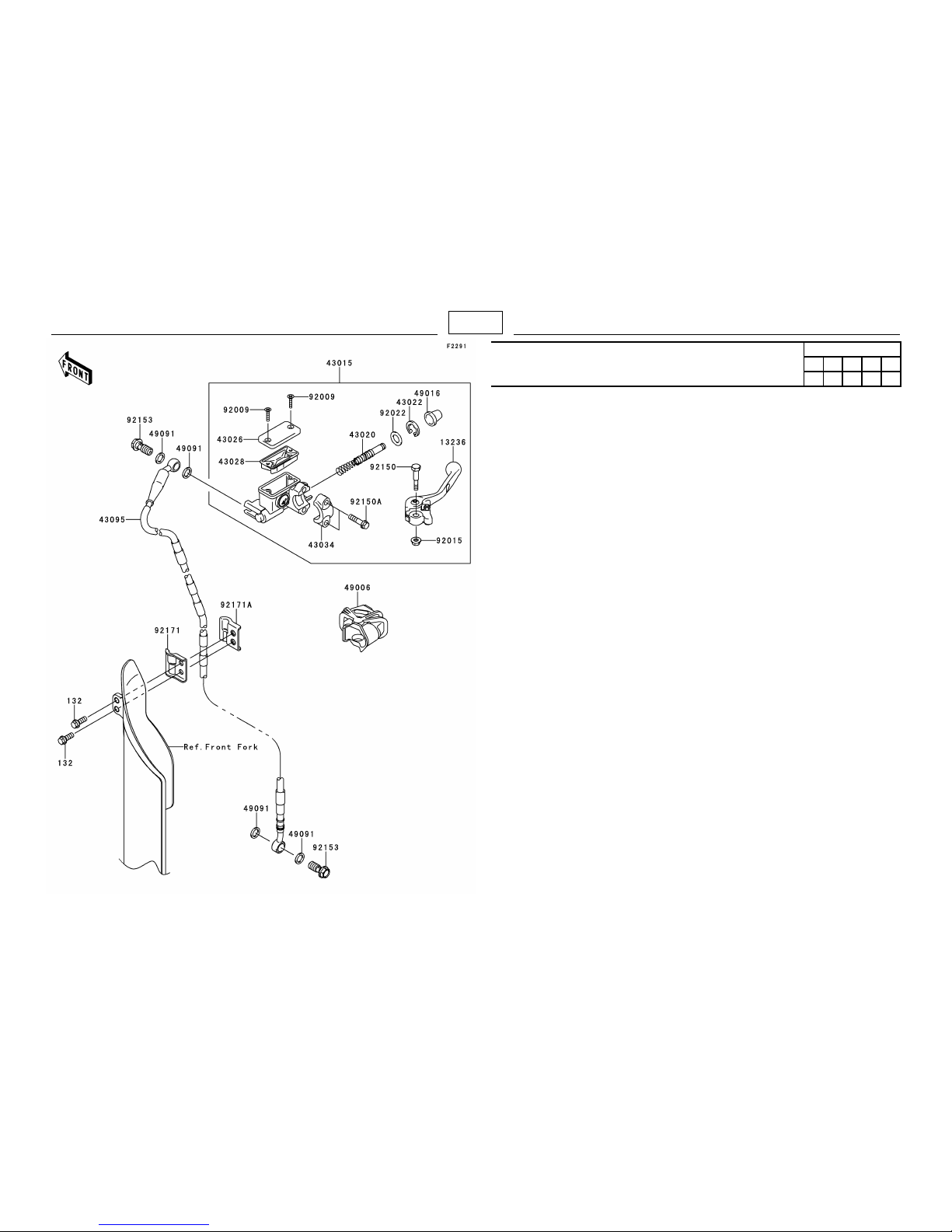

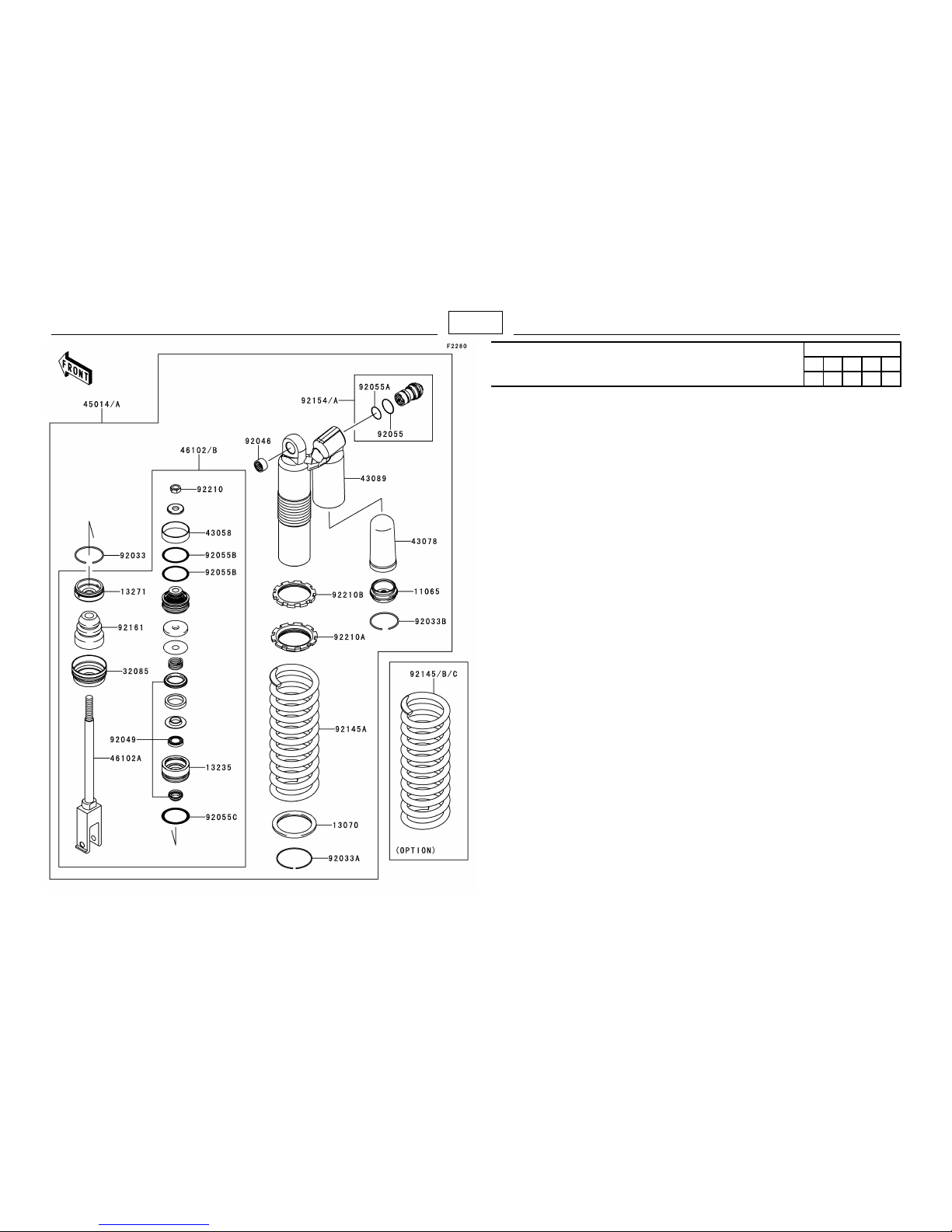

E-4 Shock Absorber(s) E-5 Front Master Cylinder

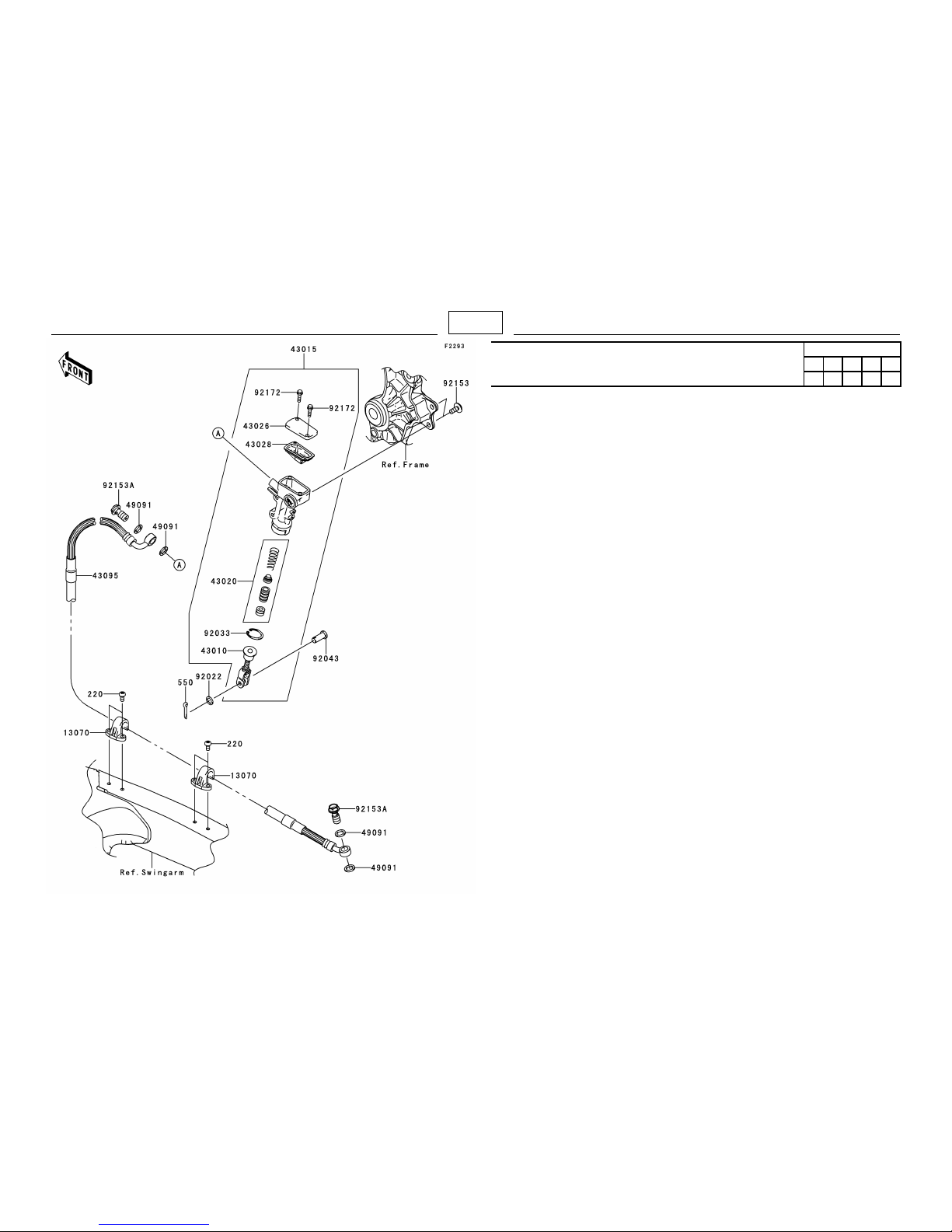

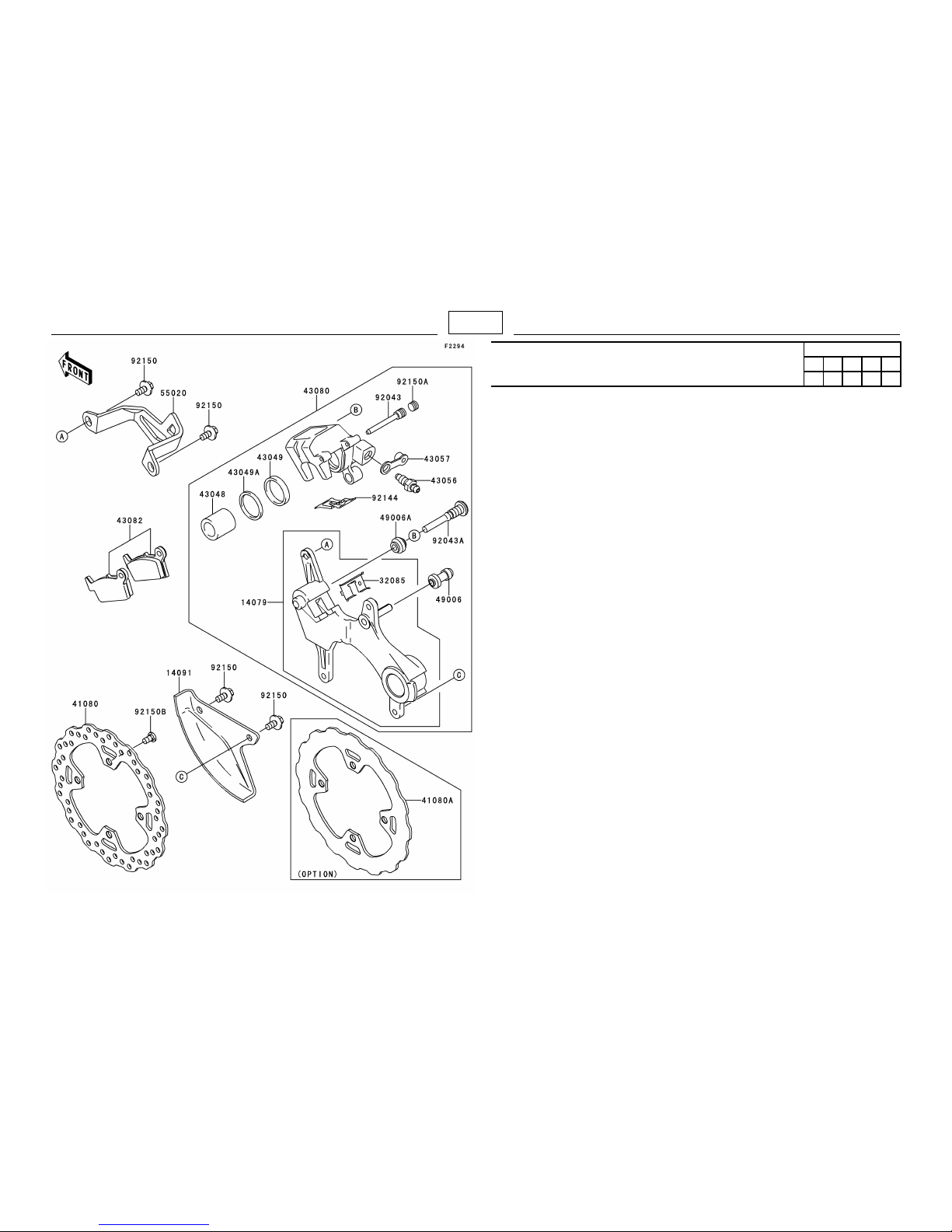

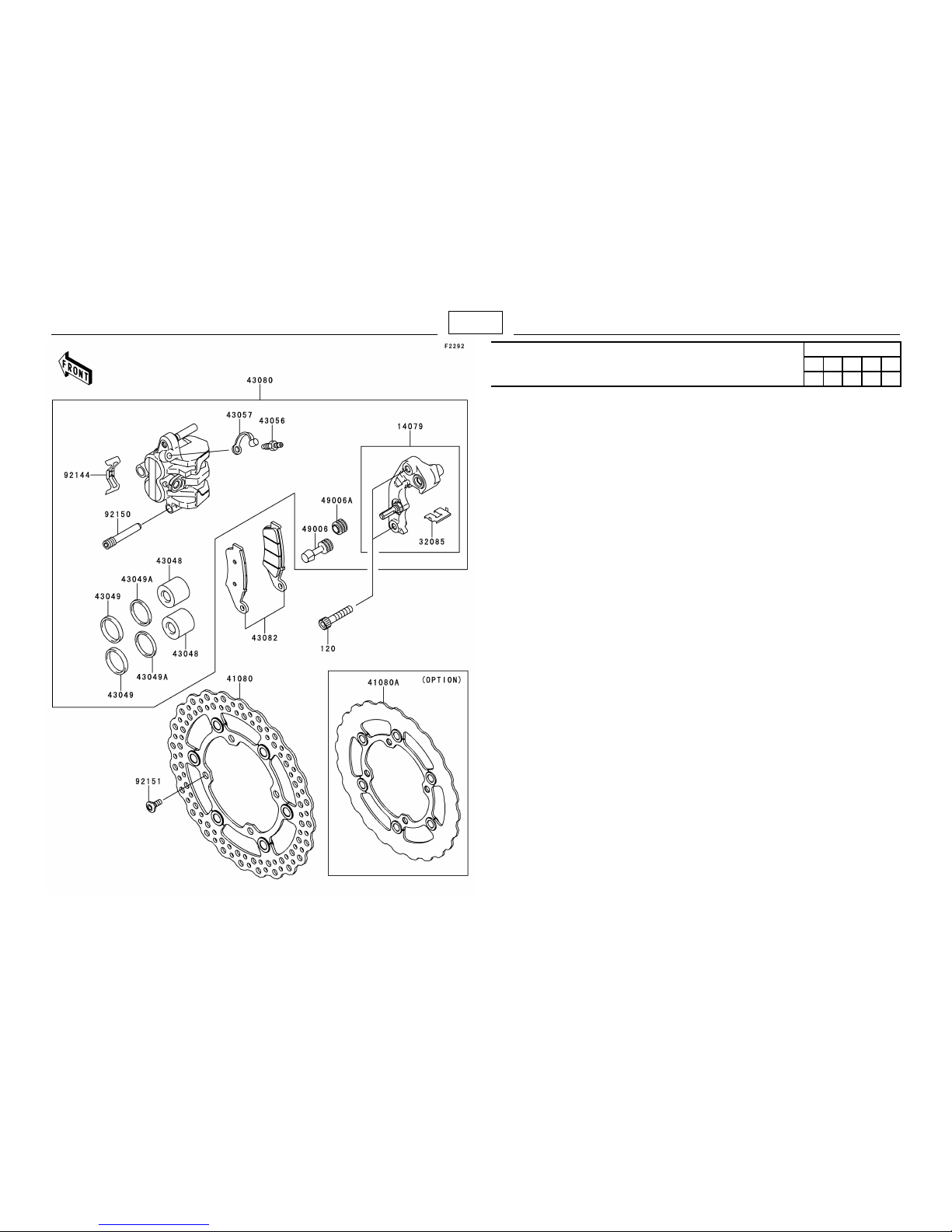

E-6 Front Brake E-7 Rear Master Cylinder E-8 Rear Brake

This catalog covers:

GRID NO.

This grid covers:

’12 KX250YCF Chassis E-2 Pictorial Index

E-9

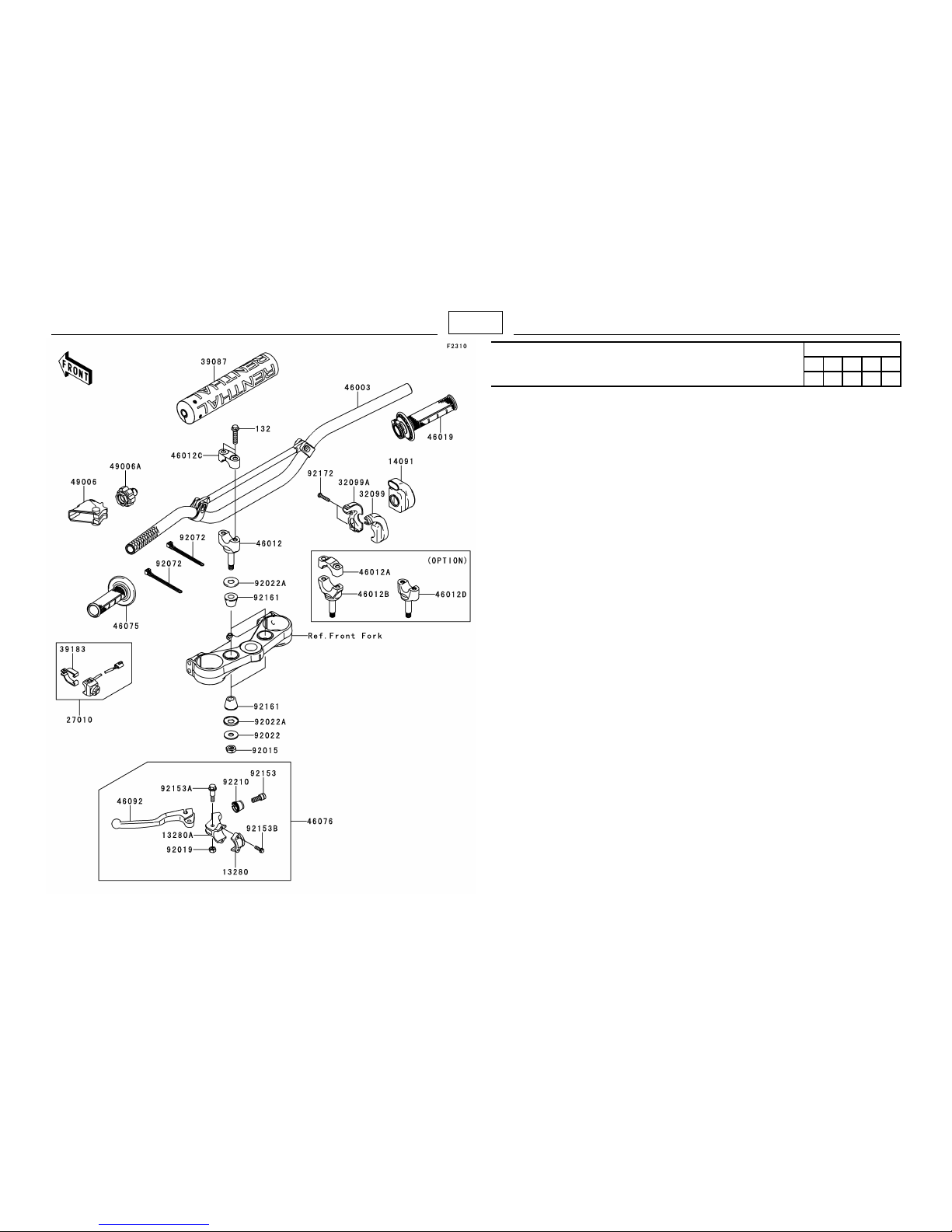

Handlebar

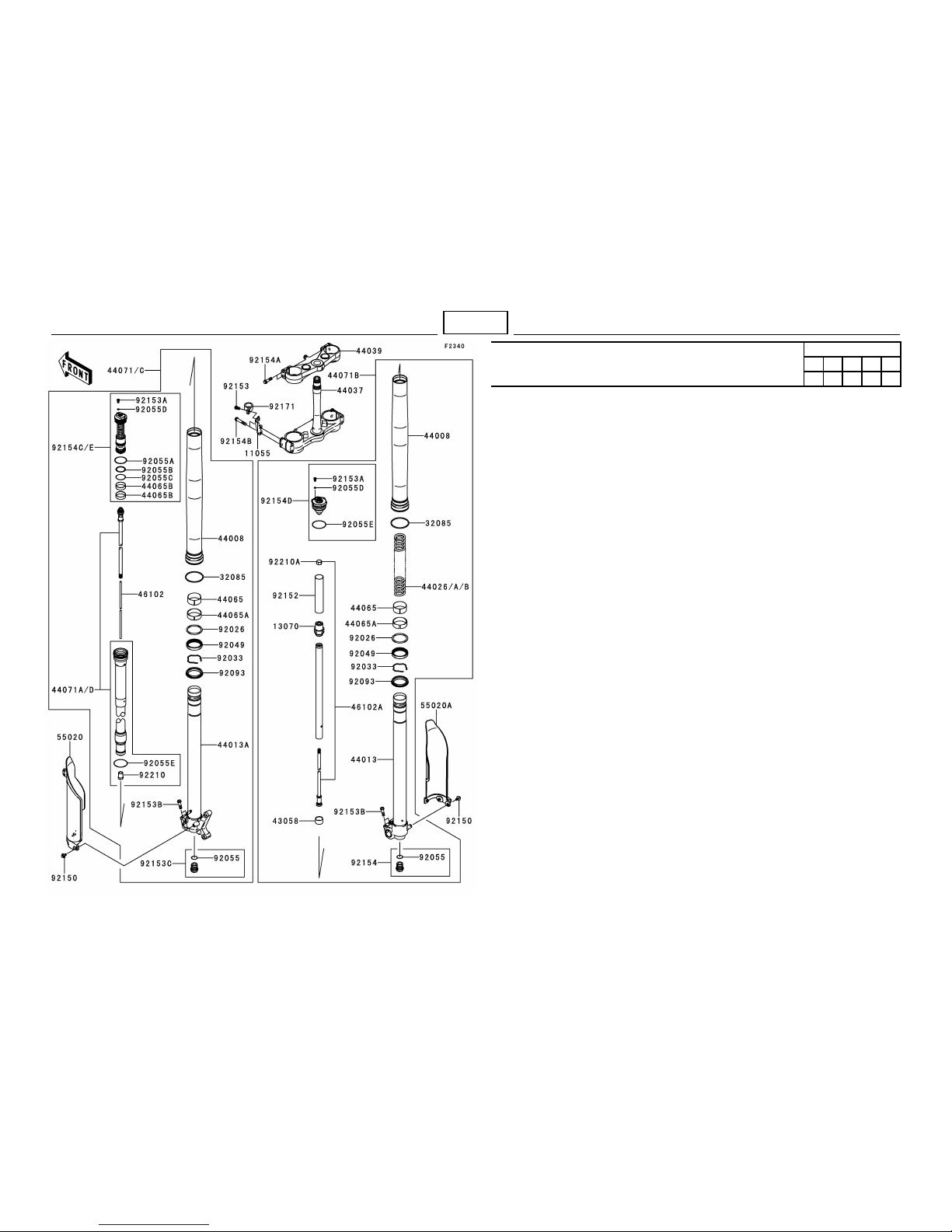

E-10 Front Fork(1/2) E-11 Front Fork(2/2)

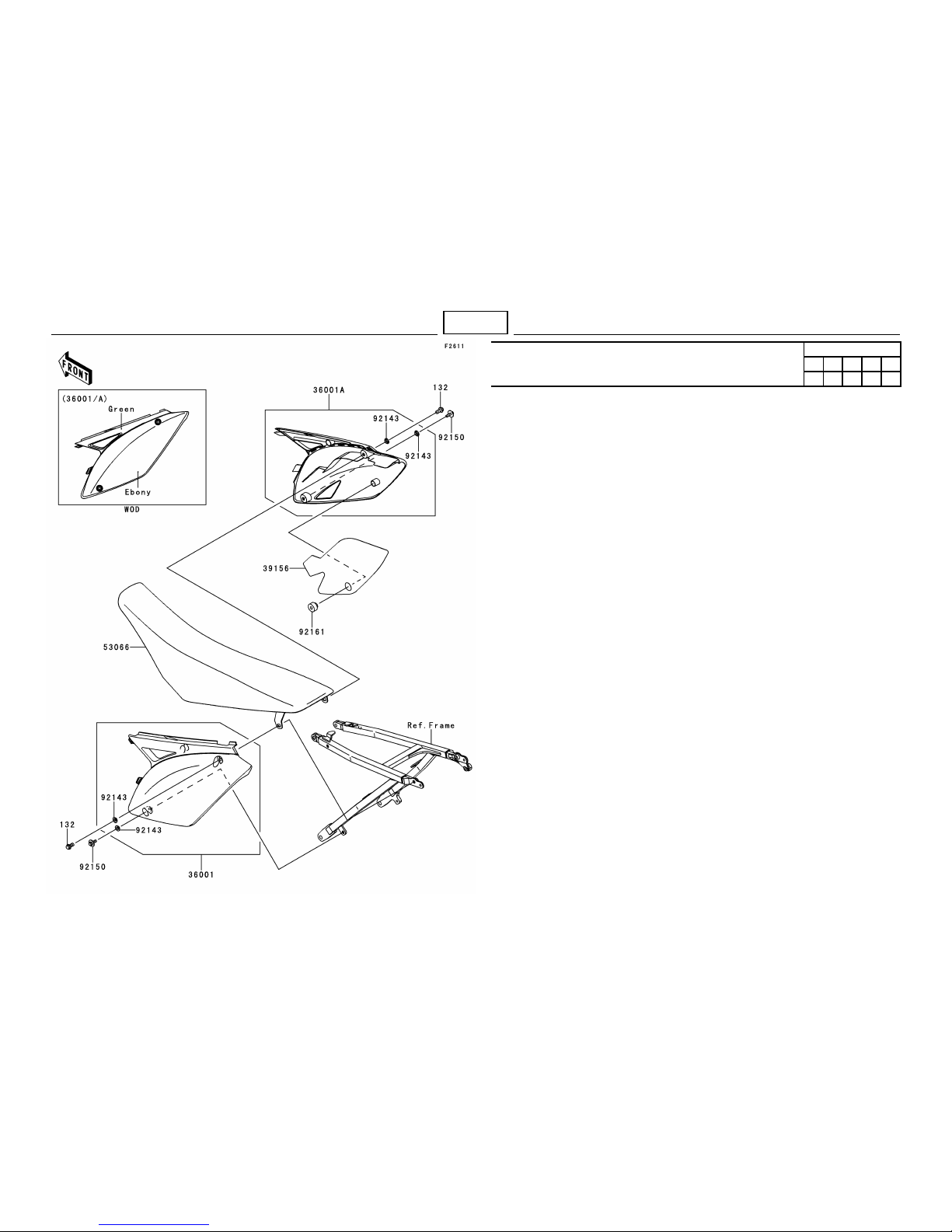

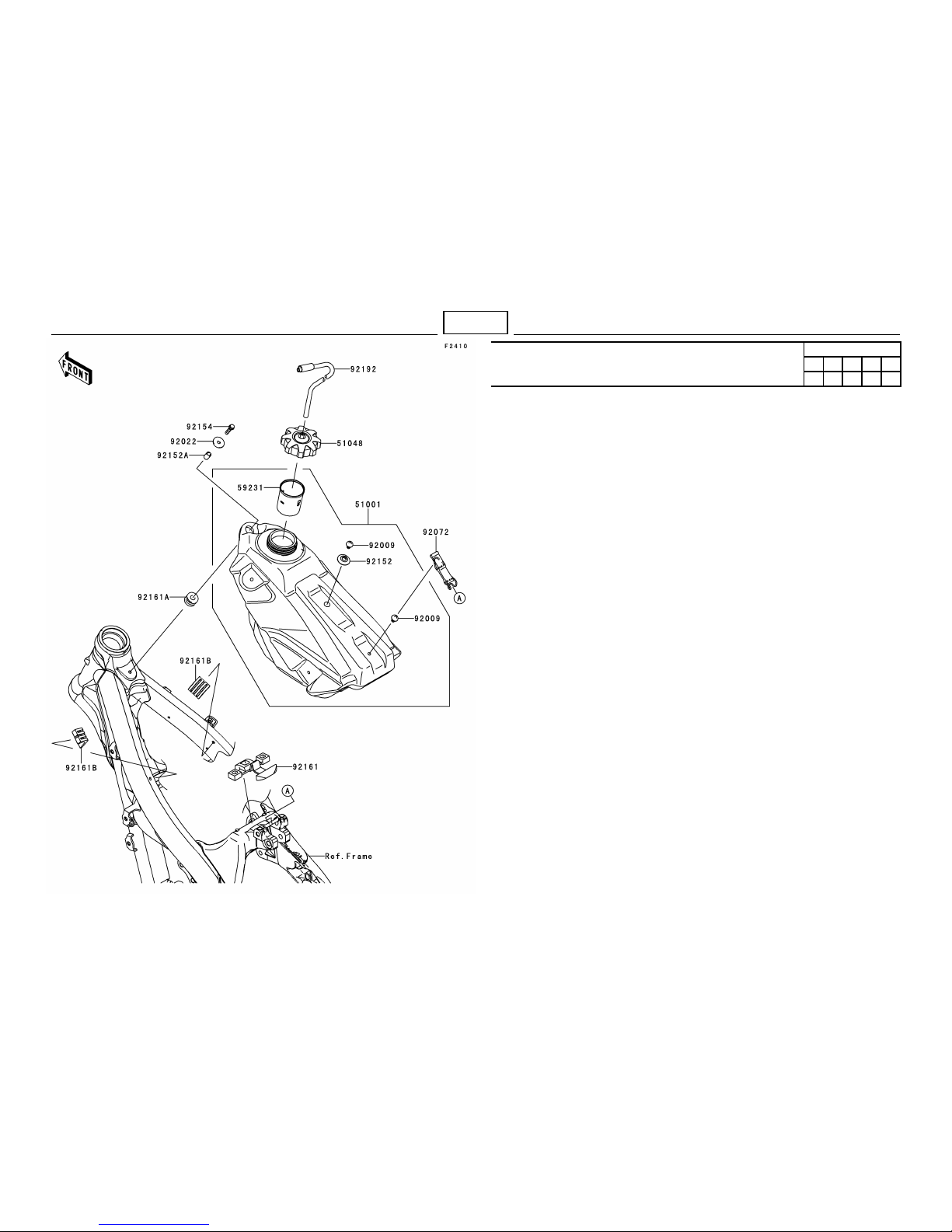

E-12 Fuel Tank E-13 Cables E-14 Side Covers

This catalog covers:

GRID NO.

This grid covers:

’12 KX250YCF Chassis F-1 Pictorial Index

F-3

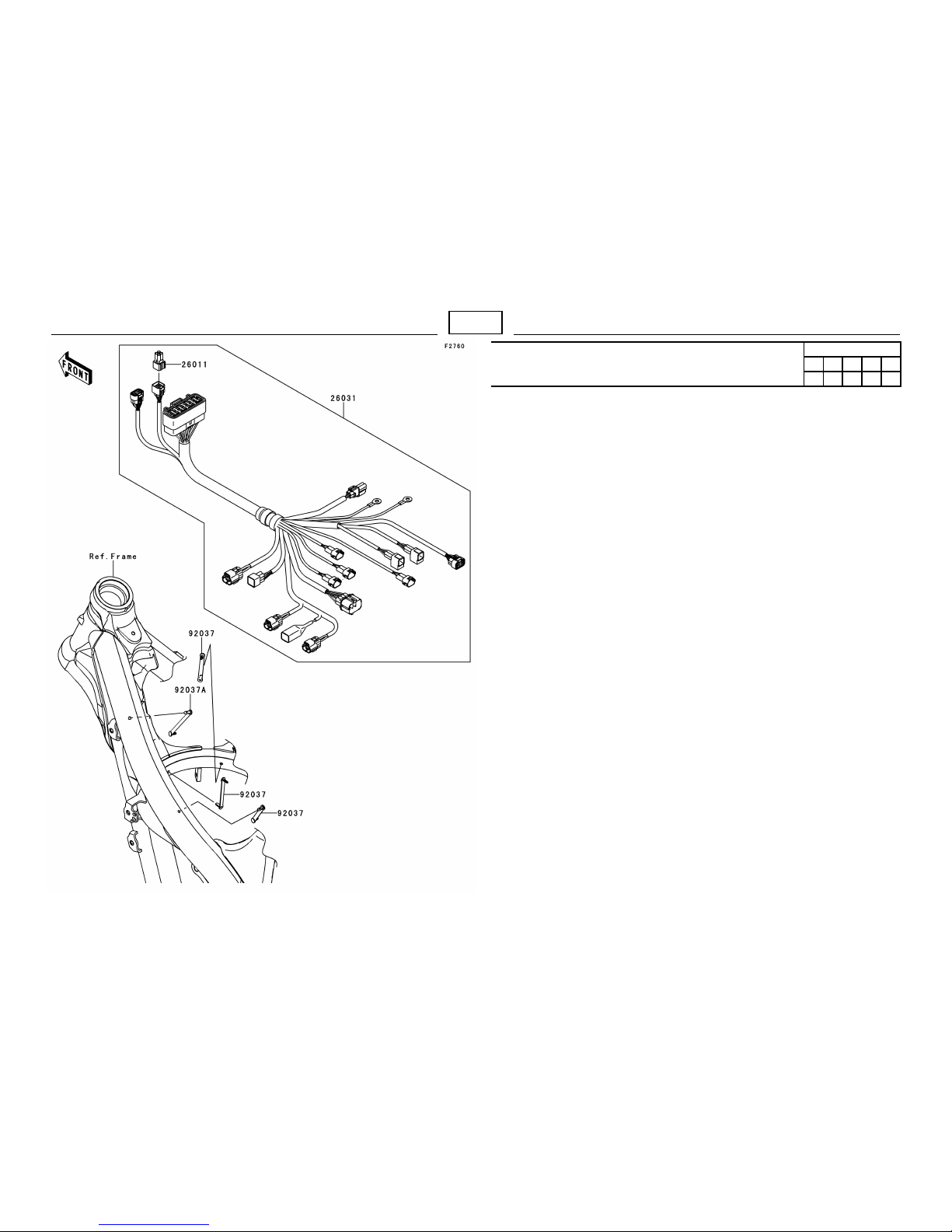

Chassis Electrical Equipment

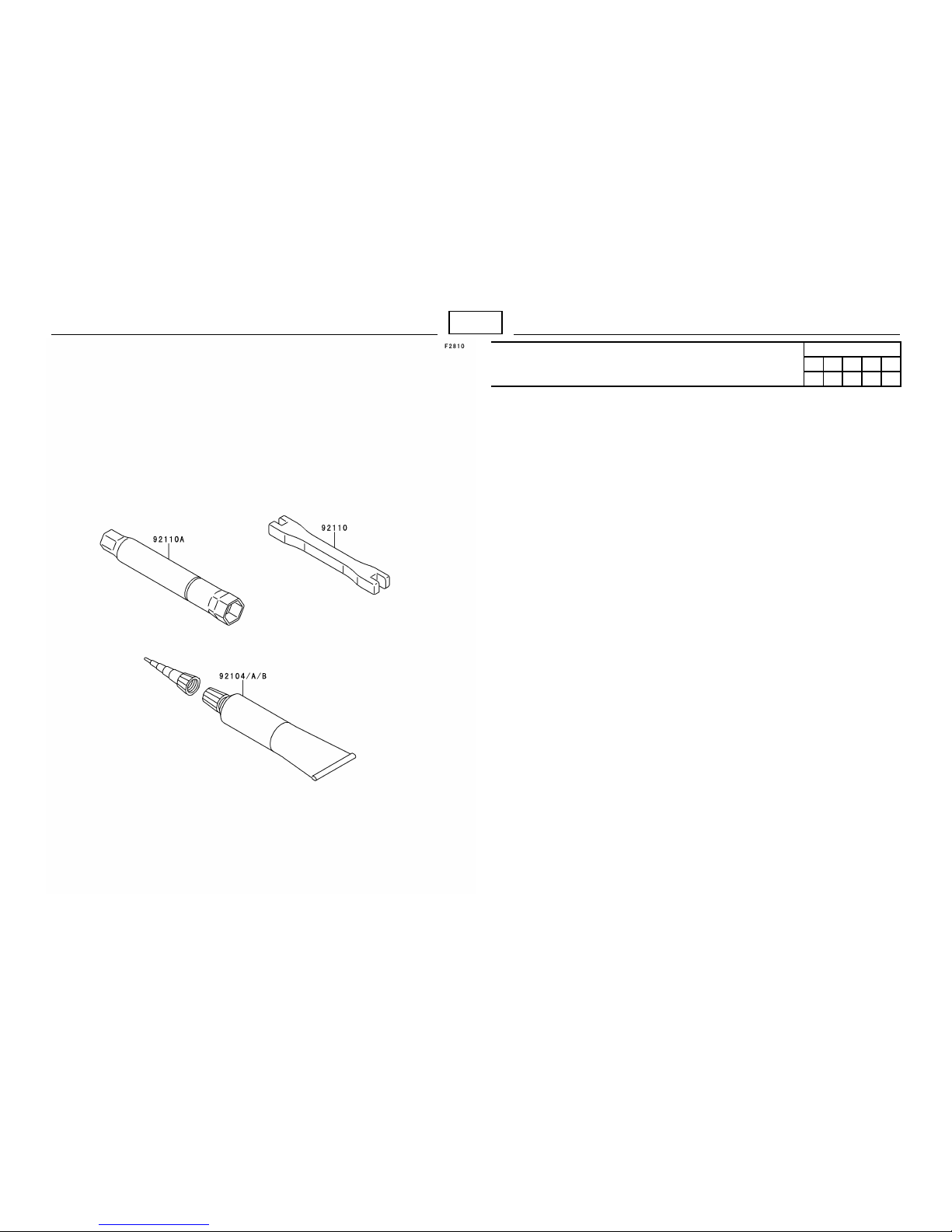

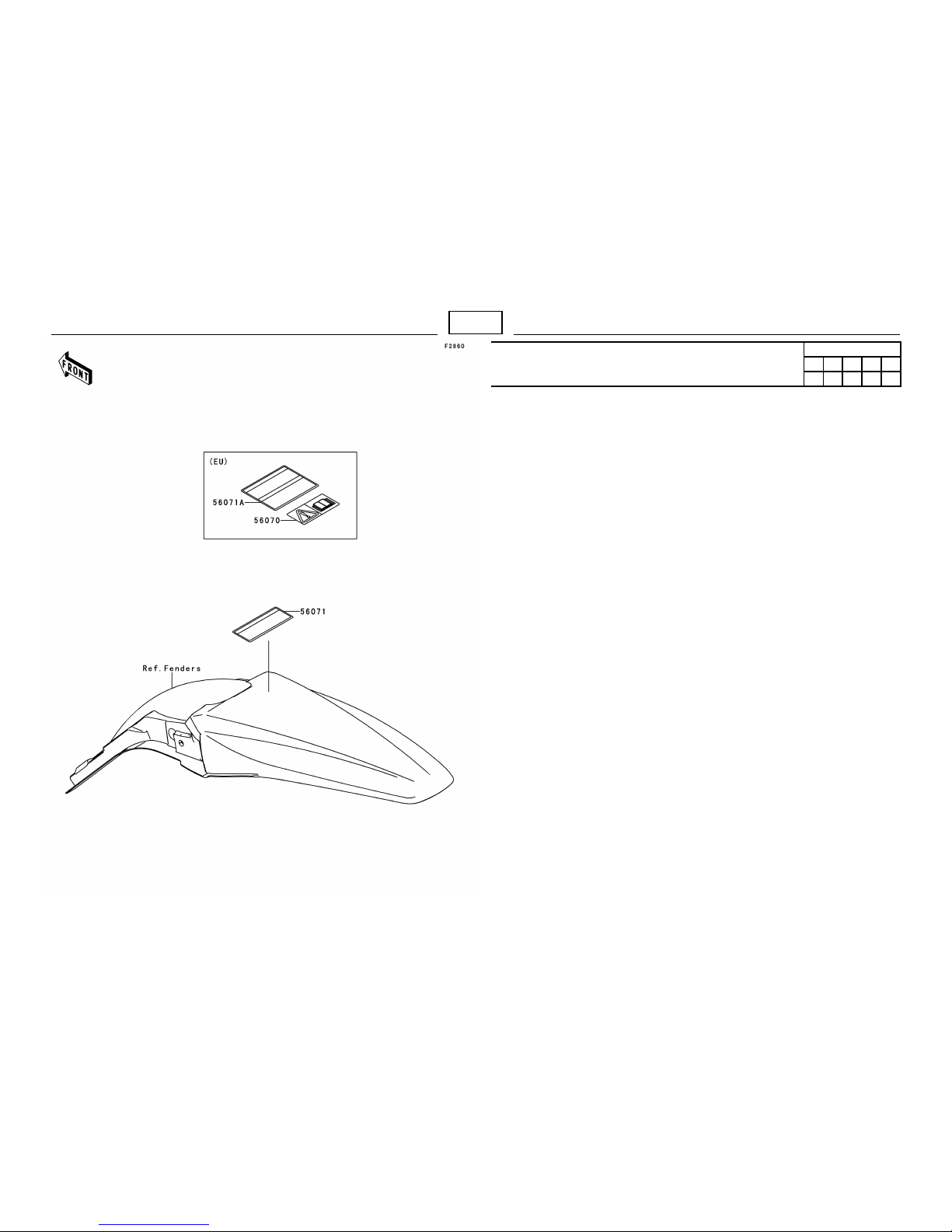

F-4 Owner’s Tools F-5 Labels

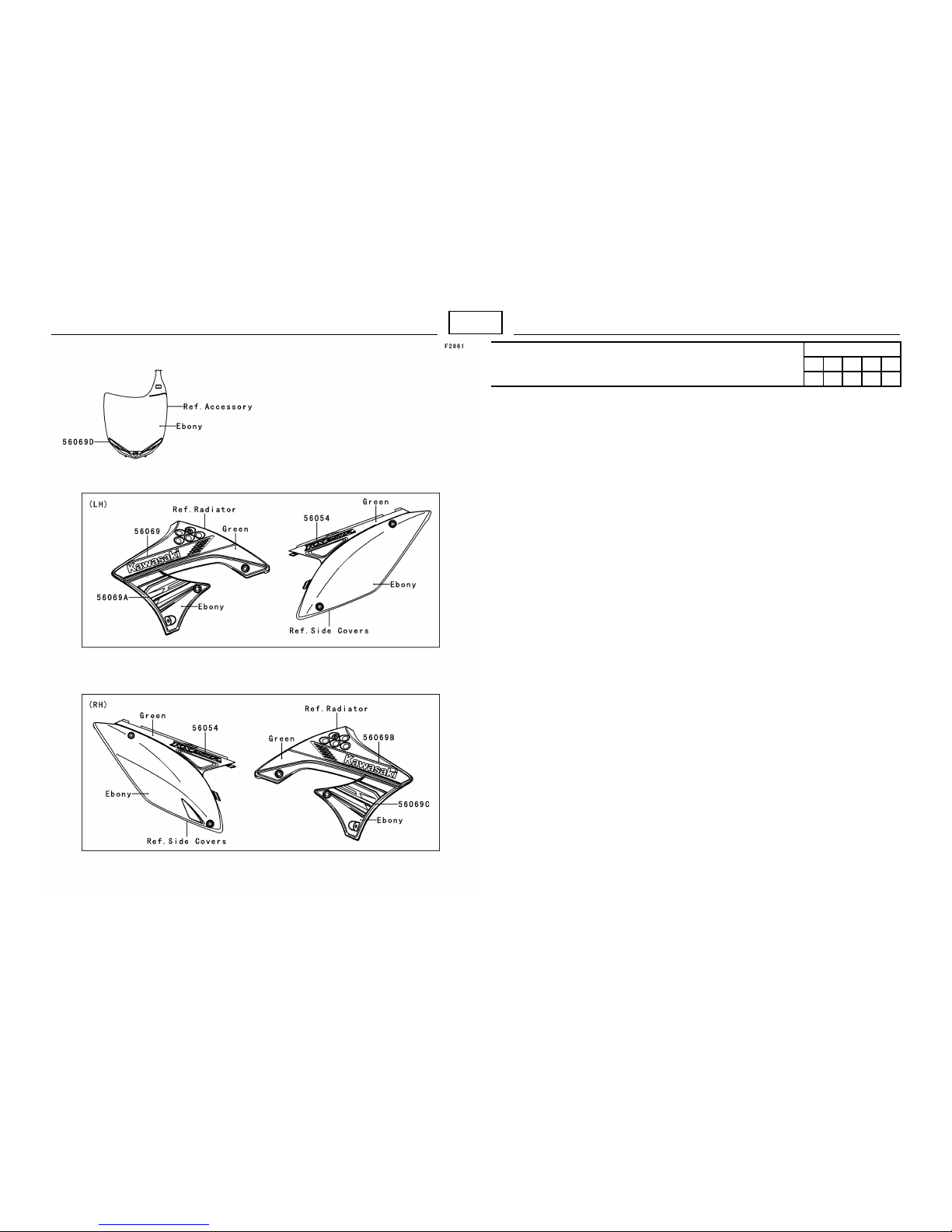

F-6 Decals F-7 Accessory

This catalog covers:

GRID NO.

This grid covers:

’12 KX250YCF Chassis F-2 Pictorial Index

This catalog covers:

GRID NO.

This grid covers:

’12 KX250YCF Engine B-3 Cylinder Head

Quantity-KX250

’12

Ref.

No.

Part No. Description Spec Code

YCF

11004 11004-0079 GASKET-HEAD 1
11008 11008-0218 HEAD-COMP-CYLINDER 1
16065 16065-0074 HOLDER-CARBURETOR 1
49002 49002-0003 GUIDE-VALVE 2
49002A 49002-0016 GUIDE-VALVE 2

92004 92004-0025 STUD,8X22 2
92037 92037-1523 CLAMP 1
92042 92042-007 PIN,DOWEL,6.3X8X14 2
92043 92043-4009 PIN,10.1X12X14 2
92055 92055-0150 RING-O,24.7X2.4 1

92055A 92055-0729 RING-O,25X1.9X1.35 1
92066 92066-1012 PLUG,OIL LINE,7.2X8 1
92066A 92066-3777 PLUG,10X16.6 1
92153 92153-0338 BOLT,6X38 7
92153A 92153-0339 BOLT,6X45 1

92153B 92153-0341 BOLT,10X122 4
92170 92170-1514 CLAMP 2
92171 92171-0857 CLAMP,62MM 1
92200 92200-0114 WASHER,10.5X19X2.3 4

120 120CA0625 BOLT-SOCKET,6X25 2

1 MAY 25,2011

This catalog covers:

GRID NO.

This grid covers:

’12 KX250YCF Engine B-4 Cylinder Head Cover

Quantity-KX250

’12

Ref.

No.

Part No. Description Spec Code

YCF

11061 11061-0350 GASKET,CYLINDER HEAD 1
14091 14091-1629 COVER,CYLINDER HEAD 1
92055 92055-1352 RING-O,HEAD COVER BOLT 2
92154 92154-0535 BOLT,SOCKET,6MM 2

2 MAY 25,2011

This catalog covers:

GRID NO.

This grid covers:

’12 KX250YCF Engine B-5 Cylinder/Piston(s)

Quantity-KX250

’12

Ref.

No.

Part No. Description Spec Code

YCF

11005 11005-0586 CYLINDER-ENGINE 1
11061 11061-0357 GASKET,CYLINDER BASE 1
13001 13001-0714 PISTON-ENGINE 1
13002 13002-0030 PIN-PISTON 1
13008 13008-0028 RING-SET-PISTON 1

92033 92033-1161 RING-SNAP,PISTON PIN 2
92043 92043-4009 PIN,10.1X12X14 2

120 120CA0625 BOLT-SOCKET,6X25 1

3 MAY 25,2011

This catalog covers:

GRID NO.

This grid covers:

’12 KX250YCF Engine B-6 Air Cleaner

Quantity-KX250

’12

Ref.

No.

Part No. Description Spec Code

YCF

11011 11011-0734 CASE-AIR FILTER 1
11013 11013-0011 ELEMENT-AIR FILTER 1
13271 13271-0730 PLATE,DUCT FITTING 1
13280 13280-0170 HOLDER 1
13280A 13280-0383 HOLDER,ELEMENT 1

14073 14073-0710 DUCT 1
59006 59006-0011 ARRESTER-FLAME 1
92015 92015-1259 NUT,FLANGED,5MM 5
92150 92150-1506 BOLT,FLANGED,6X16 2
92152 92152-0275 COLLAR 2

92153 92153-0623 BOLT,6X75 1
92161 92161-0213 DAMPER 2
92171 92171-1990 CLAMP,57.5MM 1

130 130BA0512 BOLT-FLANGED,5X12 1

4 MAY 25,2011

This catalog covers:

GRID NO.

This grid covers:

’12 KX250YCF Engine B-7 Muffler(s)

Quantity-KX250

’12

Ref.

No.

Part No. Description Spec Code

YCF

11061 11061-0027 GASKET,EX PIPE 1
11061A 11061-0434 GASKET,CONNECTING 1
18046 18046-0231 WOOL 1
18046A 18046-0581 WOOL 1
18088 18088-0781 PIPE-EXHAUST 1

18100 18100-0555 BODY-ASSY-MUFFLER 1
31064 31064-0211 PIPE-COMP 1
49107 49107-0126 COVER-EXHAUST PIPE 1
92015 92015-1402 NUT,8MM 2
92027 92027-1653 COLLAR,FLANGED,8.8X10.6 2

92151 92151-1449 BOLT,SOCKET,6X10 2
92151A 92151-1822 BOLT,FLANGED,6X10 4
92154 92154-0519 BOLT,FLANGED,8X18 1
92160 92160-1116 DAMPER,MUFFLER MOUNT 1
92173 92173-0885 CLAMP,57MM 1

132 132BA0840 BOLT-FLANGED-SMALL,8X40 1
411 411S0600 WASHER-PLAIN,6MM 2
461 461S0600 WASHER-SPRING,6MM 2

5 MAY 25,2011

This catalog covers:

GRID NO.

This grid covers:

’12 KX250YCF Engine B-8 Valve(s)(1/2)

Quantity-KX250

’12

Ref.

No.

Part No. Description Spec Code

YCF

12004 12004-0033 VALVE-INTAKE 2
12005 12005-0002 VALVE-EXHAUST 2
12009 12009-0010 RETAINER-VALVE SPRING 2
12009A 12009-1073 RETAINER-VALVE SPRING 2
12011 12011-1053 COLLET 8

12032 12032-0005 TAPPET,IN 2
12032A 12032-0006 TAPPET,EX 2
16007 16007-0002 SEAT-SPRING 2
16007A 16007-0029 SEAT-SPRING 2
49078 49078-0003 SPRING-ENGINE VALVE 2

49078A 49078-0080 SPRING-ENGINE VALVE 2
92049 92049-1349 SEAL-OIL,VSB 4.3 7.5 5.3 8.3 4
92180 92180-0167 SHIM,T=2.500 4
92180A 92180-0168 SHIM,T=2.525 AR
92180B 92180-0169 SHIM,T=2.550 AR

92180C 92180-0170 SHIM,T=2.575 AR
92180D 92180-0171 SHIM,T=2.600 AR
92180E 92180-0172 SHIM,T=2.625 AR
92180F 92180-0173 SHIM,T=2.650 AR
92180G 92180-0174 SHIM,T=2.675 AR

92180H 92180-0175 SHIM,T=2.700 AR
92180I 92180-0176 SHIM,T=2.725 AR
92180J 92180-0177 SHIM,T=2.750 AR
92180K 92180-0178 SHIM,T=2.775 AR
92180L 92180-0179 SHIM,T=2.800 AR

92180M 92180-0180 SHIM,T=2.825 AR
92180N 92180-0181 SHIM,T=2.850 AR
92180O 92180-0182 SHIM,T=2.875 AR
92180P 92180-0183 SHIM,T=2.900 AR
92180Q 92180-0184 SHIM,T=2.925 AR

92180R 92180-0185 SHIM,T=2.950 AR
92180S 92180-0186 SHIM,T=2.975 AR
92180T 92180-0187 SHIM,T=3.000 AR
92180U 92180-0188 SHIM,T=3.025 AR
92180V 92180-0189 SHIM,T=3.050 AR

92180W 92180-0190 SHIM,T=3.075 AR
92180X 92180-0191 SHIM,T=3.100 AR
92180Y 92180-0192 SHIM,T=3.125 AR
92180Z 92180-0193 SHIM,T=3.150 AR

6 MAY 25,2011

This catalog covers:

GRID NO.

This grid covers:

’12 KX250YCF Engine B-9 Valve(s)(2/2)

Quantity-KX250

’12

Ref.

No.

Part No. Description Spec Code

YCF

92181 92180-0194 SHIM,T=3.175 AR
92181A 92180-0195 SHIM,T=3.200 AR
92181B 92180-0196 SHIM,T=3.225 AR
92181C 92180-0197 SHIM,T=3.250 AR
92181D 92180-0198 SHIM,T=3.275 AR

92181E 92180-0199 SHIM,T=3.300 AR
92181F 92180-0200 SHIM,T=3.325 AR
92181G 92180-0201 SHIM,T=3.350 AR
92181H 92180-0202 SHIM,T=3.375 AR
92181I 92180-0203 SHIM,T=3.400 AR

92181J 92180-0204 SHIM,T=3.425 AR
92181K 92180-0205 SHIM,T=3.450 AR
92181L 92180-0206 SHIM,T=3.475 AR
92181M 92180-0207 SHIM,T=3.500 AR

7 MAY 25,2011

This catalog covers:

GRID NO.

This grid covers:

’12 KX250YCF Engine B-10 Camshaft(s)/Tensioner

Quantity-KX250

’12

Ref.

No.

Part No. Description Spec Code

YCF

12048 12048-0056 TENSIONER-ASSY 1
12053 12053-0009 GUIDE-CHAIN,UPP 1
12053A 12053-0010 GUIDE-CHAIN,RR 1
12053B 12053-0017 GUIDE-CHAIN,FR 1
13271 13271-0808 PLATE,CAM CHAIN STOPPER 1

14013 14013-0001 RING-POSITION 1
14013A 14013-0002 RING-POSITION 1
21118 21118-0004 DECOMPRESSOR 1
49118 49118-0164 CAMSHAFT-COMP,INTAKE 1
49118A 49118-0715 CAMSHAFT-COMP,EXHAUST 1

92055 92055-086 RING-O,18.8X1.9 1
92057 92057-0030 CHAIN,CAM,92RH2010-114 1
92145 92145-0758 SPRING,DECOMP 1
92153 92153-0572 BOLT,12X24.5 1
92153A 92153-0918 BOLT,SOCKET,6X16 1

92154 92154-0520 BOLT,FLANGED,6X25 2

132 132BA0612 BOLT-FLANGED-SMALL,6X12 1

8 MAY 25,2011

This catalog covers:

GRID NO.

This grid covers:

’12 KX250YCF Engine B-11 Crankshaft

Quantity-KX250

’12

Ref.

No.

Part No. Description Spec Code

YCF

13031 13031-0714 CRANKSHAFT-COMP 1
13032 13032-0705 ROD-CONNECTING 1
13034 13034-0019 BEARING-BIG END,B4 1
13035 13035-0022 PIN-CRANK 1
13037 13037-0155 CRANKSHAFT,RH 1

13037A 13037-0732 CRANKSHAFT,LH 1
13097 13097-0117 GEAR-PRIMARY SPUR,20T 1
92022 92022-1356 WASHER,16.3X29X1.75 1
92210 92210-0350 NUT,LEFT HANDED,16MM 1

9 MAY 25,2011

This catalog covers:

GRID NO.

This grid covers:

’12 KX250YCF Engine B-12 Kickstarter Mechanism

Quantity-KX250

’12

Ref.

No.

Part No. Description Spec Code

YCF

13061 13061-0357 BOSS 1
13064 13064-0059 LEVER-ASSY-KICK 1
13066 13066-0004 SHAFT-KICK 1
13070 13070-0011 GUIDE 1
13078 13078-0025 RATCHET 1

13206 13206-1062 GUIDE-KICK 1
39115 39115-0565 SHAFT-IDLER,KICK 1
59051 59051-0033 GEAR-SPUR,KICK STARTER,28T 1
59051A 59051-0089 GEAR-SPUR,KICK STARTER,26T 1
92022 92022-1944 WASHER,10X22X3.2 1

92022A 92022-271 WASHER,18.3X22X0.5 2
92049 92049-1387 SEAL-OIL,KICK PEDAL 1
92081 92081-020 SPRING,KICK PEDAL 1
92145 92145-0499 SPRING 1
92145A 92145-0811 SPRING 1

92151 92151-1652 BOLT,6X16 1
92154 92154-0521 BOLT,SOCKET,8X25 1
92172 92172-0248 SCREW,6X33 1
92200 92200-0378 WASHER,18.3X27.5X0.5 1

290 290CA0808 SCREW-SET-SOCKET,8X8 1
480 480J1800 CIRCLIP-TYPE-C,18MM 3

600 600A0800 BALL-STEEL,1/4" 1

10 MAY 25,2011

This catalog covers:

GRID NO.

This grid covers:

’12 KX250YCF Engine B-13 Clutch

Quantity-KX250

’12

Ref.

No.

Part No. Description Spec Code

YCF

13087 13087-0017 HUB-CLUTCH 1
13088 13088-0018 PLATE-FRICTION 8
13089 13089-0005 PLATE-CLUTCH,T=1.6 7
13095 13095-0121 HOUSING-COMP-CLUTCH 1
13102 13102-0034 RELEASE-COMP-CLUTCH 1

13116 13116-0037 ROD-PUSH 1
13187 13187-1089 PLATE-CLUTCH OPERATING 1
13280 13280-0339 HOLDER 1
92036 92036-007 RING-SNAP,PISTON PIN 1
92046 92046-0016 BEARING-NEEDLE,WRS273124A 1

92046A 92046-1190 BEARING-NEEDLE,FNTA-1326 1
92139 92139-0014 BUSHING 1
92145 92145-0351 SPRING,K=10.7N/MM 5
92154 92154-0180 BOLT,6X25 5
92200 92200-0027 WASHER,21.6X38X2.5 1

92200A 92200-0045 WASHER,13.4X25X1.0 AR
92200B 92200-0098 WASHER,22.3X43X2 1
92200C 92200-1548 WASHER,13.4X25.0X1.5 1
92210 92210-1207 NUT,16MM 1

600 600A1000 BALL-STEEL,5/16" 1

11 MAY 25,2011

This catalog covers:

GRID NO.

This grid covers:

’12 KX250YCF Engine B-14 Transmission

Quantity-KX250

’12

Ref.

No.

Part No. Description Spec Code

YCF

13127 13127-0064 SHAFT-TRANSMISSION INPUT,14T 1
13128 13128-0046 SHAFT-TRANSMISSION OUTPUT 1
13144 13144-0036 SPROCKET-OUTPUT,12T 1

(OPTION)
13144A 13144-0064 SPROCKET-OUTPUT,13T 1
13262 13262-0671 GEAR,INPUT 5TH,22T 1

13262A 13262-0672 GEAR,OUTPUT LOW,30T 1
13262B 13262-0674 GEAR,OUTPUT 3RD,26T 1
13262C 13262-0676 GEAR,OUTPUT 5TH,23T 1
13262D 13262-0776 GEAR,INPUT 3RD,18T 1
13262E 13262-0839 GEAR,INPUT 2ND,16T 1

13262F 13262-0840 GEAR,INPUT 4TH,17T 1
13262G 13262-0841 GEAR,OUTPUT 2ND,28T 1
13262H 13262-0842 GEAR,OUTPUT 4TH,21T 1
92033 92033-0057 RING-SNAP 2
92033A 92033-1270 RING-SNAP 1

92055 92055-055 RING-O,19.5X1.5 2
92139 92139-0241 BUSHING 1
92152 92152-0683 COLLAR,22X30X11.4 1
92152A 92152-0687 COLLAR 1
92200 92200-0442 WASHER,22X26.6X1 1

480 480J2200 CIRCLIP-TYPE-C,22MM 1

12 MAY 25,2011

This catalog covers:

GRID NO.

This grid covers:

’12 KX250YCF Engine C-3 Gear Change Drum/Shift Fork(s)

Quantity-KX250

’12

Ref.

No.

Part No. Description Spec Code

YCF

13140 13140-0056 FORK-SHIFT,IN 1
13140A 13140-0057 FORK-SHIFT,OUT 2
13141 13141-0575 DRUM-CHANGE 1
13145 13145-0031 CAM-CHANGE DRUM 1
13151 13151-0560 SWITCH-COMP,NEUTRAL 1

49047 49047-0620 ROD-SHIFT,OUTPUT,L=94.5 1
49047A 49047-0621 ROD-SHIFT,INPUT,L=63 1
92009 92009-1571 SCREW,5X16 2
92043 92043-1654 PIN 2
92055 92055-091 RING-O,27.7X2.4 1

92145 92145-1414 SPRING 2
92153 92153-1735 BOLT 1

610 610A0408 ROLLER,4X8 1

13 MAY 25,2011

This catalog covers:

GRID NO.

This grid covers:

’12 KX250YCF Engine C-4 Gear Change Mechanism

Quantity-KX250

’12

Ref.

No.

Part No. Description Spec Code

YCF

13078 13078-0029 RATCHET 1
13156 13156-0124 LEVER-CHANGE,PEDAL 1
13161 13161-0077 LEVER-COMP-CHANGE SHAFT 1
13165 13165-0018 PAWL 2
13236 13236-0161 LEVER-COMP,POSITION 1

13272 13272-0438 PLATE 1
92022 92022-1827 WASHER,6X12.8X1.2 1
92026 92026-1217 SPACER 1
92043 92043-0017 PIN,8X39 1
92043A 92043-1676 PIN,PLUNGER 2

92145 92145-0453 SPRING 2
92145A 92145-0608 SPRING,RETURN 1
92145B 92145-0843 SPRING,POSITION 1
92152 92152-1414 COLLAR 1
92153 92153-0825 BOLT,6X16 1

92153A 92153-1669 BOLT,TORX,6X8.7 1
92154 92154-0520 BOLT,FLANGED,6X25 1
92200 92200-0029 WASHER,14.2X20X1 1

172 172BA0612 BOLT-STUD,6X12 1
311 311BA0600 NUT-HEX 1

480 480J1400 CIRCLIP-TYPE-C,14MM 1

14 MAY 25,2011

This catalog covers:

GRID NO.

This grid covers:

’12 KX250YCF Engine C-5 Crankcase

Quantity-KX250

’12

Ref.

No.

Part No. Description Spec Code

YCF

12022 12022-0006 VALVE-REED 1
13272 13272-0488 PLATE 4
13272A 13272-0670 PLATE 3
14001 14001-0583 SET-CRANKCASE 1
32085 32085-0011 STOPPER,VALVE-REED 1

92005 92005-0014 FITTING,BREATHER 1
92043 92043-4009 PIN,10.1X12X14 2
92045 92045-0013 BEARING-BALL,3TM-SX0391ZC3 1
92045A 92045-0051 BEARING-BALL,22X50X14 1
92045B 92045-0052 BEARING-BALL,CRANKSHAFT MAIN 2

92045C 92045-1287 BEARING-BALL,TMB203LU 1
92045D 92045-1335 BEARING-BALL,SX04A81C3 1
92045E 92045-1432 BEARING-BALL,6805JRZ 1
92046 92046-0034 BEARING-NEEDLE,HK1210FM 2
92046A 92046-1221 BEARING-NEEDLE,7E-HKS33X38X8 1

92049 92049-0015 SEAL-OIL,SD2 14 22 6-1 NS 1
92049A 92049-0030 SEAL-OIL,TC 30 40 7 2
92049B 92049-1262 SEAL-OIL,AG0353-F0 1
92062 92062-0004 NOZZLE 1
92065 92065-058 GASKET,10.5X16X1 1

92066 92066-1437 PLUG,DRAIN 1
92153 92153-1669 BOLT,TORX,6X8.7 7
92170 92170-1938 CLAMP 1
92171 92171-0579 CLAMP 1
92192 92192-0685 TUBE,BREATHER 1

92200 92200-0087 WASHER,12.5X18X1.6 1

132 132BA0650 BOLT-FLANGED-SMALL,6X50 2
132A 132BA0660 BOLT-FLANGED-SMALL,6X60 6
132B 132BA0665 BOLT-FLANGED-SMALL,6X65 1
132C 132BA0670 BOLT-FLANGED-SMALL,6X70 3

225 225AA0510 SCREW-PAN-WSP-CROS,5X10 2

15 MAY 25,2011

This catalog covers:

GRID NO.

This grid covers:

’12 KX250YCF Engine C-6 Engine Cover(s)

Quantity-KX250

’12

Ref.

No.

Part No. Description Spec Code

YCF

11061 11061-0361 GASKET,INNER 1
11061A 11061-0362 GASKET,OUTER 1
11061B 11061-0778 GASKET,GENERATOR 1
12053 12053-0129 GUIDE-CHAIN,13T 1
12053A 12053-0130 GUIDE-CHAIN,12T 1

(OPTION)
14026 14026-0090 COVER-CHAIN 1

14031 14031-0115 COVER-GENERATOR 1
14032 14032-0120 COVER-CLUTCH,OUTER 1
14032A 14032-0136 COVER-CLUTCH,INNER 1
52005 52005-1009 GAUGE,OIL LEVEL 1

92042 92042-007 PIN,DOWEL,6.3X8X14 4
92045 92045-1123 BEARING-BALL,#628 1
92049 92049-0060 SEAL-OIL,SD 8 22 5 ZS 1
92049A 92049-0061 SEAL-OIL 1
92049B 92049-013 SEAL-OIL,SB18307 1

92049C 92049-1519 SEAL-OIL,TC13225.5 1
92055 92055-091 RING-O,27.7X2.4 1
92055A 92055-1011 RING-O,13.0X1.9 1
92055B 92055-1146 RING-O,20X2 1
92066 92066-0731 PLUG,18X9 1

92066A 92066-0732 PLUG,30X8 1
92066B 92066-0733 PLUG,12X9.1 1
92154 92154-0520 BOLT,FLANGED,6X25 8
92173 92173-0058 CLAMP,HARNESS 1

132 132BA0630 BOLT-FLANGED-SMALL,6X30 5
132A 132BA0635 BOLT-FLANGED-SMALL,6X35 4

132B 132BA0665 BOLT-FLANGED-SMALL,6X65 2
481 481J2200 CIRCLIP 1

16 MAY 25,2011

This catalog covers:

GRID NO.

This grid covers:

’12 KX250YCF Engine C-7 Throttle

Quantity-KX250

’12

Ref.

No.

Part No. Description Spec Code

YCF

14091 14091-1815 COVER,THROTTLE DUST 1
16016 16016-0024 PLUNGER 1
16073 16073-0129 INSULATOR 1
16073A 16073-3707 INSULATOR 1
16163 16163-0720 THROTTLE-ASSY 1

21176 21176-0001 SENSOR,TPS 1
21176A 21176-0058 SENSOR,PRESSURE 1
32155 32155-0112 PIPE,FUEL 1
35063 35063-0647 STAY 1
49033 49033-0026 NOZZLE-INJECTION 1

49033A 49033-0556 NOZZLE-INJECTION 1
49056 49056-0557 PIPE-INJECTION 1
59071 59071-0071 JOINT 1
92009 92009-1981 SCREW,THROTTLE SENSOR 1
92037 92037-1993 CLAMP 2

92055 92055-0064 RING-O 1
92055A 92055-1671 RING-O 1
92154 92154-0243 BOLT 2
92154A 92154-0753 BOLT,FLANGED,5X8 1
92161 92161-0041 DAMPER 1

92172 92172-0064 SCREW,PIPE INJECTION 1
92172A 92172-0438 SCREW 2
92172B 92172-0776 SCREW 1
92192 92192-0823 TUBE 1

17 MAY 25,2011

This catalog covers:

GRID NO.

This grid covers:

’12 KX250YCF Engine C-8 Fuel Pump

Quantity-KX250

’12

Ref.

No.

Part No. Description Spec Code

YCF

49040 49040-0707 PUMP-FUEL 1
51044 51044-0707 TUBE-ASSY,FUEL 1
51044A 51044-0715 TUBE-ASSY,FUEL 1
92154 92154-0534 BOLT,FLANGED,6X16 5

670 670E5070 O RING 1

18 MAY 25,2011

This catalog covers:

GRID NO.

This grid covers:

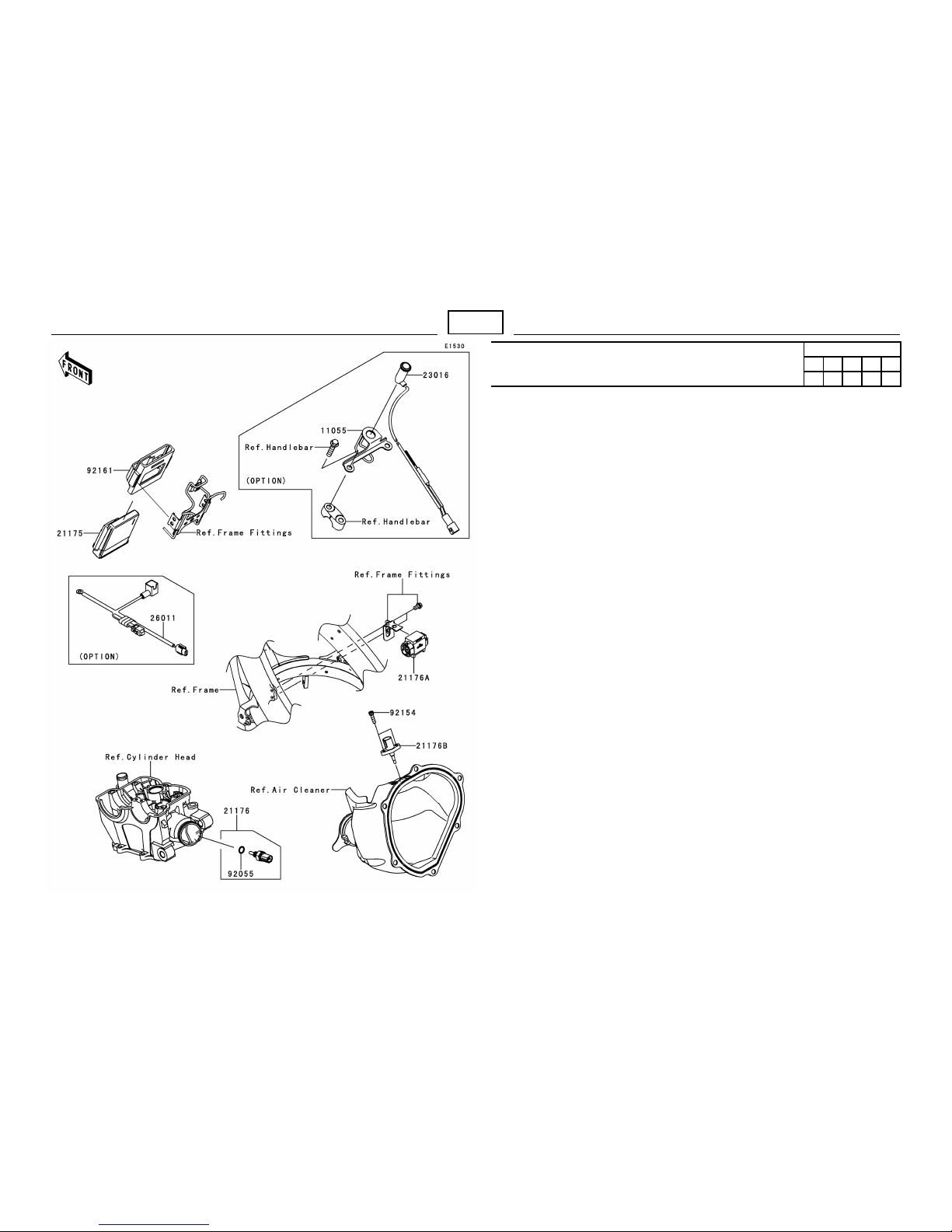

’12 KX250YCF Engine C-9 Fuel Injection

Quantity-KX250

’12

Ref.

No.

Part No. Description Spec Code

YCF

11055 11055-1673 BRACKET,FI WARNING LAMP 1

(OPTION)
21175 21175-0731 CONTROL UNIT-ELECTRONIC 1
21176 21176-0009 SENSOR,WATER TEMP 1
21176A 21176-0066 SENSOR,VEHICLE-DOWN 1
21176B 21176-0121 SENSOR,AIR TEMP 1

23016 23016-0049 LAMP-ASSY,FI WARNING 1

(OPTION)
26011 26011-0246 WIRE-LEAD,BAT. CONNECTION 1

(OPTION)
92055 92055-0016 RING-O,9.5X1.9 1
92154 92154-0038 BOLT,SOCKET,5X18 2
92161 92161-0976 DAMPER,ECU 1

19 MAY 25,2011

This catalog covers:

GRID NO.

This grid covers:

’12 KX250YCF Engine C-10 Oil Pump

Quantity-KX250

’12

Ref.

No.

Part No. Description Spec Code

YCF

13234 13234-0045 SHAFT-COMP,OIL PUMP 1
16142 16142-0003 COVER-PUMP 1
16154 16154-0090 ROTOR-PUMP,SCAVENGE 1
16154A 16154-0093 ROTOR-PUMP,FEED 1
32099 32099-0051 CASE,OIL PUMP 1

39115 39115-0007 SHAFT-IDLER,OIL PUMP 1
49065 49065-0017 FILTER-OIL 1
49065A 49065-0023 FILTER-OIL 1
52010 52010-0001 ELEMENT-OIL FILTER 1
59051 59051-0009 GEAR-SPUR,PUMP IDLER 1

92033 92033-1039 RING-SNAP,8MM 1
92042 92042-007 PIN,DOWEL,6.3X8X14 1
92122 92122-0021 ROLLER,2.5X11.8 2
92144 92144-1761 SPRING 1
92150 92150-1491 BOLT,SOCKET,5X22 2

92172 92172-0087 SCREW,6X14 2

610 610A0408 ROLLER,4X8 1

20 MAY 25,2011

This catalog covers:

GRID NO.

This grid covers:

’12 KX250YCF Engine C-11 Generator

Quantity-KX250

’12

Ref.

No.

Part No. Description Spec Code

YCF

11056 11056-1513 BRACKET,CONDENSER 1
21003 21003-0102 STATOR 1
21007 21007-0164 ROTOR,I=8.5 1

(OPTION)
21007A 21007-0165 ROTOR,I=9.5 1

(OPTION)
21007B 21007-0554 ROTOR,I=9.0 1

21013 21013-0001 CONDENSER 1
21066 21066-0042 REGULATOR-VOLTAGE 1
92015 92015-1426 NUT,12MM 1
92151 92151-1764 BOLT,5X14 2
92152 92152-1449 COLLAR 2

92154 92154-0031 BOLT,SOCKET,6X22 3
92161 92161-0266 DAMPER 2

132 132BA0610 BOLT-FLANGED-SMALL,6X10 2
510 510A3200 KEY-WOODRUFF 1

21 MAY 25,2011

This catalog covers:

GRID NO.

This grid covers:

’12 KX250YCF Engine C-12 Ignition System

Quantity-KX250

’12

Ref.

No.

Part No. Description Spec Code

YCF

21121 21121-0058 COIL-IGNITION 1
21160 21160-0009 CAP-ASSY-PLUG 1
92070 92070-0020 PLUG-SPARK,CPR8EB-9(NGK) 1
92070A 92070-0021 PLUG-SPARK,CPR9EB-9(NGK) 1

(OPTION)

22 MAY 25,2011

This catalog covers:

GRID NO.

This grid covers:

’12 KX250YCF Engine C-13 Water Pump

Quantity-KX250

’12

Ref.

No.

Part No. Description Spec Code

YCF

11065 11065-0087 CAP 1
13107 13107-0196 SHAFT,WATER PUMP 1
16142 16142-0020 COVER-PUMP,WATER 1
39192 39192-0037 PIPE-WATER 1
59051 59051-0061 GEAR-SPUR,WATER PUMP 1

59256 59256-1065 IMPELLER 1
92022 92022-1380 WASHER,5.2X13X1 1
92022A 92022-1827 WASHER,6X12.8X1.2 1
92022B 92022-304 WASHER,6.2X11X1 1
92042 92042-007 PIN,DOWEL,6.3X8X14 2

92055 92055-0010 RING-O,WATER PUMP 1
92055A 92055-1308 RING-O,18.8X2.4 1
92055B 92055-520 RING-O,35.2X1.9 1
92154 92154-0532 BOLT,FLANGED,6X55 2
92200 92200-0190 WASHER,6.1X10.0X1.0 2

120 120CA0630 BOLT-SOCKET,6X30 2
130 130CD0514 BOLT-FLANGED,5X14 1
132 132BA0608 BOLT-FLANGED-SMALL,6X8 1
132A 132BA0612 BOLT-FLANGED-SMALL,6X12 1
132B 132BA0614 BOLT-FLANGED-SMALL,6X14 2

132C 132BA0665 BOLT-FLANGED-SMALL,6X65 1

23 MAY 25,2011

This catalog covers:

GRID NO.

This grid covers:

’12 KX250YCF Engine C-14 Radiator

Quantity-KX250

’12

Ref.

No.

Part No. Description Spec Code

YCF

14037 14037-0100-6C SCREEN,LH,EBONY 1
14037A 14037-0101-6C SCREEN,RH,EBONY 1
39061 39061-0168 RADIATOR-ASSY,RH 1
39061A 39061-0190 RADIATOR-ASSY,LH 1
39062 39062-0258 HOSE-COOLING,RAD LH-RAD RH 1

39062A 39062-0292 HOSE-COOLING,RAD.LH-W/P 1
39062B 39062-0293 HOSE-COOLING,RAD.RH-W/P 1
39062C 39062-0294 HOSE-COOLING,RAD.LH-FIT. 1
39062D 39062-0295 HOSE-COOLING,RAD.RH-FIT. 1
39062E 39062-1348 HOSE-COOLING 1

49085 49085-1070 CAP-ASSY-PRESSURE,P1.1 1
49085A 49085-1073 CAP-ASSY-PRESSURE,P1.6 1

(OPTION)
49089 49089-0068-25M SHROUD-ENGINE,LH,UP GRN+LO EBO 1
49089A 49089-0069-25M SHROUD-ENGINE,RH,UP GRN+LO EBO 1
92005 92005-0101 FITTING 1

92037 92037-1589 CLAMP,COOLING HOSE 4
92075 92075-209 DAMPER 4
92143 92143-1196 COLLAR 2
92150 92150-1435 BOLT,6X12 8
92150A 92150-1801 BOLT,6X20 2

92152 92152-0052 COLLAR 4
92152A 92152-0666 COLLAR 4
92170 92170-1077 CLAMP,HOSE,26MM 4
92170A 92170-1283 CLAMP 2
92171 92171-0372 CLAMP,CLIP,12.5MM 2

92192 92192-0167 TUBE,6X9X640 1
92200 92200-0271 WASHER,6.5X22X2.3 4

132 132BB0625 BOLT-FLANGED-SMALL,6X25 4

24 MAY 25,2011

This catalog covers:

GRID NO.

This grid covers:

’12 KX250YCF Chassis D-3 Frame

Quantity-KX250

’12

Ref.

No.

Part No. Description Spec Code

YCF

32160 32160-0543 FRAME-COMP,RR 1
32160A 32160-0570 FRAME-COMP,MAIN 1
92002 92002-1736 BOLT,DISC PLATE,8X20 2
92015 92015-1791 NUT,POP,6MM,L=15 2
92015A 92015-1792 NUT,POP,6MM,L=16.5 2

92015B 92015-1861 NUT,STEERING STEM,28MM 1
92022 92022-250 WASHER,25X36X2.3 1
92116 92116-1069 BEARING-ROLLER,HI-CAP32006JRRS 1
92116A 92116-1076 BEARING-ROLLER,HI-CAP320/28JRR 1
92154 92154-0024 BOLT,SOCKET,8X32 2

92210 92210-0066 NUT,24MM 1

25 MAY 25,2011

This catalog covers:

GRID NO.

This grid covers:

’12 KX250YCF Chassis D-4 Engine Mount

Quantity-KX250

’12

Ref.

No.

Part No. Description Spec Code

YCF

32190 32190-0461 BRACKET-ENGINE,FR 2
32190A 32190-0477 BRACKET-ENGINE,UPP,LH 1
32190B 32190-0478 BRACKET-ENGINE,UPP,RH 1
92015 92015-1432 NUT,8MM 2
92154 92154-0378 BOLT,FLANGED,8X98 2

92154A 92154-0380 BOLT,FLANGED,8X14 4
92154B 92154-0381 BOLT,FLANGED,10X32 2
92154C 92154-0517 BOLT,FLANGED,10X130 1
92154D 92154-0518 BOLT,FLANGED,10X100 1
92200 92200-0798 WASHER,LWR ENGINE,LH 1

92200A 92200-0799 WASHER,LWR ENGINE,RH 1
92210 92210-1080 NUT,LOCK,FLANGED,10MM 2
92210A 92210-1184 NUT,LOCK,10MM 2

26 MAY 25,2011

This catalog covers:

GRID NO.

This grid covers:

’12 KX250YCF Chassis D-5 Frame Fittings

Quantity-KX250

’12

Ref.

No.

Part No. Description Spec Code

YCF

11055 11055-0870 BRACKET,REGULATOR,LWR 1
11055A 11055-1540 BRACKET,COUPLER 1
11055B 11055-1541 BRACKET 1
11055C 11055-1542 BRACKET,REGULATOR,UPP 1
11056 11056-0505 BRACKET,DIAG CONNECTOR 1

11056A 11056-0961 BRACKET,IG. COIL 1
11056B 11056-0983 BRACKET,ECU 1
55020 55020-0435-6C GUARD,ENGINE,SIDE,LH,EBONY 1
55020A 55020-0436-6C GUARD,ENGINE,SIDE,RH,EBONY 1
55020B 55020-0443-6C GUARD,ENGINE,LWR,EBONY 1

92015 92015-1339 NUT,LOCK,FLANGED,6MM 1
92019 92019-008 NUT,LOCK,6MM 2
92045 92045-0060 BEARING-BALL,608LLU/2A 2
92122 92122-0016 ROLLER,CHAIN GUIDE 1
92122A 92122-0042 ROLLER,CHAIN 1

92143 92143-1196 COLLAR 2
92143A 92143-1307 COLLAR 2
92143B 92143-1642 COLLAR,8.5X15X9 1
92150 92150-1435 BOLT,6X12 4
92150A 92150-1506 BOLT,FLANGED,6X16 2

92152 92152-0052 COLLAR 2
92152A 92152-0459 COLLAR 1
92152B 92152-0620 COLLAR 2
92152C 92152-0944 COLLAR,8.5X12.5X12.5 1
92152D 92152-0945 COLLAR,12.7X27.2X12 1

92154 92154-0774 BOLT,SOCKET,6X10 2
92154A 92154-0913 BOLT,FLANGED,8X35 1
92161 92161-0878 DAMPER,8.5X15.5X5.5 2
92210 92210-0630 NUT,FLANGED,6MM 2

132 132BA0610 BOLT-FLANGED-SMALL,6X10 5
132A 132BA0612 BOLT-FLANGED-SMALL,6X12 2

132B 132BA0625 BOLT-FLANGED-SMALL,6X25 2

27 MAY 25,2011

This catalog covers:

GRID NO.

This grid covers:

’12 KX250YCF Chassis D-6 Swingarm

Quantity-KX250

’12

Ref.

No.

Part No. Description Spec Code

YCF

12053 12053-0125 GUIDE-CHAIN 1
12053A 12053-0178 GUIDE-CHAIN,SLIDER 1
13272 13272-1169 PLATE,CHAIN GUIDE 1
33001 33001-0577 ARM-COMP-SWING 1
33032 33032-0012 SHAFT-SWING ARM 1

33040 33040-0020 ADJUSTER-CHAIN,RH 1
33040A 33040-0075 ADJUSTER-CHAIN,LH 1
42036 42036-0019 SLEEVE,SWING ARM,L=47.5 2
92015 92015-1014 NUT,FLANGED,8MM 2
92046 92046-1174 BEARING-NEEDLE,TA2230Z 2

92046A 92046-1240 BEARING-NEEDLE,NTBR22356E01 2
92093 92093-1434 SEAL,SDO29X35X4.5 2
92093A 92093-1435 SEAL,SDO22X29X5 2
92143 92143-1676 COLLAR 4
92152 92152-0292 COLLAR,17.1X29X6 2

92153 92153-0620 BOLT,8X56 2
92154 92154-0511 BOLT,FLANGED,6X42 2
92172 92172-0119 SCREW,5X8 4
92200 92200-0285 WASHER,17.2X30X2.3 1
92210 92210-0285 NUT,LOCK,16MM 1

92210A 92210-0630 NUT,FLANGED,6MM 2

132 132BA0610 BOLT-FLANGED-SMALL,6X10 1

28 MAY 25,2011

This catalog covers:

GRID NO.

This grid covers:

’12 KX250YCF Chassis D-7 Suspension

Quantity-KX250

’12

Ref.

No.

Part No. Description Spec Code

YCF

39007 39007-0349 ARM-SUSP,UNI TRAK 1
39111 39111-0309 ROD-TIE,SUSPENSION 1
42036 42036-0020 SLEEVE,ROD,L=78.4 1
42036A 42036-0021 SLEEVE,SUSPENSION ARM,L=49 1
42036B 42036-0022 SLEEVE,SUSPENSION ARM,L=37 1

42036C 42036-0030 SLEEVE,10X16X19.3 1
42036D 42036-1351 SLEEVE 1
92015 92015-1433 NUT,LOCK,FLANGED,12MM 3
92046 92046-1151 BEARING-NEEDLE,F-2016 6
92046A 92046-1301 BEARING-NEEDLE,7E-HVS16X22X12 1

92049 92049-0063 SEAL-OIL,SDO26X32X4 6
92049A 92049-0069 SEAL-OIL 2
92093 92093-1436 SEAL 2
92152 92152-0425 COLLAR 6
92152A 92152-1139 COLLAR 1

92153 92153-0938 BOLT,FLANGED,12X95 1
92153A 92153-0939 BOLT,FLANGED,12X86 1
92154 92154-0394 BOLT,12X122 1
92154A 92154-0512 BOLT,10X45 1
92154B 92154-0513 BOLT,10X58 1

92210 92210-1080 NUT,LOCK,FLANGED,10MM 1
92210A 92210-1184 NUT,LOCK,10MM 1

29 MAY 25,2011

This catalog covers:

GRID NO.

This grid covers:

’12 KX250YCF Chassis D-8 Footrests

Quantity-KX250

’12

Ref.

No.

Part No. Description Spec Code

YCF

32054 32054-0049 BRACKET-STEP,LH 1
32054A 32054-0050 BRACKET-STEP,RH 1
34028 34028-0104 STEP,LH 1
34028A 34028-0105 STEP,RH 1
92022 92022-1829 WASHER,10.2X16X1 2

92043 92043-0074 PIN,10X42.5 2
92145 92145-0800 SPRING,STEP,LH 1
92145A 92145-0801 SPRING,STEP,RH 1
92153 92153-0653 BOLT,FLANGED,12X23 2
92154 92154-0515 BOLT,FLANGED,8X25 2

550 550S3020 PIN-COTTER,3.0X20 2

30 MAY 25,2011

This catalog covers:

GRID NO.

This grid covers:

’12 KX250YCF Chassis D-9 Fenders

Quantity-KX250

’12

Ref.

No.

Part No. Description Spec Code

YCF

35004 35004-0139-290 FENDER-FRONT,L.GREEN 1
35019 35019-0050 FLAP,AIR FILTER 1
35023 35023-0180-290 FENDER-REAR,L.GREEN 1
92009 92009-1993 SCREW,TAPPING,5X20 2
92150 92150-1801 BOLT,6X20 4

92152 92152-1422 COLLAR 4
92154 92154-0772 BOLT,FLANGED,6X23 2
92210 92210-1352 NUT,PLATE,6MM 2

132 132BA0614 BOLT-FLANGED-SMALL,6X14 2

31 MAY 25,2011

This catalog covers:

GRID NO.

This grid covers:

’12 KX250YCF Chassis D-10 Stand(s)

Quantity-KX250

’12

Ref.

No.

Part No. Description Spec Code

YCF

34024 34024-0074 STAND-SIDE 1

32 MAY 25,2011

This catalog covers:

GRID NO.

This grid covers:

’12 KX250YCF Chassis D-11 Tires

Quantity-KX250

’12

Ref.

No.

Part No. Description Spec Code

YCF

41009 41009-0253 TIRE,FR,80/100-21 51M,M403(BS) 1
41009A 41009-0254 TIRE,RR,100/90-19 57M,M404(BS) 1
41022 41022-1107 TUBE-TIRE,FR,MC90/90-21(BS) 1
41022A 41022-1142 TUBE-TIRE,RR,100/90-19(BS) 1
41023 41023-1009 BAND-RIM,FR,X-21(BS) 1

41023A 41023-1081 BAND-RIM,RR,110/90-19(BS) 1
41024 41024-010 STOPPER-RIM,FR,1.60-M(DUNLOP) 1
41024A 41024-011 STOPPER-RIM,RR,1.85-M(DUNLOP) 1
41025 41025-0146-WC RIM,FR,1.60X21,BLACK 1
41025A 41025-0147-WC RIM,RR,1.85X19,BLACK 1

41029 41029-0003 SPOKE-INNER,FR 36
41029A 41029-1204 SPOKE-INNER,RR,202MMX160D 27
41029B 41029-1330 SPOKE-INNER,RR,204MMX159D 9
41032 41032-0002 NIPPLE-SPOKE,FR,ALUMINIUM 36
41032A 41032-1077 NIPPLE-SPOKE,FR,8X9X20(+),STEEL 36

(OPTION)
41032B 41032-1085 NIPPLE-SPOKE,RR,STEEL 36

(OPTION)
41032C 41032-1086 NIPPLE-SPOKE,RR,ALUMINIUM 36
41090 41090-0114-WC WHEEL,FR,1.60X21,AL NIPPLE,BLK 1

(OPTION)
41090A 41090-0115-WC WHEEL,RR,1.85X19,AL NIPPLE,BLK 1

(OPTION)
92161 92161-1184 DAMPER,RIM STOPPER 1

33 MAY 25,2011

This catalog covers:

GRID NO.

This grid covers:

’12 KX250YCF Chassis D-12 Front Hub

Quantity-KX250

’12

Ref.

No.

Part No. Description Spec Code

YCF

11012 11012-1581 CAP,AXLE 2
41034 41034-0034 DRUM-ASSY,FRONT BRAKE 1
41068 41068-0004 AXLE,FR 1
92045 92045-1284 BEARING-BALL,69042RS 2
92049 92049-1403 SEAL-OIL,BJNC-2 25X37X5 2

92152 92152-0028 COLLAR,FRONT BRAKE DRUM,L=65 1
92152A 92152-0324 COLLAR,FR AXLE,L=27.5 2
92210 92210-0065 NUT,18MM 1

34 MAY 25,2011

This catalog covers:

GRID NO.

This grid covers:

’12 KX250YCF Chassis D-13 Rear Hub(1/2)

Quantity-KX250

’12

Ref.

No.

Part No. Description Spec Code

YCF

11065 11065-1253 CAP,AXLE 2
41034 41034-0057 DRUM-ASSY,REAR BRAKE 1
41068 41068-1466 AXLE,RR 1
42041 42041-0001 SPROCKET-HUB,52T,AL

L------------------------------------AS 1

(OPTION)
42041A 42041-1382 SPROCKET-HUB,47T,STEEL

L------------------------------------EU 1

(OPTION)
42041B 42041-1383 SPROCKET-HUB,48T,STEEL 1

(OPTION)
42041C 42041-1384 SPROCKET-HUB,49T,STEEL 1

(OPTION)
42041D 42041-1408 SPROCKET-HUB,50T,STEEL 1

(OPTION)
42041E 42041-1428 SPROCKET-HUB,51T,STEEL 1

(OPTION)
42041F 42041-1429 SPROCKET-HUB,52T,STEEL

L------------------------------------AS 1

(OPTION)
42041G 42041-1447 SPROCKET-HUB,47T,AL

L------------------------------------EU 1

(OPTION)
42041H 42041-1448 SPROCKET-HUB,48T,AL 1

(OPTION)
42041I 42041-1449 SPROCKET-HUB,49T,AL

L------------------------------------EU 1

42041J 42041-1449 SPROCKET-HUB,49T,AL

L------------------------------------AS 1

(OPTION)
42041K 42041-1450 SPROCKET-HUB,50T,AL

L------------------------------------AS 1

42041L 42041-1450 SPROCKET-HUB,50T,AL

L------------------------------------EU 1

(OPTION)
42041M 42041-1451 SPROCKET-HUB,51T,AL 1

(OPTION)

35 MAY 25,2011

This catalog covers:

GRID NO.

This grid covers:

’12 KX250YCF Chassis D-14 Rear Hub(2/2)

Quantity-KX250

’12

Ref.

No.

Part No. Description Spec Code

YCF

92033 92033-1041 RING-SNAP,42MM 1
92045 92045-1446 BEARING-BALL,69052RS 3
92049 92049-1614 SEAL-OIL 2
92057 92057-0192 CHAIN,DRIVE,DID520DMA4X114L 1
92058 92058-1074 JOINT-CHAIN,DRIVE 1

92150 92150-1978 BOLT,SOCKET,8X28 6
92152 92152-1427 COLLAR,REAR BRAKE DRUM,L=106.5 1
92152A 92152-1544 COLLAR,RR HUB 2
92200 92200-1623 WASHER,22.5X35X2.3 1
92210 92210-0493 NUT,FLANGED,LOCK,8MM 6

92210A 92210-1411 NUT,CASTLE,22MM 1

410 410AA0800 WASHER-PLAIN-SMALL,8MM 6
550 550AA3035 PIN-COTTER,3.0X35 1

36 MAY 25,2011

This catalog covers:

GRID NO.

This grid covers:

’12 KX250YCF Chassis E-3 Brake Pedal

Quantity-KX250

’12

Ref.

No.

Part No. Description Spec Code

YCF

13236 13236-0097 LEVER-COMP,BRAKE PEDAL 1
92144 92144-1752 SPRING,BRAKE PEDAL RETURN 1
92154 92154-0516 BOLT,BRAKE PEDAL,10MM 1
92190 92190-1488 TUBE,13X16X25 1
92200 92200-0154 WASHER,10.5X24X1.5 1

670 670B2012 O RING,12MM 2

37 MAY 25,2011

This catalog covers:

GRID NO.

This grid covers:

’12 KX250YCF Chassis E-4 Shock Absorber(s)

Quantity-KX250

’12

Ref.

No.

Part No. Description Spec Code

YCF

11065 11065-0340 CAP,CHAMBER 1
13070 13070-0057 GUIDE,SPRING SEAT 1
13235 13235-0003 GUIDE-COMP,ROD 1
13271 13271-0858 PLATE,END 1
32085 32085-0077 STOPPER,SPRING SEAT 1

43058 43058-0012 RING,PISTON 1
43078 43078-0030 RESERVOIR 1
43089 43089-0026 CYLINDER-SHOCKABSORBER 1
45014 45014-0354-23P SHOCKABSORBER,SPG BLK+AJ BLU

L------------------------------------AS 1

45014A 45014-0356-23P SHOCKABSORBER,SPG BLK+AJ BLU

L------------------------------------EU 1

46102 46102-0571 ROD

L------------------------------------AS 1
46102A 46102-0574 ROD 1
46102B 46102-0575 ROD

L------------------------------------EU 1
92033 92033-0040 RING-SNAP 1
92033A 92033-0042 RING-SNAP 1

92033B 92033-0076 RING-SNAP 1
92046 92046-1301 BEARING-NEEDLE,7E-HVS16X22X12 1
92049 92049-0151 SEAL-OIL 1
92055 92055-0098 RING-O,PLUG BOLT 1
92055A 92055-0099 RING-O,PLUG BOLT 1

92055B 92055-0100 RING-O 2
92055C 92055-0101 RING-O 1
92145 92145-0465-10 SPRING,REAR SHOCK,K=49N/MM,BLK 1

(OPTION)
92145A 92145-0887-10 SPRING,REAR SHOCK,K=53N/MM,BLK 1
92145B 92145-0888-10 SPRING,REAR SHOCK,K=51N/MM,BLK 1

(OPTION)
92145C 92145-0889-10 SPRING,REAR SHOCK,K=55N/MM,BLK 1

(OPTION)
92154 92154-0880 BOLT,PLUG

L------------------------------------AS 1

92154A 92154-0985 BOLT,PLUG

L------------------------------------EU 1
92161 92161-0329 DAMPER,STOPPER 1
92210 92210-0270 NUT,PISTON 1

92210A 92210-0271 NUT,SPRING ADJUSTER 1
92210B 92210-0272 NUT,SPRING ADJUST NUT 1

38 MAY 25,2011

This catalog covers:

GRID NO.

This grid covers:

’12 KX250YCF Chassis E-5 Front Master Cylinder

Quantity-KX250

’12

Ref.

No.

Part No. Description Spec Code

YCF

13236 13236-0712 LEVER-COMP,FRONT BRAKE 1
43015 43015-0170 CYLINDER-ASSY-MASTER 1
43020 43020-0016 PISTON-COMP-BRAKE 1
43022 43022-1010 STOPPER-BRAKE,PISTON 1
43026 43026-0020 CAP-BRAKE,MASTER CYLINDER 1

43028 43028-1067 DIAPHRAGM 1
43034 43034-1110 HOLDER-BRAKE 1
43095 43095-0616 HOSE-BRAKE,FR,1286MM 1
49006 49006-0078 BOOT,FRONT BRAKE LEVER 1
49016 49016-1044 COVER-SEAL,MASTER CYLINDER 1

49091 49091-0001 WASHER-SEAL,10.1X14.5X1.5 4
92009 92009-1795 SCREW 2
92015 92015-1528 NUT,FLANGED,6MM 1
92022 92022-1814 WASHER 1
92150 92150-1451 BOLT,LEVER SET 1

92150A 92150-1452 BOLT 2
92153 92153-1419 BOLT,OIL,L=23 2
92171 92171-0481 CLAMP,BRAKE HOSE,LH 1
92171A 92171-0482 CLAMP,BRAKE HOSE,RH 1

132 132BA0616 BOLT-FLANGED-SMALL,6X16 2

39 MAY 25,2011

This catalog covers:

GRID NO.

This grid covers:

’12 KX250YCF Chassis E-6 Front Brake

Quantity-KX250

’12

Ref.

No.

Part No. Description Spec Code

YCF

14079 14079-0043 HOLDER-ASSY,FRONT CALIPER 1
32085 32085-1361 STOPPER,PAD 1
41080 41080-0192 DISC,FR 1
41080A 41080-0193 DISC,FR 1

(OPTION)

43048 43048-1093 PISTON-CALIPER 2
43049 43049-1060 PACKING,PISTON SEAL 2

43049A 43049-1061 PACKING,PISTON SEAL 2
43056 43056-1055 BREATHER 1
43057 43057-1001 CAP-BREATHER 1
43080 43080-0081 CALIPER-SUB-ASSY,FR 1

43082 43082-0049 PAD-ASSY-BRAKE 1
49006 49006-1088 BOOT,CALIPER 1
49006A 49006-1242 BOOT,CALIPER 1
92144 92144-1721 SPRING,PAD 1
92150 92150-1691 BOLT,HANGER 1

92151 92151-1799 BOLT,DISC PLATE,6MM 4

120 120CA0840 BOLT-SOCKET,8X40 2

40 MAY 25,2011

This catalog covers:

GRID NO.

This grid covers:

’12 KX250YCF Chassis E-7 Rear Master Cylinder

Quantity-KX250

’12

Ref.

No.

Part No. Description Spec Code

YCF

13070 13070-0048 GUIDE,BRAKE HOSE 2
43010 43010-1087 ROD-ASSY-BRAKE 1
43015 43015-0168 CYLINDER-ASSY-MASTER 1
43020 43020-1094 PISTON-COMP-BRAKE 1
43026 43026-0023 CAP-BRAKE 1

43028 43028-1092 DIAPHRAGM 1
43095 43095-0617 HOSE-BRAKE,L=555 1
49091 49091-0001 WASHER-SEAL,10.1X14.5X1.5 4
92022 92022-1028 WASHER,8.5X13X1 1
92033 92033-0079 RING-SNAP,20.9X24.6X1.2 1

92043 92043-0004 PIN 1
92153 92153-1021 BOLT,SOCKET,6X14 2
92153A 92153-1419 BOLT,OIL,L=23 2
92172 92172-1064 SCREW 2

220 220AA0510 SCREW-PAN-CROSS,5X10 4
550 550AA2015 PIN-COTTER,2.0X15 1

41 MAY 25,2011

This catalog covers:

GRID NO.

This grid covers:

’12 KX250YCF Chassis E-8 Rear Brake

Quantity-KX250

’12

Ref.

No.

Part No. Description Spec Code

YCF

14079 14079-0022 HOLDER-ASSY,REAR CALIPER 1
14091 14091-1523-6C COVER,REAR DISC,EBONY 1
32085 32085-1386 STOPPER,PAD 1
41080 41080-0076 DISC,RR 1
41080A 41080-0094 DISC,RR 1

(OPTION)

43048 43048-1066 PISTON-CALIPER 1
43049 43049-1063 PACKING 1
43049A 43049-1064 PACKING 1
43056 43056-1055 BREATHER 1
43057 43057-1001 CAP-BREATHER 1

43080 43080-0037 CALIPER-SUB-ASSY,RR 1
43082 43082-0107 PAD-ASSY-BRAKE 1
49006 49006-1088 BOOT,CALIPER 1
49006A 49006-1242 BOOT,CALIPER 1
55020 55020-0458-6C GUARD,REAR CALIPER,EBONY 1

92043 92043-1507 PIN,HANGER 1
92043A 92043-1508 PIN 1
92144 92144-1819 SPRING,PAD 1
92150 92150-1340 BOLT,6X14 4
92150A 92150-1692 BOLT,PLUG 1

92150B 92150-1811 BOLT,DISC PLATE,8X15 4

42 MAY 25,2011

This catalog covers:

GRID NO.

This grid covers:

’12 KX250YCF Chassis E-9 Handlebar

Quantity-KX250

’12

Ref.

No.

Part No. Description Spec Code

YCF

13280 13280-0055 HOLDER 1
13280A 13280-0118 HOLDER,CLUTCH LEVER 1
14091 14091-0182 COVER,THROTTLE CASE 1
27010 27010-0047 SWITCH,ENGINE STOP 1
32099 32099-0002 CASE,THROTTLE,RR 1

32099A 32099-0003 CASE,THROTTLE,FR 1
39087 39087-0005 PAD-HANDLE 1
39183 39183-1059 BAND-ASSY,ENGINE STOP SWITCH 1
46003 46003-0572 HANDLE,RENTHAL,K971 1
46012 46012-0013-21 HOLDER-HANDLE,LWR,F.BLACK 2

46012A 46012-0020-21 HOLDER-HANDLE,UPP,FAT BAR,BLK 2

(OPTION)

46012B 46012-0021-21 HOLDER-HANDLE,LWR,FAT BAR,BLK 2

(OPTION)
46012C 46012-0023-21 HOLDER-HANDLE,UPP,F.BLACK 2
46012D 46012-0048-21 HOLDER-HANDLE,LWR,F.BLACK 2

(OPTION)
46019 46019-0018 GRIP-ASSY,THROTTLE 1

46075 46075-0044 GRIP,LH 1
46076 46076-0019 LEVER-ASSY-GRIP,CLUTCH 1
46092 46092-0007 LEVER-GRIP,CLUTCH 1
49006 49006-0030 BOOT,CLUTCH LEVER 1
49006A 49006-0060 BOOT,CLUTCH CABLE 1

92015 92015-1962 NUT,LOCK,10MM 2
92019 92019-008 NUT,LOCK,6MM 1
92022 92022-1088 WASHER,10.2X28X2 2
92022A 92022-1737 WASHER 4
92072 92072-0055 BAND,L=100 2

92153 92153-0773 BOLT,BOLT ADJUSTING 1
92153A 92153-0807 BOLT 1
92153B 92153-0808 BOLT,5X16 2
92161 92161-0113 DAMPER,HANDLE HOLDER 4
92172 92172-0069 SCREW,5X20 2

92210 92210-0167 NUT,BOLT WIRE ADJUSTING 1

132 132BA0835 BOLT-FLANGED-SMALL,8X35 4

43 MAY 25,2011

This catalog covers:

GRID NO.

This grid covers:

’12 KX250YCF Chassis E-10 Front Fork(1/2)

Quantity-KX250

’12

Ref.

No.

Part No. Description Spec Code

YCF

11055 11055-1405 BRACKET,BRAKE HOSE 1
13070 13070-0125 GUIDE 1
32085 32085-0711 STOPPER 2
43058 43058-0037 RING 1
44008 44008-0016 PIPE-FORK OUTER 2

44013 44013-0164 PIPE-FORK INNER,RH 1
44013A 44013-0189 PIPE-FORK INNER,LH 1
44026 44026-0152 SPRING-FRONT FORK,K=9.1N/MM 1

(OPTION)
44026A 44026-0157 SPRING-FRONT FORK,K=9.5N/MM 1
44026B 44026-0166 SPRING-FRONT FORK,K=9.9N/MM 1

(OPTION)
44037 44037-0113-21 HOLDER-FORK UNDER,F.BLACK 1

44039 44039-0103-21 HOLDER-FORK UPPER,F.BLACK 1
44065 44065-0027 BUSHING-FRONT FORK,SLIDE 2
44065A 44065-0028 BUSHING-FRONT FORK,GUIDE 2
44065B 44065-0029 BUSHING-FRONT FORK,SLIDE 2

44071 44071-0777 DAMPER-ASSY,FORK,LH

L------------------------------------AS 1

44071A 44071-0778 DAMPER-ASSY,COMP,LH

L------------------------------------AS 1
44071B 44071-0779 DAMPER-ASSY,FORK,RH 1
44071C 44071-0813 DAMPER-ASSY,FORK,LH

L------------------------------------EU 1
44071D 44071-0815 DAMPER-ASSY,COMP,LH

L------------------------------------EU 1
46102 46102-0107 ROD,PUSH 1

46102A 46102-0570 ROD,JOINT 1
55020 55020-0441-6C GUARD,FORK,LH,EBONY 1
55020A 55020-0442-6C GUARD,FORK,RH,EBONY 1
92026 92026-0144 SPACER,SEAL 2

92033 92033-0039 RING-SNAP 2
92049 92049-0074 SEAL-OIL 2
92055 92055-0090 RING-O,CENTER BOLT 2
92055A 92055-0091 RING-O 1
92055B 92055-0092 RING-O 1

92055C 92055-0093 RING-O 1
92055D 92055-0094 RING-O 2
92055E 92055-0095 RING-O 2
92093 92093-0059 SEAL,DUST 2
92150 92150-1340 BOLT,6X14 6

44 MAY 25,2011

This catalog covers:

GRID NO.

This grid covers:

’12 KX250YCF Chassis E-11 Front Fork(2/2)

Quantity-KX250

’12

Ref.

No.

Part No. Description Spec Code

YCF

92152 92152-0889 COLLAR 1
92153 92153-1397 BOLT,FLANGED 1
92153A 92153-1398 BOLT,PLUG 2
92153B 92153-1399 BOLT,FLANGED,8X40 4
92153C 92153-1778 BOLT,CENTER 1

92154 92154-0409 BOLT 1
92154A 92154-0463 BOLT 4
92154B 92154-0464 BOLT 4
92154C 92154-0877-KW BOLT,FORK,BLUE

L------------------------------------AS 1
92154D 92154-0878-KW BOLT,ADJ.,COMP,BLUE 1

92154E 92154-0986-KW BOLT,FORK,BLUE

L------------------------------------EU 1
92171 92171-0506 CLAMP,BRAKE HOSE 1
92210 92210-0430 NUT,LOCK 1
92210A 92210-0619 NUT 1

45 MAY 25,2011

This catalog covers:

GRID NO.

This grid covers:

’12 KX250YCF Chassis E-12 Fuel Tank

Quantity-KX250

’12

Ref.

No.

Part No. Description Spec Code

YCF

51001 51001-0305 TANK-COMP-FUEL 1
51048 51048-0031 CAP-ASSY-TANK,FUEL 1
59231 59231-0019 FILLER 1
92009 92009-1971 SCREW,6MM 2
92022 92022-1690 WASHER,6.5X24X2 1

92072 92072-0045 BAND,FUEL TANK 1
92152 92152-1346 COLLAR 1
92152A 92152-1552 COLLAR,6.8X10X16 1
92154 92154-0520 BOLT,FLANGED,6X25 1
92161 92161-1377 DAMPER,FUEL TANK,RR 1

92161A 92161-1392 DAMPER,FUEL TANK,FR 1
92161B 92161-1393 DAMPER,FUEL TANK,SIDE 2
92192 92192-0161 TUBE 1

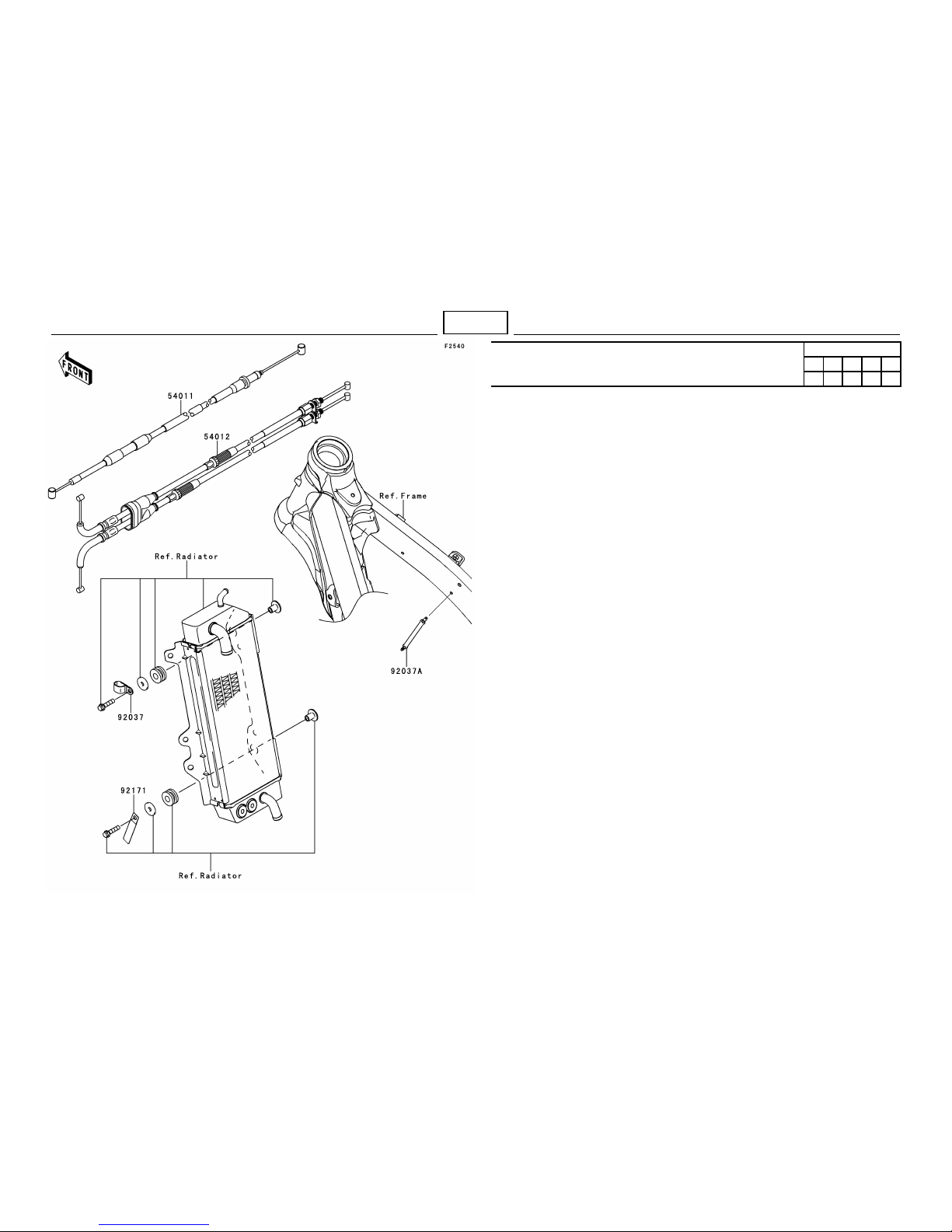

46 MAY 25,2011

This catalog covers:

GRID NO.

This grid covers:

’12 KX250YCF Chassis E-13 Cables

Quantity-KX250

’12

Ref.

No.

Part No. Description Spec Code

YCF

54011 54011-0096 CABLE-CLUTCH 1
54012 54012-0286 CABLE-THROTTLE 1
92037 92037-1608 CLAMP 1
92037A 92037-1903 CLAMP,SPEED,L=80.5 1
92171 92171-0652 CLAMP 1

47 MAY 25,2011

This catalog covers:

GRID NO.

This grid covers:

’12 KX250YCF Chassis E-14 Side Covers

Quantity-KX250

’12

Ref.

No.

Part No. Description Spec Code

YCF

36001 36001-0151-25P COVER-SIDE,LH,UP GRN+LO EBONY 1
36001A 36001-0153-25P COVER-SIDE,RH,UP GRN+LO EBONY 1
39156 39156-0427 PAD,SIDE COVER,RH 1
53066 53066-0330-336 SEAT-ASSY,GREEN/BLACK 1
92143 92143-1196 COLLAR 4

92150 92150-1506 BOLT,FLANGED,6X16 2
92161 92161-0073 DAMPER 1

132 132BA0816 BOLT-FLANGED-SMALL,8X16 2

48 MAY 25,2011

This catalog covers:

GRID NO.

This grid covers:

’12 KX250YCF Chassis F-3 Chassis Electrical Equipment

Quantity-KX250

’12

Ref.

No.

Part No. Description Spec Code

YCF

26011 26011-0273 WIRE-LEAD 1
26031 26031-1316 HARNESS,MAIN 1
92037 92037-1163 CLAMP,SPEED,L=58 3
92037A 92037-1903 CLAMP,SPEED,L=80.5 1

49 MAY 25,2011

This catalog covers:

GRID NO.

This grid covers:

’12 KX250YCF Chassis F-4 Owner’s Tools

Quantity-KX250

’12

Ref.

No.

Part No. Description Spec Code

YCF

92104 92104-0004 GASKET-LIQUID,TB1211F,CLEAR 1
92104A 92104-1063 GASKET-LIQUID,TB1216,GRAY 1
92104B 92104-1064 GASKET-LIQUID,TB1216B,BLACK 1
92110 92110-0004 TOOL-WRENCH,NIPPLE,6X8 1
92110A 92110-0005 TOOL-WRENCH,BOX,16MM 1

50 MAY 25,2011

This catalog covers:

GRID NO.

This grid covers:

’12 KX250YCF Chassis F-5 Labels

Quantity-KX250

’12

Ref.

No.

Part No. Description Spec Code

YCF

56070 56070-3799 LABEL-WARNING,OWNER’S MANUAL

L------------------------------------EU 1
56071 56071-0028 LABEL-WARNING,IMPORTANT NOTICE

L------------------------------------AS 1
56071A 56071-0029 LABEL-WARNING,IMPORTANT NOTICE

L------------------------------------EU 1

51 MAY 25,2011

This catalog covers:

GRID NO.

This grid covers:

’12 KX250YCF Chassis F-6 Decals

Quantity-KX250

’12

Ref.

No.

Part No. Description Spec Code

YCF

56054 56054-0842 MARK,KX250F F.I. 2
56069 56069-1567 PATTERN,SHROUD,UPP,LH 1
56069A 56069-1568 PATTERN,SHROUD,LWR,LH 1
56069B 56069-1570 PATTERN,SHROUD,UPP,RH 1
56069C 56069-1571 PATTERN,SHROUD,LWR,RH 1

56069D 56069-1573 PATTERN,NUMBER PLATE 1

52 MAY 25,2011

This catalog covers:

GRID NO.

This grid covers:

’12 KX250YCF Chassis F-7 Accessory

Quantity-KX250

’12

Ref.

No.

Part No. Description Spec Code

YCF

58029 58029-0006-6C PLATE-NUMBER,EBONY 1
92150 92150-1435 BOLT,6X12 1

53 MAY 25,2011

This catalog covers:

GRID NO.

This grid covers:

’12 KX250YCF L-14 Numerical Parts Index

Part No. Grid No. Part No. Grid No. Part No. Grid No. Part No. Grid No. Part No. Grid No. Part No. Grid No.

11004-0079 .................B-3

11005-0586 .................B-5

11008-0218 .................B-3

11011-0734 .................B-6

11012-1581 ...............D-12

11013-0011 .................B-6

11055-0870 .................D-5

11055-1405 ...............E-10

11055-1540 .................D-5

11055-1541 .................D-5

11055-1542 .................D-5

11055-1673 .................C-9

11056-0505 .................D-5

11056-0961 .................D-5

11056-0983 .................D-5

11056-1513 ...............C-11

11061-0027 .................B-7

11061-0350 .................B-4

11061-0357 .................B-5

11061-0361 .................C-6

11061-0362 .................C-6

11061-0434 .................B-7

11061-0778 .................C-6

11065-0087 ...............C-13

11065-0340 .................E-4

11065-1253 ...............D-13

12004-0033 .................B-8

12005-0002 .................B-8

12009-0010 .................B-8

12009-1073 .................B-8

12011-1053 .................B-8

12022-0006 .................C-5

12032-0005 .................B-8

12032-0006 .................B-8

12048-0056 ...............B-10

12053-0009 ...............B-10

12053-0010 ...............B-10

12053-0017 ...............B-10

12053-0125 .................D-6

12053-0129 .................C-6

12053-0130 .................C-6

12053-0178 .................D-6

120CA0625 .................B-3

120CA0625 .................B-5

120CA0630 ...............C-13

120CA0840 .................E-6

13001-0714 .................B-5

13002-0030 .................B-5

13008-0028 .................B-5

13031-0714 ...............B-11

13032-0705 ...............B-11

13034-0019 ...............B-11

13035-0022 ...............B-11

13037-0155 ...............B-11

13037-0732 ...............B-11

13061-0357 ...............B-12

13064-0059 ...............B-12

13066-0004 ...............B-12

13070-0011 ...............B-12

13070-0048 .................E-7

13070-0057 .................E-4

13070-0125 ...............E-10

13078-0025 ...............B-12

13078-0029 .................C-4

13087-0017 ...............B-13

13088-0018 ...............B-13

13089-0005 ...............B-13

13095-0121 ...............B-13

13097-0117 ...............B-11

130BA0512 .................B-6

130CD0514 ...............C-13

13102-0034 ...............B-13

13107-0196 ...............C-13

13116-0037 ...............B-13

13127-0064 ...............B-14

13128-0046 ...............B-14

13140-0056 .................C-3

13140-0057 .................C-3

13141-0575 .................C-3

13144-0036 ...............B-14

13144-0064 ...............B-14

13145-0031 .................C-3

13151-0560 .................C-3

13156-0124 .................C-4

13161-0077 .................C-4

13165-0018 .................C-4

13187-1089 ...............B-13

13206-1062 ...............B-12

13234-0045 ...............C-10

13235-0003 .................E-4

13236-0097 .................E-3

13236-0161 .................C-4

13236-0712 .................E-5

13262-0671 ...............B-14

13262-0672 ...............B-14

13262-0674 ...............B-14

13262-0676 ...............B-14

13262-0776 ...............B-14

13262-0839 ...............B-14

13262-0840 ...............B-14

13262-0841 ...............B-14

13262-0842 ...............B-14

13271-0730 .................B-6

13271-0808 ...............B-10

13271-0858 .................E-4

13272-0438 .................C-4

13272-0488 .................C-5

13272-0670 .................C-5

13272-1169 .................D-6

13280-0055 .................E-9

13280-0118 .................E-9

13280-0170 .................B-6

13280-0339 ...............B-13

13280-0383 .................B-6

132BA0608 ...............C-13

132BA0610 ...............C-11

132BA0610 .................D-5

132BA0610 .................D-6

132BA0612 ...............B-10

132BA0612 ...............C-13

132BA0612 .................D-5

132BA0614 ...............C-13

132BA0614 .................D-9

132BA0616 .................E-5

132BA0625 .................D-5

132BA0630 .................C-6

132BA0635 .................C-6

132BA0650 .................C-5

132BA0660 .................C-5

132BA0665 ...............C-13

132BA0665 .................C-5

132BA0665 .................C-6

132BA0670 .................C-5

132BA0816 ...............E-14

132BA0835 .................E-9

132BA0840 .................B-7

132BB0625 ...............C-14

14001-0583 .................C-5

14013-0001 ...............B-10

14013-0002 ...............B-10

14026-0090 .................C-6

14031-0115 .................C-6

14032-0120 .................C-6

14032-0136 .................C-6

14037-0100-6C .........C-14

14037-0101-6C .........C-14

14073-0710 .................B-6

14079-0022 .................E-8

14079-0043 .................E-6

14091-0182 .................E-9

14091-1523-6C ...........E-8

14091-1629 .................B-4

14091-1815 .................C-7

16007-0002 .................B-8

16007-0029 .................B-8

16016-0024 .................C-7

16065-0074 .................B-3

16073-0129 .................C-7

16073-3707 .................C-7

16142-0003 ...............C-10

16142-0020 ...............C-13

16154-0090 ...............C-10

16154-0093 ...............C-10

16163-0720 .................C-7

172BA0612 .................C-4

18046-0231 .................B-7

18046-0581 .................B-7

18088-0781 .................B-7

18100-0555 .................B-7

21003-0102 ...............C-11

21007-0164 ...............C-11

21007-0165 ...............C-11

21007-0554 ...............C-11

21013-0001 ...............C-11

21066-0042 ...............C-11

21118-0004 ...............B-10

21121-0058 ...............C-12

21160-0009 ...............C-12

21175-0731 .................C-9

21176-0001 .................C-7

21176-0009 .................C-9

21176-0058 .................C-7

21176-0066 .................C-9

21176-0121 .................C-9

220AA0510 .................E-7

225AA0510 .................C-5

23016-0049 .................C-9

26011-0246 .................C-9

26011-0273 .................F-3

26031-1316 .................F-3

27010-0047 .................E-9

290CA0808 ...............B-12

31064-0211 .................B-7

311BA0600 .................C-4

32054-0049 .................D-8

32054-0050 .................D-8

32085-0011 .................C-5

32085-0077 .................E-4

32085-0711 ...............E-10

32085-1361 .................E-6

32085-1386 .................E-8

32099-0002 .................E-9

32099-0003 .................E-9

32099-0051 ...............C-10

32155-0112 .................C-7

32160-0543 .................D-3

32160-0570 .................D-3

32190-0461 .................D-4

32190-0477 .................D-4

32190-0478 .................D-4

33001-0577 .................D-6

33032-0012 .................D-6

33040-0020 .................D-6

33040-0075 .................D-6

34024-0074 ...............D-10

34028-0104 .................D-8

34028-0105 .................D-8

35004-0139-290 .........D-9

35019-0050 .................D-9

35023-0180-290 .........D-9

35063-0647 .................C-7

36001-0151-25P .......E-14

36001-0153-25P .......E-14

39007-0349 .................D-7

39061-0168 ...............C-14

39061-0190 ...............C-14

39062-0258 ...............C-14

39062-0292 ...............C-14

39062-0293 ...............C-14

39062-0294 ...............C-14

39062-0295 ...............C-14

39062-1348 ...............C-14

39087-0005 .................E-9

39111-0309 .................D-7

39115-0007 ...............C-10

39115-0565 ...............B-12

39156-0427 ...............E-14

39183-1059 .................E-9

39192-0037 ...............C-13

41009-0253 ...............D-11

41009-0254 ...............D-11

41022-1107 ...............D-11

41022-1142 ...............D-11

41023-1009 ...............D-11

41023-1081 ...............D-11

41024-010 .................D-11

41024-011 .................D-11

41025-0146-WC .......D-11

41025-0147-WC .......D-11

41029-0003 ...............D-11

41029-1204 ...............D-11

41029-1330 ...............D-11

41032-0002 ...............D-11

41032-1077 ...............D-11

41032-1085 ...............D-11

41032-1086 ...............D-11

41034-0034 ...............D-12

41034-0057 ...............D-13

41068-0004 ...............D-12

41068-1466 ...............D-13

41080-0076 .................E-8

41080-0094 .................E-8

41080-0192 .................E-6

41080-0193 .................E-6

41090-0114-WC .......D-11

41090-0115-WC .......D-11

410AA0800 ...............D-14

411S0600 ....................B-7

42036-0019 .................D-6

42036-0020 .................D-7

42036-0021 .................D-7

42036-0022 .................D-7

42036-0030 .................D-7

42036-1351 .................D-7

42041-0001 ...............D-13

42041-1382 ...............D-13

42041-1383 ...............D-13

42041-1384 ...............D-13

42041-1408 ...............D-13

42041-1428 ...............D-13

42041-1429 ...............D-13

42041-1447 ...............D-13

42041-1448 ...............D-13

42041-1449 ...............D-13

42041-1449 ...............D-13

42041-1450 ...............D-13

42041-1450 ...............D-13

42041-1451 ...............D-13

43010-1087 .................E-7

43015-0168 .................E-7

43015-0170 .................E-5

43020-0016 .................E-5

43020-1094 .................E-7

43022-1010 .................E-5

43026-0020 .................E-5

43026-0023 .................E-7

43028-1067 .................E-5

43028-1092 .................E-7

43034-1110 .................E-5

43048-1066 .................E-8

This catalog covers:

GRID NO.

This grid covers:

’12 KX250YCF L-15 Numerical Parts Index

Part No. Grid No. Part No. Grid No. Part No. Grid No. Part No. Grid No. Part No. Grid No. Part No. Grid No.

43048-1093 .................E-6

43049-1060 .................E-6

43049-1061 .................E-6

43049-1063 .................E-8

43049-1064 .................E-8

43056-1055 .................E-6

43056-1055 .................E-8

43057-1001 .................E-6

43057-1001 .................E-8

43058-0012 .................E-4

43058-0037 ...............E-10

43078-0030 .................E-4

43080-0037 .................E-8

43080-0081 .................E-6

43082-0049 .................E-6

43082-0107 .................E-8

43089-0026 .................E-4

43095-0616 .................E-5

43095-0617 .................E-7

44008-0016 ...............E-10

44013-0164 ...............E-10

44013-0189 ...............E-10

44026-0152 ...............E-10

44026-0157 ...............E-10

44026-0166 ...............E-10

44037-0113-21 ..........E-10

44039-0103-21 ..........E-10

44065-0027 ...............E-10

44065-0028 ...............E-10

44065-0029 ...............E-10

44071-0777 ...............E-10

44071-0778 ...............E-10

44071-0779 ...............E-10

44071-0813 ...............E-10

44071-0815 ...............E-10

45014-0354-23P .........E-4

45014-0356-23P .........E-4

46003-0572 .................E-9

46012-0013-21 ............E-9

46012-0020-21 ............E-9

46012-0021-21 ............E-9

46012-0023-21 ............E-9

46012-0048-21 ............E-9

46019-0018 .................E-9

46075-0044 .................E-9

46076-0019 .................E-9

46092-0007 .................E-9

46102-0107 ...............E-10

46102-0570 ...............E-10

46102-0571 .................E-4

46102-0574 .................E-4

46102-0575 .................E-4

461S0600 ....................B-7

480J1400 ....................C-4

480J1800 ..................B-12

480J2200 ..................B-14

481J2200 ....................C-6

49002-0003 .................B-3

49002-0016 .................B-3

49006-0030 .................E-9

49006-0060 .................E-9

49006-0078 .................E-5

49006-1088 .................E-6

49006-1088 .................E-8

49006-1242 .................E-6

49006-1242 .................E-8

49016-1044 .................E-5

49033-0026 .................C-7

49033-0556 .................C-7

49040-0707 .................C-8

49047-0620 .................C-3

49047-0621 .................C-3

49056-0557 .................C-7

49065-0017 ...............C-10

49065-0023 ...............C-10

49078-0003 .................B-8

49078-0080 .................B-8

49085-1070 ...............C-14

49085-1073 ...............C-14

49089-0068-25M ......C-14

49089-0069-25M ......C-14

49091-0001 .................E-5

49091-0001 .................E-7

49107-0126 .................B-7

49118-0164 ...............B-10

49118-0715 ...............B-10

51001-0305 ...............E-12

51044-0707 .................C-8

51044-0715 .................C-8

51048-0031 ...............E-12

510A3200 .................C-11

52005-1009 .................C-6

52010-0001 ...............C-10

53066-0330-336 ........E-14

54011-0096 ...............E-13

54012-0286 ...............E-13

55020-0435-6C ...........D-5

55020-0436-6C ...........D-5

55020-0441-6C .........E-10

55020-0442-6C .........E-10

55020-0443-6C ...........D-5

55020-0458-6C ...........E-8

550AA2015 .................E-7

550AA3035 ...............D-14

550S3020 ...................D-8

56054-0842 .................F-6

56069-1567 .................F-6

56069-1568 .................F-6

56069-1570 .................F-6

56069-1571 .................F-6

56069-1573 .................F-6

56070-3799 .................F-5

56071-0028 .................F-5

56071-0029 .................F-5

58029-0006-6C ...........F-7

59006-0011 .................B-6

59051-0009 ...............C-10

59051-0033 ...............B-12

59051-0061 ...............C-13

59051-0089 ...............B-12

59071-0071 .................C-7

59231-0019 ...............E-12

59256-1065 ...............C-13

600A0800 ..................B-12

600A1000 ..................B-13

610A0408 .................C-10

610A0408 ...................C-3

670B2012 ....................E-3

670E5070 ...................C-8

92002-1736 .................D-3

92004-0025 .................B-3

92005-0014 .................C-5

92005-0101 ...............C-14

92009-1571 .................C-3

92009-1795 .................E-5

92009-1971 ...............E-12

92009-1981 .................C-7

92009-1993 .................D-9

92015-1014 .................D-6

92015-1259 .................B-6

92015-1339 .................D-5

92015-1402 .................B-7

92015-1426 ...............C-11

92015-1432 .................D-4

92015-1433 .................D-7

92015-1528 .................E-5

92015-1791 .................D-3

92015-1792 .................D-3

92015-1861 .................D-3

92015-1962 .................E-9

92019-008 ...................D-5

92019-008 ...................E-9

92022-1028 .................E-7

92022-1088 .................E-9

92022-1356 ...............B-11

92022-1380 ...............C-13

92022-1690 ...............E-12

92022-1737 .................E-9

92022-1814 .................E-5

92022-1827 ...............C-13

92022-1827 .................C-4

92022-1829 .................D-8

92022-1944 ...............B-12

92022-250 ...................D-3

92022-271 .................B-12

92022-304 .................C-13

92026-0144 ...............E-10

92026-1217 .................C-4

92027-1653 .................B-7

92033-0039 ...............E-10

92033-0040 .................E-4

92033-0042 .................E-4

92033-0057 ...............B-14

92033-0076 .................E-4

92033-0079 .................E-7

92033-1039 ...............C-10

92033-1041 ...............D-14

92033-1161 .................B-5

92033-1270 ...............B-14

92036-007 .................B-13

92037-1163 .................F-3

92037-1523 .................B-3

92037-1589 ...............C-14

92037-1608 ...............E-13

92037-1903 ...............E-13

92037-1903 .................F-3

92037-1993 .................C-7

92042-007 ...................B-3

92042-007 .................C-10

92042-007 .................C-13

92042-007 ...................C-6

92043-0004 .................E-7

92043-0017 .................C-4

92043-0074 .................D-8

92043-1507 .................E-8

92043-1508 .................E-8

92043-1654 .................C-3

92043-1676 .................C-4

92043-4009 .................B-3

92043-4009 .................B-5

92043-4009 .................C-5

92045-0013 .................C-5

92045-0051 .................C-5

92045-0052 .................C-5

92045-0060 .................D-5

92045-1123 .................C-6

92045-1284 ...............D-12

92045-1287 .................C-5

92045-1335 .................C-5

92045-1432 .................C-5

92045-1446 ...............D-14

92046-0016 ...............B-13

92046-0034 .................C-5

92046-1151 .................D-7

92046-1174 .................D-6

92046-1190 ...............B-13

92046-1221 .................C-5

92046-1240 .................D-6

92046-1301 .................D-7

92046-1301 .................E-4

92049-0015 .................C-5

92049-0030 .................C-5

92049-0060 .................C-6

92049-0061 .................C-6

92049-0063 .................D-7

92049-0069 .................D-7

92049-0074 ...............E-10

92049-013 ...................C-6

92049-0151 .................E-4

92049-1262 .................C-5

92049-1349 .................B-8

92049-1387 ...............B-12

92049-1403 ...............D-12

92049-1519 .................C-6

92049-1614 ...............D-14

92055-0010 ...............C-13

92055-0016 .................C-9

92055-0064 .................C-7

92055-0090 ...............E-10

92055-0091 ...............E-10

92055-0092 ...............E-10

92055-0093 ...............E-10

92055-0094 ...............E-10

92055-0095 ...............E-10

92055-0098 .................E-4

92055-0099 .................E-4

92055-0100 .................E-4

92055-0101 .................E-4

92055-0150 .................B-3

92055-055 .................B-14

92055-0729 .................B-3

92055-086 .................B-10

92055-091 ...................C-3

92055-091 ...................C-6

92055-1011 .................C-6

92055-1146 .................C-6

92055-1308 ...............C-13

92055-1352 .................B-4

92055-1671 .................C-7

92055-520 .................C-13

92057-0030 ...............B-10

92057-0192 ...............D-14

92058-1074 ...............D-14

92062-0004 .................C-5

92065-058 ...................C-5

92066-0731 .................C-6

92066-0732 .................C-6

92066-0733 .................C-6

92066-1012 .................B-3

92066-1437 .................C-5

92066-3777 .................B-3

92070-0020 ...............C-12

92070-0021 ...............C-12

92072-0045 ...............E-12

92072-0055 .................E-9

92075-209 .................C-14

92081-020 .................B-12

92093-0059 ...............E-10

92093-1434 .................D-6

92093-1435 .................D-6

92093-1436 .................D-7

92104-0004 .................F-4

92104-1063 .................F-4

92104-1064 .................F-4

92110-0004 .................F-4

92110-0005 .................F-4

92116-1069 .................D-3

92116-1076 .................D-3

92122-0016 .................D-5

92122-0021 ...............C-10

92122-0042 .................D-5

92139-0014 ...............B-13

92139-0241 ...............B-14

92143-1196 ...............C-14

92143-1196 .................D-5

92143-1196 ...............E-14

92143-1307 .................D-5

92143-1642 .................D-5

92143-1676 .................D-6

92144-1721 .................E-6

This catalog covers:

GRID NO.

This grid covers:

’12 KX250YCF L-16 Numerical Parts Index

Part No. Grid No. Part No. Grid No. Part No. Grid No. Part No. Grid No. Part No. Grid No. Part No. Grid No.

92144-1752 .................E-3

92144-1761 ...............C-10

92144-1819 .................E-8

92145-0351 ...............B-13

92145-0453 .................C-4

92145-0465-10 ............E-4

92145-0499 ...............B-12

92145-0608 .................C-4

92145-0758 ...............B-10

92145-0800 .................D-8

92145-0801 .................D-8

92145-0811 ...............B-12

92145-0843 .................C-4

92145-0887-10 ............E-4

92145-0888-10 ............E-4

92145-0889-10 ............E-4

92145-1414 .................C-3

92150-1340 ...............E-10

92150-1340 .................E-8

92150-1435 ...............C-14

92150-1435 .................D-5

92150-1435 .................F-7

92150-1451 .................E-5

92150-1452 .................E-5

92150-1491 ...............C-10

92150-1506 .................B-6

92150-1506 .................D-5

92150-1506 ...............E-14

92150-1691 .................E-6

92150-1692 .................E-8

92150-1801 ...............C-14

92150-1801 .................D-9

92150-1811 .................E-8

92150-1978 ...............D-14

92151-1449 .................B-7

92151-1652 ...............B-12

92151-1764 ...............C-11

92151-1799 .................E-6

92151-1822 .................B-7

92152-0028 ...............D-12

92152-0052 ...............C-14

92152-0052 .................D-5

92152-0275 .................B-6

92152-0292 .................D-6

92152-0324 ...............D-12

92152-0425 .................D-7

92152-0459 .................D-5

92152-0620 .................D-5

92152-0666 ...............C-14

92152-0683 ...............B-14

92152-0687 ...............B-14

92152-0889 ...............E-11

92152-0944 .................D-5

92152-0945 .................D-5

92152-1139 .................D-7

92152-1346 ...............E-12

92152-1414 .................C-4

92152-1422 .................D-9

92152-1427 ...............D-14

92152-1449 ...............C-11

92152-1544 ...............D-14

92152-1552 ...............E-12

92153-0338 .................B-3

92153-0339 .................B-3

92153-0341 .................B-3

92153-0572 ...............B-10

92153-0620 .................D-6

92153-0623 .................B-6

92153-0653 .................D-8

92153-0773 .................E-9

92153-0807 .................E-9

92153-0808 .................E-9

92153-0825 .................C-4

92153-0918 ...............B-10

92153-0938 .................D-7

92153-0939 .................D-7

92153-1021 .................E-7

92153-1397 ...............E-11

92153-1398 ...............E-11

92153-1399 ...............E-11

92153-1419 .................E-5

92153-1419 .................E-7

92153-1669 .................C-4

92153-1669 .................C-5

92153-1735 .................C-3

92153-1778 ...............E-11

92154-0024 .................D-3

92154-0031 ...............C-11

92154-0038 .................C-9

92154-0180 ...............B-13

92154-0243 .................C-7

92154-0378 .................D-4

92154-0380 .................D-4

92154-0381 .................D-4

92154-0394 .................D-7

92154-0409 ...............E-11

92154-0463 ...............E-11

92154-0464 ...............E-11

92154-0511 .................D-6

92154-0512 .................D-7

92154-0513 .................D-7

92154-0515 .................D-8

92154-0516 .................E-3

92154-0517 .................D-4

92154-0518 .................D-4

92154-0519 .................B-7

92154-0520 ...............B-10

92154-0520 .................C-4

92154-0520 .................C-6

92154-0520 ...............E-12

92154-0521 ...............B-12

92154-0532 ...............C-13

92154-0534 .................C-8

92154-0535 .................B-4

92154-0753 .................C-7

92154-0772 .................D-9

92154-0774 .................D-5

92154-0877-KW ........E-11

92154-0878-KW ........E-11

92154-0880 .................E-4

92154-0913 .................D-5

92154-0985 .................E-4

92154-0986-KW ........E-11

92160-1116 .................B-7

92161-0041 .................C-7

92161-0073 ...............E-14

92161-0113 .................E-9

92161-0213 .................B-6

92161-0266 ...............C-11

92161-0329 .................E-4

92161-0878 .................D-5

92161-0976 .................C-9

92161-1184 ...............D-11

92161-1377 ...............E-12

92161-1392 ...............E-12

92161-1393 ...............E-12

92170-1077 ...............C-14

92170-1283 ...............C-14

92170-1514 .................B-3

92170-1938 .................C-5

92171-0372 ...............C-14

92171-0481 .................E-5

92171-0482 .................E-5

92171-0506 ...............E-11

92171-0579 .................C-5

92171-0652 ...............E-13

92171-0857 .................B-3

92171-1990 .................B-6

92172-0064 .................C-7

92172-0069 .................E-9

92172-0087 ...............C-10

92172-0119 .................D-6

92172-0248 ...............B-12

92172-0438 .................C-7

92172-0776 .................C-7

92172-1064 .................E-7

92173-0058 .................C-6

92173-0885 .................B-7

92180-0167 .................B-8

92180-0168 .................B-8

92180-0169 .................B-8

92180-0170 .................B-8

92180-0171 .................B-8

92180-0172 .................B-8

92180-0173 .................B-8

92180-0174 .................B-8

92180-0175 .................B-8

92180-0176 .................B-8

92180-0177 .................B-8

92180-0178 .................B-8

92180-0179 .................B-8

92180-0180 .................B-8

92180-0181 .................B-8

92180-0182 .................B-8

92180-0183 .................B-8

92180-0184 .................B-8

92180-0185 .................B-8

92180-0186 .................B-8

92180-0187 .................B-8

92180-0188 .................B-8

92180-0189 .................B-8

92180-0190 .................B-8

92180-0191 .................B-8

92180-0192 .................B-8

92180-0193 .................B-8

92180-0194 .................B-9

92180-0195 .................B-9

92180-0196 .................B-9

92180-0197 .................B-9

92180-0198 .................B-9

92180-0199 .................B-9

92180-0200 .................B-9

92180-0201 .................B-9

92180-0202 .................B-9

92180-0203 .................B-9

92180-0204 .................B-9

92180-0205 .................B-9

92180-0206 .................B-9

92180-0207 .................B-9

92190-1488 .................E-3

92192-0161 ...............E-12

92192-0167 ...............C-14

92192-0685 .................C-5

92192-0823 .................C-7

92200-0027 ...............B-13

92200-0029 .................C-4

92200-0045 ...............B-13

92200-0087 .................C-5

92200-0098 ...............B-13

92200-0114 .................B-3

92200-0154 .................E-3

92200-0190 ...............C-13

92200-0271 ...............C-14

92200-0285 .................D-6

92200-0378 ...............B-12

92200-0442 ...............B-14

92200-0798 .................D-4

92200-0799 .................D-4

92200-1548 ...............B-13

92200-1623 ...............D-14

92210-0065 ...............D-12

92210-0066 .................D-3

92210-0167 .................E-9

92210-0270 .................E-4

92210-0271 .................E-4

92210-0272 .................E-4

92210-0285 .................D-6

92210-0350 ...............B-11

92210-0430 ...............E-11

92210-0493 ...............D-14

92210-0619 ...............E-11

92210-0630 .................D-5

92210-0630 .................D-6

92210-1080 .................D-4

92210-1080 .................D-7

92210-1184 .................D-4

92210-1184 .................D-7

92210-1207 ...............B-13

92210-1352 .................D-9

92210-1411 ...............D-14

This catalog covers:

GRID NO.

This grid covers:

’12 KX250YCF B-16 Part Name Index

Accessory...........................................................................................F-7

Air Cleaner.........................................................................................B-6

Brake Pedal........................................................................................E-3

Cables..............................................................................................E-13

Camshaft(s).....................................................................................B-10

Chassis Electrical Equipment............................................................F-3

Clutch...............................................................................................B-13

Crankcase..........................................................................................C-5

Crankshaft........................................................................................B-11

Cylinder..............................................................................................B-5

Cylinder Head....................................................................................B-3

Cylinder Head Cover.........................................................................B-4

Decals................................................................................................F-6

Engine Cover(s).................................................................................C-6

Engine Mount....................................................................................D-4

Fenders..............................................................................................D-9

Footrests............................................................................................D-8

Frame.................................................................................................D-3

Frame Fittings....................................................................................D-5

Front Brake........................................................................................E-6

Front Fork................................................................................E-10/E-11

Front Hub.........................................................................................D-12

Front Master Cylinder........................................................................E-5

Fuel Injection.....................................................................................C-9

Fuel Pump.........................................................................................C-8

Fuel Tank.........................................................................................E-12

Gear Change Drum...........................................................................C-3

Gear Change Mechanism.................................................................C-4

Generator.........................................................................................C-11

Handlebar..........................................................................................E-9

Ignition System................................................................................C-12

Kickstarter Mechanism....................................................................B-12

Labels.................................................................................................F-5

Muffler(s)............................................................................................B-7

Oil Pump..........................................................................................C-10

Owner’s Tools....................................................................................F-4

Piston(s).............................................................................................B-5

Radiator...........................................................................................C-14

Rear Brake.........................................................................................E-8

Rear Hub................................................................................D-13/D-14

Rear Master Cylinder.........................................................................E-7

Shift Fork(s).......................................................................................C-3

Shock Absorber(s).............................................................................E-4

Side Covers.....................................................................................E-14

Stand(s)...........................................................................................D-10

Suspension........................................................................................D-7

Swingarm...........................................................................................D-6

Tensioner .........................................................................................B-10

Throttle...............................................................................................C-7

Tires.................................................................................................D-11

Transmission....................................................................................B-14

Valve(s)........................................................................................B-8/B-9

Water Pump.....................................................................................C-13

This catalog covers:

GRID NO.

This grid covers:

’12 KX250YCF C-16 Part Name Index

Accessory...........................................................................................F-7

Air Cleaner.........................................................................................B-6

Brake Pedal........................................................................................E-3

Cables..............................................................................................E-13

Camshaft(s).....................................................................................B-10

Chassis Electrical Equipment............................................................F-3

Clutch...............................................................................................B-13

Crankcase..........................................................................................C-5

Crankshaft........................................................................................B-11

Cylinder..............................................................................................B-5

Cylinder Head....................................................................................B-3

Cylinder Head Cover.........................................................................B-4

Decals................................................................................................F-6

Engine Cover(s).................................................................................C-6

Engine Mount....................................................................................D-4

Fenders..............................................................................................D-9

Footrests............................................................................................D-8

Frame.................................................................................................D-3

Frame Fittings....................................................................................D-5

Front Brake........................................................................................E-6

Front Fork................................................................................E-10/E-11

Front Hub.........................................................................................D-12

Front Master Cylinder........................................................................E-5

Fuel Injection.....................................................................................C-9

Fuel Pump.........................................................................................C-8

Fuel Tank.........................................................................................E-12

Gear Change Drum...........................................................................C-3

Gear Change Mechanism.................................................................C-4

Generator.........................................................................................C-11

Handlebar..........................................................................................E-9

Ignition System................................................................................C-12

Kickstarter Mechanism....................................................................B-12

Labels.................................................................................................F-5

Muffler(s)............................................................................................B-7

Oil Pump..........................................................................................C-10

Owner’s Tools....................................................................................F-4

Piston(s).............................................................................................B-5

Radiator...........................................................................................C-14

Rear Brake.........................................................................................E-8

Rear Hub................................................................................D-13/D-14

Rear Master Cylinder.........................................................................E-7

Shift Fork(s).......................................................................................C-3

Shock Absorber(s).............................................................................E-4

Side Covers.....................................................................................E-14

Stand(s)...........................................................................................D-10

Suspension........................................................................................D-7

Swingarm...........................................................................................D-6

Tensioner .........................................................................................B-10

Throttle...............................................................................................C-7

Tires.................................................................................................D-11

Transmission....................................................................................B-14

Valve(s)........................................................................................B-8/B-9

Water Pump.....................................................................................C-13

This catalog covers:

GRID NO.

This grid covers:

’12 KX250YCF D-16 Part Name Index

Accessory...........................................................................................F-7

Air Cleaner.........................................................................................B-6

Brake Pedal........................................................................................E-3

Cables..............................................................................................E-13

Camshaft(s).....................................................................................B-10

Chassis Electrical Equipment............................................................F-3

Clutch...............................................................................................B-13

Crankcase..........................................................................................C-5

Crankshaft........................................................................................B-11

Cylinder..............................................................................................B-5

Cylinder Head....................................................................................B-3

Cylinder Head Cover.........................................................................B-4

Decals................................................................................................F-6

Engine Cover(s).................................................................................C-6

Engine Mount....................................................................................D-4

Fenders..............................................................................................D-9

Footrests............................................................................................D-8

Frame.................................................................................................D-3

Frame Fittings....................................................................................D-5

Front Brake........................................................................................E-6

Front Fork................................................................................E-10/E-11

Front Hub.........................................................................................D-12

Front Master Cylinder........................................................................E-5

Fuel Injection.....................................................................................C-9

Fuel Pump.........................................................................................C-8

Fuel Tank.........................................................................................E-12

Gear Change Drum...........................................................................C-3

Gear Change Mechanism.................................................................C-4

Generator.........................................................................................C-11

Handlebar..........................................................................................E-9

Ignition System................................................................................C-12

Kickstarter Mechanism....................................................................B-12

Labels.................................................................................................F-5

Muffler(s)............................................................................................B-7

Oil Pump..........................................................................................C-10

Owner’s Tools....................................................................................F-4

Piston(s).............................................................................................B-5

Radiator...........................................................................................C-14

Rear Brake.........................................................................................E-8

Rear Hub................................................................................D-13/D-14

Rear Master Cylinder.........................................................................E-7

Shift Fork(s).......................................................................................C-3

Shock Absorber(s).............................................................................E-4

Side Covers.....................................................................................E-14

Stand(s)...........................................................................................D-10

Suspension........................................................................................D-7

Swingarm...........................................................................................D-6

Tensioner .........................................................................................B-10

Throttle...............................................................................................C-7

Tires.................................................................................................D-11

Transmission....................................................................................B-14

Valve(s)........................................................................................B-8/B-9

Water Pump.....................................................................................C-13

This catalog covers:

GRID NO.

This grid covers:

’12 KX250YCF E-16 Part Name Index

Accessory...........................................................................................F-7

Air Cleaner.........................................................................................B-6

Brake Pedal........................................................................................E-3

Cables..............................................................................................E-13

Camshaft(s).....................................................................................B-10

Chassis Electrical Equipment............................................................F-3

Clutch...............................................................................................B-13

Crankcase..........................................................................................C-5

Crankshaft........................................................................................B-11

Cylinder..............................................................................................B-5

Cylinder Head....................................................................................B-3

Cylinder Head Cover.........................................................................B-4

Decals................................................................................................F-6

Engine Cover(s).................................................................................C-6

Engine Mount....................................................................................D-4

Fenders..............................................................................................D-9

Footrests............................................................................................D-8

Frame.................................................................................................D-3

Frame Fittings....................................................................................D-5

Front Brake........................................................................................E-6

Front Fork................................................................................E-10/E-11

Front Hub.........................................................................................D-12

Front Master Cylinder........................................................................E-5

Fuel Injection.....................................................................................C-9

Fuel Pump.........................................................................................C-8

Fuel Tank.........................................................................................E-12

Gear Change Drum...........................................................................C-3

Gear Change Mechanism.................................................................C-4

Generator.........................................................................................C-11

Handlebar..........................................................................................E-9

Ignition System................................................................................C-12

Kickstarter Mechanism....................................................................B-12

Labels.................................................................................................F-5

Muffler(s)............................................................................................B-7

Oil Pump..........................................................................................C-10

Owner’s Tools....................................................................................F-4

Piston(s).............................................................................................B-5

Radiator...........................................................................................C-14

Rear Brake.........................................................................................E-8

Rear Hub................................................................................D-13/D-14

Rear Master Cylinder.........................................................................E-7

Shift Fork(s).......................................................................................C-3

Shock Absorber(s).............................................................................E-4

Side Covers.....................................................................................E-14

Stand(s)...........................................................................................D-10

Suspension........................................................................................D-7

Swingarm...........................................................................................D-6

Tensioner .........................................................................................B-10

Throttle...............................................................................................C-7

Tires.................................................................................................D-11

Transmission....................................................................................B-14

Valve(s)........................................................................................B-8/B-9

Water Pump.....................................................................................C-13

This catalog covers:

GRID NO.

This grid covers:

’12 KX250YCF F-16 Part Name Index

Accessory...........................................................................................F-7

Air Cleaner.........................................................................................B-6

Brake Pedal........................................................................................E-3

Cables..............................................................................................E-13

Camshaft(s).....................................................................................B-10

Chassis Electrical Equipment............................................................F-3

Clutch...............................................................................................B-13

Crankcase..........................................................................................C-5

Crankshaft........................................................................................B-11

Cylinder..............................................................................................B-5

Cylinder Head....................................................................................B-3

Cylinder Head Cover.........................................................................B-4

Decals................................................................................................F-6

Engine Cover(s).................................................................................C-6

Engine Mount....................................................................................D-4

Fenders..............................................................................................D-9

Footrests............................................................................................D-8

Frame.................................................................................................D-3

Frame Fittings....................................................................................D-5

Front Brake........................................................................................E-6

Front Fork................................................................................E-10/E-11

Front Hub.........................................................................................D-12

Front Master Cylinder........................................................................E-5

Fuel Injection.....................................................................................C-9

Fuel Pump.........................................................................................C-8

Fuel Tank.........................................................................................E-12

Gear Change Drum...........................................................................C-3

Gear Change Mechanism.................................................................C-4

Generator.........................................................................................C-11

Handlebar..........................................................................................E-9

Ignition System................................................................................C-12

Kickstarter Mechanism....................................................................B-12

Labels.................................................................................................F-5

Muffler(s)............................................................................................B-7

Oil Pump..........................................................................................C-10

Owner’s Tools....................................................................................F-4

Piston(s).............................................................................................B-5

Radiator...........................................................................................C-14

Rear Brake.........................................................................................E-8

Rear Hub................................................................................D-13/D-14

Rear Master Cylinder.........................................................................E-7

Shift Fork(s).......................................................................................C-3

Shock Absorber(s).............................................................................E-4

Side Covers.....................................................................................E-14

Stand(s)...........................................................................................D-10

Suspension........................................................................................D-7

Swingarm...........................................................................................D-6

Tensioner .........................................................................................B-10

Throttle...............................................................................................C-7

Tires.................................................................................................D-11

Transmission....................................................................................B-14

Valve(s)........................................................................................B-8/B-9

Water Pump.....................................................................................C-13
