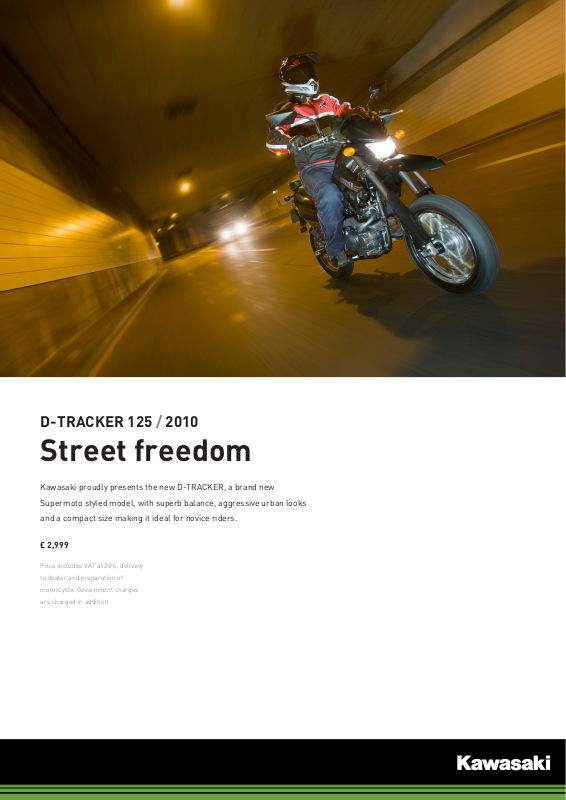

D-TRACKER 125 / 2010
Street freedom
Kawasaki proudly presents the new D-TRACKER, a brand new
Supermoto styled model, with superb balance, aggressive urban looks
and a compact size making it ideal for novice riders.
£ 2,999
Price includes VAT at 20%, delivery
to dealer and preparation of
motorcycle. Government charges
are charged in addition
Page 2
Features
D-TRACKER 125/2010
Simple engine Highly rigid perimeter frame
purpose-built for the 125 cm³
class
Digital instrumentation Big-bike FI system Well-balanced proportions
Small wheels and tyres
More features
Petal disc brakes Lightweight & compact
for more information visit: www.kawasaki.co.uk/D-TRACKER125
© 2011 Kawasaki Motors Europe N.V.
Page 3
Specifications
D-TRACKER 125/2010
Engine
Engine type Air-cooled, 4-stroke Single
Displacement 125 cm³
Bore x stroke 54.0 x 54.4 mm
Compression ratio 9.5:1
Valve/Induction system SOHC, 2 valves
Fuel system Fuel injection: ø20 mm x 1
(Keihin)
Ignition Digital DC-CDI
Starting Electric
Lubrication Forced lubrication, wet sump
Transmission
Transmission 5-speed, return
Final Drive Chain
Primary reduction ratio 2.880 (72/25)
Gear ratios: 1st 2.917 (35/12)
Gear ratios: 2nd 2.000 (32/16)
Gear ratios: 3rd 1.474 (28/19)
Gear ratios: 4th 1.182 (26/22)
Gear ratios: 5th 1.000 (24/24)
Final reduction ratio 3.143 (44/14)
Clutch Wet multi-disc, manual
Dimensions
Dimensions (L x W x H) 1,900 mm x 770 mm x 1,060 mm
Wheelbase 1,255 mm
Ground Clearance 230 mm
Seat height 805 mm
Fuel capacity 7.0 litres
Curb Mass 114 kg
Performance
Maximum power 7.6 kW {10.3 PS} / 8,000 rpm
Maximum torque 10.0 N.m {1.0 kgƒ.m} / 6,400 rpm
Frame
Frame type Perimeter, steel
Rake/Trail 26˚ / 94 mm
Wheel travel, front 150 mm
Wheel travel, rear 180 mm
Tyre, front 100/80-14
Tyre, rear 120/80-14
Steering angle, left / right 38˚ / 38˚
Suspension
Suspension, front 35 mm inverted fork
Suspension, rear New Uni-Trak
Brakes
Brakes, front Single 240 mm petal disc
Twin-piston
Brakes, rear Single 190 mm petal disc
Single-piston
for more information visit: www.kawasaki.co.uk/D-TRACKER125
© 2011 Kawasaki Motors Europe N.V.
