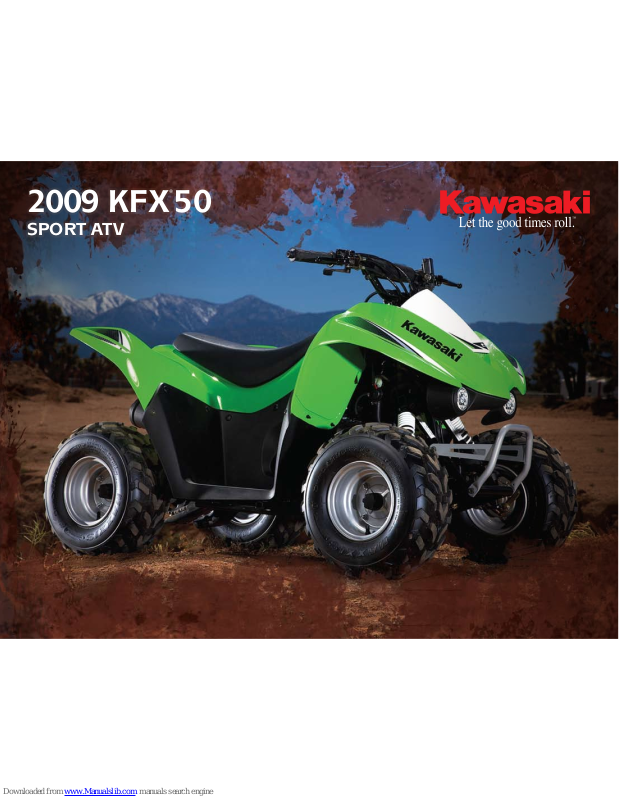

Kawasaki KFX 50 - BROCHURE 2009, DFC4, DFC5, DFC6, 2009 KFX 50 Brochure
2009 KFX®50
SPORT ATV
KFX® 50
KIDS LOVE TO ROAM AND LEARN. The KFX®50 is for kids six and
up, and adds a throttle limiter and a rear tethered ignition cuto
for added safety. Get Kawasaki’s 3-year Good Times™ Protection
Plan and you’re covered for a total of four years.
One Year Warranty
Your new KFX comes with a 12-month
limited factory warranty. Read the next
paragraph to find out how you can extend
your coverage inexpensively, or ask your
dealer for details about the factory
warranty and available extended coverage.
Up to Three Years Additional Coverage*
Let Kawasaki protect your
new machine for years to
come* with the exclusive
Good Times™ Protection
Plan. This plan repairs or
replaces most
components free of charge if found
defective in material or workmanship.
Everything about the plan is easy: There’s
no deductible. It’s honored at every
authorized Kawasaki ATV dealer
nationwide. It’s transferable to another
owner with no fee. Just ask your dealer
how you can buy additional coverage of
24 or 36 months. Imagine, for just pennies
a day, you can ride with no worry and no
hassle. Just tell your dealer you want the
Good Times Protection Plan.
*Depending on the program purchased.
Action Photography: Profession al riders on a closed course. For off-highway use only.
Specifications subject to change without notice. Availability may be limited. Some
models shown with available accessories.
Vehicle may not be exactly as shown.
P/N 99969-2324E Printed in Canada
WARNING: ATVs can be hazardous to operate.
Kawasaki ATVs with engine s over 90cc are recommended for use only
by persons 16 years of age or older. For your s afety: Always wea r a
helmet, eye protection, and protective clothing. Never carry a
passenger. Never ride under the influence of drugs or alcohol. Never
ride on public roads or pavement. Avoid excessive speeds and stunt
driving. Be extra careful on difficult terrain.
Kawasaki subscribes to the guidelines of Tread
Lightly!, a program dedicated to protecting the
great outdoors th rough educati on and foster ing
responsible
enjoyment of
public lands.
• Designed as a kid-friendly 49 cc, 4-stroke for
new ATV rider s, the KFX50 oer s four-wheel
suspensi on and terric fro nt and rear brakes
that add up to better rider control—more
control means more smiles.
• A thr ottle -limi ting s crew helps ne w riders
gai n expe rienc e at s lower speed s.
• With a tethered eng ine stop switch at the rear
for parenta l control, an adult supervisor c an
walk behi nd the KFX50 and stop the engine
immediately by pulling on the cord.
Forced air-cooled, 4-stroke Single
49.5cc
39.0 x 41.4mm
SOHC, 2 valves per cylinder
Keihin PTE 16 carburetor
CDI
Electric with kick backup
N/A
Continuously Variable
Chain
Steel backbone
Independent, single A-arm,
oil-damped shock with coil spring
Unit Swing suspension,
oil-damped shock with coil spring
71/74mm (2.8/2.9 inches)
AT 16 x 8-7/AT 16 x 8-7
Dual mechanical drums/Single hydraulic disc
1400 x 880 x 910mm (55.1 x 34.7 x 35.8 inches)
635mm (25.0 inches)
134.6mm (5.3 inches) (center of chassis)
5.5 litres (1.2 gallons)
105kg (231.5 pounds)
Engine type
Displacement
Bore x stroke
Valve system
Fuel system
Ignition
Starting
Clutch
Transmission
Final drive
Frame type
Suspension, front
Suspension, rear
Wheel travel, front/rear
Tires, front/rear
Brakes, front/rear
Dimensions (L x W x H)
Seat height
Ground clearance
Fuel capacity
Dry weight
All ATV Models Ride responsibly. Kawasaki believes safety begins
with us and continues with you. Protect the environment. Obey laws
and regulations that control the use of your ATV. For off-road use only.
Riding is more fun on a well-maintained ATV ... follow the instructions
in your owner’s manual. Remember, riding safe is smart.
Lime Green
Take an in-depth tour of this machine at kawasaki.ca/kfx50
