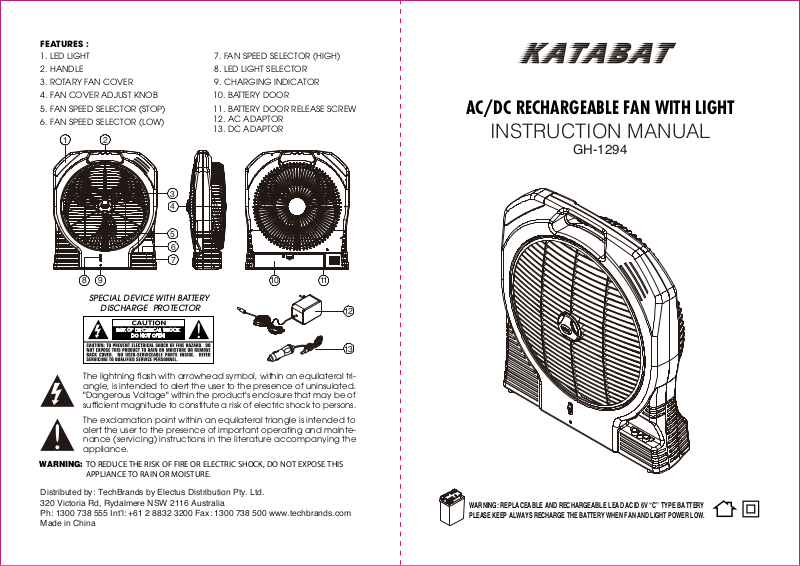

Katabat GH-1294 User Manual

FEATURES :

1. LED LIGHT

2. HANDLE

3. ROTARY FAN COVER

4. FAN COVER ADJUST KNOB

5. FAN SPEED SELECTOR (STOP)

6. FAN SPEED SELECTOR (LOW)

1

2

7. FAN SPEED SELECTOR (HIGH)

8. LED LIGHT SELECTOR

9. CHARGING INDICATOR

10. BATTERY DOOR

11. BATTERY DOOR RELEASE SCREW

12. AC ADAPTOR

13. DC ADAPTOR

AC/DC RECHARGEABLE FAN WITH LIGHT

INSTRUCTION MANUAL

GH-1294

3

4

5
6

7

8 9

SPECIAL DEVICE WITH BATTERY

DISCHARGE PROTECTOR

The lightning flash with arrowhead symbol, within an equilateral tri­angle, is intended to alert the user to the presence of uninsulated.
"Dangerous Voltage" within the product's enclosure that may be of
sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to
alert the user to the presence of important operating and mainte­nance (servicing) instructions in the literature accompanying the
appliance.

WARNING:

APPLIANCE TO RAIN OR MOISTURE.

Distributed by: TechBrands by Electus Distribution Pty. Ltd.
320 Victoria Rd, Rydalmere NSW 2116 Australia

Ph: 1300 738 555 Int’l: [phone] Fax: [phone] www.techbrands.com

Made in China

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS

10 11

12

13

WARNING: REPLACEABLE AND RECHARGEABLE LEAD ACID 6V “C” TYPE BATTERY
PLEASE KEEP ALWAYS RECHARGE THE BATTERY WHEN FAN AND LIGHT POWER LOW.

IMPORTANT

1. Please read the instruction manual carefully
before operate the rechargeable fan unit.

2. Make sure the electric rating of your home
AC power supply before plugging in.

3. Please keep always recharging when light
goes dim or recharge the fan when power
low.

4. Make sure the appliance switchs must be
in "OFF" position when not in use.

5. The efficiency may decrease if used or
(Light goes dim & power low of battery
recharged) when temperature are below
32˚F (0˚C) or above 104˚F (40˚C).

6. Please keep out of reach of water or rain
for properly use.

Figure 1

RECHARGEABLE FAN WITH HIGH-LOW
SPEED

1. Place the fan High-Low Speed Press (No.7)
in “HIGH” or press (No.6) “LOW” speed
position to start the fan with high or low
speed.

2. Pace the Press to "OFF" position to end the
operation.

3. To adjust the fan cover speed, turn the Fan
Cover Speed Adjust Knob (No.4) to adjust
the desired speed level. (FIGURE 1)

LED LIGHT OF OPERATION

Place the LED light ON/OFF switch (No.8) in
"ON" position, the LED will light up immediately.
Push to "OFF" position to end the operation.

HOW TO REPLACE THE RECHARGEABLE
BATTERY (FIGURE 2)

1. Release the battery cover screw (No.11)
and open the battery cover.

2. Replace with new rechargeable battery
and reassemble in reverse procedures.

WARNING: PLEASE DO NOT SHORT CIRCUITS
WITH BATTERY CONTACT (+) & (-) OR PUT INTO
FIRE. DO NOT USE OTHER THAN SPECIFIED
BATTERIES FOR THIS RECHARGEABLE FAN EXCEPT
ORIGINAL DESIGNED BATTERY.

Figure 2

Note: Each unit contains one or two batteries.
(optional)

HOW TO RECHARGE THE BATTERY

Note : Before recharging, please make sure
all the switches must be in “OFF” position.

1. Open the battery cover (No.10)and pull
out the (AC or DC Adaptor) then plugging
in AC power supply (wall socket).

2. Red charging indicator (No.9) lights up
shows the rechargeable fan unit is under
charging.

3. Normal charging time for maximum is
approximately 12 hours.

4. The battery became slightly warm during
charging, this is normal.

WARNING FOR THE RECHARGEABLE LEAD
ACID BATTERY.

1.

This Rechargeable Lantern is only applicable

for charging the sealed Lead-Acid battery.

Do not charge with different types or non-

rechargeable batteries.

2. During using or recharging the lead-acid

battery, the appliance

must be placed in a well

ventilated area.

3. The orientation of the

lead-acid battery with

regard to polarity battery

contact(+)& (-). Do not short circuit or put

into fire, avoid reverse charging.

4. Regarding safe disposal of used lead-acid

batteries, insert the batteries into battery

charger according to the lead-acid battery

polarity. After use, charge the lead-acid

battery at least 20 hours every time to

achieve full charge condition.

5. Leaking lead-acid battery must be removed

from the appliance carefully. The lead-acid

battery must be recycled or disposed of

properly.

6 The lead-acid battery must be removed

from the appliance before it is scrapped.

7 The lead-acid battery is to be disposed of

safely by putting into battery compartment

with cover.

8 The appliance must be disconnected from

power supply before removing the battery.

TECHNICAL SPECIFICATIONS

Input voltage.........................................DC12V

Input Maximum Power..............................24W

Operating Temperature...................0°C-40°C

Humidity ..................................lower than 90%

Battery Spec........................................... DC6V

Fan Motor............................................... DC6V

Charging Time............12 Hours for "1 battery"

Duration Time:

Fan (High Speed)....................apprx 2.5 Hours

Fan (Low Speed)....................apprx 3.5 Hours

LED Light...................................apprx 40 Hours

(

If using "2 Battery" will be double of duration time
Light Specification:
SMD LED Light x 10 pcs

)

MAINTENANCE

Use a small cotton swab with cleaning alcohol
to clean the plastics. Never use strong or
volatile chemicals.

WARNING:

A. To avoid an electrical shock, please do not open
the rear cabinet (rechargeable fan) for repair or
cleanning unless qualified person.
B.

If the supply cord is damaged, it must be replaced

by the manufacturer or its service agent or a

similarly qualified person in order to avoid a
hazard.
C.

The appliance is not intended for use by persons

(including children) with reduced physical, sensory

or mental capabilities, or lack of experience andd

knowledge, unless they have been given
supervision

appliance by a person responsible for their safety.
D.

Children should be supervised to ensure that they

or instruction concerning use of the

do not play with the appliance.

IB399DA08-RH
