Kason 55, 0055000020, 0055000024, 0055000028, 0055000032 Specifications

...

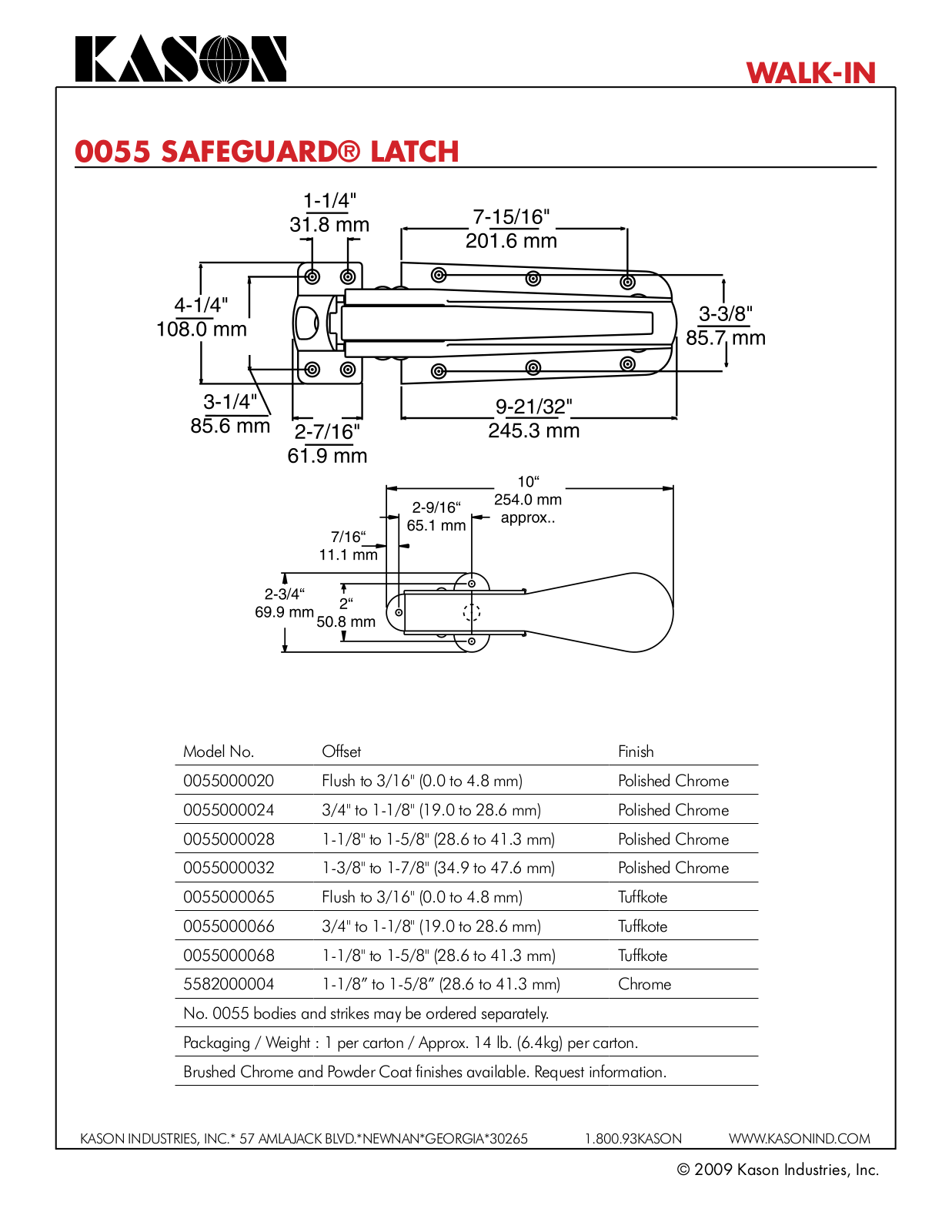

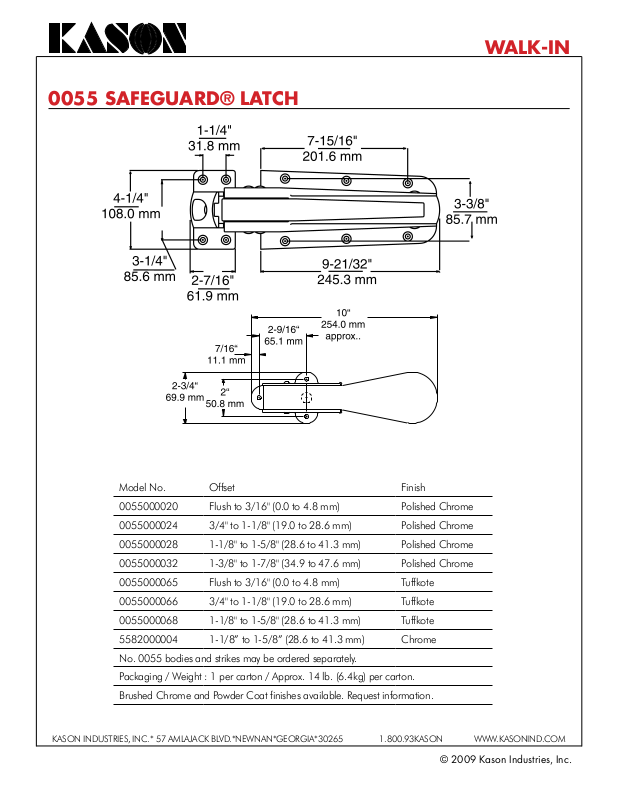

0055 SAFEGUARD® LATCH

WALK-IN

Model No. Offset Finish

0055000020 Flush to 3/16" (0.0 to 4.8 mm) Polished Chrome

0055000024 3/4" to 1-1/8" (19.0 to 28.6 mm) Polished Chrome

0055000028 1-1/8" to 1-5/8" (28.6 to 41.3 mm) Polished Chrome

0055000032 1-3/8" to 1-7/8" (34.9 to 47.6 mm) Polished Chrome

0055000065 Flush to 3/16" (0.0 to 4.8 mm) Tuffkote

0055000066 3/4" to 1-1/8" (19.0 to 28.6 mm) Tuffkote

0055000068 1-1/8" to 1-5/8" (28.6 to 41.3 mm) Tuffkote

5582000004 1-1/8” to 1-5/8” (28.6 to 41.3 mm) Chrome

No. 0055 bodies and strikes may be ordered separately.

Packaging / Weight : 1 per carton / Approx. 14 lb. (6.4kg) per carton.

Brushed Chrome and Powder Coat finishes available. Request information.

KASON INDUSTRIES, INC.* 57 AMLAJACK BLVD.*NEWNAN*GEORGIA*30265 1.800.93KASON WWW.KASONIND.COM
