Kason 455KL8006 User Manual
APPLICATION:
2-3/8
[60]
8
[203]
JOB NAME:
KASON FOOD SERVICE 31-A AMLAJACK BLVD. NEWNAN, GA 30265
SERVING YOU SINCE 1926
1-800-935-2766 WWW.KASONIND.COM
A
B
12-5/16
[312,7]
QUANTITY:

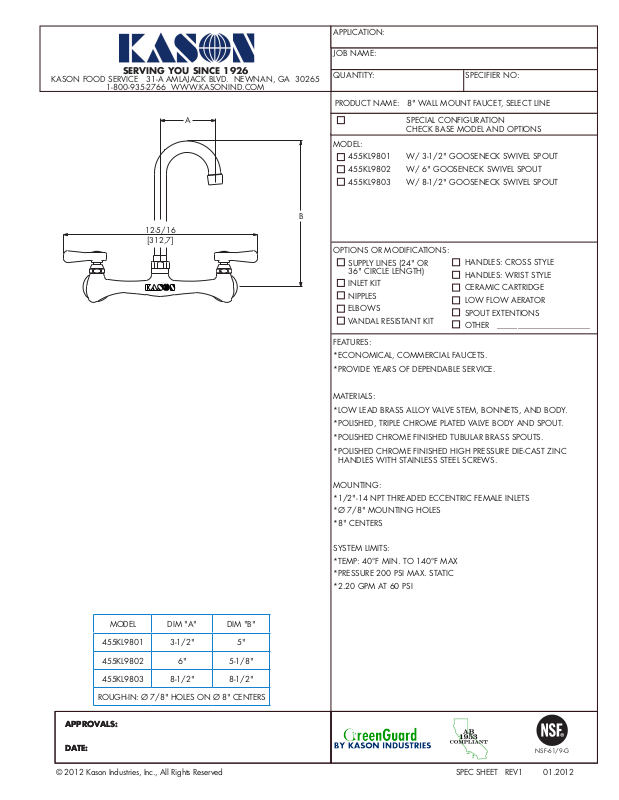

PRODUCT NAME: 8" WALL MOUNT FAUCET, SELECT LINE
SPECIAL CONFIGURATION
CHECK BASE MODEL AND OPTIONS
MODEL:
455KL9801 W/ 3-1/2" GOOSENECK SWIVEL SPOUT
455KL9802 W/ 6" GOOSENECK SWIVEL SPOUT
455KL9803 W/ 8-1/2" GOOSENECK SWIVEL SPOUT
OPTIONS OR MODIFICATIONS:
SUPPLY LINES (24" OR
36" CIRCLE LENGTH)
INLET KIT
NIPPLES
ELBOWS
VANDAL RESISTANT KIT
FEATURES:
*ECONOMICAL, COMMERCIAL FAUCETS.
*PROVIDE YEARS OF DEPENDABLE SERVICE.
SPECIFIER NO:
HANDLES: CROSS STYLE
HANDLES: WRIST STYLE
CERAMIC CARTRIDGE
LOW FLOW AERATOR
SPOUT EXTENTIONS
OTHER _______________________
MODEL DIM "A" DIM "B"
455KL9801 3-1/2" 5"
455KL9802 6" 5-1/8"
455KL9803 8-1/2" 8-1/2"
MATERIALS:
*LOW LEAD BRASS ALLOY VALVE STEM, BONNETS, AND BODY.
*POLISHED, TRIPLE CHROME PLATED VALVE BODY AND SPOUT.
*POLISHED CHROME FINISHED TUBULAR BRASS SPOUTS.
*POLISHED CHROME FINISHED HIGH PRESSURE DIE-CAST ZINC
HANDLES WITH STAINLESS STEEL SCREWS.
MOUNTING:
*1/2"-14 NPT THREADED ECCENTRIC FEMALE INLETS
*Ø 7/8" MOUNTING HOLES
*8" CENTERS
SYSTEM LIMITS:
*TEMP: 40 °F MIN. TO 140 °F MAX
*PRESSURE 200 PSI MAX. STATIC
*2.20 GPM AT 60 PSI
ROUGH-IN: Ø 7/8" HOLES ON Ø 8" CENTERS
APPROVALS:
APPROVALS:
DATE:
DATE:
© 2012 Kason Industries, Inc., All Rights Reserved SPEC SHEET REV1 01.2012
NSF-61/9-G
APPLICATION:
8
[203]
2-3/8
[60]
JOB NAME:
KASON FOOD SERVICE 31-A AMLAJACK BLVD. NEWNAN, GA 30265
12-5/16 MAX
1-800-935-2766 WWW.KASONIND.COM
[312,7]
A
SERVING YOU SINCE 1926
QUANTITY:
SPECIFIER NO:
PRODUCT NAME: 8" SINGLE PANTY FAUCET, SELECT LINE
SPECIAL CONFIGURATION
CHECK BASE MODEL AND OPTIONS
MODEL:
455KL8006 W/ 6" SWIVEL SPOUT
455KL8008 W/ 8" SWIVEL SPOUT
455KL8010 W/ 10" SWIVEL SPOUT
455KL8012 W/ 12" SWIVEL SPOUT
B
455KL8014 W/ 14" SWIVEL SPOUT
455KL8016 W/ 16" SWIVEL SPOUT
455KL8118 W/ 18" SWIVEL SPOUT
OPTIONS OR MODIFICATIONS:
SUPPLY LINES (24" OR
36" CIRCLE LENGTH)
INLET KIT
NIPPLES
ELBOWS
VANDAL RESISTANT KIT
HANDLES: CROSS STYLE
HANDLES: WRIST STYLE
CERAMIC CARTRIDGE
LOW FLOW AERATOR
SPOUT EXTENTIONS
OTHER _______________________
FEATURES:
*ECONOMICAL, COMMERCIAL FAUCETS.
*PROVIDE YEARS OF DEPENDABLE SERVICE.
MODEL DIM "A" DIM "B"
455KL8006 6" 2-1/4"
455KL8008 8" 2-3/4"
455KL8010 10" 3-1/8"
455KL8012 12" 3-5/8"
455KL8014 14" 4"
455KL8016 16" 4-1/2"
455KL8118 18" 5-9/16"
MATERIALS:
*POLISHED CHROME PLATED LOW LEAD BRASS ALLOY VALVE BODY
AND SPOUT.
*CHROME PLATED LOW LEAD BRASS ALLOY VALVE STEMS AND
BONNETS.
*POLISHED CHROME PLATED ZINC DIE-CAST HANDLES WITH
STAINLESS STEEL SCREWS.
MOUNTING:
*1/2"- 14 NPS MALE INLETS
*Ø 7/8" MOUNTING HARDWARE
*8" CENTERS AND 3/8" COMPRESSION SLEEVES
SYSTEM LIMITS:
*TEMP: 40 °F MIN. TO 140 °F MAX
*PRESSURE 200 PSI MAX. STATIC
*2.20 GPM AT 60 PSI
ROUGH-IN: Ø 7/8" HOLES ON Ø 8" CENTERS
APPROVALS:
APPROVALS:
DATE:
DATE:
NSF-61/9-G
© 2012 Kason Industries, Inc., All Rights Reserved SPEC SHEET REV1 01.2012
