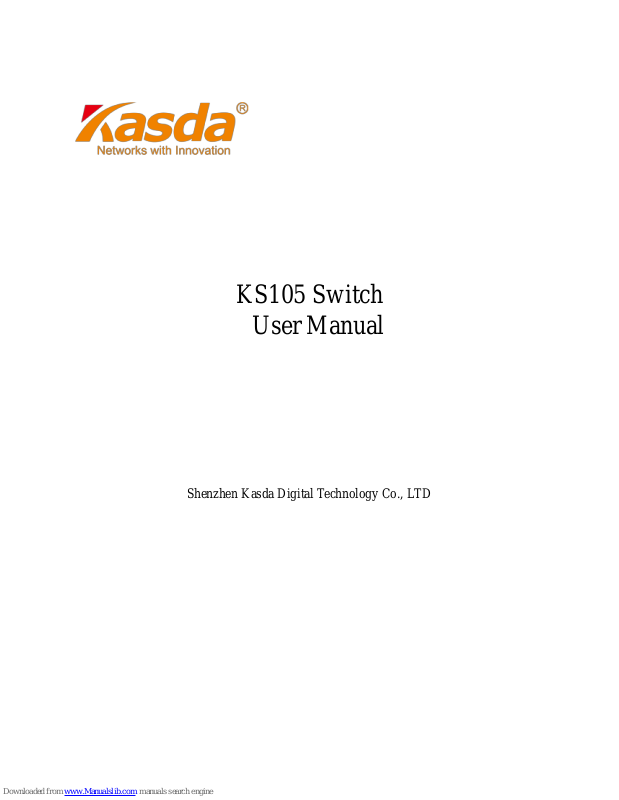

Page 1
KS105 Switch
User Manual
Shenzhen Kasda Digital Technology Co., LTD
Page 2
2
Content
Chapter 1. Introduction of the Product .................................................................................................................................... 3
1.1 Overview of the Product ....................................................................................................................................... 3
1.2 Features ................................................................................................................................................................. 3
Chapter 2. Installation .............................................................................................................................................................. 3
2.1 Mounting the Switch on a Desk ............................................................................................................................ 3
2.2 Power On .............................................................................................................................................................. 4
Chapter 3. Identifying External Components .......................................................................................................................... 4
3.1 Front Panel ............................................................................................................................................................ 4
3.2 Rear Panel ............................................................................................................................................................. 5
Chapter 4. Package Contents ................................................................................................................................................... 6
Appendix A：Specifications ................................................................................................................................................... 6
Appendix B: Troubleshooting ................................................................................................................................................. 7
Page 3
3
Chapter 1. Introduction of the Product
Thank you for choosing the KS105 10/100Mbps Desktop Switch.
1.1 Overview of the Product
The KS105 architecture is the optimal solution for consumer switching needs with its support for
high-performance line rate capabilities and ability to identify and prioritize different data packet types within
the switch while simultaneously assigning voice packets a higher priority for outbound communications. The
KS105 is poised to drive FE into the unmanaged and Smart switch, WLAN router, and CPE/Gateway
markets with its comprehensive Layer 2 feature set, support for both DSL/cable modem and WLAN
connectivity, and an industry-leading 5 FE of switching capacity—all on a single chip.
1.2 Features
Complies with IEEE 802.3, IEEE 802.3u standards
5 10/100Mbps Auto-Negotiation RJ45 ports supporting Auto-MDI/MDIX
Supports IEEE802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode
Supports MAC address auto-learning and auto-aging
LED indicators for monitoring power, link, activity
Plastic case, desktop or wall-mounting design
External Power Adapter supply
Chapter 2. Installation
2.1 Mounting the Switch on a Desk
To install the Switch, please follow the steps:
1) You can place the Switch on a flat desk.
2) Please inspect the Power Adapter carefully and make sure that it is properly connected to a
power source.
3) Ensure adequate ventilation space around the switch for dissipating heat and air.
Page 4
4
Note:
Please avoid any heavy thing placed on the switch.
2.2 Power On
Powering on the Switch, it will automatically initialize and its LED indicators will respond as
follows:
1) All of the Link/Act LED indicators will flash momentarily, which represents a resetting of the
system.
2) The Power LED indicator will light all the time.
Note:
If the LED indicators don’t respond as described above, please check the power supply and its connection.
Chapter 3. Identifying External Components
This Chapter describes the front panel, rear panel and LED indicators of the Switch.
3.1 Front Panel
Figure 3-1 KS105 Switch Front Panel
The Switch’s LEDs are located on the front panel.
Power LED:
LANs (1-5):
This indicator will light up when the Switch powers on.
LED indicator will light green when a device is connected to the
corresponding port. It flashes when data is being transmitted or received
on the connection.
Page 5
5
3.2 Rear Panel
Figure 3-2 KS105 Switch Rear Panel
The following parts are located on the rear panel:
Power:
LAN (1-5):
The Power socket is where you will connect the power adapter.
Please use the power adapter provided with this KS105 Switch.
The KS105 Switch is equipped with 5 10/100Mbps Auto-Negotiation RJ45 ports
where you will connect your network devices.
The working status can be indicated by the corresponding LEDs on the front panel.
Page 6
6
Chapter 4. Package Contents
The following items should be found in your box:
One KS105 Switch
One Power Adapter
One CD
Note:
Make sure that the box contains the above items. If any of the listed items are damaged
or missing, please contact with your distributor.
Appendix A：Specifications
Standards and Protocols
IEEE 802.3, 802.3u, 802.3x CSMA/CD, TCP/IP
Basic Function
Wire-speed Performance
MAC Address Auto-learning and Auto-aging
IEEE 802.3x flow control for full-duplex mode and
backpressure for half-duplex mode
MAC Address Table
1k
Forwarding Rate
10BASE-T: 14880pps/port
100BASE-TX: 148800pps/port
Transmission Method
Store-and-Forward
Ports
5 10/100Mbps Auto-Negotiation RJ45 ports (Auto
MDI/MDIX)
Network Media
10Base-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100Ù STP (maximum 100m)
100Base-Tx: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ù STP (maximum 100m)
LED Indicators
Power, LAN1-5
Safety and Emission
FCC, CE
Environment
0℃ ~40℃ (32℉~104℉)
-40℃ ~70℃ (-40℉ ~158℉)
10%~90% non-condensing
5%~90% non-condensing
Power
External Power Adapter
Page 7
7
Appendix B: Troubleshooting
1. The Power LED is not lit
Check to see if the power cord is connected to the Switch properly, and make sure the power source is
ON.
2. The LAN LED is not lit when a device is connected to the corresponding port
Check to see if the cable connectors are firmly plugged into the Switch and the device, and verify
the connected device is turned on and working well. Make sure the cable is not longer than 100 meters
(328 feet)
