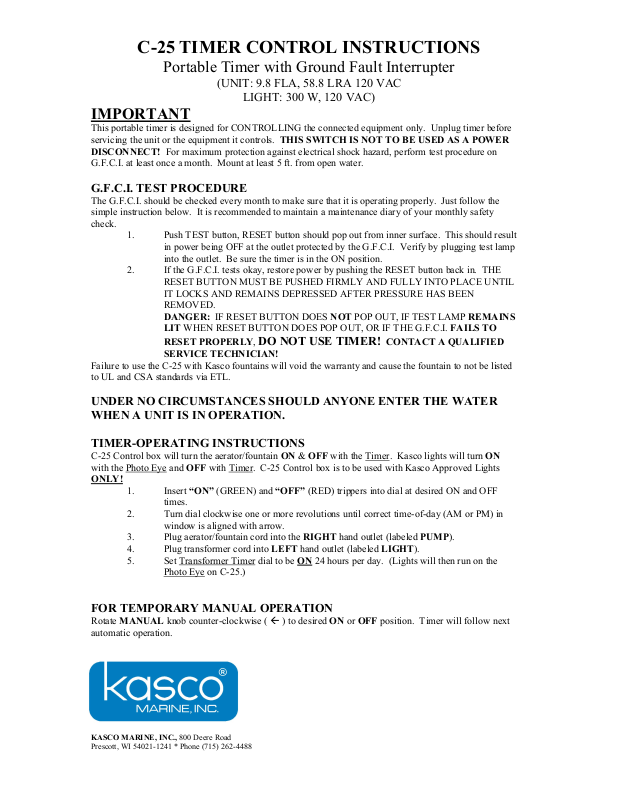

C-25 TIMER CONTROL INSTRUCTIONS

Portable Timer with Ground Fault Interrupter

(UNIT: 9.8 FLA, 58.8 LRA 120 VAC

LIGHT: 300 W, 120 VAC)

IMPORTANT

This portable timer is designed for CONTROLLING the connected equipment only. Unplug timer before
servicing the unit or the equipment it controls. THIS SWITCH IS NOT TO BE USED AS A POWER
DISCONNECT! For maximum protection against electrical shock hazard, perform test procedure on
G.F.C.I. at least once a month. Mount at least 5 ft. from open water.

G.F.C.I. TEST PROCEDURE

The G.F.C.I. should be checked every month to make sure that it is operating properly. Just follow the
simple instruction below. It is recommended to maintain a maintenance diary of your monthly safety
check.

1. Push TEST button, RESET button should pop out from inner surface. This should result
in power being OFF at the outlet protected by the G.F.C.I. Verify by plugging test lamp
into the outlet. Be sure the timer is in the ON position.

2. If the G.F.C.I. tests okay, restore power by pushing the RESET button back in. THE
RESET BUTTON MUST BE PUSHED FIRMLY AND FULLY INTO PLACE UNTIL
IT LOCKS AND REMAINS DEPRESSED AFTER PRESSURE HAS BEEN
REMOVED.

DANGER: IF RESET BUTTON DOES NOT POP OUT, IF TEST LAMP REMAINS
LIT WHEN RESET BUTTON DOES POP OUT, OR IF THE G.F.C.I. FAILS TO

RESET PROPERLY,
SERVICE TECHNICIAN!

Failure to use the C-25 with Kasco fountains will void the warranty and cause the fountain to not be listed
to UL and CSA standards via ETL.

DO NOT USE TIMER! CONTACT A QUALIFIED

UNDER NO CIRCUMSTANCES SHOULD ANYONE ENTER THE WATER
WHEN A UNIT IS IN OPERATION.

TIMER-OPERATING INSTRUCTIONS

C-25 Control box will turn the aerator/fountain ON & OFF with the Timer. Kasco lights will turn ON
with the Photo Eye and OFF with Timer. C-25 Control box is to be used with Kasco Approved Lights

ONLY!

1. Insert “ON” (GREEN) and “OFF” (RED) trippers into dial at desired ON and OFF
times.

2. Turn dial clockwise one or more revolutions until correct time-of-day (AM or PM) in
window is aligned with arrow.

3. Plug aerator/fountain cord into the RIGHT hand outlet (labeled PUMP).

4. Plug transformer cord into LEFT hand outlet (labeled LIGHT).

5. Set Transformer Timer dial to be ON
Photo Eye on C-25.)

24 hours per day. (Lights will then run on the

FOR TEMPORARY MANUAL OPERATION

Rotate MANUAL knob counter-clockwise ( Å ) to desired ON or OFF position. Timer will follow next
automatic operation.

KASCO MARINE, INC., 800 Deere Road
Prescott, WI 54021-1241 * Phone [phone]
