KV52 Ver 1.2
KV52
USER GUIDE
English
KV52 Ver 1.2
TABLE OF CONTENTS
SYMBOLS ................................................................................ 3
1. INTRODUCTION ..................................................................... 4
2. KEY FEATURES ...................................................................... 4
3. APPLICATIONS ....................................................................... 4
4. SAFETY INFORMATION ............................................................ 5
5. UNPACKING ......................................................................... 6
6. PACKAGING .......................................................................... 6
7. PHYSICAL OVERVIEW .............................................................. 7
8. WIRING ................................................................................ 8
9. INSTALLATION ....................................................................... 9
9.1 INCLUDED WALL BRACKETS ................................................................... 9
9.2 MOUNTING THE UNIT TO THE WALL .......................................................10
9.3 TILTING THE UNIT .............................................................................. 11
9.4 JOINING TWO UNITS .......................................................................... 12
10. SERVICE ............................................................................ 13
11. TECHNICAL SPECIFICATIONS ................................................... 14
12. EN54-24 DATA .....................................................................15
13. CERTIFICATION .................................................................... 16
2
KV52 Ver 1.2
SYMBOLS
K-array declares that this device is in compliance with applicable CE
standards and regulations. Before putting the device into operation, please
observe the respective country-specific regulations!
Waste Electrical and Electronic Equipment (WEEE)
Please dispose of this product at the end of its operational lifetime by bringing
it to your local collection point or recycling center for such equipment.
This symbol alerts the user to the presence of recommendations about the
product’s use and maintenance.
Warning: DANGEROUS VOLTAGE.
Terminals marked with this symbol carry a risk of electric shock, therefore
external wiring connected to these terminals requires installation by a
qualified professional or the use of ready-made leads or cords.
This symbol alerts the user to the presence of recommendations about
product’s use and maintenance.
This device complies with the Restriction of Hazardous Substances Directive.
3
KV52 Ver 1.2
1. INTRODUCTION
The KV52 Vyper is an ultra-flat passive speaker system comprised of eight 1” neodymium magnet
transducers housed in an sleek, durable aluminum chassis. The eight closely-spaced, full-range cone
drivers provide true line array characteristics: phase coherence, low distortion and focused listening in
both the foreground and at a distance from the speaker.
Two included steel brackets provides an easy-to-mount option for permanent wall installations. For
easier use and integration with other speakers or amplifiers, KV52 allows the user to select between
two different values of impedance: 16Ω and 64Ω. At 64Ω, as many as sixteen KV52 speakers can be
powered by a single amplifier channel at 4Ω, which eliminates the need of 70 V amplifiers for wider
distributed installed systems.
The KV52 is able to reproduce the entire vocal frequency range with high intelligibility, starting from 150
Hz. Integrating an ultra-compact K-array subwoofer powered by KA amplifier set with specific presets
optimized for the KV52 assures excellent coverage of the entire musical frequency range.
All KV52 Vyper components are designed by the K-array R&D Department and custom made under the
K-array quality control system.
2. KEY FEATURES
• Unique performance-to-size ratio
• Multiple 1” long excursion full-range cone drivers
• Wide horizontal coverage
• Electronically protected
• Selectable 16 Ω or 64 Ω impedance
• Weatherproof: IP54
3. APPLICATIONS
• Portable and installed AV systems
• Background music systems in stores, restaurants and clubs
• Conference rooms
• Space-sensitive fill for broadcast
4
KV52 Ver 1.2
4. SAFETY INFORMATION
Warning: Failure to follow these safety instructions could result in injury
or damage to the device or other property.
IMPORTANT SAFETY INSTRUCTIONS
• Read these instructions.
• Keep these instructions.
• Heed all warnings.
• Follow all instructions and keep all warnings.
• Only use attachments/accessories specified by the manufacturer.
• Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer or
sold with the apparatus.
• When a cart is used, use caution when moving the cart/apparatus combination to avoid
injury from tipover.
• Avoiding hearing damage. Professional loudspeakers are capable of producing extremely high sound
levels and should be used carefully. Never stand close to loudspeakers driven at high volume. Set the
volume to a safe level. You can adapt to a higher volume of sound that over time may sound normal
but can be damaging to your hearing. Hearing loss worsens after exposure to a sound level of 90
dB or over for an extended period of time. If you experience ringing in your ears or muffled speech,
stop listening and have your hearing checked. The louder the volume, the less time is required before
your hearing could be affected.
• Choking hazards. This device contains small parts, which may present a choking hazard to small
children. Keep the device and its accessories away from small children.
• Do not make repairs yourself. Never attempt to disassemble, repair or modify the system yourself.
Disassembling the unit may cause damage that is not covered by the warranty. The device contains
no user-serviceable parts. Repairs should only be performed by factory trained service personnel.
• Sound distortion. Do not operate speakers for an extended period of time with sound distortion. This
is an indication of malfunction, which in turn can generate heat and result in a fire.
• Carrying, handling and installing the device. The device contains sensitive components. Do not
drop, disassemble, open, crush, bend, deform, puncture, shred, incinerate or paint the device nor
insert foreign objects into it. If your device has been dropped or damaged, unplug the power cable
immediately.
• Setup. Set up your device on a stable, horizontal surface. If combined or mechanically connected with
other products, always verify the stability of the resulting system. Install the unit only in a location
that can structurally support the weight of the unit and far away from interference with the stability
of the system. Ensure the wind does not interfere with the system’s stability, using extra securities
such as chains, weights, ropes or any other certified anchoring systems. Otherwise a unit could fall,
causing property damage, personal injury or even death. The system should only be suspended by
qualified personnel following safe rigging practices. Securing fixtures to the building structure are
vital. To clarify any doubts, seek help from architects, structural engineers or other specialists.
5
KV52 Ver 1.2
5. UNPACKING
Each K-array speaker is built to the highest standard and thoroughly inspected before leaving the factory.
Upon arrival, carefully inspect the shipping carton, then examine and test your new audio element. If
you find any damage, immediately notify the shipping company. Only the consignee may institute a
claim procedure regarding the system’s electronic equipment.
6. PACKAGING
1 x KV52 speaker
2 x wall brackets 2 x joining plates 4 x M3 hex screws
2 x 2-pin phoenix
connectors
2 x dual lock
fastening velcro pieces
6
KV52 Ver 1.2

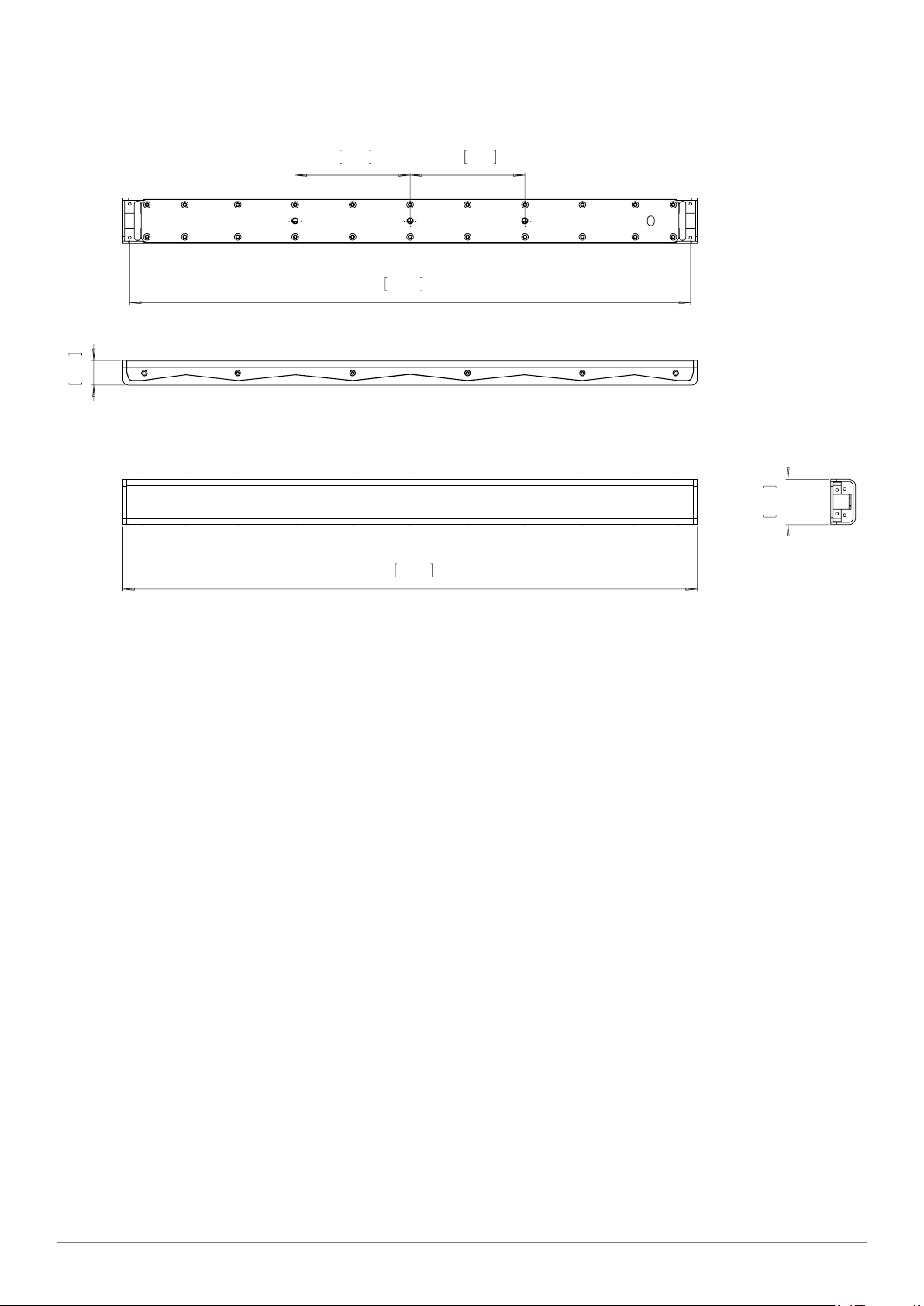

7. PHYSICAL OVERVIEW
0,8in
21,5mm
3,9in
100mm
19,2in
488mm
19,7in
500mm
3,9in
100mm
1,6in
39,5mm
Weight
0.7 kg (1.5 lbs)
7
KV52 Ver 1.2
8. WIRING
The KV52 features two 2-pin phoenix connectors wired in parallel. The two connectors are interchangeable
and can be used to connect the speaker to the amplifier or to connect the speaker to another KV52
driven in parallel by the same amplifier channel.
The KV52 allows the user to select two different values of impedance (16Ω – 64Ω) with a switch situated
on the rear panel. At 64Ω as many as 16 KV52 speakers can be powered off a single KA84 amplifier
channel.
Next KV50
Amplifier
Max number of speakers per channel
KA14 amp KA24 amp KA84 amp
KV50 @ 16 Ω
4 4
NO
KV50 @ 64 Ω NO NO 16
8
KV52 Ver 1.2
9. INSTALLATION
9.1 INCLUDED WALL BRACKETS
The KV52 can be easily installed on the wall using the two included wall brackets. Secure the two
brackets on the wall using four M4 screws. Position the KV52 between the two brackets and use the
four included M3 hex screws to secure the chassis to the brackets.
9
KV52 Ver 1.2
9.2 MOUNTING THE UNIT TO THE WALL
The KV52 can be installed on the wall just using two M4 screws (not included). The grill must be
removed to insert the screws (T10 torx screw driver required).
10
KV52 Ver 1.2
9.3 TILTING THE UNIT
K-WALL2L, K-WALL2 and K-V5WALL1 wall brackets are all compatible with the KV52. K-WALL2L and
K-WALL2 allows for tilting the speaker when necessary.
11
KV52 Ver 1.2

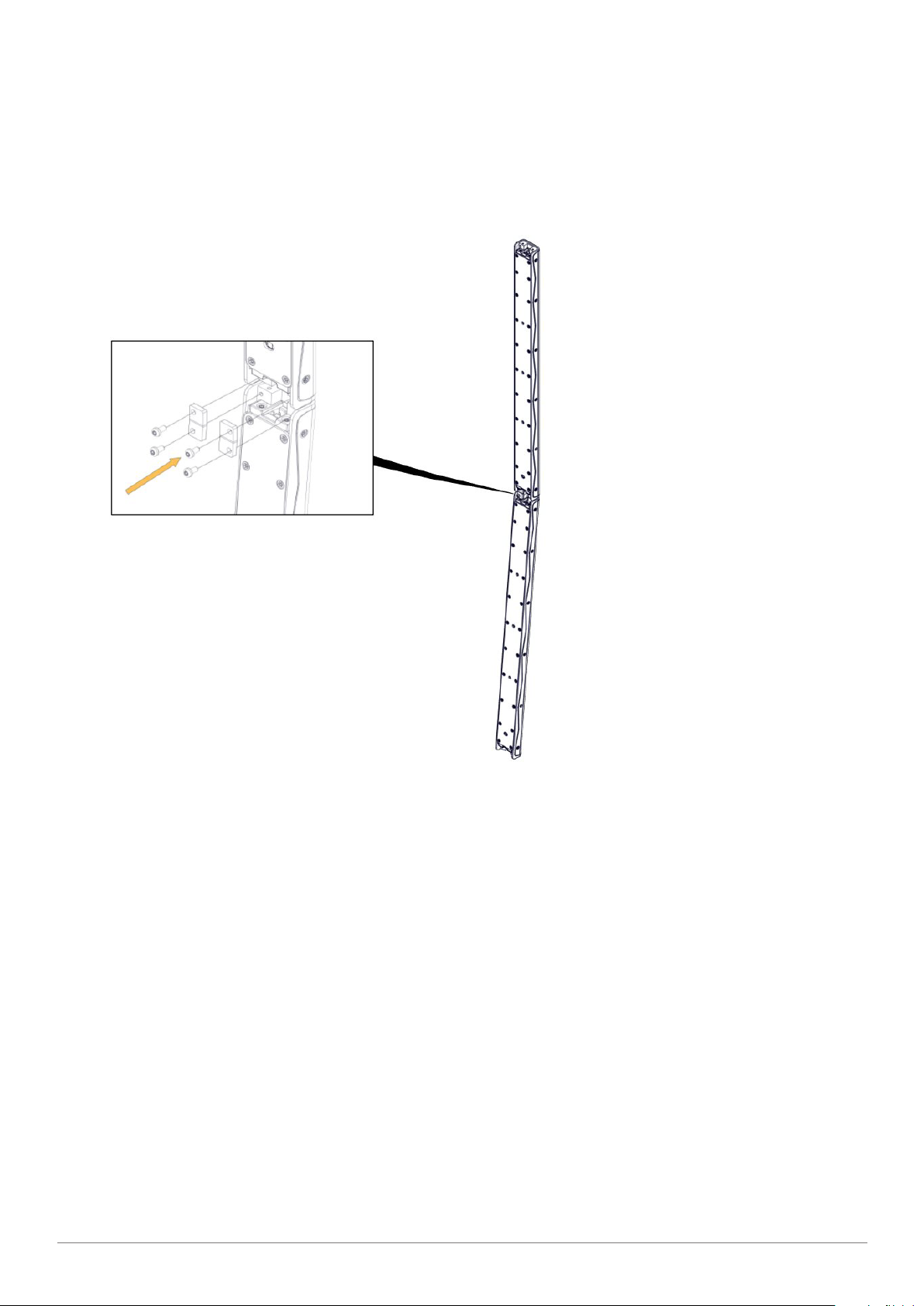

9.4 JOINING TWO UNITS
The two included linking brackets allow the user to join two units together to create a longer array. The
bottom unit is tilted 5° downwards to properly cover the audience closest to the array. Use the four
included hex screws to join the two speakers.
12
KV52 Ver 1.2
10. SERVICE
To obtain service:
1) Contact the official K-array distributor in your country. Your local distributor will direct you to the
appropriate service center.
2) If you are calling for service, please have the serial number(s) of the unit(s) available for reference.
Ask for Customer Service and be prepared to describe the problem clearly and completely.
3) If the problem cannot be resolved over the phone, you may be required to send the unit in for
service. In this instance, you will be provided with an RA (Return Authorization) number which should
be included on all shipping documents and correspondence regarding the repair. Shipping charges are
the responsibility of the purchaser.
Any attempt to modify or replace components of the device will invalidate your warranty. Service must
be performed by an authorized K-array service center.
Cleaning:
Use only a soft, dry cloth to clean the device. Do not use any solvents, chemicals, or cleaning
solutions containing alcohol, ammonia, or abrasives. Do not use any sprays near the product or
allow liquids to spill into any openings.
13
KV52 Ver 1.2
11. TECHNICAL SPECIFICATIONS
ACOUSTICS
Power handling
Max power
150 W
300 W
(AES)
(1)
Frequency range 200 Hz – 20 kHz +/- 3dB
Impedance
SPL 1W/1mt
16 Ω / 64 Ω selectable
(3)
86 dB
Maximum SPL 108 dB (cont.) – 114 dB (peak)
COVERAGE
Horizontal 110°
Vertical 10°
CROSSOVER
Type
Frequency
External Crossover required
150 Hz, 24 dB/oct
suggested minimum
Full-range 8 x 1“ cone driver with 0.75“ voice coil
(2)
Connectors 2 x 2-pin phoenix
(4)
Type KA14, KA24, KA84
Dimensions
Weight
TRANSDUCERS
POWER AUDIO INPUT
RECOMMENDED AMPLIFIERS
CERTIFICATION
IP 54
PHYSICAL
39.5 x 500 x 21.5 mm
(1.6”x 19.7”x 0.8”)
0.7 kg (1.5 lbs)
Notes for data
1. Maximum RMS applicable power for a musical signal. The reference signal is the one proposed by EIAJ
standard
2. With dedicated preset
3. Measured @ 4m then scaled @ 1m
4. Measured with musical signal
New materials and designs are introduced into existing products without prior notice. Present systems may
differ in some respects f rom those presented in this catalogue.
14
KV52 Ver 1.2
12. EN54-24 DATA
KV52 is EN54-24 compliant. Consider the specifications below when the speaker is used in a voice
alarm system.
KV52
Power handling 15 W
SPL 1W/1m
Maximum SPL
Connector IN
Vmax In (Pink Noise)
Frequency Range 150 Hz - 20 kHz
Coverage Horizontal
Coverage Vertcal
86 dB
97 dB
1+ 1-
11.60 V @ 16 Ohm
23.20 V @ 64 Ohm
180° @ 500 Hz
180° @ 1000 Hz
180° @ 2000 Hz
180° @ 4000 Hz
90° @ 500 Hz
35° @ 1000 Hz
20° @ 2000 Hz
10° @ 4000 Hz
K-array
0068-CPR-xxx /2017
EN 54-24 : 2008
Loudspeaker for voice alrm systems for fire
detection and fire alarms systems for buildings
KV52
TYPE B
The contents of this manual are furnished for informational purposes only. K-array s.u.r.l. assumes no responsibility for any errors or inaccuracies that may
appear in this manual. K-array s.u.r.l. reserves the right to make modifications without prior notice.
15
KV52 Ver 1.2
13. CERTIFICATION
DECLARATION OF CONFORMITY
Manufacturer/Importer: K-array s.u.r.l.
Brand
: K-ARRAY
Address: via Paolina Romagnoli 17 50038 Scarperia e S. Piero Firenze ITALY
Date of Issue: 20 / 02 / 2017
Model Code: KV52 – KV52W – KV52X – KV52XB – KV52XG – KV52XP
Declaration: Complies with safety essential requirements of Council Directive
2004/108/EC on the approximation of the Laws of the Member States relating to
electromagnetic compatibility.
2006/95/EC on the harmonisation of the laws of member state relating equipment
designed for the use within certain voltage limits
This declaration applies to all specimens manufactured in accordance with the attached
manufacturing drawings which form part of this declaration. Assessment of compliance
of the product with the requirements relating to electromagnetic compatibility and low
voltage directive was based on the following standards:
EMC: EN 55103-1:2009
EN 55103-2:2009
EN 61000-3-2:2006+A1+A2
EN 61000-3-3:2008
Safety: EN 60065:2002+A1+A11+A2+A12
RoHS II: Directive 2011/65/UE (08 june 2011)
Marking:
Applying Year: 2017
Applied by: K-array s.u.r.l.
Via Paolina Romagnoli 17
50038 Scarperia e S. Piero
Firenze Italy
Tel. +39 055 8487222
Fax +39 055 8487238
Signed by: Franco Spataro
Technical Manager
K-array s.r.l. a socio unico società soggetta alla attività di direzione e coordinamento di HP Sound Equipment spa
P. IVA / VAT / CF 06206990480 - R.E.A. 609589 Cap. soc. i.v. € 100.000,00
Sede legale: via Paolina Romagnoli 17 50038 Scarperia e San Piero - Firenze - ITALY tel +39 055 8487222 fax +39 055 8487238
k-array@pec.it www.k-array.com
16
Loading...
