K-array KU36 User Manual

KU36

Ultra slim, high power sub woofer

USER MANUAL - english version

CONTENTS

SYMBOLS 5
SAFETY 6
DECLARATION OF CONFORMITY 7

1. INTRODUCTION 9

2. APPLICATIONS 9

3. KEY FEATURES 10

4. UNPACKING 10

5. INCLUDED ACCESSORIES 10

6. PHYSICAL 11

7. WIRING 12

SPECIFICATIONS 14

SYMBOLS

K-array declares that this device is in compliance with the
applicable CE standards and regulations. Before putting the
device into operation, please observe the respective country

specic regulations!

WEEE

Please dispose of this product at the end of its operational lifetime
by bringing it to your local collection point or recycling centre for
such equipment.

This symbol, wherever it appears, alerts you to important operating
and maintenance instructions in the accompanying literature.
Read the manual!

Warning! Dangerous voltages: Risk of electric shock.

This symbol alerts the user to recommendations about the
product’s use and maintenance.

This device complies with the Restriction of Hazardous
Substances Directive.

KU36

SAFETY DECLARATION OF CONFORMITY

WARNING

• Install the speaker only in a location that can structurally support the weight of

the unit. Doing otherwise may result in the unit falling down and causing personal
injury and property damage.

• Professional loudspeakers are capable of producing extremely high sound

levels and should be used with care. Hearing loss is cumulative and can result from
levels above 90dB if people are exposed for an extended period.

• Do not operate the speaker for an extended period of time with the sound

distorting.This is an indication of malfunction, which in turn can cause heat to

generate and result in a re.

• Never stand close to loudspeakers driven at high level.

• Suspending the system should only be done by qualied personnel following

safe rigging practices. Secure xings to the building structure are vital. If in any

doubt, seek help from architects, structural engineers or other specialists.

• No naked ame sources such as lighted candles should be placed near the device.

• Do not attempt to disassemble the unit. The unit contains no user serviceable

parts.Repairs should be performed only by factory trained service personnel.

6

REV. B REV. B

DECLARATION OF CONFORMITY

This device complies with the essential protection requirements of
Council Directive 89/336/EEC for the implementation of the Laws
of the Member States relating to electromagnetic compatibility. This
declaration applies to all specimens and manufacturing drawings
which form part of this declaration. Assessment of compliance
of the product with the requirements relating to electromagnetic
compatibility was based on the following standards.

Please observe the respective country-specic regulations!

Safety: EN 60065:1998
EMC:
EN 55103-1 1997 Emission (1)

EN 55103-2 1997 Immunity (2)
(1) This devise may not cause harmful interference
(2) This devise must accept any interference received including
interference that may cause undesired operation

WEEE

KU36

Please dispose of this product at the end of its operational lifetime
by bringing it to your local collection point or recycling centre for
such equipment.

The contents of this manual are furnished for informational purpose only. Hp Sound
Equipment s.r.l. assumes no responsibility for any errors or inaccuracies that
may appear in this manual. Hp Sound Equipment s.r.l. reserves the right to make

modications without prior notice

7

KU36

8

REV. B

REV. B

KU36

Ultra slim, high power sub woofer

1. INTRODUCTION

The KU36 is a compact but extremely powerful, line array bass system comprised of 1
x 6” neodymium transducers combined with 2 x 6” passive transducer, engineered for
maximum linear excursion and minimum residual noise.
With a frequency range of 45Hz to 300Hz, the KU36 is a companion to any of the K-array
Installation Series speakers, as well as the KZ10 or KV50. The combination provides

full range frequency response with prodigious output and a virtually invisible prole.
KA series ampliers have presets specically optimized for KU36 applications.

All KU36 components are designed by the K-array R&D department and custom made
under the K-array quality control system.

2. APPLICATIONS

• Theatre, Club, Churches

• To extend the low range in small and midium rooms

• Portable and installed AV systems

• Stage and AV studio monitoring

9

KU36

3. KEY FEATURES

• Unique performance-to-size ratio

• 6” long-excursion woofer

• Double 6” passive radiator

• Extended frequency response

• Electronically protected

• Integrated ying points

• Double voice coil (4W+4W)

• Top quality components for outstanding performance

• Weather proof, suitable for outdoor installations

• Available in black or white

4. UNPACKING

Each K-array xture is built to the highest standard and thoroughly inspected before

leaving the factory. Carefully inspect the shipping carton, then examine and test your

new loudspeaker and lighting xture. If you nd any damage immediately notify the

shipping company. Only the consignee may institute a claim for damages incurred in
shipping. It is suggested that you retain the original packaging so that the system can
be repacked at a future date if necessary. Please note that K-array and its distributors
cannot accept any responsibility for damage to any returned product through the use
of non-approved packaging.

5. INCLUDED ACCESSORIES

1 x user’s manual
1 x 4-pin Phoenix connector
1 x serial cable

10

REV. B REV. B

6. PHYSICAL

(4.2”)

106.7 mm

176 mm

108 mm

(4.25”)

weight: 6.8 Kg (15 lbs)

(2.89”)

73.5 mm

37.1 mm

(1.46”)

KU36

(19.96”)

507 mm

(14.17”)

360 mm

(0.53”)

13.5 mm

37.1 mm

(1.46”)

11

KU36

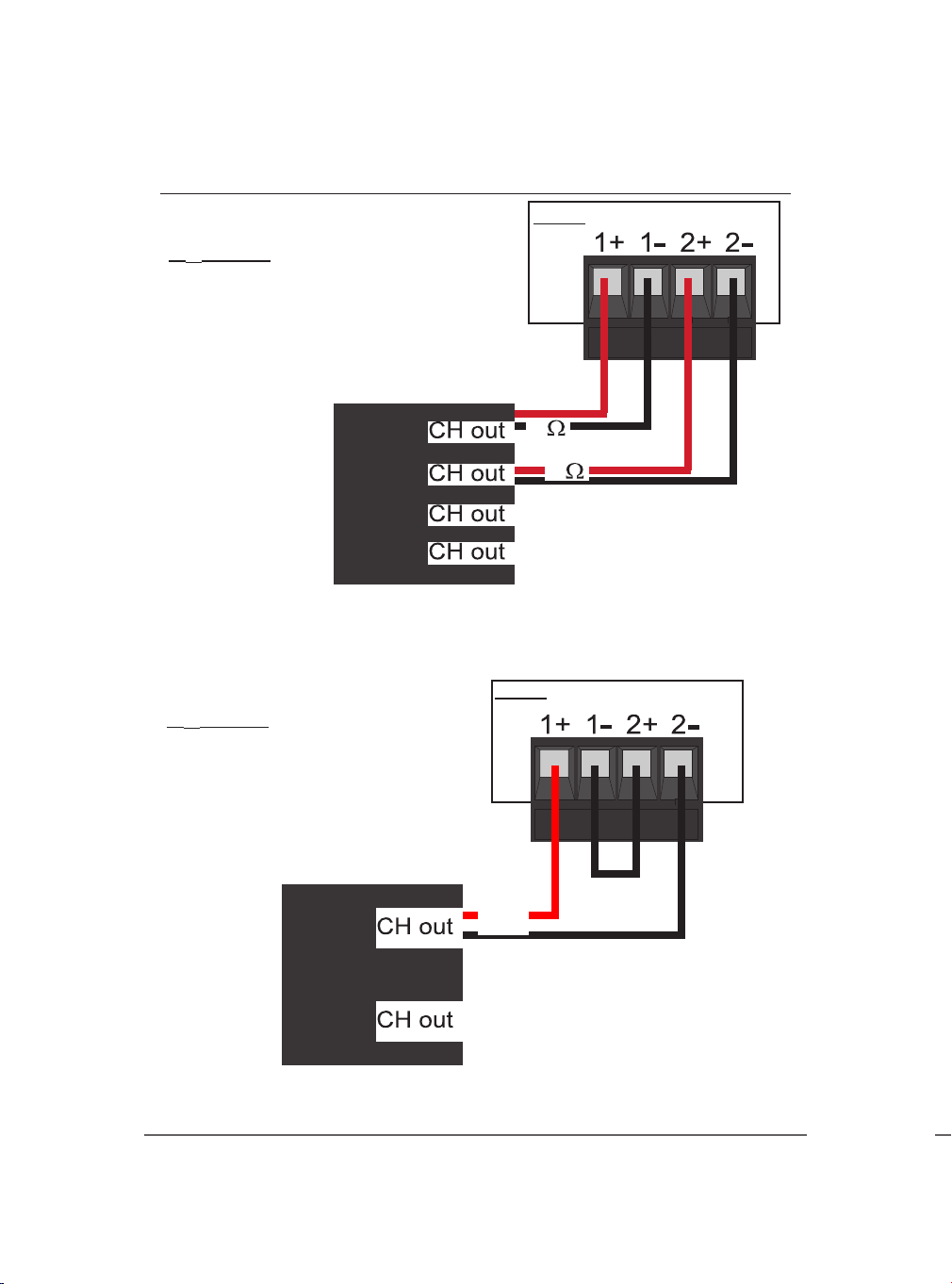

7. WIRING

4 W MODE

KU36

8 W MODE

KA7-7

KA1-1

4

4

KU36

8 W

12

REV. B REV. B

KU36

13

SPECIFICATIONS

Power handling 2 X 80 W

Impedance 2 X 4W

Operating frequency range 45 Hz - 300 KHz.

SPL 1W / 1mt 89 dB

Maximum SPL 115 dB continuous - 121 dB peak

Full range 1 X 6” Neodymium magnet with 1.5” voice coil

+ 2 X 6” passive transducer

Connectors 4-pin Phoenix

Wiring Pin1=Ch 1+, Pin2=Ch 1-, Pin3=Ch 2+, Pin4=Ch 2-

Recommended Ampliers

KA1-1, KA7-7, KA10-10

KU36

Acoustics

(AES)

Transducers

Audio Input

Physical

Dimensions 50.7 x 17.5 x 10.5 cm (19.96” x 6.89” x 4.13”)

Weight 6.8 Kg (15 lbs)

New materials and design are introduced into existing
products without previous notice. Present systems may differ
in some respects from those presented in this brochure.

REV. B

REV. B

KU36

REV. B

15

UMC010AA01ENB
