Python
KP52/KP102
USER’S MANUAL
English
KP52/KP102
REV. A2
Contents
SYMBOLS 5
1. INTRODUCTION 7
2. APPLICATIONS 7
3. KEY FEATURES 7
4. UNPACKING 8
5. WARRANTY 8
6. SAFETY 8
7. PHYSICAL 9
8. REAR PANEL 11
9. COVERAGE 12
10. WIRING 14
11. PROTECTION CIRCUITRY 14
12. ACCESSORIES AND CONFIGURATIONS 15
K-Base2 15
K-Fly2 16
K-Joint2 16
K-Wall2L 17
K-Wall2 17
K-KCluster2 / K-PCluster2 18
K-Foot 2 18
K-KStage2 / K-PStage2 19
13. SERVICE 19
14. SPECIFICATIONS 20
KP52/KP102
REV. A
3
KP52/KP102
REV. A4
KP52/KP102
SYMBOLS
K-array declares that this device is in compliance with applicable CE standards and
regulations. Before putting the device into operation, please observe the respective
country-specic regulations!
WEEE
Please dispose of this product at the end of its operational lifetime by bringing it to your local
collection point or recycling center for such equipment.
This symbol, wherever it appears, alerts you to important operating and maintenance
instructions in the accompanying literature. Read the manual!
REV. A
Warning! Dangerous voltages: RISK of electric shock.
This symbol alerts the user to the presence of recommendations about the product’s use
and maintenance.
This device complies with Restriction of Hazardous Substances Directive.
5
KP52/KP102
REV. A6
KP52/KP102
1. INTRODUCTION
The K-ar ray Py thons ar e passive speaker sy stems, c ompri sed of 3.15” neody mium mag net tran sduce rs house d in an ele gant
and sturdy stainless steel chassis. Available in t wo lengt hs, the K P52 features 8 drivers in a 0.5 m (19.7”) chass is, and th e
KP102 feat ures 16 dri vers in a 1 m (39 .4”) chassis. T he Kobras’ closely space d cone dr ivers provide phase coh erenc e, low
distor tion and focus ed liste ning bot h up close and at a dist ance.
To accommo date a rang e of appli catio ns, the ver tic al dispe rsion p atter n can be switched for eithe r wide or narrow coverage.
Optional rigging and li nking ac cess ories a llow mul tiple sp eakers to b e interc onnec ted, cre ating a wi de array o f verti cal and
horizontal configurations for temporary or permanent installation.
For i nte gra tion wi th othe r speake rs o r ampli fi ers , th e KP52 an d KP1 02 of fer sel ect ab le im pe dan ce (8Ω / 32 Ω fo r the KP5 2 and
4Ω / 16Ω for t he KP102). S et to 32Ω, up to eigh t KP52s c an be powered via a single ampli fier c hannel, simplifyin g insta llatio n
of wider d istributed ins talled systems.
Pyth ons are ab le to repr oduce t he entir e vocal f requen cy range w ith exce llent intelligibility, st arti ng from 150 H z. Integr ating
powered subwoofers from K-array ’s Redline series (KMT12, KMT18, K MT21) ensures excell ent cover age of the e ntire musical
freque ncy rang e. K-arr ay’s KA a mplif ier ser ies also feature s custom p resets, optimi zed for us e with the Phytho n serie s.
All Py thon c omponents are de signe d by K-array and custom-made under K-array ’s qualit y control system.
2. APPLICATIONS
• Theatres, Club, Churches
• Front ll and under-balcony ll
• Portable and installed AV systems
• Stage and AV studio monitoring
3. KEY FEATURES
• Unique performance-to-size ratio
• Vertical, Horizontal and 3D line-array applications
• Multiple 3.15” long-excursion full-range cone drivers
• Wide horizontal coverage
• Electronically protected
• Se lec tab le imp eda n ce (KP52: 8 / 32 Ω, KP102: 4 / 16 Ω)
• Selectable vertical pattern (Spot / Flood)
• Weather proof, suitable for outdoor installations
• Available in black or white
REV. A
7
KP52/KP102
4. UNPACKING
Each K-array loudspeaker is built to the highest standard and thoroughly inspected before leaving the factory.
Upon arrival, carefully inspect the shipping carton, then examine and test your new loudspeaker. If you nd any
damage, immediately notify the shipping company. Only the consignee may institute a claim procedure regarding
the system’s electronic equipment.
5. WARRANTY
K-array systems are warranted against manufacturing defects in materials or craftsmanship over a period of 2
years from the date of original purchase. During the warranty period K-array will, at its discretion, either repair or
replace products which prove to be defective provided that the product is returned in its original packaging, shipping
prepaid, to an authorized K-array service agent or distributor. K-array cannot be held responsible for defects caused
by unauthorized modications, improper use, negligence, exposure to inclement weather conditions, acts of God
or accidents, or any use of this product that is not in accordance with the instructions provided by K-array. K-array
is not liable for consequential damages. This warranty is exclusive and no other warranty is expressed or implied.
This warranty does not affect your statutory rights.
6. SAFETY
WARNING
• Only install the speaker in a location that can
structurally support the weight of the unit. Doing
otherwise may result in the unit falling down and
causing personal injury and property damage.
• Professional loudspeakers are capable of
producing extremely high sound levels and should
be used with care. Hearing loss is cumulative and
can result from extended exposure to levels in
excess of 90dB.
• Do not operate the speaker for an extended period
of time with the sound distorting.This is an indication
of malfunction, which can cause heat build-up and
result in a re.
• Never stand close to loudspeakers driven at high level.
• Suspending the system should only be done by
qualied personnel, following safe rigging practices.
Secure xings to the building structure are vital.
If there is any doubt, seek professional help from
architects, structural engineers or other specialists.
• No open ame sources, such as lighted candles,
should be placed near the device.
• Do not attempt to disassemble the unit. The unit
contains no user serviceable parts. Repairs should
be performed only by factory trained service
personnel.
REV. A8

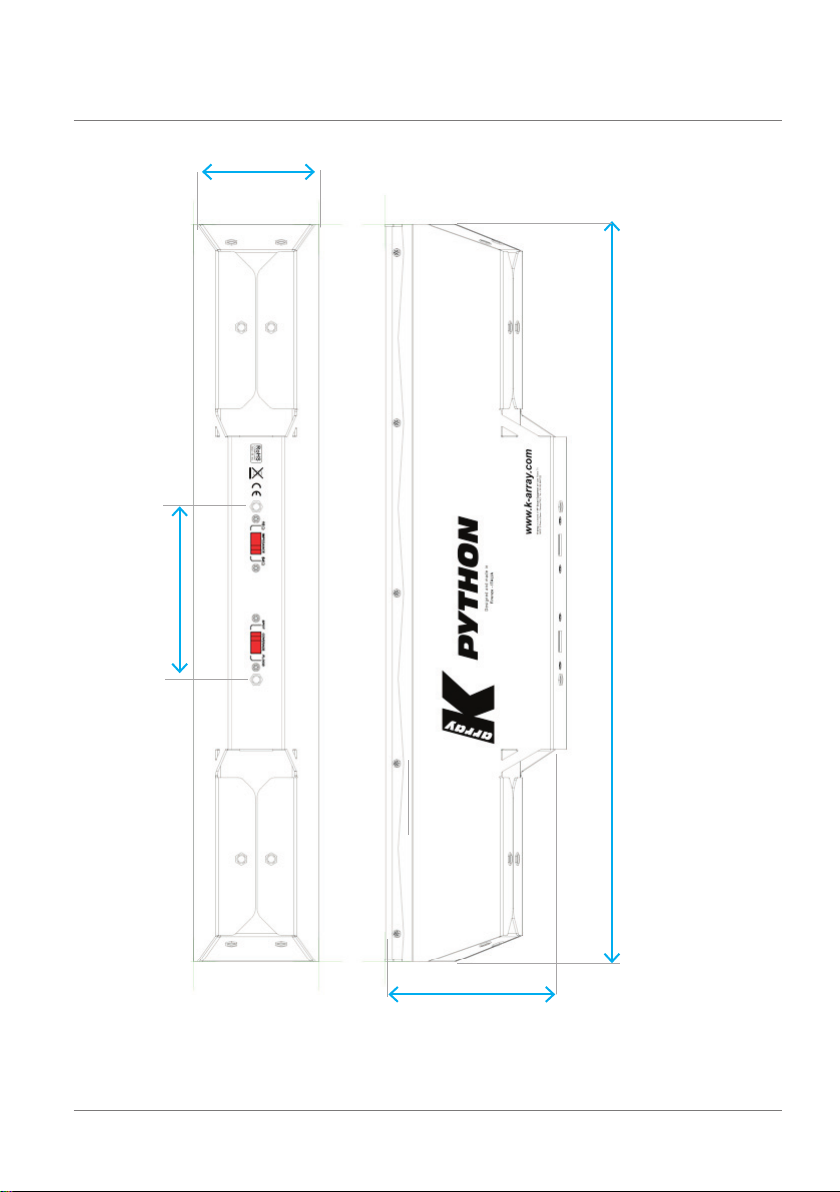

7. PHYSICAL
8.8 cm
3.56”
50 cm12 cm
KP52/KP102
KP52
19.7”4.72”
REV. A
11.8 cm
4.65”
weight: 6 kg (13.23 lbs)
9

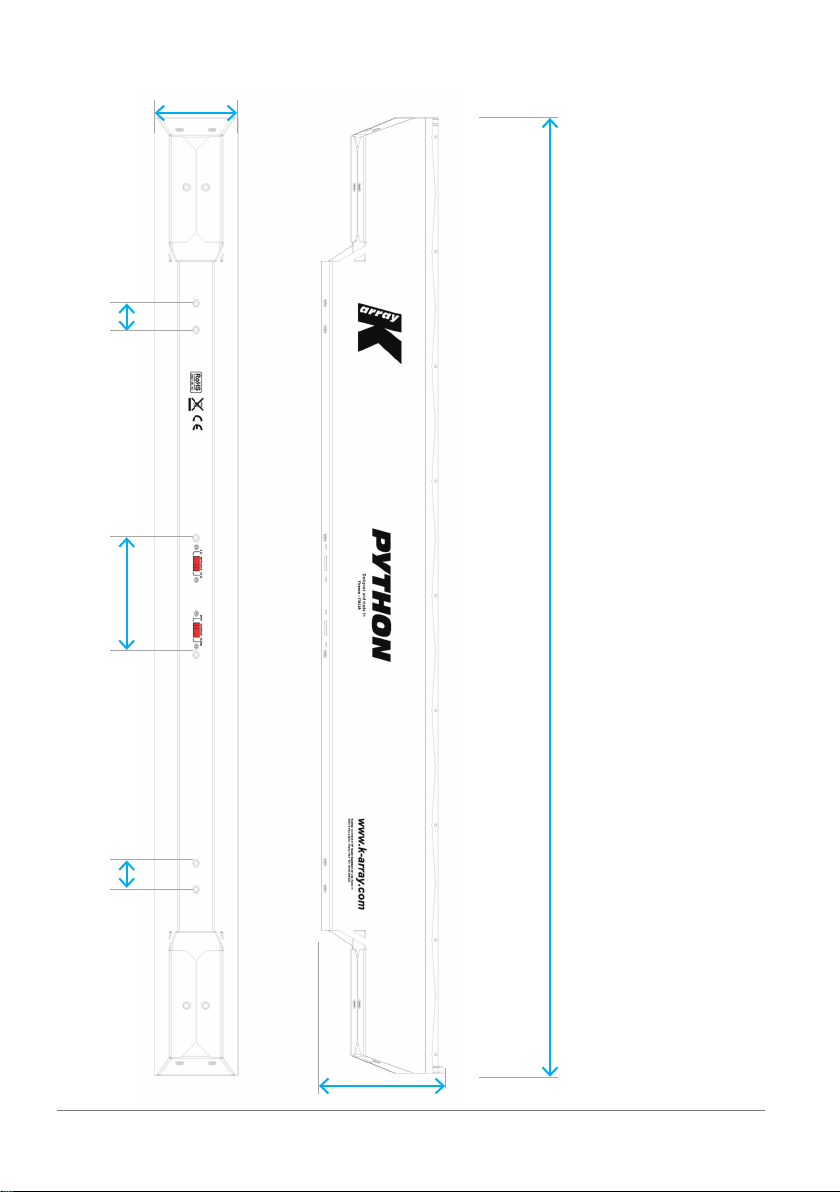

KP52/KP102
2.75 cm
1.08”
8.8 cm
3.56”
KP102
12 cm
4.72”
2.75 cm
1.08”
11.8 cm
4.65”
100 cm
39.4”
weight:
12 kg (26.45 lbs)
REV. A10
8. REAR PANEL
KP52/KP102
REV. A
1 12
3
1) Mounti ng screw h oles. M ost K-ar ray mounting or f lying ac cess ories a re desig ned to screw into th e speaker s
using th ese holes. The K P52 is equi pped with two sc rew hole s, while the KP102 is equipped with fo ur.
2) Impeda nce swi tch. Se lects t he impe dance o f the speaker. Impe dance m ust be set to high (32 Ω for KK 52
and 16 Ω for KK102) when spe akers ar e driven by KMT ac tive mo dules. Low impe dance m ay be used when
speaker s are dri ven by most K A ser ies ampl ifiers (KA 3, KA7, KA10). Please refer to y our amplifier ’s speci fications
to select the correct speaker impedance for your configuration.
3) C overage s witch. S elect s the ver tical disper sion of the speaker. Flood coverage set s a wide ver tical
diffusion an gle of 60 ° (KP52) / 35° ( KP102). Flo od coverage is sug gested f or singl e speaker s in dif fused
shor t throw ap plicat ions, to obtain maximum d iffu sion with a minimu m footprint. Sp ot coverage sets a narrower
1)
verti cal dif fusi on angle o f 10° (KP52) / 7° (KP102). Spo t coverage is recommend ed for long throw o r monito ring
applications
Flood an d Spot may al so be ef fective for downfill ap plicat ions
(image 2). In most mu lti-speaker applications, set cover age to Spo t (image 3) A combi nation of
(image 4).
(image
11
KP52/KP102
9. COVERAGE

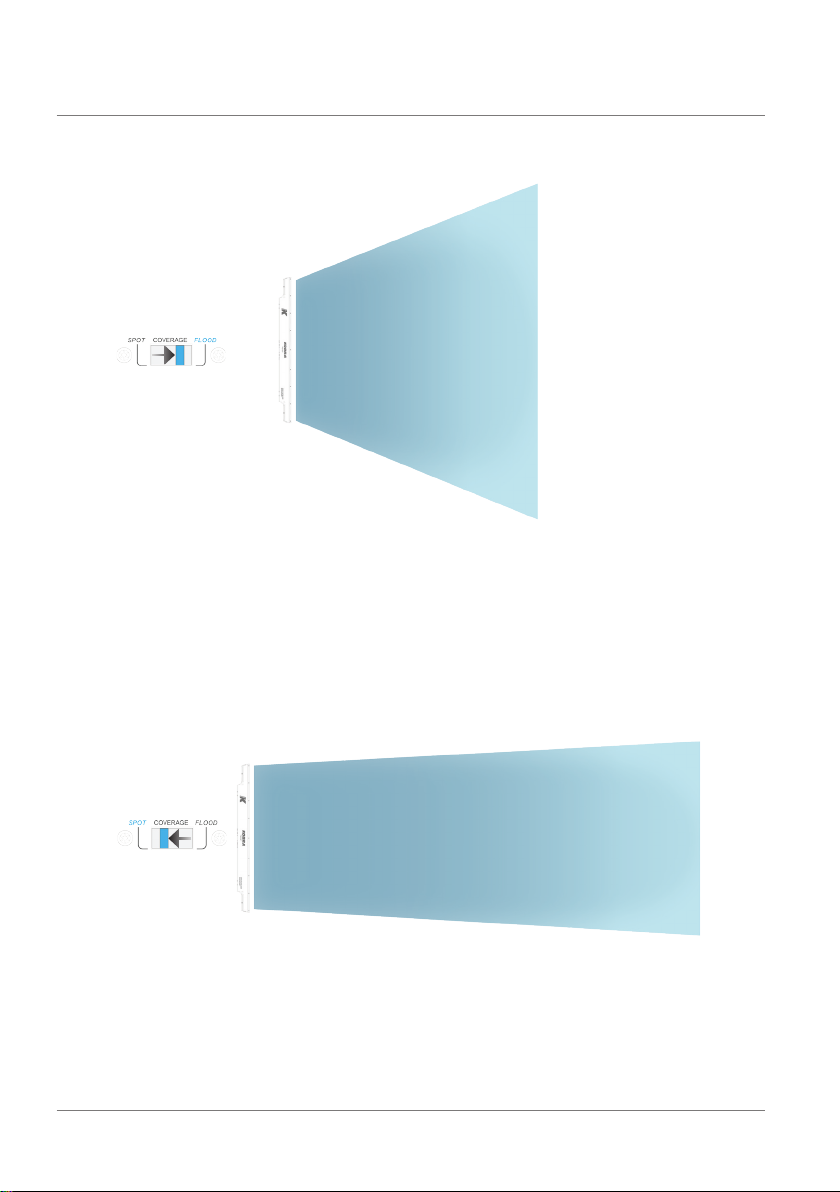

Img1: Flood coverage
Img2: Spot coverage
REV. A12

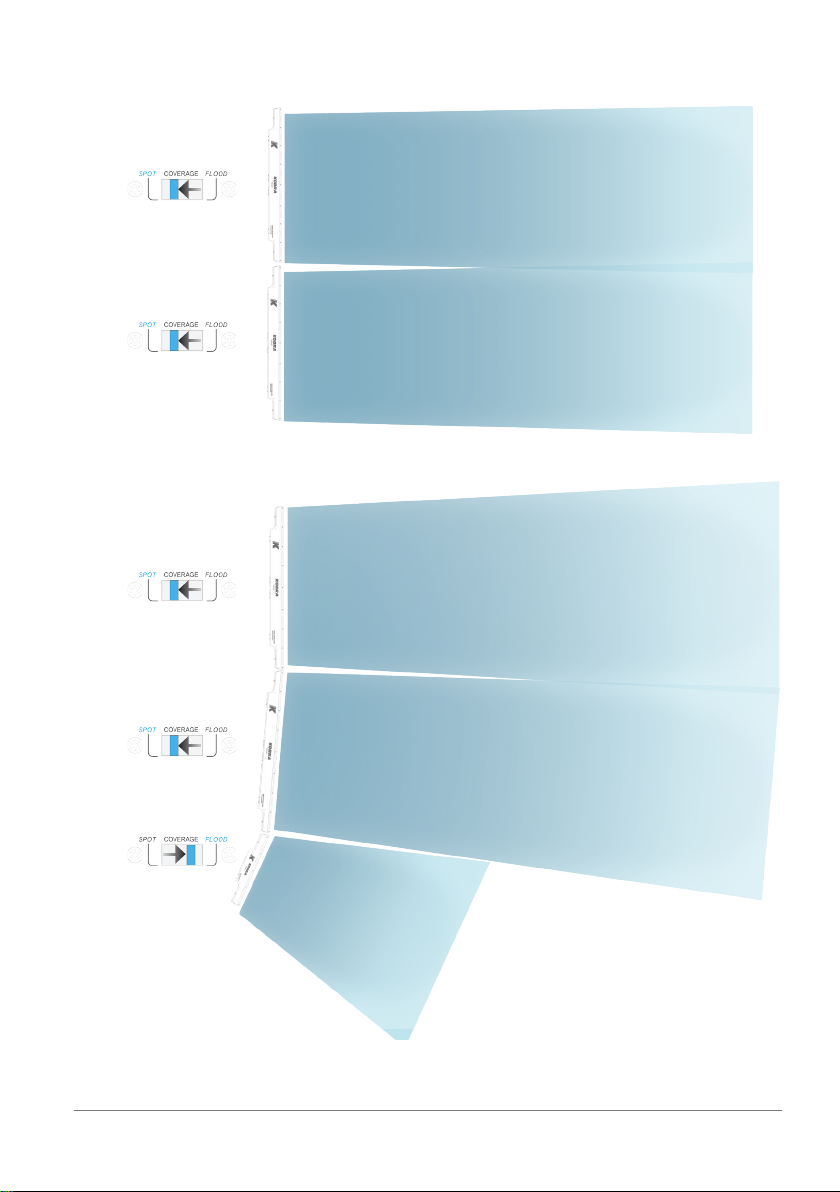

Img3: Array - spot cover age
KP52/KP102
REV. A
Img4: Array - D ownfi ll appli catio n
13
KP52/KP102
10. WIRING
Python KP52 and KP102 internal wiring is designed to pick up audio power signal from pins 1+ / 1- of a NL4
connector. Pins 2+ and 2-, such as pins 1+ and 1-, are directly wired from one socket to the other, so signal
can pass through multiple KP modules without additional external cabling.
11. PROTECTION CIRCUITRY
Speakers are electrically protected from brief power overloads, within a reasonable range. Overloading the
speaker for extended periods of time can cause damage, so proper system design is strongly advised.
REV. A14
KP52/KP102
12. ACCESSORIES AND CONFIGURATIONS
K-array offers a variety of dedicated accessories to mount and interconnect KK (Kobra) and KP (Python) series
speakers for a wide array of possible congurations.

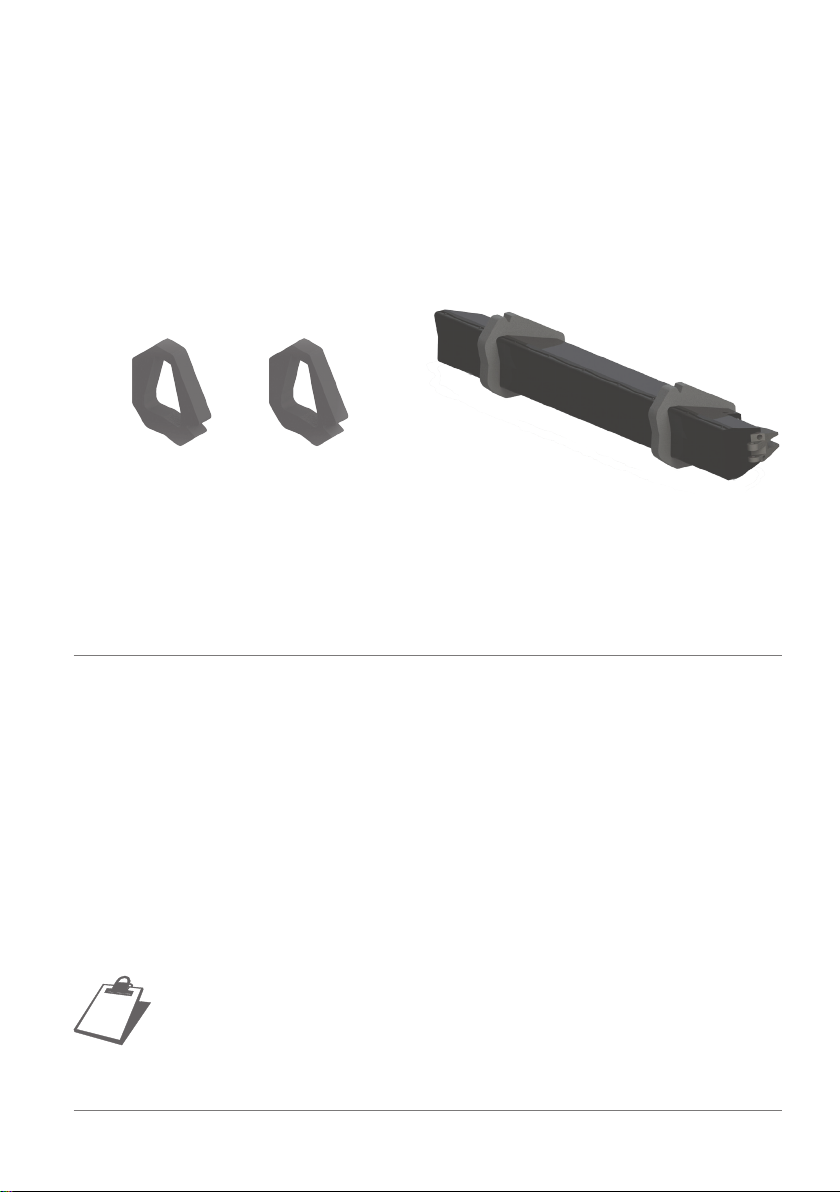

K-Base2
Standing accessory for KK/KP speakers. For proper installation and operation, use with K-Foot2 and K-Joint2.
TIPS: where possible, screw the feet of K-Base2 to the ground.
REV. A
K-Foot2 K-Joint2
WARNING
Before connecting KK/KP series speakers to a K-Base 2, check the stability of the
ground where K-Base 2 is to be placed.
K-Base 2 should not be placed in a zone accessible to the audience.
Take maximum precaution in highly windy locations, especially when screwing the
K-Base2 to the ground is not possible.
15
KP52/KP102
K-Fly2
Flying accessory set for KK/KP speakers.
For proper installation and operation, use with K-Joint2.
WARNING
Consult the dedicated product manual for
safety information and operation details.
K-Joint2
K-Joint2
Attachable joint to link a KK/KP speaker to most accessories
or to another KK/KP speaker with continuously variable
angle (-10° <... . > 10°).
REV. A16
KP52/KP102
K-Wall2L
Wall / stand mounting accessory for KK/KP speakers with bi-dimensional tilting features.
K-Wall2L is designed to be screwed directly to the mounting screw holes of KK/KP speakers. When used with
KK102 it can be screwed to the internal or the external screw holes depending on the width of the desired angle.
K-Wall2
Wall mounting accessory for KK/KP speakers with full 3-dimensional tilting features.
K-Wall2 is designed to be screwed directly to the mounting screw holes of KK/KP speakers. When used with
KK102, the K-Wall2 can be screwed to either internal or external screw holes, depending on the width of the
desired angle.
REV. A
17
KP52/KP102
K-KCluster2 / K-PCluster2
Wall mounting accessory for a horizontal cluster of three KK52/102 speakers.
K-KCluster 2 / K-PCluster 2 comes in a set of three different models: one with no angle between the three hanging
speakers, one with a 30° angle between speakers, one with a 60° angle between speakers.
0°
30°
60°
0°
30°
60°
K-Foot2
35 mm pole mounting accessory.
A 35 mm threaded pole is included for connecting additional K-array products such as KMT subwoofers or K-Base2.
REV. A18
KP52/KP102
K-KStage2 / K-PStage2
Ground laying accessories for KK/KP series speakers.
K-KStage 2 / K-PStage 2 allow users to safely lay KK / KP series speakers on the ground with three different
angles: 0°, 30° and 45°. Ideal applications are monitoring and front-ll.
13. SERVICE
To obtain service:
1) Contact the ofcial K-array distributor in your country. Your local distributor will direct you to the appropriate
service center.
2) If you are calling for service, please have the serial number(s) of the unit(s) available for reference. Ask for Cus-
tomer Service, and be prepared to describe the problem clearly and completely.
3) If the problem cannot be resolved over the phone, you may be required to send the unit in for service. In this
instance, you will be provided with an RA (Return Authorization) number which should be included on all shipping
documents and correspondence regarding the repair. Shipping charges are the responsibility of the purchaser.
Any attempt to modify or replace components of the device will invalidate your warranty. Service must be performed by an authorized K-array service center.
Cleaning:
Use only a soft, dry cloth to clea n the housing. Do n ot use any solvents, c hemic als, or cleaning soluti ons
conta ining alcohol, ammonia, or abrasives. Do not use any sp rays near the prod uct or allow liqui ds to spil l
into any openings.
REV. A
19
KP52/KP102
14. SPECIFICATIONS
Speakers power handling 360 W
KP52
Acoustics
(AES)
Max po wer 600 W
Impedance 8Ω or 32Ω (select able)
Frequency range 100 Hz - 20 KH z.
SPL 1W / 1mt 96 dB
Maximum SPL 118 dB continuo us - 124 dB peak
Horizontal 90°
Vert ica l 10°- 45° (selectable)
Typ e External Crossover required
Frequency High pas s @100 Hz, 24 dB /oct sug gested m inimum
Transducers
Full range 6 x 3.15” Neodymium magnet w ith 1” voic e coil
Power Audio Input
Connectors 2 x 4-pin Speako n
Wiring 1+ 1-
(signal IN & LI NK); 2+ 2- (through)
Selection Switch
Vertical pattern Spoot - Fl ood
Impedance 8Ω - 32Ω
Dimensions 8.8 x 50 x 11.8 cm (3.5 6” x 19.7” x 4,65”)
Weight 6 kg (13.23 lbs)
1. Maximum R MS appli cable pow er for a musi cal sign al, the
referenc e signal is the one pro posed by EI AJ stand ard.
2. Measur ed @4 mt the n scaled @1 mt
New mater ials and design ar e introduced in to existing produ cts
without p revious n otice. Pre sent syste ms may diff er in some
respects from those presented in this brochure.
1
2
Coverage
Crossover
Physical
REV. A20
KP102
Acoustics
Speakers power handling 720 W
Max po wer 1200 W
Impedance 4Ω or 16Ω (sel ectab le)
Frequency range 100 Hz - 20 KH z.
SPL 1W / 1mt 99 dB
Maximum SPL 128 dB continuous - 134 dB peak
Coverage
Horizontal 90°
Vert ica l 7°- 30° (selectable)
Crossover
Typ e External Crossover required
Frequency High pas s @100 Hz, 24 dB /oct sug gested m inimum
Transducers
Full range 12 x 3.15” Neodymium m agnet wi th 1” voice coil
Power Audio Input
Connectors 2 x 4-pin Speako n
Wiring 1+ 1-
Vertical pattern Spoot - Flood
Impedance 4Ω - 16Ω
Dimensions 8.8 x 100 x 11.8 cm (3.5 6” x 39. 4” x 4.65” )
Weight 12 kg (26.45 lbs)
1. Maximum R MS appli cable pow er for a musi cal sign al, the
referenc e signal is the one pro posed by EI AJ stand ard.
2. Measur ed @4 mt the n scaled @1 mt
New mater ials and de sign are int roduce d into exist ing
products without previous notice. Present systems may differ
in some res pects fr om those presente d in this bro chure.
(signal IN & LI NK); 2+ 2- (through)
Selection Switch
Physical
KP52/KP102
(AES)
1
2
REV. A
21
KP52/KP102
The contents of th is manua l are fur nished f or infor mational purp oses on ly. Hp Sound Equipment s .r.l. assumes no resp onsibi lity
for any er rors or inacc uracies that m ay appear in this m anual. Hp Sound Eq uipment s.r.l. res erves the ri ght to make modif ications
without prior notice.
REV. A22
KP52/KP102
REV. A
23
UMC045AA01ENA
K-array s.r.l. unipersonale
Via Paolina Romagnoli - 50037
San Piero a Sieve (Firenze) - Italy
tel. +39 055 8487222 - fax. +39 0558487238
e-mail: info@k-array.com
www.k-array.com
REV. A24
Loading...
