Karran USA - 1291 East Ramsey Rd, Vincennes, IN 47591 - T: 866.452.7726 F: 812.885.2440 - www.karran.com

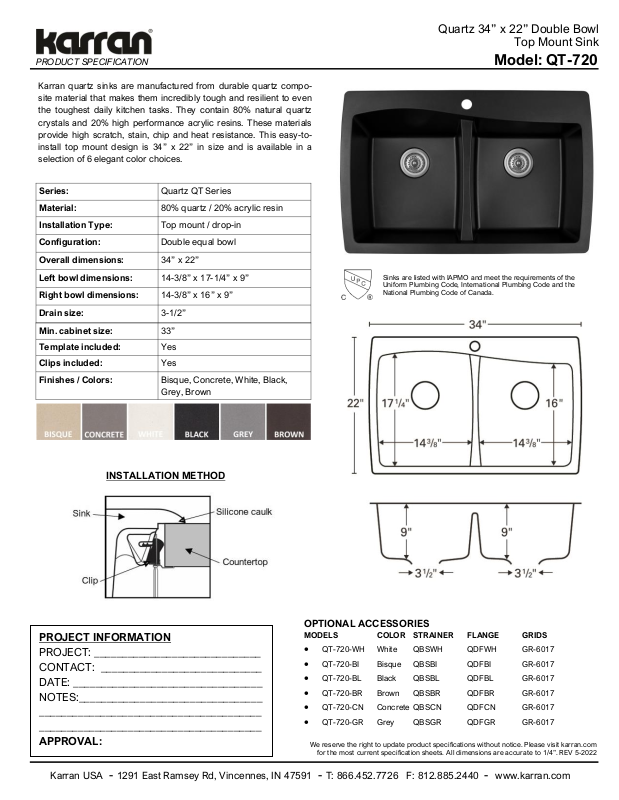

Model: QT-720
Karran quartz sinks are manufactured from durable quartz composite material that makes them incredibly tough and resilient to even
the toughest daily kitchen tasks. They contain 80% natural quartz
crystals and 20% high performance acrylic resins. These materials
provide high scratch, stain, chip and heat resistance. This easy-toinstall top mount design is 34” x 22” in size and is available in a
selection of 6 elegant color choices.
OPTIONAL ACCESSORIES
MODELS COLOR STRAINER FLANGE GRIDS
• QT-720-WH White QBSWH QDFWH GR-6017
• QT-720-BI Bisque QBSBI QDFBI GR-6017
• QT-720-BL Black QBSBL QDFBL GR-6017
• QT-720-BR Brown QBSBR QDFBR GR-6017
• QT-720-CN Concrete QBSCN QDFCN GR-6017
• QT-720-GR Grey QBSGR QDFGR GR-6017
Quartz 34” x 22” Double Bowl
Top Mount Sink
Series: Quartz QT Series
Material: 80% quartz / 20% acrylic resin
Installation Type: Top mount / drop-in
Conguration: Double equal bowl
Overall dimensions: 34” x 22”
Left bowl dimensions: 14-3/8” x 17-1/4” x 9”
Right bowl dimensions: 14-3/8” x 16” x 9”
Drain size: 3-1/2”
PRODUCT SPECIFICATION
Sinks are listed with IAPMO and meet the requirements of the
Uniform Plumbing Code, International Plumbing Code and the
National Plumbing Code of Canada.
PROJECT INFORMATION
PROJECT: ______________________________
CONTACT: _____________________________
DATE: __________________________________
NOTES:_________________________________
________________________________________
________________________________________
APPROVAL:
We reserve the right to update product specications without notice. Please visit karran.com
for the most current specication sheets. All dimensions are accurate to 1/4”. REV 5-2022
Min. cabinet size: 33”
Template included: Yes
Clips included: Yes
Finishes / Colors: Bisque, Concrete, White, Black,
Grey, Brown
INSTALLATION METHOD
