Kari 283M User Manual

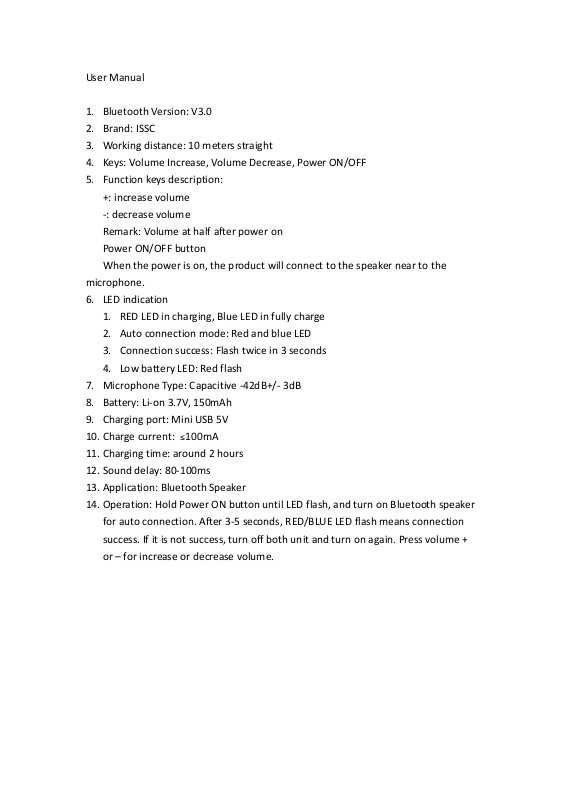

User Manual

1. Bluetooth Version: V3.0

2. Brand: ISSC

3. Working distance: 10 meters straight

4. Keys: Volume Increase, Volume Decrease, Power ON/OFF

5. Function keys description:

+: increase volume

-: decrease volume

Remark: Volume at half after power on

Power ON/OFF button

When the power is on, the product will connect to the speaker near to the

microphone.

6. LED indication

1. RED LED in charging, Blue LED in fully charge

2. Auto connection mode: Red and blue LED

3. Connection success: Flash twice in 3 seconds

4. Low battery LED: Red flash

7. Microphone Type: Capacitive -42dB+/- 3dB

8. Battery: Li-on 3.7V, 150mAh

9. Charging port: Mini USB 5V

10. Charge current: ≤100mA

11. Charging time: around 2 hours

12. Sound delay: 80-100ms

13. Application: Bluetooth Speaker

14. Operation: Hold Power ON button until LED flash, and turn on Bluetooth speaker

for auto connection. After 3-5 seconds, RED/BLUE LED flash means connection

success. If it is not success, turn off both unit and turn on again. Press volume +

or – for increase or decrease volume.

The device complies with Part 15 of the FCC Rules. Operation is subject to

the following two conditions: (1) this device may not cause harmful interference,

and (2) this device must accept any interference received, including interference

that may cause undesired operation.

Changes or modifications not expressly approved by the party responsible for

compliance could void the user's authority to operate the product.

NOTE: This product has been tested and found to comply with the limits for a Class B

digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to

provide reasonable protection against harmful interference in a residential installation.

This product generates, uses and can radiate radio frequency energy and, if not

installed and used in accordance with the instructions, may cause harmful

interference to radio communications. However, there is no guarantee that

interference will not occur in a particular installation. If the product does cause

harmful interference to radio or television reception, which can be determined by

turning the equipment off and on, the user is encouraged to try to correct the

interference by one or more of the following measures : -Reorient or relocate the

receiving antenna. -Increase the separation between the product and receiver. -

Connect the product into an outlet on a circuit different from that to which the receiver

is connected. -Consult the dealer or an experienced radio/TV technician for help.
