Page 1
Installation Guide
4A815
DATE: ______________
Page 2
For Technical Support Call: 800-343-7486 Monday-Friday 7AM - 4 PM (PST) Page 1
Install Instructions – 4A815
*PLEASE READ ALL INSTRUCTIONS AND WARNINGS PRIOR TO ASSEMBLING,
INSTALLING, AND USING THIS PRODUCT*
Warning
Always check for wires, fuel tanks and lines, brake lines and other important vehicle
functionality items prior to drilling and installing all products.
Tools Needed
1/2” Wrench and Socket
7/16” Driver/Wrench
No. 3 Drill (.210”)
5/16” Drill (.340”)
Table of Contents
Parts List ................................................................................................................................... 2
Hardware List ........................................................................................................................... 2
Step 1 Determine Location ...................................................................................................... 3
Step 2 Drill Locations ................................................................................................................ 3
Step 3 Install EXT bracket ......................................................................................................... 4
Step 4 Re-Locate Ladder Stop ................................................................................................... 5
Before You Begin
• Read all instructions.
• Have Clamp N’ Lock ladder assembled.
Page 3
For Technical Support Call: 800-343-7486 Monday-Friday 7AM - 4 PM (PST) Page 2
Install Instructions – 4A815

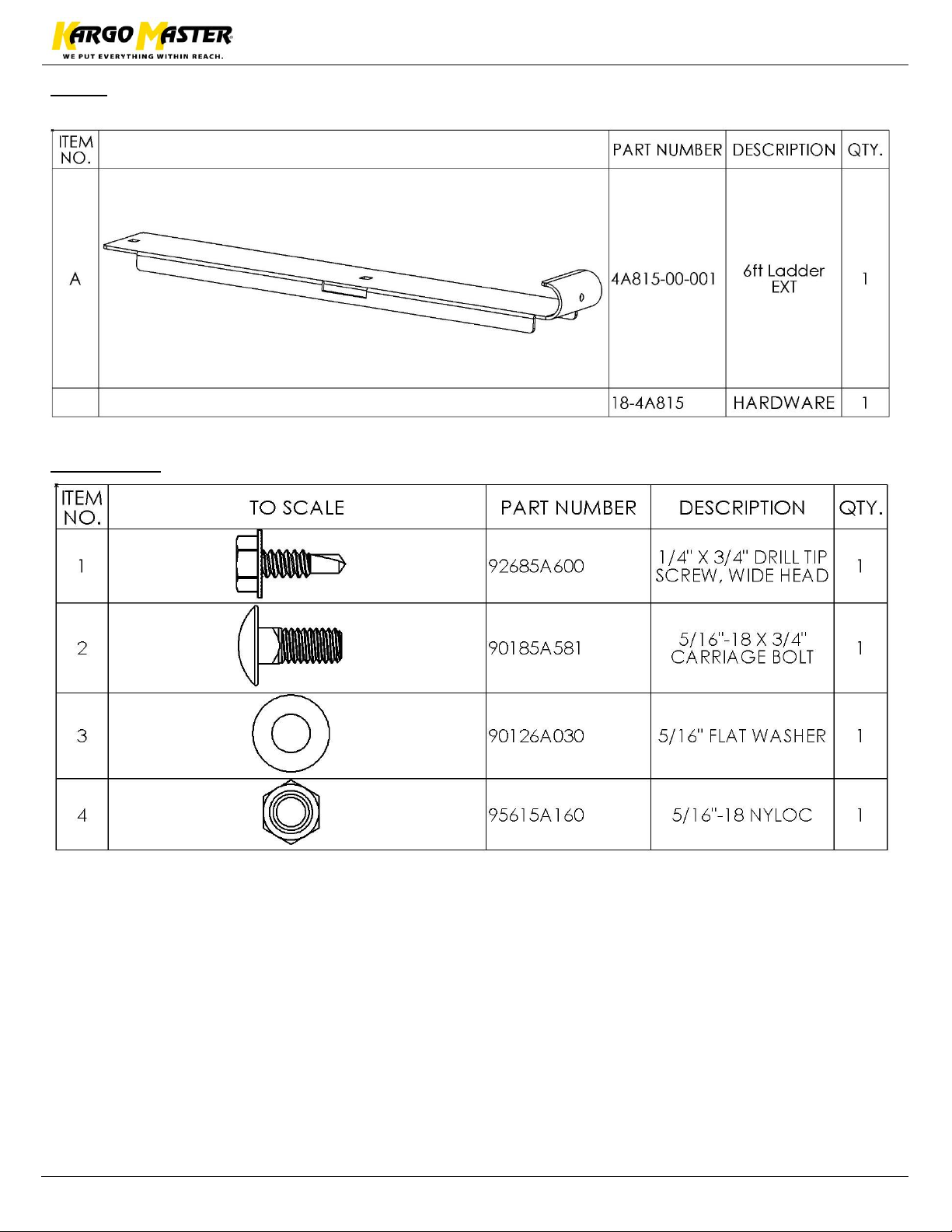

Parts
Hardware
Page 4
For Technical Support Call: 800-343-7486 Monday-Friday 7AM - 4 PM (PST) Page 3
Install Instructions – 4A815

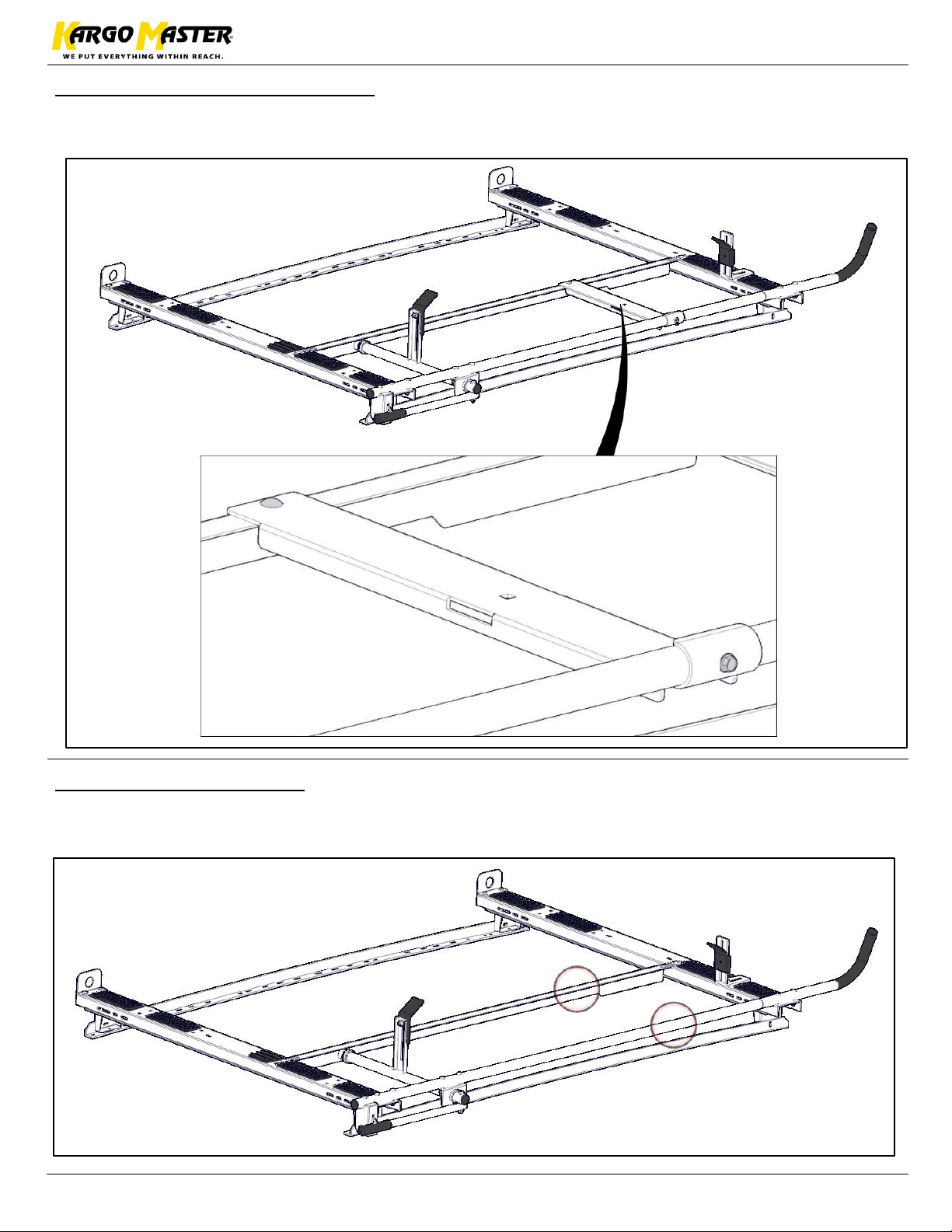

Step 1 – Determine Location
• Determine location of ladder rack ext bracket to be installed.
• Be sure this location corresponds to the shorter ladder being installed.
Step 2 – Drill locations
• Once the desired location are found, Drill through the EXT bracket and into the tube using a
No. 3 drill and drill into the cross support using a 5/16” drill.
Page 5
For Technical Support Call: 800-343-7486 Monday-Friday 7AM - 4 PM (PST) Page 4
Install Instructions – 4A815

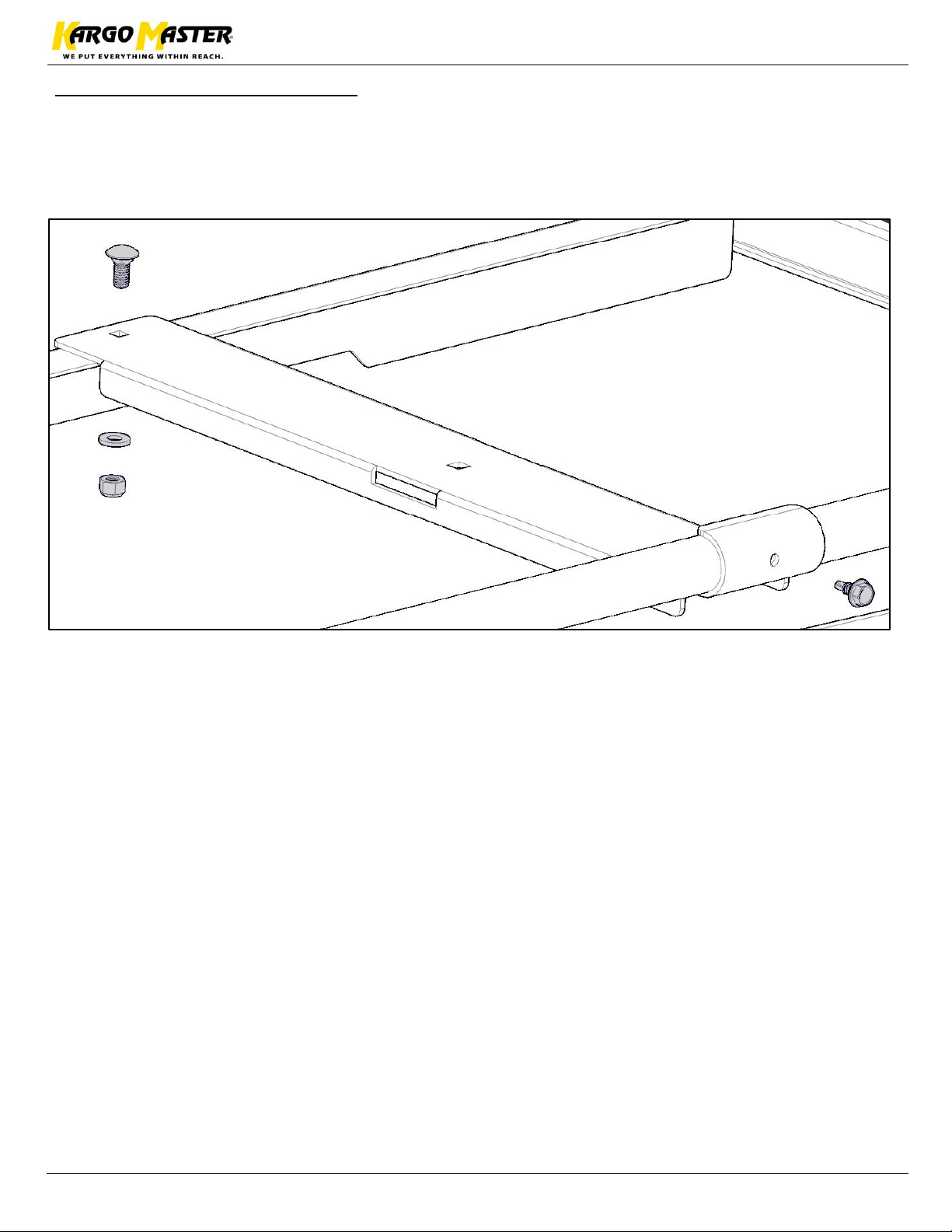

Step 3 – Install EXT bracket
• Place EXT bracket where previous holes were drilled.
• Bolt EXT bracket to the cross support using a 5/16” x 3/4" carriage bolt, a 5/16” flat washer
and a 5/16” nyloc nut.
• Bolt the EXT bracket to the tube using the 1/4" Self tapping screw.
Page 6
For Technical Support Call: 800-343-7486 Monday-Friday 7AM - 4 PM (PST) Page 5
Install Instructions – 4A815

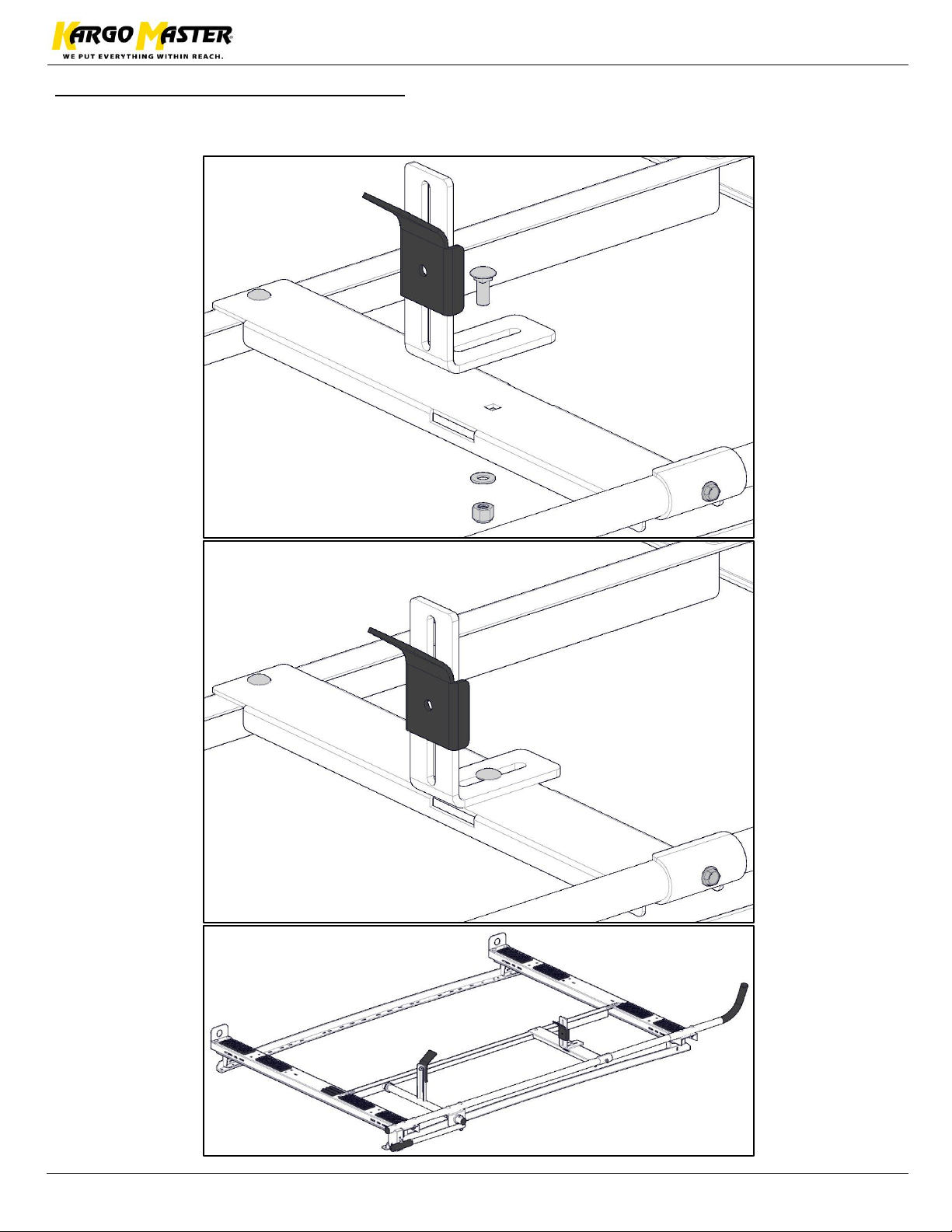

Step 4 – Re-Locate Ladder Stop
• Move ladder stop to the EXT bracket.
• Remove from the original location and re-bolt to the EXT bracket as shown.
Page 7
For Technical Support Call: 800-343-7486 Monday-Friday 7AM - 4 PM (PST) Page 6
Install Instructions – 4A815

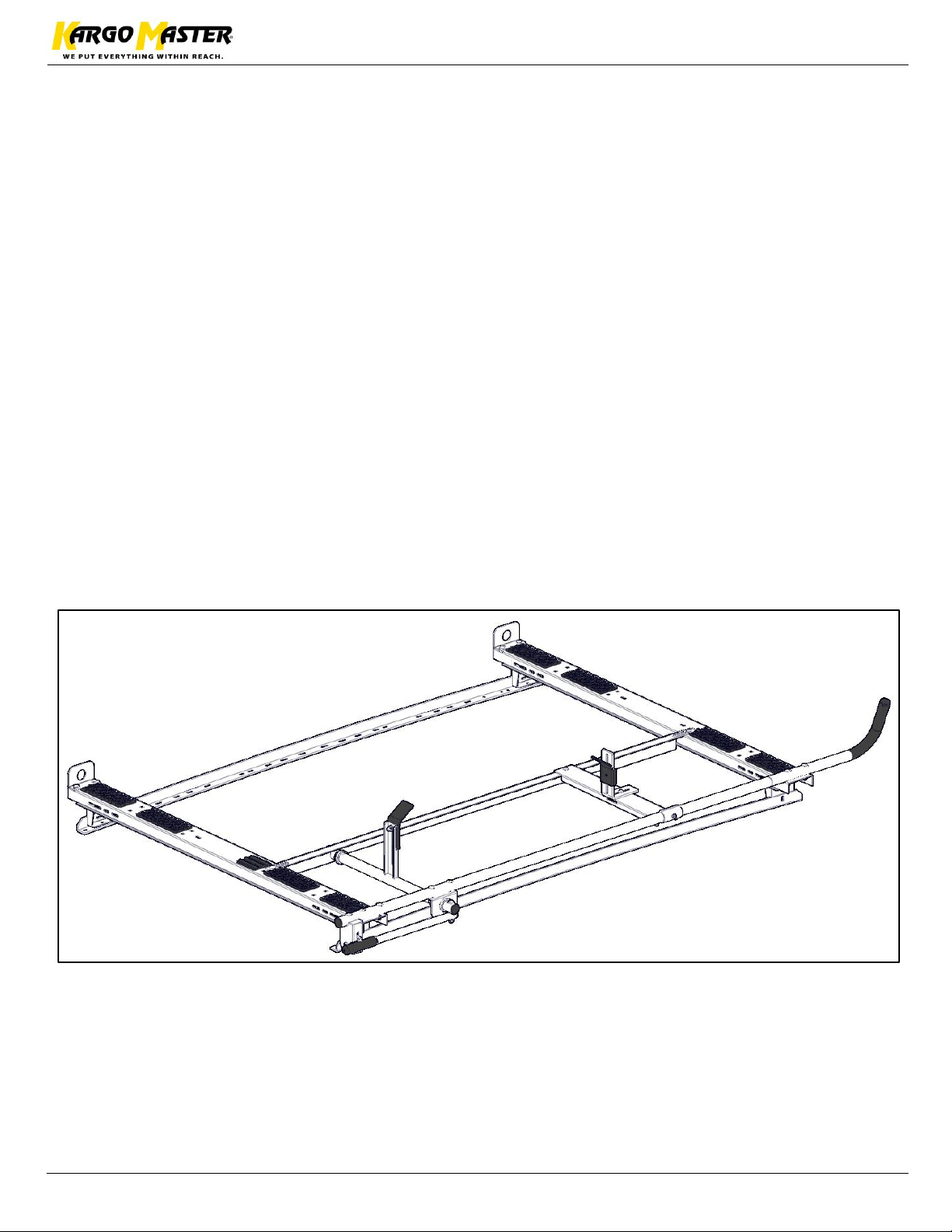

ENSURE ALL BOLTS ARE TIGHT
YOUR INSTALLATION IS NOW COMPLETE
