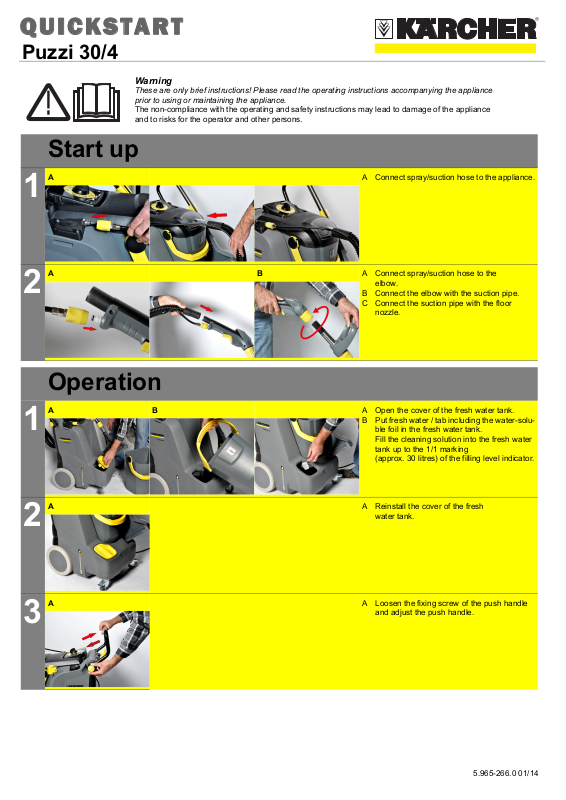

QUICKSTART

Puzzi 30/4

Start up

A A Connect spray/suction hose to the appliance.

Warning

These are only brief instructions! Please read the operating instructions accompanying the appliance prior to using or maintaining the appliance.

The non-compliance with the operating and safety instructions may lead to damage of the appliance and to risks for the operator and other persons.

A B A Connect spray/suction hose to the

elbow. B Connect the elbow with the suction pipe. C Connect the suction pipe with the floor

nozzle.

Operation

A B A Open the cover of the fresh water tank.

B Put fresh water / tab including the water-solu-

ble foil in the fresh water tank.

Fill the cleaning solution into the fresh water

tank up to the 1/1 marking

(approx. 30 litres) of the filling level indicator.

A A Reinstall the cover of the fresh

water tank.

A A Loosen the fixing screw of the push handle

and adjust the push handle.

5.965-266.0 01/14

QUICKSTART

Operation

Operating field 10/OFF 2 Operating mode: Spraying 3 Operating mode: Vacuuming 4 Operating mode: Spraying/vacuuming 5 Operating mode: Spraying/vacuuming/

heating 6 Operating mode: Spraying/heating 7 Operating mode: Heating

A B A Operate the lever on the elbow

in order to spray the cleaning solution. B Run across the surface to be cleaned in

overlapping paths. Pull the nozzle backwards

(do not push).

Finish operation

A B C A Switch off the appliance, in order to do so,

set the rotary switch to 0/OFF.

B Unlock bonnet, in order to do so, fold up the

carrying handle of the wastewater container by 90° Bonnet can be opened.

C Swivel the hood upwards and snap it in place

at the locking devices.

A A Remove the waste water container from the

appliance and drain it.

A B C A Suck the fresh water tank empty.

B Suck the tray for the floor nozzle empty and

switch off the appliance.

C Store the appliance in a dry place.

A B A Unscrew the fresh water sieve incl. the lid.

B Drain the water.

5.965-266.0 01/14
