Karcepts KCD02 User Manual

Installation Instructions for Part #: KCD01 & KCD02

K20A2/A3/Z1 Cruise Control Delete Kit

for K-Powered EG’s, EK’s, DC2’s, & EF’s

This kit provides the SOLUTION for eliminating cruise control on throttle

bodies found in the 02-06 RSX-S and 02-05 Civic Si while:

-Enabling usage of a short OEM throttle cable (Acura 17910-ST7-L01) for swap cleanliness

-Eliminating throttle cable/bracket interferences (with fuel lines, hoods, hoses, etc.)

-Essentially converting a K20A2/A3/Z1 throttle body into a K20A (Type R) throttle body

-Comprised of high quality billet 6061-T6 machined aluminum

Karcepts, Inc.
www.karcepts.com
[e-mail]

Parts Included In Cruise Control Delete Kit

DESCRIPTION QTY

THROTTLE BODY ROTOR 1

THROTTLE CABLE BRACKET 1

Tools Required

Wire-Cutting Pliers

10mm Socket
11mm Socket

12mm Open-End Wrench

Additional Parts Needed

Note: Read all instructions before attempting installation.

Acura P/N: 17910-ST7-L01 GSR Throttle Cable

If you do not believe you are qualified in performing the
necessary installation and modifications, please find an
experienced professional who can. Karcepts, Inc. will not be
held responsible for improper modifications to your throttle
cable or throttle body.

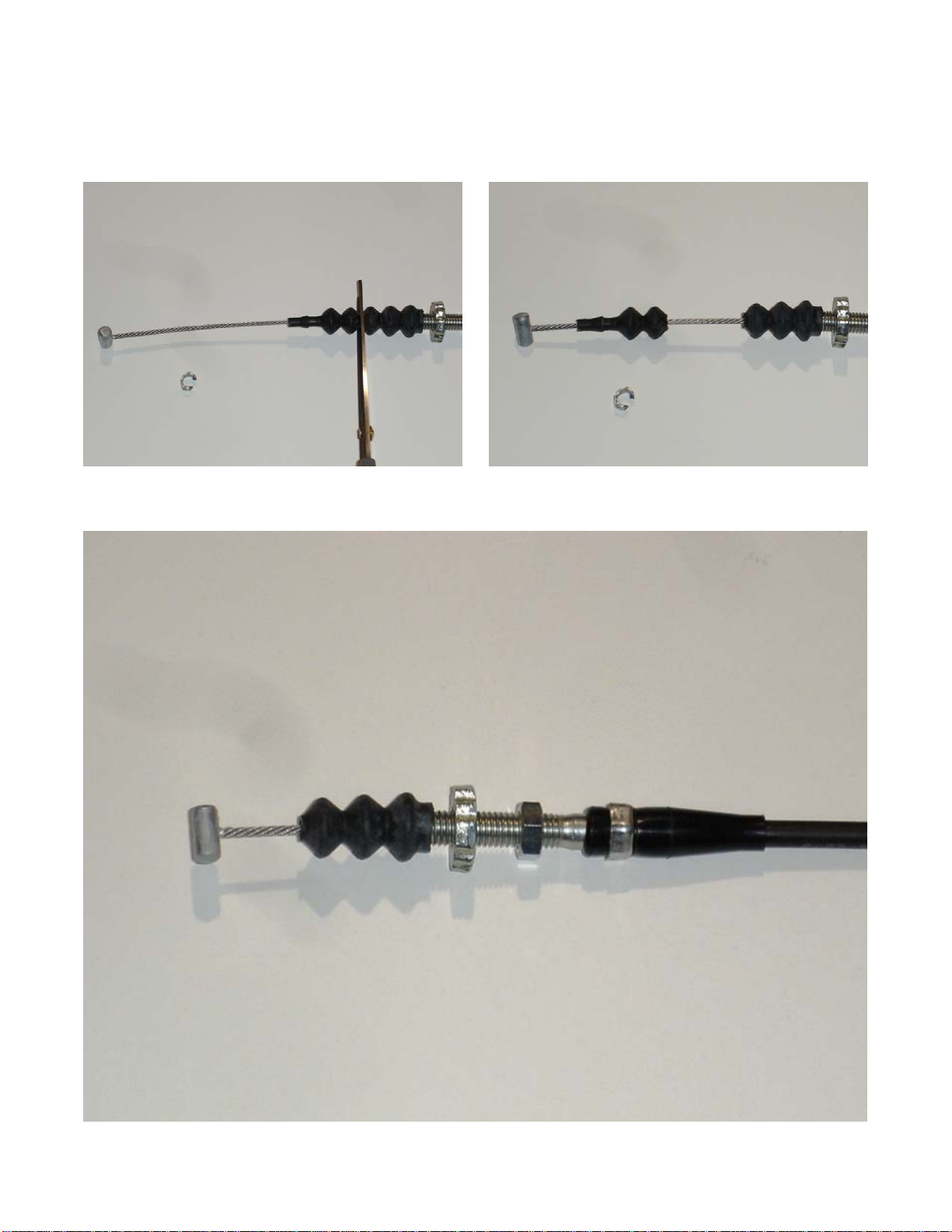

1. MODIFYING THE GSR THROTTLE CABLE

1. Obtain a 94-01 Acura GSR throttle cable (Acura P/N: 17910-ST7-L01).

2. Slide the metal retaining ring off of the throttle cable boot.

3. Use wire-cutting pliers to cut a slit in the retaining ring for removal from the

throttle cable. Be cautious not to damage the throttle cable wire when cutting.
