KPT-780 User Manual
with GPS logger
Full HD
In-Car DVR
2
Product Picture & Function 3
a) Device Introduction ................................................................................................................................. 3
b) Button Function ...................................................................................................................................... 4
c) LED Light Status List ............................................................................................................................. 5
d) Product Accessories ............................................................................................................................... 5
Basic Operation 6
a) Micro SD Card Installation ....................................................................................................................... 6
b) GPS Module Installation .......................................................................................................................... 6
c) Power Supply ......................................................................................................................................... 7
d) G-sensor Function .................................................................................................................................. 7
e) Video Mode ............................................................................................................................................ 8
f) Image Capture ......................................................................................................................................... 9
g) Playback Mode ....................................................................................................................................... 9
Menu Setting 11
a) Video Mode .......................................................................................................................................... 11
b) Playback Mode ..................................................................................................................................... 15
Connection 16
a) Connect to TV ...................................................................................................................................... 16
b) Connect to Computer ........................................................................................................................... 16
DVR Player - File Playback 17
Product Specification 18-19
3
Product Picture & Function
a) Device Introduction

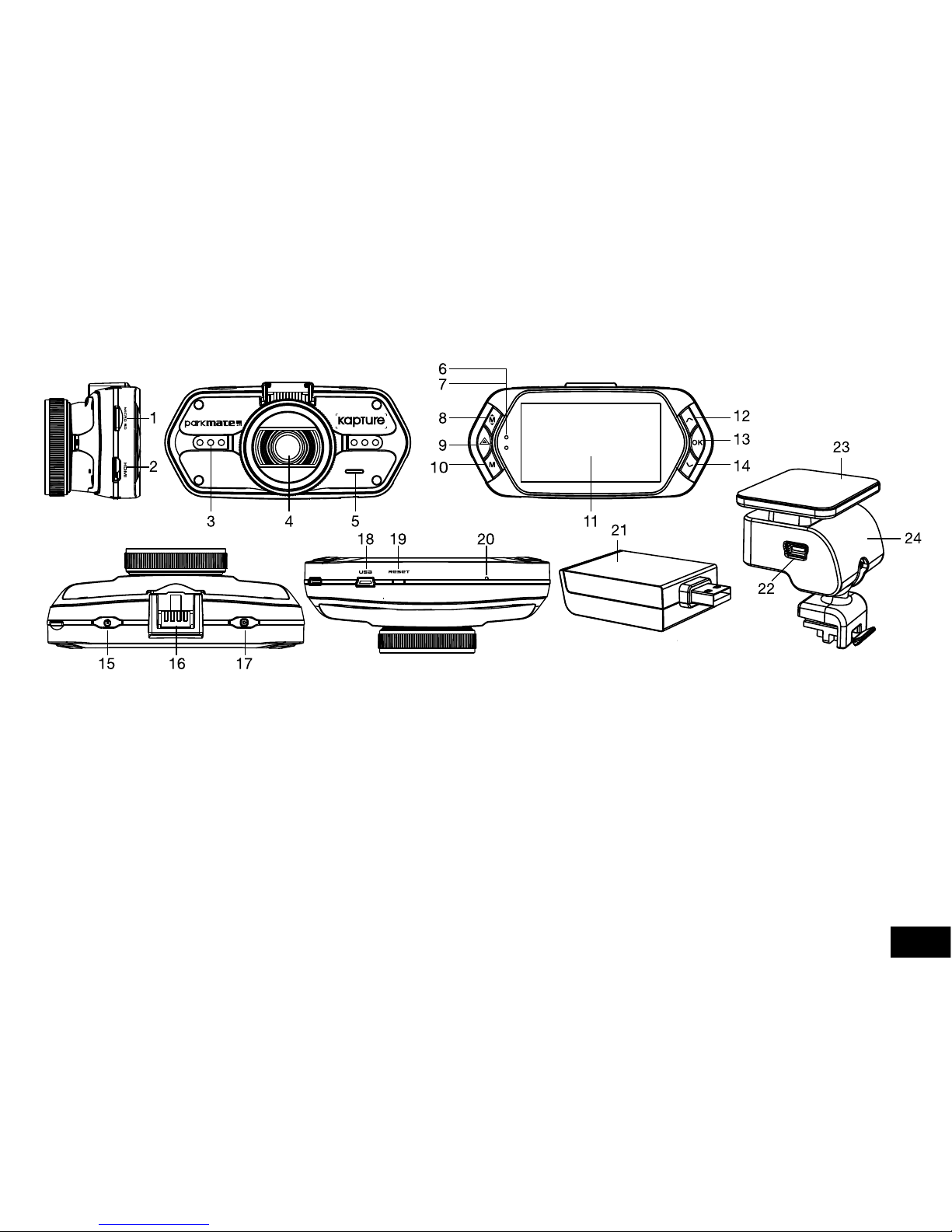

1. Micro SD Card Slot 9. File Protection Button 17. Photo Button
2. HDMI Port 10. Mode Button 18. USB Port
3. LED Light 11. LCD Display 19. Reset Button
4. Lens 12. Up Button 20. Microphone
5. Speaker 13. OK Button 21. GPS Module
6. Status Light (Blue) 14. Down Button 22. Power Input
7. Charging Light (Red) 15. Power Button 23. Interchangeable Mount
8. Menu Button 16. Holder Connector 24. Camera Holder
4
b) Button Function
Power Button Press this button for 2~3 sec. to turn on/off the device.
Photo Button In video mode, at any time, press this button to take picture.
In playback mode, when replaying video, press this button to take picture of current video.
Menu Button Press this button during standby status or playback mode, menu list of current mode will
appear.
During recoding, press this button to change the flash light status “ “, “ “, “ “
File Protection Button
In video mode, during recording, press this button to set the recording video to be
protected manually, so as to prevent it from being overwritten by loop recording.
In playback mode, press this button to lock or unlock the video file. When file protection is
active, the icon “ ” will appear on LCD display.
Mode Button The DVR has two modes, video mode and playback mode.
Pressing this button during standby status switches the camera between video mode and
playback mode.
When the DVR is recording, the Menu Button function is disabled.
Up Button In video mode, press this button to turn on/off LCD display. In menu setting, press this
button to up item.
In playback mode, press this button to choose previous file.
In playback mode, when playing video file, press this button to reverse playback.
OK Button In video mode, press this button to start/stop recording.
In playback mode, press this button to play/pause video file.
In menu setting, press this button to confirm the menu setting.
Down Button In video mode, press this button to start/stop sound recording.
In menu setting, press this button to next item.
In playback mode, press this button to choose next file.
In playback mode, when playing video file, press this button to advance playback.
5
c) LED Light Status List
LED Light Status Meaning
Status Light (Blue)
Flash DVR is Recording
On DVR is in standby or Playback Mode
Off DVR is off
Charging Light (Red)
On Charging Battery
Off Charging finish
d) Product Accessories
1. Car DVR x1 2. Car Charger x1 3. Camera Holder x1 4. Suction Cup x1 5. Flat Mount x1
6. USB Cable x1 7. User’s Manual x1 8. GPS module x1 9. DVR Player Disk x1
6
Basic Operation
a) Micro SD Card Installation

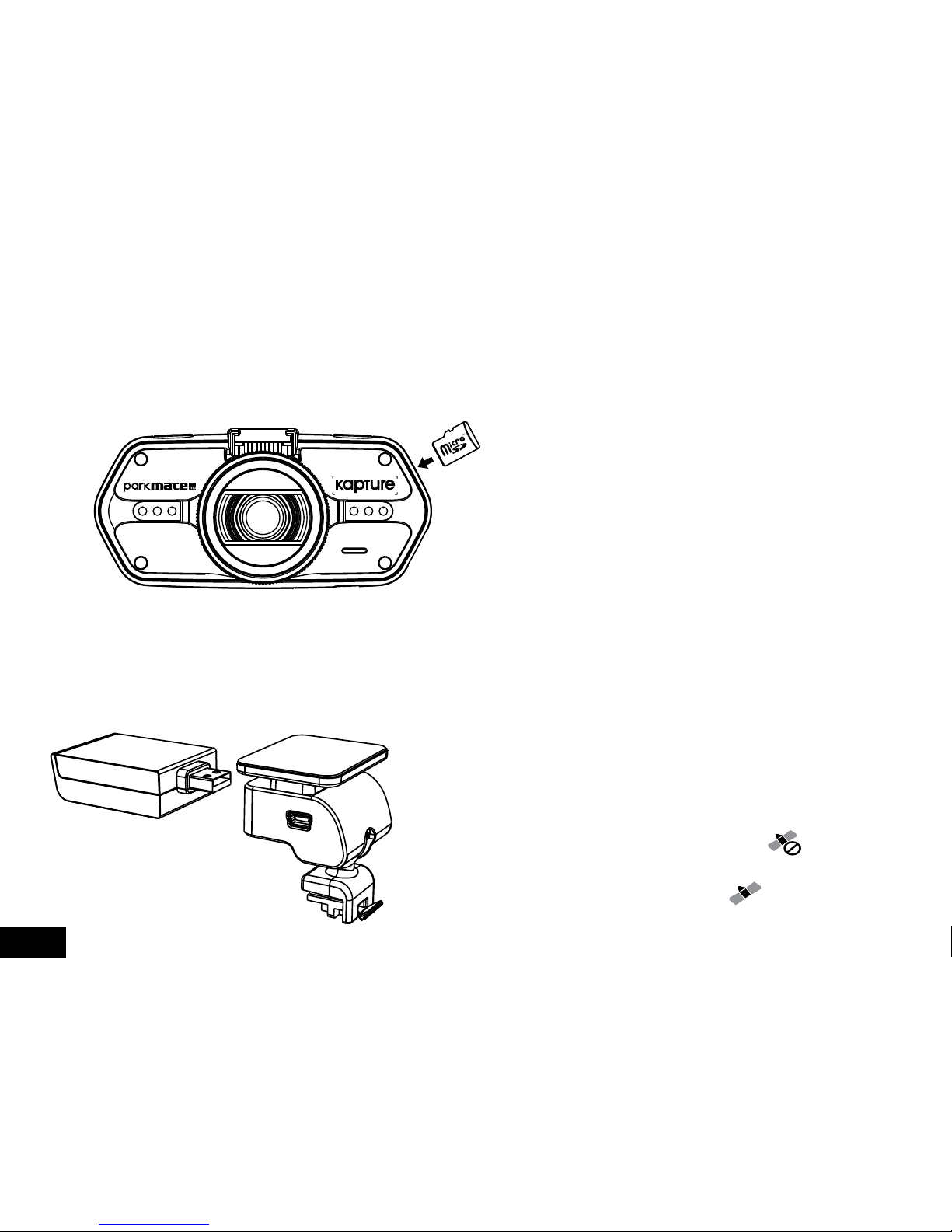

Install the Micro SD Card into Micro SD Card Slot as picture shown.
b) GPS Module
Insert GPS module into camera holder, as pictured below. Install the camera holder onto the DVR by sliding
the camera holder onto the main body of the camera, ensuring that it clicks in place.
Install the DVR on the windshield. (Although the picture
shows the flat mount, there is also the option to remove the
flat mount and replace with the supplied suction cup.)
When DVR is powered up it will automatically search for the
GPS signal.
If a GPS signal can not be found, GPS icon “ “ will be
shown on LCD display
When a GPS signal is found, GPS icon “ “ will be shown
on LCD display.
