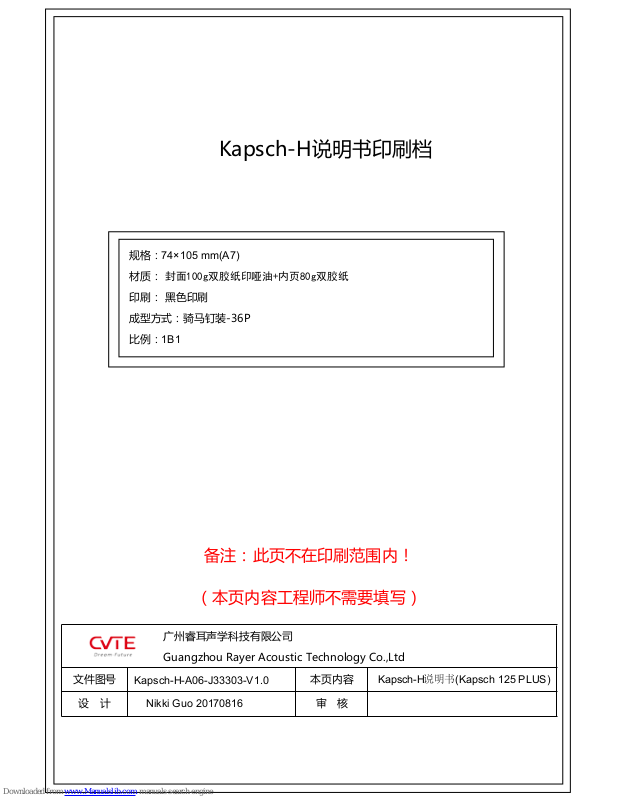

备注：此页不在印刷范围内！
（本页内容工程师不需要填写）
广州睿耳声学科技有限公司
Guangzhou Rayer Acoust
ic Technology Co.,Ltd
文件图号 本页内容
设 计 审 核
规格：74×105 mm(A7)
材质：
封面100g双胶纸印哑油+内页80g双胶纸
印刷： 黑色印刷
成型方式：骑马钉装-36P
比例：1B1
Kapsch-H说明书(Kapsch 125 PLUS)
Kapsch-H
说明书印刷档
Nikki Guo 20170816
Kapsch-H-A06-J33303-V1.0
KAPSCH CAPRI
125 PLUS
User Manual
This Quick Start Guide clarifies important notes and usage of the product.
Please read the QSG carefully and keep it safe.
A complete Manual can be downloaded on our website
www.kapsch.net/capri125
1
Important information
Please read and understand all the instructions before using the
product.
Damage caused by failure to comply with the instructions does not
be covered under warrant.
Warning
Risk of electric shock or fire
Do not let the product and accessories contact rain or water. Do
not put liquid container (such as vases) on the product side. If the
liquid flows inside the product, please immediately shut down the
product and contact customer service center.
Do not place the products and accessories near fire or other heat
sources, including direct sunlight.
In the lightning weather, the product should be shut down.
Beware of short-circuited or fire！
Before the product is connected to a power supply socket, please
ensure that the voltage of power supply and products on the
back or bottom printing values match. If the voltage is different, do
not connect the product to the power socket.
Beware of damage to the product！
Do not put this product or any objects on the power line or other
electronic devices.
If the delivery of the products at temperature that below 5°C,
please open the product packaging and waiting for it to reach
room temperature, and then connect it to the power socket for
charging.
This part of the product may be made of glass. Please handle with
care, so as not to hurt or damage.
2
Be careful of overheating！
Do not install the production in enclosed spaces. Be sure to set
aside at least 4inches around the product space for ventilation.
Cleaning products
Turn off machine before cleaning it.
Do not use volatile solvents (such as ethanol, rosin, toluene
solvent) to clean the machine. This type of chemicals may damage
the machine.
Use cotton or microfiber cleaning cloth.
In the cleaning process, do not water droplets into the product
panels and speakers causing malfunction.
Environmental protection
The product is made by recyclable and high quality materials. Do
not put together the product with other living
garbage. Please understand the local classification
about collecting electronic, electrical products and battery set. The
correct disposal of these products will help to avoid the potentially
negative impact on the environment and human health. This
product contains the battery cannot be discarded as the
general living garbage. Please understand the local classification
about collecting the provisions of battery. The correct disposal
of the battery helps to avoid the potentially negative impact on the
environment and human health.
Battery
Danger of explosion if battery is incorrectly replaced. Replace only
with the same or equivalent type.
Batteries (battery pack or batteries installed) shall not be exposed
to excessive heat such as sunshine,fire or the like.
3
Adapter
Use only power supplies listed in the user instructions:
<BRAND:Flypower>,
< <Model: PS30D180K1000UD>Model: PS30D180K1000ED>,
<Input: AC 100-240V 50/60Hz>,
<Output:DC 18.0V,1000mA >.
Only use the attachments / accessories specified by manufacturer
The MAINS plug or an appliance coupler is used as the disconnect
device, the disconnect device shall remain readily operable
Packing list
KAPSCH CAPRI 125 PLUS x 1
Quick Start Guide x 1
Adapter (DC18V,1A) x 1
4
Function introduction
POWER: Power switch, ”l ”mean ON, ”O ”mean OFF
ADAPTER:The power input interface
USB: To play audio from a USB device such as a USB Flash stick
AUX in: 3.5mm analog audio input interface
Earphone out: 3.5mm earphone interface
5
The function of keys:
1、MODE/STANDBY:
2、MENU/BACK:
Long press
Short press
Back to standby mode
1、Turn on
2、Entry mode selection
Short press
Show menu for the current mode
Return function
6
3、SLEEP/ALARM:
4、TUNE+、TUNE-:
5、INFO:
6、DEDICATION 125:
Long press
Short press
Set the ALARM
Set the sleep time
MODE
Long press
Short press
FM
Searching
Adjust the frequency
Bluetooth
/
Switching songs
DAB
/
Switching stations
Internet radio
/
Switching stations
Spotify
/
Switching songs
Line in
/
/
Music player
/
Switching songs
MENU
Scrolling menu
Scrolling menu
Short press
View more information about the station or track playing
Long press
Short press
Preset the corresponding radio
station.
Recall the preset or recall
your most listened station
/ track
7
7、VOL-/VOL+:
OK:
Charge
1. Before the first use, please use adapter to charge the machine
fully.
2. When charging, the power display icon scroll.
3. Low power warning
When battery power is insufficient,the screen will display“Battery
Low”
MODE
Rotate the knob
Play mode
clockwise to increase the
volume anticlockwise to reduce
the volume
MENU
Scrolling menu
MODE
Long press
Short press
FM
/
Mute/Unmute
Bluetooth
Disconnect
Play/pause
DAB
/
Mute/Unmute
Internet radio
Adds the station
to My favourites
Play/pause
Spotify
/
Play/pause
Line in
/
Mute/Unmute
Music player
Adds the track to
My playlist
Play/pause
MENU
/
Determine
8
System setting
All the settings parameters for KAPSCH CAPRI 125 PLUS are
available on the Settings menu.Settings menu options:
• Equaliser
• Network - wizard
• Time/Date - wizard
• Inactive Standby
• Language
•Factory Reset
• Software update
• Setup Wizard
• Info
• Backlight
• Multi-room
How to connect to the internet
KAPSCH CAPRI 125 PLUS is compatible with all common
network protocols and encryption methods, including Wi-Fi
Protected Setup (WPS).
To connect KAPSCH CAPRI 125 PLUS to your network, you need
one of the following:
A Wi-Fi wireless router, together with passphrase key, if set
To select a network use the Network wizard. It will start when you
switch on the radio the first time.
Network wizard
This guides you through the necessary steps to join a network.
This is also automatically run as part of the Setup wizard. The
screens and options presented will depend on the type of network
and network protection used.
9
Language
The default language is English. There are many languages for
selection: English, German, Italian, French, Dutch, Polish, Spanish,
Turkish and more
Spotify mode
KAPSCH CAPRI 125 PLUS is compatible with Spotify
Connect ,allowing a KAPSCH CAPRI 125 PLUS unit to act as
wireless speakers controlled by the Spotify App available for iOS,
Android smart devices and a desktop client for PCs.
Note: A Spotify Premium account is required to use Spotify
Connect.
Connect Spotify app to KAPSCH CAPRI 125
PLUS
Step 1. Connect your device to the same wi-fi network as your
phone, tablet or PC running the Spotify app.
Step 2. Open the Spotify app, and play any song.
Step 3. Tap the ”song image” in the bottom left of the screen.
Step 4. Tap the ”DEVICES AVAILABLE” icon
Step 5. Pick your device from the list.
For more information on how to set up and use Spotify Connect
please visit www.spotify.com/connect.
