www.kaptrade.com
Korea Auto Parts
Instruction Manual
D A T E .
MODEL.
TOYOTA 2018 TD
VIDEO INTERFACE + ANDROID NAVIGATION
for FUJITSUTEN H.U + ROiK-10
2019.07.26
TYT 2018 TD+ROiK-10
Car Compatibility Sheet
Serviceable Model
BRAND MODEL YEAR
TOYOTA
Camry
2018 - 2019Prius
Corolla

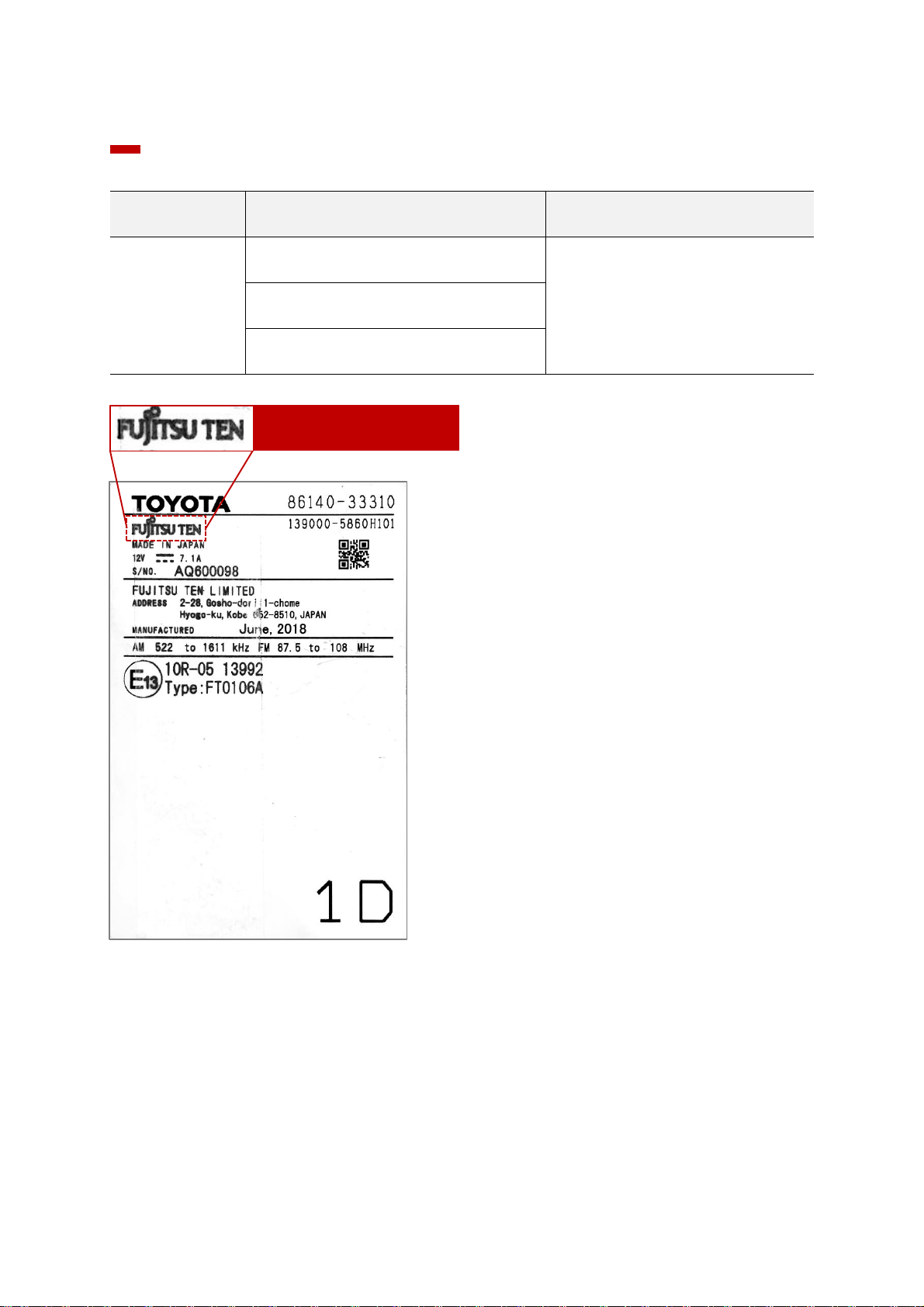

Fujitsuten HeadUnit
Check the Head Unit
TOYOTA CAMRY 2018
FUJITSUTEN + ROiK10 SET
Product Composition
Interface SUB Board (REV02) Power Cable
LVDS Cable(800mm) LVDS Extension Board OSD Board
LVDS FFC Cable LVDS FFC Cable LVDS FFC Cable
Washer
35PIN-60-0.5-P6 (Reverse)
60PIN-60-0.5-P6 (Reverse)
30PIN-100-1.0-P (Forward)
Bolt 2EA
1 Jack By Jack
TOYOTA CAMRY 2018
FUJITSUTEN + ROiK10 SET
Product Composition
ROiK-10 AV Cable CVBS OUT Cable
Speaker
External GLONASS
GPS Antenna
MIC
Wi-Fi/BT Antenna x 2 LVDS OUT HDMI Cable
TOYOTA CAMRY 2018
FUJITSUTEN + ROiK10 SET
VIDEO INTERFACE
TOYOTA CAMRY 2018
(FUJITSUTEN H.U)
TOYOTA CAMRY 2018
FUJITSUTEN + ROiK10 SET
Spec
TOYOTA CAMRY 2018 - Video Interface
1. Input Spec. (MULTI VIDEO INTERFACE)
• 1 x Digital RGB Input (Navigation System source)
• 1 x Analog RGB Input (Navigation System source)
• 1 x CVBS(REAR CAMERA) Input (Rear camera source)
• 1 x CVBS(FRONT CAMERA) Input (Front camera source)
2. Output Spec.
• 1 x LCD Output (LCD Operation)
• 1 x Virtual Analog Touch (Navigation System source)
• 1 x UART Digital Touch (Navigation System source)
3. Power Spec.
• Input Power : 8VDC ~ 24VDC
• Consumption Power : 12Watt, Max
4. Switch Input Mode
• Possible to select CAR model while switching mode by DIP S/W
• By button on the Commander in the car via CAN
TOYOTA CAMRY 2018
FUJITSUTEN + ROiK10 SET
External Appearance
TOYOTA CAMRY 2018 - Video Interface
PROGRAMDIP S/WIMAGELED
Power/CAN R-Touch Digital
RGB
Analog
RGB
FRONT
(Video)
REAR LCD-OUT
TOYOTA CAMRY 2018
FUJITSUTEN + ROiK10 SET
Connector Pin Assignment
TOYOTA CAMRY 2018 - Video Interface
1
2
3
2 4 6 8
101214
16
1
POWER Connect (16Pin)
1 3 5 7 9 11 13 15
■ ■ ■ ■ ■
RED BROWN PINK RED BLACK
ACC REAR DET N.C N.C KEY N.C FRONT VCC GND
No
Color
Connect
1 2 3 4
2
NAVI TOUCH Connect (4Pin)
1 2 3 4
■ ■ ■ ■
RED GREEN BLUE WHITE
Y- X- Y+ X+
No
Color
Connect
1 2 3 4 5 6 7
3
NAVI Connect (7Pin)
1 2 3 4 5 6 7
■ ■ ■ ■ ■ ■ ■
RED GREEN BLUE WHITE BLACK GREEN ORANGE
R DATA G DATA B DATA SYNC GND DVB-T IR DVD IR
No
Color
Connect
2 4 6 8 10 12 14 16
■ ■ ■ ■
RED BLUE RED BLACK
ACC FRONT DET N.C N.C N.C REAR VCC N.C GND
No
Color
Connect
1 3 5 7 9
111315
TOYOTA CAMRY 2018
FUJITSUTEN + ROiK10 SET
Dip Switch Setting
TOYOTA CAMRY 2018 - Video Interface
Car Type Select
PIN FUNCTION DIP S/W Selection
1 NAVI
ON : Not Used
OFF : Used
2 DVB-T(AV1)
ON : Not Used
OFF : Used
3 DVD(AV2)
ON : Not Used
OFF : Used
4 N.C
5 N.C
6
Car Type Select Bottom Picture7
8
OFF : ▲UP
ON : ▼DOWN
CAMRY(2018 - 2019)
Fujitsuten 7”
TOYOTA CAMRY 2018
FUJITSUTEN + ROiK10 SET

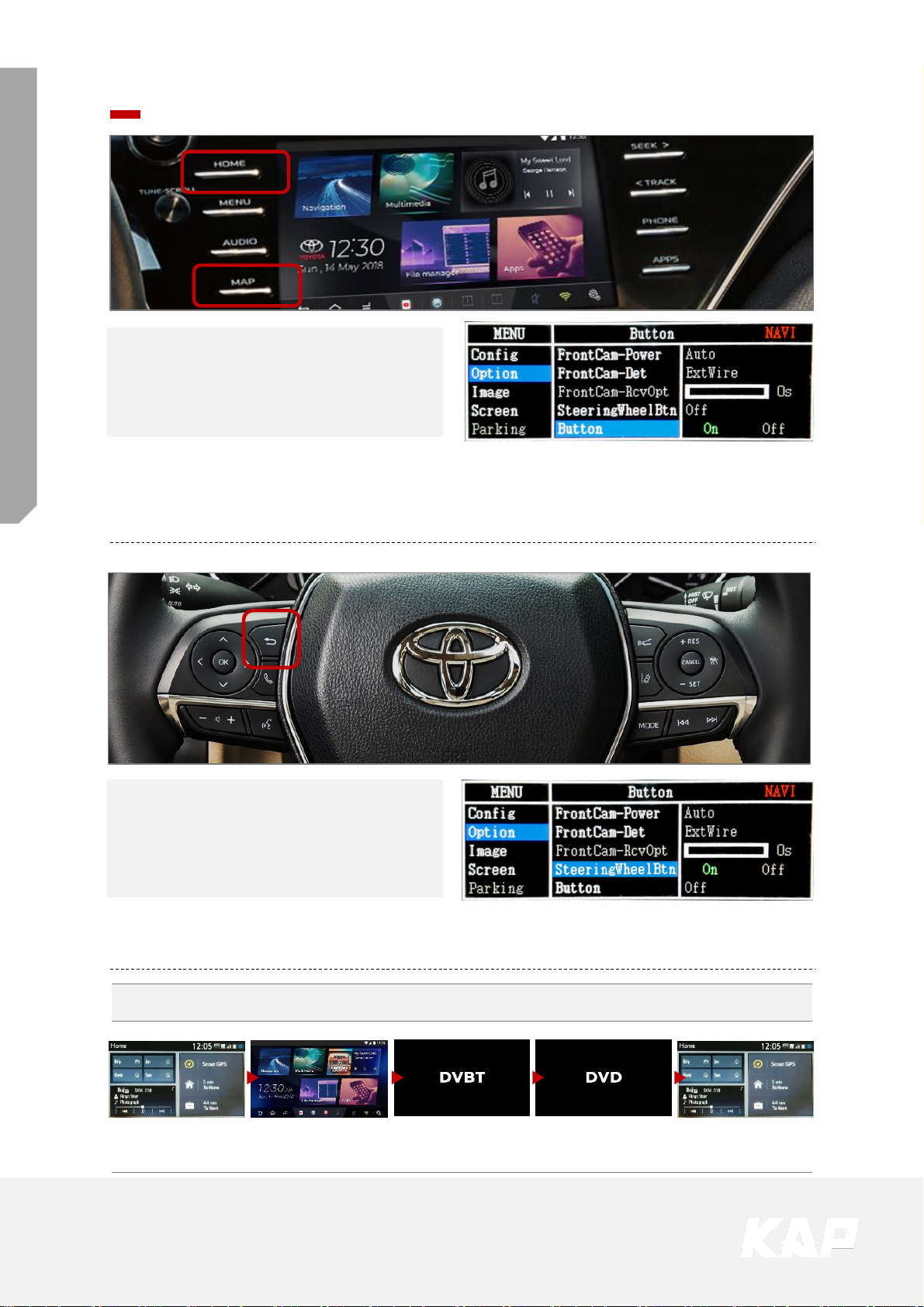

Mode Change (to Interface)
Mode Change Button
HOME / MAP
• Long press to switch to interface screen
• Short press to switch to OEM screen
Mode Change Sequence
OEM NAVI
(ROiK-10)
AV1
(DVBT)
AV2
(DVD)
OEM
• If there is no navigation option (No MAP Button), you can change the mode only with the
"HOME" button
• You can change the mode by selecting the "Home" or "Map" or "All" button in the OSD
menu (Select "OFF" when the button is not used.)
Mode Change Button
BACK
• Long press to switch to interface screen
• Short press to switch to OEM screen
• Use by selecting "ON" from the OSD menu (Select "OFF" when the button is not used.)
TOYOTA CAMRY 2018
FUJITSUTEN + ROiK10 SET
Mode Change (to OEM)
2
1
1
2
• To use the temporary screen switching function, select "ON" in the menu (ScrChg-Btn).
• Select "OFF" when not in use
PWR·VOL
• Displays the OEM screen for 4 seconds, and returns to the previous state.
3
TUNE·SCROLL / SEEK(or CH)> / <TRACK
• Displays the OEM screen for 2 seconds, and returns to the previous state.
2
MENU / AUDIO / PHONE / APPS / INFO(If there is no MAP button)
• Change mode to OEM screen
1
3
TOYOTA CAMRY 2018
FUJITSUTEN + ROiK10 SET

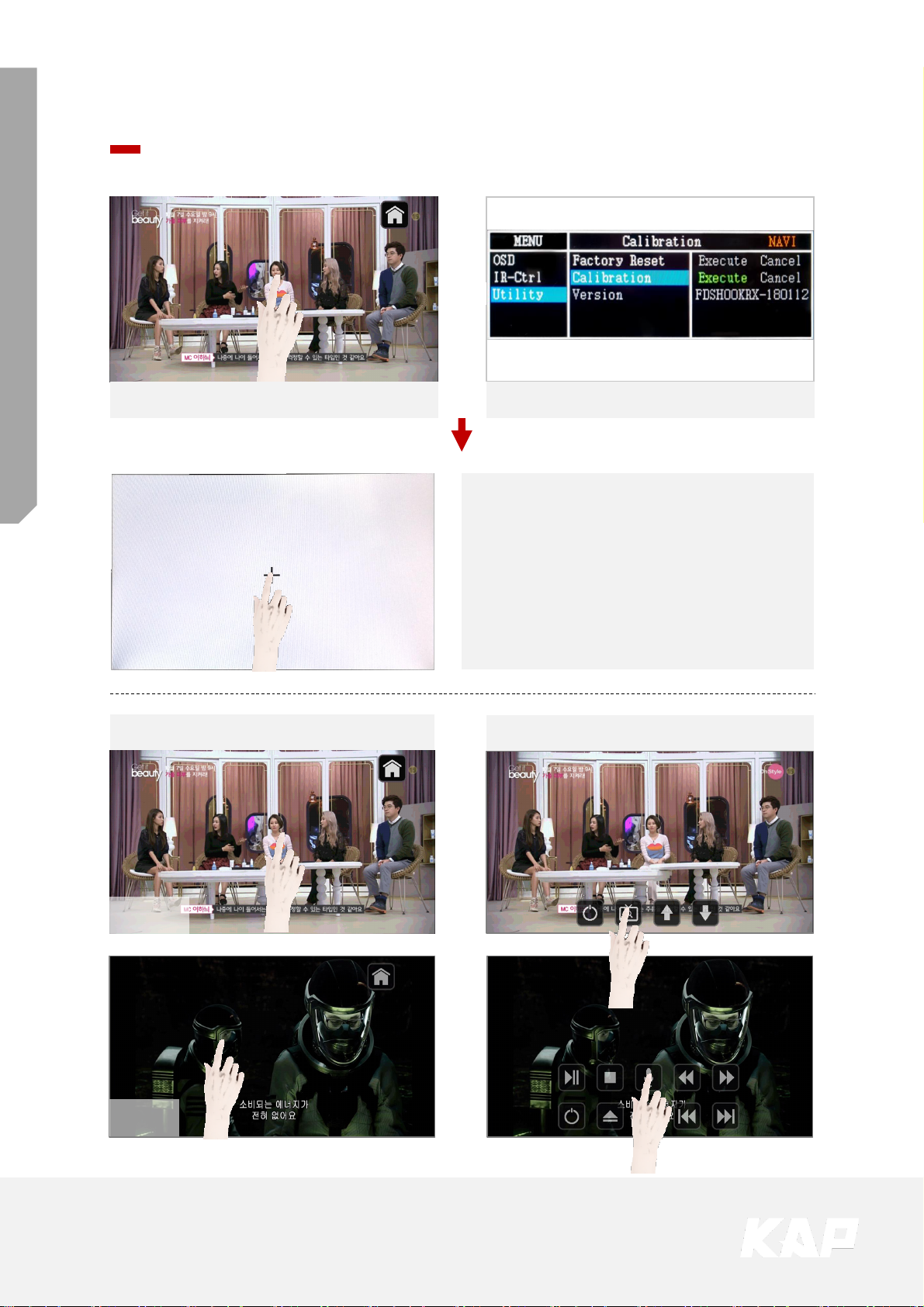

Touch Control
Touch Calibration / DVBT, DVD Control
Press Touch (Anywhere)
Press Icon
• Touch the screen for 11 seconds
Method 1 Method 2
OR
• + Touch according to the
shape coordinates.
Touch Calibration
• OSD menu ▶ Utility ▶ Calibration
DVBT
DVD
TOYOTA CAMRY 2018
FUJITSUTEN + ROiK10 SET

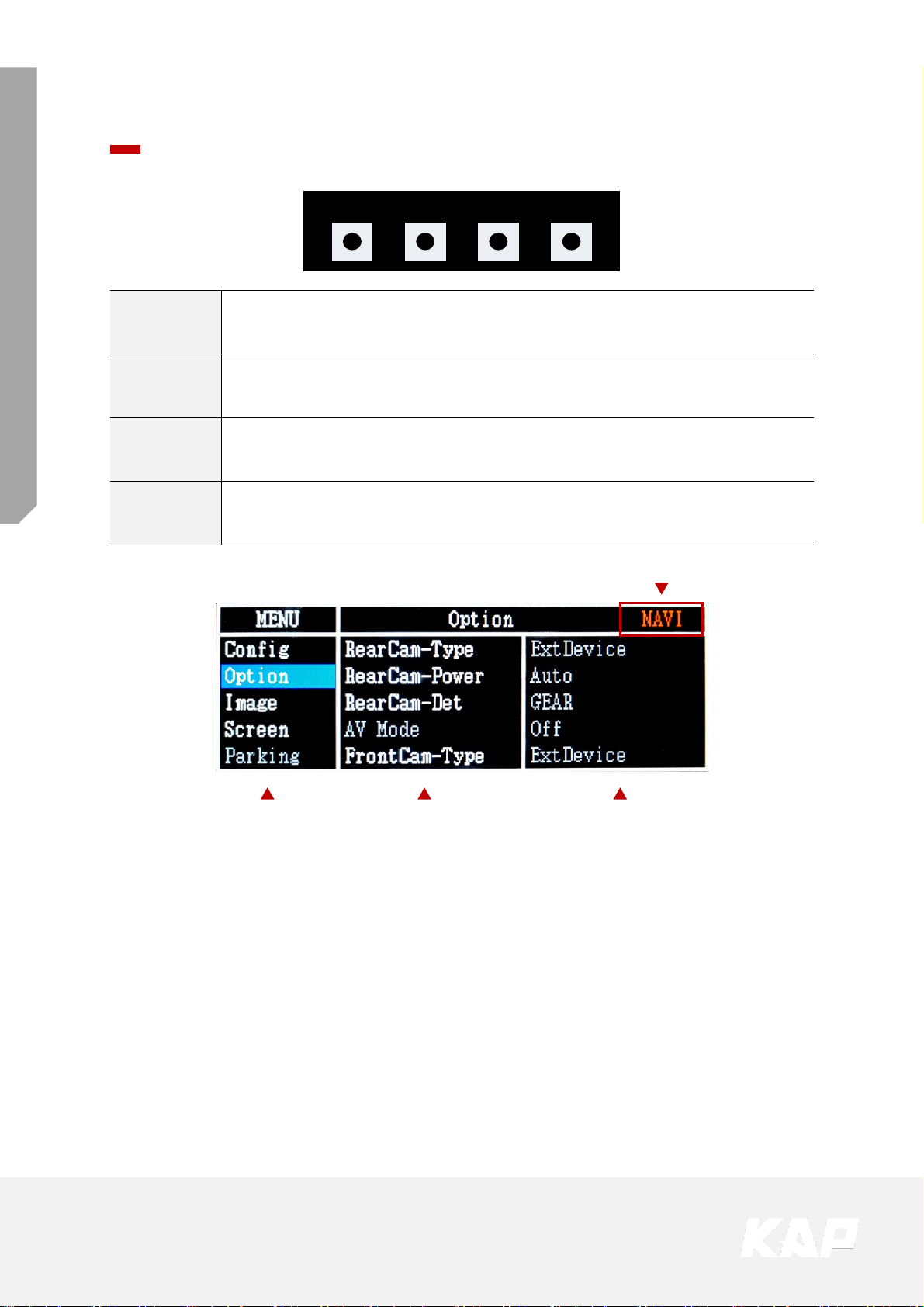

OSD Control
OSD(On Screen Display) Control Board
MENU SEL UP DOWN
First Menu Second Menu Third Menu
Mode State
MENU
• The OSD screen can be switched ON/OFF
• Return to previous menu
SEL
• Select the currently active item
• If the OSD screen is off, mode changes can be made.
UP
• Move up from the menu
• Increase the selected item value
DOWN
• Move down from the menu
• Decrease the selected item value
TOYOTA CAMRY 2018
FUJITSUTEN + ROiK10 SET

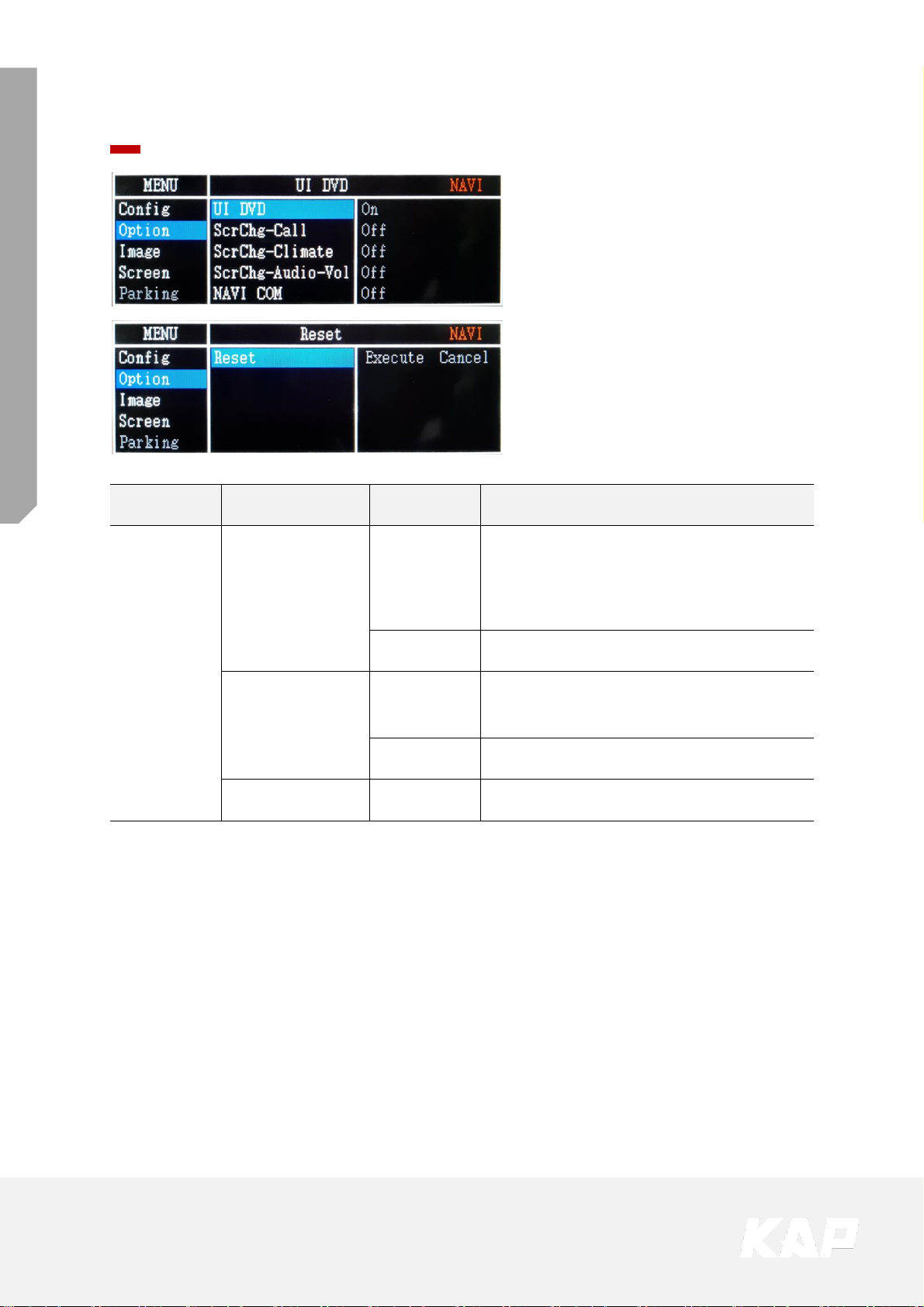

OSD Control
Option
First Menu Second Menu Third Menu Description
Option
RearCam-Power
ON + 12V continuous supply
AUTO + 12V supply only in Rear camera mode
OFF + 12V off
RearCam-Det
CAN Detected by CAN
WIRE Detected by Rear-Det Wire
AV Mode
On
Video(REAR) Input
(If RearCam-Type is OEM)
Off Disable feature
FrontCam-Type
OEM Original Camera
ExtDevice Equipped with external camera
TOYOTA CAMRY 2018
FUJITSUTEN + ROiK10 SET
OSD Control
Option
First Menu Second Menu Third Menu Description
Option
FrontCam-Power
ON + 12V continuous supply
AUTO + 12V supply only in Front camera mode
OFF + 12V off
FrontCam-Det
CAN Detected by CAN
WIRE Detected by Front-Det Wire
FrontCam-
RcvOpt
ON
The time (1-30 seconds) that FrontCam is
displayed before returning to the previous
state in RearCam.
OFF Disable feature
Steering Wheel
Btn
ON Using the Steering Wheel buttons
OFF Disable feature
Button
HOME Using the “Home” button
MAP Using the “MAP” button
ALL
Using the “MAP” button and “HOME”
button
OFF Disable feature
UI DVB-T (DMB)
ON DVB-T device control UI output function
OFF Disable feature
TOYOTA CAMRY 2018
FUJITSUTEN + ROiK10 SET
OSD Control
Option
First Menu Second Menu Third Menu Description
Option
ScrChg-Btn
ON
· Pressing button (SEEK, TRACK, TUNESCROLL), the OEM screen is temporarily
switched for 2 sec.
· Pressing button (PWR-VOL), the OEM
screen is temporarily switched for 4 sec.
OFF Disable feature
NAVI COM
HMS
FINE
:
Select Device Manufacturer for UART Touch
OFF Disable feature
Reset Execute Option Menu all Reset
