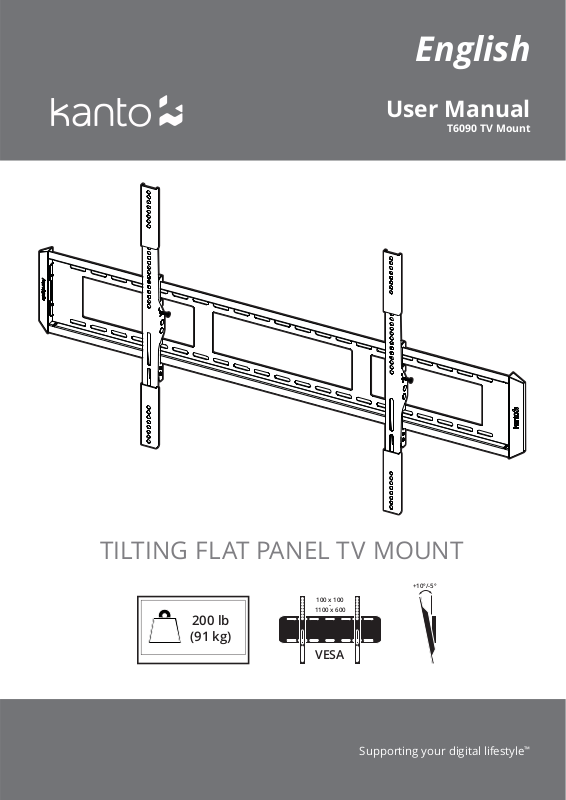

User Manual

T6090 TV Mount

TILTING FLAT PANEL TV MOUNT

+10°/-5°

100 x 100

-

1100 x 600

200 lb

(91 kg)

VESA

Supporting your digital lifestyle

™

Table of Contents

Table of Contents / Introduction . . . . . . . . . . . . . 2

Supplied Parts & Hardware . . . . . . . . . . . . . . . . . 3

Setup - Step 1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Setup - Step 2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Setup - Steps 3 and 4. . . . . . . . . . . . . . . . . . . . . . . 6

Setup - Steps 5 and 6. . . . . . . . . . . . . . . . . . . . . . . 7

Other Kanto Products . . . . . . . . . . . . . . . . . . . . . . 8

Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Introduction

Thank you for choosing a Kanto Living tilting wall mount. The T6090 is designed to mount fl at panel televisions weigh-
ing up to 200 lbs (91 kg) within less than 2” of your wall. This mount will tilt your TV +10º / –5º.

Read these instructions fully before installation of this mount. If you do not understand these directions, or have
any doubts about the safety of the installation, please consult a qualifi ed installation contractor to install this mount.
Make sure there are no defective or missing parts. Do not use defective parts. If you are uncertain whether the part
is defective call Kanto Living directly at 1-888-848-2643 or [e-mail]. This product should not be
mounted on steel stud walls or cinder block walls. Kanto cannot be liable for property damage or injury caused by
incorrect mounting, incorrect assembly, lifting or incorrect use of this product.

See installation video online at:

www.kantoliving.com

CAUTION

The maximum loading weight is 200 lbs (91 kg). This wall mount is intended for use only within the
maximum weight restrictions indicated. Use with products heavier than the maximum weights indicated may
result in instability causing possible injury. Recommended TV Size: 60 inch to 100 inch.

CAUTION

The wall you plan to affi x the Kanto mount to must be able to support more than 5 times the weight of
the television and the wall mount combined. Do not use this product for any purpose other than to mount a
fl at panel TV on a vertical surface as outlined in this manual. Improper installation may cause damage to your
TV or serious injury. This product should not be mounted to steel stud walls, cinder block or old concrete walls.
Consult a qualifi ed installation contractor if you are unsure about the type of wall you may have.

2

Supplied Parts and Hardware

x4 x4 x4 x4

A: M5 x 15mm

Bolt

x4

F: M8 x 35mm

Bolt

x4

B: M5 x 25mm

Bolt

x4

G: M8 x 50mm

Bolt

x6

C: M6 x 15mm

Bolt

H: Washer

x4

x6

x4

D: M6 x 25mm

Bolt

x6

I: Lag Bolt Washer

x2

E: M8 x 20mm

Bolt

x4

J: 5mm

x2

K: 10mm

x2

P: Quick-Lock TV Bracket

Required Tools

L: Lag Bolt

M: Concrete Anchor

Wall Plate

N: M5 x 10mm Bolt

x4

Bracket Extension Parts

(assembled in separate bag)

O: Plastic Cap

x8

x8

Socket

Set

Supporting your digital lifestyle

Phillips

Screwdriver

Hammer (for

Concrete

installs)

Pencil

™

Stud

Finder

Level Drill

7/16”

Masonry

Bit

3/16”

Wood

Bit

3
