Kanto M400 User Manual

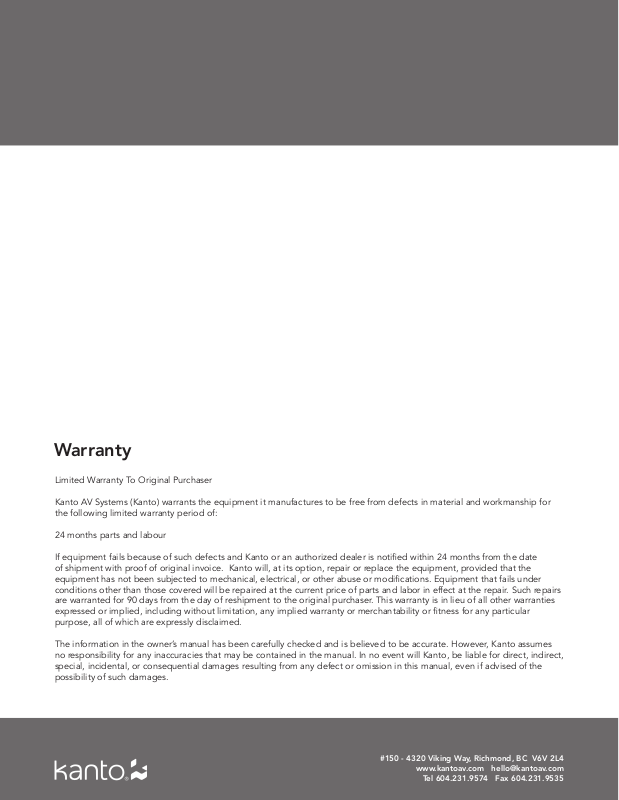

Warranty

Limited Warranty To Original Purchaser

Kanto AV Systems (Kanto) warrants the equipment it manufactures to be free from defects in material and workmanship for
the following limited warranty period of:

24 months parts and labour

If equipment fails because of such defects and Kanto or an authorized dealer is notified within 24 months from the date
of shipment with proof of original invoice. Kanto will, at its option, repair or replace the equipment, provided that the
equipment has not been subjected to mechanical, electrical, or other abuse or modifications. Equipment that fails under
conditions other than those covered will be repaired at the current price of parts and labor in effect at the repair. Such repairs
are warranted for 90 days from the day of reshipment to the original purchaser. This warranty is in lieu of all other warranties
expressed or implied, including without limitation, any implied warranty or merchantability or fitness for any particular
purpose, all of which are expressly disclaimed.

The information in the owner’s manual has been carefully checked and is believed to be accurate. However, Kanto assumes
no responsibility for any inaccuracies that may be contained in the manual. In no event will Kanto, be liable for direct, indirect,
special, incidental, or consequential damages resulting from any defect or omission in this manual, even if advised of the
possibility of such damages.

#150 - 4320 Viking Way, Richmond, BC V6V 2L4

www.kantoav.com [e-mail]

Tel [phone] Fax [phone]

User Manual

M400 TV Mount

FULL MOTION FLAT PANEL TV MOUNT

23 50

Supporting your digital lifestyle

4.5” to 12.4”

(11.4 - 31.5 cm)

™

Table of Contents

Table of Contents / Introduction . . . . . . . . . . . . . 2

Supplied Parts & Hardware . . . . . . . . . . . . . . . . . . 3

Setup - Step 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Setup - Step 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Setup - Steps 3 to 6 . . . . . . . . . . . . . . . . . . . . . . . 6

Other Kanto Products . . . . . . . . . . . . . . . . . . . . . . 7

Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Introduction

Thank you for choosing a Kanto AV Systems articulating wall mount. The M400 is designed to mount flat panel televisions
weighing up to 100 lbs (45.5 kg). This mount will tilt your TV –5º / +15º and swivel (pan) left and right.

Read these instructions fully before installation of this mount. If you do not understand these directions, or have any
doubts about the safety of the installation, please consult a qualified installation contractor to install this mount. Make sure
there are no defective or missing parts. Do not use defective parts. If you are uncertain whether the part is defective call
Kanto AV Systems directly at 1-[phone] or [e-mail]. Kanto AV Systems can not be liable for property
damage or injury caused by incorrect mounting, incorrect assembly, lifting or incorrect use of this product.

This product should not be mounted on steel stud walls or cinder block walls. Consult a qualified installation contractor if
you are unsure about the type of wall you may have. We make every effort to assure all necessary hardware is included. If
there is hardware missing please call Kanto AV Systems directly at 1-[phone] or [e-mail]

See installation video online at:

www.kantoav.com/pages/video-M400

CAUTION

The maximum loading weight is 100 lbs (45.5 kg). This wall mount is intended for use only with the maximum
weights indicated. Use with products heavier than the maximum weights indicated may result in instability causing
possible injury. Recommended TV Size: 23 inch to 50 inch.

CAUTION

The wall you plan to affix the Kanto mount to must be able to support more than 5 times the weight of the
television and the wall mount combined. Do not use this product for any purpose other than to mount a flat panel
TV on a vertical surface as outlined in this manual. Improper installation may cause damage to your TV or serious
injury. This product should not be mounted to steel stud walls, cinder block or old concrete walls. Consult a qualified
installation contractor if you are unsure about the type of wall you may have.

2
