Kantech ioProx P700WLS Installation Manual

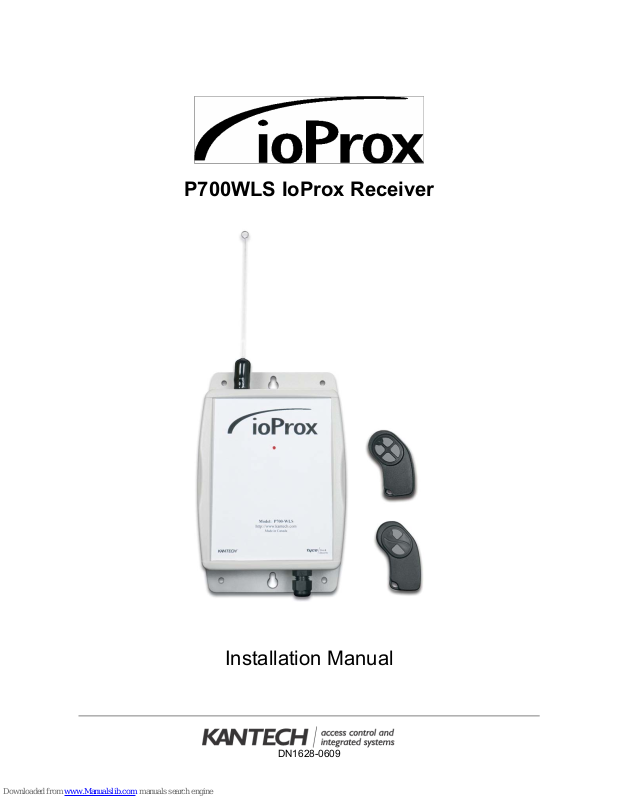

P700WLS IoProx Receiver

Installation Manual

DN1628-0609

Warning! This manual contains information on limitations regarding product use and function and

information on the limitations as to liability of the manufacturer. The entire manual should be carefully
read.

Kantech Systems
Tel.: [phone]
Toll Free (US & Canada): 1 888 222-1560
Fax: [phone]
Web Site: www.kantech.com

 2006 Tyco Safety Products, Canada, Ltd. All rights reserved. Specifications may be modified
without notice.

DN1628-0609

Installation Manual P700WLS IoProx Receiver

Table of Contents

System Overview .......................................................................................................1

Inventory ........................................................................................................................... 1

Technical Specifications ...........................................................................................2

Installing the P700WLS IoProx Receiver .................................................................3

Global Coverage ....................................................................................................................... 3

Power Supply and Grounding.................................................................................................. 3

Recommended Wiring Distance at 12 Vdc.............................................................................. 3

Data Path Selector Settings .....................................................................................................4

Receiver Terminal Block Location........................................................................................... 4

S1 Receiver Configuration .......................................................................................................5

Receiver Wiring Diagrams........................................................................................................6

Testing the Receivers............................................................................................................... 7

PCB LED Indicators............................................................................................................................................ 7

Receiver Relay .................................................................................................................................................... 8

Receiver Mounting Location.................................................................................................... 8

Testing the Transmitters ...........................................................................................9

Operating Instructions.............................................................................................................. 9

Troubleshooting.........................................................................................................9

Replacing the Transmitter Battery........................................................................................... 9

DN1628-0609

Installation Manual P700WLS IoProx Receiver

System Overview

The P700WLS IoProx receiver unit is designed to interface with an access control panel card reader
port using the Wiegand protocol or the Kantech eXtended Secure Format (XSF). The Ioprox receiver
can read from a distance of up to 45.72 m. (150 ft.) with a power dipole antenna or 30.48 m. (100 ft.)
with a standard antenna.

Ioprox transmitters come in two versions: with 2 or 4 buttons. And each can come with or without an
integrated IoProx key tag. The receiver unit receives the ID credentials from transmitters which consist
of a site code and ID number. For increased security, the Ioprox transmitter uses incremental packet
transmission so that a different transmission code is created every time the button is pressed,
Transmitters with integrated Ioprox key tag also permit access to users when both Ioprox receivers
and card readers are installed in different areas of the same building.

The receiver jumpers can be configured to determine which button on the key tag transmitter will
activate the receiver. The same transmitter can be programmed to operate up to four different
receivers (one per button) located within close proximity to each other (and to operate more receivers
that are located farther apart.) The transmitter ID will only be sent to the access controller when a valid
button is pressed.

Inventory

The P700WLS Ioprox receiver unit provides a reliable long-range wireless access control from a gate
or an overhead door. Each unit is packed with:

1 P-WLS-A1 whip antenna

4 enclosure fastening screws

Mounting hardware is not provided.

1
