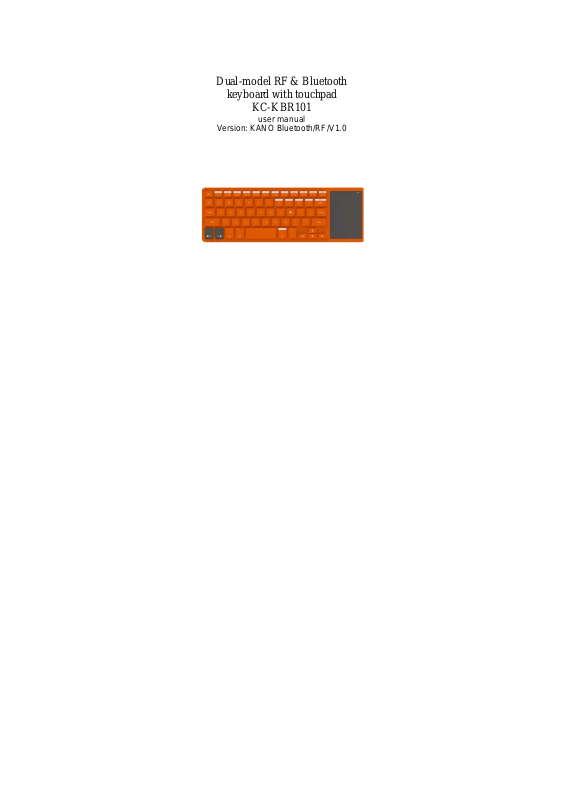

Kano Computing KC KBR101K Users manual

Dual-model RF & Bluetooth

keyboard with touchpad

KC-KBR101

user manual

Version: KANO Bluetooth/RF/V1.0

Overview

This user manual describes the device: Doubel-model
Bluetooth and RF keyboard

Communication mode:

1. 2.4G RF

2. Bluetooth (Bluetooth 3.0)

Kano keyboard supports the devices with the Standard
USB Port.
Functions :RF&Bluetooth QWERTY , Multi-Media keys,
LEDs,and rechargeable with Li-Polymer Battery

Product Overview

Package:

• Dual-Model RF&Bluetooth keyboard

• Manual

Support systerm

• R Pi

• Mac ,iOS

• Windows7/8

• Android 3.0 or up

• HID compatible device

• Linux(Debian-3.1,Redhat-9.0 Ubuntu-8.10 Fedora-7.0

tested)

• Bluetooth-enabled PC running Windows 98, Me, 2000,
XP or Vista or Windows CE, Windows 7

• Bluetooth-enabled Macintosh running Mac OS 10.2.8 or
later

• Nokia Symbian S60 System

• Google Android System

Microsoft Windows Mobile 5.0 or newer

Specification

Measurements(L × W × H)： 250mm x 87mm x 17.3mm

Weigh(grams)： 155.8g

Temperature：－10 to ℃ ＋55 ℃

Battery：Li-Polymer Battery 450mA

Operation Range:(Bluetooth)：up to 10 meters

Operation Range:(RF)：up to 15 meters

Operation Voltage: 3.7V

RF Operation current: ＜19mA

Bluetooth Operation current：＜21mA

Charging Voltage：4.4V – 5.25V

Charging Current：< 300mA

Sleep Current：< 1mA
