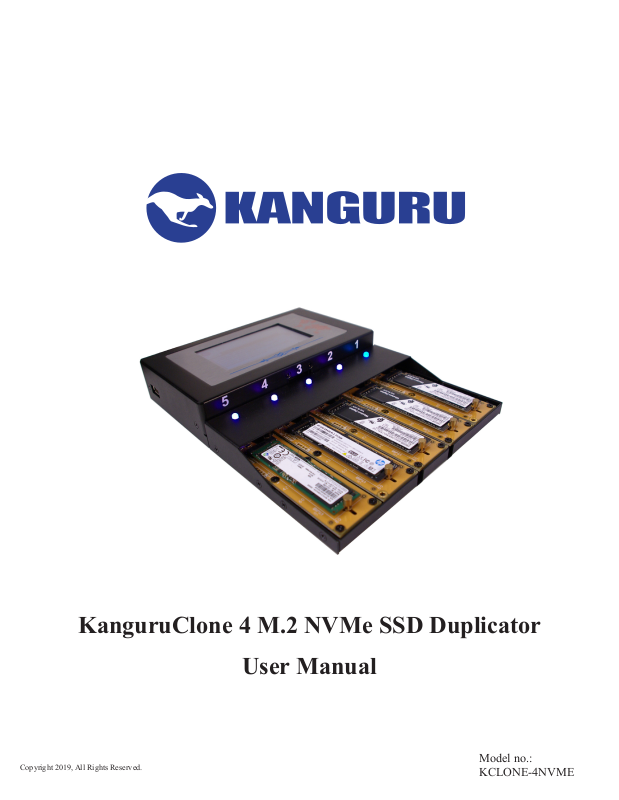

Kanguru KCLONE-4NVME User Manual

KanguruClone 4 M.2 NVMe SSD Duplicator
User Manual
Copyright 2019, All Rights Reserved.
Model no.: KCLONE-4NVME
Notices and Information
Notices and Information
Please be aware of the following points before using your KanguruClone
Kanguru Solutions will not be held responsible for any illegal use of this product nor any losses incurred while using this product. The user himself is responsible for the copyright laws, and is fully responsible for any illegal actions taken.
Customer Service
To obtain service or technical support for your system, please contact Kanguru Solutions Technical Support Department at 508-376-4245, or visit www.Kanguru.com for web support.
Legal notice
In no event shall Kanguru Solutions’ liability exceed the price paid for the product from direct, indirect, special, incidental, or consequential software, or its documentation. Kanguru Solutions offers no refunds for its products. Kanguru Solutions makes no warranty or representation, expressed, implied, or statutory, with respect to its products or the contents or use of this documentation and all accompanying software, and specifically disclaims its quality, performance, merchantability, or fitness for any particular purpose. Kanguru Solutions reserves the right to revise or update its products, software, or documentation without obligation to notify any individual or entity.
Export Law Compliance
Regardless of any disclosure made to Kanguru Solutions pertaining to the ultimate destination of the specific Kanguru product, you warrant that you will not export, directly or indirectly, any Kanguru product without first obtaining the approval of Kanguru Solutions and the appropriate export license from the Department of Commerce or other agency of the United States Government. Kanguru Solutions has a wide range of products and each product family has different license requirements relative to exports.
FCC Compliance Statements
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the Distance between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
• Consult the dealer or an experienced radio/TV technician for help.
2
TABLE OF CONTENTS
1. INTRODUCTION ................................................................................. 5
1.1 Package Contents ........................................................................... 5
1.2 Specifications ................................................................................ 5
2. GENERAL OPERATION ................................................................... 6
2.1 Hardware Setup ............................................................................. 6
2.2 Parts and Appearance .................................................................... 7
2.2.1 Front View ......................................................................... 7
2.2.2 Side View .......................................................................... 7
2.2.3 Rear View .......................................................................... 7
2.3 Calibrating the Touchscreen .......................................................... 8
2.4 Connecting NVMe Drives ............................................................. 9
3. THE MAIN MENU .............................................................................. 11
4. COPY AND COMPARE MODES ...................................................... 12
4.1 Full ................................................................................................ 12
4.2 Brief .............................................................................................. 12
4.3 Ratio .............................................................................................. 12
4.4 Resize ............................................................................................ 13
4.5 Image ............................................................................................. 14
4.5.1 Create a Storage Center Drive .......................................... 14
4.5.2 Capture a Master Drive as an Image File .......................... 14
4.5.3 Copy or Compare From an Image File ............................. 14
Table of Contents
5. OTHER OPERATIONS ...................................................................... 15
5.1 Erase .............................................................................................. 15
5.1.1 Erase Modes ...................................................................... 15
5.2 Verify ............................................................................................. 15
6. SETTINGS ............................................................................................. 16
6.1 Reset to Default ............................................................................. 16
6.2 Copy Settings................................................................................. 16
6.3 Ratio Settings................................................................................. 16
6.4 Erase Settings ................................................................................ 17
6.5 Option Settings .............................................................................. 17
6.6 Advanced Settings ......................................................................... 18
6.7 Network Settings ........................................................................... 18
3
7. NETWORK ACCESS (WINDOWS ONLY) ..................................... 19
7.1 Configuring the Maxi Management Software ............................... 19
7.2 Maxi Functions .............................................................................. 21
7.2.1 Copy .................................................................................. 21
7.2.2 Compare ............................................................................ 21
7.2.3 Verify ................................................................................. 21
7.2.4 Erase .................................................................................. 21
7.2.5 Stop ................................................................................... 21
7.2.6 Refresh Files ..................................................................... 21
7.2.7 Brief Load ......................................................................... 22
7.2.8 Full Load ........................................................................... 22
7.2.9 Restore Image to Client Source Devices ........................... 23
8. FAQ .......................................................................................................... 24
9. WARRANTY INFORMATION .......................................................... 25
10. TECHNICAL SUPPORT ................................................................... 26
Table of Contents
4
1. INTRODUCTION
The KanguruClone 4 M.2 NVMe Duplicator is a high speed, stand-alone M.2 NVMe disk duplicator that can simultaneously create up to 4 copies. With ultra fast copy speeds of up to 12GB/min and a full touch screen interface, the KanguruClone is able to handle all your NVMe duplicating needs.
Features
√ Supports standard M.2 NVMe SSDs. Capacity and brand independent. √ Full-color 4.3” TFT touch screen √ Up to 12GB/min transfer rates √ One-year Standard Warranty: one-year parts and 90 day labor warranty. √ Clones any operating system: including Window, Mac, and Linux. √ Multiple data access modes:
○ Full - Access all sectors. ○ Brief - Access only sectors containing data. Compatible with major file systems. ○ Resize - Master and Target drives with different capacities. ○ Ratio - Access a defined percentge of the Master. ○ Image - Access disk image files.
√ Powerful erase and disk wipe features. Compliant with DoD 5220.22-M √ System logs √ Supports Host Protection Area (HPA) and Device Configuration Overlay (DCO) √ Network manageable
Introduction
1.1 Package Contents
If any of the following items are missing, please call Kanguru Solutions’ Tech Support department at: (508) 376-4245, extension 2 and replacement parts will be shipped to you ASAP.
• KanguruClone 4 M.2 NVMe Duplicator
• External Power Adapter and Power Cable
• CD with User Guide and MAXI software
1.2 Specifications
Model no.: KCLONE-4NVME
Interface M.2 M-keyed
Drive Support PCIe based NVMe SSD
Display Full-color 4.3” TFT touch screen
Dimensions 10” x 7.5” x 2”
Weight 2.5 lbs.
Power
Operating Temperature 41ºF ~ 122ºF
AC Input 100-240V ~2A DC Output +12V/ 5A, 60W
Relative Humidity 15% ~ 90%
5
2. GENERAL OPERATION
2.1 Hardware Setup
1. Place the KanguruClone where there is proper ventilation. Avoid using the KanguruClone in environments with high temperatures.
2. Make sure that sufficient power is supplied to the KanguruClone. Incorrect power will cause faulty operation. It is highly recommended that you use a UPS (uninterruptible power supply) with the KanguruClone.
3. You are now ready to begin using your KanguruClone. To begin, turn on the unit by flipping the Power Switch located on the back panel.
Things to remember
• Make sure that sufficient power is supplied to the KanguruClone. Incorrect power will cause faulty operation. It is highly recommended that you use a UPS (uninterruptible power supply) with the KanguruClone.
General Operation
• The KanguruClone is powered by an external power adapter that is controlled by a rocker switch located at the rear of the duplicator.
• The KanguruClone supplies power to all drives during a session. There is no need to connect an external power source to the drives.
Note: drives are not powered until you start a copy operation.
• It is OK to connect and disconnect Master or Target drives while the KanguruClone is powered on. However, do NOT connect or disconnect drives while any operation is running or the drive is being accessed. A green LED indicator blinking indicates that the duplicator is accessing the drive.
• Connect all Master and Target drives securely before executing any Copy, Compare, Erase, Load or Verify operation.
• All operation of the KanguruClone 4 NVMe is done through the touch-screen display. If you are having issues with the touch input, try recalibrating the screen, or use a stylus to tap the screen.
6
2.2 Parts and Appearance
2.2.1 Front View
General Operation
Touchscreen
Port Number (NVMe#)
2.2.2 Side View
LED Indicator
Drive Locking Pins
USB 2.0 Port
2.2.3 Rear View
Power Switch
7
Reset Button
RJ45 Port
DC Input
2.3 Calibrating the Touchscreen
One of the main features of the KanguruClone 4 M.2 NVMe Duplicator is the touchscreen user interface. If you are having issues with the accuracy of the touchscreen inputs (e.g. unable to access items to the edge of screen) your touchscreen may require re -calibration.
To calibrate the touchscreen:
1. Power on the duplicator.
2. Wait for the boot screen that displays the Kanguru Logo and the device firmware and Mac address.
General Operation
When this screen appears, tap the center of the touchscreen.
3. The calibration screen appears. Follow the onscreen instructions to re-calibrate the touchscreen.
If you are still having problems with touchscreen accuracy, you can also use a stylus to tap the screen.
8
2.4 Connecting NVMe Drives
The KanguruClone 4 NVMe supports NVMe SSDs that have an M.2 M-keyed connector. The duplicator only supports drives that run on the PCIe protocol, so M.2 SATA drives are not supported.
To connect an NVMe solid state drive to the KangurClone 4 NVMe:
1. Make sure all Drive Locking Pins are positioned at the end of the duplicator.
General Operation
2. Position the drive with the M-key notch aligned to the right side.
3. Insert the drive at about a 300 angle. You can identify the Source port position by the blue LED indicator.
9
