Hillcrest MAX

Hillcrest ABX

Table of ConTenTs

Table of Contents

Reporting Damage During Shipping .......................................................................................5

Contact Information ................................................................................................................6

Visit Kangaroo ..........................................................................................................................7

Assembly .................................................................................................................................9

Power Controls & Operation .................................................................................................17

Remote Guidance System ....................................................................................................23

AutoBrake .............................................................................................................................. 33

Free-Wheeling Mode ............................................................................................................. 35

Rear Wheel Assembly and Removal ....................................................................................37

Battery & Charger ................................................................................................................... 39

Optional Equipment ..............................................................................................................43

Technical Specications .......................................................................................................47

Maintenance ..........................................................................................................................49

Warranty .................................................................................................................................51

Troubleshooting ..................................................................................................................... 57

Notes ...................................................................................................................................... 63

Damage During Shipping

What to do if a Kangaroo product

or part is damaged during shipping

Please call or e-mail Kangaroo (see Contact Information on page 6) with your invoice number and customer number. Specify which product or part is damaged. Do not return the damaged products or parts back to Kangaroo; we will

contact the shipping carrier to le a claim. Kangaroo will send replacements. The shipping carrier is responsible for

picking up the damaged merchandise, if they choose to, and sending the item back to Kangaroo.

Do not dispose / destroy any carton or packing material in which merchandise was shipped. The carrier may contact you for an inspection visit or send a pickup for the merchandise.

COntaCt InfOrmatIOn

Contact Information

Kangaroo Products Company

111 Kangaroo Drive PO Box 607 Columbus, North Carolina 28722-0607

Phone: (800) 438-3011 or (828) 436-2101 Fax: fax@kangaroogolf.com

E-mail: iwalk@KangarooGolf.com

To order parts and accessories visit:

www.KangarooGolfCanada.com

Kangaroo’s worldwide headquarters is located just one mile from interstate 26, 40 miles southeast of Asheville, North Carolina’ and 30 miles northeast of Spartanburg, South Carolina.

To Asheville

US Hwy 74

Exit 163

NC Hwy.108

to Mill Spring

and

Rutherfordton

Welcome Center

Exit 67

To Tryon

Exit 67

To Spartanburg

NC SC

Kangaroo Products

111 Kangaroo Drive

Directions to Kangaroo

Visit Kangaroo

From Asheville, North Carolina via Interstate 26.

Follow Interstate 26 east toward Spartanburg, South Carolina. Take exit 67 (US-74) toward Rutherfordton. Follow US-74 approximately one mile to exit 163 then turn RIGHT toward Columbus. Kangaroo will be 1/2 mile on the RIGHT.

From Charlotte and Gastonia, North Carolina via Interstate 85 and US-74.

Follow Interstate 85 south toward Spartanburg, South Carolina. Take exit 10B (US-74) toward Kings Mountain and Shelby. Follow US-74 approximately 69 miles to exit 163. At exit 163 turn LEFT toward Columbus. Kangaroo will be 1/2 mile on the RIGHT.

From Columbia, and Spartanburg, South Carolina via Interstate 26.

Follow Interstate 26 west toward Asheville, North Carolina. After entering North Carolina take exit 67 (North Carolina Highway 108) and follow the signs to Columbus. Kangaroo will be 1.1 miles on the LEFT.

From Atlanta, Georgia via Interstate 85

Follow Interstate 85 north toward Greenville, South Carolina. Take exit 70A (Interstate 26) toward Asheville, North Carolina. After entering North Carolina take exit 67 (North Carolina Highway 108) and follow the signs to Columbus. Kangaroo will be 1.1 miles on the LEFT.

Assembly

Components:

A- Chassis

B- Electronic Front Drive

C- Upper Caddie Structure

Figure 1

Figure 2

Assembly

Assembling your X-Series Motorcaddie

Your Kangaroo X-Series Motorcaddie is shipped without the rear wheels attached. See pages 37 and 38 for rear wheel assembly and removal instructions.

1. Steady the Chassis by using the hand-hold, located in the bottom of the battery tray. Insert the Electronic Front Drive into the hole located in front of the battery tray, and close the draw latch. (Figu re 1)

Note: The Upper Caddie Structure and Electronic Front Drive will t in either hole—therefore be sure the

motor is on the top right side, while standing behind the X-Series.

2. Insert the Upper Caddie Structure into the top of the Chassis just behind the battery tray, and close the draw latch. (Figure 2)

3. Fold down the Flex-Adjust Bag Support (Figure 7 on page 15) until it comes to a stop.

4. Remove the three plastic tie-wrap bands from the handle. Simply press down on each of the red tabs on the tie-wraps that are encircling the handle grips. While pressing down on the red tab, push the extended edge back through the locking mechanism to loosen the hold on the handle grip.

Note: Make sure the Function Switch is in the “OFF” position. Begin to establish the habit of putting the switch in the “OFF” position while assembling your Kangaroo X-Series.

Cont:

Figure 3

Figure 4

Figure 5

Assembly

5. Connect the plug from the Upper Caddie Structure to the receptacle in the Chassis. (Figure 3)

Note: Always handle the plug when connecting or disconnecting the control cable. Pulling on the wire

can cause damage.

6. Connect the Electronic Front Drive by inserting the black plug into the receptacle on the lower left of the Remote Receiver. Push inward on the lock ring while twisting it clockwise until it stops. (Figure 4)

7. Set your battery into the battery tray with the terminals to the back of battery tray. (Figure 5)

a. Connect the RED clip to the (+) positive terminal.

b. Connect the BLACK clip to the (-) negative terminal.

Note: If the cables are accidentally reversed, your X-Series will not run until the polarity is corrected.

(Your X-Series is equipped with reverse-polarity protection, and connecting the terminals backwards

will not harm you or the unit.)

Adjustments

Your X-Series comes with an assortment of Allen-type wrenches. They are provided for adjustments, keeping screws tight, and for adding optional equipment.

Draw latch:

Figure 6

Figure 7

Assembly

If the Upper Caddie Structure or Electronic Front Drive is loose, turn the draw latch metal adjustment ring clockwise to tighten. Do not over-tighten the adjustment ring as this may cause the draw latch to break when engaged. If the draw latch will not lock in place, loosen the draw latch by turning the metal adjustment ring counter-clockwise.

(Figure 6)

Note: The metal adjustment ring may be difcult to turn. A standard pair of needle nose pliers can be used

to make adjustments. To avoid possible breakage, always close draw latches before placing Chassis into your car.

Flex-Adjust Bag Support:

The Flex-Adjust Bag Support on the Upper Caddie Structure (Figure 7), also referred to as the yoke, is designed to fold up for easy transportation and storage. It can be adjusted to grip your golf bag by bending the arms open or closed as needed.

The Flex-Adjust Bag Support is attached to the stainless steel tubing at the best position to hold most golf bags securely. If you have an unusual bag, or a personal preference for its position, its clamp can be moved up or down the tubing to any point you like. The Bag Support is secured with four 5/32” Allen-type machine screws and a suitable wrench is provided with your X-Series. Simply loosen the four screws and adjust the clamps accordingly, then re-tighten securely.

Figure 8

Figure 9

Controls and operations

Power Controls and Operation

Accelerator

Speed is controlled by the Accelerator located between the handle grips. The decal indicates speed in relation to the Accelerator position. (Figure 8)

Note: Turning the Accelerator all the way down does not turn off Power Controls, even if your X-Series is not moving.

There is a feature, known in technical terms as “ramp up”, that automatically provides a gentle start at any setting up to, and including, full speed. Even so, your X-Series is very powerful, and it is best to start out at lower speeds.

Function Switch

The Function Switch is located on the top center of the handle. (Figure 9)

• Switch to the MANUAL mode when remote control is not desired.

• Switch to REMOTE mode when you are ready to resume play with Remote Guidance.

Figure 10

Controls and operations

Normal Operation:

1. Prior to beginning play, rotate the Accelerator to the SET position (Figure 8 on page 17). You can vary the Accelerator to suit your own walking pace after you begin play.

2. Position the Function Switch to ON (Figure 9 on page 17).

3. Position the Function Switch to the MANUAL position when Remote Guidance is not desired. Manual Mode is recommended when using your X-Series in parking lots, in tight spots, and around water hazards.

4. Position the Function Switch to the REMOTE position when you are ready to begin play with Remote Guidance.

5. Press the GO button on the Remote Transmitter. Your X-Series will start and ramp up to your preset speed. Press GO a second time and your X-series will increase its speed, automatically ramping up to 90% of its maximum speed (approximately 4.5 mph). Press GO a third time and your X-Series will automatically decrease to your original preset speed. If you press GO a fourth time, your X-Series will again increase to 90% of its maximum speed. Each activation of GO while your X-Series is moving will alternate between your preset speed and 90% maximum speed. ( Figu re 10)

Cont:

Figure 11

Controls and operations

6. To stop your X-Series, press STOP on the Remote Transmitter. To achieve maximum braking the Function Switch must be turned OFF. There is no need to change the accelerator when stopping and re-starting. ( Fi gu r e 11 )

Reminder: The arrows on the Remote Transmitter indicate steering direction as if you were operating your

X-Series manually. If your X-Series is coming toward you, the steering direction of the arrows are reversed.

7. If you stop your X-Series on a hill, always turn it across the slope to park it. The X-Series models do not have a parking brake and will creep down a hill on their own.

Runaway and Circuitry Protection

Your X-Series will automatically shut itself off if the Function switch is left in Remote or Manual position for an extended period of time. The reason for this is to prevent a possible runaway situation. This also allows the solid state circuitry a cool-down period. To avoid activation of this safeguard, turn the Function switch OFF each time you stop. Merely turning the speed all the way down will not reset this internal timer and will cause your X-Series to unexpectedly shut off. If you forget, and your X-Series unexpectedly “cuts out” or is “dead”, turn the Function Switch to OFF and then back ON to restart your X-Series.

Figure 12

Figure 13

Figure 14

Remote Guidance SyStem

Remote Guidance System

Remote Guidance System consists of three components – the Remote Transmitter (Figure 12), Remote Receiver (Figur e 13), and Electronic Front Drive ( Figure 14). Remote Guidance System operates on an FM Pulse Code

Transmittal System that is FCC approved, and requires no operator’s license. Remote Guidance System is relatively low power (milliamps) and is subject to little outside interference.

Remote Transmitter and Remote Receiver devices comply with Part 15 of FCC rules. Operation of these devices is subject to the following two conditions: (1) The devices may not cause harmful interference, and (2) The devices must accept any interference received, including interference that may cause unintended operation.

The antenna is permanently mounted inside the Remote Receiver to make it more water resistant. You should not attempt to open the Remote Receiver - doing so will break the seal and void the warranty.

Activating Remote Guidance System

See Power Controls & Operations on page 18.

Figure 15

Remote Guidance SyStem

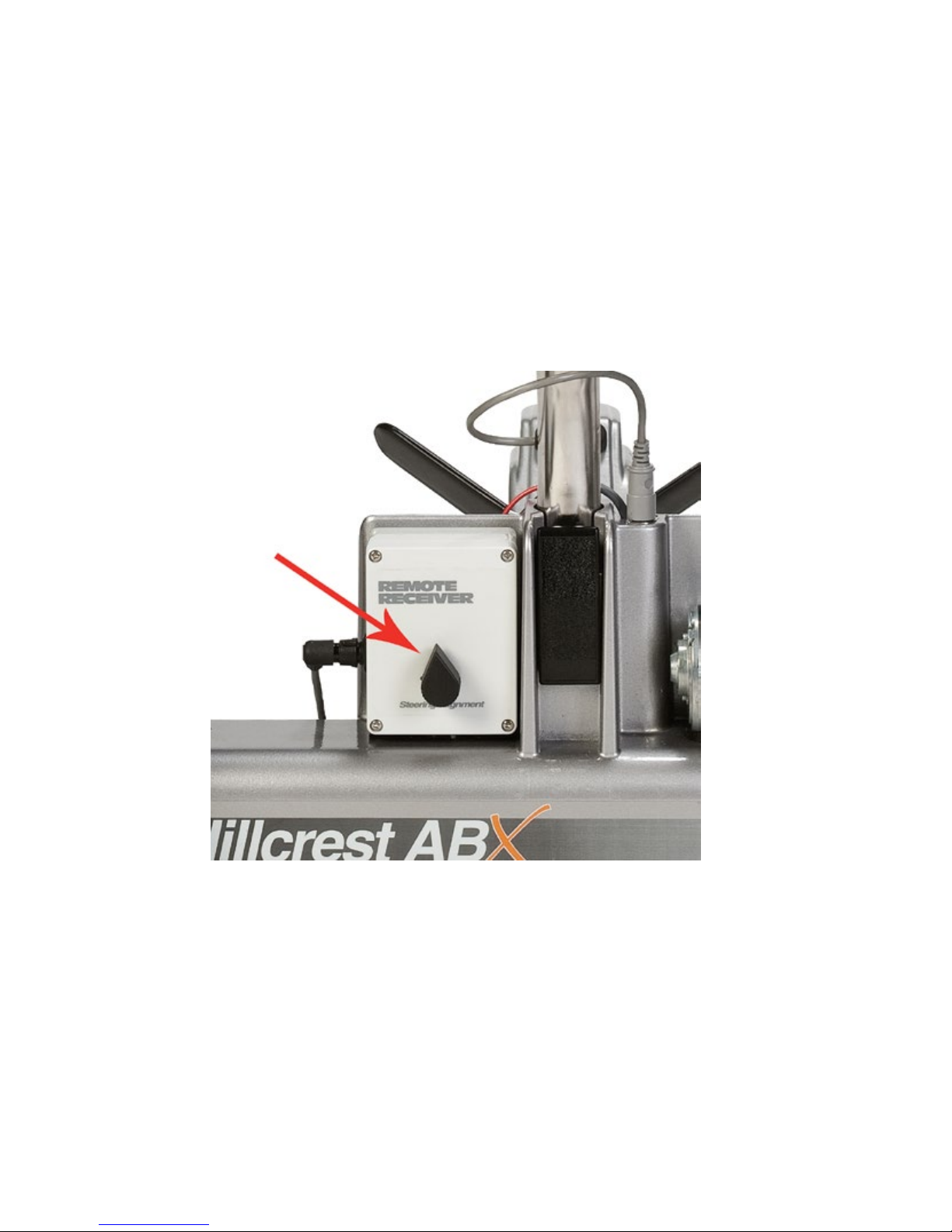

Centering the Steerable Front Wheel

Before you begin play the front wheel must be centered, so your X-Series will track straight. Use the centering knob

(Figure 15) on the rear of the Remote Receiver to adjust the front wheel. Do not attempt to turn the front wheel by hand. The front wheel must be centered electronically by turning the black knob. The knob is very

sensitive. Rotate it slowly to adjust the front wheel right or left as needed. When the front wheel is centered, the knob can be turned slightly right or left without the wheel moving. If the wheel is not centered, any turn of the knob will cause the wheel to swivel.

Automatic Self-Centering Front Wheel

Remote Guidance System’s built-in centering control will automatically center the front wheel every time you stop transmitting a directional signal with the Remote Transmitter. The centering function will not work properly unless you center the front wheel using the electronic centering knob (as described above).

During normal operation, a sensor in the Remote Guidance System detects course conditions and allows for small terrain deviations, thus allowing your X-Series to follow a straight line of travel. If for any reason the front wheel becomes jammed and cannot return to center, the self-centering feature will shut off after 6 seconds. To dislodge the obstacle, turn the Function Switch to OFF and remove the obstruction. Turn the power back ON. The wheel should now automatically align itself. If it does not, re-adjust using the centering knob as shown on this page.

Cont:

The centering and directional control in the Electronic Front Drive can be damaged if the unit rams into any obstacle. When your X-Series must be maneuvered in close areas, it may be best to do so manually; for instance, across bridges, around trees, or in parking lots. X-Series includes a Bumper Guard to help protect the centering device.

Damage caused by hitting obstacles is not covered under the manufacturer’s warranty. All Remote Guidance System

units must be returned to Kangaroo for proper repair. There are no user serviceable components inside.

Electronics (Remote Receiver and Remote Transmitter)

Remote Receiver

The Remote Receiver is the main control center of the Remote Guidance System. It processes and relays all of the signals from the Remote Transmitter to the Electronic Front Drive.

Automatic Safety Shut-Off

The Remote Receiver is designed to receive a signal from the Remote Transmitter every 28 to 30 seconds. If for any reason the unit does not receive a signal within this time span, it will automatically shut off. The auto shut-off will also stop your X-Series if it gets out of signal range. This is a required safety function to prevent runaway. In normal use, most golfers will be making many directional adjustment signal transmissions. However, if you do not press any button on the Remote Transmitter for 30 seconds, your X-series will stop. This is a safety feature, not a defect. If your X-Series stops, just press the GO button and the X-Series will start again.

Remote Guidance SyStem

Remote Transmitter

The Remote Transmitter is supplied with a fresh, standard Alkaline 9-volt battery. The battery compartment is located on the bottom rear of the transmitter. The cover slides off for easy battery replacement. Under normal use, the 9-volt battery should last 3 months. Replace the Remote Transmitter battery at least every three months.

Keep Dry

Use great care in operating your X-Series around water. The Remote Transmitter is sealed to be water resistant. However, if dropped into a puddle, pond, or creek, it may become damaged.

The Remote Receiver should be protected at all times against water damage. If your X-Series runs into a body of water and the Remote Receiver becomes submerged, the electronic circuit board inside will be destroyed. When washing the unit, avoid direct water contact with the Remote Receiver. If the Remote Guidance System electronics are damaged by extreme exposure to water, e.g. submerged in a pond, the damage will not be covered under the manufacturer’s warranty.

Figure 15

Remote Guidance SyStem

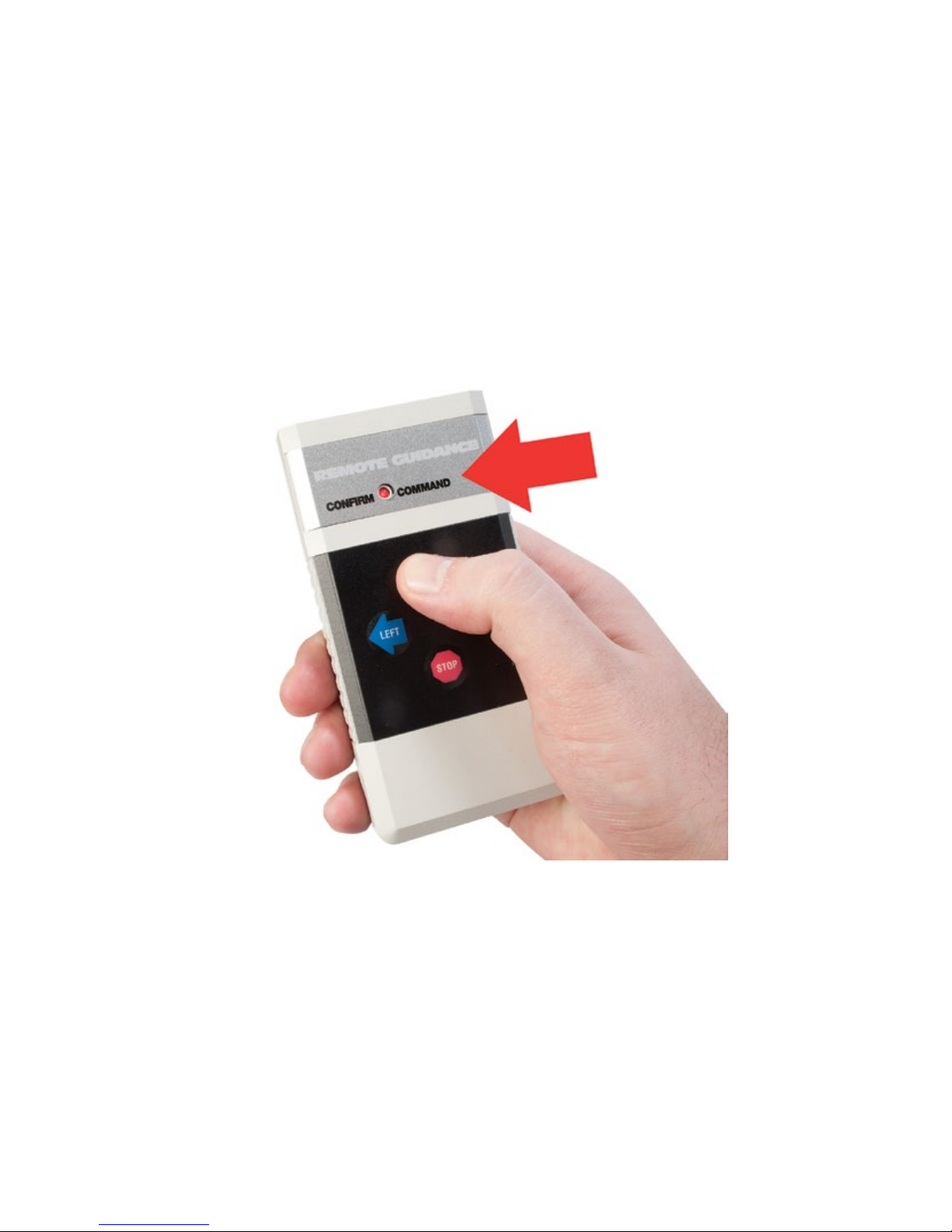

Conrm Command Indicator

1. When a signal is given, the red Conrm Command light (Figure 15) on the Remote Transmitter will ash

twice – once with the pressing of the button, and again when the button is released, conrming your

command. NOTE: The buttons are easy to press. There is no need for excessive force. When the indicator

light ashes, the signal has been sent.

2. When the 9-volt battery is weak, the light will stay on continuously, indicating the 9-volt battery must be replaced. Remote Guidance System may have a loss of signal strength and a loss of range when the Remote Transmitter battery is weak. To test the battery, press and hold any function button. If the light stays on while the button is depressed, the battery is weak and should be replaced.

The position of the Remote Transmitter is important during signal transmission. In order to achieve maximum range, hold the Remote Transmitter with the control buttons on top, and the back of the Remote Transmitter toward the ground. Point the front of the Remote Transmitter toward your X-Series. The Remote Transmitter will operate if held in other positions, but the overall operating range will be decreased. The range will also be affected if there are obstacles between you and your X-Series such as trees, buildings, cars, etc.

Play it Safe

Expect an orientation period to learn the controls of the Remote Guidance System. Do not try to learn the controls in close quarters. Never try to operate your X-Series while it is out of your sight! Play it safe! Your new X-Series is not a toy. Always use common sense while operating.

Figure 16

Figure 17

Figure 18

Remote Guidance SyStem

Manual Steering Operation

To operate your X-Series in Manual Mode, Press the Remote Transmitter’s STOP button. Then turn the Function switch to MANUAL. Adjust the Accelerator if necessary.

Padded Case for Remote Transmitter

Included with your new X-Series is an attractive Padded Case screenprinted with Kangaroo logo (Figure 16). It can be worn two ways:

1. Looped over a belt with the back ap secured by the Velcro®.

2. Slipped over the waistband of pants or a skirt.

Try it both ways, to decide which you prefer! The Padded Case’s long back ap is stiff enough to hold the Remote Transmitter secure. When you put your Remote Transmitter away, ip the long ap forward,

secure with Velcro®, and store in a safe, dry place.

Remote Transmitter Swivel Clip System & Belt Clip

The Remote Transmitter Swivel Clip System (standard on both MAX and ABX) mounts securely to the Scorecard Platform (Fi g u r e 17). The included Remote Transmitter Belt Clip can also be worn on your belt, pocket or golf bag. (Figure 18)

Hillcrest ABX

AutoBrAke

AutoBrake Operation

As your X-Series travels downhill with the power switched ON, turn the Accelerator downward to a slower setting. Your X-Series will slow down and give you a feeling of security as you travel down the hill.

If the slope is extremely steep, you may turn the Function Switch OFF, which will provide approximately 50% more braking power than just turning the Accelerator to its slowest setting. If this is too much braking power, alternate turning the Function switch OFF and ON until you reach the bottom of the hill.

IMPORTANT: If you must tow your X-Series either forward or backward, always place it into Free-Wheeling Mode FIRST! Gear damage may result from pulling or pushing your X-Series with great force or for

long distances. Damage incurred from failure to disengage drive wheels from gear train is NOT covered by warranty. See Free-Wheeling instructions on page 35 & 36.

AutoBrake is not intended to stop your X-Series. Rather, it is used for decreasing speed when going down hills.

AutoBrake does not function as a parking brake. Therefore, always make sure your X-Series is turned sideways

when stopped on a slope.

Figure 19

Free-wheeling

Free-Wheeling Mode

Free-Wheeling means that the two drive wheels on your X-Series turn freely without engaging the axle or drive train. If you must tow your X-Series either forward or backward, ALWAYS place it in Free-Wheeling Mode rst! Gear damage will result from pulling or pushing with great force. Damage from failure to disengage the drive wheels from the gear train is not covered by the warranty.

To position each wheel into Free-Wheeling Mode, pull the release tab on the inside of the wheel towards the tire. (Figure 19) Slide the wheel outward slightly on the axle. Position the wheel so that the release tab is in the FreeWheel groove. Release the tab to allow it to lock in the proper groove. The wheel should spin freely. Hub drive pins will no longer be engaged into the wheel’s drive holes. Now try to move the wheel outward on the axle to ensure the release tab is locked. The wheel will NOT slide off the axle if properly positioned.

Returning Wheels to Drive Mode

While pulling the release tab, slip wheel all the way against the hub, aligning the drive pins on the hub into the drive holes in the wheel. When the wheel is on the axle, against the hub with the drive pins engaged, release the tab. This will allow the release tab to lock into the drive groove. The wheel should now be securely mounted on the axle.

(Figur e 19)

Figure 20

Figure 21

ReaR Wheel assembly & Removal

Rear Wheel Assembly and Removal

Both rear wheels on your X-Series may be easily removed and replaced. Wheels are held in place by a spring-loaded release tab on the inside of each wheel. The tab seats into a groove on the axle. There is a groove for the Drive position and one for Free-Wheeling Mode.

To install the wheel on the axle, pull the wheel release tab back. (Figure 20) While holding the release tab, place the wheel on the end of the axle. Slip wheel all the way against the hub, aligning the drive pins on the hub into the drive holes in the wheel. When the wheel is on the axle, against the hub with drive pins engaged, release the tab. (Figure 21) This will allow the release tab to lock into the Drive groove, and the wheel should now be securely mounted on the axle. Wheels should NOT slide off the axle. To remove the wheels, pull the release tab back toward

the tire and slide the wheel off axle. Wheels are not left/right specic and can be installed on either side.

Figure 22

Figure 23

Figure 24

Battery & Charger

All Kangaroo models require a 12-volt, 31-amp deep cycle battery.

The ReadyPro electronic charger is designed to charge 12-volt, deep-cycle, gel-lled

battery.

It is also designed to remain connected to your battery indenitely when you are not

playing, to maintain the battery in good condition while stored for long periods of time.

The standby charging mode is sufciently low to ensure that the battery will not be

over-charged.

Explanation of Charger Lights

• If RED light only is illuminated, charger is “on” and battery is charging, but NOT READY for use. (The length

of time will depend on battery’s level of discharge – the more it’s discharged, the longer the RED light will

stay illuminated.)

• If RED AND GREEN lights are illuminated at the same time, your battery is ready for 9 HOLES of use.

(This status lasts approximately 20 minutes to one hour before battery is “fully charged.”)

• If GREEN light only is illuminated, battery is fully charged and is ready for 18 HOLES of use.

Battery & Charger

Indications that Your Battery Needs Replacement

• If you never get the GREEN light, even after 24 hours of charging, you know that your battery has a “dead

cell.” The battery can no longer achieve a full charge, and should be replaced when it can’t power your

Kangaroo for 18 holes.

• If the GREEN light is illuminated after a charging cycle, but you no longer get 18 holes of sufcient power,

your battery has “sulfated” with age and use. Your battery is being recharged to full voltage, but it no longer

has sufcient capacity to power your Kangaroo for a round of golf.

OptiOns

Options

A- Xtra-Gear Basket

Attractive, lightweight mesh basket attaches quickly and comes in handy when carrying a sweater or snack. The wedge shaped mounting clip makes this roomy basket (12 x 8 inches, by 8 inches deep) easy to remove. Black parts are electro-statically powder painted for durability.

B- Ball & Club Washer

This washer mounts in the seat bracket on your X-Series. When you nish golng, just slide the washers’ blue

L-bracket out of the chassis mounting bracket. If your X-Series already has a seat bracket, no installation is needed. If you don’t already have a seat bracket, chassis brackets are available separately.

C- Gallery Seat

Mounts easily to your X-Series. The seat provides a perfect spot for a quick break or to wait your turn. The bracket is attached securely to your chassis for outstanding stability. The cushion is molded by Kangaroo of puncture-proof, integral-skinned polyurethane foam (more durable than rubber or vinyl — withstands rain, ozone, and ultraviolet rays).

D- Xtreme Slope Wheel (Standard on the MAX)

Offers added stability on steep inclines. When your X-Series tilts back, the wheel arm automatically pivots out, preventing an embarrassing tip-over. Easy to install. Recommended for remote control operation.

OptiOns

E- Adjustable Umbrella by BirdiePal

Variable adjustability of the shaft allows you to stand up straight underneath the umbrella when attached to your

X-Series, no matter how tall you are. Lightweight and nearly unbreakable due to its exible berglass shaft and

frame. The Silver Metallic Umbrella has a UV protection factor of 50+.

F- Umbrella Stand

Holds a straight-handle golf umbrella — unique clip device secures it from ying off. Attaches to the Umbrella

Holder Mount that sits atop your X-Series Scorecard Platform. Optional Xtender available for tall golfers.

G- Rain Cover

Take the featherweight, zero permeability Rain Cover out of a golf bag pocket to protect equipment from the rain. It offers easy pocket access and a front-to-back or zip per. Remote Guidance will still work, and your X-Series controls remain visible (through a clear panel in the cover) for those with manual operation.

H- Sand & Seed Holder

Repair divots to help maintain your course’s fairways! The Sand & Seed Holder ts your X-Series model handle

tubing, and works best when mounted sideways on tubing for easy access. Simple to install. Comes complete with

Sand Bottle. Just ll with your golf course superintendent’s divot repair mixture.

To order options for your X-Series shop online at www.KangarooGolfCanada.com.

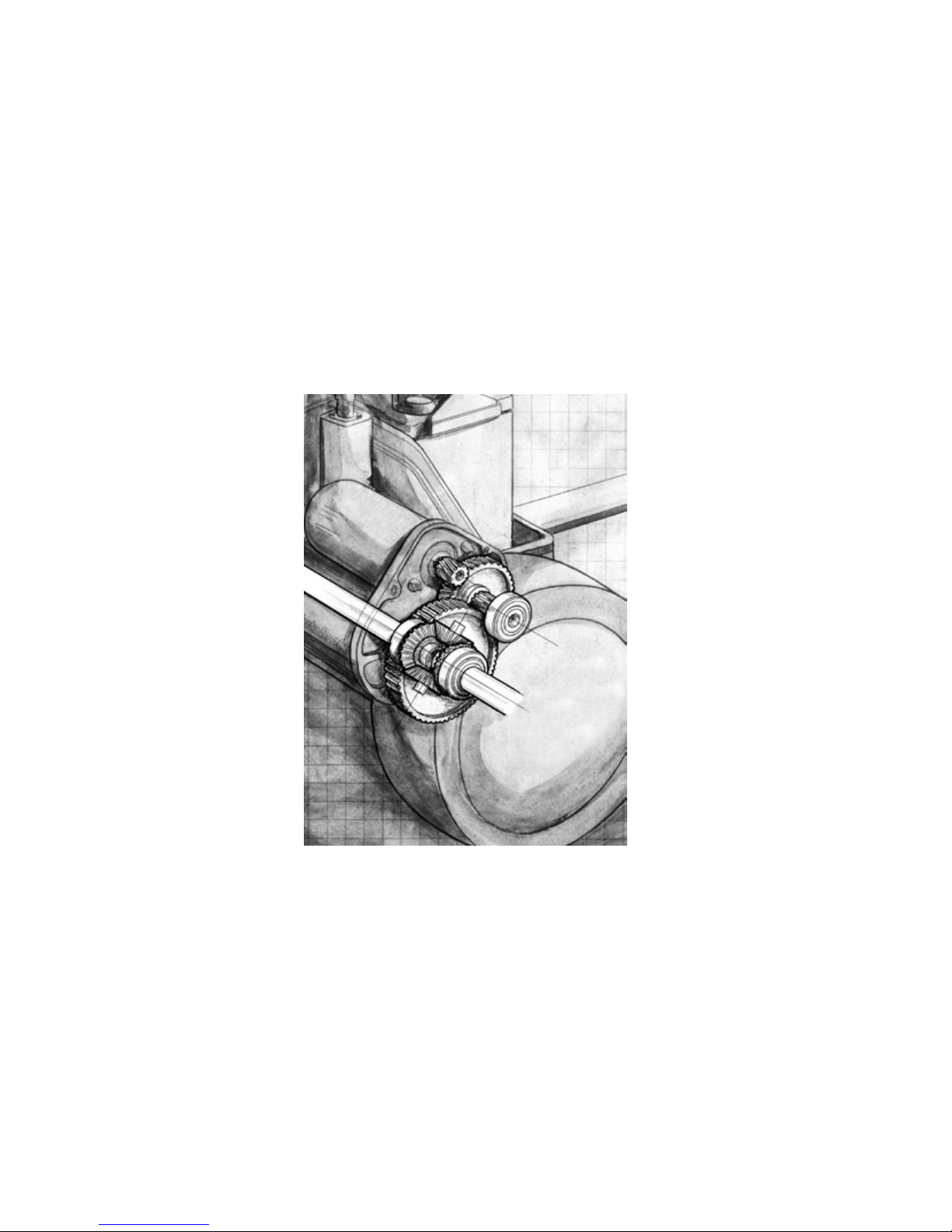

Internal view of the

precision-made transaxle,

with 4 power train gears plus

4 beveled differential gears,

enabling easy turning and

Automatic Braking.

Technical SpecificaTionS

Technical Specications:

Motor:

High torque, 2-pole armature/permanent magnet, 12-volt DC.

Drive Train:

Double reduction, sealed maintenance-free self-lubricating gear drive with differential and direct-drive hubs.

Controls:

All solid-state motor control, 45 amp capacity, all circuitry under overcurrent and reverse polarity protection.

Remote Guidance System:

Maximum Range of Go/Stop Operation: 100 yar d s

Maximum Range of Directional Operation: 50 yards

Maximum Turning Angle of X-Series: 20°

Time-Lapse from Straight Ahead to Full Turn: 2 Seconds

Time-Lapse from Turn Button Release to Straight Ahead:

2 Seconds

Turning Radius (on pavement): 16 Fee t

Replacement Transmitter Battery: (Alkaline Battery) 9 Volt

Radio Operating Frequency Range:

903.37–921.37 MHz

FCC ID: OVPTX600-845C OVPRX600-840C

Component Weight Electronic Front Drive: 11l b s. Hand-Held Transmitter: 5 oz. Radio Receiver Module: 12 oz .

All parts and specications subject to change without notice.

Maintenance

Don’t Oil it!

Your X-Series has been designed and manufactured to be essentially maintenance free. Do not open or attempt to service the transaxle gear train. It is tuned at the factory to minimize gear noise. It also contains a special lubricant, which is sealed inside by a gasket. The control system is well designed, with quality parts and full protection circuitry. There are no user serviceable components.

Keep it Clean!

The only type of maintenance required for your X-Series is cosmetic. Use soap or mild detergent and water, then rinse with clean water. You MUST avoid getting water in the control plugs. Your X-Series can dry in the sun, but the stainless steel tubing should be wiped dry for the best luster. Never use an abrasive cleaner.

Stainless Steel Components & Tires

It is a good idea to use a quality automotive wax on the stainless steel to prevent ngerprints and smudges from

showing up. The X-Series’ polyurethane tires are made of a compound unaffected by conditions that deteriorate ordinary rubber. You may use a cleaner/preservative such as Armorall®, or a similar product, to keep tires looking like new.

Normal Wear & Tear

The handle grips and the Upper and Lower Black Bag Protectors may deteriorate with use. This is normal wear and tear and is not covered by warranty.

Maintenance

Factory Warranty Service

If you need repair or service, please follow this procedure:

1. Telephone or e-mail the Kangaroo factory. See page 6 of this manual for contact information.

2. If Technical Service instructs you to return your X-Series, or any part of it, pack in the original carton or a sturdy substitute container. Enclose a note with your name, address, daytime phone number or e-mail, and description of the problem you discussed with Technical Service.

Any parts and services provided under warranty do not extend the original warranty. Any out-of-warranty service, including parts and labor, is warranted for 60 days. If the service is not under warranty, please specify whether you would like Kangaroo to invoice you or charge to your credit card, including all numbers and the expiration date of your card.

ARS Service

When shipping your X-Series to the factory for repairs, save money by requesting Authorization Return

Service (ARS). ARS provides for the easy shipment of UPS-compatible packages. Pre-printed UPS return

labels are available from Kangaroo at a reasonable price. ARS labels can be mailed or sent via e-mail.

Component Coverage

Page

Chassis, Wheels, Upper Caddie Structure 12–Mont hs 52

Remote Guidance System (RGS) and Electronic Front Drive 12–Mont hs 53

ReadyPro Electronic Battery Charger 12–Mont hs 55

Xtreme Slope Wheel, Gallery Seat, Scorecard Platform,

Ball & Club Washer, Mount for Remote Transmitter,

Swivel Cup Holder, Sand & Seed Holder, Umbrella Stand,

and Extender for Umbrella Stand

12–Mont hs 56

Rain Cover and Adjustable Umbrella 12–Mont hs 56

Warranty at a glance

Warranty

Warranty – Wheels & Upper Caddie Structure

Any failure that is the result of a defect in material or workmanship is covered by the warranty. The original owner is entitled to

a no-charge repair (or replacement, at Kangaroo’s option) for 12 months from the date of purchase. Components covered by

the warranty are the motor, power train, wheels, tubing, and all electronics. Necessary labor will also be at no charge.

EXCLUSIONS

Exclusions to the warranty coverage include: damage from shipment to Kangaroo, normal wear and tear, hairline cracks in structural parts (not affecting X-Series operation), neglect, abuse, or accidents, damage by persons other than the Owner,

or utilization for any purpose other than carrying golf bags on golf courses.

TRANSFERRING YOUR WARRANTY

The X-Series warranty is not automatically transferable. If your X-Series is sold, the new Owner can purchase the remaining

warranty for $2 per month remaining on the warranty. To transfer the warranty, the new Owner must contact Kangaroo,

request the warranty transfer, and provide proof of the original purchase.

IF YOU NEED WARRANTY SERVICE

All warranty repairs MUST be performed at a certied Kangaroo warranty repair center.

All shipping charges inbound and outbound are the responsibility of the Owner.

Warranty – Remote Guidance System (RGS)

& Electronic Front Drive

Any failure that is the result of a defect in material or workmanship is covered by the warranty. The original Owner is entitled to a

no-charge repair (or replacement, at Kangaroo’s discretion) for 12 months from the date of purchase. Components covered by

the warranty are the motor, power train, wheels, tubing, and all electronics. Necessary labor will also be at no charge.

All warranty repairs must be performed at a certied Kangaroo warranty repair center.

Warranty

Warranty – ReadyPro Battery Charger

Warranty expires on the ReadyPro Electronic Battery Charger one year from the date of shipment it to the

original purchaser. If the charger is defective, Kangaroo may require its return to our plant prior to replacement.

The customer is responsible for UPS shipping charges on all returned items.

The KANOVA Charger is warranted to charge your Kangaroo Battery for an eighteen hole round of golf.

This warranty is void unless proper maintenance procedures are followed.

I M P O R T A N T

Damage due to accident, abuse, or misuse and neglect is specically excluded under this warranty.

This warranty supersedes any other warranties, expressed or implied, and is non-transferable.

Kangaroo does not authorize any other person or rm to assume for Kangaroo any other liability or obligation

in connection with the sale of this battery charger.

Features and manufacture’s specications are subject to change without notice.

This product is solely for use with a Kangaroo X-Series Motorcaddie.

Warranty

Warranty – Equipment

Warranty expires on Kangaroo Xtreme Slope Wheel, Gallery Seat, Scorecard Platform,

Ball & Club Washer, Mount for Remote Transmitter, Swivel Cup Holder, Sand & Seed Holder,

Umbrella Stand, and Extender for Umbrella Stand 12 mon t hs from the date of shipment

to the original purchaser.

Warranty expires on Kangaroo Rain Cover and Adjustable Umbrella

12 mont hs from the date of shipment to the original purchaser. If the equipment

is defective, Kangaroo may require its return to our plant prior to replacement.

The customer is responsible for UPS shipping charges on all returned items.

If the equipment is defective, Kangaroo may require its return to our plant prior to replacement.

The customer is responsible for UPS shipping charges on all returned items.

I M P O R TA N T

Damage due to accident, abuse, or misuse and neglect is specically excluded under this warranty.

This warranty supersedes any other warranties, expressed or implied, and is non-transferable.

Kangaroo does not authorize any other person or rm to assume for Kangaroo any other liability or obligation

in connection with the sale of this battery charger.

Features and manufacture’s specications are subject to change without notice.

Troubleshooting

Symptom Problem Solutions

My Remote Guidance System does not function. All connections are

made properly and the Conrm

Command indicator light

ashes normally.

1. Circuit board needs to be reset.

2. Water or debris could be inside connection plugs.

1. Turn the Function Switch OFF – wait 5 seconds.

2. Clean and dry all male plugs and female connectors.

My Remote Guidance System does not function. All connections are

made properly but the Conrm

Command indicator does not ash.

9 volt battery connector inside the Remote Transmitter may be loose.

Using pliers, carefully tighten Remote Transmitter battery metal connection snap, then reconnect

the battery. Intermittent and erratic operation. My X-Series shuts off, loss of steering directional control, or will not restart.

Outside interference. By FCC regulation, Remote

Guidance System must accept all

outside interference. See label on

the Remote Receiver. My Remote Guidance stops unexpectedly and will not restart right away.

Grass or debris in the male plugs and female connectors.

Clean and dry all male plugs and

female connectors.

TroubleshooTing

Symptom Problem Solutions

Diminished operating range, particularly when turning left or right.

Weak 9 volt battery in the Remote Transmitter.

Replace the 9 volt battery. It is recommended that you replace the 9-volt battery every three months.

Remote Transmitter battery has an unexpectedly short life span.

Remote Transmitter keypad or circuit board needs replacing.

Return to Kangaroo for repair.

Erratic Remote Guidance operation.

Conrm Command light stays on.

1. Weak 9 volt battery in the Remote Transmitter.

2. Remote Transmitter keypad or circuit board needs replacing.

1. Replace the 9 volt battery. It is recommended that you replace the 9-volt battery every three months.

2. Return to Kangaroo for repair.

Using the Remote Transmitter, both STOP and GO commands function, but the LEFT and RIGHT commands do not function. The front wheel does not turn.

1. Loose cable connection between the Electronic Front Drive and the Remote Receiver.

2. Broken wire on front wheel servo motor.

3. Properly insert plug and set locking ring. (See page 12) Properly insert plug and set locking ring. (See page 11, Figure 4)

4. Return to Kangaroo for repair.

Symptom Problem Solutions

My Electronic Front Drive wheel turns, but will not center exactly.

1. The front wheel is misaligned.

2. The centering sensor in the front wheel is inoperative.

1. Adjust the Centering Knob on the Remote Receiver. (See pages 23–24)

2. Return to Kangaroo for repair.

My Electronic Front Drive wheel will not return to center.

Steering motor timed-out. 1. Turn the Function Switch OFF

– wait 5 seconds.

2. Return to Kangaroo for repair.

My Electronic Front Drive wheel chatters and moves back and forth.

The centering sensor in the front wheel is inoperative.

Return to Kangaroo for repair.

My X-Series runs on fast speed only.

Circuit board inoperative. Return to Kangaroo for repair.

My AutoBrake does not function. Circuit board inoperative. Return to Kangaroo for repair.

My Motor is running but the wheels are not turning.

1. Transaxle gear train problem.

2. Axle pin / roll pin sheared.

Return to Kangaroo for repair.

TroubleshooTing

Symptom Problem Solutions

One of the rear wheels will not stay attached.

Bronze bushing in the center of the wheel may not be fully seated.

Gently tap the bushing back down to ensure it is seated in the hole as far down as it will go.

Flex-Adjust Bag Support keeps falling down.

1. Yoke Stop is broken.

2. Yoke Stop screw is broken.

1. Replace Yoke Stop.

2. Replace Yoke Stop Screw.

My X-Series gradually died as the round of golf progressed.

The battery is no longer capable of powering your X-Series an entire round. To be certain, swap batteries with a friend.

Replace the battery. KEEP YOUR BATTERY CONNECTED TOO THE KANOVA CHARGER AT ALL TIMES.

My battery seems okay but my X-Series was sluggish at the beginning of play, then died during my round. It also struggles on steep slopes.

Possible motor failure.

Is the motor hot to the touch?

If the motor is hot to the touch it will have to be serviced or replaced. It is normal for the motor feel warm.

Symptom Problem Solutions

My X-Series suddenly stopped during the round.

Possible broken battery wire. Check the battery wire clips. While

standing behind your X-Series, wiggle them to see if it will power up.

If your X-Series powers up, then you have a broken wire somewhere on your battery clips. To check the battery wires, open the crocodile clips and clip them onto an object ¾” thick so they are held in the open position. Then slide the black / red rubber covers back to inspect the metal clip. Solder the joint and wire or replace the battery wires.

TroubleshooTing

HINTS

If you still have problems after consulting this troubleshooting guide and following its directions, please call our Technical Service Department at 1-800-438-3011.

Important:

Kangaroo strongly recommends you contact Technical Service prior to making any repairs.

Always replace the Remote Transmitter 9 volt battery every 3 months with a good quality Alkaline 9 volt battery.

TRADE NAME: Remote Guidance System Receiver

MODEL NUMBER: RX600-840D

COMPLIANCE TEST REPORT NUMBER: B40609D1

COMPLIANCE TEST REPORT DATE: June 9, 2014

RESPONSIBLE PARTY (IN USA): Kangaroo Products Company

ADDRESS: 111 Kangaroo Drive, Columbus, NC 28722

TELEPHONE: (828) 436-2101

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.

If the unit does cause harmful interference to radio or television reception, please refer to your user’s manual for instructions on correcting the problem.

FCC/IC InFormatIon

INSTRUCTION TO THE USER

This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Consult the dealer or an experienced radio/TV technician for help.

Operation with non-approved equipment is likely to result in interference to radio and TV reception. The user is

cautioned that changes and modications made to the equipment without the approval of manufacturer could void

the user’s authority to operate this equipment.

Industry Canada Information

This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.

Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes : (1) l’appareil ne doit pas produire de brouillage, et (2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement.

Notes

Kangaroo Hillcrest ABX, Hillcrest MAX User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
