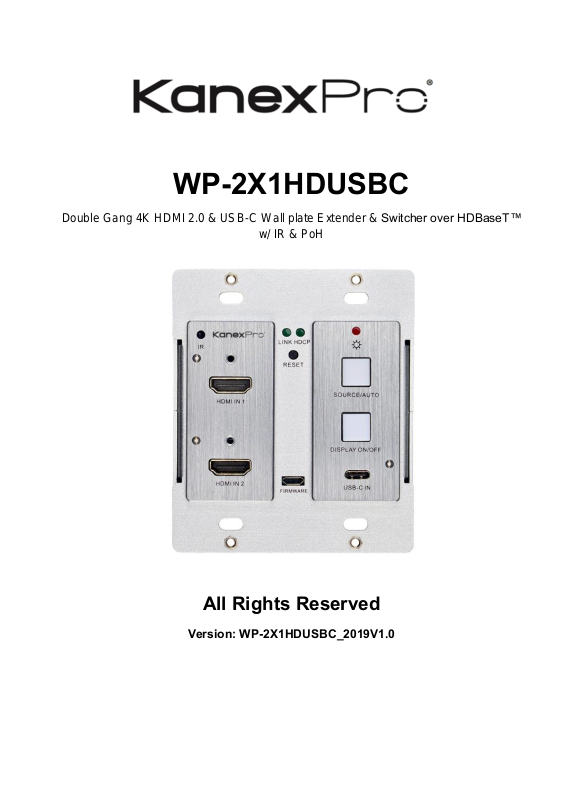

KanexPro WP-2X1HDUSBC User Manual

WP-2X1HDUSBC

Double Gang 4K HDMI 2.0 & USB-C Wall plate Extender & Switcher over HDBaseT™

w/ IR & PoH

All Rights Reserved

Version: WP-2X1HDUSBC_2019V1.0

3x1 Wall plate Extender & Switcher

Preface

Read this user manual carefully before using the product. Pictures shown in this
manual are for reference only. Different models and specifications are subject to real

product.

This manual is only for operation instruction, please contact the local distributor for
maintenance assistance. The functions described in this version were updated till
October, 2018. In the constant effort to improve the product, we reserve the right to
make functions or parameters changes without notice or obligation. Please refer to the

dealers for the latest details.

FCC Statement

This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications. It has been tested and found to comply with the limits for a
Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference in a commercial

installation.

Operation of this equipment in a residential area is likely to cause interference, in which
case the user at their own expense will be required to take whatever measures may be

necessary to correct the interference.

Any changes or modifications not expressly approved by the manufacture would void

the user’s authority to operate the equipment.

3x1 Wall plate Extender & Switcher

SAFETY PRECAUTIONS

To ensure the best performance from the product, please read all instructions carefully

before using the device. Save this manual for further reference.

⚫ Unpack the equipment carefully and save the original box and packing material for

possible future shipment.

⚫ Follow basic safety precautions to reduce the risk of fire, electrical shock and injury

to persons.

⚫ Do not dismantle the housing or modify the module. It may result in electrical shock

or burn.

⚫ Using supplies or parts not meeting the products’ specifications may cause

damage, deterioration or malfunction.

⚫ Refer all servicing to qualified service personnel.
⚫ To prevent fire or shock hazard, do not expose the unit to rain, moisture or install

this product near water.

⚫ Do not put any heavy items on the extension cable in case of extrusion.
⚫ Do not remove the housing of the device as opening or removing housing may

expose you to dangerous voltage or other hazards.

⚫ Install the device in a place with fine ventilation to avoid damage caused by

overheat.

⚫ Keep the module away from liquids.
⚫ Spillage into the housing may result in fire, electrical shock, or equipment damage.

If an object or liquid falls or spills on to the housing, unplug the module immediately.

⚫ Do not twist or pull by force ends of the optical cable. It can cause malfunction.
⚫ Do not use liquid or aerosol cleaners to clean this unit. Always unplug the power to

the device before cleaning.

⚫ Unplug the power cord when left unused for a long period of time.
⚫ Information on disposal for scrapped devices: do not burn or mix with general

household waste, please treat them as normal electrical wastes.

3x1 Wall plate Extender & Switcher

Table of Content

Product Introduction ........................................................................................................ 1

1.1 Features ............................................................................................................. 2

1.2 Package List ....................................................................................................... 3

2. Specification ................................................................................................................ 4

3. Panel Description ........................................................................................................ 5

3.1 Front Panel ......................................................................................................... 5

3.2 Rear Panel ......................................................................................................... 6

4. System Connection ..................................................................................................... 7

5. Button Control.............................................................................................................. 8

5.1 Source Switching ............................................................................................... 8

5.2 Display Control ................................................................................................... 8

6. RS232 Control ............................................................................................................. 9

6.1 RS232 Connection ............................................................................................. 9

6.2 RS232 Control Software .................................................................................. 12

6.3 RS232 Command ............................................................................................. 13

6.3.1 Device Control........................................................................................ 13

6.3.2 Source Switching ................................................................................... 14

6.3.3 Display Control ....................................................................................... 14

6.3.4 HDCP Mode ........................................................................................... 14

6.3.5 EDID Management................................................................................. 15

7. Button User-defined................................................................................................... 16

8. Panel Drawing ........................................................................................................... 18

9. Troubleshooting & Maintenance ................................................................................ 19

10. Customer Service .................................................................................................... 20

3x1 Wall plate Extender & Switcher

1

Introduction

The KanexPro WP-2XHDUSBC is a US Decora style double-gang, 3x1 Wall
plate transmitter and switcher designed to switch two HDMI®2.0 inputs and
one USB-C input to a remote display or a projector up to 131ft.(40m) at 4K/60
and 230ft.(70m) at 1080p/60 video and audio over single cat5e/6/7 cable. The
outputs are via HDBaseT port. It supports full 18 Gbps bandwidth with true 4K
video resolutions up to 4/60Hz, HDCP 2.2 compliant and will extend 4K up to
40m delivering color sampling rate of 4:4:4.

Control & PoH (Power over HDBaseT)

The wall plate transmitter can be easily controlled by selecting the “Source

/Auto” button on the front panel. By holding the button for 3 seconds, it will go

under auto switching mode and will auto-detect HDMI or USB-C inputs when
connected. It also supports CEC, which can turn the DISPLAY ON/OFF right
from the button on front panel for the far-end display device, and it can be
programmed by IR learning or RS232 command to ensure the compatibility
with various display devices. Moreover, 12V-48V PoH allows the switcher can
be powered from the compatible HDBaseT receiver and regulate the power
needed without adding another cumbersome power supply.

Applications:

Ideal for use with court rooms, classrooms, conference rooms or showrooms
where audio-visual devices can be extended from a remotely located HDMI/
USB-C source devices. The dual-gang HDMI wall plate can be used anywhere
to enhance signal integrity over CAT5e/6 cabling with powerful ON/OFF
display feature.

3x1 Wall plate Extender & Switcher

2

1.1 Features

▪ US Decora Style, Double-Gang HDMI® 2.0 & USB-c wall plate over

HDBaseT™

▪ Supports HDMI signal up to 4K@60Hz 4:4:4,
▪ USB-C video signal up to 4K@30Hz 4:4:4.
▪ EDID & HDCP 2.2 compliant
▪ Active input automatic detective.
▪ Extend 4K/60 w/ 4:4:4 up to 40 meters (130ft.)
▪ Extend 1080p/60 w/ 4:4:4 up to 70 meters (230 ft.)
▪ Supports the latest HDMI 2.0 Specs with 18 Gbps bandwidth
▪ Digital Audio Support up to 7.1 channels of HD audio
▪ Supports RS232 pass-through with HDBaseT connection and local

control.

▪ Supports IR pass-through to extend IR signal to control display device.
▪ Display On/Off button can be programmed by IR learning feature or via

RS232 command

▪ HDBaseT port supports 12V-48V PoH input, the switcher can be powered

from the compatible HDBaseT receiver by the CATx cable

▪ Provides external 12V DC power supply for other devices
▪ Firmware upgrade by Micro-USB port
▪ Bi-directional IR & RS-232C
▪ Simple point-to point transmission over CAT5e/6
▪ Active LED status indicators

3x1 Wall plate Extender & Switcher

3

1.2 Package List

⚫ 1x Wall plate Transmitter Extender
⚫ 3x 2-pin Terminal Block
⚫ 1x 3-pin Terminal Block
⚫ 1x Power Adapter (24V 1.25A)
⚫ 1x User Manual

Note: Please contact KanexPro at [e-mail] or your distributor
immediately if any damage or defect in the components is found.

3x1 Wall plate Extender & Switcher with HDMI 2.0 and USB-C

4

2. Specification

Input

Input

(2) HDMI, (1) USB-C (Slimport)

Input Connector

(2) Type-A female HDMI, (1) USB-C

HDMI Input Resolution

Up to 4K@60Hz 4:4:4

Slimport Input Resolution

Up to 4K@30Hz 4:4:4

Output

Output

(1) HDBT OUT

Output Connector

(1) RJ45

HDBT Output Resolution

Up to 4K@60Hz 4:4:4

Control

Control Ports

(1) IR, (1) FIRMWARE, (1) RS232, (1) IR IN

Control Connector

(1) Built-in IR sensor, (1) Micro-USB,
(1) 3-pin terminal block, (1) 2-pin terminal block

General

Bandwidth

18Gbps

Transmission Mode

HDBaseT

HDMI Version

2.0

HDCP Version

2.2

Transmission Distance

4K@60Hz ≤ 40M, 1080P@60Hz ≤ 70M

External Power Supply

Input:100V~240V AC; Output: 24VDC 1.25A

Power Consumption

22W (Max)

Operation Temperature

-10℃ ~ +55℃

Storage Temperature

-25℃ ~ +70℃

Relative Humidity

10% ~ 90%

Dimension (W*H*D)

3.5" x 4.0" x 1.7"

Net Weight

0.62 lbs. (285g)
