Page 1
! ! SW-HD3X14K!
SW-HD3X14K
3x1 HDMI Switcher with 4K Support
Page 2
! ! SW-HD3X14K!
Table of Contents
!
1. Introduction .................................................................................................................................. 1
1.1. Introduction to SW-HD3X14K ...................................................................................... 1
1.2. Features ...................................................................................................................... 1
1.3. Package Contents ....................................................................................................... 1
1.4. Specifications .............................................................................................................. 2
1.5. 3X1 Switch Operation controls and functions .............................................................. 3
1.6. Application Example .................................................................................................... 5
1.7. Remote Control Functions ........................................................................................... 6
2. Warranty ...................................................................................................................................... 7
!
!
!
!
!
!
!
!
!
Page 3
! ! SW-HD3X14K!
!
1!
1. Introduction
1.1. Introduction to SW-HD3X14K
The KanexPro 3x1 HDMI Switcher is a compact three input to one output switch providing 4K
ultra-HD resolutions. It is a simple switcher designed to connect five HDMI sources such as
Apple TV, Blu-ray, PS4 or Xbox one to your 4K, HDTV or a projector. Perfect for home
theater and pro-sumers looking to connect HDMI based devices to an Ultra-HDTV.
1.2. Features
▪ Rapidly switch between 5 inputs to one output
▪ Supports resolutions up to 4K@30Hz
▪ Full HD 1080p & 1920x1200
▪ HDCP and EDID Compliant
▪ Supports all 3D formats
▪ Ultra-low power consumption, does not require a power supply
▪ Switch using a manual button or included IR remote
▪ Supports High Speed HDMI Specifications - (Deep color, HD lossless audio formats
& Lip Sync)
▪ Audio support: Dolby TrueHD, DTS-HD Master Audio 7.1ch
▪ Supports uncompressed audio such as LPCM and compressed audio such as DTS
Digital, Dolby Digital (including DTS-HD and Dolby True HD)
▪ Front-panel LED’s for input/ output signal presence
▪ Ultra compact design
▪ 5VDC external power supply included
IR / Remote control included
1.3. Package Contents
▪ HDMI 1.4 3x1 Switcher
▪ 5V Power Supply cable
▪ Remote control IR Receive Extend cable
▪ Operation Manual
Page 4
! ! SW-HD3X14K!
!
2!
1.4. Specifications
Signal Input/Outputs:
▪ Input DDC Signal: 5 Volts p-p (TTL)
▪ Input & Output Signal: High Speed HDMI Spec 1.4a
Operating Frequency: Vertical Frequency Range: 50/60Hz
Video Amplifier Bandwidth: 2.95 Gbps per Channel
Resolutions:
▪ (HDTV) Interlaced (50&60Hz): 480i, 576i, 1080i
▪ Progressive (50&60Hz): 480p, 576p, 720p, 1080p & 4K@30Hz
IR specs: Input Ports: 5 HDMI Female ports, IR Receive port
Power Requirements:
▪ Power Consumption: 0.2W
▪ External Power Supply: 5V DC @ 2A
Regulatory Approvals:
▪ Converter Unit: FCC, Ce, UL
▪ Power Supply: UL, Ce, FCC
Environment Operating Temperature:
▪ Operating Temperature: 0°C ~ 40°C / 32°F ~ 104°F
▪ Storage Temperature: -20°C ~ 60°C / -4°F ~ 140°F
Dimensions: W 3.0" x D 2.0" x H1.70"
Weight: 1.80 ounces
Warranty: Limited 1-Year Parts & Labor
Page 5
! ! SW-HD3X14K!
!
3!

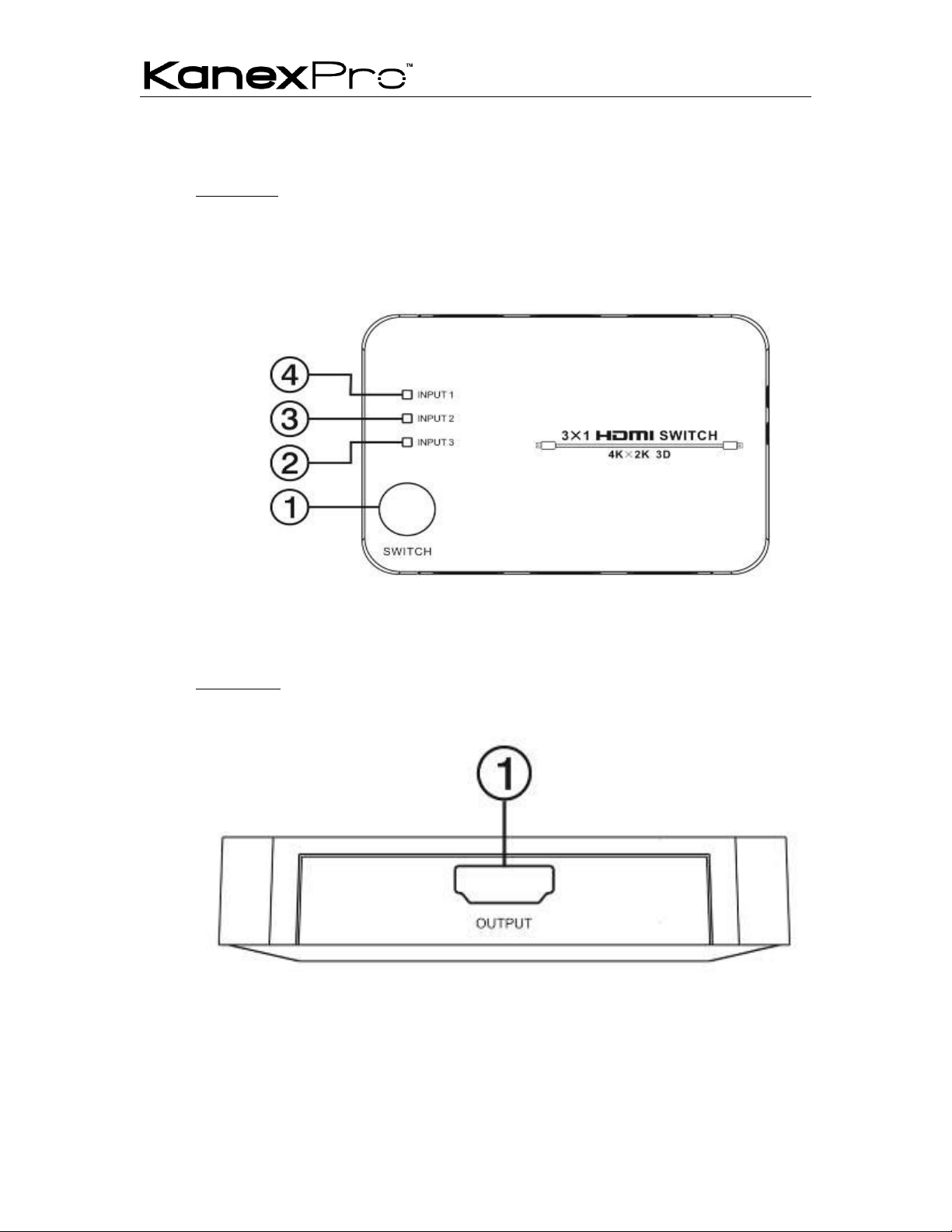

1.5. 3X1 Switch Operation controls and functions
Face Panel: ①Switch button, press this button to switch the input source
②③④LED indicator, Indicates the HDMI input port selected corresponding to the LED
light
!
!
!
!
!
Front Panel: HDMI output port, connect with HDTV, monitor, or projector with HDMI cable
Page 6
! ! SW-HD3X14K!
!
4!

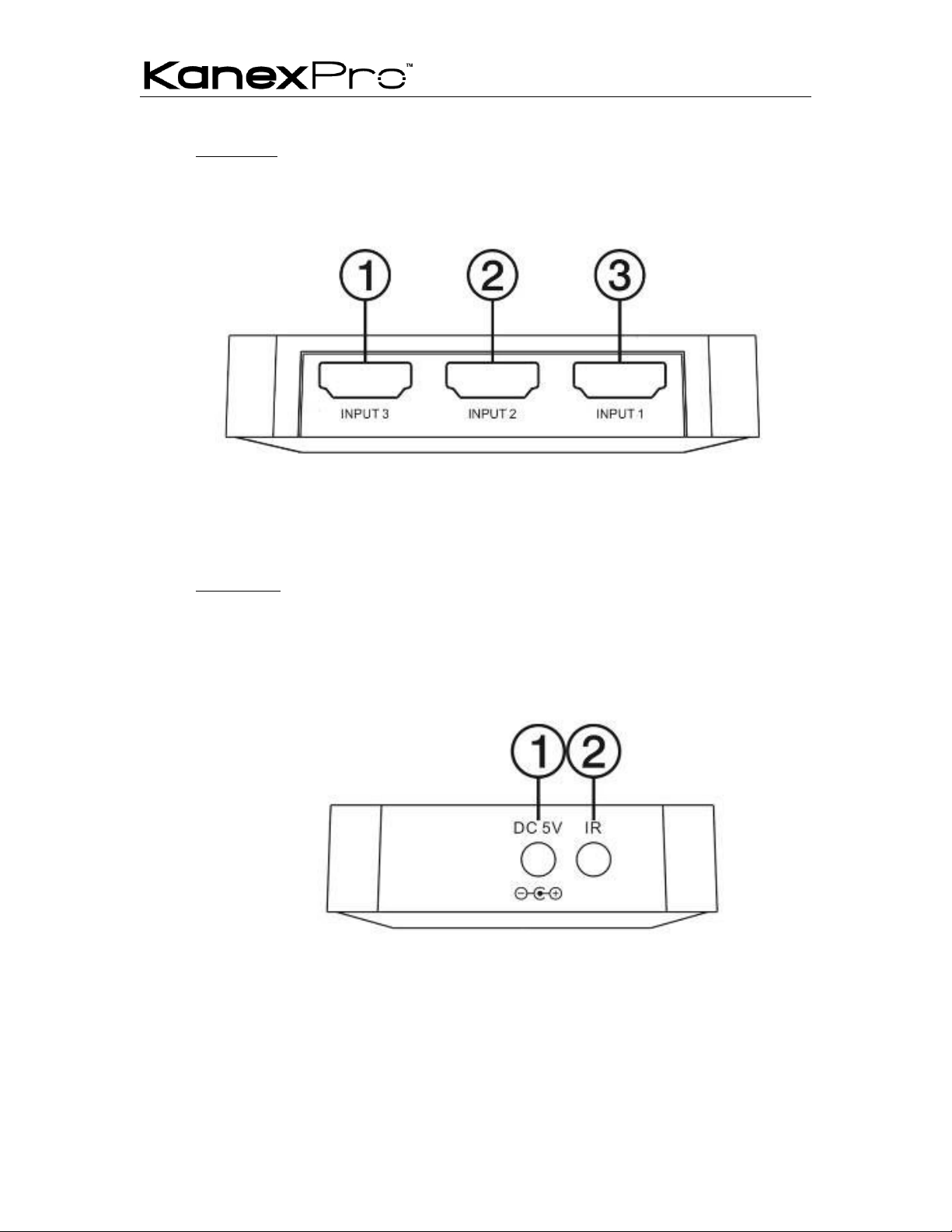

Rear Panel: HDMI input port, connect with Blu-ray Player, PS4, Cable Box, Laptop, and
Xbox One with HDMI cable
!
!
!
!
!
!
!
!
Right Panel: ① DC 5V input port; ② IR receiver port: connect an IR extension cable and
receive the IR Remote signal
!
!
!
Page 7
! ! SW-HD3X14K!
!
5!
!

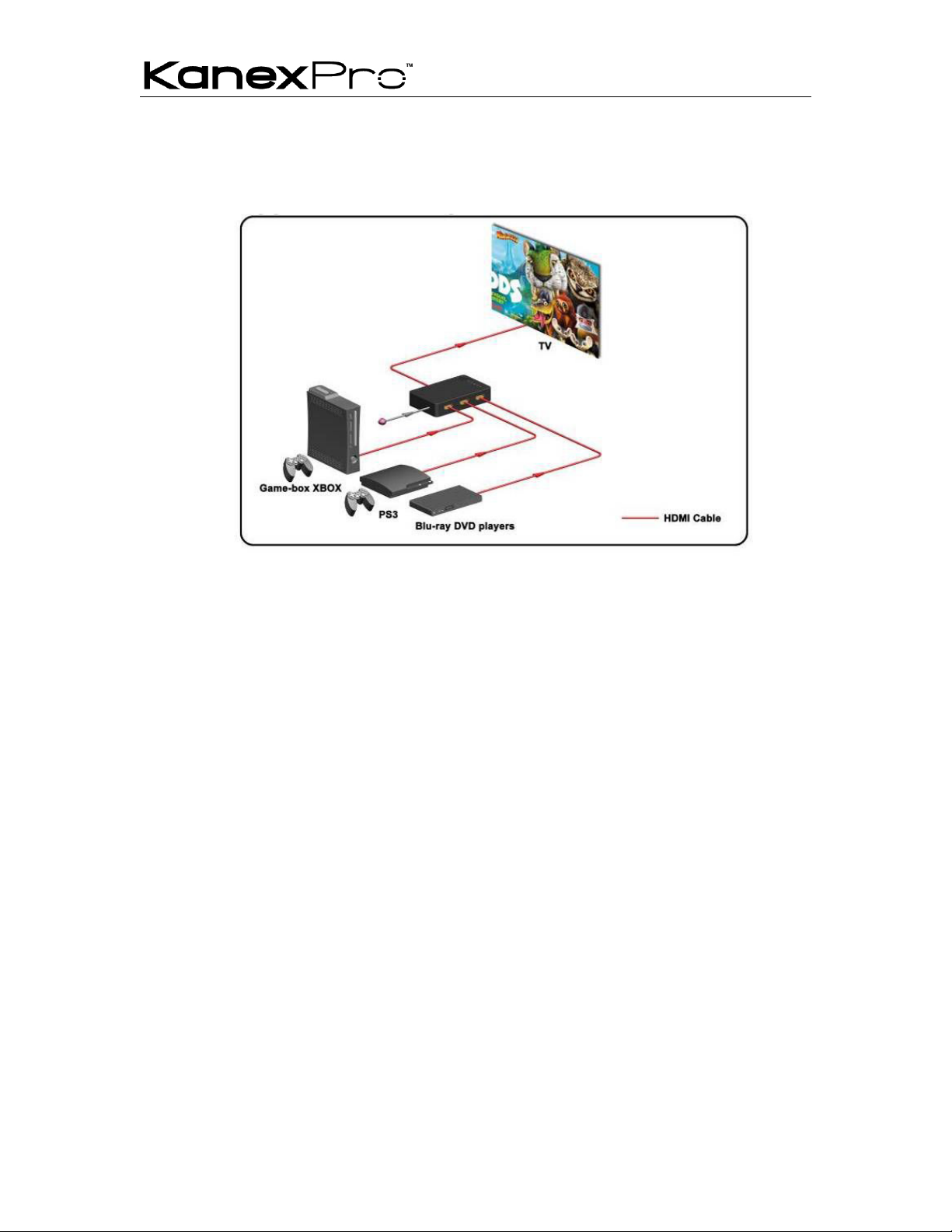

1.6. Application Example (3X1 Switch)
!
!
Page 8
! ! SW-HD3X14K!
!
6!

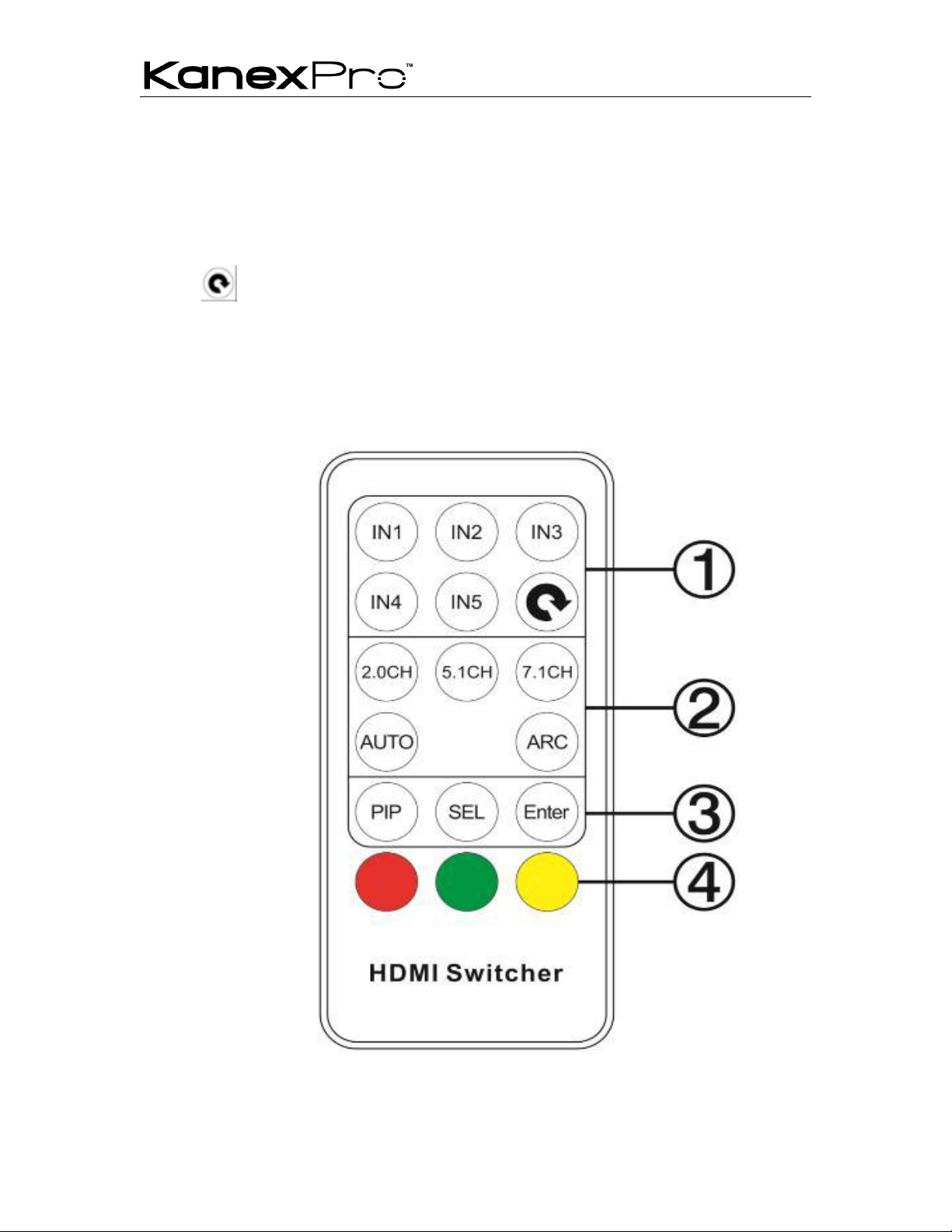

1.7. Remote Control Functions
① IN1, IN2, IN3, IN4, & IN5: Press any of these buttons to force switch the input port.
The LED light will indicate the corresponding input source.
*Note: IN4, IN5 in 3X1 Switch product has not function*
: Press this button to cycle switch between the input source(s). The LED light will
indicate the corresponding input source.
②③④: These color-coated buttons have no function.
!
!
!
!
!
!
Page 9
! ! SW-HD3X14K!
!
7!
2. Warranty
KanexPro TM warrants that (a) its products (the “Product”) will perform greatly in agreement
with the accompanying written materials for a period of 3 years from the date of receipt and
(b) that the product will be free from defects in materials and workmanship under normal use
and service for a period of 3 years.
B. CUSTOMER REMEDIES
KanexPro’s entire liability and Customer’s exclusive remedy shall be, at KanexPro option,
either return of the price paid for the product, or repair or replacement of the Product that
does not meet this Limited Warranty and which is returned to KanexPro with a copy of
customers’ receipt. This Limited Warranty is void if failure of the Product has resulted
from accident, abuse, or misapplication. Any replacement Product will be warranted for
the remainder of the original warranty period or 90 days whichever is longer.
C. NO OTHER WARRANTIES
TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, KANEX DISCLAIMS
LL OTHER WARRANTIES, EITHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT
LIMITED TO IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE, WITH REGARD TO THE PRODUCT AND ANY RELATED
WRITTEN MATERIALS. THIS LIMITED WARRANTY GIVES CUSTOMERS SPECIFIC
LEGAL RIGHTS. CUSTOMERS MAY HAVE OTHER RIGHTS DEPENDING ON THE
JURISDICTION.
D. NO LIABILITY FOR DAMAGES
TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, IN NO EVENT
SHALL KANEX BE LIABLE FOR ANY DAMAGES WHATSOEVER (INCLUDING
WITHOUT LIMITATION, SPECIAL, INCIDENTAL, CONSEQUENTIAL, OR INDIRECT
DAMAGES FOR PERSONAL INJURY, LOSS OF BUSINESS PROFITS, BUSINESS
INTERRRUPTION, LOSS OF BUSINESS INFORMATION, OR ANY OTHER
PECUNIARY LOSS) ARISING OUT OF THE USE OF OR INABILITY TO USE THIS
PRODUCT, EVEN IF KANEX HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH
DAMAGES.
!
!
!
!
!
! Brea, California
KanexPro.com
MPN: SW-HD3X14K
