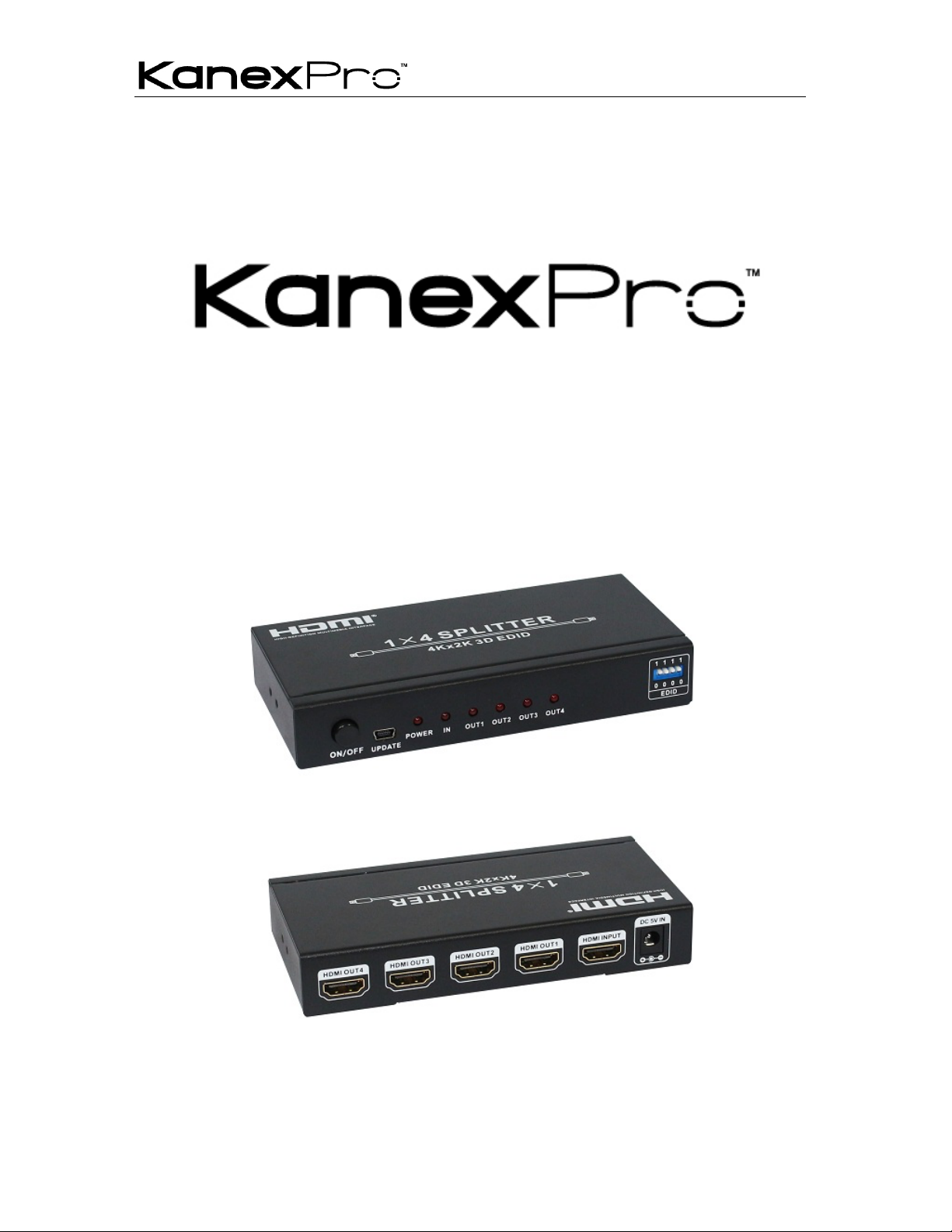

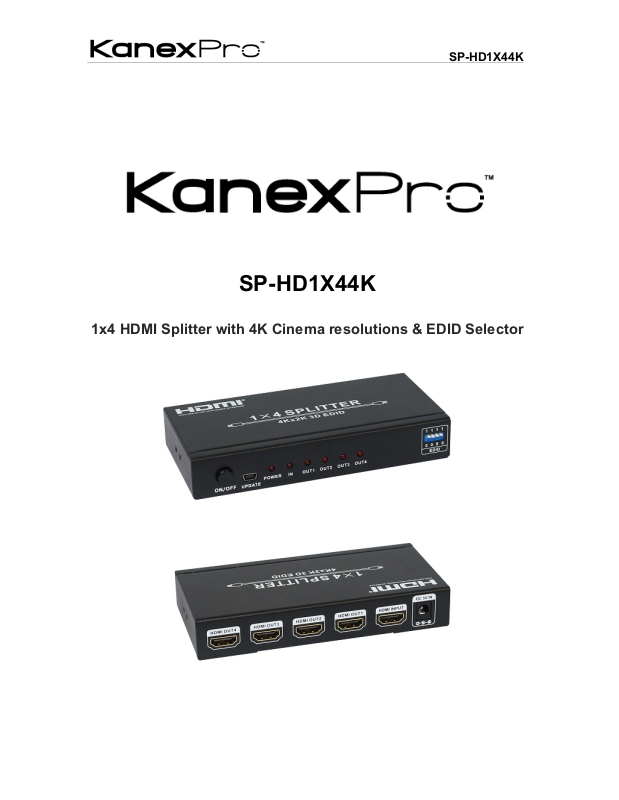

1x4 HDMI Splitter with 4K Cinema resolutions & EDID Selector

Page 2

! ! SP-HD1X44K!

! ! ! ! ! ! ! ! !

Table of Contents

1. Introduction .................................................................................................................................. 1

1.1. Introduction to SP-HD1X44K ....................................................................................... 1

1.2. Features ...................................................................................................................... 1

1.3. Package Contents ....................................................................................................... 1

1.4. Specifications .............................................................................................................. 2

1.5. Operation controls and functions ................................................................................. 3

1.6. Application Example .................................................................................................... 4

2. Warranty ...................................................................................................................................... 5

! ! ! ! ! ! !

Page 3

! ! SP-HD1X44K!

1. Introduction!

1.1. Introduction to SP-HD1X44K!

The KanexPro 1x4 HDMI Splitter is a 4K@30Hz compliant distribution amplifier lets you

duplicate one HDMI source to four displays without losing signal integrity and resolution.

The Ultra HD 4K format on the HDMI splitter ensures astounding picture quality, four times

the resolution of high-definition 1080p at 30 Hz. This HDCP compliant splitter is also

backward compatible with previous HDMI revisions, supporting 1080p / 720p HDMI video

resolution devices. Even if you don't require 4K video today, it ensures you'll be ready to take

advantage of tomorrow's display technology.

1.2. Features

! Distribute high-resolution HDMI signals with audio to four Ultra HD displays

! Supports full 3D and 4Kx2K resolution

! Supports full HD 1080p (1920 x 1080@60Hz)

! Computer resolution up to WUXGA (1920 x1200@60Hz)

! EDID mode for copying the same resolution to input port

! Supports 5.1, 7.1 Digital Audio and uncompressed LPCM

! HDCP & CEC compliant

! Supports latest HDMI High Speed Specifications

! Supports 12-bit per channel (36-bit all channel) Deep color

! Front USB ports for firmware update

! Compact metal enclosure

1.3. Package Contents

! HDMI Splitter

! 5V, 1A DC power supply

! Manual

Page 4

! ! SP-HD1X44K!

1.4. Specifications!

Signal Inputs/Output:

! Input DDC Signal: 5 volts p-p (TTL)

! Maximum Single Link Range: 4K x 2K@30Hz

! Output Video: HDMI 1.4 with full HD 1080p, 1920x1200, 720p, 3D and 4Kx2K +

HDCP

! CEC - Pass through enabled

Operating Frequency:

! Vertical Frequency Range: 50/60Hz

! Video Amplifier Bandwidth: 2.97 Gbps

Resolutions (HDTV):

! Interlaced (50&60Hz): 480i, 576i, and 1080i

! Progressive (50&60Hz): 480p, 576p, 720p, 1080p, and 4Kx2K@30Hz

Power Requirements:

! External Power Supply: 5V DC@ 1A

! Power consumption (Max): 5W

Mechanical:

! Size (L-W-H): 5.7"x2.7"x0.98"

! Weight: 0.27 lbs. (25g)

Environment:

! Operating Temperature: 0°C ~ 40°C / 32°F ~ 104°F

! Storage Temperature: -20°C ~ 60°C / -4°F ~ 140°F

Limited Warranty: 1-Year Parts & Labor

Page 5

! ! SP-HD1X44K!

1.5. Operation Controls and Functions!

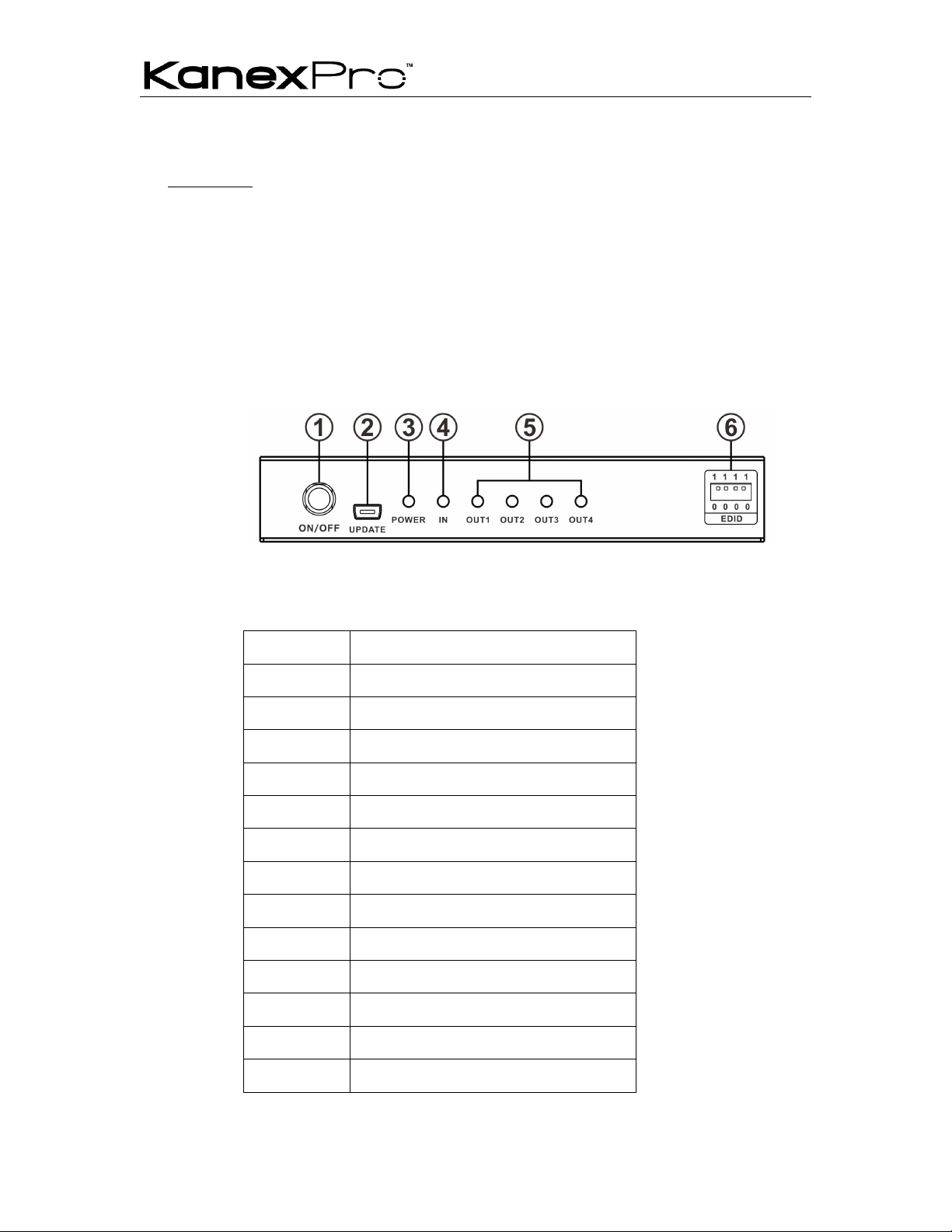

Front Panel:

① On/Off: Power on/off switch

② Update: System software update

③ Power LED: This red LED will illuminate when the device is connected with power supply

④ Input LED: This red LED will illuminate when the HDMI Input port is connected to a device

⑤ Output LED: These red LEDs illuminate when a 4KTV/Display is connected to its

corresponding HDMI Output Port

⑥ EDID Selector: Select HDMI output signal format via EDID Selector

Position

EDID Description

0000

Copy EDID from HDMI OUT1

0001

1080p, 2CH AUDIO

0010

1080p, DOLBY/DTS 5.1

0011

1080p, HD AUDIO

0100

1080i, 2CH AUDIO

0101

1080i, DOLBY/DTS 5.1

0110

1080i, HD AUDIO

0111

3D, 1080p, 2CH AUDIO

1000

3D, 1080p, DOLBY/DTS 5.1

1001

3D, 1080p, HD AUDIO

1010

4Kx2K, 2CH AUDIO

1011

4Kx2K, DOLBY/DTS 5.1

1100

4Kx2K, HD AUDIO

Page 6

! ! SP-HD1X44K!

1101

1080p, 2CH AUDIO

1110

1080p, 2CH AUDIO

1111

Auto Compare HDMI OUT EDID

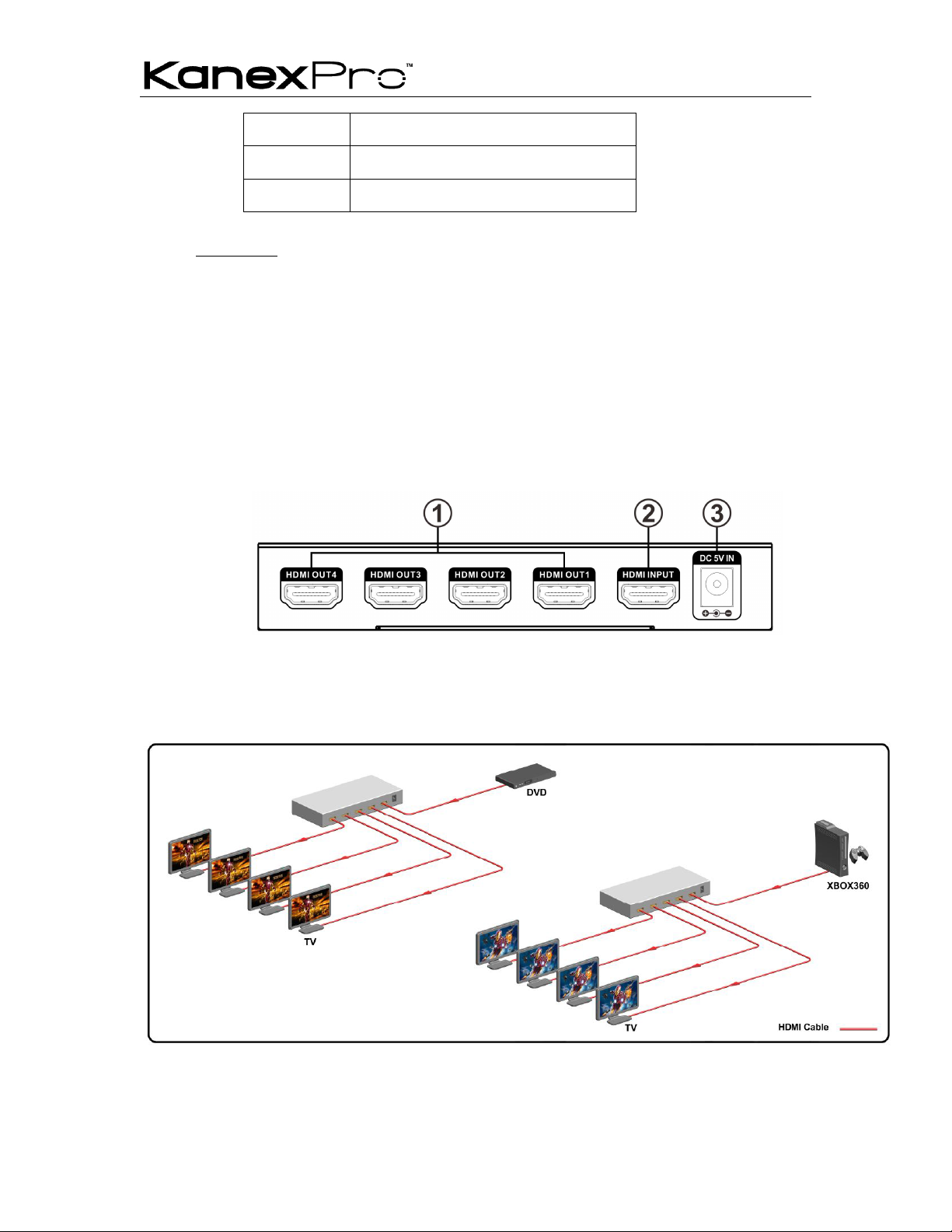

Rear Panel:

① HDMI OUTPUT: These slots are where you connect the 4KHDTVs or monitors with

HDMI cables

② HDMI INPUT: This slot is where you will connect a HDMI device like a Blu-Ray

Player, PS4, Cable Box, Laptop, or Xbox One

③ DC 5V: Plug the 5V DC power supply into the unit and connect the adapter to an AC

wall outlet

1.6. Application Example

Page 7

! ! SP-HD1X44K!

2. Warranty
