Page 1
EXT-AVIP120MRX
USER MANUAL
L
HDMI® Video Over IP Decoder Kit up to 120m
All Rights Reserved
Version: EXT-AVIP120MRX_2017V1.2
Preface
Read this user manual carefully before using this product. Pictures displayed in this
manual are for reference only. Different models and specifications are subject to
the actual product.
This manual is only for operational instruction, not for any maintenance usage. The
functions described in this version are updated till June 2016. Any changes of
functions and parameters since then will be informed separately. Please refer to
the dealers for the latest details.
All product function is valid till 2017-6-2.
Trademarks
Product model and logo are trademarks. Any other trademarks mentioned in this
manual are acknowledged as the properties of the trademark owner. No part of this
publication may be copied or reproduced without the prior written consent.
FCC Statement
This equipment can generate, use, and radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful
interference to radio communications. It has been tested and found to comply with
the limits of a Class B digital device, pursuant to part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful interference in
a commercial installation.
Operation of this equipment in a residential area is likely to cause interference, in
which case the user at their own expense will be required to take whatever
measures may be necessary to correct the interference
Any changes or modifications not expressly approved by the manufacture would
void the user’s authority to operate the equipment.
1
Page 2
KanexPro EXT-AVIP120M KanexPro EXT-AVIP120M
SAFETY PRECAUTIONS
To ensure the best from the product, please read all instructions carefully before
using the device. Save this manual for further reference.
Unpack the equipment carefully and save the original box and packing material
for possible future shipment.
Follow basic safety precautions to reduce the risk of fire, electrical shock and
injury to persons.
Do not dismantle the housing or modify the module. It may result in electrical
shock or burn.
Using supplies or parts not meeting the products’ specifications may cause
damage, deterioration or malfunction.
Refer all servicing to qualified service personnel.
To prevent fire or shock hazard, do not expose the unit to rain or moisture. Do not
install this product near water.
Do not place any heavy items on the extension cable in case of extrusion.
Do not remove the housing of the device as opening or removing housing may
expose you to dangerous voltage or other hazards.
Install the device in a place with fine ventilation to avoid damage caused by
overheating.
Keep the module away from liquids.
Spillage into the housing may result in fire, electrical shock, or equipment
damage. If an object or liquid falls or spills on to the housing, unplug the module
immediately.
Do not twist/pull by force the ends of the optical cable. It can cause malfunction.
Do not use liquid or aerosol cleaners to clean this unit. Always unplug the power
cord to the device before cleaning.
Unplug the power cord when left unused for a long period.
Information on disposal for scrapped devices: Do not burn or mix with general
household waste; please treat the devices as normal electrical waste.
2

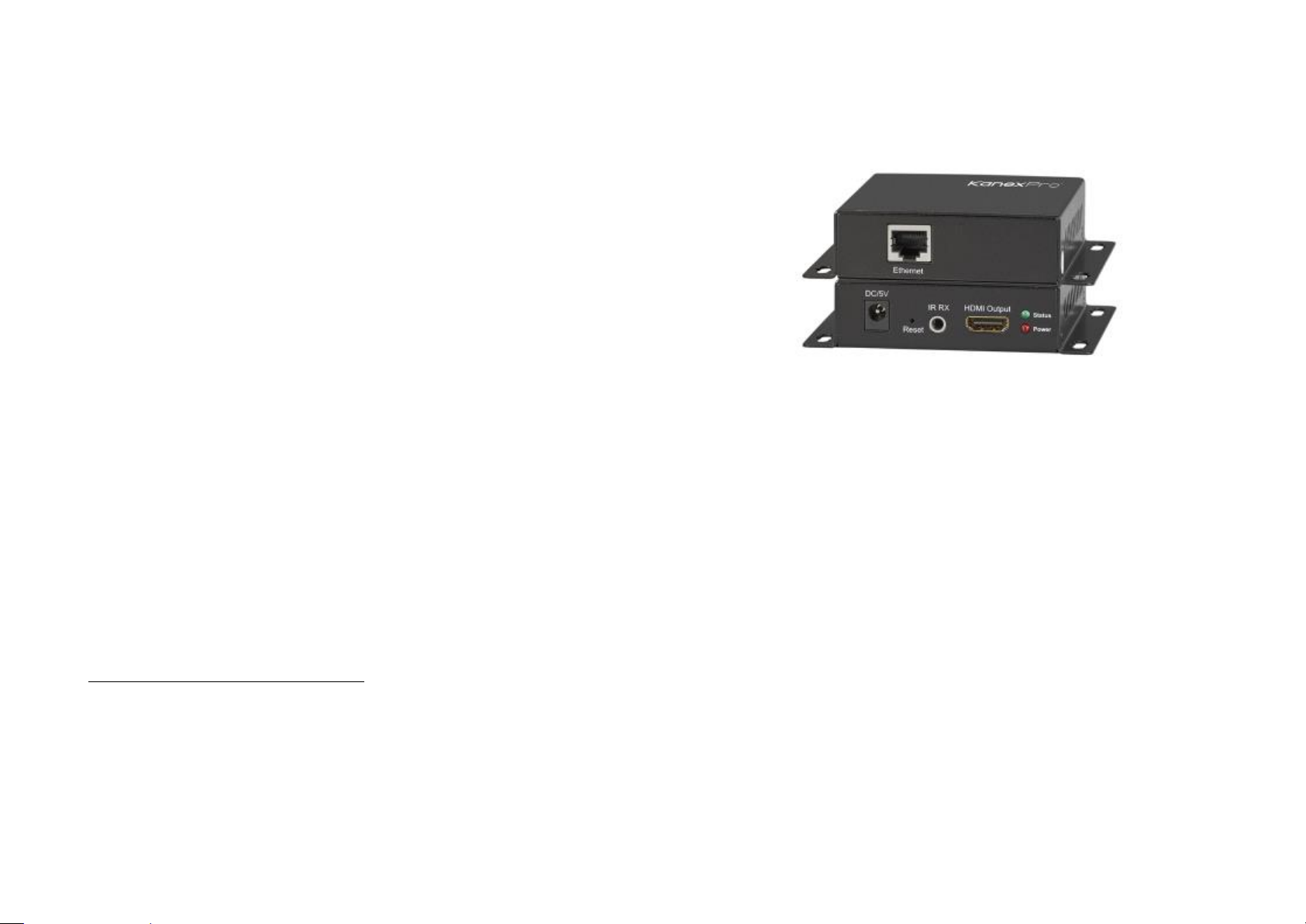

HDMI Extender over Ethernet
Dear Customer
Thank you for purchasing this product. For optimum performance and safety,
please read these instructions carefully before connecting, operating, or adjusting
this product. Please keep this manual for future reference.
NOTICE
Our company reserves the right to make changes in the hardware, packaging and
any accompanying documentation without prior written notice.
Page 3
KanexPro EXT-AVIP120M KanexPro EXT-AVIP120M
Table of Contents
1. Introduction .................................................................................................................. 5
1.1 Introduction to EXT-AVIP120MRX .................................................................... 5
1.2 Features ............................................................................................................ 5
1.3 Package List...................................................................................................... 5
2. Panel Description ..................................................................................................... 6-7
3. System Connection ..................................................................................................... 8
3.1 Usage Precautions ............................................................................................ 8
3.2 System Diagram........................................................................................... 8-10
3.3 Connection Procedure ............................................................................... 11-12
4. Specifications............................................................................................................. 13
5. Troubleshooting & Maintenance ................................................................................ 14
6. After-sales Service..................................................................................................... 15
7. Warranty .................................................................................................................... 16
4
1. Introduction
1.1 Introduction to EXT-AVIP120MRX
The KanexPro NetworkAV 120M Receiver is a simple and cost-effective decoder
(receiver) which lets you extend full HD 1080p/60 HDMI signals from the encoder
remotely over IP up to 120 meters. The IP Decoder can be used as end to join
multitude of displays when connected on the IP network. This HDCP compliant
decoder can also be cascaded or daisy-chained to many layers by adding a 10G
Ethernet switches supporting TCP/IP protocols
1.2 Features
• AV over IP Decoder only
• Extends 1080p HDMI signals up to 120m over a single UTP CATx cable
• Supports Point-to-Point, Point-to-Many and Many-to-Many network
configurations
• HDCP compliant
• Can be cascaded for many layers by adding 10G more Ethernet switches
• With wideband IR (38-56kHz) control to the source
• Support TCP/IP protocol
• Metal enclosure built with mounting ears
• 5 V DC power supplies included
1.3 Package List
• Receiver
• Power adapter DC 5V/1A
• IR-RX cable
• Operating Instructions
Notes: If there are defective parts or parts are missing, please contact your local
dealer(s).
Page 4
KanexPro EXT-AVIP120M KanexPro EXT-AVIP120M
5

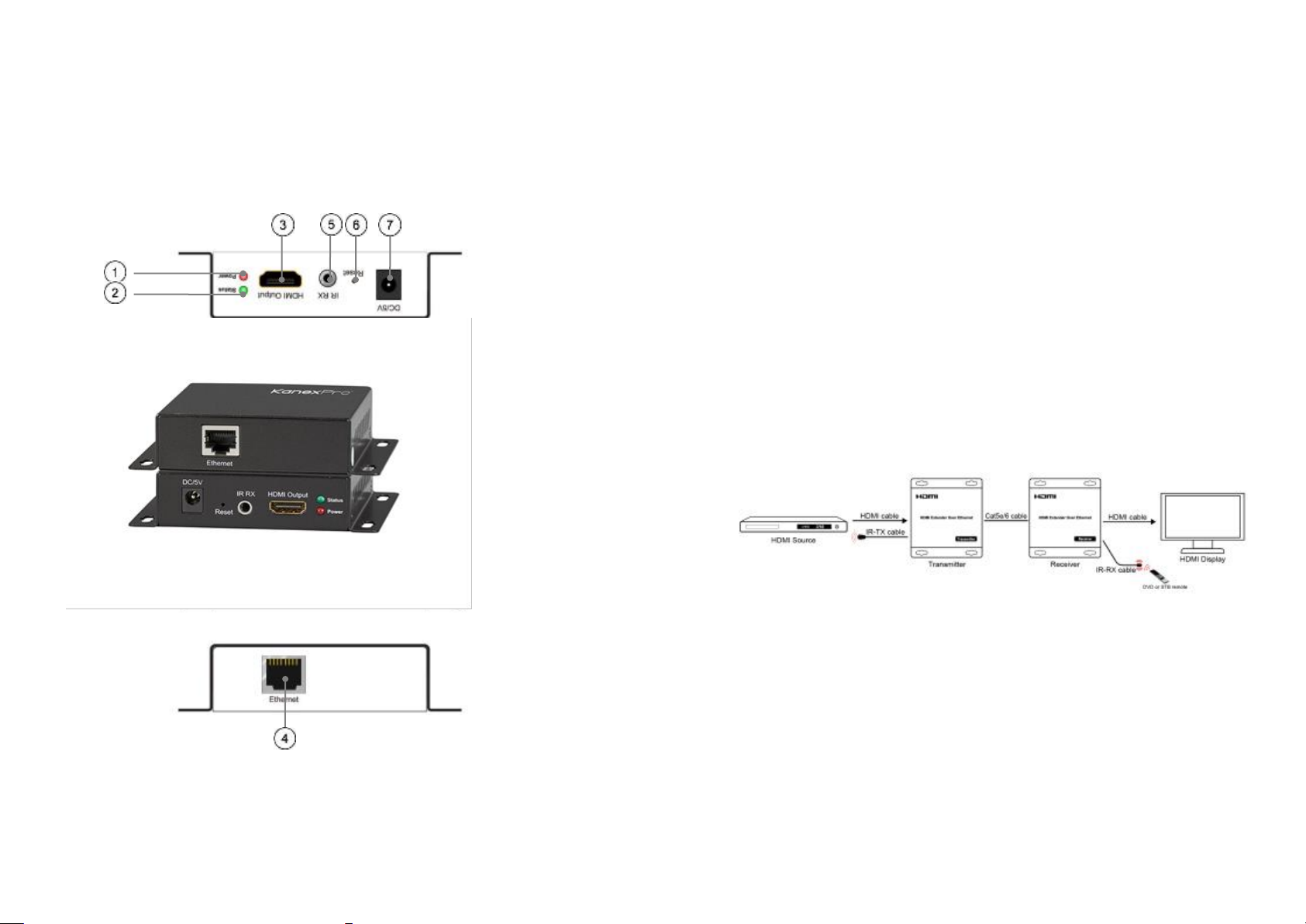

2. PANEL DESCRIPTION – Receiver Panel Description
Receiver Panel Description
Receiver Panel
① Indicator of power input
② Status of signal connection
③ HDMI output
④ Ethernet port
⑤ IR-RX port
⑥ Reset button
⑦ Power input port
7
3. System Connection
3.1 Usage Precautions
1) System should be installed in a clean environment, which should have a proper
temperature and humidity.
2) All the power switches, plugs, sockets and power cords should be insulated
and safe.
3) All devices should be connected before powered on.
4) System Diagram shown in this manual is for reference only; more specific
schemes depend on real-time applications.
3.2 System Diagram
1) One-to-One
Page 5
KanexPro EXT-AVIP120M KanexPro EXT-AVIP120M
8

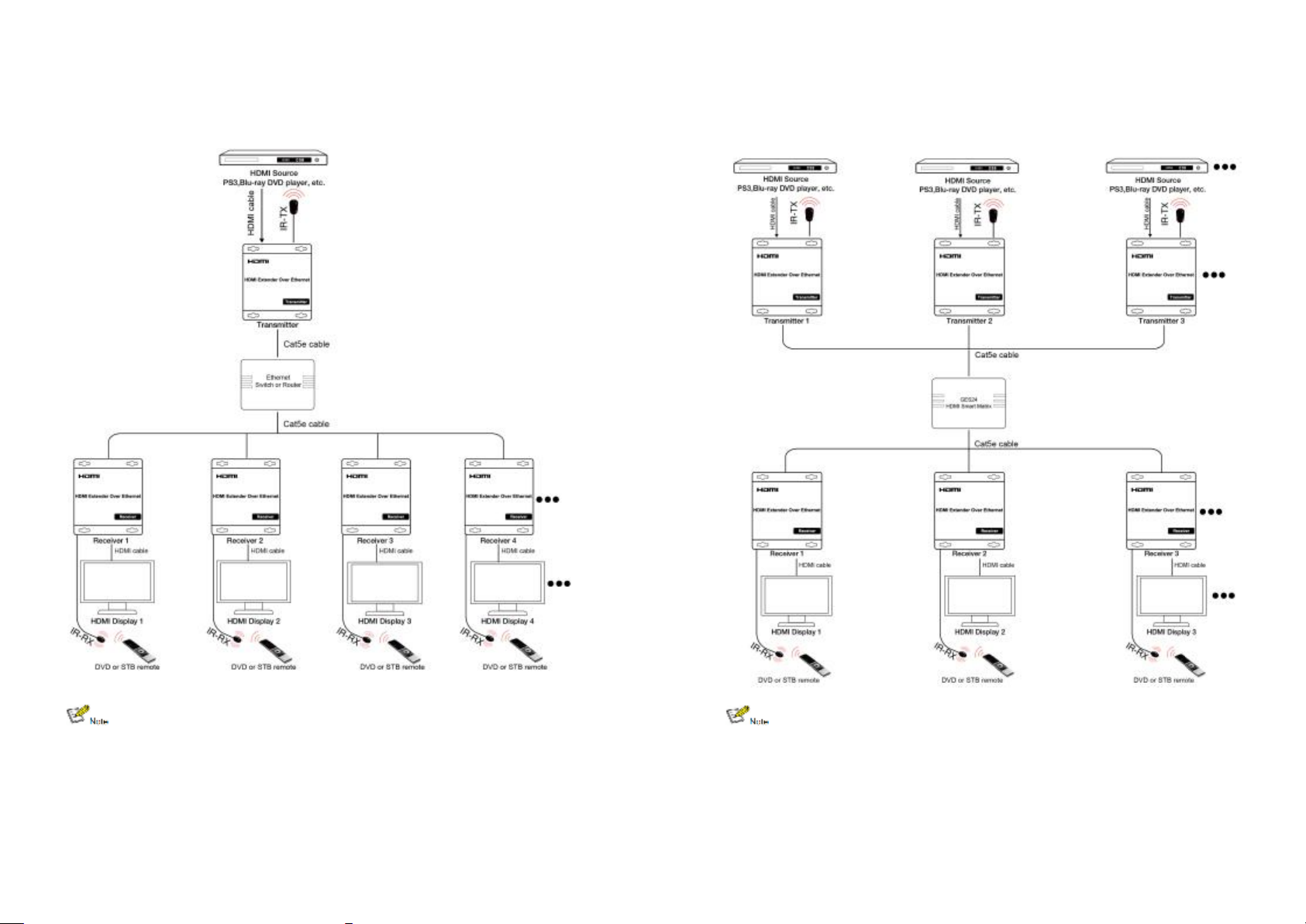

2). One-to-Many
Connect HDMI Transmitter port and Receiver ports to the Ethernet
Switch
9
3). Many-to-Many
1. Connect HDMI TX ports with GES24 port, also connect HDMI RX ports with
GES24 ports. (GES24 is a specified Vlan switch for this extender).
2. A HTTP server is embedded in TX and RX, you can setup IP address for RX via
web browser. Please refer to "Setup HDMI TX and RX" in page 8.
Page 6
KanexPro EXT-AVIP120M KanexPro EXT-AVIP120M
10
3.3 Connection Procedure
Setup HDMI TX and HDMI RX
A HTTP server is embedded in each TX and RX. you can setup IP address for HDMI
extender via web browser.
The default IP address of the TX is 192.168.168.55, MAC address is:
00:0b:78:00:60:01.
The default IP address of the RX is 192.168.168.56, MAC address is:
00:0b:78:00:60:02.
Step 1: Assign the PC (or laptop) IP address on the computer: “Control Panel”→”
Network Connections”→“Local Area Connections
Status”→“Properties”→“Internet Protocol (TCP/IP)”, Type the IP address field
with 192.168.168.11 (0-255) and Subnet mask with 255.255.255.0. After that
press OK to save the configuration.
Note: The IP address of PC should be different from the IP address of TX and
RX.
Step 2: Use an Ethernet Cable to connect the PC (or laptop) and the extender. the
power LED for the extender is red and the status LED becomes green.
Step 3: please Ping the connected device through the sequence on computer:
“Start”→ “Run”→ input “CMD”→ input “ping 192.168.168.55” for TX or input
“ping 192.168.168.56” for RX, you will receive the reply if the connection is
established.
Step 4: Login in IE :192.168.168.55 (default IP for TX) or 192.168.168.56(default
IP for RX), You can setup IP address, subnet mask, gateway, and MAC
address for the TX and RX.
Please set IP address for each TX and each RX, IP:192.168.168.XX
(XX:1-255. all IP address for TX and RX must be different .
Please set MAC address for TX and RX, MAC:00:0b:78:XX:XX-XX (XX:01-FF),
The MAC address for each TX and each RX must be different .
Step 5: After click “Apply” button, the green LED light on the device will go out, you
have successfully set IP address for TX and RX now.
Note: if you need to restore the device to it’s factory default settings, please power
on the device, the red light becomes lighting, waiting about 10 seconds, the green
LED light starts working, at this time to press the reset button about 5-10 seconds,
then the green light will go out, you have successfully restored IP address to
factory IP address now.
Connection Procedure
1) Connect the HDMI signal source (Such as DVD, STB, etc.) to HDMI Transmitter.
11
4. Specifications
Note1: Specifications are subject to change without notice. Mass and dimensions
are approximate.
Note2: one TX to many RX or many TX connect to many RX, IP and MAC address
must be different.
Operating Temperature Range
-5 to +35℃ (+23 to +95℉)
Operating Humidity Range
5 to 90%RH (No Condensation)
Input Video Signal
0.5-1.0 Volts P-P
Input DDC Signal
5 volts p-p(TTL)
Support Video Format
DTV/HDTV:480i/576i/480P/576P/720P/1080i/1080P
Video Output
HDMI
Transmission Distance
1080P 8-bit 120m(Maximum) over single CAT5E/6
/24AWG/Solid
Power consumption
TX:3watts; RX:3watts((Maximum)
IR Frequency
38kHz-56kHz
Dimension (L×W×H)
103.5x93.5x24.6mm
Net Weight
Receiver:220g, Transmitter:220g
TX
Default IP address:192.168.168.55
MAC address: 00:0b: 78:00:60:01
RX
Default IP address:192.168.168.56
MAC address: 00:0b: 78:00:60:02
Page 7
KanexPro EXT-AVIP120M KanexPro EXT-AVIP120M
13
2) Connect CAT5e or 6 cables to both the Ethernet of the transmitter and Ethernet
port of the Receiver. (The cables must follow the standard of EIA-TIA 568B).
3) Connect the HDMI display (Such as HD-LCD, HD-DLP) into the Receiver.
4) Connect the power supply into Power port.
5) Connect the IR TX cable into IR TX port on the back panel and affix the emitter
onto the source IR windows.
6) Connect IR-RX cable into IR-RX port on the receiver and affix the IR receiver in
direct line of site with the handheld remote control. It is recommended to affix the
receiver on the display frame /bezel or the display stand.
Attention: Insert/Extract cables gently.
12
5. Troubleshooting & Maintenance
Problems
Causes
Solutions
Output
images in
display
show with
ghost
Incorrect setting
on the display
Check the
display’s
setting
A cable of bad
quality
Try another
high-quality
connection
cable
No output
image when
switching
No signal at the
input / output
end
Check with
oscilloscope or
multimeter if
there is any
signal at the
input / output
end.
Fail or loose
connection
Make sure the
connection is
good
The extender is
defective
Send it to
authorized
dealer for
repairing.
Static becomes
stronger when
connecting the video
connectors
Bad grounding
Check the grounding
and make sure it is
connected well.
If your problem persists after following the above troubleshooting steps,
seek further help from authorized dealer or our technical support.
Page 8
KanexPro EXT-AVIP120M KanexPro EXT-AVIP120M
14
6. After-sales Service
If problems arise when operating the device, please refer to this user manual. Any
transport costs are borne by the users during the warranty.
1) Product Limited Warranty: We warrant that products will be free from defects in
materials and workmanship for three years, which starts from the first day the
product exits warehouse. (Make note of the serial number on the product)
Proof of purchase in the form of a bill of sale or receipted invoice MUST be
presented to obtain warranty service.
2) What the warranty does not cover:
Warranty expiration.
Factory applied serial number has been altered or removed from the product.
Damage, deterioration or malfunction caused by:
Normal wear and tear
Use of supplies or parts not meeting our specifications
No certificate or invoice as the proof of warranty.
The product model showed on the warranty card does not match with the
model of the product for repairing or had been altered.
Damage caused by force majeure.
Servicing not authorized
Any other causes which does not relate to a product defect
Delivery, installation or labor charges for installation or setup of the product
3) Technical Support: Email or call our after-sales department if there are any
problems or any unanswered questions. Please inform us the following
information about your cases:
Product version and name.
Detailed failure situations.
The formation of the cases.
Remarks: For any questions or problems, please try to get help from your local
distributor or contact kanexpro.com or call us at 888-975-1368 for further support.
15
7. Warranty
A. LIMITED WARRANTY
KanexPro ™ warrants that (a) its products (the “Product”) will perform greatly in
agreement with the accompanying written materials for a period of 36 months (3
full years) from the date of receipt and (b) that the product will be free from defects
in materials and workmanship under normal use and service for a period of 3
years.
B. CUSTOMER REMEDIES
KanexPro’s entire liability and Customer’s exclusive remedy shall be, at KanexPro
option, either return of the price paid for the product, or repair or replacement of the
Product that does not meet this Limited Warranty and which is returned to
KanexPro with a copy of customers’ receipt. This Limited Warranty is void if failure
of the Product has resulted from accident, abuse, or misapplication. Any
replacement Product will be warranted for the remainder of the original warranty
period of 3 years, whichever is longer.
C. NO OTHER WARRANTIES
To the maximum extent permitted by applicable law, KanexPro disclaims all other
warranties, either express or implied, including, but not limited to implied warranties
of merchantability and fitness for a particular purpose, with regard to the product
and any related written materials. This limited warranty gives customers specific
legal rights. Customers may have other rights depending on the jurisdiction.
D. NO LIABILITY FOR DAMAGES
To the maximum extent permitted by applicable law, in no event shall KanexPro be
liable for any damages whatsoever (including without limitation, special, incidental,
consequential, or indirect damages for personal injury, loss of business profits,
business interruption, loss of business information, or any other pecuniary loss)
arising out of the use of or inability to use this product, even if KanexPro has been
advised of the possibility of such damages.
Page 9
KanexPro EXT-AVIP120M KanexPro EXT-AVIP120M
16
1405 Pioneer Street
Brea, CA 92821
Loading...
