USER MANUAL
K64P818RGBW
I n d e x
summarize ......................................................................... 3
safety instruction ................................................................ 3
outside size picture ............................................................. 4
main function ...................................................................... 5
DMX controller function ....................................................... 5
Display operation instruction............................................... 7
Manual instruction............................................................... 8
Operating control instruction............................................... 9
XRL connection instruction .................................................11
Connection picture .............................................................13
Problem analyse.................................................................14
Technicals secification…………….…………………………..………16
Summarize
Thank you for purchasing our LED PAR lighting. Please read these instructions
carefully before begin
avoid any possible damages and
and operate the fixtures according to these instructions to
accidents causes by misusage.
Products introduce
LED K649818RGBW light uses aluminum shell
hydrodynamic form. Appearance shows: long can, short can or
color filter
of R,G,B,W LED, And long life span, low consumption, good
and high brightness are the most prominent features. Each kind of LED can be
independently dimmed. The built-in program includes dimming, strobe, eotic,
gradual change, fading and so on.
and consumption, stable
signal is requested.
. It adopts high power
capability and long life. International standard DMX 512
4-in-1
LED, which refers to single LED is made
It uses power switch, performs low weight
, designed in a fashion of
short can with
color mixing effect
Packing list
• K64P818RGBW light 1PC
• DMX cable 1PC (Sold separately)
• The use manual
• Warranty Card
Safety Information
! Enquire the skilled people before any repair;
! Always make sure disconnect from the power source before setting up, serving and
moving;.
! Avoid direct eye exposure to the fixture when it is on;
Safety instruction
● Make sure the power supply voltages are consistent with this lights，Ensure the
use of voltage is in the range of the request technical parameter.
●before the installation, please check the light’s fasteners and mechanical
structure have been received in good condition and appear no damage.
●
This light is designed for indoor use,
working
temperature is lower than 40
degree.
●The fixtures maybe mounted in any position provided there is adequate room
for ventilation. Make sure there are no inflammable and explosive items
(ornaments) in 0.5 meters away.
●Yellow / green cabling earthling safety; no flicker when the fixture is working on.
Outside Size Picture
Main Function
• Each color of LED with 256 dimming. RGB can make over 16.7 million colors
• dim 0%-100%, Strobe、gradual change、jumping change
• DMX512 Controller，4 button set DMX ID address with led display
• auto run /sound activated/master slave/interconnected multi-machine
control
• using switching power supply to protect the LED to work well
• lens degree: 25º、45º optional
• 3、4、5、8 CH DMX control channel optional
• body color: black/white, optional
DMX Control Function
3CH
Channel
1CH 0-255 RGB mixing tone
2CH 0-255 White 0——100% color saturation
3CH 0-255 General dimming purity
Note: Chromaticity represents visible light, such as red, green, yellow, cyan etc. Color
saturation refers to the proportion of color chromaticity possession, 100% saturation
means the color has reached the pure color. Purity value refers to the brightness,
when purity reaches 100%, the color is the brightest.
DMX Value Control Function Remark
4CH
Channel
DMX Value Control Function Remark
1CH 0-255 R 0-100%
2CH 0-255 G 0-100%
3CH 0-255 B 0-100%
4CH 0-255 W 0-100%
5CH
Channel
DMX Value Control Function Remark
1CH 0-255 General dimming
2CH 0-255 R 0-100%
3CH 0-255 G 0-100%
4CH 0-255 B 0-100%
5CH 0-255 W 0-100%
8CH
Channel
1CH 0-255
DMX Value Control Function Remarks
（（（（
General dimming
））））
2CH 0-255 Red dimming
0——100%
3CH 0-255 Green dimming
0—100%
4CH 0-255 Blue dimming 0—100%
5CH 0-255 White 0——100%
When 7CH>31
function is invalid.
otherwise no light.
From the 8CH, start
6CH
7CH
0-14 Dimming
15-255 Strobe Speed
0-31 Invalid
32-63 From dark to bright
64-95 From bright to dark
96-127 From
dark—bright—dark
the speed adjustment.
128-159 RGB Gradient
Speed adustment
160-191 dark—bright—dark
auto run
192-223 4 colors jumping
change
224-255 Multi-colors jumping
change
8CH 0-255 Speed Adjustment
（（（（
7CH
））））
，，，，
this
Must use
CH1,2,3,4,5CH,
from 8CH
Display Operation
• MENU : access the menu or return to a previous menu option
• ENTER: select the current menu option
• UP: menu selection or parameter increments
• DOWN: menu selection or parameters decrease
Manual Instruction
MENU
Addr
A001-A512
SLAV SL.AV Slave receiving mode
CHNd 3.4.5.8
SP-- SP-SP15
Pr-- Pr00-Pr15 Built-in program
ASC
AS00-AS1
5
FADE FA00-FA15
DMX Mode
DMX receiving channel
choosing
Built-in program speed
Color Jumping
Gradual Changing mode
FLAS FL00-FL15
White strobe mode
RL r000-r255 Red dimming
gL g000-g255
bL b000-b255
UL
u000-u255
Green dimming
White dimming
White dimming
Operating instruction
1、 MENU is used to access the menu or return to a previous menu option. It can
not be used to select and store the current menu option. Press UP / DOWN to
choose a desired menu item. Here are the operation details :
• “Addr”：DMX mode；（A001-A512）
• “SLAV”： Slave receiving mode
• “CHNd”： DMX receiving channel choosing（3、4、5、8）
• “SP - -“：Modify built-in program speed （SP00-SP15，SP00 is the
fastest）
• “Pr- -“：Built-in program（Pr00-Pr15 is 16 kinds of programs）
• “ASC-“：Multi-color jumping change（AS00-AS15 : speed adjustment）
• “FadE”：Gradual change mode（FA00-FA15: modify speed）
• “FLAS”：White strobe speed（FL00-FL15: modify speed）
• “rL- -“： Adjust red brightness mode（r000-r255, r255 is the brightest）
• “gL- -“：Adjust green brightness mode（g000- g255, g255 is the
brightest）
• “bL- -“：Adjust blue brightness mode（b000- b255, b255 is the
brightest）
• “UL- -“：Adjust white brightness mode（U000-U255, U255 is the
brightest）
2、 Press ENTER to access the further menu setting. This process can be saved
automatically; that means you will enter the process saved previously when
you activate the light next time.
For example, if you want to choose DMX mode A001, operate as follows:
• Press MENU, go back to the initial setting
• Press UP / DOWN until Addr
• Press ENTER to choose, the display will glinting at this moment
• Press UP / DOWN to change the address code to select A001
•
Press ENTER to select and store the current menu options. DMX mode
will be
o
stored
automatically and the screen will stop glinting.
• DMX channel choosing：CHNd mode
• Press MENU，go back to the initial setting
• Press UP/DOWN till “CHNd”
• Press ENTER to choose, the display will glinting at this moment
• Press UP/DOWN to modify DMX receiving channel，3CH、4CH、5CH、8CH
• Press ENTER, if you press ENTER without stop for 3s，DMX channel will be
saved and back to DMX receiving mode（A001）, if you press ENTER(with
stop) or not press ENTER for 8s，DMX chanel will be choosed and saved, then
back to DMX receiving mode（A001）。
3、 Details of built-in program（Pr- -）
• Press MENU，go back to initial setting
• Press UP/DOWN till “pr- - “
• Press ENTER to choose, the display will glinting at this moment
• Press UP/DOWN to modify built-in program till “Pr00”
•
Press ENTER to select and store the current menu options. DMX mode
will be stored
automatically and the screen will stop glinting.
Note：
• Pr14--- Pr30 can modify the content of “SP-- -“，correct the speed of
jumping change , SP00 is the fastest，SP15 is the slowest
• Pr00-Pr13：RGBW single color or multi-color mixing
• Pr14-Pr27：Pr00 - Pr13 corresponds, increasing strobe function
• Pr28：4 colors jumping change
Operating Control Instruction
Master/Slave
Master：The master should set as built-in program and shows” P - X – X” send out
synchronization signals. To avoid the host signal and DMX512 signals interfere
with each other, should cut off the DMX512 signals. The signal lines are longer
than 60 meters should increase a signal amplifier.
Slave：It must be in the SLAV mode and the address code should be A001 to assure
receive the master’s signals correctly. Only one light can be set as a Master and
others are slaves.
XLR cable connecting
XRL cable：：：：
The stand connection way of the XRL is: one end connects to the male plug, and
the other connects to the female.

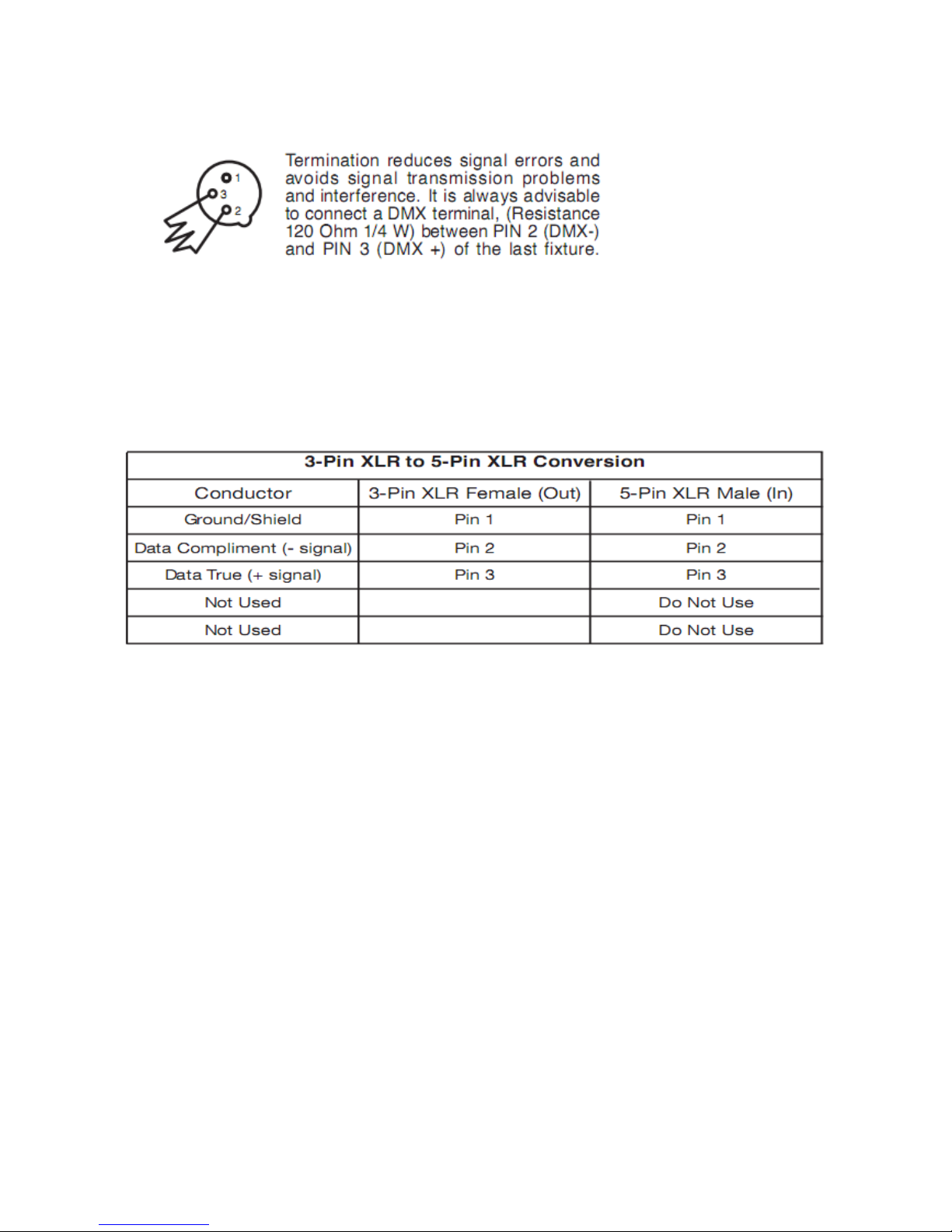

Noted：In order to avoid failures and interference signal transmission，we connect
a resistance120Ω（1/4W） at the end of the DMX connecting as below:
The Conversion between 3pin and 5 pin XLR
If the output cable of DMX512 controller is the 5PIN, please use 1pc 5PIN to
3PIN cable
Connecting picture
Cable connecting picture：
Problem Analyze
Problem Checking way
Can not turn on the
light
DMX can not control
it
Display not bright
Check the power source plug is in normal or not
Check the switch of the lights is off or on
Check it the fuse if in normal
Check the DMX cable is connect to the lights or not
Check the DMX512 controller work in normal or not
Check the DMX cable is normal or not
Check if the lights is in DMX mode（ A001）
When connect to the electricity，did the led flash one time?
If so，the power source is normal; If not，please check if the
switch and the transformer has power out
Check if the power input of the IC board is normal
Check if the cable connect to the display loose
LED not light
Change the main board to see if it is normal.
Chang the display
When connect to the electricity，did the led flash one time?
If so，the power source is normal; If not，please check if the
switch and the transformer has power out
Check if the power input of the IC board is normal
Check if the cable connect to the display loose
Change the main board to see if it is normal.
Chang the display
LED is connect by leds in series first, then connect parallel,
so please check if the leds is loose
Some of the LED not
light
Use the multimeter to check if the led is bright or not, of
not, please change the led
check whether current limiting resistor is normal or not
Check constant current IC is normal or not (compared with
the normal IC)
Single color leds
always bright/not
Check the switch of this color is normal or not
Change the IC control board
bright
Noted: only professional persons can do as above！
Technical Specification
• Input voltage: AC 100-264v / 47-63Hz
• Output voltage: DC24V
• Consume: 144W
• Lamp Type: High Power LED (8W)
• Lamp Spec: 4-in-1 8W（18PCS）
• Constant current driver: 500MA
• Refresh rate : >400HZ
• Life span: 50000~100000hours
• Control Signal：DMX512, sound activated, auto run
• Control mode：stand alone/ sound activated
• Channel：3, 4,5, 8CH
• Color effect：RGBW mixing
• Function Effect: dimmer, strobe, eotic, gradual change, sound activated
• Beam Angle: 15°, 25°, 45°
• Cooling mode: Natural Convection
• Anti-electricity intension：1.5KV
• Insulation Resistance:
＞２
MΩ
• Size: 30*22*23cm
• Net Weight: 2.5KG
Copyright 2012 KANDOLITE. All rights
reserved. Due to continuous improvements
and innovations, specifications may change
without notice.
Loading...
